8-90 — RADIO AND TV (#28455) — 31 parça

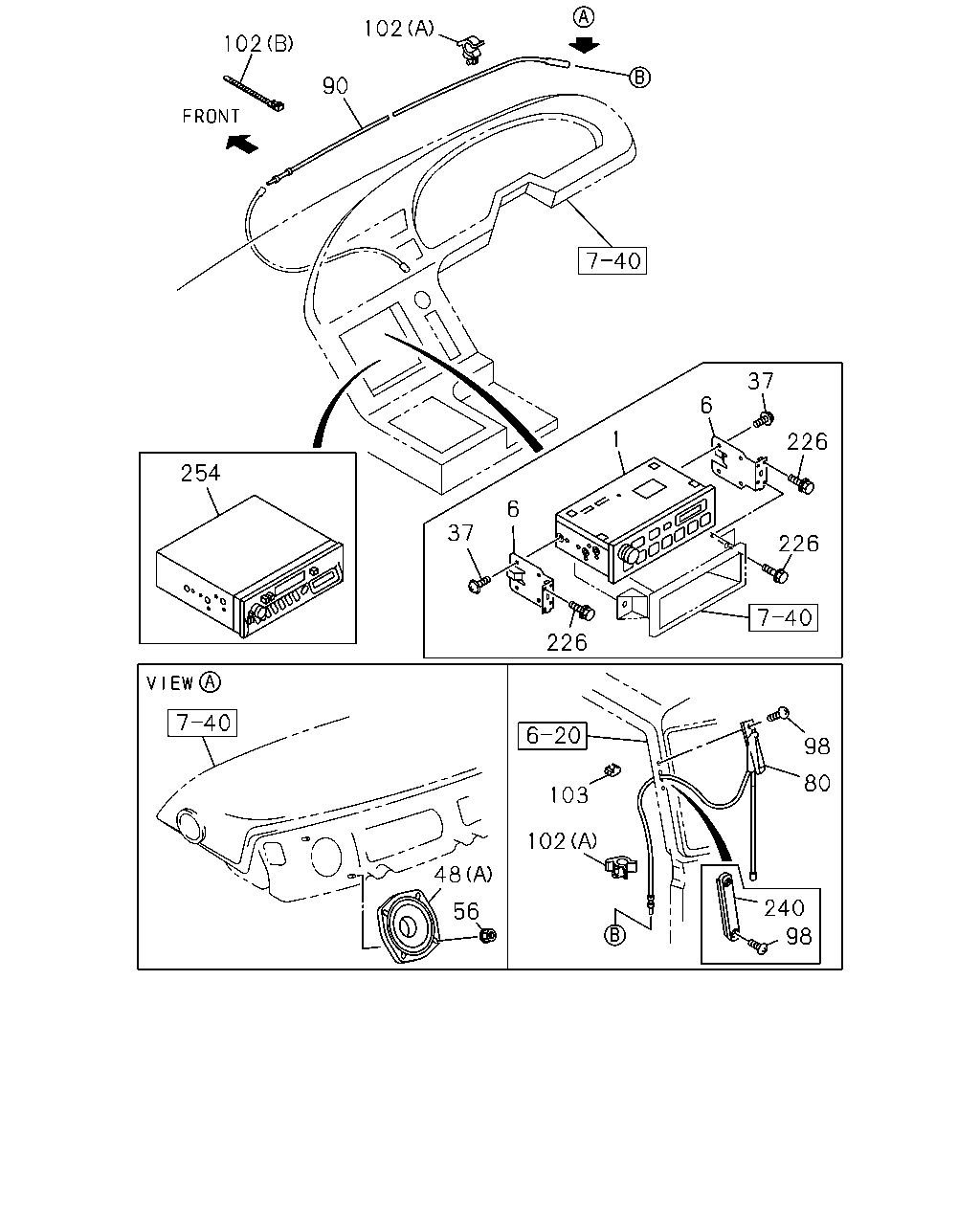

çizim 79211
102 102 90 37 6 1 226 254 6 37 226 226 98 80 103 102 48 240 56 98
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIO
RADIO CLARION(SK2) 		1-84112-063-0 01 1 0106- ● ●
6 BRACKET; RADIO TO PANEL 1-65671-551-4 02 1 0106- ● ●
37 SCREW; CASSETTE & RADIO
RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 0106- ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> (A) 		1-84114-062-0 02 1 0106- ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM 1 SPEAKER<NBU> (A) 		1-84114-050-0 01 1 0106- ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV> (B) 		1-84114-057-0 02 1 0106- ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) 		1-84114-050-0 02 1 0106- ● ●
48 SPEAKER; AUDIO
RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) 		1-84114-050-0 02 1 0106- ● ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>,SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5 FLANGE 		1-09984-170-0 04 1 0106- ● ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5 FLANGE 		1-09984-170-0 04 1 0106- ● ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM 1 SPEAKER<NBU> M5 FLANGE 		1-09984-170-0 02 1 0106- ● ●
80 ANTENNA
ANTENNA RADIO<U73> 		1-84115-055-2 01 1 0106- ● ●
90 CABLE; ANTENNA,FEEDER
ANTENNA RADIO<U73> 		1-84113-011-2 01 1 0106- ● ●
98 SCREW; TAP,ANTENNA
M5X11 		1-09981-536-1 02 1 0106- ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) W/PACKING ID=4.8 		1-73907-618-0 05 1 0106- ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) WO/PACKING ID=4.8 		8-94128-483-0 03 1 0106- ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) L=140 		5-09707-031-1 01 1 0106- ● ●
103 GROMMET; ANTENNA HOLE,FRT
ANTENNA RADIO<U73> 		8-97027-381-0 01 1 0106- ● ●
226 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0106- ● ●
240 COVER; ANTENNA
EXC. ANTENNA RADIO<U73> 		1-79996-296-0 01 1 0106- ● ●
254 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM STEREO & TAPE PLAYER(UN3) CLARION 		1-84122-032-3 01 1 0106- ● ●
çizim 82906
68 215 52 48 215 49
BalonParca AdiParca NoAdetTipApplied Date A B
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> (A) 		1-84114-062-0 02 1 0106- ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM 1 SPEAKER<NBU> (A) 		1-84114-050-0 01 1 0106- ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV> (B) 		1-84114-057-0 02 1 0106- ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) 		1-84114-050-0 02 1 0106- ● ●
48 SPEAKER; AUDIO
RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) 		1-84114-050-0 02 1 0106- ● ●
49 SCREW; SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> M5X16 W/LK&PL WASHER 		8-94279-400-0 08 1 0106- ● ●
52 GROMMET; SCREW,SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> D=8X8 L=7.5 M5 		8-94279-078-0 08 1 0106- ● ●
68 BRACKET; RR SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> 		1-73347-786-2 01 1 0106- ● ●
68 BRACKET; RR SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> 		1-73347-785-2 01 1 0106- ● ●
215 SCREW; BRKT,SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 08 1 0106- ● ●
