Sayfa 3-80 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10660 - CXZ RHD ▶ 3 - Brakes, Brake System ▶ 3-80 - BRAKE PIPING; TRAILER ▶

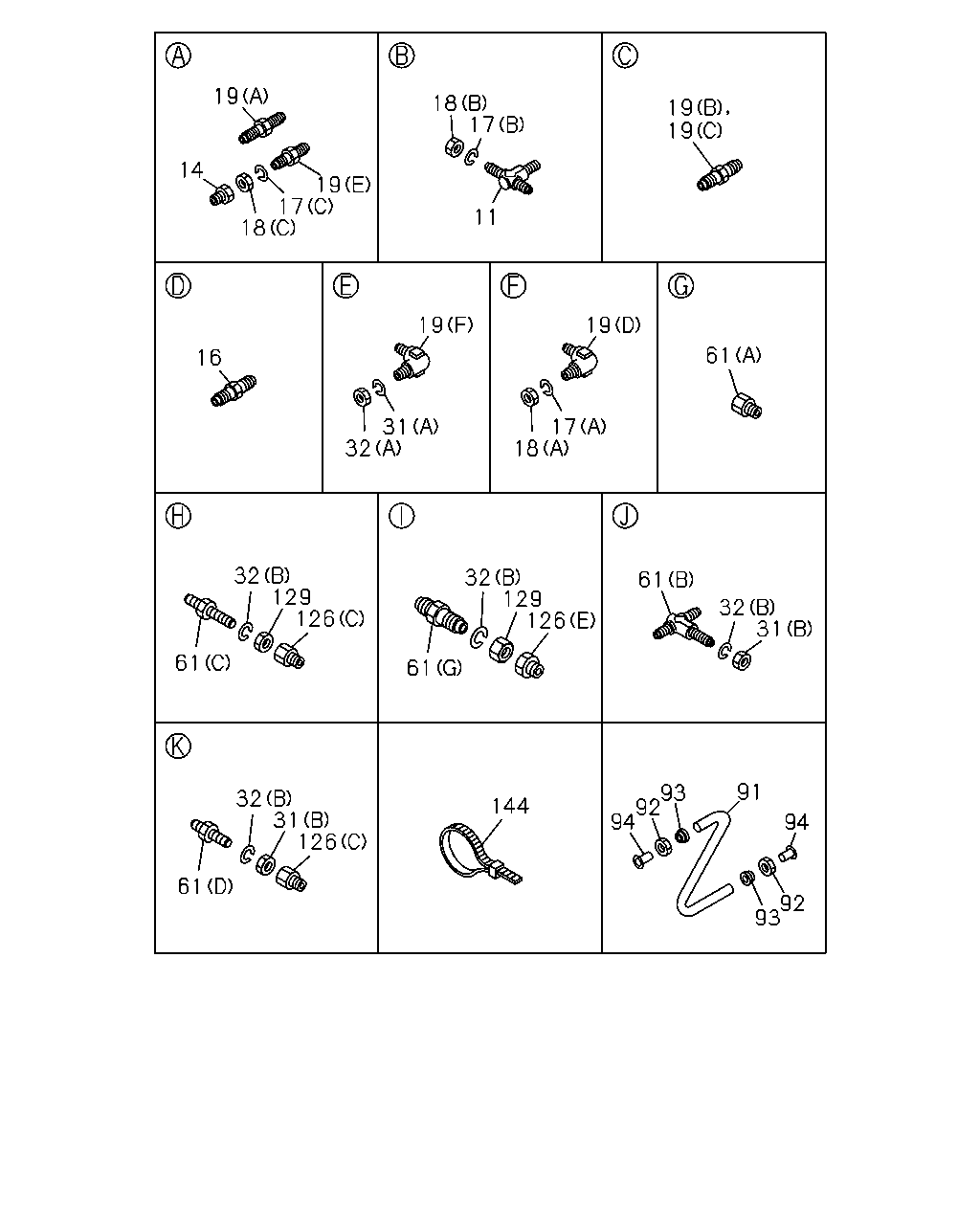

3-80 — BRAKE PIPING; TRAILER (#2845) — 148 parça

93 92 94 91 93 92 94 144 126 31 32 61 61 32 126 129 32 61 129 126 31 32 61 18 17 19 61 19 31 32 16 14 19 18 17 19 18 17 11 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	UNION; AIR PIPE THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> M14 2WAY	1-09654-176-2	01	1	9307-
14	CONNECTOR; AIR PIPE FULL TRACTOR TRUCK<RD6> M14 & M14 STRAIGHT	1-09660-219-0	01	1	9002-9306
16	UNION; AIR PIPE THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> M12 STRAIGHT	9-09233-008-1	01	1	9307-9509
16	UNION; AIR PIPE THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> M14 STRAIGHT	9-09223-008-1	01	1	9510-
17	WASHER; LK,UNION FULL TRACTOR TRUCK<RD6> (C) ID=14.2	9-09150-514-0	01	1	9002-9306
17	WASHER; LK,UNION THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> (B) ID=12.2	9-09150-512-0	01	1	9307-9312
17	WASHER; LK,UNION THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> (A) ID=16.2	9-09150-516-0	01	1	9307-9312
18	NUT; UNION FULL TRACTOR TRUCK<RD6> (C) M14	9-99110-414-0	01	1	9002-9306
18	NUT; UNION THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> (A) M16	9-99111-416-0	01	1	9307-
18	NUT; UNION THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> (B) M12	9-99110-512-0	01	1	9307-
19	UNION; AIR PIPE FULL TRACTOR TRUCK<RD6> (E) M14	9-09223-208-1	01	1	9002-9306
19	UNION; AIR PIPE THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> (F)	1-09654-229-1	01	1	9307-
19	UNION; AIR PIPE THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> (A) M12 STRAIGHT	9-09233-008-1	01	1	9307-9509
19	UNION; AIR PIPE THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> (A) M14 STRAIGHT	9-09223-008-1	01	1	9510-
19	UNION; AIR PIPE THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> (B) M16 L=42	9-09233-010-1	03	1	9307-
19	UNION; AIR PIPE THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> (C) M22	9-09233-015-1	01	1	9307-
19	UNION; AIR PIPE THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> (D) M16 ELBOW	9-09235-210-1	01	1	9307-
31	NUT; UNION FULL TRACTOR TRUCK<RD6> (B) M12	9-99110-412-0	01	1	9002-9005
31	NUT; UNION NYLON TUBE AIR PIPING<Z29> (B)	9-99110-314-0	01	1	9307-
31	NUT; UNION NYLON TUBE AIR PIPING<Z29> (B) M20	9-99110-420-0	01	1	9307-
31	NUT; UNION THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> (A) M16	9-99111-416-0	01	1	9307-
32	WASHER; LK,UNION FULL TRACTOR TRUCK<RD6> (B) ID=12.2	9-09150-512-0	01	1	9002-9005
32	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> (B) ID=14.2	9-09150-514-0	01	1	9002-9312
32	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> (B) ID=20.2	9-09150-520-0	01	1	9307-
32	WASHER; LK,UNION THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> (A) ID=16.2	9-09150-516-0	01	1	9307-9312
61	UNION; NYLON TUBE FULL TRACTOR TRUCK<RD6> (A)	1-09664-067-0	01	1	9002-9005
61	UNION; NYLON TUBE FULL TRACTOR TRUCK<RD6> (F)	1-47470-232-0	01	1	9002-9008
61	UNION; NYLON TUBE FULL TRACTOR TRUCK<RD6> (F)	1-47470-301-0	01	1	9009-9306
61	UNION; NYLON TUBE FULL TRACTOR TRUCK<RD6> (G)	9-09223-208-1	01	1	9002-9306
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) UNS 17/32-24 L=57	1-09664-083-0	01	1	9307-
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09664-087-0	01	1	9307-
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (E)	1-47470-312-0	01	1	9307-
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D)	9-09233-212-1	01	1	9307-
91	TUBE; NYLON FULL TRACTOR TRUCK<RD6> BLACK OD=12MM SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306
91	TUBE; NYLON FULL TRACTOR TRUCK<RD6> BLACK OD=8MM SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9307-
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-323-0	AR	1	9307-
92	NUT; SLEEVE FULL TRACTOR TRUCK<RD6> M14	1-09660-212-0	AR	1	9002-9306
92	NUT; SLEEVE FULL TRACTOR TRUCK<RD6> M18	1-09660-213-0	AR	1	9002-9306
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	AR	1	9307-
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09660-558-0	AR	1	9307-
93	SLEEVE; TUBE FULL TRACTOR TRUCK<RD6> FOR 8MM TUBE	1-09666-042-0	AR	1	9002-9306
93	SLEEVE; TUBE FULL TRACTOR TRUCK<RD6> FOR 12MM TUBE	1-09666-043-0	AR	1	9002-9306
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9307-
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9307-
94	RING; INSERT FULL TRACTOR TRUCK<RD6> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-9306
94	RING; INSERT FULL TRACTOR TRUCK<RD6> FOR 12MM TUBE	1-09669-055-0	AR	1	9002-9306
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	AR	1	9307-
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	AR	1	9307-
126	CONNECTOR; NYLON TUBE FULL TRACTOR TRUCK<RD6> (E) M14 & M14 STRAIGHT	1-09660-219-0	01	1	9002-9008
126	CONNECTOR; NYLON TUBE FULL TRACTOR TRUCK<RD6> (E) M14 & M14 STRAIGHT	1-09660-219-0	02	1	9009-9306
126	CONNECTOR; NYLON TUBE FULL TRACTOR TRUCK<RD6> (F)	1-09660-584-1	01	1	9009-9302
126	CONNECTOR; NYLON TUBE FULL TRACTOR TRUCK<RD6> (F)	1-09660-699-0	01	1	9303-9306
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	1-09650-373-0	01	1	9307-
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M20X36	1-09660-576-0	03	1	9307-
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-606-0	01	1	9307-
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D)	1-09660-607-0	01	1	9307-
129	NUT; UNION,NYLON TUBE FULL TRACTOR TRUCK<RD6> M6 FLANGE	1-09984-141-0	01	1	9002-9306
129	NUT; UNION,NYLON TUBE FULL TRACTOR TRUCK<RD6> M14	9-99111-414-0	04	1	9002-9306
129	NUT; UNION,NYLON TUBE NYLON TUBE AIR PIPING<Z29> UNS 17/32-24 B=17	1-09487-023-0	01	1	9307-
144	CLIP; BAND NYLON TUBE AIR PIPING<Z29> L=140	5-09707-031-0	05	1	9307-9312
144	CLIP; BAND NYLON TUBE AIR PIPING<Z29> L=140	5-09707-031-1	06	1	9401-

91 91 126 61 126 91 126 140 126 91 106 105 106 105 106 91 61 126 124 91 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
61	UNION; NYLON TUBE FULL TRACTOR TRUCK<RD6> (A)	1-09664-067-0	01	1	9002-9005
61	UNION; NYLON TUBE FULL TRACTOR TRUCK<RD6> (F)	1-47470-232-0	01	1	9002-9008
61	UNION; NYLON TUBE FULL TRACTOR TRUCK<RD6> (F)	1-47470-301-0	01	1	9009-9306
61	UNION; NYLON TUBE FULL TRACTOR TRUCK<RD6> (G)	9-09223-208-1	01	1	9002-9306
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) UNS 17/32-24 L=57	1-09664-083-0	01	1	9307-
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09664-087-0	01	1	9307-
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (E)	1-47470-312-0	01	1	9307-
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D)	9-09233-212-1	01	1	9307-
91	TUBE; NYLON FULL TRACTOR TRUCK<RD6> BLACK OD=12MM SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306
91	TUBE; NYLON FULL TRACTOR TRUCK<RD6> BLACK OD=8MM SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9307-
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-323-0	AR	1	9307-
105	PIPE; VINYL,EXH,PARKING BRK VLV FULL TRACTOR TRUCK<RD6> L=1150 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9303
105	PIPE; VINYL,EXH,PARKING BRK VLV FULL TRACTOR TRUCK<RD6> L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9304-9306
105	PIPE; VINYL,EXH,PARKING BRK VLV NYLON TUBE AIR PIPING<Z29> L=800 SERVICED BY L=10000	9-09914-701-0	01	1	9307-
106	CLIP; PIPE FULL TRACTOR TRUCK<RD6> ID=15	9-09715-098-0	02	1	9002-
124	BOLT; TUBE UNION FULL TRACTOR TRUCK<RD6> M6X16 W/LK WASHER	0-50000-616-0	02	1	9002-9204
124	BOLT; TUBE UNION FULL TRACTOR TRUCK<RD6> M6X16 W/LK WASHER	0-50080-616-0	02	1	9205-9301
124	BOLT; TUBE UNION FULL TRACTOR TRUCK<RD6> M6X16 W/LK WASHER	0-50040-616-0	02	1	9302-9302
124	BOLT; TUBE UNION FULL TRACTOR TRUCK<RD6> M6X16 FLANGE	0-28080-616-0	02	1	9303-9306
126	CONNECTOR; NYLON TUBE FULL TRACTOR TRUCK<RD6> (E) M14 & M14 STRAIGHT	1-09660-219-0	01	1	9002-9008
126	CONNECTOR; NYLON TUBE FULL TRACTOR TRUCK<RD6> (E) M14 & M14 STRAIGHT	1-09660-219-0	02	1	9009-9306
126	CONNECTOR; NYLON TUBE FULL TRACTOR TRUCK<RD6> (F)	1-09660-584-1	01	1	9009-9302
126	CONNECTOR; NYLON TUBE FULL TRACTOR TRUCK<RD6> (F)	1-09660-699-0	01	1	9303-9306
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	1-09650-373-0	01	1	9307-
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M20X36	1-09660-576-0	03	1	9307-
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-606-0	01	1	9307-
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D)	1-09660-607-0	01	1	9307-
140	BOLT; UNION NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9307-9312
140	BOLT; UNION NYLON TUBE AIR PIPING<Z29> M6X20 FLANGE	0-28080-620-0	02	1	9401-

50 53 146 59 60 145 68 50 147 145 37 46 10 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	PIPE; AIR,UNION TO DBL CHECK VLV THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> L=1436 SERVICED BY L=1550	1-47426-390-0	01	1	9307-9307
10	PIPE; AIR,UNION TO DBL CHECK VLV THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> L=1428 SERVICED BY L=1550	1-47426-390-0	01	1	9308-
37	PIPE; AIR,UNION TO UNION THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> L=962 SERVICED BY L=970	1-47426-385-0	01	1	9307-
46	PIPE; AIR,FLEX HOSE TO UNION FULL TRACTOR TRUCK<RD6> CAB UP 110MM(W60) (B) L=1453 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9306
46	PIPE; AIR,FLEX HOSE TO UNION FULL TRACTOR TRUCK<RD6> EXC. CAB UP 110MM(W60) (B) L=1310	1-47487-293-0	01	1	9002-9306
46	PIPE; AIR,FLEX HOSE TO UNION THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> (A)	1-47495-885-0	01	1	9307-
50	PIPE; AIR,UNION TO RELAY VLV THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> (B) L=1342 SERVICED BY L=1400	1-47426-418-0	01	1	9307-9307
50	PIPE; AIR,UNION TO RELAY VLV THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> (B) L=1537 SERVICED BY L=1650	1-49111-464-0	01	1	9308-
50	PIPE; AIR,UNION TO RELAY VLV THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> (A) L=1541	1-47493-402-0	01	1	9307-9307
50	PIPE; AIR,UNION TO RELAY VLV THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> (A) L=1528 SERVICED BY L=1550	1-47426-419-0	01	1	9308-
53	PIPE; AIR,UNION TO UNION THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> L=1616 SERVICED BY L=1700	1-47426-420-0	01	1	9307-
59	PIPE; AIR,UNION TO UNION THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> L=936 SERVICED BY L=1000	1-47426-414-0	01	1	9307-
60	PIPE; AIR,UNION TO DUAL RELAY VLV THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> L=1527	1-47495-894-0	01	1	9307-
68	PIPE; AIR,UNION TO UNION THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> L=1604 SERVICED BY L=1700	1-47426-391-0	01	1	9307-
145	PIPE; AIR,RELAY VLV TO UNION THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> (B) L=490 SERVICED BY L=500	1-47426-406-0	01	1	9307-
145	PIPE; AIR,RELAY VLV TO UNION THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> (A)	1-47493-423-1	01	1	9307-
146	PIPE; AIR,DBL CHECK VLV THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> L=2074 SERVICED BY L=2100	1-47426-422-0	01	1	9307-
147	PIPE; AIR,PRESSURE CONT VLV TO UNION THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> L=1431 SERVICED BY L=1550	1-47426-390-0	01	1	9307-

91 91 91 91 91 91 91 91 91 91 91 91 91 46 91 91 91 91 91 91 91 91 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
46	PIPE; AIR,FLEX HOSE TO UNION FULL TRACTOR TRUCK<RD6> CAB UP 110MM(W60) (B) L=1453 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9306
46	PIPE; AIR,FLEX HOSE TO UNION FULL TRACTOR TRUCK<RD6> EXC. CAB UP 110MM(W60) (B) L=1310	1-47487-293-0	01	1	9002-9306
46	PIPE; AIR,FLEX HOSE TO UNION THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> (A)	1-47495-885-0	01	1	9307-
91	TUBE; NYLON FULL TRACTOR TRUCK<RD6> BLACK OD=12MM SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306
91	TUBE; NYLON FULL TRACTOR TRUCK<RD6> BLACK OD=8MM SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9307-
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-323-0	AR	1	9307-

115 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
99	PIPE; AIR,JOINT TO JOINT EXC. NYLON TUBE AIR PIPING<Z29> L=1975 SERVICED BY L=2150	1-47437-958-0	01	1	9002-9212
99	PIPE; AIR,JOINT TO JOINT EXC. NYLON TUBE AIR PIPING<Z29> L=1975 SERVICED BY L=2150	1-47426-394-0	01	1	9301-9306
115	BRACKET; PIPE JOINT EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-259-0	01	1	9002-9306

145 68 56 56 82 26 83 86 87 82 83 80 84 26 79 85 80 81 29 85 81 29 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	BOLT; CHAIN FULL TRACTOR TRUCK<RD6> M10X33	9-09808-590-0	02	1	9002-
29	CONNECTOR; COCK FULL TRACTOR TRUCK<RD6>	1-09660-236-0	02	1	9002-9306
29	CONNECTOR; COCK FULL TRACTOR TRUCK<RD6>	1-09660-571-0	02	1	9307-
56	PIPE; AIR,UNION TO COCK THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> (A) L=261 SERVICED BY L=300	1-47426-402-0	01	1	9307-
56	PIPE; AIR,UNION TO COCK THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> (B) L=416 SERVICED BY L=450	1-47426-405-0	01	1	9307-
68	PIPE; AIR,UNION TO UNION THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> L=1604 SERVICED BY L=1700	1-47426-391-0	01	1	9307-
79	COUPLING; AIR,TRAILER FULL TRACTOR TRUCK<RD6> (A) RED	1-47465-151-0	01	1	9002-
79	COUPLING; AIR,TRAILER FULL TRACTOR TRUCK<RD6> (B) BLUE	1-47465-152-0	01	1	9002-
80	NIPPLE; AIR COUPLING FULL TRACTOR TRUCK<RD6> (B)	1-09656-377-1	01	1	9002-
80	NIPPLE; AIR COUPLING FULL TRACTOR TRUCK<RD6> (A)	1-09664-171-1	01	1	9002-
81	COCK; AIR COUPLING FULL TRACTOR TRUCK<RD6> RED	9-09904-194-0	01	1	9002-9409
81	COCK; AIR COUPLING FULL TRACTOR TRUCK<RD6> RED	1-09680-070-0	01	1	9410-9512
81	COCK; AIR COUPLING FULL TRACTOR TRUCK<RD6> RED	1-09680-079-0	01	1	9601-
81	COCK; AIR COUPLING FULL TRACTOR TRUCK<RD6> BLUE	9-09904-195-0	01	1	9002-9409
81	COCK; AIR COUPLING FULL TRACTOR TRUCK<RD6> BLUE	1-09680-068-0	01	1	9410-9512
81	COCK; AIR COUPLING FULL TRACTOR TRUCK<RD6> BLUE	1-09680-078-0	01	1	9601-
82	NUT; LK,CONNECTOR FULL TRACTOR TRUCK<RD6> M16	9-99111-416-0	02	1	9002-
83	WASHER; LK,CONNECTOR FULL TRACTOR TRUCK<RD6> ID=10.2	9-09150-510-0	02	1	9002-
83	WASHER; LK,CONNECTOR FULL TRACTOR TRUCK<RD6> ID=16.2	9-09150-516-0	02	1	9002-
84	BRACKET; COUPLER FULL TRACTOR TRUCK<RD6>	1-47465-883-1	01	1	9002-
85	CHAIN; AIR HOSE FULL TRACTOR TRUCK<RD6>	1-47469-010-0	02	1	9002-
86	WASHER; PL FULL TRACTOR TRUCK<RD6> ID=10.5 OD=22	9-09164-610-0	02	1	9002-
87	NUT FULL TRACTOR TRUCK<RD6> M10	9-09110-410-0	02	1	9002-
145	PIPE; AIR,RELAY VLV TO UNION THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> (B) L=490 SERVICED BY L=500	1-47426-406-0	01	1	9307-
145	PIPE; AIR,RELAY VLV TO UNION THAILAND EQUIPMENT(PM9) FULL TRACTOR TRUCK<RD6> (A)	1-47493-423-1	01	1	9307-
