Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#28448) — 153 parça

189 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-635-0	01	1	0106-	●	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83572-412-0	01	1	0106-	●	●
189	GROMMET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	9-09575-397-0	01	1	0106-	●	●

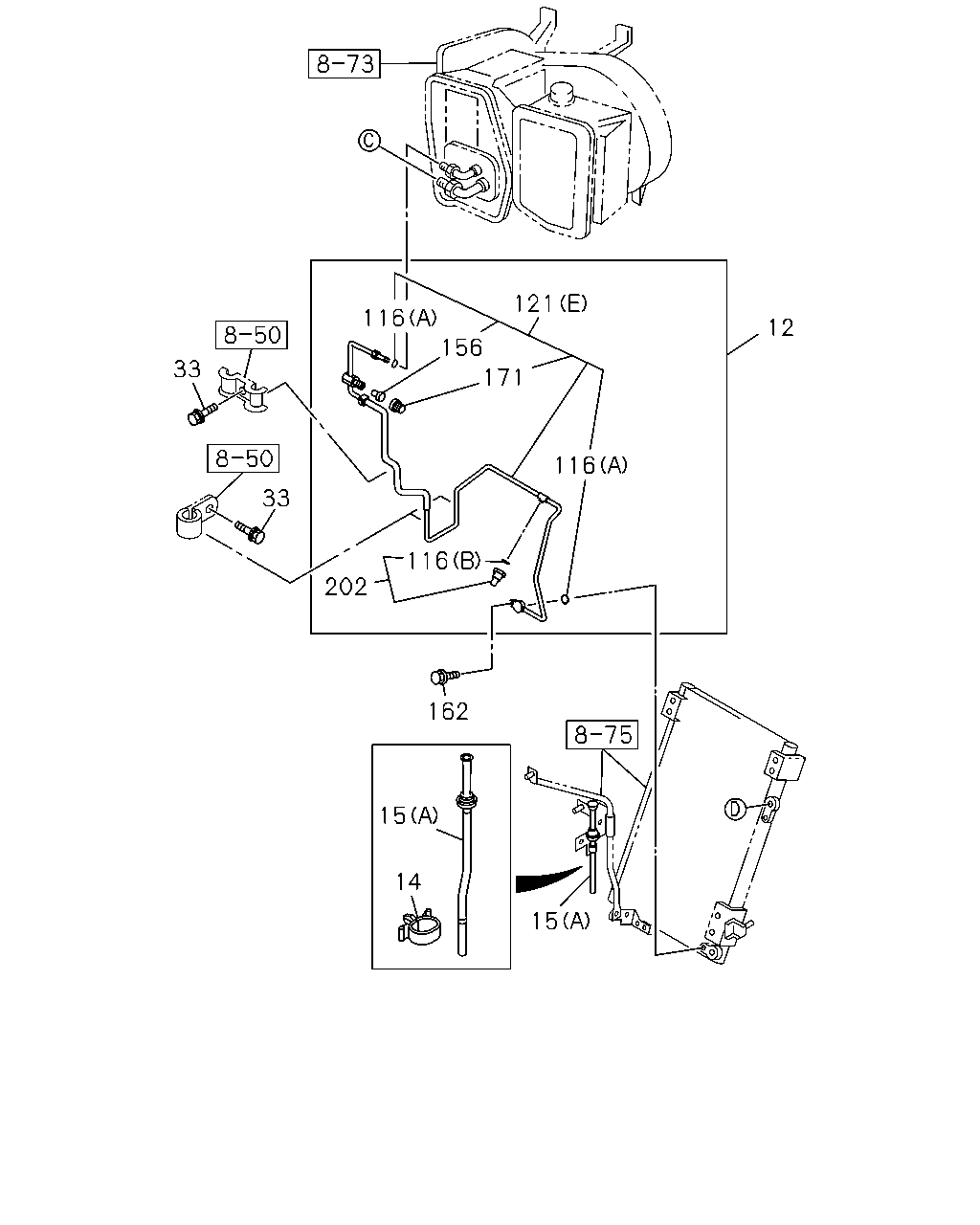

116 121 12 156 33 171 116 33 116 202 162 15 14 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-668-0	01	1	0106-0209	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-852-1	01	1	0210-	●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	0106-	●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-635-0	01	1	0106-	●	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83572-412-0	01	1	0106-	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK&PL WASHER	8-94279-208-0	03	1	0106-0209	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK&PL WASHER	8-94279-208-0	02	1	0210-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4	8-97095-906-0	02	1	0210-	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97178-772-0	01	1	0210-	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=14.5	1-83539-324-0	01	1	0210-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97161-776-0	02	1	0106-0209	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=11.7	1-83539-317-0	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83567-863-1	01	1	0210-	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-663-1	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-664-1	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83572-835-0	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-836-0	01	1	0210-	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0106-0209	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	0210-	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28680-625-0	02	1	0210-	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97083-101-0	01	1	0106-0209	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97095-911-0	01	1	0210-	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-392-0	01	1	0210-	●

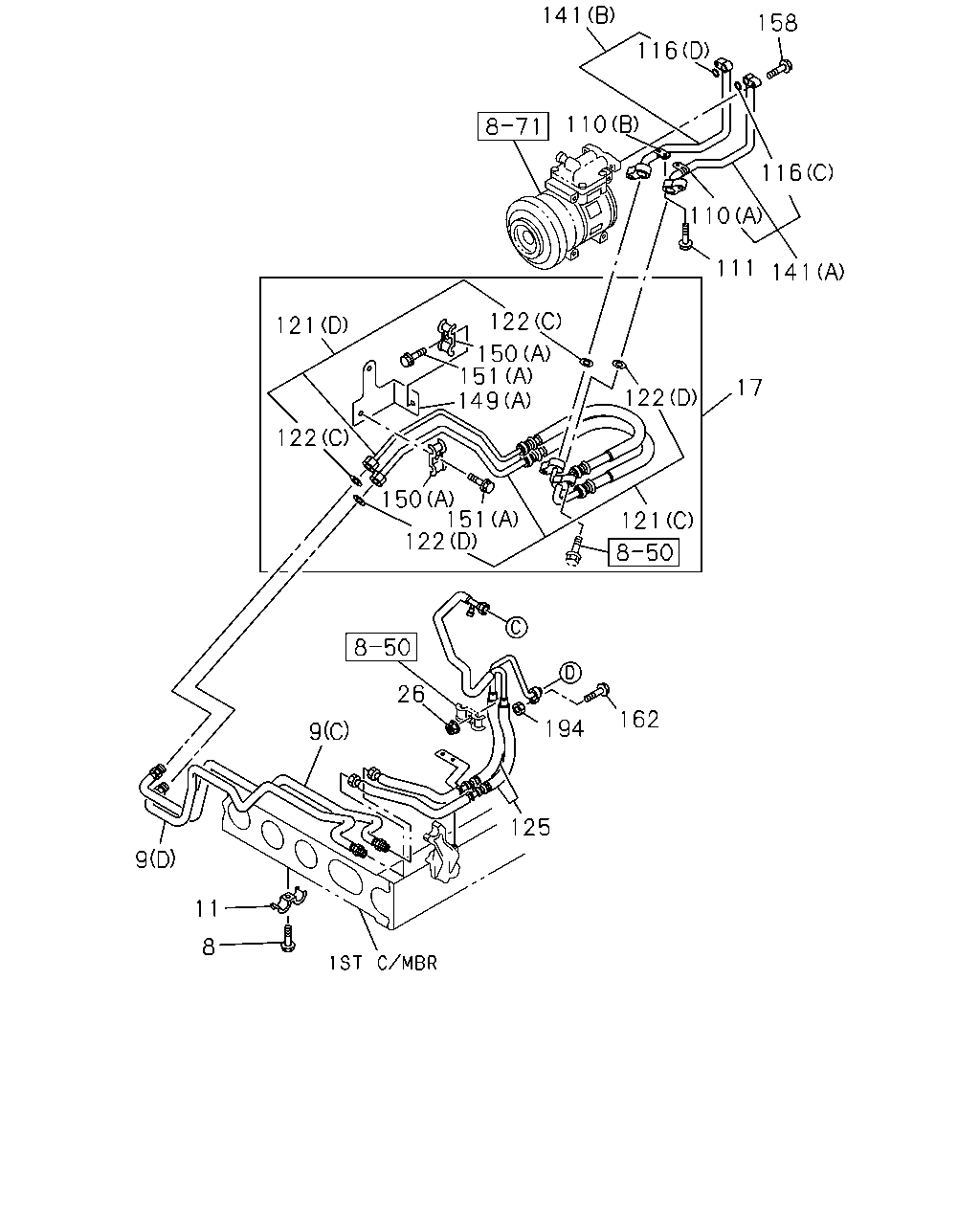

141 158 116 110 116 110 111 141 122 121 150 151 149 17 122 122 150 15 122 121 26 162 194 9 125 9 11 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE	0-28080-818-0	01	1	0106-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-553-0	01	1	0106-0209	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83567-632-1	01	1	0210-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-557-0	01	1	0106-0209	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83567-633-1	01	1	0210-	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	01	1	0106-	●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-635-0	01	1	0106-	●	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83572-412-0	01	1	0106-	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-646-0	01	1	0106-0209	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-695-0	01	1	0210-	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	0106-	●	●
110	CLAMP; PIPE TO MTG BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-243-0	01	1	0210-	●	●
110	CLAMP; PIPE TO MTG BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-244-0	01	1	0210-	●	●
111	BOLT; CLAMP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	1-83539-326-0	01	1	0210-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4	8-97095-906-0	02	1	0210-	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97178-772-0	01	1	0210-	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=14.5	1-83539-324-0	01	1	0210-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97161-776-0	02	1	0106-0209	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=11.7	1-83539-317-0	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83567-863-1	01	1	0210-	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-663-1	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-664-1	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83572-835-0	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-836-0	01	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7	8-97095-907-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7	8-97095-907-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5	8-97095-908-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5	8-97095-908-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	02	1	0106-0209	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	02	1	0106-0209	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3	8-97161-778-0	02	1	0106-0209	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3	8-97161-778-0	02	1	0106-0209	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-543-0	01	1	0106-0209	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-443-1	01	1	0210-0302	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-966-0	01	1	0303-	●	●
141	PIPE; COOLER,CMPR HOSE TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83567-843-0	01	1	0210-	●	●
141	PIPE; COOLER,CMPR HOSE TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-844-0	01	1	0210-	●	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-016-0	01	1	0210-	●	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-023-0	01	1	0210-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-262-0	01	1	0210-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83574-263-0	01	1	0210-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-246-0	02	1	0210-	●	●
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-336-0	02	1	0210-	●	●
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-328-0	02	1	0210-	●	●
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONTROL(C60) M6X30 FLANGE	1-83539-325-0	02	1	0210-	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28680-625-0	02	1	0210-	●
194	NUT; HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE	0-91150-106-0	01	1	0210-	●

125 122 121 122 148 147 151 122 121 150 151 150 122 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83567-863-1	01	1	0210-	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-663-1	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-664-1	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83572-835-0	01	1	0210-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-836-0	01	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7	8-97095-907-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7	8-97095-907-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5	8-97095-908-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5	8-97095-908-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	02	1	0106-0209	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	02	1	0106-0209	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3	8-97161-778-0	02	1	0106-0209	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3	8-97161-778-0	02	1	0106-0209	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-543-0	01	1	0106-0209	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-443-1	01	1	0210-0302	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-966-0	01	1	0303-	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	0106-0209	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	1-83539-331-0	01	1	0210-0301	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97095-910-0	01	1	0302-	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0106-0209	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-330-0	01	1	0210-0301	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	0302-	●	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-016-0	01	1	0210-	●	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-023-0	01	1	0210-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-262-0	01	1	0210-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83574-263-0	01	1	0210-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-246-0	02	1	0210-	●	●
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-336-0	02	1	0210-	●	●
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-328-0	02	1	0210-	●	●

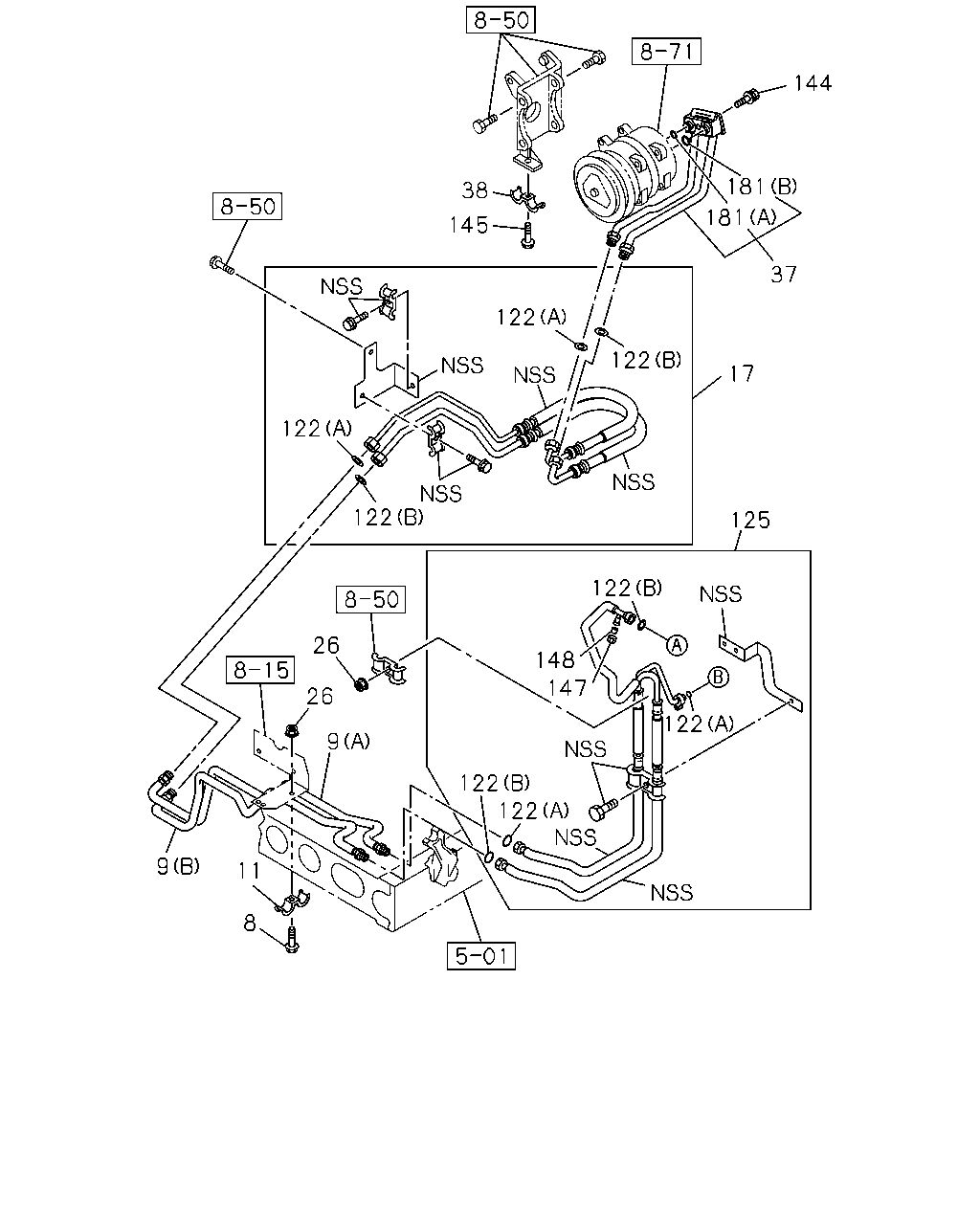

144 181 38 181 145 37 122 122 17 122 122 125 122 26 147 148 26 122 9 122 122 9 11 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE	0-28080-818-0	01	1	0106-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-553-0	01	1	0106-0209	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83567-632-1	01	1	0210-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-557-0	01	1	0106-0209	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83567-633-1	01	1	0210-	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	01	1	0106-	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-646-0	01	1	0106-0209	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-695-0	01	1	0210-	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	0106-	●	●
37	CONNECTOR; CMPR TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83563-173-0	01	1	0106-0209	●	●
38	CLIP; CONNECTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-177-0	01	1	0106-0209	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7	8-97095-907-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7	8-97095-907-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5	8-97095-908-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5	8-97095-908-0	02	1	0210-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	02	1	0106-0209	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	02	1	0106-0209	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3	8-97161-778-0	02	1	0106-0209	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3	8-97161-778-0	02	1	0106-0209	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-543-0	01	1	0106-0209	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-443-1	01	1	0210-0302	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-966-0	01	1	0303-	●	●
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) M10X45	9-01961-045-0	01	1	0106-0209	●	●
145	BOLT; CLIP,CONNECTOR AIR CONDITIONER MANUAL CONTROL(C60) M8X16 W/LK WASHER	9-01900-816-0	01	1	0106-0209	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	0106-0209	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	1-83539-331-0	01	1	0210-0301	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97095-910-0	01	1	0302-	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0106-0209	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-330-0	01	1	0210-0301	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	0302-	●	●
181	GASKET; CONNECTOR AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	0106-0209	●	●
181	GASKET; CONNECTOR AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3	8-97161-778-0	01	1	0106-0209	●	●

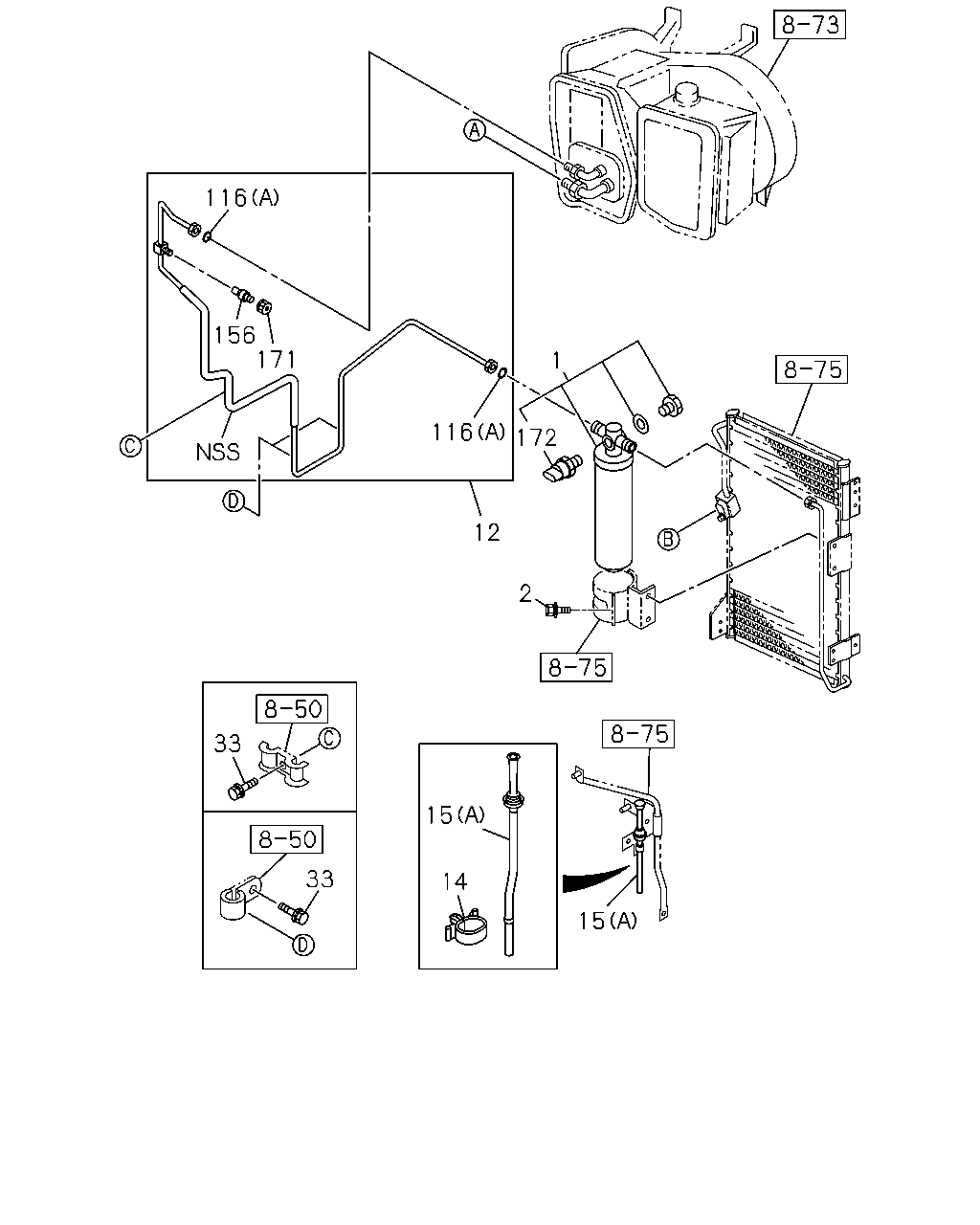

116 156 171 1 116 172 12 2 33 15 33 14 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-085-0	01	1	0106-0209	●	●
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0106-0209	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-668-0	01	1	0106-0209	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-852-1	01	1	0210-	●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	0106-	●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-635-0	01	1	0106-	●	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83572-412-0	01	1	0106-	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK&PL WASHER	8-94279-208-0	03	1	0106-0209	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK&PL WASHER	8-94279-208-0	02	1	0210-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4	8-97095-906-0	02	1	0210-	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97178-772-0	01	1	0210-	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=14.5	1-83539-324-0	01	1	0210-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97161-776-0	02	1	0106-0209	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=11.7	1-83539-317-0	01	1	0210-	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0106-0209	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	0210-	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97083-101-0	01	1	0106-0209	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97095-911-0	01	1	0210-	●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-044-0	01	1	0106-0209	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
