8-28 — CHASSIS ELECTRICAL
(#28444) — 65 parça
Tümü
A - CXZ5MC
B - CXZ5MF
◀
[828A] FRAME SIDE NO.1 (10 parça)
[828A] FRAME SIDE NO.3 (22 parça)
[828A] SEAT SIDE (1 parça)
[828A] HORN ASM (7 parça)
[828A] INST PANEL SIDE NO.2 (7 parça)
[828A] FRAME SIDE NO.2 (4 parça)
[828A] INST PANEL SIDE NO.1 (14 parça)
▶

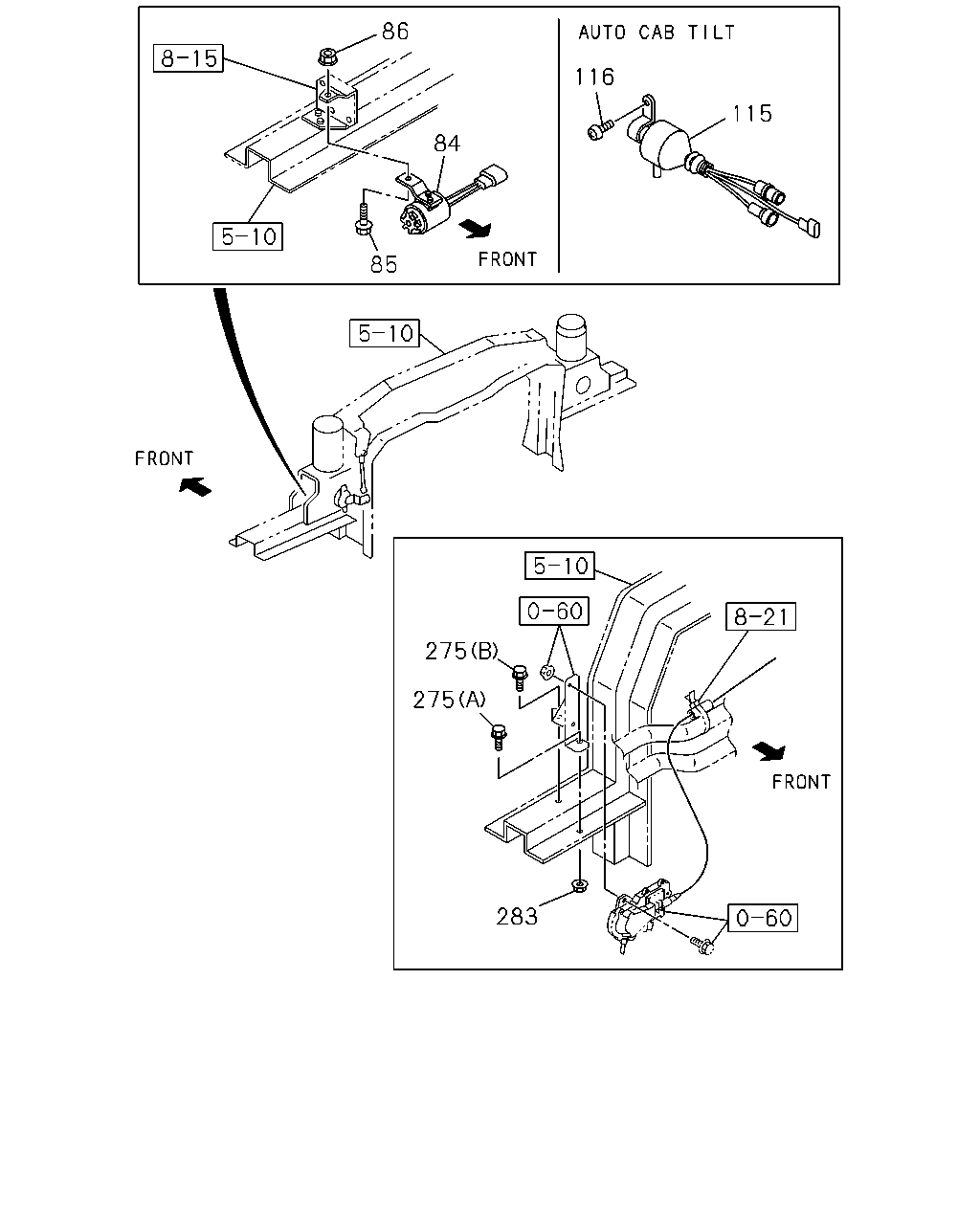

86
116
115
84
85
275
275
283
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
84
BUZZER; POWER CAB TILT
METRO
1-83460-096-2
01
1
0106-
●
●
85
BOLT; BUZZER,POWER CAB TILT
M8X20 W/LK&PL WASHER
0-50140-820-0
01
1
0106-0201
●
●
85
BOLT; BUZZER,POWER CAB TILT
M8X16 FLANGE
0-28080-816-0
01
1
0202-
●
●
86
NUT; BUZZER
M8 FLANGE
0-91150-108-0
01
1
0106-
●
●
115
RELAY; POWER CAB TILT UNIT
AUTO CAB TILT<WV2> HITACHI
1-81171-087-0
01
1
0106-0210
●
●
115
RELAY; POWER CAB TILT UNIT
AUTO CAB TILT<WV2> NIKKO
1-81171-075-1
01
1
0211-
●
●
116
BOLT; RELAY FIX
AUTO CAB TILT<WV2> M8X16 FLANGE
0-28080-816-0
02
1
0106-
●
●
275
BOLT; BRKT
(A) M10X25 FLANGE
0-28681-025-0
01
1
0106-
●
●
275
BOLT; BRKT
(B) M8X25 FLANGE
0-28690-825-0
01
1
0106-
●
●
283
NUT; BRKT
M10 FLANGE
0-91150-210-0
01
1
0106-
●
●
89
261
90
34
34
39
39
33
261
40
41
34
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
33
VALVE; MAG,PTO CONT
1-82563-871-2
01
1
0106-
●
33
VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5)
1-82563-871-2
01
1
0106-
●
34
CONNECTOR; MAG VLV,INL PORT
(D) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0106-
●
34
CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0106-
●
34
CONNECTOR; MAG VLV,INL PORT
(C) DIN8X2 & R1/4 3WAY
1-09661-004-0
01
1
0106-
●
34
CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN8X2 & R1/4 3WAY
1-09661-004-0
01
1
0106-
●
34
CONNECTOR; MAG VLV,INL PORT
(B) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
0106-
●
●
34
CONNECTOR; MAG VLV,INL PORT
(A) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0106-
●
●
39
BOLT; BRKT,MAG VLV
(B) M8X20 FLANGE
0-28680-820-0
02
1
0106-
●
39
BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X20 FLANGE
0-28680-820-0
02
1
0106-
●
39
BOLT; BRKT,MAG VLV
(A) M8X30 FLANGE
0-28680-830-0
02
1
0106-
●
39
BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE
0-28680-830-0
02
1
0106-
●
40
BRACKET; MAG VLV
(B)
1-82569-279-0
01
1
0106-
●
40
BRACKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)
1-82569-279-0
01
1
0106-
●
40
BRACKET; MAG VLV
(A)
1-53458-741-1
01
1
0106-0110
●
●
41
NUT; BRKT,MAG VLV
M8 FLANGE
0-91150-108-0
02
1
0106-
●
41
NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE
0-91150-108-0
02
1
0106-
●
89
VALVE; MAG,DIFF LOCK
1-82563-871-2
01
1
0106-
●
●
90
BOLT; MAG VLV
M8X35 FLANGE
0-28680-835-0
02
1
0106-
●
●
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
0106-
●
●
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
0106-
●
261
PLUG; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4
9-99204-513-0
01
1
0106-
●
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
94
SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER
0-74110-510-0
02
1
0106-
●
●
40
78
424
505
77
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
40
BRACKET; MAG VLV
(B)
1-82569-279-0
01
1
0106-
●
40
BRACKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)
1-82569-279-0
01
1
0106-
●
40
BRACKET; MAG VLV
(A)
1-53458-741-1
01
1
0106-0110
●
●
77
HORN ASM
1-83430-041-1
01
1
0106-
●
●
78
BOLT; AIR HORN
M8X20 FLANGE
0-28680-820-0
02
1
0106-
●
●
424
ADAPTER
DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
0106-0110
●
●
505
JOINT; AIR HORN
1-83439-006-0
01
1
0106-
●
●

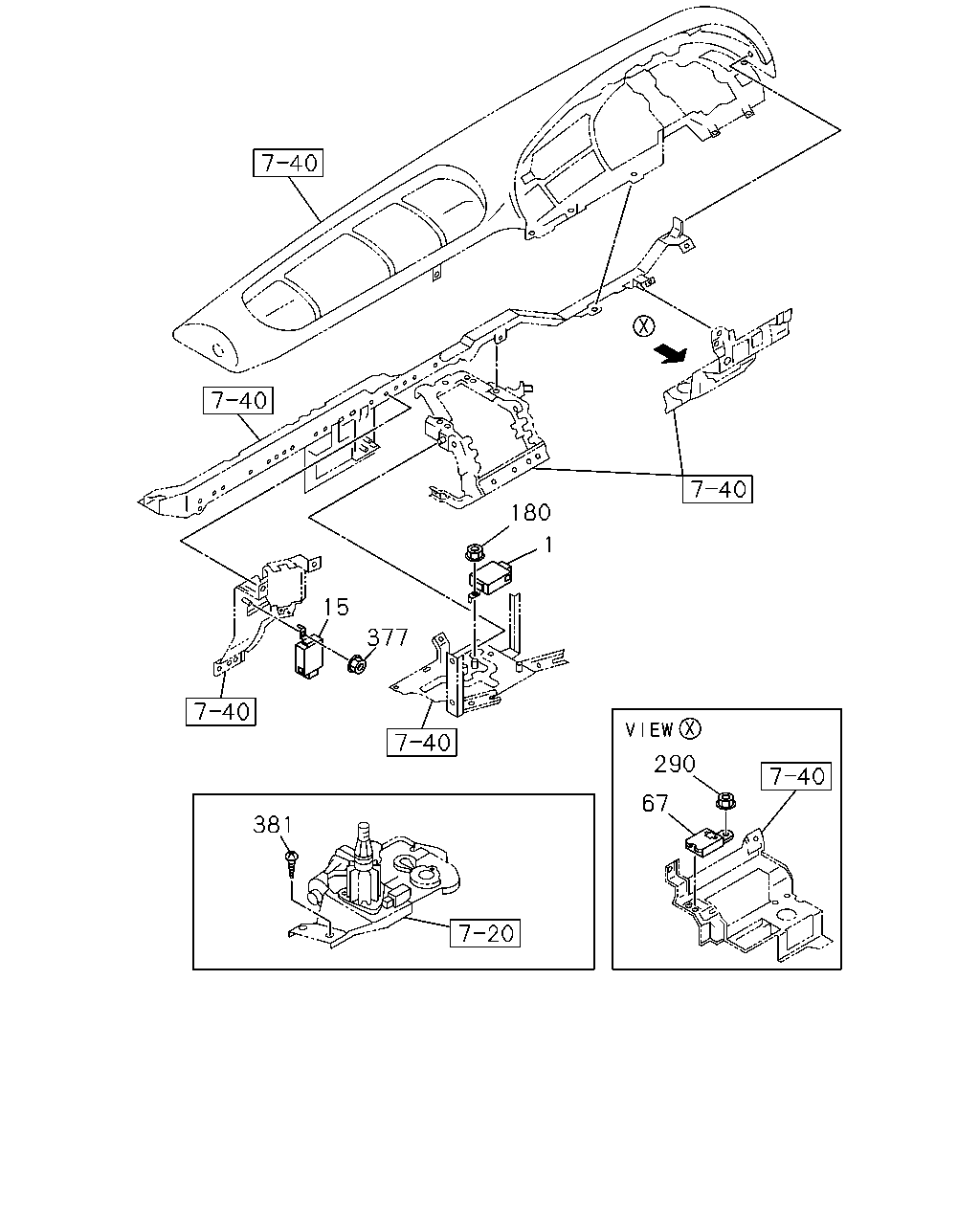

180
1
15
377
290
67
381
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
UNIT; FLASHER
1-83470-060-0
01
1
0106-
●
●
15
RELAY; STOP & TAIL WARNING
24V,25WX2,10WX2
1-82550-299-0
01
1
0106-
●
●
67
BUZZER; ENG OVERRUN
ENGINE OVERRUN BUZZER<SK4>
1-83460-051-1
01
1
0106-
●
●
180
NUT; FLASHER UNIT
M6 FLANGE
0-91150-106-0
01
1
0106-
●
●
290
NUT
ENGINE OVERRUN BUZZER<SK4> M6 FLANGE
0-91150-106-0
01
1
0106-
●
377
NUT; RELAY
M6 FLANGE
0-91150-106-0
01
1
0106-
●
●
381
SCREW; RELAY
MIR STAY O/S W/REMOTE<TBA> M5X14
8-94279-325-0
02
1
0106-0210
●
●
59
312
58
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
52
BUZZER; BACK
REVERSING WARNING BUZZER<YM9> METRO
1-83460-088-1
01
1
0106-
●
●
58
BUZZER; AIR PRESSURE WARNING
METRO
1-83460-074-1
01
1
0106-
●
●
59
SCREW; BUZZER
M5X14
8-94279-325-0
01
1
0306-
●
●
312
BOLT; BUZZER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
0106-0305
●

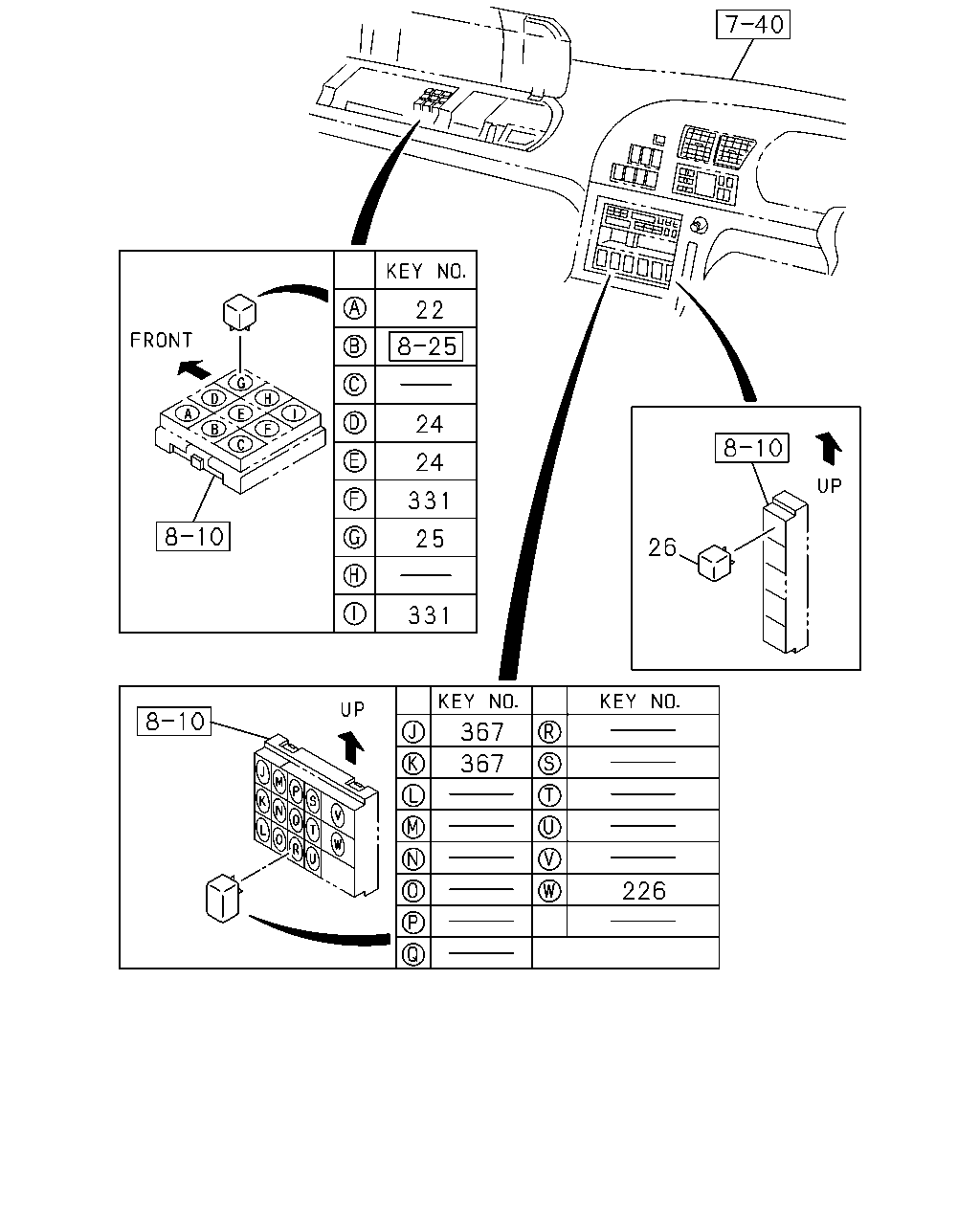

22
24
24
331
25
26
331
367
367
226
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
22
RELAY; STOP LAMP
24V 12.5A JIDECO
8-97062-815-1
01
1
0106-0111
●
●
22
RELAY; STOP LAMP
24V 12.5A MATSUSHITA
8-97262-933-0
01
1
0112-
●
●
24
RELAY; LIGHTING
24V 12.5A JIDECO
8-97062-815-1
02
1
0106-0111
●
●
24
RELAY; LIGHTING
24V 12.5A MATSUSHITA
8-97262-933-0
02
1
0112-
●
●
25
RELAY; TAIL LAMP
24V 12.5A JIDECO
8-97062-815-1
01
1
0106-0111
●
●
25
RELAY; TAIL LAMP
24V 12.5A MATSUSHITA
8-97262-933-0
01
1
0112-
●
●
26
RELAY; CONSENT
24V 12.5A JIDECO
8-97062-815-1
01
1
0106-0111
●
●
26
RELAY; CONSENT
24V 12.5A MATSUSHITA
8-97262-933-0
01
1
0112-
●
●
226
RELAY; EXH BRK
24V 12.5A JIDECO
8-97062-815-1
01
1
0106-0111
●
●
226
RELAY; EXH BRK
24V 12.5A MATSUSHITA
8-97262-933-0
01
1
0112-
●
●
331
RELAY; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A JIDECO
8-97062-815-1
02
1
0106-0111
●
●
331
RELAY; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MATSUSHITA
8-97262-933-0
02
1
0112-
●
●
367
RELAY; NEUTRAL
24V 10A MATSUSHITA
8-97173-035-1
01
1
0106-
●
●
367
RELAY; NEUTRAL
AUTO CAB TILT<WV2> 24V 10A MATSUSHITA
8-97173-035-1
01
1
0106-
●
●
