Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#28439) — 297 parça

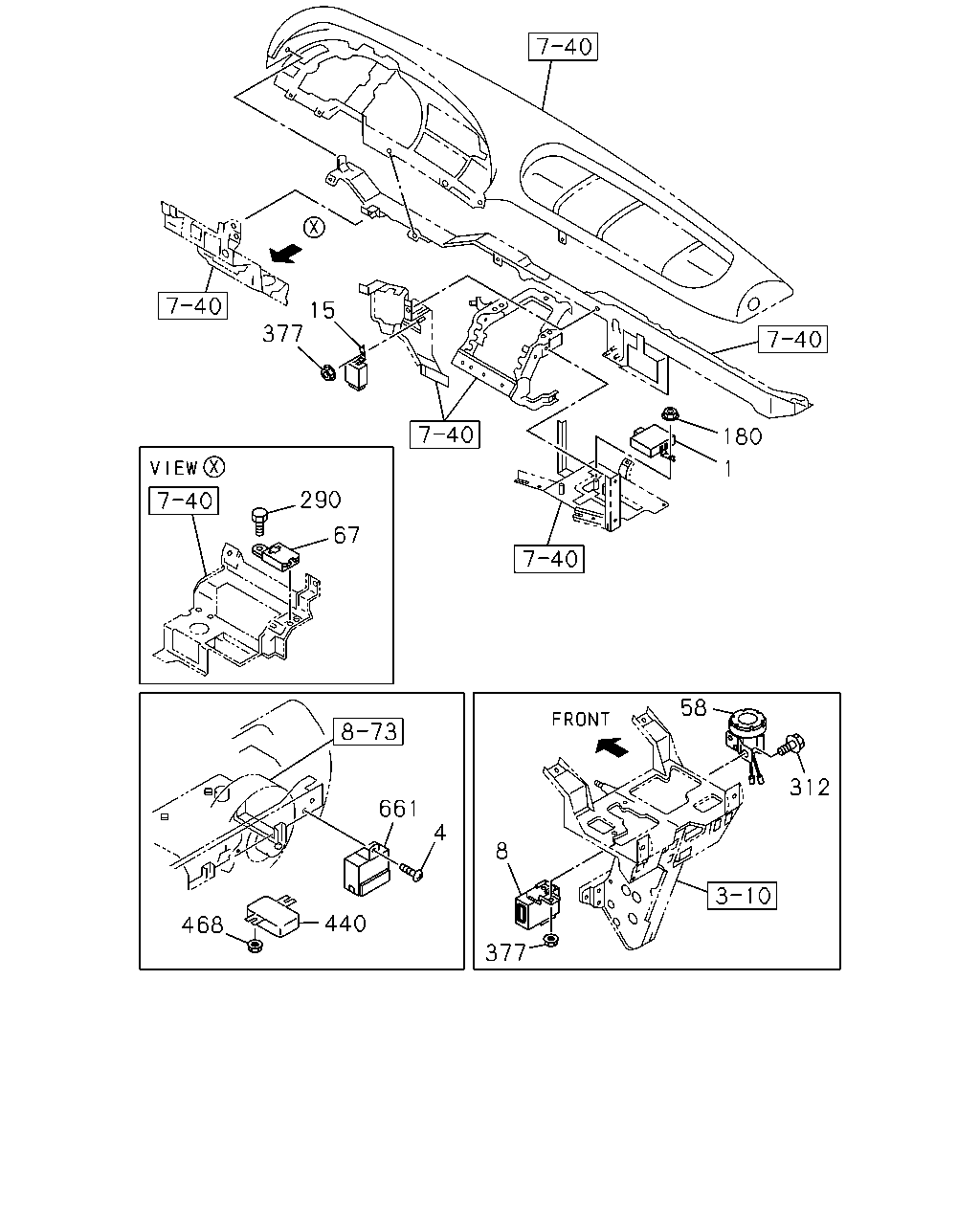

15 377 180 1 290 67 58 312 661 4 8 440 468 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-062-1	01	1	0105-
4	SCREW; FLASHER UNIT M5X14	8-94279-325-0	01	1	0105-
8	RELAY; WIPER DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ)	1-83316-002-4	01	1	0105-
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	0105-
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-1	01	1	0105-0612
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	8-98069-865-0	01	1	0701-
67	BUZZER; ENG OVERRUN	1-83460-051-1	01	1	0105-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0105-0602
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-
290	NUT M6 FLANGE	0-91150-106-0	01	1	0105-0602
290	NUT M6 FLANGE	0-91150-106-0	01	1	0105-0602
290	NUT M6 FLANGE	0-91180-106-0	01	1	0603-
290	NUT M6 FLANGE	0-91180-106-0	01	1	0603-
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0105-
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	0105-0602
377	NUT; RELAY DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) M6 FLANGE	0-91150-106-0	01	1	0105-0602
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0603-
377	NUT; RELAY DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) M6 FLANGE	0-91180-106-0	01	1	0603-
440	MODULE; INFORMATION,ABS	1-81510-701-0	01	1	0105-
468	NUT; MODULE M6 FLANGE	0-91150-106-0	02	1	0302-0602
468	NUT; MODULE M6 FLANGE	0-91180-106-0	02	1	0603-
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	0105-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

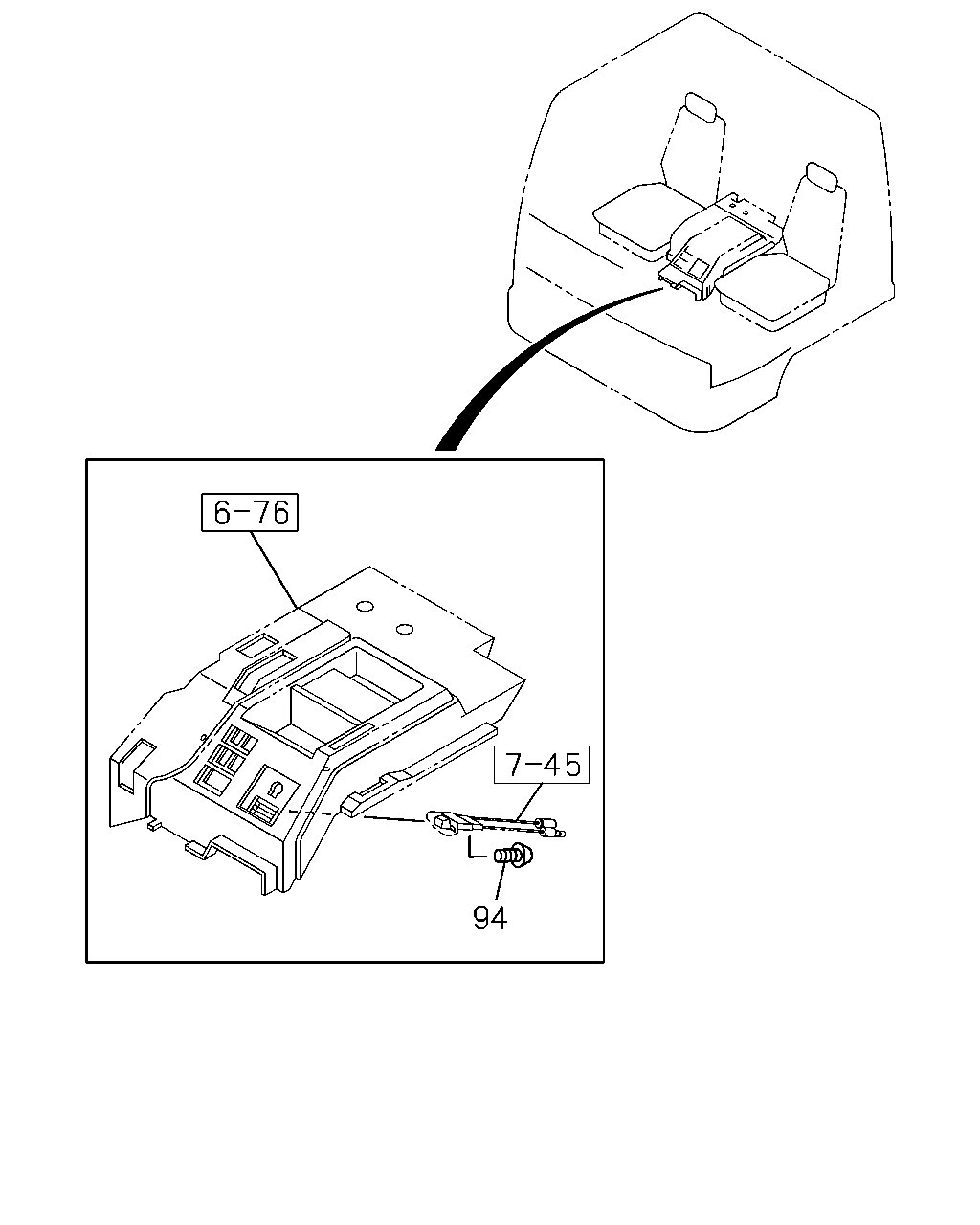

	94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0105-0604
	94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-

275 282 284 283 66 64 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	SOCKET; TRAILER 7P	1-82523-014-0	01	1	0105-
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28080-616-0	02	1	0105-0512
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28050-616-0	02	1	0601-
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	02	1	0605-
275	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
275	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0105-
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	0105-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-742-2	01	1	0105-
283	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0602
283	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
283	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M10 FLANGE	0-91150-210-0	01	1	0105-0506
283	NUT; BRKT ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> M10 FLANGE	0-91150-210-0	01	1	0507-0602
283	NUT; BRKT ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> M10 FLANGE	0-91180-210-0	01	1	0603-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	02	1	0105-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	02	1	0601-
284	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (B) M6X50 FLANGE	0-28080-650-0	01	1	0105-0512
284	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-

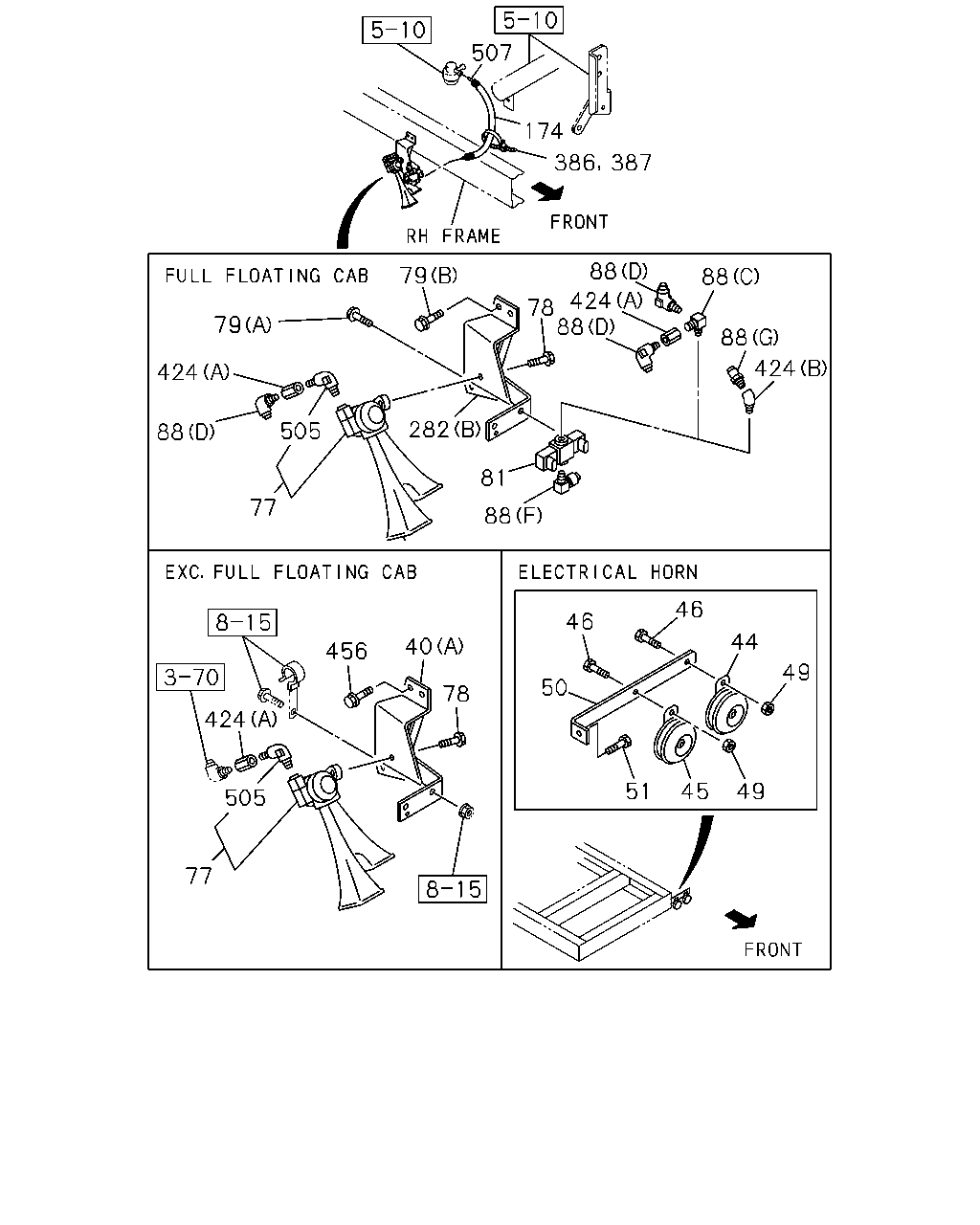

507 174 88 79 88 424 78 88 79 88 424 424 282 505 88 81 77 88 46 46 44 40 456 49 50 78 424 505 51 45 49 77 386 387

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-279-0	01	1	0312-
40	BRACKET; MAG VLV (C)	1-82569-339-0	01	1	0105-0106
40	BRACKET; MAG VLV MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-82569-339-0	01	1	0107-
40	BRACKET; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-82569-339-0	01	1	0107-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-888-0	01	1	0105-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (A)	1-53458-742-1	01	1	0105-0110
44	HORN; HIGH NOTE ELECTRICAL HORN<WB7>	1-83410-061-1	01	1	0109-
45	HORN; LOW NOTE ELECTRICAL HORN<WB7>	1-83410-062-1	01	1	0109-
46	BOLT; HORN TO BODY ELECTRICAL HORN<WB7> M8X25 FLANGE	0-28680-825-0	02	1	0109-0512
46	BOLT; HORN TO BODY ELECTRICAL HORN<WB7> M8X25 FLANGE	0-28650-825-0	02	1	0601-
49	NUT; HORN TO BODY ELECTRICAL HORN<WB7> M8 FLANGE	0-91150-108-0	02	1	0109-0602
49	NUT; HORN TO BODY ELECTRICAL HORN<WB7> M8 FLANGE	0-91180-108-0	02	1	0603-
50	BRACKET; HORN ELECTRICAL HORN<WB7>	1-53458-901-0	01	1	0107-
51	BOLT; HORN TO BRKT ELECTRICAL HORN<WB7> M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
51	BOLT; HORN TO BRKT ELECTRICAL HORN<WB7> M8X30 FLANGE	0-28650-830-0	01	1	0601-
77	HORN ASM CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-83430-039-2	01	1	0105-0108
77	HORN ASM CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. ELECTRICAL HORN<WB7>	1-83430-039-2	01	1	0109-0306
77	HORN ASM CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) EXC. ELECTRICAL HORN<WB7>	1-83430-039-3	01	1	0307-
77	HORN ASM EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-83430-041-1	01	1	0105-0108
77	HORN ASM EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), ELECTRICAL HORN<WB7>,CHINA EQUIPMENT(YT2)	1-83430-041-1	01	1	0109-0306
77	HORN ASM EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), ELECTRICAL HORN<WB7>,COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2)	1-83430-041-2	01	1	0307-
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	0105-0108
78	BOLT; AIR HORN EXC. ELECTRICAL HORN<WB7> M8X20 FLANGE	0-28680-820-0	02	1	0109-0512
78	BOLT; AIR HORN EXC. ELECTRICAL HORN<WB7> M8X20 FLANGE	0-28650-820-0	02	1	0601-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28080-812-0	01	1	0105-0512
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28681-035-0	02	1	0105-0512
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-
81	VALVE; MAG,HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0105-
88	CONNECTOR; MAG VLV ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (G) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0207-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0105-0206
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. ELECTRICAL HORN<WB7> (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0207-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	03	1	0105-0206
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. ELECTRICAL HORN<WB7> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	03	1	0207-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0105-
174	COVER FULL FLOATING CAB(W16) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0105-0108
174	COVER FULL FLOATING CAB(W16) L=770	1-83129-347-0	01	1	0109-0109
174	COVER FULL FLOATING CAB(W16) L=800	1-83129-031-1	01	1	0110-
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	0105-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-742-2	01	1	0105-
386	CLIP; HARNESS FULL FLOATING CAB(W16) L=250	5-09707-030-1	01	1	0207-
387	CLIP; BAND FULL FLOATING CAB(W16) L=250	5-09707-030-1	01	1	0105-0206
424	ADAPTER ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (B) R1/4 & RC1/4	1-09664-211-0	01	1	0606-
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) R1/4 & RC1/4	1-09664-211-0	02	1	0105-0206
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) R1/4 & RC1/4	1-09664-211-0	02	1	0207-0605
424	ADAPTER ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (B) R1/4 & RC1/4	1-09664-211-0	02	1	0207-0605
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) R1/4 & RC1/4	1-09664-211-0	02	1	0606-
424	ADAPTER FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0105-0206
424	ADAPTER FULL FLOATING CAB(W16) EXC. ELECTRICAL HORN<WB7> (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0207-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0105-0110
456	BOLT; BRKT EXC. FULL FLOATING CAB(W16) M10X35 FLANGE	0-28681-035-0	02	1	0105-0110
505	JOINT; AIR HORN	1-83439-006-0	01	1	0105-0108
505	JOINT; AIR HORN EXC. ELECTRICAL HORN<WB7>	1-83439-006-0	01	1	0109-
507	TUBE; NYLON FULL FLOATING CAB(W16) L=950 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0105-0108
507	TUBE; NYLON FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0109-

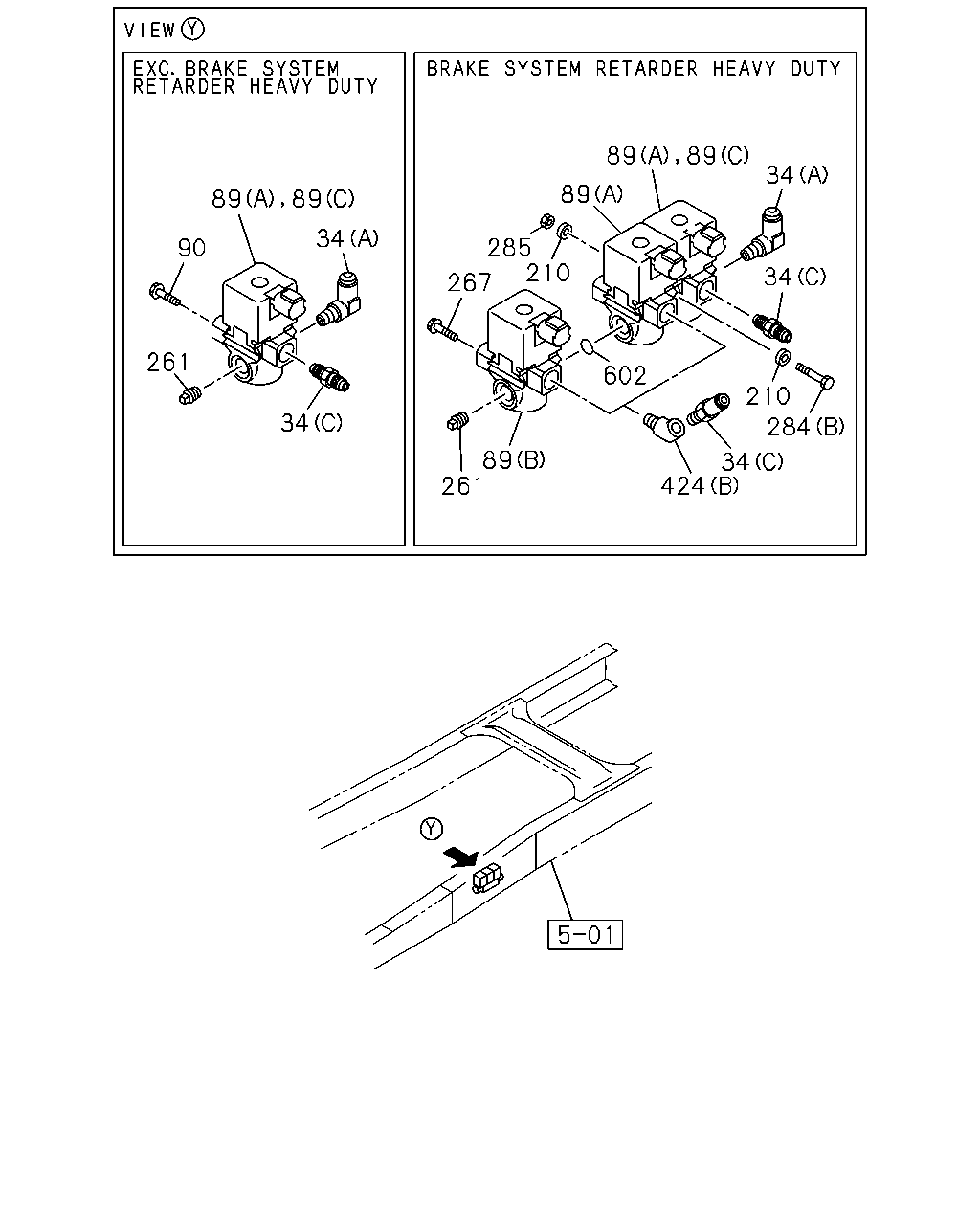

89 89 90 34 261 34 89 34 89 285 210 34 267 602 210 284 34 424 89 261 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0312-
34	CONNECTOR; MAG VLV,INL PORT MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	1-09661-065-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0106
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0106
34	CONNECTOR; MAG VLV,INL PORT MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-0311
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-0311
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-0311
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0312-
34	CONNECTOR; MAG VLV,INL PORT MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0312-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0312-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0312-
34	CONNECTOR; MAG VLV,INL PORT (B)	1-09661-065-0	01	1	0105-0105
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0105-
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	02	1	0105-1205
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	1206-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0105-
89	VALVE; MAG,DIFF LOCK EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0105-1205
89	VALVE; MAG,DIFF LOCK (C)	8-97641-594-0	01	1	1206-
90	BOLT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
90	BOLT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28650-825-0	02	1	0601-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	04	1	0105-
210	WASHER; PL,BRKT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM)	1-82569-266-0	02	1	0105-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4	9-99204-513-0	01	1	0107-0311
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0107-0311
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0107-0311
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0312-
261	PLUG; MAG VLV MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4	9-99204-513-0	01	1	0312-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0312-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0312-
267	BOLT; VLV TO BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	03	1	0105-0512
267	BOLT; VLV TO BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28650-825-0	03	1	0601-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	02	1	0105-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	02	1	0601-
284	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (B) M6X50 FLANGE	0-28080-650-0	01	1	0105-0512
284	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	02	1	0105-0602
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91180-106-0	02	1	0603-
285	NUT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) M6 FLANGE	0-91150-106-0	01	1	0105-0602
285	NUT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) M6 FLANGE	0-91180-106-0	01	1	0603-
424	ADAPTER ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (B) R1/4 & RC1/4	1-09664-211-0	01	1	0606-
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) R1/4 & RC1/4	1-09664-211-0	02	1	0105-0206
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) R1/4 & RC1/4	1-09664-211-0	02	1	0207-0605
424	ADAPTER ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (B) R1/4 & RC1/4	1-09664-211-0	02	1	0207-0605
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) R1/4 & RC1/4	1-09664-211-0	02	1	0606-
424	ADAPTER FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0105-0206
424	ADAPTER FULL FLOATING CAB(W16) EXC. ELECTRICAL HORN<WB7> (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0207-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0105-0110
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	02	1	0105-
602	GASKET; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) ID=16.8	9-09565-117-0	01	1	0105-

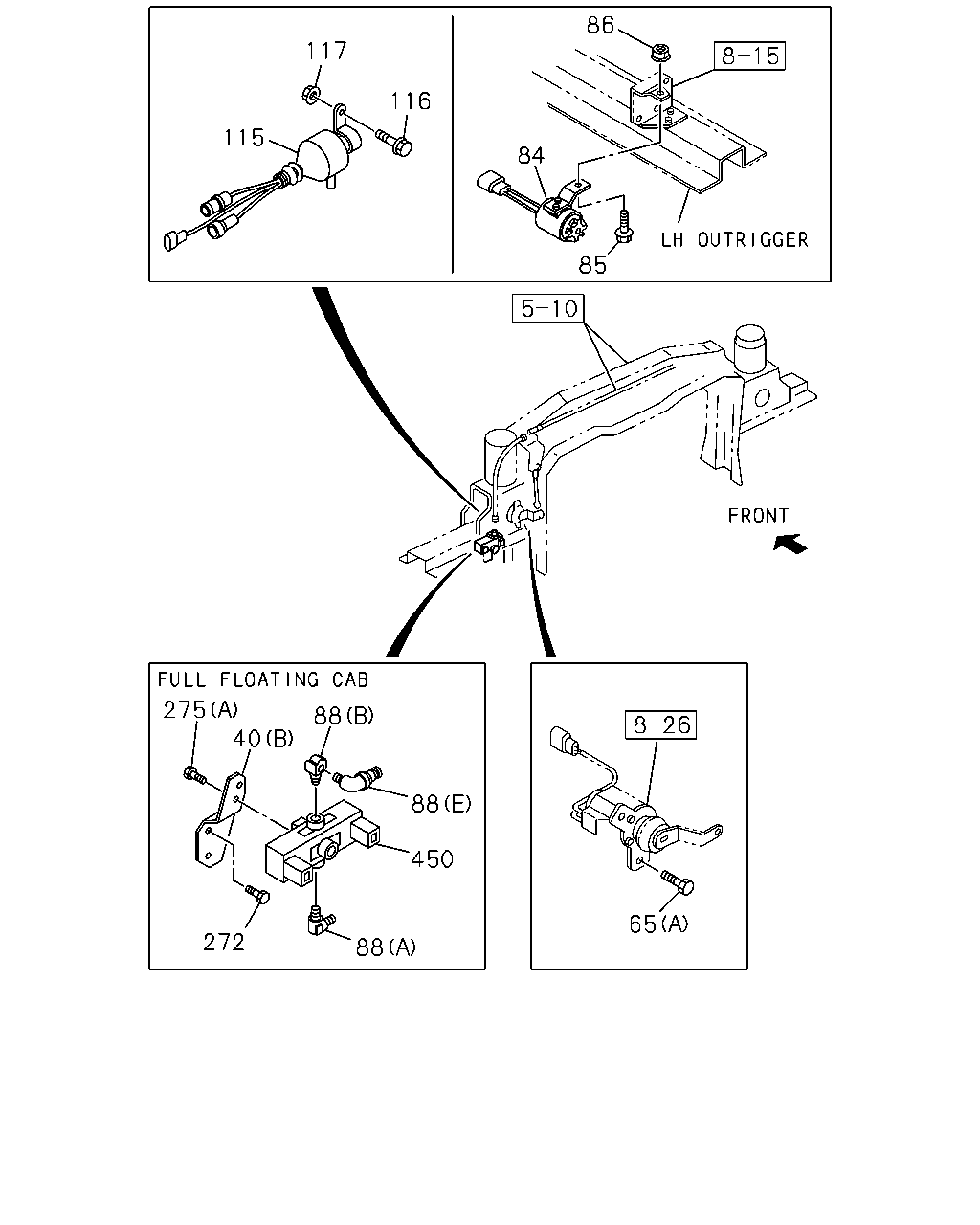

86 117 116 115 84 85 275 40 88 88 450 65 272 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-279-0	01	1	0312-
40	BRACKET; MAG VLV (C)	1-82569-339-0	01	1	0105-0106
40	BRACKET; MAG VLV MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-82569-339-0	01	1	0107-
40	BRACKET; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-82569-339-0	01	1	0107-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-888-0	01	1	0105-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (A)	1-53458-742-1	01	1	0105-0110
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28080-616-0	02	1	0105-0512
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28050-616-0	02	1	0601-
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-096-2	01	1	0105-0612
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-866-0	01	1	0701-
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	0105-0201
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28080-816-0	01	1	0202-0512
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28050-816-0	01	1	0601-
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	0105-0602
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0603-
88	CONNECTOR; MAG VLV ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (G) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0207-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0105-0206
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. ELECTRICAL HORN<WB7> (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0207-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	03	1	0105-0206
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. ELECTRICAL HORN<WB7> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	03	1	0207-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0105-
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> HITACHI	1-81171-087-0	01	1	0105-0210
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> NIKKO	1-81171-075-1	01	1	0211-
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X16 FLANGE	0-28080-816-0	02	1	0105-0512
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X16 FLANGE	0-28050-816-0	02	1	0601-
117	NUT; RELAY FIX AUTO CAB TILT<WV2> M8 FLANGE	0-91150-108-0	02	1	0105-0602
117	NUT; RELAY FIX AUTO CAB TILT<WV2> M8 FLANGE	0-91180-108-0	02	1	0603-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X30 FLANGE	0-28681-030-0	02	1	0105-0201
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X20 FLANGE	0-28681-020-0	02	1	0202-0512
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X20 FLANGE	0-28651-020-0	02	1	0601-0605
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X20 FLANGE	0-28651-020-0	01	1	0606-1208
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X25 FLANGE	0-28651-025-0	01	1	1209-
275	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
275	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0105-
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0105-

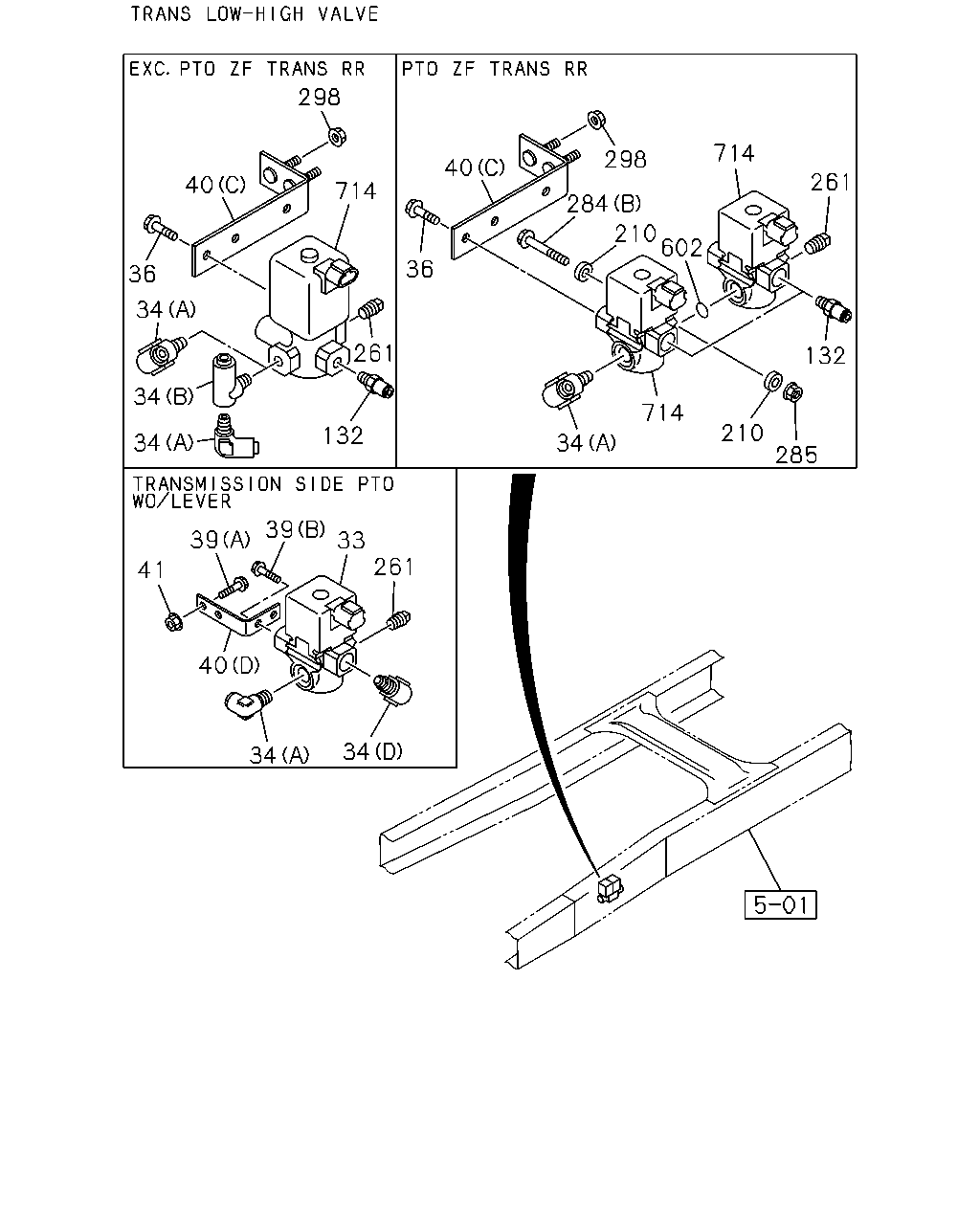

298 714 298 40 261 40 714 284 210 602 36 36 34 261 132 34 714 210 132 34 34 285 39 39 33 261 41 40 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	0312-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0312-
34	CONNECTOR; MAG VLV,INL PORT MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	1-09661-065-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0106
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0106
34	CONNECTOR; MAG VLV,INL PORT MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-0311
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-0311
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-0311
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0312-
34	CONNECTOR; MAG VLV,INL PORT MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0312-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0312-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0312-
34	CONNECTOR; MAG VLV,INL PORT (B)	1-09661-065-0	01	1	0105-0105
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0105-
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28680-820-0	02	1	0105-0106
36	BOLT; MAG VLV,PTO CONT MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
36	BOLT; MAG VLV,PTO CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
36	BOLT; MAG VLV,PTO CONT MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X20 FLANGE	0-28650-820-0	02	1	0601-
36	BOLT; MAG VLV,PTO CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M8X20 FLANGE	0-28650-820-0	02	1	0601-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X20 FLANGE	0-28680-820-0	02	1	0312-0512
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE	0-28680-830-0	02	1	0312-0512
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-279-0	01	1	0312-
40	BRACKET; MAG VLV (C)	1-82569-339-0	01	1	0105-0106
40	BRACKET; MAG VLV MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-82569-339-0	01	1	0107-
40	BRACKET; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-82569-339-0	01	1	0107-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-888-0	01	1	0105-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (A)	1-53458-742-1	01	1	0105-0110
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	02	1	0312-0602
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	0603-
132	CONNECTOR; OUTLET,MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0105-
132	CONNECTOR; OUTLET,MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. PTO ZF TRANS RR(BDM) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-0106
132	CONNECTOR; OUTLET,MAG VLV MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0107-
132	CONNECTOR; OUTLET,MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. PTO ZF TRANS RR(BDM) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0107-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	04	1	0105-
210	WASHER; PL,BRKT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM)	1-82569-266-0	02	1	0105-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4	9-99204-513-0	01	1	0107-0311
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0107-0311
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0107-0311
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0312-
261	PLUG; MAG VLV MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4	9-99204-513-0	01	1	0312-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0312-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0312-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	02	1	0105-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	02	1	0601-
284	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (B) M6X50 FLANGE	0-28080-650-0	01	1	0105-0512
284	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	02	1	0105-0602
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91180-106-0	02	1	0603-
285	NUT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) M6 FLANGE	0-91150-106-0	01	1	0105-0602
285	NUT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) M6 FLANGE	0-91180-106-0	01	1	0603-
298	NUT; MAG VLV M8 FLANGE	0-91150-108-0	02	1	0105-0106
298	NUT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M8 FLANGE	0-91150-108-0	02	1	0107-0602
298	NUT; MAG VLV MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE	0-91150-108-0	02	1	0107-0602
298	NUT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M8 FLANGE	0-91180-108-0	02	1	0603-
298	NUT; MAG VLV MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE	0-91180-108-0	02	1	0603-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	02	1	0105-
602	GASKET; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) ID=16.8	9-09565-117-0	01	1	0105-
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM)	1-82563-871-2	02	1	0105-
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. PTO ZF TRANS RR(BDM)	1-82563-871-1	01	1	0105-0106
714	VALVE; MAG,TRANS,LOW TO HIGH MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-82563-871-2	01	1	0107-
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. PTO ZF TRANS RR(BDM)	1-82563-871-2	01	1	0107-

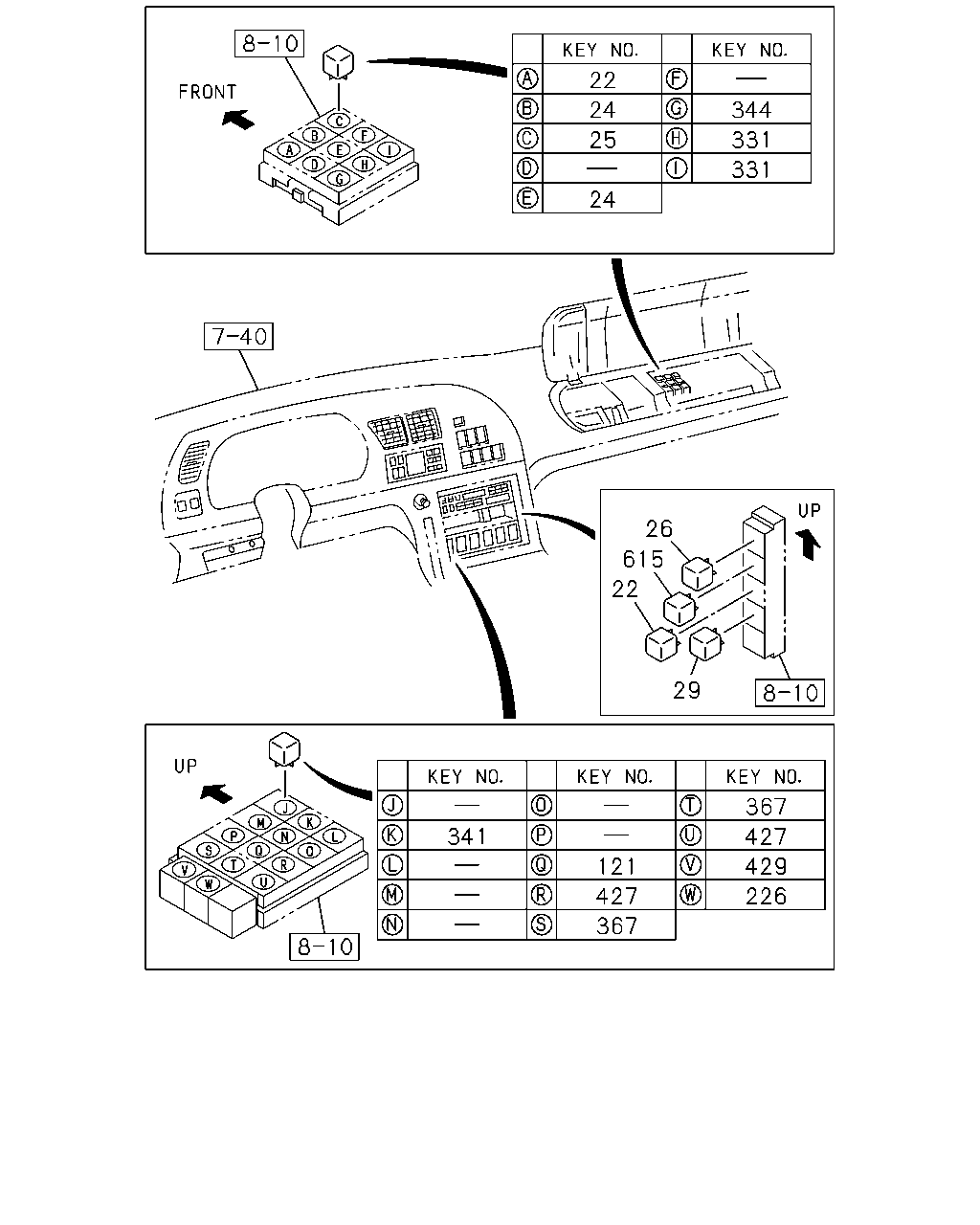

22 24 344 25 331 331 24 26 615 22 29 367 341 427 429 121 427 226 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	02	1	0105-0111
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	0105-0111
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
26	RELAY; CONSENT 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
29	RELAY; HORN ELECTRICAL HORN<WB7> 24V 12.5A MITUBA	8-97062-815-1	01	1	0109-0111
29	RELAY; HORN ELECTRICAL HORN<WB7> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
121	RELAY; PARKING BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	02	1	0105-0111
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
341	RELAY FULL FLOATING CAB(W16) 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
344	RELAY; LAMP CORNERING LAMP<TDS> 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
344	RELAY; LAMP CORNERING LAMP<TDS> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
367	RELAY; NEUTRAL AUTO CAB TILT<WV2> 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
427	RELAY; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 24V 10A PANASONIC	8-97173-035-1	02	1	0105-
429	RELAY; POWER CUT 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
429	RELAY; POWER CUT ELECTRONIC GOV RED3(KG5) 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
429	RELAY; POWER CUT 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
429	RELAY; POWER CUT ELECTRONIC GOV RED3(KG5) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
615	RELAY; TRAILER 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
615	RELAY; TRAILER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) METRO DENSO	1-83460-088-1	01	1	0105-0306
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) METRO DENSO	1-83460-088-1	01	1	0307-0612
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) METRO DENSO	8-98069-867-0	01	1	0701-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
