◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10879 - EXZ LHD FUEL TANK 400L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#28436) — 67 parça

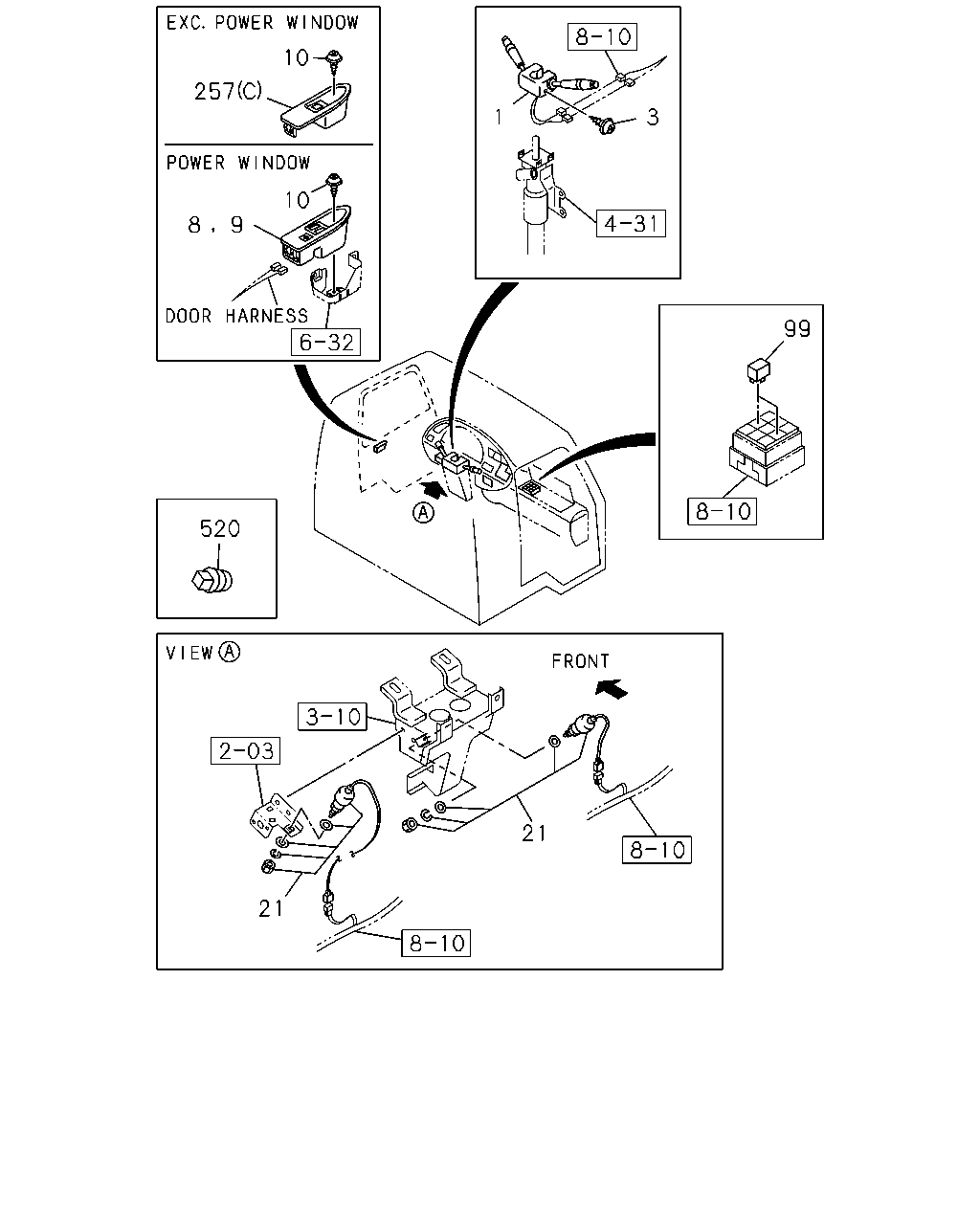

çizim 138543
10 257 3 1 10 8 9 99 520 21 21
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) 		1-82360-573-0 01 1 0105-0312
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) 		1-82360-743-1 01 1 0401-
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. FOG LAMP REAR<NHD>,DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN),AIR BAG(TFQ) 		1-82360-648-0 01 1 0105-0312
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. FOG LAMP REAR<NHD>,DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN),AIR BAG(TFQ) 		1-82360-735-0 01 1 0401-
1 SWITCH; COMB
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-572-0 01 1 0105-0312
1 SWITCH; COMB
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-742-1 01 1 0401-
1 SWITCH; COMB
FOG LAMP REAR<NHD> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN), AIR BAG(TFQ) 		1-82360-655-0 01 1 0105-0309
1 SWITCH; COMB
FOG LAMP REAR<NHD> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN), AIR BAG(TFQ) 		1-82360-705-1 01 1 0310-
1 SWITCH; COMB
FOG LAMP REAR<NHD> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>,DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN),AIR BAG(TFQ) 		1-82360-654-0 01 1 0105-0309
1 SWITCH; COMB
FOG LAMP REAR<NHD> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>,DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN),AIR BAG(TFQ) 		1-82360-704-1 01 1 0310-
1 SWITCH; COMB
EXC. FOG LAMP REAR<NHD>,BRAKE SYSTEM RETARDER HEAVYDUTY<TCC>,DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN),AIR BAG(TFQ) 		1-82360-647-0 01 1 0105-0312
1 SWITCH; COMB
EXC. FOG LAMP REAR<NHD>,BRAKE SYSTEM RETARDER HEAVYDUTY<TCC>,DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN),AIR BAG(TFQ) 		1-82360-734-0 01 1 0401-
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0105-0604
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0605-
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER SIDE 		1-82380-157-4 01 1 0105-
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER SIDE 		1-82380-158-3 01 1 0105-
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0105-0604
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-
21 SWITCH; CLU 1-82380-114-3 01 1 0105-
21 SWITCH; CLU 1-82380-114-3 01 1 0105-
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. FOG LAMP<T96> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0105-0111
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0105-0111
99 RELAY; FOG LAMP
FOG LAMP REAR<NHD> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0105-0111
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. FOG LAMP<T96> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
99 RELAY; FOG LAMP
FOG LAMP REAR<NHD> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 0105-
257 COVER; HOLE,SW
AUTO CAB TILT<WV2> (A) 		1-82389-008-0 01 1 0105-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 0105-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 0105-
520 PLUG; CONNECTOR
PT1/4 		9-99204-513-0 01 1 0106-

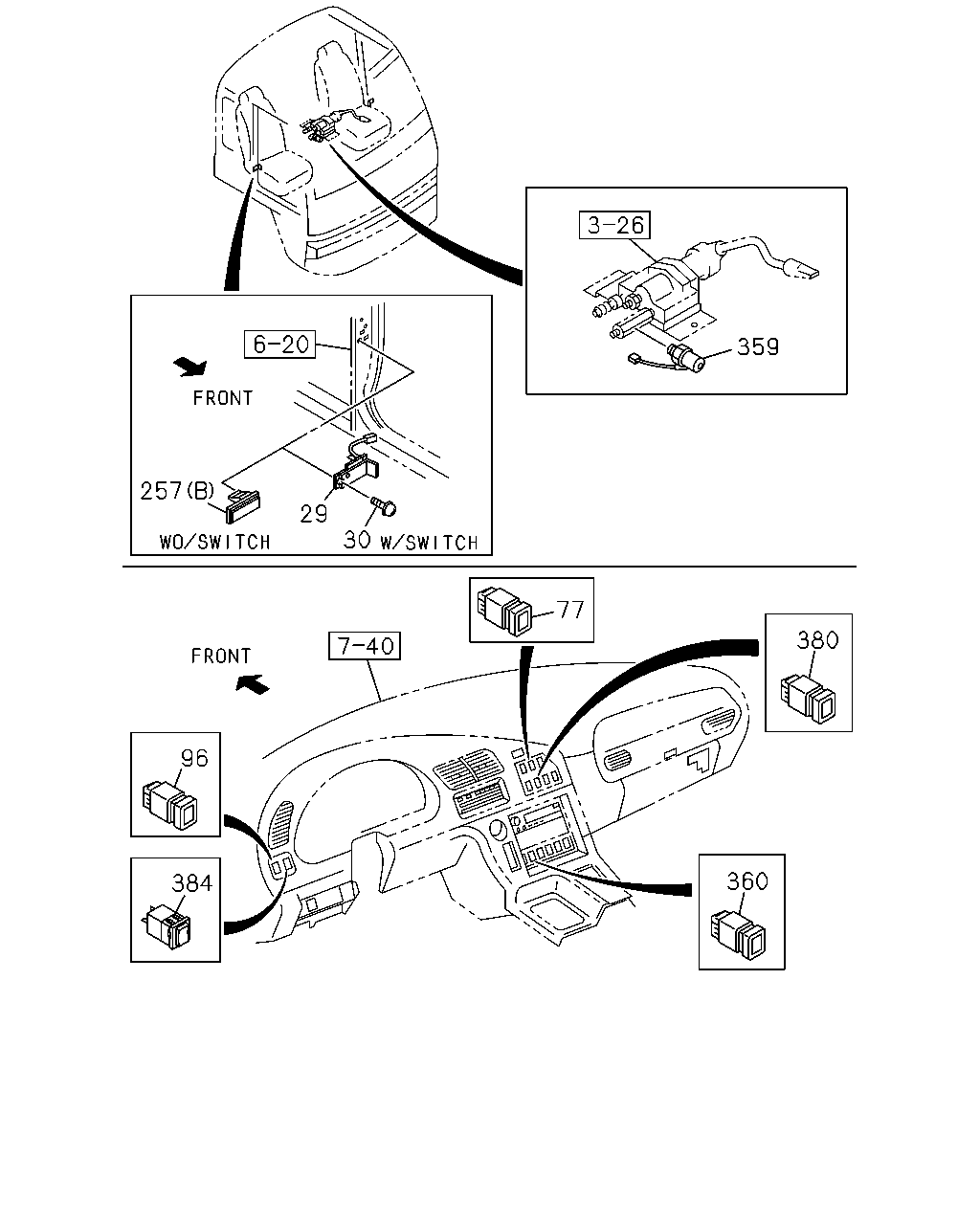

çizim 138562
359 257 29 30 77 380 96 360 384
BalonParca AdiParca NoAdetTipApplied Date
29 SWITCH; DOOR 8-97855-032-3 01 1 0105-
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0105-
77 SWITCH; PTO
PTO ZF TRANS RR(BDM) 		1-82340-413-0 01 1 0105-0106
77 SWITCH; PTO
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82340-413-0 01 1 0105-0106
77 SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM) 		1-82340-413-0 01 1 0107-0311
77 SWITCH; PTO
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82340-413-0 01 1 0107-0311
77 SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82340-413-0 01 1 0312-
77 SWITCH; PTO
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82340-413-0 01 1 0312-
96 SWITCH; FOG LAMP
FOG LAMP REAR<NHD> 		1-82340-676-0 01 1 0105-
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 0105-
257 COVER; HOLE,SW
AUTO CAB TILT<WV2> (A) 		1-82389-008-0 01 1 0105-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 0105-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 0105-
359 SWITCH; TRAILER BRAKE
GREEN 		1-82410-176-0 01 1 0105-0508
359 SWITCH; TRAILER BRAKE
TRAILER BRAKE HAND CONTROL<NLG> GREEN 		1-82410-176-1 01 1 0509-
360 SWITCH ASM; DIFF LK 1-82340-677-0 01 1 0105-
380 SWITCH; MARKER LAMP
MARKER LAMP THREE AMBER<WD9> 		1-82340-405-0 01 1 0105-
384 SWITCH; IDLING CONT,ELEC
ELECTRONIC GOV RED3(KG5) 		1-82350-213-1 01 1 0105-

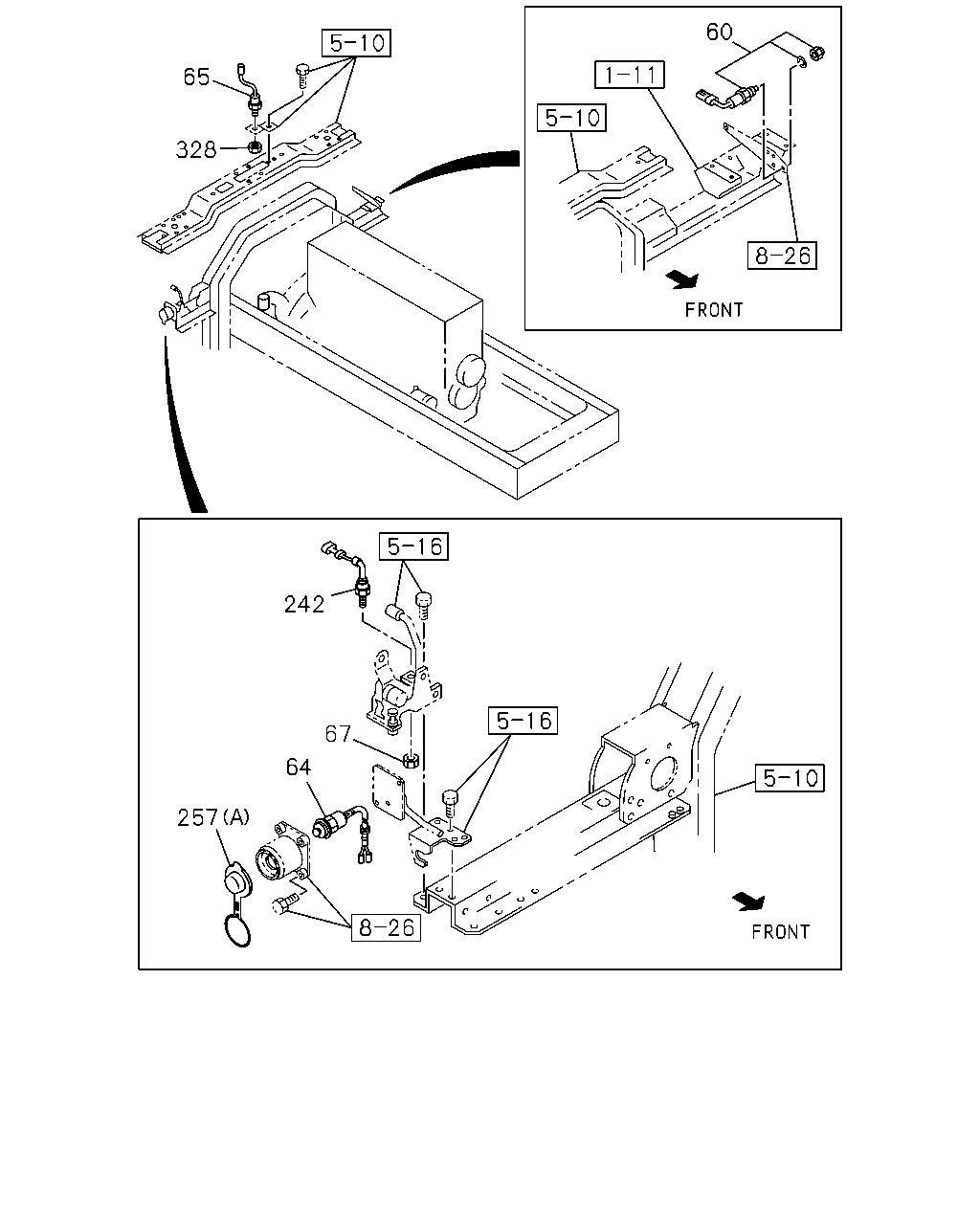

çizim 138564
60 65 328 242 67 64 257
BalonParca AdiParca NoAdetTipApplied Date
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 0105-
64 SWITCH; CAB TILT MAIN
AUTO CAB TILT<WV2> 		1-82380-108-0 01 1 0105-
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 0105-
67 NUT; SW,CAB TILT
AUTO CAB TILT<WV2> M16 H=18.5 		1-09409-013-0 01 1 0105-
242 SWITCH
AUTO CAB TILT<WV2> STAMP NO 		1-82380-126-0 01 1 0105-
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 0105-
257 COVER; HOLE,SW
AUTO CAB TILT<WV2> (A) 		1-82389-008-0 01 1 0105-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 0105-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 0105-
328 NUT; SW
M16 		9-99110-416-0 01 1 0105-0512
328 NUT; SW
M16 		0-91110-516-0 01 1 0601-
çizim 138937
255 131 356 666
BalonParca AdiParca NoAdetTipApplied Date
131 CLIP; BAND
PARKING BRAKE VALVE LEVER TYPE<W48> OD=9 H=6 		1-09709-178-0 01 1 0105-0105
255 SWITCH; SEARCH LIGHT
INSPECTION LAMP<T95> 		1-82340-360-1 01 1 0105-0706
255 SWITCH; SEARCH LIGHT
INSPECTION LAMP<T95> 		8-97621-403-0 01 1 0707-0711
255 SWITCH; SEARCH LIGHT
INSPECTION LAMP<T95> 		8-98106-483-0 01 1 0712-
356 SWITCH; TRAILER,LOW PRESS
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-48340-057-0 01 1 0105-0105
666 CLIP; AXLE HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=11 L=16 		9-09525-025-0 01 1 0105-0606
666 CLIP; AXLE HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=11 L=16 		0-95235-025-0 01 1 0607-
