8-15 — FIXING PARTS; WIRING HARNESS (#28433) — 589 parça

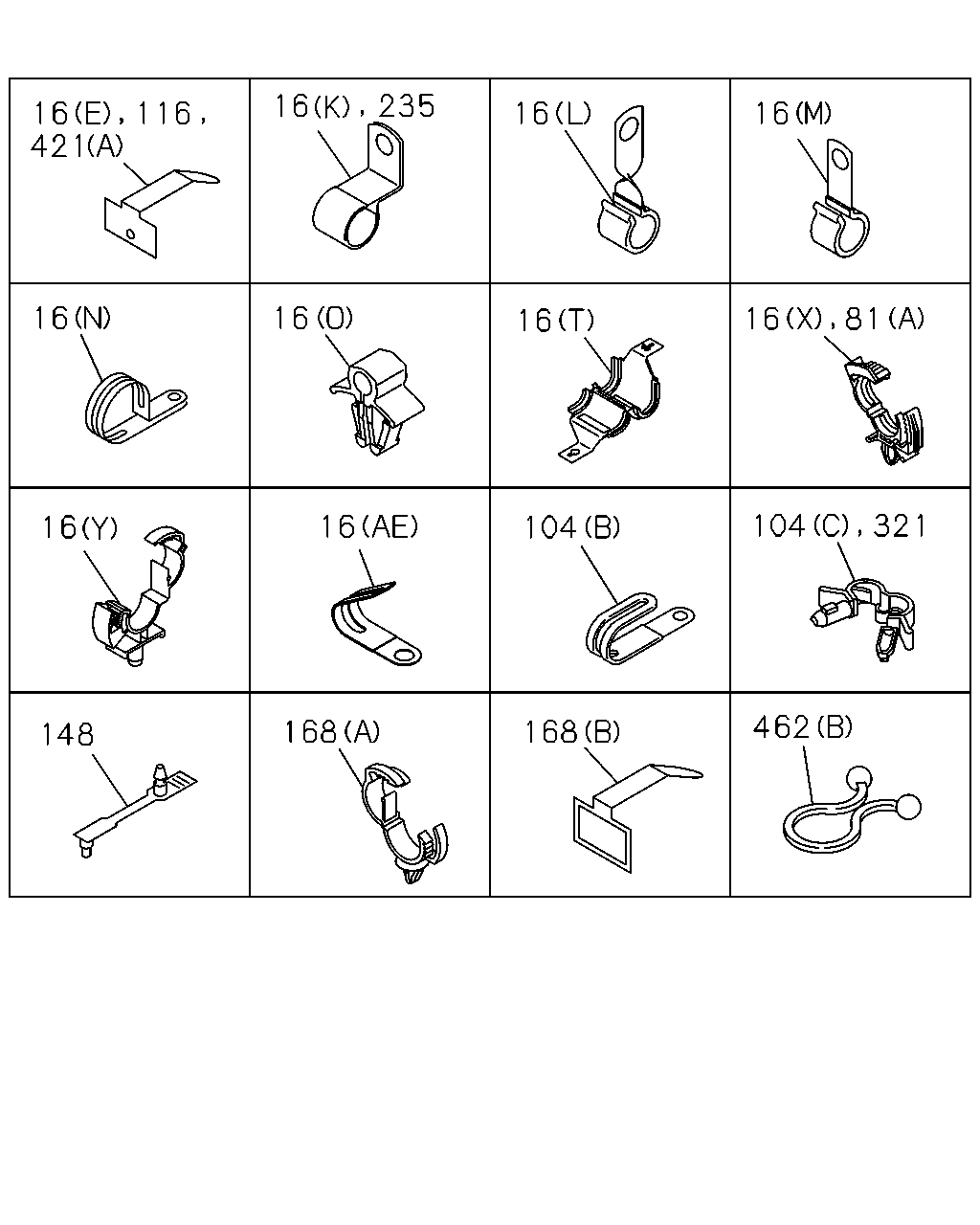

çizim 138539
16 421 116 16 16 16 16 16 16 104 462 168 168 148 16 235 16 81 16 104 321
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
MJD7 M/T<X9J> (AE) L=36 		8-94224-891-1 01 1 0312-
16 CLIP; HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0212-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 04 1 0212-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AG) L=150 		1-09707-145-1 01 1 0105-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0107-0109
16 CLIP; HARNESS
INSPECTION LAMP<T95> (S) L=180 		1-09707-162-1 02 1 0107-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (O) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (G) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
ZF M/T<X9E> (G) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
(AH) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 05 1 0107-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 09 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 09 1 0105-0106
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (C) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (C) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
(L) ID=15 L=42 		1-09700-479-0 02 1 0105-
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 0105-0107
16 CLIP; HARNESS
(N) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0105-0402
16 CLIP; HARNESS
(N) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-0403
16 CLIP; HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (N) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0404-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) (N) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0404-
16 CLIP; HARNESS
(AC) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0106
16 CLIP; HARNESS
(AC) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0106
16 CLIP; HARNESS
(AC) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0107-0108
16 CLIP; HARNESS
(O) ID=4.8 		1-09701-218-0 01 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 09 1 0107-0112
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 0201-
16 CLIP; HARNESS
(P) ID=26 L=26 		1-09701-236-0 01 1 0105-
16 CLIP; HARNESS
(Q) L=300 		1-09707-001-1 03 1 0105-0504
16 CLIP; HARNESS
(AJ) L=350 		1-09707-183-0 03 1 0505-
16 CLIP; HARNESS
(R) L=500 		1-09707-082-1 01 1 0105-
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 11 1 0105-
16 CLIP; HARNESS
(T) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0105-1107
16 CLIP; HARNESS
(T) W/SPONGE RUBBER 		1-09709-150-0 01 1 0105-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 04 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) OD=9 H=6 		1-09709-178-0 04 1 0105-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (G) OD=9 H=6 		1-09709-178-0 01 1 0107-0311
16 CLIP; HARNESS
MJD7 M/T<X9J> (G) OD=9 H=6 		1-09709-178-0 01 1 0312-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (G) OD=9 H=6 		1-09709-178-0 01 1 0312-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 03 1 0105-0106
16 CLIP; HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (G) OD=9 H=6 		1-09709-178-0 03 1 0107-0107
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) OD=9 H=6 		1-09709-178-0 04 1 0107-
16 CLIP; HARNESS
(V) OD=9 H=13.5 		1-09709-180-0 01 1 0105-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 03 1 0105-0106
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 03 1 0105-0106
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 03 1 0107-
16 CLIP; HARNESS
ZF M/T<X9E> (U) L=250 		5-09707-030-1 03 1 0107-
16 CLIP; HARNESS
(W) L=140 		5-09707-031-1 01 1 0105-0106
16 CLIP; HARNESS
(W) L=140 		5-09707-031-1 01 1 0107-0112
16 CLIP; HARNESS
ISUZU M/T<X9A> (W) L=140 		5-09707-031-1 01 1 0107-0112
16 CLIP; HARNESS
(W) L=140 		5-09707-031-1 01 1 0201-0205
16 CLIP; HARNESS
ISUZU M/T<X9A> (W) L=140 		5-09707-031-1 01 1 0201-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (W) L=140 		5-09707-031-1 01 1 0201-0205
16 CLIP; HARNESS
(W) L=140 		5-09707-031-1 01 1 0206-0311
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (W) L=140 		5-09707-031-1 01 1 0206-0311
16 CLIP; HARNESS
(W) L=140 		5-09707-031-1 01 1 0312-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. MJD7 M/T<X9J> (W) L=140 		5-09707-031-1 01 1 0312-
16 CLIP; HARNESS
MJD7 M/T<X9J> (W) L=140 		5-09707-031-1 01 1 0312-
16 CLIP; HARNESS
(X) ID=7-10 		8-94472-578-0 01 1 0105-
16 CLIP; HARNESS
(Y) ID=14-20 		8-97061-603-0 03 1 0105-
16 CLIP; HARNESS
(Z) ID=11 L=20 		9-09525-035-0 01 1 0105-0107
16 CLIP; HARNESS
(Z) ID=11 L=20 		9-09525-035-0 01 1 0108-0606
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (Z) ID=11 L=20 		9-09525-035-0 01 1 0108-0606
16 CLIP; HARNESS
(Z) ID=11 L=20 		0-95235-035-0 01 1 0607-
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (Z) ID=11 L=20 		0-95235-035-0 01 1 0607-
16 CLIP; HARNESS
(AA) ID=16 L=20 		9-09525-535-0 01 1 0105-0105
16 CLIP; HARNESS
(AA) ID=16 L=20 		9-09525-535-0 01 1 0105-0105
16 CLIP; HARNESS
(AA) ID=16 L=20 		9-09525-535-0 01 1 0106-0106
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (AA) ID=16 L=20 		9-09525-535-0 01 1 0106-0106
16 CLIP; HARNESS
(AA) ID=16 L=20 		9-09525-535-0 01 1 0107-0107
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (AA) ID=16 L=20 		9-09525-535-0 01 1 0107-0107
16 CLIP; HARNESS
(AA) ID=16 L=20 		9-09525-535-0 01 1 0108-0108
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (AA) ID=16 L=20 		9-09525-535-0 01 1 0108-0108
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (AA) ID=16 L=20 		9-09525-535-0 01 1 0108-0108
16 CLIP; HARNESS
(AA) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (AA) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AA) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (AA) ID=16 L=20 		9-09525-535-0 01 1 0206-0311
16 CLIP; HARNESS
MJX16P M/T(Y3Z) ISUZU M/T<X9A> (AA) ID=16 L=20 		9-09525-535-0 01 1 0206-0311
16 CLIP; HARNESS
ZF M/T<X9E> (AA) ID=16 L=20 		9-09525-535-0 01 1 0206-0311
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (AA) ID=16 L=20 		9-09525-535-0 01 1 0312-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) ISUZU M/T<X9A> EXC. MJD7 M/T<X9J> (AA) ID=16 L=20 		9-09525-535-0 01 1 0312-0606
16 CLIP; HARNESS
ZF M/T<X9E> EXC. MJD7 M/T<X9J> (AA) ID=16 L=20 		9-09525-535-0 01 1 0312-0606
16 CLIP; HARNESS
MJD7 M/T<X9J> (AA) ID=16 L=20 		9-09525-535-0 01 1 0312-0606
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (AA) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) ISUZU M/T<X9A> EXC. MJD7 M/T<X9J> (AA) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
ZF M/T<X9E> EXC. MJD7 M/T<X9J> (AA) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
MJD7 M/T<X9J> (AA) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
(AB) ID=14 L=44 		9-09917-427-0 01 1 0105-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 12 1 0105-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0105-0109
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0110-0211
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0110-0211
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0212-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 04 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 04 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=20 L=50 		9-09917-430-0 01 1 0212-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=20 L=50 		9-09917-430-0 01 1 0212-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 02 1 0105-0106
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 05 1 0107-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0105-0106
16 CLIP; HARNESS
(AC) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0107-0108
16 CLIP; HARNESS
(AC) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0109-0112
16 CLIP; HARNESS
(AC) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0109-0112
16 CLIP; HARNESS
(AC) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0201-
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-0109
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) ID=11 L=16 		9-09525-025-0 01 1 0105-0606
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) ID=11 L=16 		0-95235-025-0 01 1 0607-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) ID=11 L=24 		9-09525-045-0 01 1 0105-0606
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) ID=11 L=24 		0-95235-045-0 01 1 0607-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (K) ID=10 H=25 L=20 		1-09700-519-0 01 1 0107-0107
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (U) L=250 		5-09707-030-1 01 1 0107-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Z) ID=11 L=20 		9-09525-035-0 02 1 0206-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Z) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AD) ID=11 L=40 		9-09525-075-0 01 1 0107-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AD) ID=11 L=40 		0-95235-075-0 01 1 0607-
16 CLIP; HARNESS
PTO CONTROL OPERATION CAB BACK<TBZ> (C) ID=11 L=41 		1-09700-403-0 02 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) (C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (I) OD=9 H=9.5 		1-09709-179-0 01 1 0105-0306
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (I) OD=9 H=9.5 		1-09709-179-0 01 1 0307-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (E) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0105-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (K) ID=15 H=30 L=30 		1-09700-832-0 01 1 0105-0105
16 CLIP; HARNESS
(AI) ID=19 L=28 		9-09525-856-0 01 1 0106-0106
16 CLIP; HARNESS
ZF M/T<X9E> (AI) ID=19 L=28 		9-09525-856-0 01 1 0107-0606
16 CLIP; HARNESS
ZF M/T<X9E> (AI) ID=19 L=28 		0-95235-856-0 01 1 0607-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U) (J) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0105-0108
16 CLIP; HARNESS
ZF M/T<X9E> (J) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0109-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (AE) L=36 		8-94224-891-1 01 1 0107-0205
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (AF) ID=16 L=40 		9-09525-576-0 01 1 0107-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) ISUZU M/T<X9A> (AF) ID=16 L=40 		9-09525-576-0 01 1 0206-0311
16 CLIP; HARNESS
MJX16P M/T(Y3Z) ISUZU M/T<X9A> EXC. MJD7 M/T<X9J> (AF) ID=16 L=40 		9-09525-576-0 01 1 0312-0606
16 CLIP; HARNESS
MJD7 M/T<X9J> (AF) ID=16 L=40 		9-09525-576-0 01 1 0312-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) ISUZU M/T<X9A> EXC. MJD7 M/T<X9J> (AF) ID=16 L=40 		0-95235-576-0 01 1 0607-
16 CLIP; HARNESS
MJD7 M/T<X9J> (AF) ID=16 L=40 		0-95235-576-0 01 1 0607-
81 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0105-
81 CLIP; HARNESS
(C) L=140 		5-09707-031-1 02 1 0105-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 02 1 0105-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16 		9-09525-025-0 01 1 0105-0606
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16 		0-95235-025-0 01 1 0607-
104 CLIP; HEADLAMP HARNESS
(C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0105-
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 0105-
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 05 1 0201-1409
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0105-0112
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> MARKER LAMP THREE AMBER<WD9> L=20 SET=10 PIECE 		1-09987-246-2 03 1 0201-
116 CLIP; ROOF HARNESS
LAMPS TWO ROOF MARKER<TEC> HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0105-0112
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0201-1409
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0201-1409
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 07 1 1410-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULL FLOATING CAB(W16) (C) L=250 		5-09707-030-1 01 1 0109-0109
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0105-
235 CLIP; HARNESS,SPD SENSOR,SSPS
MJX16P M/T(Y3Z) ID=10 H=25 L=20 		1-09700-519-0 01 1 0107-0311
235 CLIP; HARNESS,SPD SENSOR,SSPS
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) ID=10 H=25 L=20 		1-09700-519-0 01 1 0312-
235 CLIP; HARNESS,SPD SENSOR,SSPS
EXC. ZF M/T<X9E> ID=13 H=29 L=30 		1-09700-001-0 01 1 0107-
321 CLIP; HARNESS LOW PRESS SW
ID=13-18 L=14.5 		1-09709-290-0 01 1 0105-
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 01 1 0105-0207
421 CLIP; FLOOR HARNESS
(C) ID=19 L=20 		9-09525-832-0 02 1 0105-0105
421 CLIP; FLOOR HARNESS
(D) ID=21 L=28 		1-09700-673-1 02 1 0106-
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) L=140 		5-09707-031-1 01 1 0105-0306
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 		1-09709-068-0 01 1 0301-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) L=140 		5-09707-031-1 01 1 0301-

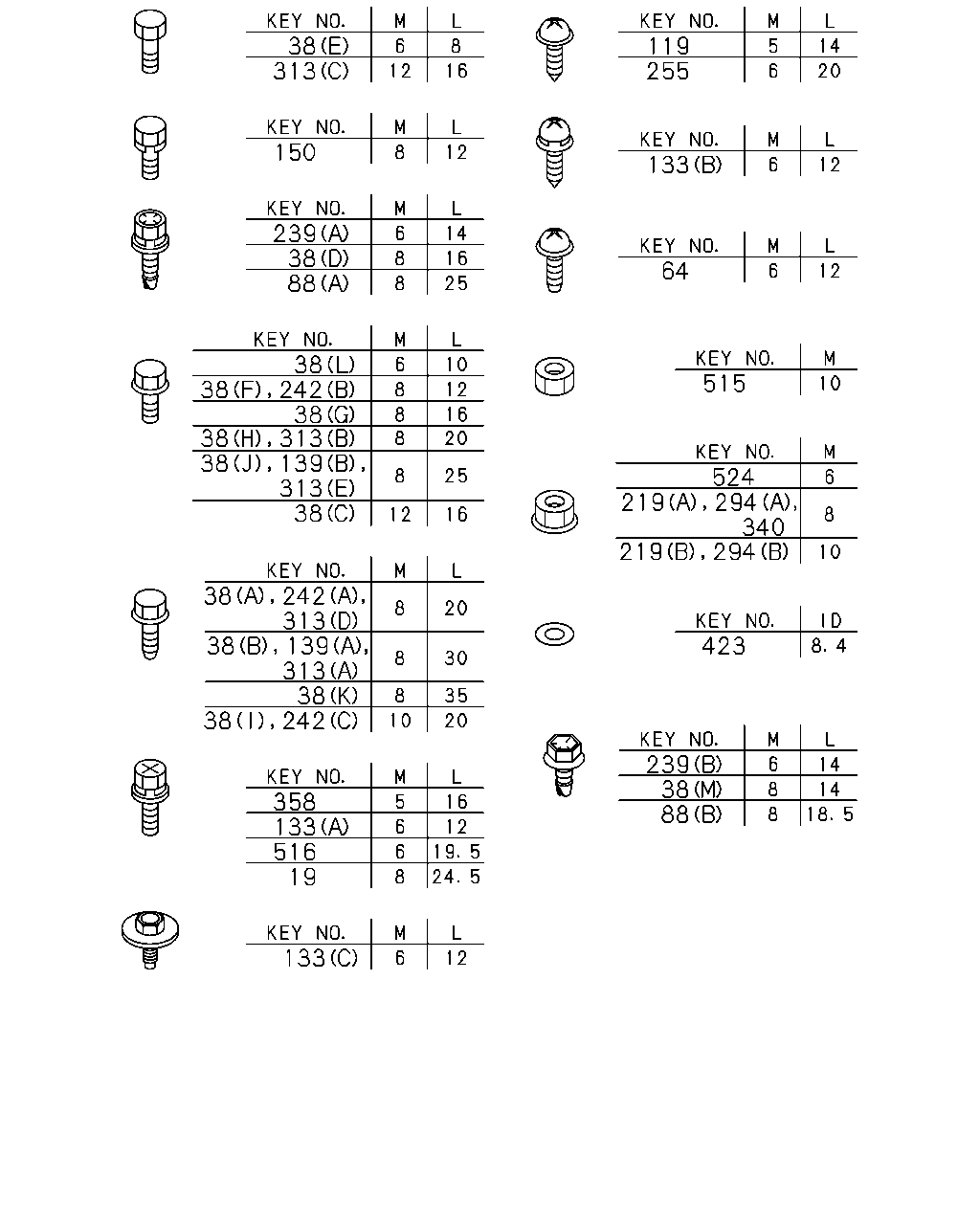

çizim 138556
38 313 119 255 150 133 239 38 88 64 38 38 38 139 313 38 515 524 294 340 219 242 313 38 139 313 38 38 423 239 38 88 358 133 516 19 133 219 294 38 242 38 313 38 242
BalonParca AdiParca NoAdetTipApplied Date
19 BOLT; PROTECTOR
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1109-
38 BOLT; CLIP,HARNESS
MJD7 M/T<X9J> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0312-0512
38 BOLT; CLIP,HARNESS
MJD7 M/T<X9J> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> (A) M8X20 FLANGE 		0-28680-820-0 03 1 0206-0512
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> (A) M8X20 FLANGE 		0-28650-820-0 03 1 0601-
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) (A) M8X20 FLANGE 		0-28680-820-0 03 1 0107-0205
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) (A) M8X20 FLANGE 		0-28680-820-0 05 1 0206-0512
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) (A) M8X20 FLANGE 		0-28650-820-0 05 1 0601-
38 BOLT; CLIP,HARNESS
(E) M6X8 		0-20800-608-0 01 1 0105-0701
38 BOLT; CLIP,HARNESS
(L) M6X10 FLANGE 		0-28050-610-0 01 1 0702-
38 BOLT; CLIP,HARNESS
(F) M8X12 FLANGE 		0-28080-812-0 01 1 0105-0512
38 BOLT; CLIP,HARNESS
(F) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28080-820-0 01 1 0105-0108
38 BOLT; CLIP,HARNESS
(J) M8X25 FLANGE 		0-28080-825-0 01 1 0109-0512
38 BOLT; CLIP,HARNESS
(J) M8X25 FLANGE 		0-28050-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0106
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0106
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0205
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0205
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0206-0403
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
ELECTRONIC GOV RED3(KG5) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-1107
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-1107
38 BOLT; CLIP,HARNESS
ELECTRONIC GOV RED3(KG5) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-1107
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1108-
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1108-
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1108-
38 BOLT; CLIP,HARNESS
ELECTRONIC GOV RED3(KG5) (A) M8X20 FLANGE 		0-28650-820-0 01 1 1108-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0105-0106
38 BOLT; CLIP,HARNESS
(K) M8X35 FLANGE 		0-28680-835-0 02 1 0107-0112
38 BOLT; CLIP,HARNESS
(K) M8X35 FLANGE 		0-28680-835-0 01 1 0201-0512
38 BOLT; CLIP,HARNESS
(K) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0105-0112
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 06 1 0201-0205
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0206-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28680-830-0 10 1 0105-0512
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28650-830-0 10 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0403
38 BOLT; CLIP,HARNESS
(C) M12X16 FLANGE 		1-09044-079-0 01 1 0105-1105
38 BOLT; CLIP,HARNESS
(C) M12X16 FLANGE 		0-28051-216-0 01 1 1106-
38 BOLT; CLIP,HARNESS
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0105-1201
38 BOLT; CLIP,HARNESS
(M) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1202-
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) M8X16 FLANGE 		0-28080-816-0 01 1 0105-0512
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) (I) M10X20 FLANGE 		0-28781-020-0 01 1 0107-0311
38 BOLT; CLIP,HARNESS
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (I) M10X20 FLANGE 		0-28781-020-0 01 1 0312-0512
38 BOLT; CLIP,HARNESS
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (I) M10X20 FLANGE 		0-28751-020-0 01 1 0601-
64 SCREW; CLIP
6WG1 TC-N(71L),6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0105-
64 SCREW; CLIP
6WA1 TC-C(55L) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0105-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0105-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008-
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0105-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0105-0106
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0107-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
139 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0105
139 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512
139 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X12 W/LK WASHER 		0-50040-812-0 01 1 0105-0512
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X12 W/LK WASHER 		0-50540-812-0 01 1 0601-
219 NUT
MJD7 M/T<X9J> (B) M10 FLANGE 		0-91150-210-0 01 1 0312-0602
219 NUT
MJD7 M/T<X9J> (B) M10 FLANGE 		0-91180-210-0 01 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 12 1 0105-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 13 1 0107-0205
219 NUT
(A) M8 FLANGE 		0-91150-108-0 12 1 0206-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 12 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105
219 NUT
EXC. ZF M/T<X9E> (B) M10 FLANGE 		0-91150-210-0 01 1 0107-0205
219 NUT
MJX16P M/T(Y3Z) ISUZU M/T<X9A> (A) M8 FLANGE 		0-91150-108-0 01 1 0206-0311
219 NUT
ZF M/T<X9E> (A) M8 FLANGE 		0-91150-108-0 01 1 0206-0311
219 NUT
MJX16P M/T(Y3Z) ISUZU M/T<X9A> EXC. MJD7 M/T<X9J> (A) M8 FLANGE 		0-91150-108-0 01 1 0312-0602
219 NUT
ZF M/T<X9E> EXC. MJD7 M/T<X9J> (A) M8 FLANGE 		0-91150-108-0 01 1 0312-0602
219 NUT
MJD7 M/T<X9J> (A) M8 FLANGE 		0-91150-108-0 01 1 0312-0602
219 NUT
MJX16P M/T(Y3Z) ISUZU M/T<X9A> EXC. MJD7 M/T<X9J> (A) M8 FLANGE 		0-91180-108-0 01 1 0603-1107
219 NUT
ZF M/T<X9E> EXC. MJD7 M/T<X9J> (A) M8 FLANGE 		0-91180-108-0 01 1 0603-1107
219 NUT
MJD7 M/T<X9J> (A) M8 FLANGE 		0-91180-108-0 01 1 0603-1107
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1108-
219 NUT
MJX16P M/T(Y3Z) ISUZU M/T<X9A> EXC. MJD7 M/T<X9J> (A) M8 FLANGE 		0-91180-108-0 01 1 1108-
219 NUT
ZF M/T<X9E> EXC. MJD7 M/T<X9J> (A) M8 FLANGE 		0-91180-108-0 01 1 1108-
219 NUT
MJD7 M/T<X9J> (A) M8 FLANGE 		0-91180-108-0 01 1 1108-
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0105-1007
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0105-0512
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
242 BOLT; BRKT,HARNESS
(C) M10X20 FLANGE 		0-28681-020-0 02 1 0105-0512
242 BOLT; BRKT,HARNESS
(C) M10X20 FLANGE 		0-28651-020-0 02 1 0601-0605
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0105-0604
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74365-620-0 02 1 0605-1107
294 NUT
MJD7S M/T(Y2Y) (B) M10 FLANGE 		0-91150-210-0 01 1 0312-0602
294 NUT
MJD7S M/T(Y2Y) (B) M10 FLANGE 		0-91180-210-0 01 1 0603-
294 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0106-0602
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105
294 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105
294 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE 		0-91150-108-0 01 1 0106-0602
294 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE 		0-91180-108-0 01 1 0603-
313 BOLT; BRKT
(E) M8X25 FLANGE 		0-28650-825-0 01 1 0606-
313 BOLT; BRKT
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0106
313 BOLT; BRKT
ZF M/T<X9E> (D) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0304
313 BOLT; BRKT
ZF M/T<X9E> (D) M8X20 FLANGE 		0-28680-820-0 01 1 0305-0512
313 BOLT; BRKT
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0305-0512
313 BOLT; BRKT
ZF M/T<X9E> (D) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0605
313 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0605
313 BOLT; BRKT
ZF M/T<X9E> (D) M8X20 FLANGE 		0-28650-820-0 01 1 0606-
313 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N) (C) M12X16 		0-28181-216-0 01 1 0107-0108
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 01 1 0105-0211
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 01 1 0105-0211
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0212-0304
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0105
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0105
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0106-0512
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0105-0211
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0105-0211
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0212-0602
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603-
358 BOLT; EARTH
AUTO CAB TILT<WV2> M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0107-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 0105-
515 NUT; BRKT
M10 		9-09110-510-0 02 1 0105-0512
515 NUT; BRKT
M10 		0-91110-510-0 02 1 0601-0605
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 02 1 0105-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 02 1 0603-

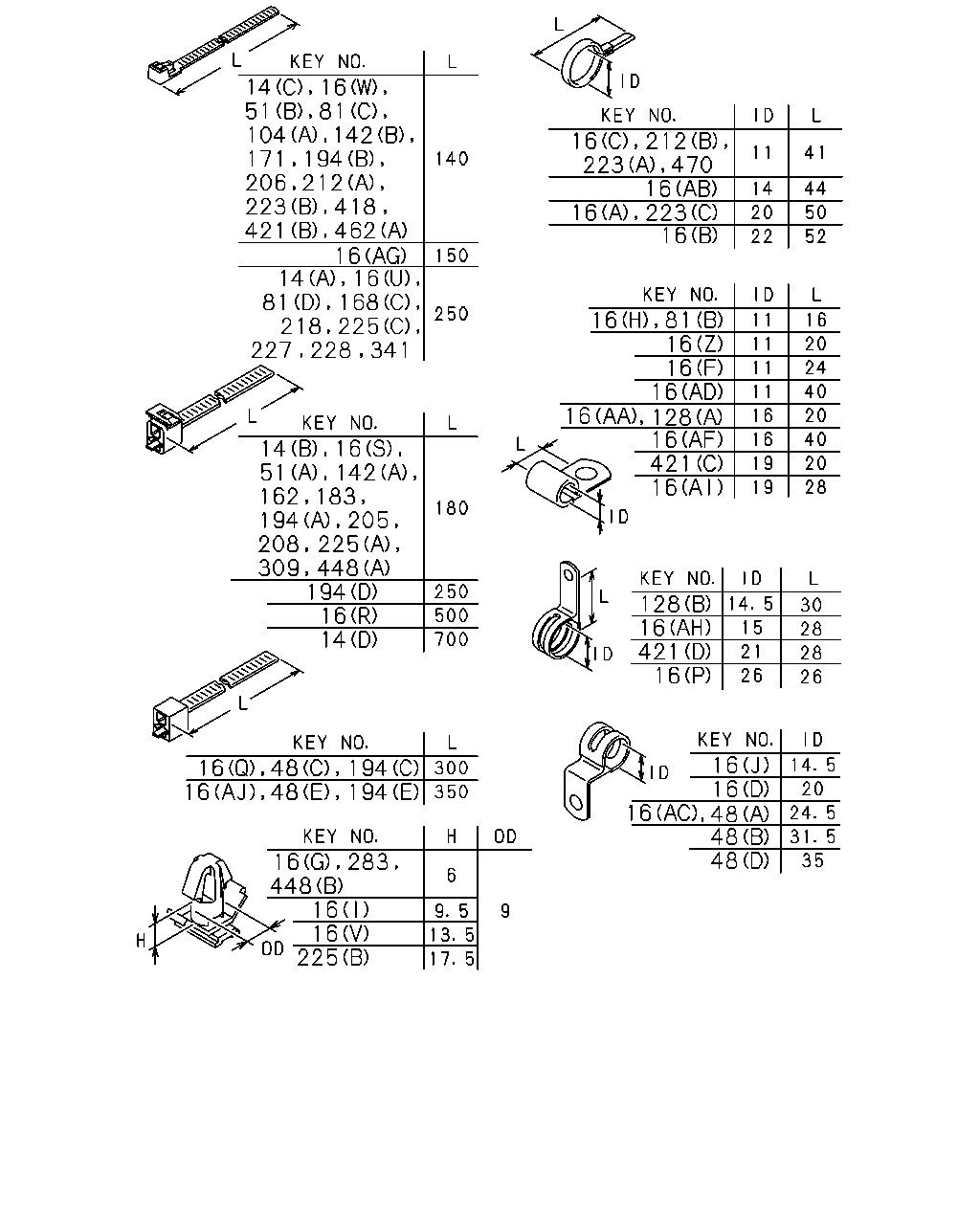

çizim 138927
14 16 104 142 171 194 16 14 16 81 168 16 16 16 16 16 16 128 16 421 16 16 14 16 51 142 194 16 14 128 16 421 16 16 16 48 48 194 194 16 448 16 16 225 51 81 206 212 223 418 421 462 218 225 227 228 341 162 183 194 205 208 225 309 448 48 16 16 48 16 283 16 212 223 470 223 16 81 48
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(B) L=180 		1-09707-162-1 02 1 0105-1107
14 CLIP; BAND,HARNESS
AIR DRYER<PS7> (B) L=180 		1-09707-162-1 01 1 1108-
14 CLIP; BAND,HARNESS
(B) L=180 		1-09707-162-1 01 1 1108-
14 CLIP; BAND,HARNESS
(D) L=700 		1-09707-190-0 01 1 0105-1107
14 CLIP; BAND,HARNESS
AIR DRYER<PS7> (D) L=700 		1-09707-190-0 01 1 1108-
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=250 		5-09707-030-1 02 1 0105-
14 CLIP; BAND,HARNESS
MJX16P M/T(Y3Z) (C) L=140 		5-09707-031-1 02 1 0107-
14 CLIP; BAND,HARNESS
TAIWAN EQUIPMENT(WW5) EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN), AIR BAG(TFQ) (C) L=140 		5-09707-031-1 01 1 0105-0404
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) L=140 		5-09707-031-1 01 1 0105-0404
14 CLIP; BAND,HARNESS
6WA1 TC-C(55L) EURO2 SPECIFICATION<THN> (C) L=140 		5-09707-031-1 01 1 0405-
14 CLIP; BAND,HARNESS
TAIWAN EQUIPMENT(WW5) EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN), AIR BAG(TFQ) (C) L=140 		5-09707-031-1 01 1 0405-
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) L=140 		5-09707-031-1 01 1 0405-
16 CLIP; HARNESS
MJD7 M/T<X9J> (AE) L=36 		8-94224-891-1 01 1 0312-
16 CLIP; HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0212-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 04 1 0212-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AG) L=150 		1-09707-145-1 01 1 0105-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0107-0109
16 CLIP; HARNESS
INSPECTION LAMP<T95> (S) L=180 		1-09707-162-1 02 1 0107-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (O) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (G) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
ZF M/T<X9E> (G) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
(AH) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 05 1 0107-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 09 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 09 1 0105-0106
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (C) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (C) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
(L) ID=15 L=42 		1-09700-479-0 02 1 0105-
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 0105-0107
16 CLIP; HARNESS
(N) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0105-0402
16 CLIP; HARNESS
(N) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-0403
16 CLIP; HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (N) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0404-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) (N) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0404-
16 CLIP; HARNESS
(AC) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0106
16 CLIP; HARNESS
(AC) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0106
16 CLIP; HARNESS
(AC) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0107-0108
16 CLIP; HARNESS
(O) ID=4.8 		1-09701-218-0 01 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 09 1 0107-0112
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 0201-
16 CLIP; HARNESS
(P) ID=26 L=26 		1-09701-236-0 01 1 0105-
16 CLIP; HARNESS
(Q) L=300 		1-09707-001-1 03 1 0105-0504
16 CLIP; HARNESS
(AJ) L=350 		1-09707-183-0 03 1 0505-
16 CLIP; HARNESS
(R) L=500 		1-09707-082-1 01 1 0105-
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 11 1 0105-
16 CLIP; HARNESS
(T) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0105-1107
16 CLIP; HARNESS
(T) W/SPONGE RUBBER 		1-09709-150-0 01 1 0105-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 04 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) OD=9 H=6 		1-09709-178-0 04 1 0105-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (G) OD=9 H=6 		1-09709-178-0 01 1 0107-0311
16 CLIP; HARNESS
MJD7 M/T<X9J> (G) OD=9 H=6 		1-09709-178-0 01 1 0312-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (G) OD=9 H=6 		1-09709-178-0 01 1 0312-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 03 1 0105-0106
16 CLIP; HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (G) OD=9 H=6 		1-09709-178-0 03 1 0107-0107
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) OD=9 H=6 		1-09709-178-0 04 1 0107-
16 CLIP; HARNESS
(V) OD=9 H=13.5 		1-09709-180-0 01 1 0105-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 03 1 0105-0106
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 03 1 0105-0106
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 03 1 0107-
16 CLIP; HARNESS
ZF M/T<X9E> (U) L=250 		5-09707-030-1 03 1 0107-
16 CLIP; HARNESS
(W) L=140 		5-09707-031-1 01 1 0105-0106
16 CLIP; HARNESS
(W) L=140 		5-09707-031-1 01 1 0107-0112
16 CLIP; HARNESS
ISUZU M/T<X9A> (W) L=140 		5-09707-031-1 01 1 0107-0112
16 CLIP; HARNESS
(W) L=140 		5-09707-031-1 01 1 0201-0205
16 CLIP; HARNESS
ISUZU M/T<X9A> (W) L=140 		5-09707-031-1 01 1 0201-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (W) L=140 		5-09707-031-1 01 1 0201-0205
16 CLIP; HARNESS
(W) L=140 		5-09707-031-1 01 1 0206-0311
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (W) L=140 		5-09707-031-1 01 1 0206-0311
16 CLIP; HARNESS
(W) L=140 		5-09707-031-1 01 1 0312-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. MJD7 M/T<X9J> (W) L=140 		5-09707-031-1 01 1 0312-
16 CLIP; HARNESS
MJD7 M/T<X9J> (W) L=140 		5-09707-031-1 01 1 0312-
16 CLIP; HARNESS
(X) ID=7-10 		8-94472-578-0 01 1 0105-
16 CLIP; HARNESS
(Y) ID=14-20 		8-97061-603-0 03 1 0105-
16 CLIP; HARNESS
(Z) ID=11 L=20 		9-09525-035-0 01 1 0105-0107
16 CLIP; HARNESS
(Z) ID=11 L=20 		9-09525-035-0 01 1 0108-0606
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (Z) ID=11 L=20 		9-09525-035-0 01 1 0108-0606
16 CLIP; HARNESS
(Z) ID=11 L=20 		0-95235-035-0 01 1 0607-
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (Z) ID=11 L=20 		0-95235-035-0 01 1 0607-
16 CLIP; HARNESS
(AA) ID=16 L=20 		9-09525-535-0 01 1 0105-0105
16 CLIP; HARNESS
(AA) ID=16 L=20 		9-09525-535-0 01 1 0105-0105
16 CLIP; HARNESS
(AA) ID=16 L=20 		9-09525-535-0 01 1 0106-0106
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (AA) ID=16 L=20 		9-09525-535-0 01 1 0106-0106
16 CLIP; HARNESS
(AA) ID=16 L=20 		9-09525-535-0 01 1 0107-0107
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (AA) ID=16 L=20 		9-09525-535-0 01 1 0107-0107
16 CLIP; HARNESS
(AA) ID=16 L=20 		9-09525-535-0 01 1 0108-0108
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (AA) ID=16 L=20 		9-09525-535-0 01 1 0108-0108
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (AA) ID=16 L=20 		9-09525-535-0 01 1 0108-0108
16 CLIP; HARNESS
(AA) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (AA) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AA) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (AA) ID=16 L=20 		9-09525-535-0 01 1 0206-0311
16 CLIP; HARNESS
MJX16P M/T(Y3Z) ISUZU M/T<X9A> (AA) ID=16 L=20 		9-09525-535-0 01 1 0206-0311
16 CLIP; HARNESS
ZF M/T<X9E> (AA) ID=16 L=20 		9-09525-535-0 01 1 0206-0311
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (AA) ID=16 L=20 		9-09525-535-0 01 1 0312-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) ISUZU M/T<X9A> EXC. MJD7 M/T<X9J> (AA) ID=16 L=20 		9-09525-535-0 01 1 0312-0606
16 CLIP; HARNESS
ZF M/T<X9E> EXC. MJD7 M/T<X9J> (AA) ID=16 L=20 		9-09525-535-0 01 1 0312-0606
16 CLIP; HARNESS
MJD7 M/T<X9J> (AA) ID=16 L=20 		9-09525-535-0 01 1 0312-0606
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (AA) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) ISUZU M/T<X9A> EXC. MJD7 M/T<X9J> (AA) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
ZF M/T<X9E> EXC. MJD7 M/T<X9J> (AA) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
MJD7 M/T<X9J> (AA) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
(AB) ID=14 L=44 		9-09917-427-0 01 1 0105-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 12 1 0105-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0105-0109
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0110-0211
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0110-0211
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0212-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 04 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 04 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=20 L=50 		9-09917-430-0 01 1 0212-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=20 L=50 		9-09917-430-0 01 1 0212-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 02 1 0105-0106
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 05 1 0107-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0105-0106
16 CLIP; HARNESS
(AC) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0107-0108
16 CLIP; HARNESS
(AC) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0109-0112
16 CLIP; HARNESS
(AC) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0109-0112
16 CLIP; HARNESS
(AC) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0201-
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-0109
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) ID=11 L=16 		9-09525-025-0 01 1 0105-0606
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) ID=11 L=16 		0-95235-025-0 01 1 0607-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) ID=11 L=24 		9-09525-045-0 01 1 0105-0606
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) ID=11 L=24 		0-95235-045-0 01 1 0607-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (K) ID=10 H=25 L=20 		1-09700-519-0 01 1 0107-0107
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (U) L=250 		5-09707-030-1 01 1 0107-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Z) ID=11 L=20 		9-09525-035-0 02 1 0206-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Z) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AD) ID=11 L=40 		9-09525-075-0 01 1 0107-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AD) ID=11 L=40 		0-95235-075-0 01 1 0607-
16 CLIP; HARNESS
PTO CONTROL OPERATION CAB BACK<TBZ> (C) ID=11 L=41 		1-09700-403-0 02 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) (C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (I) OD=9 H=9.5 		1-09709-179-0 01 1 0105-0306
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (I) OD=9 H=9.5 		1-09709-179-0 01 1 0307-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (E) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0105-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (K) ID=15 H=30 L=30 		1-09700-832-0 01 1 0105-0105
16 CLIP; HARNESS
(AI) ID=19 L=28 		9-09525-856-0 01 1 0106-0106
16 CLIP; HARNESS
ZF M/T<X9E> (AI) ID=19 L=28 		9-09525-856-0 01 1 0107-0606
16 CLIP; HARNESS
ZF M/T<X9E> (AI) ID=19 L=28 		0-95235-856-0 01 1 0607-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U) (J) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0105-0108
16 CLIP; HARNESS
ZF M/T<X9E> (J) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0109-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (AE) L=36 		8-94224-891-1 01 1 0107-0205
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (AF) ID=16 L=40 		9-09525-576-0 01 1 0107-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) ISUZU M/T<X9A> (AF) ID=16 L=40 		9-09525-576-0 01 1 0206-0311
16 CLIP; HARNESS
MJX16P M/T(Y3Z) ISUZU M/T<X9A> EXC. MJD7 M/T<X9J> (AF) ID=16 L=40 		9-09525-576-0 01 1 0312-0606
16 CLIP; HARNESS
MJD7 M/T<X9J> (AF) ID=16 L=40 		9-09525-576-0 01 1 0312-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) ISUZU M/T<X9A> EXC. MJD7 M/T<X9J> (AF) ID=16 L=40 		0-95235-576-0 01 1 0607-
16 CLIP; HARNESS
MJD7 M/T<X9J> (AF) ID=16 L=40 		0-95235-576-0 01 1 0607-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0105-
48 CLIP; FRAME HARNESS
(D) ID=35 H=45 L=33 		1-09700-947-0 01 1 0105-
48 CLIP; FRAME HARNESS
(B) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0105-
48 CLIP; FRAME HARNESS
(B) ID=31.5 H=23 L=25 		1-09701-017-0 04 1 0105-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 11 1 0105-0504
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 11 1 0505-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 0105-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0105-
81 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0105-
81 CLIP; HARNESS
(C) L=140 		5-09707-031-1 02 1 0105-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 02 1 0105-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16 		9-09525-025-0 01 1 0105-0606
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16 		0-95235-025-0 01 1 0607-
104 CLIP; HEADLAMP HARNESS
(C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0105-
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 0105-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0105-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0105-
142 CLIP; HARNESS,ENG
6WA1 TC-C(55L),6WG1 TC-N(71L) EURO2 SPECIFICATION<THN> (B) L=140 		5-09707-031-1 01 1 0111-0205
142 CLIP; HARNESS,ENG
6WG1 TC-R(75L) (B) L=140 		5-09707-031-1 01 1 0111-0205
142 CLIP; HARNESS,ENG
(B) L=140 		5-09707-031-1 01 1 0206-1205
142 CLIP; HARNESS,ENG
(B) L=140 		8-98216-431-0 01 1 1206-
142 CLIP; HARNESS,ENG
6WA1 TC-C(55L) (A) L=180 		1-09707-162-1 01 1 0105-1207
142 CLIP; HARNESS,ENG
6WA1 TC-C(55L) (A) L=180 		8-98216-427-0 01 1 1208-
142 CLIP; HARNESS,ENG
6WG1 TC-N(71L),6WG1 TC-R(75L) (A) L=180 		1-09707-162-1 02 1 0105-1207
142 CLIP; HARNESS,ENG
6WG1 TC-N(71L),6WG1 TC-R(75L) (A) L=180 		8-98216-427-0 02 1 1208-
162 CLIP; SW HARNESS
L=180 		1-09707-162-1 01 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULL FLOATING CAB(W16) (C) L=250 		5-09707-030-1 01 1 0109-0109
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0105-
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 06 1 0105-
183 CLIP; CONNECTOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=180 		1-09707-162-1 01 1 0105-0306
183 CLIP; CONNECTOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) L=180 		1-09707-162-1 01 1 0307-
194 CLIP; BAND
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (B) L=140 		5-09707-031-1 01 1 0306-
194 CLIP; BAND
ELECTRONIC GOV RED3(KG5) (B) L=140 		5-09707-031-1 01 1 0306-
194 CLIP; BAND
(B) L=140 		5-09707-031-1 02 1 0107-
194 CLIP; BAND
(C) L=300 		1-09707-001-1 01 1 0105-0504
194 CLIP; BAND
(E) L=350 		1-09707-183-0 01 1 0505-
194 CLIP; BAND
(D) L=250 		1-09707-126-0 02 1 0105-
194 CLIP; BAND
(A) L=180 		1-09707-162-1 03 1 0105-0106
194 CLIP; BAND
(A) L=180 		1-09707-162-1 02 1 0107-
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0105-0106
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0105-0106
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0105-0106
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0107-0112
194 CLIP; BAND
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) L=180 		1-09707-162-1 01 1 0105-0106
194 CLIP; BAND
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) L=180 		1-09707-162-1 01 1 0107-0112
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=180 		1-09707-162-1 01 1 0107-0112
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=180 		1-09707-162-1 01 1 0201-0305
194 CLIP; BAND
ELECTRONIC GOV RED3(KG5) (A) L=180 		1-09707-162-1 01 1 0201-0305
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=180 		1-09707-162-1 01 1 0306-
194 CLIP; BAND
6WA1 TC-C(55L) EXC. RLD GOVERNOR(SD7),EURO2 SPECIFICATION<THN> (A) L=180 		1-09707-162-1 01 1 0306-
205 CLIP; BACK LAMP HARNESS
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) L=180 		1-09707-162-1 01 1 0105-0306
205 CLIP; BACK LAMP HARNESS
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) L=180 		1-09707-162-1 01 1 0307-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0105-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> L=180 		1-09707-162-1 01 1 0112-
212 CLIP; HORN HARNESS
ELECTRICAL HORN<WB7> FULL FLOATING CAB(W16) (A) L=140 		5-09707-031-1 01 1 0112-
212 CLIP; HORN HARNESS
ELECTRICAL HORN<WB7> EXC. FULL FLOATING CAB(W16) (B) ID=11 L=41 		1-09700-403-0 01 1 0112-
218 CLIP; BAND,RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=250 		5-09707-030-1 02 1 0208-0306
218 CLIP; BAND,RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) L=250 		5-09707-030-1 02 1 0307-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0105-
223 CLIP; AIR TANK HARNESS
(B) L=140 		5-09707-031-1 12 1 0105-
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 01 1 0105-
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 04 1 0105-
225 CLIP; AIR TANK HARNESS
(B) OD=9 H=17.5 		1-09709-181-0 01 1 0105-
225 CLIP; AIR TANK HARNESS
(C) L=250 		5-09707-030-1 01 1 0105-
227 CLIP; FOG LAMP HARNESS
FOG LAMP REAR<NHD> L=250 		5-09707-030-1 01 1 0210-
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=250 		5-09707-030-1 02 1 0105-
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0105-
309 CLIP; HARNESS,HAND BRAKE CABLE
L=180 		1-09707-162-1 01 1 0105-
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 02 1 0105-
418 CLIP; LAMP HARNESS
RADIO CLARION(SK2) L=140 		5-09707-031-1 01 1 0802-
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 01 1 0105-0207
421 CLIP; FLOOR HARNESS
(C) ID=19 L=20 		9-09525-832-0 02 1 0105-0105
421 CLIP; FLOOR HARNESS
(D) ID=21 L=28 		1-09700-673-1 02 1 0106-
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) L=140 		5-09707-031-1 01 1 0105-0306
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (A) L=180 		1-09707-162-1 01 1 0105-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (B) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 		1-09709-068-0 01 1 0301-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) L=140 		5-09707-031-1 01 1 0301-
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 0105-

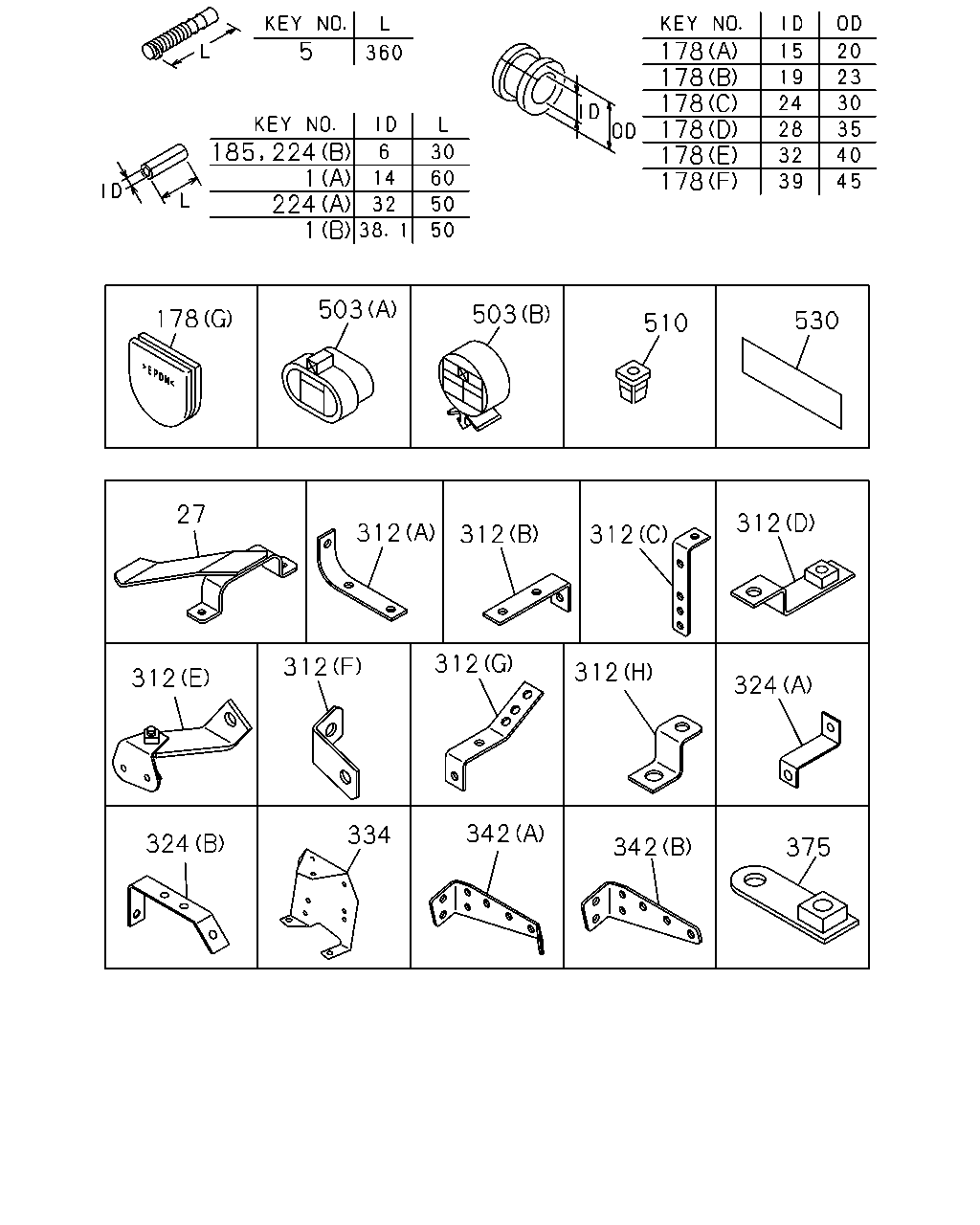

çizim 138930
5 178 178 178 178 178 178 1 224 503 503 178 530 510 27 312 312 312 312 312 312 312 312 324 342 334 324 342 375 185 224 1
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(A) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0105-0112
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=38.1 L=50 		5-09360-835-0 01 1 0105-
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0105-0403
5 GUIDE; HARNESS
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> L=360 		1-82699-476-1 01 1 0404-
5 GUIDE; HARNESS
ELECTRONIC GOV RED3(KG5) L=360 		1-82699-476-1 01 1 0404-
27 PROTECTOR; EDGE 8-97618-028-0 01 1 1109-
178 GROMMET; HARNESS
(D) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0105-
178 GROMMET; HARNESS
(F) ID=39 OD=45 T=19 		1-09332-077-0 01 1 0105-
178 GROMMET; HARNESS
(C) ID=24 OD=30 T=22 		1-09332-104-0 02 1 0105-
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=26 		1-09332-132-0 03 1 0105-
178 GROMMET; HARNESS
(E) ID=32 OD=40 T=18 		1-09891-003-0 02 1 0105-
178 GROMMET; HARNESS
(G) 		1-82699-891-0 01 1 0105-
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0105-0106
178 GROMMET; HARNESS
INSPECTION LAMP<T95> (B) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0107-
178 GROMMET; HARNESS
(D) ID=28 OD=35 T=12 		9-09956-725-0 01 1 0105-
185 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0105-
224 SLEEVE; RUBBER,HARNESS
(B) ID=6 L=30 		5-09360-352-0 01 1 0105-0106
224 SLEEVE; RUBBER,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=32 OD=36 L=50 		1-09337-023-0 01 1 0105-
312 BRACKET; CLIP HARNESS
MJD7S M/T(Y2Y) (H) 		1-82699-425-0 01 1 0312-
312 BRACKET; CLIP HARNESS
MJX16P M/T(Y3Z) (G) 		1-47479-849-0 01 1 0306-
312 BRACKET; CLIP HARNESS
MJX16P M/T(Y3Z) (C) 		1-82698-358-0 01 1 0306-
312 BRACKET; CLIP HARNESS
(D) L=80 H=20 		1-82699-304-0 01 1 0106-0106
312 BRACKET; CLIP HARNESS
ZF M/T<X9E> (D) L=80 H=20 		1-82699-304-0 01 1 0107-
312 BRACKET; CLIP HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (E) 		1-47477-902-0 01 1 0107-0108
312 BRACKET; CLIP HARNESS
(B) L=90 B=25 		1-47476-630-0 01 1 0105-0211
312 BRACKET; CLIP HARNESS
(F) 		1-82699-199-0 01 1 0212-0304
312 BRACKET; CLIP HARNESS
(A) 		1-47478-769-0 01 1 0105-
312 BRACKET; CLIP HARNESS
(C) 		1-82698-358-0 01 1 0105-0105
312 BRACKET; CLIP HARNESS
(C) 		1-82698-358-0 01 1 0105-0105
312 BRACKET; CLIP HARNESS
(C) 		1-82698-358-0 02 1 0106-0305
312 BRACKET; CLIP HARNESS
ZF M/T<X9E> (C) 		1-82698-358-0 02 1 0306-0311
312 BRACKET; CLIP HARNESS
MJD7S M/T(Y2Y) (C) 		1-82698-358-0 02 1 0312-
312 BRACKET; CLIP HARNESS
ZF M/T<X9E> (C) 		1-82698-358-0 02 1 0312-
324 BRACKET; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=110 		1-82699-589-0 01 1 0105-0105
324 BRACKET; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82698-258-0 01 1 0105-
334 BRACKET 1-53458-709-1 01 1 0105-
342 BRACKET; HARNESS CAB MTG
(A) 		1-82698-224-0 01 1 0105-0106
342 BRACKET; HARNESS CAB MTG
ZF M/T<X9E> (A) 		1-82698-224-0 01 1 0107-
342 BRACKET; HARNESS CAB MTG
EXC. ZF M/T<X9E> (B) 		1-82699-625-0 01 1 0107-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0105-
503 CONNECTOR
EXC. AUTO CAB TILT<WV2> (B) 2P MALE LIGHT GRAY 		1-82691-078-0 01 1 0105-
503 CONNECTOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-82690-666-0 01 1 0105-0306
503 CONNECTOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (A) 		1-82690-666-0 01 1 0307-
510 GROMMET; SCREW
6WG1 TC-N(71L),6WG1 TC-R(75L) ELECTRONIC GOV RED3(KG5) D=9.7X9.7 L=8 		8-94222-314-0 02 1 0105-
510 GROMMET; SCREW
6WA1 TC-C(55L) D=9.7X9.7 L=8 		8-94222-314-0 02 1 0105-
530 SEAL; HARNESS
180X40 		1-72498-019-1 04 1 0105-
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 0105-
530 SEAL; HARNESS
180X40 		1-72498-019-0 07 1 0105-0207
530 SEAL; HARNESS
180X40 		1-72498-019-1 08 1 0208-
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> 100X40 		1-72498-022-1 01 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
