Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#28432) — 151 parça

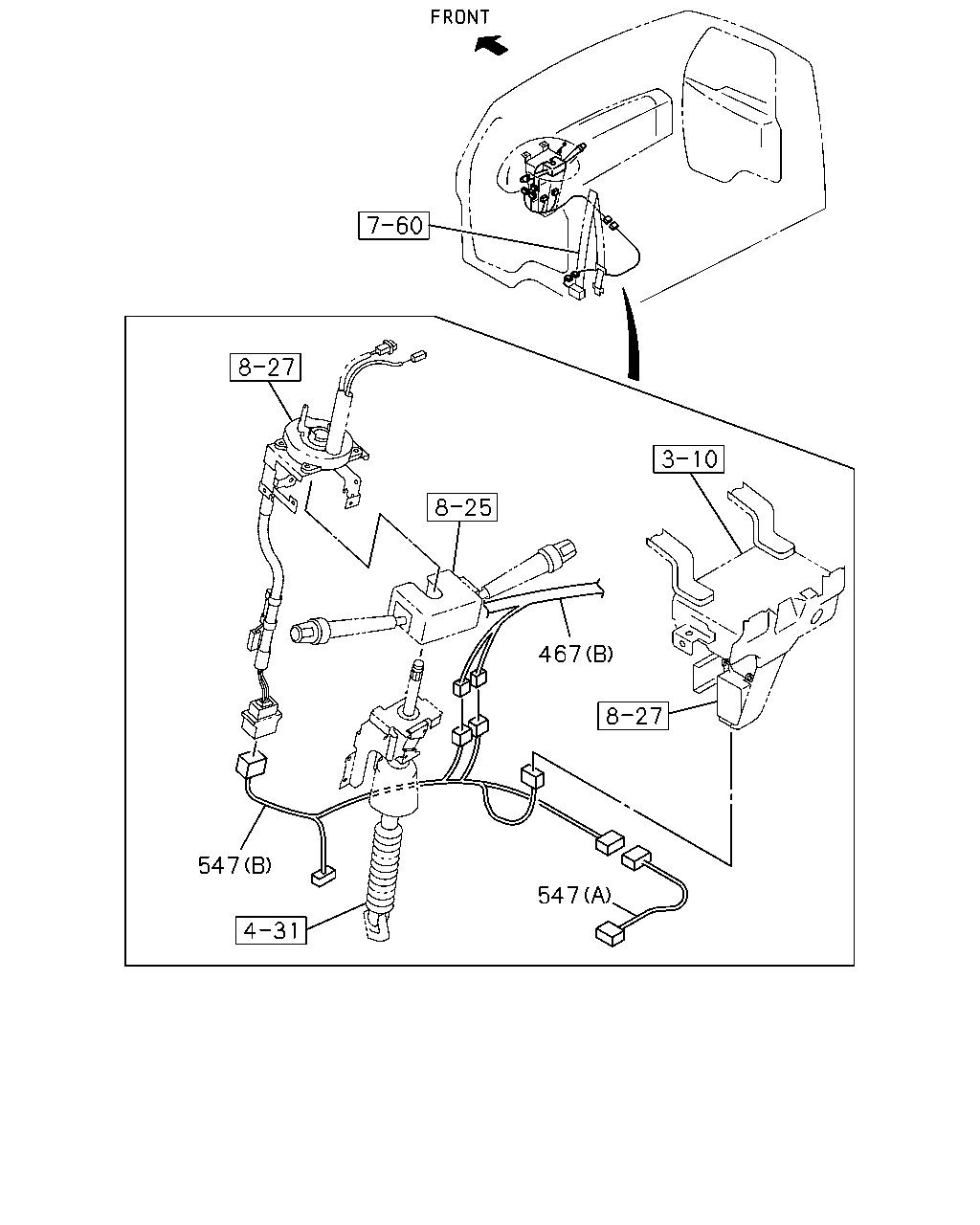

467 547 547

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
467	HARNESS; FACIA (A) UPPER	1-82629-927-1	01	1	0105-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,TAIWAN EQUIPMENT(WW5) (B) LOWER	1-82660-436-3	01	1	0105-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) LOWER	1-82660-439-0	01	1	0105-0108
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) LOWER	1-82660-527-3	01	1	0109-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNERING LAMP<TDS>,TAIWAN EQUIPMENT(WW5) (B) LOWER	1-82660-437-3	01	1	0105-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. TAIWAN EQUIPMENT(WW5) (B) LOWER	1-82660-433-3	01	1	0105-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CORNERING LAMP<TDS>,TAIWAN EQUIPMENT(WW5), DELUXE CAB(W14) (B) LOWER	1-82660-435-4	01	1	0105-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. CORNERING LAMP<TDS>,TAIWAN EQUIPMENT(WW5) (B) LOWER	1-82660-434-3	01	1	0105-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNERING LAMP<TDS>,TAIWAN EQUIPMENT(WW5),DELUXE CAB(W14) (B) LOWER	1-82660-438-4	01	1	0105-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER	1-82660-441-0	01	1	0105-0108
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER	1-82660-529-4	01	1	0109-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER	1-82660-440-0	01	1	0105-0108
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER	1-82660-528-3	01	1	0109-
547	HARNESS; CABLE,SRS DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) (A)	1-82626-429-5	01	1	0105-0111
547	HARNESS; CABLE,SRS DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) (A)	1-82661-062-2	01	1	0112-
547	HARNESS; CABLE,SRS DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) (B)	1-82628-251-0	01	1	0105-

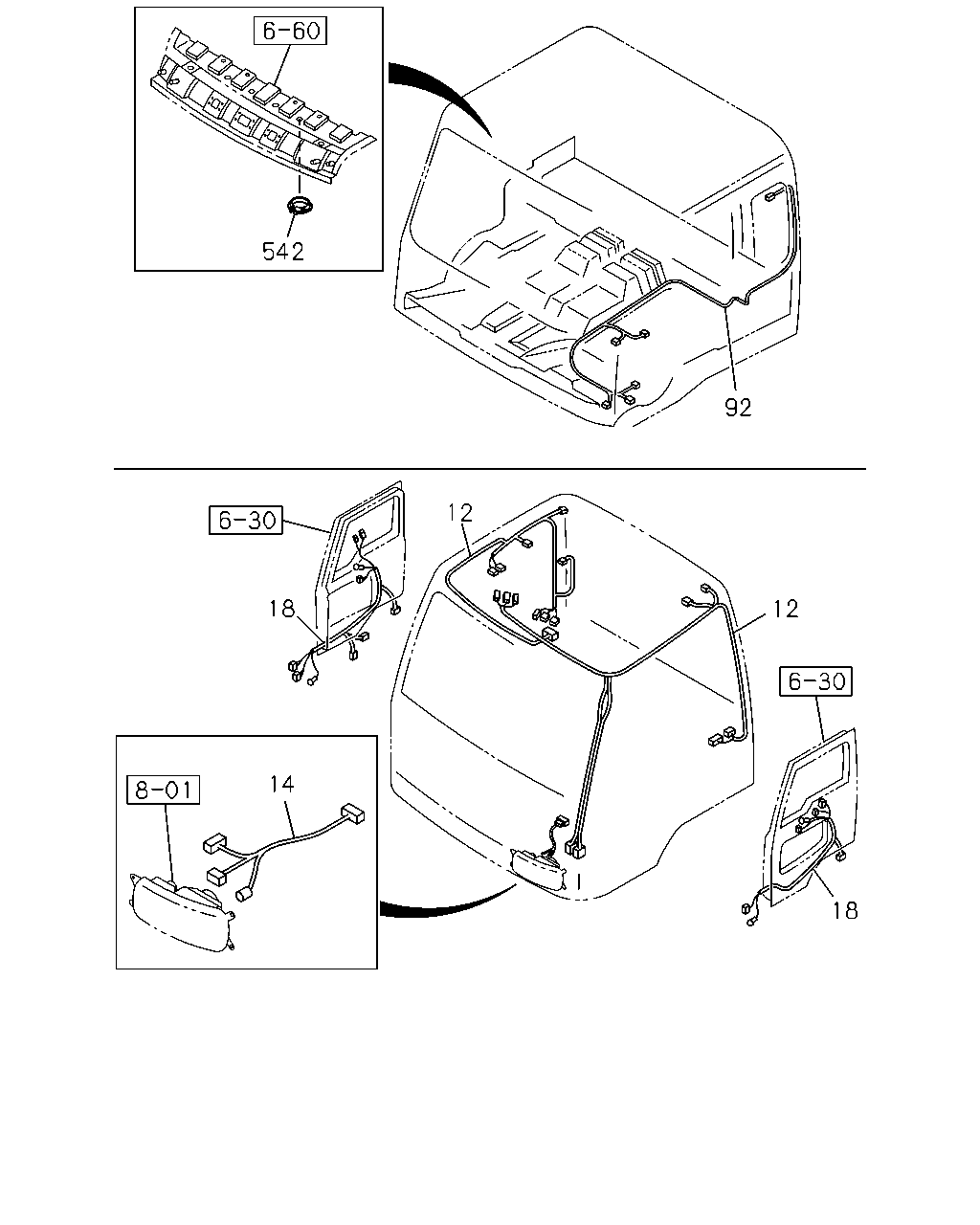

542 92 12 18 12 14 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	HARNESS; ROOF HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC>	1-82629-925-2	01	1	0105-
12	HARNESS; ROOF HIGH ROOF<S2F> EXC. LAMPS TWO ROOF MARKER<TEC>	1-82629-924-2	01	1	0105-
12	HARNESS; ROOF EXC. HIGH ROOF<S2F>,LAMPS TWO ROOF MARKER<TEC>	1-82629-920-2	01	1	0105-
12	HARNESS; ROOF LAMPS TWO ROOF MARKER<TEC> EXC. HIGH ROOF<S2F>	1-82629-921-2	01	1	0105-
12	HARNESS; ROOF SPEAKER SYSTEM 4 SPEAKER<NBV>	1-82628-107-0	01	1	0105-
14	HARNESS; HEADLAMP BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96>	1-82671-664-2	02	1	0105-
14	HARNESS; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>	1-82670-022-2	02	1	0105-
14	HARNESS; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>	1-82625-150-2	02	1	0105-
18	HARNESS; DOOR POWER WINDOW<A30>	1-82628-584-0	01	1	0105-
18	HARNESS; DOOR POWER WINDOW<A30>	1-82628-582-0	01	1	0105-
18	HARNESS; DOOR EXC. POWER WINDOW<A30>	1-82628-581-0	01	1	0105-
18	HARNESS; DOOR EXC. POWER WINDOW<A30>	1-82628-581-0	01	1	0105-
92	HARNESS; FLOOR	1-82660-394-3	01	1	0105-
542	GROMMET; HARNESS HIGH ROOF<S2F> ID=36	8-94178-685-0	03	1	0105-

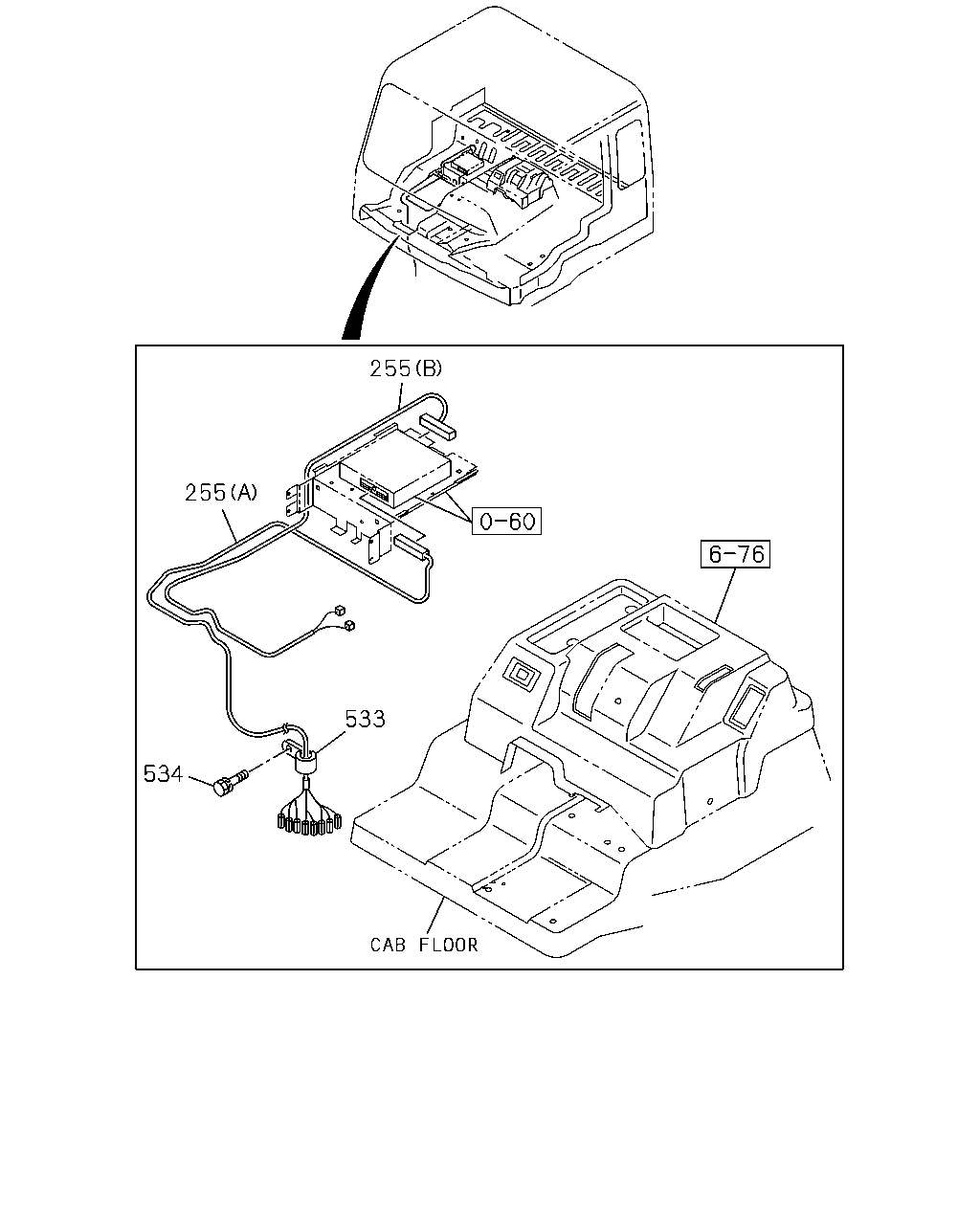

255 255 533 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
255	HARNESS; ELEC GOV ELECTRONIC GOV RED3(KG5) (A)	1-82660-375-2	01	1	0105-
255	HARNESS; ELEC GOV ELECTRONIC GOV RED3(KG5) (B)	1-82660-381-2	01	1	0105-
533	CLIP ID=19 L=32	1-09701-235-0	02	1	0105-0109
533	CLIP ID=21 L=24	8-94176-807-1	02	1	0110-
534	BOLT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0105-

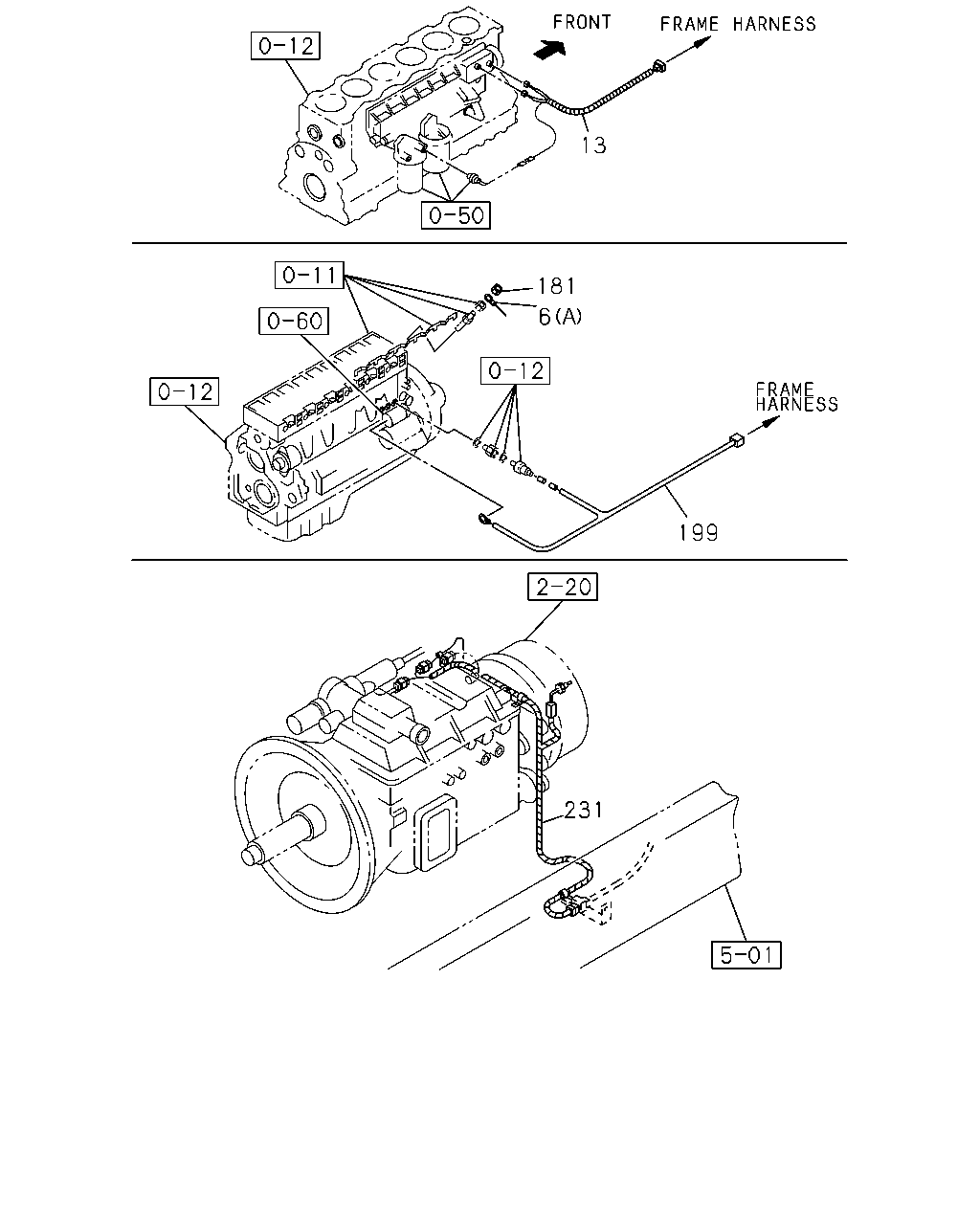

13 181 6 199 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER	1-82674-842-2	01	1	0105-
6	HARNESS; FRAME AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER	1-82674-841-2	01	1	0105-
6	HARNESS; FRAME EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER	1-82674-840-2	01	1	0105-
6	HARNESS; FRAME FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) FRAME	1-82674-926-0	01	1	0105-0108
6	HARNESS; FRAME FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) FRAME	1-82675-046-2	01	1	0109-0109
6	HARNESS; FRAME FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) FRAME	1-82675-541-3	01	1	0110-
6	HARNESS; FRAME GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B) FRAME	1-82674-928-3	01	1	0105-0109
6	HARNESS; FRAME GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B) FRAME	1-82675-539-3	01	1	0110-
6	HARNESS; FRAME GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82674-927-3	01	1	0105-0109
6	HARNESS; FRAME GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82675-538-3	01	1	0110-
6	HARNESS; FRAME EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) FRAME	1-82674-925-0	01	1	0105-0108
6	HARNESS; FRAME EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) FRAME	1-82675-045-2	01	1	0109-0109
6	HARNESS; FRAME EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) FRAME	1-82675-540-3	01	1	0110-
13	HARNESS; ENG	1-82640-553-4	01	1	0105-
181	NUT; GLOW PLUG HARNESS GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M4 FLANGE	5-09440-007-0	01	1	0105-
199	HARNESS; STARTER	1-82641-024-1	01	1	0105-
231	HARNESS; TRANS MJD7S M/T(Y2Y)	1-82674-849-1	01	1	0312-
231	HARNESS; TRANS	1-82674-852-0	01	1	0105-0106
231	HARNESS; TRANS ZF M/T<X9E>	1-82674-852-0	01	1	0107-0107
231	HARNESS; TRANS ZF M/T<X9E>	1-82675-056-0	01	1	0108-
231	HARNESS; TRANS MJX16P M/T(Y3Z)	1-82674-246-2	01	1	0107-

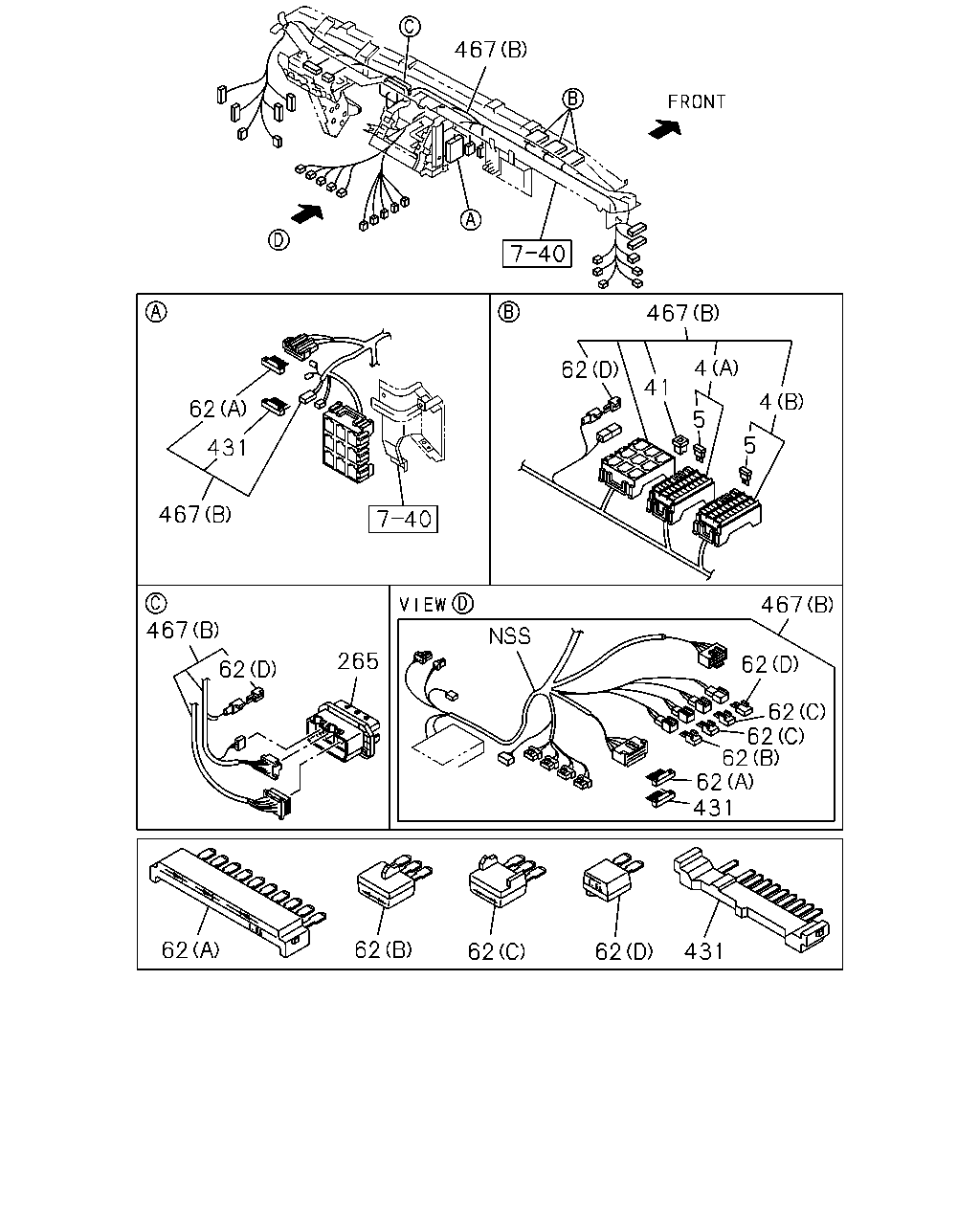

467 467 4 62 41 4 62 5 5 431 467 467 467 265 62 62 62 62 62 62 431 62 62 431 62 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	BOX ASM; FUSE,HARNESS (A) 7.5AX24 10AX2	1-82510-473-0	01	1	0105-
4	BOX ASM; FUSE,HARNESS (B) 15AX20 25AX2	1-82510-520-0	01	1	0105-
5	FUSE; FACIA HARNESS 10A RED	5-82516-002-0	AR	1	0105-
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	AR	1	0105-
5	FUSE; FACIA HARNESS 25A CLEAR	5-82516-005-0	AR	1	0105-
5	FUSE; FACIA HARNESS 7.5A BROWN	8-94159-007-0	AR	1	0105-
41	PULLER; FUSE L=25.3 B=11.5	8-94121-482-0	01	1	0105-
62	DIODE; HARNESS (C) BLACK 3P-1.5A	8-94416-438-1	AR	1	0105-
62	DIODE; HARNESS (D) BLACK 2P-1.5A	8-94422-639-1	AR	1	0105-
62	DIODE; HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	0105-
62	DIODE; HARNESS (A) BLACK 10P	1-82699-703-0	AR	1	0105-
265	BOX; CONN,FRT PNL	1-82699-538-3	01	1	0105-
431	CONNECTOR; JOINT 10P BROWN	1-82699-601-0	02	1	0105-
467	HARNESS; FACIA (A) UPPER	1-82629-927-1	01	1	0105-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,TAIWAN EQUIPMENT(WW5) (B) LOWER	1-82660-436-3	01	1	0105-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) LOWER	1-82660-439-0	01	1	0105-0108
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) LOWER	1-82660-527-3	01	1	0109-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNERING LAMP<TDS>,TAIWAN EQUIPMENT(WW5) (B) LOWER	1-82660-437-3	01	1	0105-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. TAIWAN EQUIPMENT(WW5) (B) LOWER	1-82660-433-3	01	1	0105-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CORNERING LAMP<TDS>,TAIWAN EQUIPMENT(WW5), DELUXE CAB(W14) (B) LOWER	1-82660-435-4	01	1	0105-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. CORNERING LAMP<TDS>,TAIWAN EQUIPMENT(WW5) (B) LOWER	1-82660-434-3	01	1	0105-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNERING LAMP<TDS>,TAIWAN EQUIPMENT(WW5),DELUXE CAB(W14) (B) LOWER	1-82660-438-4	01	1	0105-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER	1-82660-441-0	01	1	0105-0108
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER	1-82660-529-4	01	1	0109-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER	1-82660-440-0	01	1	0105-0108
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER	1-82660-528-3	01	1	0109-

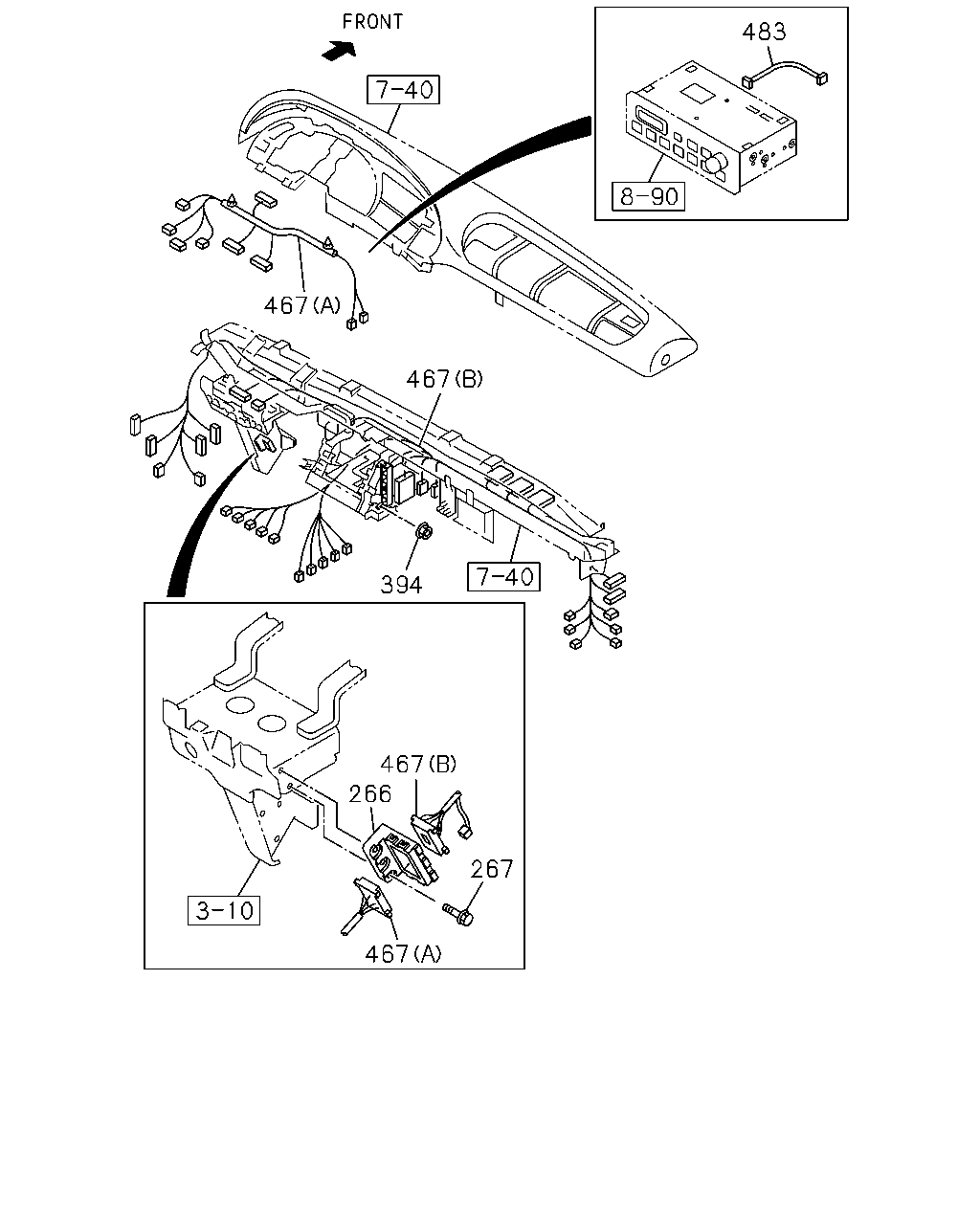

483 467 467 394 467 266 267 467

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
266	BRACKET; CONN BOX	1-82699-580-0	01	1	0105-
267	BOLT; BRKT M6X16 W/PL WASHER	1-09981-438-0	02	1	0105-
394	NUT; RELAY BOX TO BODY M6 FLANGE	0-91150-106-0	01	1	0401-0602
394	NUT; RELAY BOX TO BODY M6 FLANGE	0-91180-106-0	01	1	0603-
467	HARNESS; FACIA (A) UPPER	1-82629-927-1	01	1	0105-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,TAIWAN EQUIPMENT(WW5) (B) LOWER	1-82660-436-3	01	1	0105-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) LOWER	1-82660-439-0	01	1	0105-0108
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) LOWER	1-82660-527-3	01	1	0109-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNERING LAMP<TDS>,TAIWAN EQUIPMENT(WW5) (B) LOWER	1-82660-437-3	01	1	0105-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. TAIWAN EQUIPMENT(WW5) (B) LOWER	1-82660-433-3	01	1	0105-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CORNERING LAMP<TDS>,TAIWAN EQUIPMENT(WW5), DELUXE CAB(W14) (B) LOWER	1-82660-435-4	01	1	0105-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. CORNERING LAMP<TDS>,TAIWAN EQUIPMENT(WW5) (B) LOWER	1-82660-434-3	01	1	0105-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNERING LAMP<TDS>,TAIWAN EQUIPMENT(WW5),DELUXE CAB(W14) (B) LOWER	1-82660-438-4	01	1	0105-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER	1-82660-441-0	01	1	0105-0108
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER	1-82660-529-4	01	1	0109-
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER	1-82660-440-0	01	1	0105-0108
467	HARNESS; FACIA ELECTRONIC GOV RED3(KG5) TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER	1-82660-528-3	01	1	0109-
483	HARNESS; EXT,RADIO RADIO CLARION(SK2)	8-98075-645-0	01	1	0802-

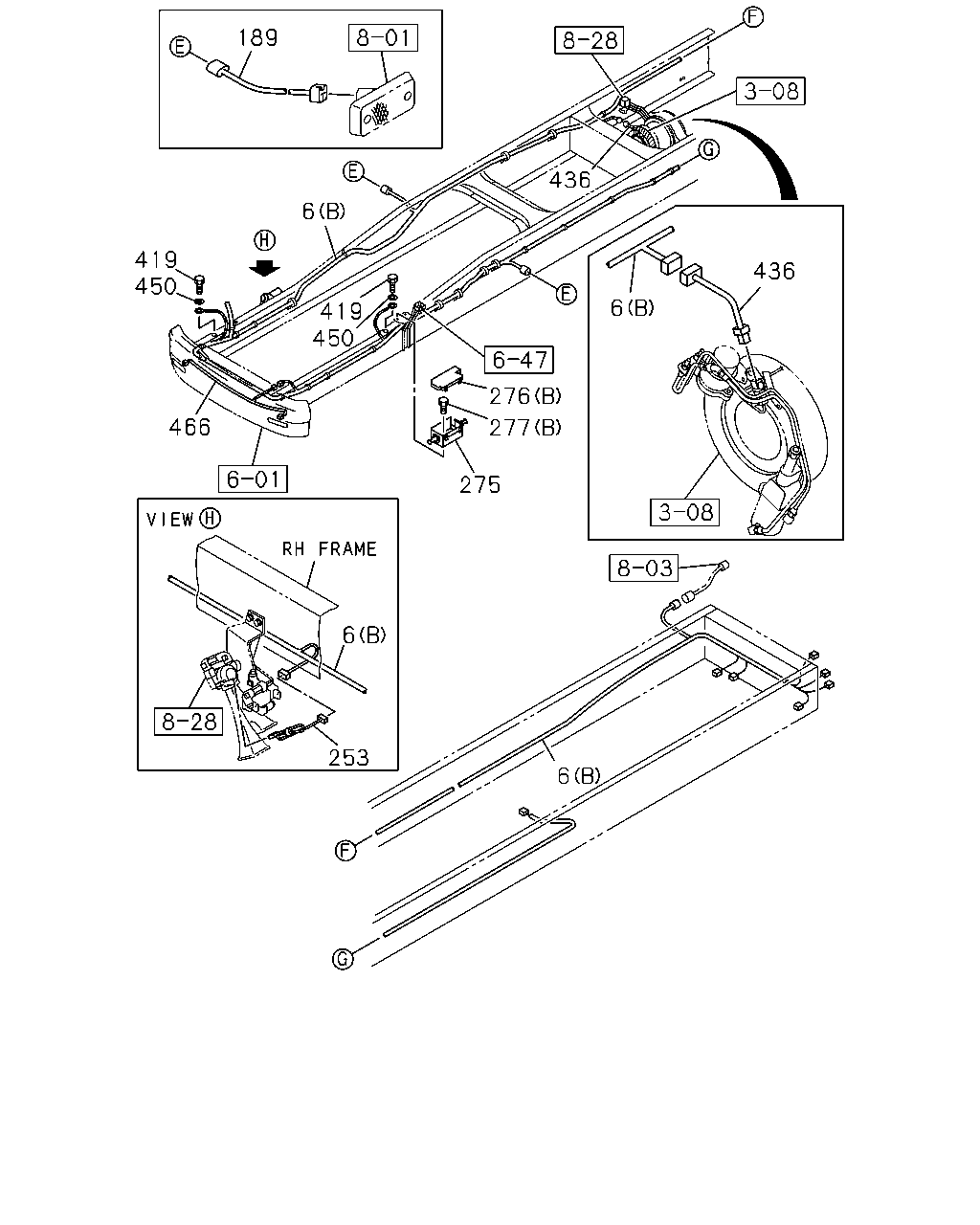

189 436 6 419 450 436 6 419 450 276 466 277 275 6 253 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER	1-82674-842-2	01	1	0105-
6	HARNESS; FRAME AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER	1-82674-841-2	01	1	0105-
6	HARNESS; FRAME EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER	1-82674-840-2	01	1	0105-
6	HARNESS; FRAME FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) FRAME	1-82674-926-0	01	1	0105-0108
6	HARNESS; FRAME FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) FRAME	1-82675-046-2	01	1	0109-0109
6	HARNESS; FRAME FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) FRAME	1-82675-541-3	01	1	0110-
6	HARNESS; FRAME GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B) FRAME	1-82674-928-3	01	1	0105-0109
6	HARNESS; FRAME GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B) FRAME	1-82675-539-3	01	1	0110-
6	HARNESS; FRAME GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82674-927-3	01	1	0105-0109
6	HARNESS; FRAME GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82675-538-3	01	1	0110-
6	HARNESS; FRAME EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) FRAME	1-82674-925-0	01	1	0105-0108
6	HARNESS; FRAME EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) FRAME	1-82675-045-2	01	1	0109-0109
6	HARNESS; FRAME EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) FRAME	1-82675-540-3	01	1	0110-
189	HARNESS; EXT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82673-735-0	06	1	0105-0306
189	HARNESS; EXT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2)	1-82673-735-0	06	1	0307-
253	HARNESS; EXT,HORN 6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> EXC. ELECTRICAL HORN<WB7>	1-82677-941-0	01	1	0405-
275	BOX ASM; FRAME HARNESS	1-82699-474-2	01	1	0105-
276	COVER; BOX,FRAME HARNESS (B)	1-82699-475-2	01	1	0105-
276	COVER; BOX,FRAME HARNESS (A)	1-82699-892-1	01	1	0105-
277	BOLT; BOX ASM FIX (A) M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	0105-0512
277	BOLT; BOX ASM FIX (A) M6X25 W/LK&PL WASHER	0-50640-625-0	02	1	0601-
277	BOLT; BOX ASM FIX (B) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	0105-
419	BOLT; CAB EARTH M8X16 W/LK&PL WASHER	8-97087-055-0	02	1	0105-1201
419	BOLT; CAB EARTH M8X14 W/PL WASHER	8-98164-837-0	02	1	1202-
436	HARNESS; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82670-619-0	01	1	0105-
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	02	1	0105-
466	HARNESS; BUMPER	1-82639-281-0	01	1	0105-

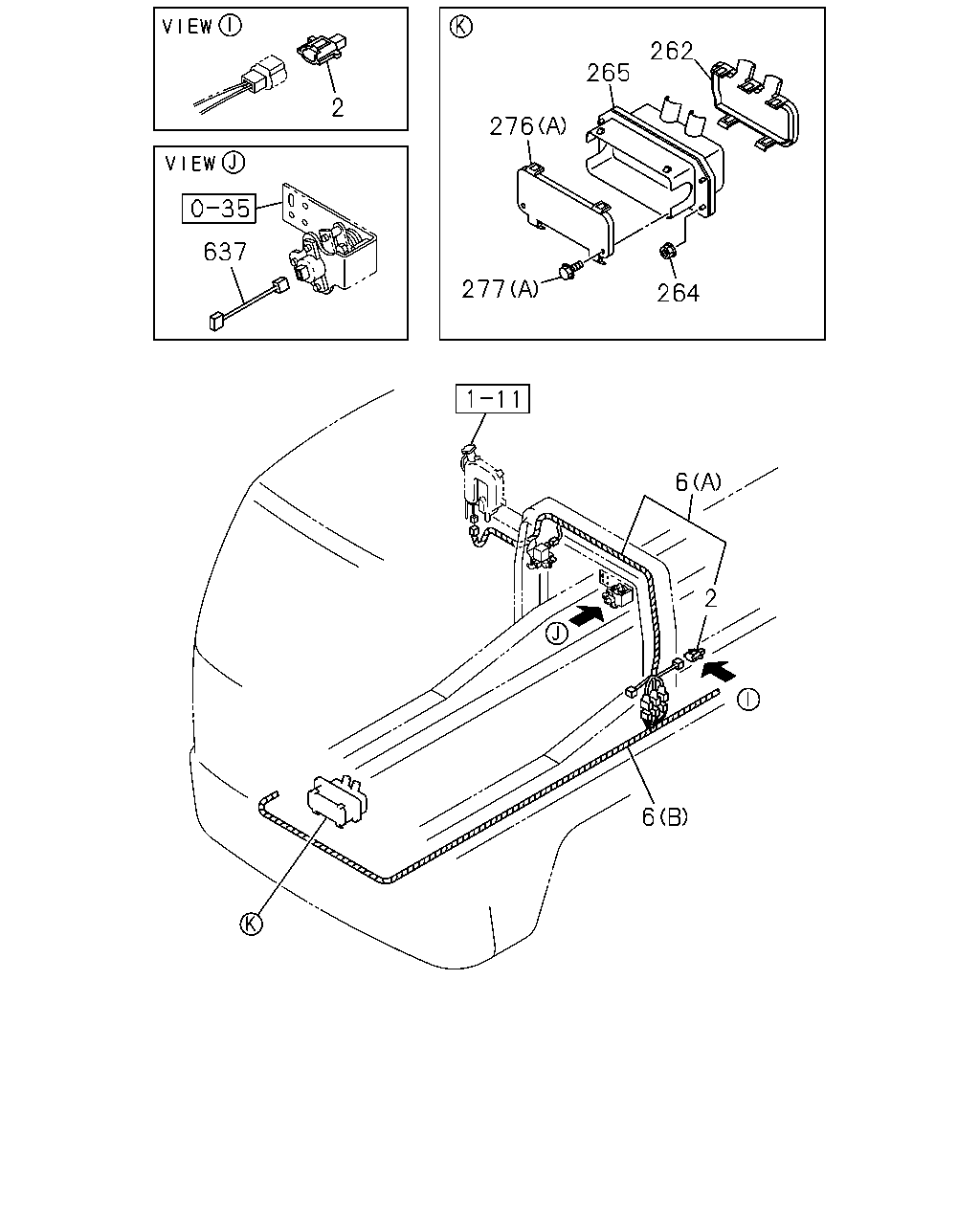

262 265 2 276 637 277 264 6 2 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DIODE; CABLE HARNESS GRAY 2P-1.3A	1-81514-015-0	AR	1	0105-
6	HARNESS; FRAME AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER	1-82674-842-2	01	1	0105-
6	HARNESS; FRAME AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER	1-82674-841-2	01	1	0105-
6	HARNESS; FRAME EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER	1-82674-840-2	01	1	0105-
6	HARNESS; FRAME FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) FRAME	1-82674-926-0	01	1	0105-0108
6	HARNESS; FRAME FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) FRAME	1-82675-046-2	01	1	0109-0109
6	HARNESS; FRAME FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) FRAME	1-82675-541-3	01	1	0110-
6	HARNESS; FRAME GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B) FRAME	1-82674-928-3	01	1	0105-0109
6	HARNESS; FRAME GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B) FRAME	1-82675-539-3	01	1	0110-
6	HARNESS; FRAME GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82674-927-3	01	1	0105-0109
6	HARNESS; FRAME GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82675-538-3	01	1	0110-
6	HARNESS; FRAME EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) FRAME	1-82674-925-0	01	1	0105-0108
6	HARNESS; FRAME EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) FRAME	1-82675-045-2	01	1	0109-0109
6	HARNESS; FRAME EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) FRAME	1-82675-540-3	01	1	0110-
262	COVER; CONNECTOR BOX,FRT PNL	1-82699-605-1	01	1	0105-
264	NUT; CONNECTOR BOX M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0105-
265	BOX; CONN,FRT PNL	1-82699-538-3	01	1	0105-
276	COVER; BOX,FRAME HARNESS (B)	1-82699-475-2	01	1	0105-
276	COVER; BOX,FRAME HARNESS (A)	1-82699-892-1	01	1	0105-
277	BOLT; BOX ASM FIX (A) M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	0105-0512
277	BOLT; BOX ASM FIX (A) M6X25 W/LK&PL WASHER	0-50640-625-0	02	1	0601-
277	BOLT; BOX ASM FIX (B) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	0105-
637	HARNESS; EXT,S/SENSOR PTO CONTROL OPERATION CAB BACK<TBZ>	1-82675-934-0	01	1	0207-

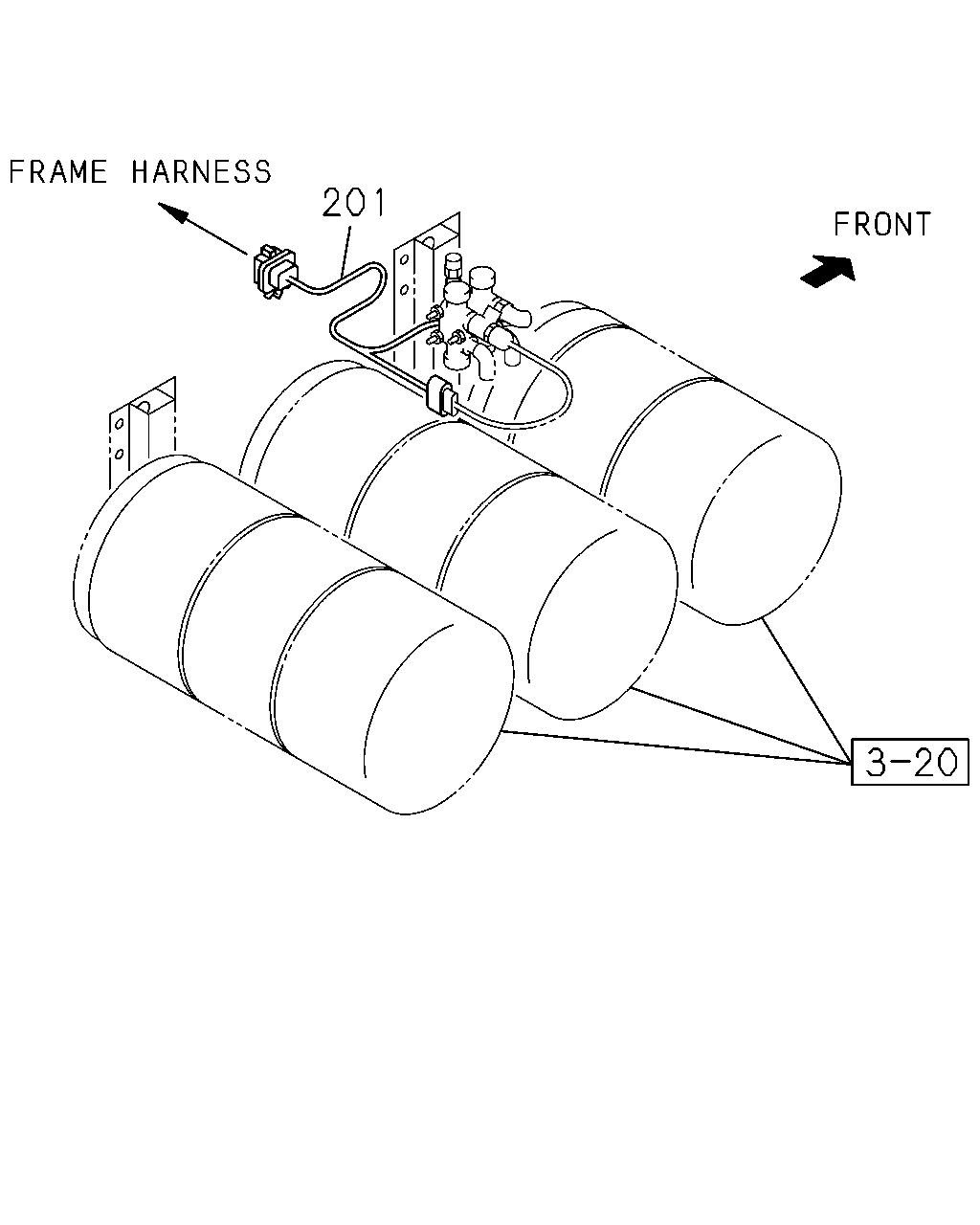

201

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	201	HARNESS; AIR TANK	1-82673-731-0	01	1	0105-
