8-01 — LAMP; FRONT AND FRONT SIDE (#28429) — 261 parça

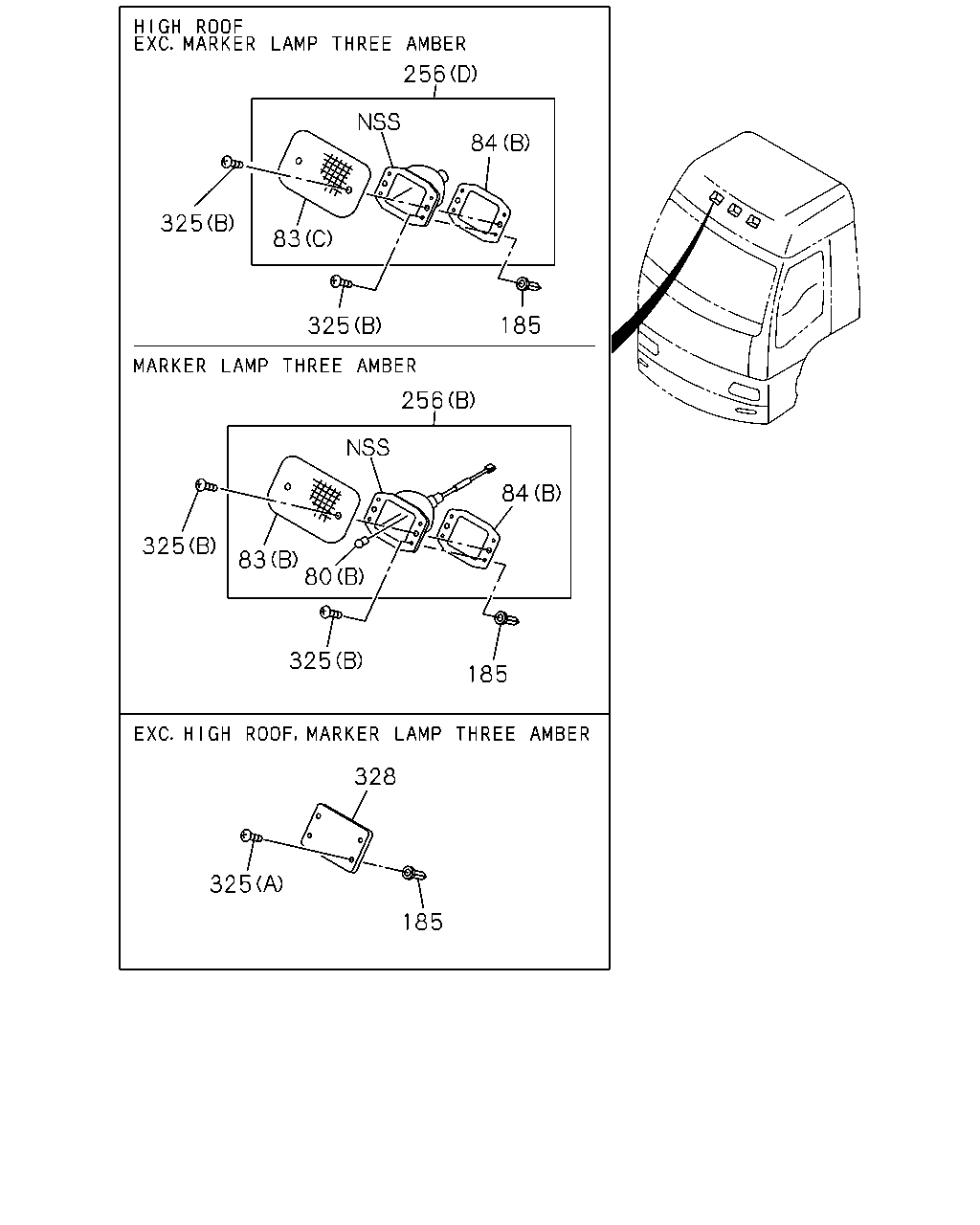

çizim 138563
256 84 325 83 185 325 256 84 325 83 80 325 185 328 325 185
BalonParca AdiParca NoAdetTipApplied Date
80 BULB; MARKER LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 24V 3W 		1-82219-035-0 06 1 0105-0306
80 BULB; MARKER LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (A) 24V 3W 		1-82219-035-0 06 1 0307-
80 BULB; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> (A) 24V 5W 		8-94135-397-0 02 1 0105-
80 BULB; MARKER LAMP
MARKER LAMP THREE AMBER<WD9> (B) 24V 12W 		9-82691-302-0 03 1 0105-
83 LENS; MARKER LAMP
HIGH ROOF<S2F> MARKER LAMP THREE AMBER<WD9> (B) 		1-86830-320-0 03 1 0105-
83 LENS; MARKER LAMP
HIGH ROOF<S2F> EXC. MARKER LAMP THREE AMBER<WD9> (C) 		1-86830-321-0 03 1 0105-
83 LENS; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> (A) 		1-82215-046-0 02 1 0105-
83 LENS; MARKER LAMP
MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> (B) 		1-82215-068-0 03 1 0105-
84 GASKET; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> (A) 		1-86830-288-0 02 1 0105-
84 GASKET; MARKER LAMP
MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> (B) 		1-86830-153-0 03 1 0105-
84 GASKET; MARKER LAMP
HIGH ROOF<S2F> (B) 		1-86830-153-0 03 1 0105-
185 GROMMET; SCREW
M5 SCREW GROMMET 		1-09983-131-0 12 1 0105-
256 LAMP; MARKER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) SIDE MARKER 		1-82210-244-0 06 1 0105-0306
256 LAMP; MARKER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (C) SIDE MARKER 		1-82210-244-0 06 1 0307-
256 LAMP; MARKER
HIGH ROOF<S2F> MARKER LAMP THREE AMBER<WD9> (B) ROOF MARKER W/BLUB 		1-82210-229-0 03 1 0105-
256 LAMP; MARKER
HIGH ROOF<S2F> EXC. MARKER LAMP THREE AMBER<WD9> (D) ROOF MARKER WO/BLUB 		1-82210-230-0 03 1 0105-
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> (A) 		1-86830-242-3 02 1 0105-
256 LAMP; MARKER
MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> (B) ROOF MARKER W/BLUB 		1-86830-170-0 03 1 0105-
325 SCREW; SPD INDICATOR LAMP
EXC. HIGH ROOF<S2F>,LAMPS TWO ROOF MARKER<TEC>, MARKER LAMP THREE AMBER<WD9> (A) M5X14 TAPPING 		9-07066-514-0 12 1 0105-0603
325 SCREW; SPD INDICATOR LAMP
EXC. HIGH ROOF<S2F>,LAMPS TWO ROOF MARKER<TEC>, MARKER LAMP THREE AMBER<WD9> (A) M5X14 TAPPING 		0-71040-514-0 12 1 0604-
325 SCREW; SPD INDICATOR LAMP
MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> (B) M5X20 TAPPING 		0-71090-520-0 18 1 0105-
325 SCREW; SPD INDICATOR LAMP
HIGH ROOF<S2F> (B) M5X20 TAPPING 		0-71090-520-0 18 1 0105-
328 COVER; LAMP
EXC. HIGH ROOF<S2F>,MARKER LAMP THREE AMBER<WD9> 		1-76217-122-1 03 1 0105-

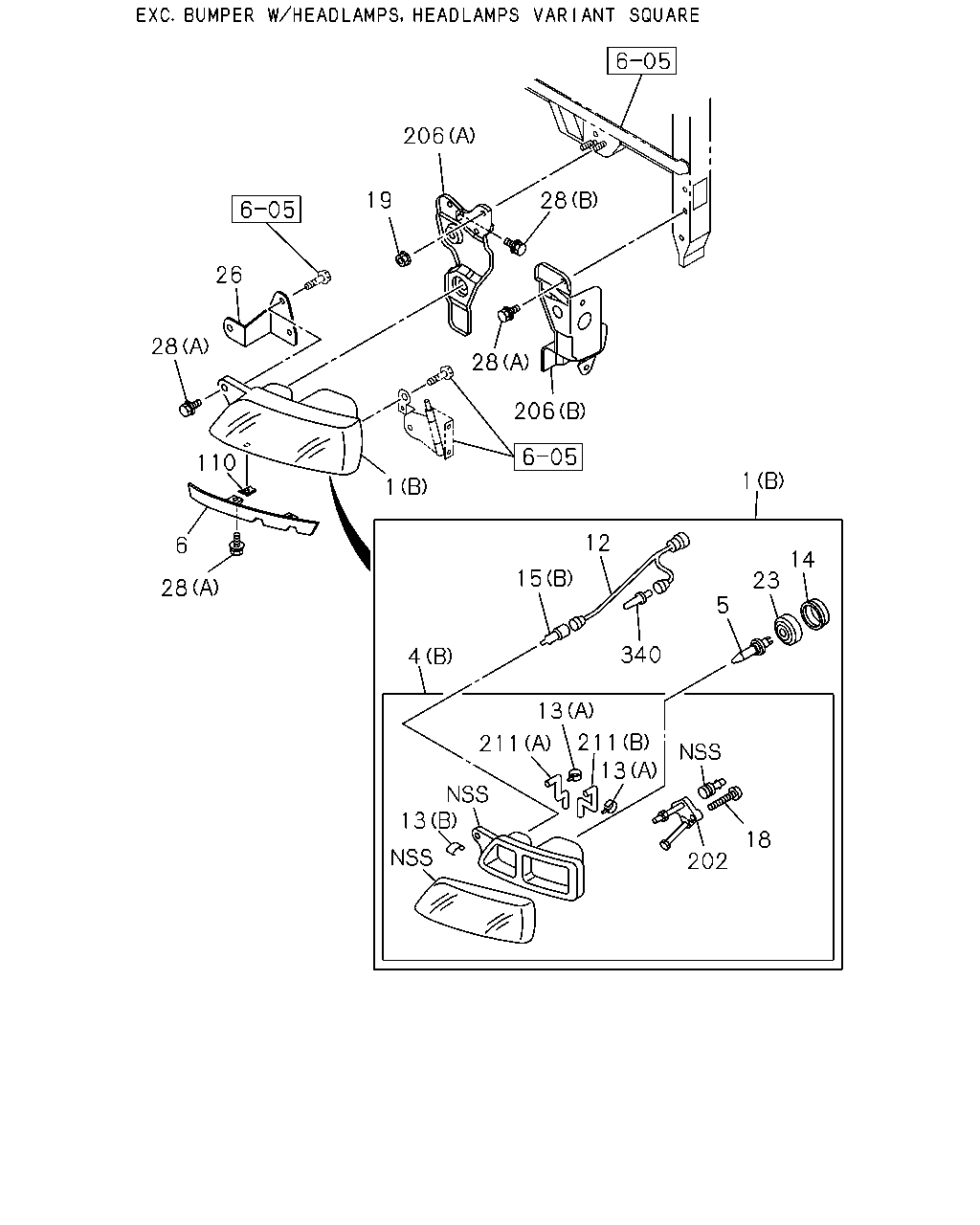

çizim 138583
206 19 28 26 28 28 206 110 1 1 12 6 14 15 23 28 5 340 4 13 211 13 211 13 18 202
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-82110-394-2 01 1 0105-0711
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA> (A) 		8-98097-197-0 01 1 0712-
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-82110-393-2 01 1 0105-0711
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA> (A) 		8-98097-196-0 01 1 0712-
1 LAMP ASM; HEAD
EXC. HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82110-400-2 01 1 0105-0509
1 LAMP ASM; HEAD
EXC. HEADLAMPS VARIANT SQUARE<TEA> (B) 		8-97609-418-1 01 1 0510-
1 LAMP ASM; HEAD
EXC. HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82110-399-2 01 1 0105-0509
1 LAMP ASM; HEAD
EXC. HEADLAMPS VARIANT SQUARE<TEA> (B) 		8-97609-417-1 01 1 0510-
4 HEADLAMP UNIT
BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-82119-176-0 01 1 0105-
4 HEADLAMP UNIT
BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-82119-175-0 01 1 0105-
4 HEADLAMP UNIT
EXC. HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82119-133-0 01 1 0105-
4 HEADLAMP UNIT
EXC. HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82119-132-0 01 1 0105-
5 BULB; HEADLAMP
BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA> 24V 75/70W 		8-94405-657-0 02 1 0105-
5 BULB; HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE<TEA> 24V 75/70W 		1-82194-063-0 02 1 0105-
6 RIM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-71107-024-0 01 1 0105-
6 RIM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-71107-023-0 01 1 0105-
12 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA> 		1-82118-014-0 02 1 0105-
12 HARNESS; HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE<TEA> 		1-82118-012-0 02 1 0105-
13 CLIP; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-82119-084-0 04 1 0105-0711
13 CLIP; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (A) 		1-82119-084-0 04 1 0105-0711
13 CLIP; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-82119-084-0 02 1 0712-
13 CLIP; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (A) 		1-82119-084-0 02 1 0712-
13 CLIP; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> (B) 		8-94381-588-0 14 1 0105-
13 CLIP; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (B) 		8-94381-588-0 14 1 0105-
14 CAP; BULB,LAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-148-0 02 1 0105-
14 CAP; BULB,LAMP
BUMPER W/HEADLAMPS<SLB> 		1-86830-148-0 02 1 0105-
15 BULB; FOG LAMP
HEADLAMPS VARIANT SQUARE<TEA> FOG LAMP<T96> (A) 24V 70W 		8-97203-926-0 02 1 0105-
15 BULB; FOG LAMP
EXC. HEADLAMPS VARIANT SQUARE<TEA> (B) 24V 55W 		1-82194-079-0 02 1 0105-
18 SCREW; GEAR CASE
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> M4X16 TAPPING 		1-82119-067-0 08 1 0105-
18 SCREW; GEAR CASE
BUMPER W/HEADLAMPS<SLB> M4X16 TAPPING 		1-82119-067-0 08 1 0105-
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0105-
23 COVER; BULB,HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-147-0 02 1 0105-
23 COVER; BULB,HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-86830-147-0 02 1 0105-
26 BRACKET ASM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-085-0 01 1 0105-
26 BRACKET ASM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-084-0 01 1 0105-
28 BOLT; HEADLAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0105-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) M10X35 FLANGE 		0-28081-035-0 06 1 0105-0105
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) M10X30 FLANGE 		0-28681-030-0 06 1 0106-0512
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) M10X30 FLANGE 		0-28651-030-0 06 1 0601-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (D) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0105-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0105-
28 BOLT; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0105-0708
28 BOLT; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0709-
28 BOLT; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X16 FLANGE 		0-28650-616-0 04 1 0709-
110 CLIP; RIM,HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-213-1 04 1 0105-
202 GEAR UNIT; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-139-0 04 1 0105-
202 GEAR UNIT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-86830-139-0 04 1 0105-
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0105-
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0105-
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-762-3 01 1 0105-
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-761-3 01 1 0105-
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-574-3 01 1 0105-
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-573-3 01 1 0105-
211 TUBE; HEADLAMP
BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA> (B) 		8-98101-137-0 01 1 0712-
211 TUBE; HEADLAMP
BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA> (B) 		8-98101-138-0 01 1 0712-
211 TUBE; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-86830-329-0 01 1 0105-0105
211 TUBE; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (A) 		1-86830-329-0 01 1 0105-0105
211 TUBE; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-331-0 01 1 0105-0711
211 TUBE; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (B) 		1-86830-331-0 01 1 0105-0711
211 TUBE; HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-331-0 01 1 0712-
211 TUBE; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-86830-328-0 01 1 0105-0105
211 TUBE; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (A) 		1-86830-328-0 01 1 0105-0105
211 TUBE; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-330-0 01 1 0105-0711
211 TUBE; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (B) 		1-86830-330-0 01 1 0105-0711
211 TUBE; HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-330-0 01 1 0712-
340 BULB; POSITION
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 24V 5W 		1-82194-042-0 02 1 0105-
340 BULB; POSITION
BUMPER W/HEADLAMPS<SLB> 24V 5W 		1-82194-042-0 02 1 0105-

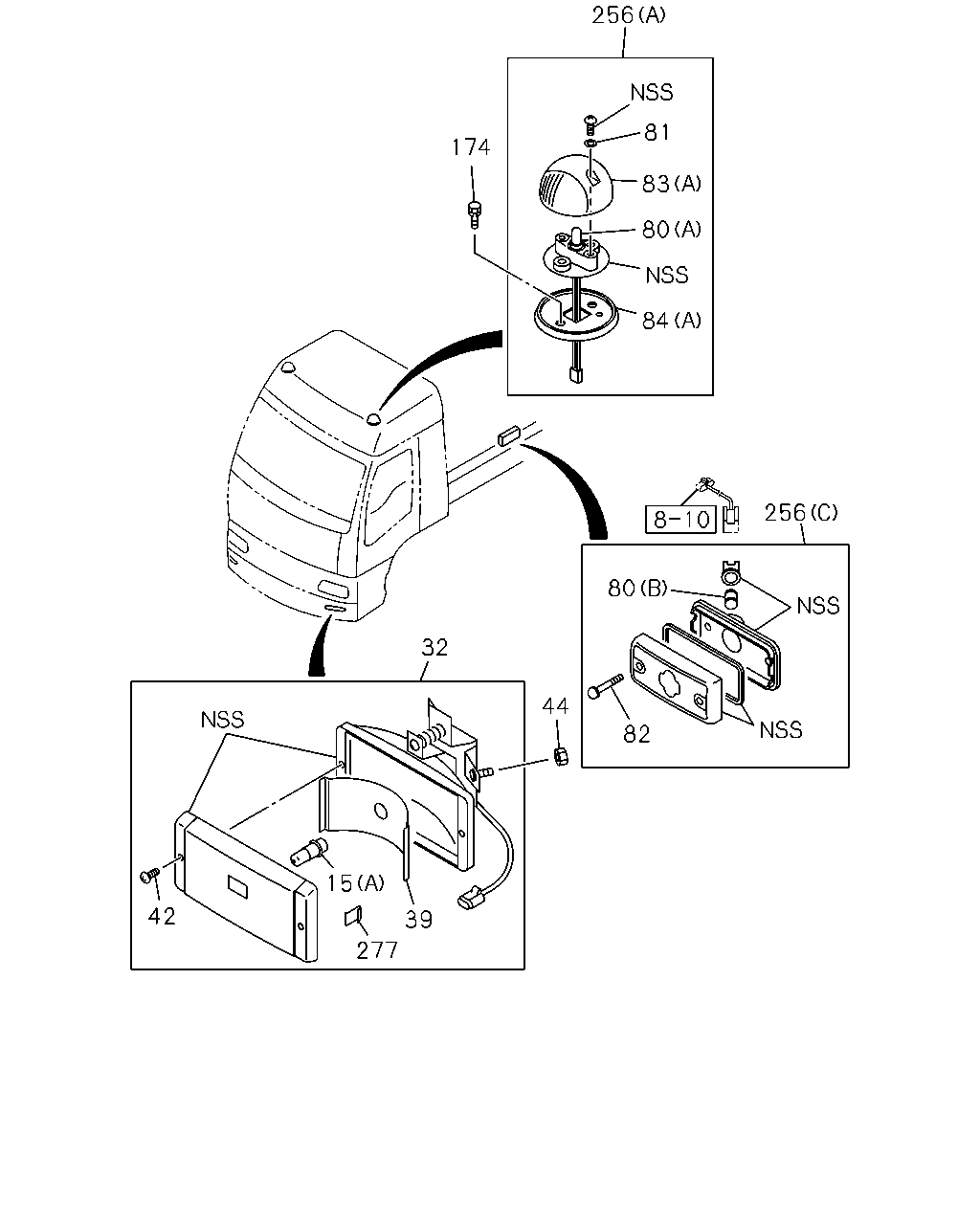

çizim 138590
256 81 174 83 80 84 256 80 32 44 82 15 42 39 277
BalonParca AdiParca NoAdetTipApplied Date
15 BULB; FOG LAMP
HEADLAMPS VARIANT SQUARE<TEA> FOG LAMP<T96> (A) 24V 70W 		8-97203-926-0 02 1 0105-
15 BULB; FOG LAMP
EXC. HEADLAMPS VARIANT SQUARE<TEA> (B) 24V 55W 		1-82194-079-0 02 1 0105-
32 LAMP ASM; FOG
HEADLAMPS VARIANT SQUARE<TEA> FOG LAMP<T96> 		8-97181-942-0 01 1 0105-0303
32 LAMP ASM; FOG
HEADLAMPS VARIANT SQUARE<TEA> FOG LAMP<T96> 		8-97353-955-1 01 1 0304-
32 LAMP ASM; FOG
HEADLAMPS VARIANT SQUARE<TEA> FOG LAMP<T96> 		8-97181-940-0 01 1 0105-0303
32 LAMP ASM; FOG
HEADLAMPS VARIANT SQUARE<TEA> FOG LAMP<T96> 		8-97353-954-1 01 1 0304-
39 UNIT; FOG LAMP
HEADLAMPS VARIANT SQUARE<TEA> FOG LAMP<T96> 		8-97357-929-0 02 1 0105-
42 SCREW; LENS,FOG LAMP
HEADLAMPS VARIANT SQUARE<TEA> FOG LAMP<T96> 		8-97357-931-0 04 1 0105-
44 NUT; FOG LAMP
HEADLAMPS VARIANT SQUARE<TEA> FOG LAMP<T96> M8 FLANGE 		0-91150-108-0 04 1 0105-0602
44 NUT; FOG LAMP
HEADLAMPS VARIANT SQUARE<TEA> FOG LAMP<T96> M8 FLANGE 		0-91180-108-0 04 1 0603-
44 NUT; FOG LAMP
HEADLAMPS VARIANT SQUARE<TEA> FOG LAMP<T96> M5 CAP NUT 		9-61167-090-0 02 1 0105-
80 BULB; MARKER LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 24V 3W 		1-82219-035-0 06 1 0105-0306
80 BULB; MARKER LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (A) 24V 3W 		1-82219-035-0 06 1 0307-
80 BULB; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> (A) 24V 5W 		8-94135-397-0 02 1 0105-
80 BULB; MARKER LAMP
MARKER LAMP THREE AMBER<WD9> (B) 24V 12W 		9-82691-302-0 03 1 0105-
81 SEAT; SCREW
LAMPS TWO ROOF MARKER<TEC> 		1-82219-012-0 04 1 0105-
82 SCREW; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		1-82219-011-0 04 1 0105-
83 LENS; MARKER LAMP
HIGH ROOF<S2F> MARKER LAMP THREE AMBER<WD9> (B) 		1-86830-320-0 03 1 0105-
83 LENS; MARKER LAMP
HIGH ROOF<S2F> EXC. MARKER LAMP THREE AMBER<WD9> (C) 		1-86830-321-0 03 1 0105-
83 LENS; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> (A) 		1-82215-046-0 02 1 0105-
83 LENS; MARKER LAMP
MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> (B) 		1-82215-068-0 03 1 0105-
84 GASKET; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> (A) 		1-86830-288-0 02 1 0105-
84 GASKET; MARKER LAMP
MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> (B) 		1-86830-153-0 03 1 0105-
84 GASKET; MARKER LAMP
HIGH ROOF<S2F> (B) 		1-86830-153-0 03 1 0105-
174 BOLT
LAMPS TWO ROOF MARKER<TEC> M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0105-
256 LAMP; MARKER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) SIDE MARKER 		1-82210-244-0 06 1 0105-0306
256 LAMP; MARKER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (C) SIDE MARKER 		1-82210-244-0 06 1 0307-
256 LAMP; MARKER
HIGH ROOF<S2F> MARKER LAMP THREE AMBER<WD9> (B) ROOF MARKER W/BLUB 		1-82210-229-0 03 1 0105-
256 LAMP; MARKER
HIGH ROOF<S2F> EXC. MARKER LAMP THREE AMBER<WD9> (D) ROOF MARKER WO/BLUB 		1-82210-230-0 03 1 0105-
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> (A) 		1-86830-242-3 02 1 0105-
256 LAMP; MARKER
MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> (B) ROOF MARKER W/BLUB 		1-86830-170-0 03 1 0105-
277 CLIP; LENS,FOG LAMP
HEADLAMPS VARIANT SQUARE<TEA> FOG LAMP<T96> 		8-97357-930-0 02 1 0105-

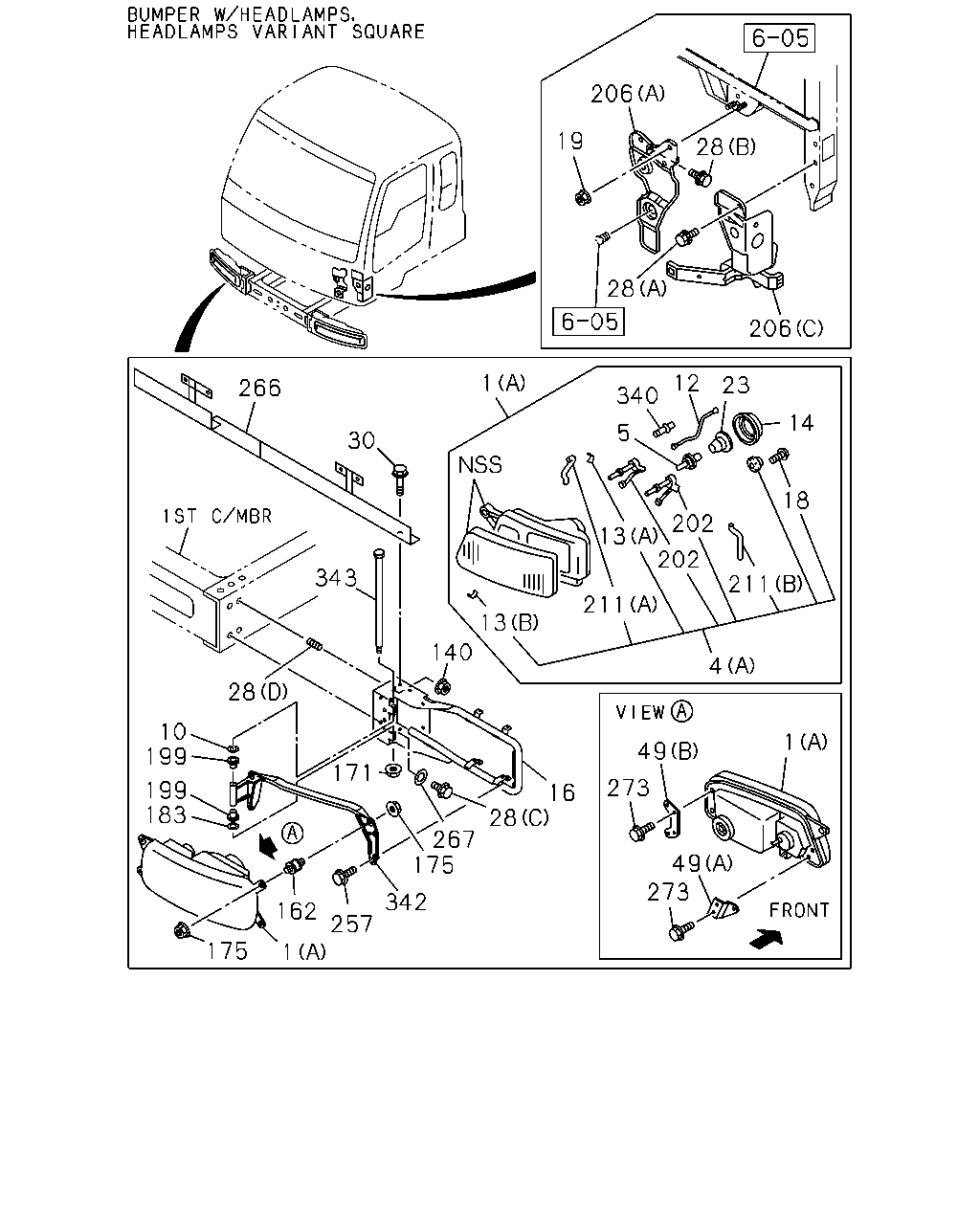

çizim 138591
206 19 28 28 206 12 1 23 266 340 14 5 30 18 202 13 202 343 211 211 13 140 4 28 10 199 1 49 171 273 199 183 16 28 267 175 49 273 342 162 257 175 1
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-82110-394-2 01 1 0105-0711
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA> (A) 		8-98097-197-0 01 1 0712-
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-82110-393-2 01 1 0105-0711
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA> (A) 		8-98097-196-0 01 1 0712-
1 LAMP ASM; HEAD
EXC. HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82110-400-2 01 1 0105-0509
1 LAMP ASM; HEAD
EXC. HEADLAMPS VARIANT SQUARE<TEA> (B) 		8-97609-418-1 01 1 0510-
1 LAMP ASM; HEAD
EXC. HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82110-399-2 01 1 0105-0509
1 LAMP ASM; HEAD
EXC. HEADLAMPS VARIANT SQUARE<TEA> (B) 		8-97609-417-1 01 1 0510-
4 HEADLAMP UNIT
BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-82119-176-0 01 1 0105-
4 HEADLAMP UNIT
BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-82119-175-0 01 1 0105-
4 HEADLAMP UNIT
EXC. HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82119-133-0 01 1 0105-
4 HEADLAMP UNIT
EXC. HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82119-132-0 01 1 0105-
5 BULB; HEADLAMP
BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA> 24V 75/70W 		8-94405-657-0 02 1 0105-
5 BULB; HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE<TEA> 24V 75/70W 		1-82194-063-0 02 1 0105-
10 WASHER; PL,HEADLAMP RIM
BUMPER W/HEADLAMPS<SLB> ID=8.4 		9-09160-508-0 02 1 0105-0605
10 WASHER; PL,HEADLAMP RIM
BUMPER W/HEADLAMPS<SLB> ID=8.4 OD=16 		0-91610-508-0 02 1 0606-
12 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA> 		1-82118-014-0 02 1 0105-
12 HARNESS; HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE<TEA> 		1-82118-012-0 02 1 0105-
13 CLIP; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-82119-084-0 04 1 0105-0711
13 CLIP; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (A) 		1-82119-084-0 04 1 0105-0711
13 CLIP; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-82119-084-0 02 1 0712-
13 CLIP; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (A) 		1-82119-084-0 02 1 0712-
13 CLIP; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> (B) 		8-94381-588-0 14 1 0105-
13 CLIP; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (B) 		8-94381-588-0 14 1 0105-
14 CAP; BULB,LAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-148-0 02 1 0105-
14 CAP; BULB,LAMP
BUMPER W/HEADLAMPS<SLB> 		1-86830-148-0 02 1 0105-
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82117-120-2 01 1 0105-0206
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82117-119-2 01 1 0105-0206
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82117-155-2 02 1 0207-
18 SCREW; GEAR CASE
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> M4X16 TAPPING 		1-82119-067-0 08 1 0105-
18 SCREW; GEAR CASE
BUMPER W/HEADLAMPS<SLB> M4X16 TAPPING 		1-82119-067-0 08 1 0105-
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0105-
23 COVER; BULB,HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-147-0 02 1 0105-
23 COVER; BULB,HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-86830-147-0 02 1 0105-
28 BOLT; HEADLAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0105-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) M10X35 FLANGE 		0-28081-035-0 06 1 0105-0105
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) M10X30 FLANGE 		0-28681-030-0 06 1 0106-0512
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) M10X30 FLANGE 		0-28651-030-0 06 1 0601-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (D) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0105-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0105-
28 BOLT; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0105-0708
28 BOLT; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0709-
28 BOLT; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X16 FLANGE 		0-28650-616-0 04 1 0709-
30 BOLT; STAY
M10X25 FLANGE 		0-28681-025-0 04 1 0105-0512
30 BOLT; STAY
M10X25 FLANGE 		0-28651-025-0 04 1 0601-
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> (A) 		1-82117-100-0 02 1 0105-
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> (B) 		1-82117-102-1 01 1 0105-
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> (B) 		1-82117-101-1 01 1 0105-
140 NUT
BUMPER W/HEADLAMPS<SLB> M10 FLANGE 		0-91150-210-0 02 1 0105-0602
140 NUT
BUMPER W/HEADLAMPS<SLB> M10 FLANGE 		0-91180-210-0 02 1 0603-
162 RUBBER; CUSHION UPR
BUMPER W/HEADLAMPS<SLB> 		1-82117-086-0 08 1 0105-
171 NUT
BUMPER W/HEADLAMPS<SLB> M6 FLANGE 		0-91150-106-0 02 1 0105-0602
171 NUT
BUMPER W/HEADLAMPS<SLB> M6 FLANGE 		0-91180-106-0 02 1 0603-
175 NUT; BRKT CUSHION RUBBER
BUMPER W/HEADLAMPS<SLB> M8 FLANGE 		0-91150-108-0 16 1 0105-0602
175 NUT; BRKT CUSHION RUBBER
BUMPER W/HEADLAMPS<SLB> M8 FLANGE 		0-91180-108-0 16 1 0603-
183 WASHER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> ID=8.5 		9-09855-333-0 02 1 0105-
199 BUSHING
BUMPER W/HEADLAMPS<SLB> 		5-15549-001-1 04 1 0105-
202 GEAR UNIT; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-139-0 04 1 0105-
202 GEAR UNIT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-86830-139-0 04 1 0105-
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0105-
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0105-
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-762-3 01 1 0105-
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-761-3 01 1 0105-
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-574-3 01 1 0105-
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-573-3 01 1 0105-
211 TUBE; HEADLAMP
BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA> (B) 		8-98101-137-0 01 1 0712-
211 TUBE; HEADLAMP
BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA> (B) 		8-98101-138-0 01 1 0712-
211 TUBE; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-86830-329-0 01 1 0105-0105
211 TUBE; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (A) 		1-86830-329-0 01 1 0105-0105
211 TUBE; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-331-0 01 1 0105-0711
211 TUBE; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (B) 		1-86830-331-0 01 1 0105-0711
211 TUBE; HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-331-0 01 1 0712-
211 TUBE; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-86830-328-0 01 1 0105-0105
211 TUBE; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (A) 		1-86830-328-0 01 1 0105-0105
211 TUBE; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-330-0 01 1 0105-0711
211 TUBE; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (B) 		1-86830-330-0 01 1 0105-0711
211 TUBE; HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-86830-330-0 01 1 0712-
257 BOLT; BRKT HD LAMP
BUMPER W/HEADLAMPS<SLB> M8X20 FLANGE 		0-28080-820-0 04 1 0105-0512
257 BOLT; BRKT HD LAMP
BUMPER W/HEADLAMPS<SLB> M8X20 FLANGE 		0-28050-820-0 04 1 0601-
266 STAY; BRKT,HEADLAMP 1-82117-128-1 01 1 0105-
267 WASHER; PL,STAY
BUMPER W/HEADLAMPS<SLB> ID=10.5 OD=22 		9-09164-610-0 04 1 0207-0605
267 WASHER; PL,STAY
BUMPER W/HEADLAMPS<SLB> ID=10.5 OD=22 		0-91614-610-0 04 1 0606-
273 BOLT; BRKT
BUMPER W/HEADLAMPS<SLB> M6X16 FLANGE 		0-28680-616-0 08 1 0105-0512
273 BOLT; BRKT
BUMPER W/HEADLAMPS<SLB> M6X16 FLANGE 		0-28650-616-0 08 1 0601-
340 BULB; POSITION
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 24V 5W 		1-82194-042-0 02 1 0105-
340 BULB; POSITION
BUMPER W/HEADLAMPS<SLB> 24V 5W 		1-82194-042-0 02 1 0105-
342 HINGE; LAMP
BUMPER W/HEADLAMPS<SLB> 		1-82117-087-2 01 1 0105-
342 HINGE; LAMP
BUMPER W/HEADLAMPS<SLB> 		1-82117-088-2 01 1 0105-
343 SHAFT; HINGE
BUMPER W/HEADLAMPS<SLB> 		1-82119-096-1 02 1 0105-

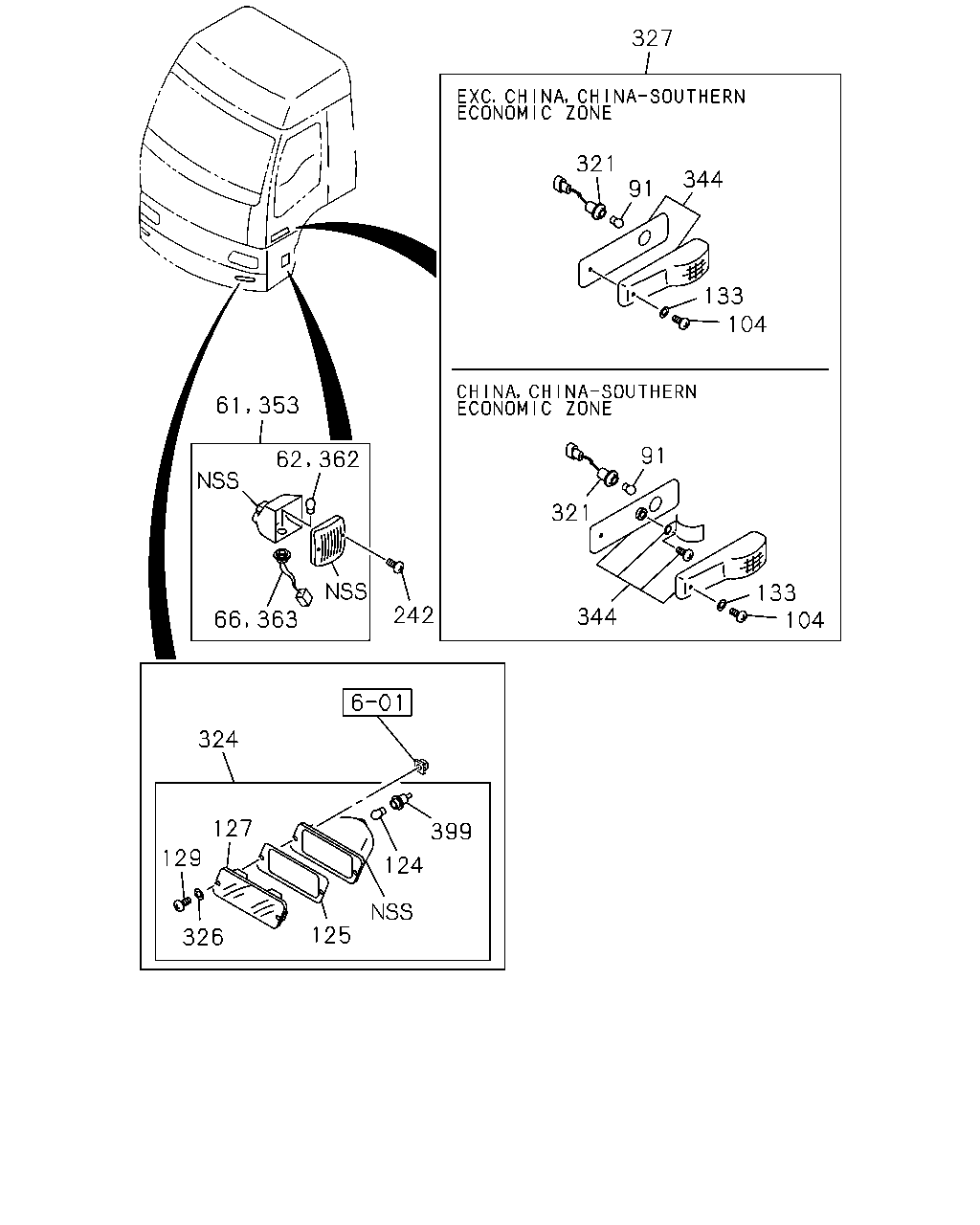

çizim 138924
327 321 344 91 133 104 61 353 91 62 362 321 133 104 242 344 66 363 324 127 399 129 124 125 326
BalonParca AdiParca NoAdetTipApplied Date
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 		1-86830-247-2 01 1 0105-
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W 		1-86830-187-2 01 1 0105-
62 BULB; CORNERING LAMP
CORNERING LAMP<TDS> 24V 30/10W 		1-82194-065-0 01 1 0105-
62 BULB; CORNERING LAMP
CORNERING LAMP<TDS> 24V 30W 		8-97010-179-0 01 1 0105-
66 HARNESS; CORNERING LAMP
CORNERING LAMP<TDS> 		1-86830-297-0 01 1 0105-
66 HARNESS; CORNERING LAMP
CORNERING LAMP<TDS> 		1-86830-146-0 01 1 0105-
91 BULB; SIDE TURN SIGNAL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 24V 21W 		1-82194-036-0 02 1 0105-0306
91 BULB; SIDE TURN SIGNAL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) 24V 21W 		1-82194-036-0 02 1 0307-
91 BULB; SIDE TURN SIGNAL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 24V 12W 		1-82194-030-0 02 1 0105-0306
91 BULB; SIDE TURN SIGNAL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) 24V 12W 		1-82194-030-0 02 1 0307-
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0105-
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0105-
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 0105-
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 0105-
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 0105-
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 0105-
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0105-0206
133 WASHER; PL,SIDE FLASHER LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-86830-150-0 02 1 0207-0306
133 WASHER; PL,SIDE FLASHER LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) 		1-86830-150-0 02 1 0307-
242 SCREW; CORNERING LAMP
CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS 		0-71190-420-0 04 1 0105-0207
242 SCREW; CORNERING LAMP
CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS 		0-71090-420-0 04 1 0208-
242 SCREW; CORNERING LAMP
EXC. CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS 		0-71190-420-0 02 1 0105-0207
242 SCREW; CORNERING LAMP
EXC. CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS 		0-71090-420-0 02 1 0208-
321 HARNESS; SIDE FLASHER LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82218-002-0 02 1 0105-0306
321 HARNESS; SIDE FLASHER LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) 		1-82218-002-0 02 1 0307-
321 HARNESS; SIDE FLASHER LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-86830-253-0 02 1 0105-0306
321 HARNESS; SIDE FLASHER LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) 		1-86830-253-0 02 1 0307-
324 LAMP; FRT FLASHER 1-82210-203-1 01 1 0105-
324 LAMP; FRT FLASHER 1-82210-202-1 01 1 0105-
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 0105-
327 LAMP ASM; SIDE TURN SIGNAL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82210-228-1 01 1 0105-0306
327 LAMP ASM; SIDE TURN SIGNAL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) 		1-82210-228-2 01 1 0307-
327 LAMP ASM; SIDE TURN SIGNAL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82210-227-1 01 1 0105-0306
327 LAMP ASM; SIDE TURN SIGNAL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) 		1-82210-227-2 01 1 0307-
327 LAMP ASM; SIDE TURN SIGNAL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-86830-011-6 01 1 0105-0306
327 LAMP ASM; SIDE TURN SIGNAL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) 		1-86830-011-6 01 1 0307-
327 LAMP ASM; SIDE TURN SIGNAL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-86830-007-6 01 1 0105-0306
327 LAMP ASM; SIDE TURN SIGNAL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) 		1-86830-007-6 01 1 0307-
344 LAMP UNIT; SIDE TURN SIGNAL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82213-021-0 01 1 0105-0306
344 LAMP UNIT; SIDE TURN SIGNAL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) 		1-82213-021-0 01 1 0307-
344 LAMP UNIT; SIDE TURN SIGNAL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82213-020-0 01 1 0105-0306
344 LAMP UNIT; SIDE TURN SIGNAL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) 		1-82213-020-0 01 1 0307-
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-86830-241-1 01 1 0105-0306
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) 		1-86830-241-1 01 1 0307-
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-86830-240-1 01 1 0105-0306
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) 		1-86830-240-1 01 1 0307-
353 LAMP ASM; STEP
EXC. CORNERING LAMP<TDS> 24V 5W 		1-86830-248-2 01 1 0105-
362 BULB; STEP LAMP
EXC. CORNERING LAMP<TDS> 24V 5W 		1-82194-042-0 01 1 0105-
363 HARNESS; STEP LAMP
EXC. CORNERING LAMP<TDS> 		1-86830-296-0 01 1 0105-
399 SOCKET; TURN SIGNAL 1-82219-034-0 02 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
