◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10879 - EXZ LHD FUEL TANK 400L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#28427) — 45 parça

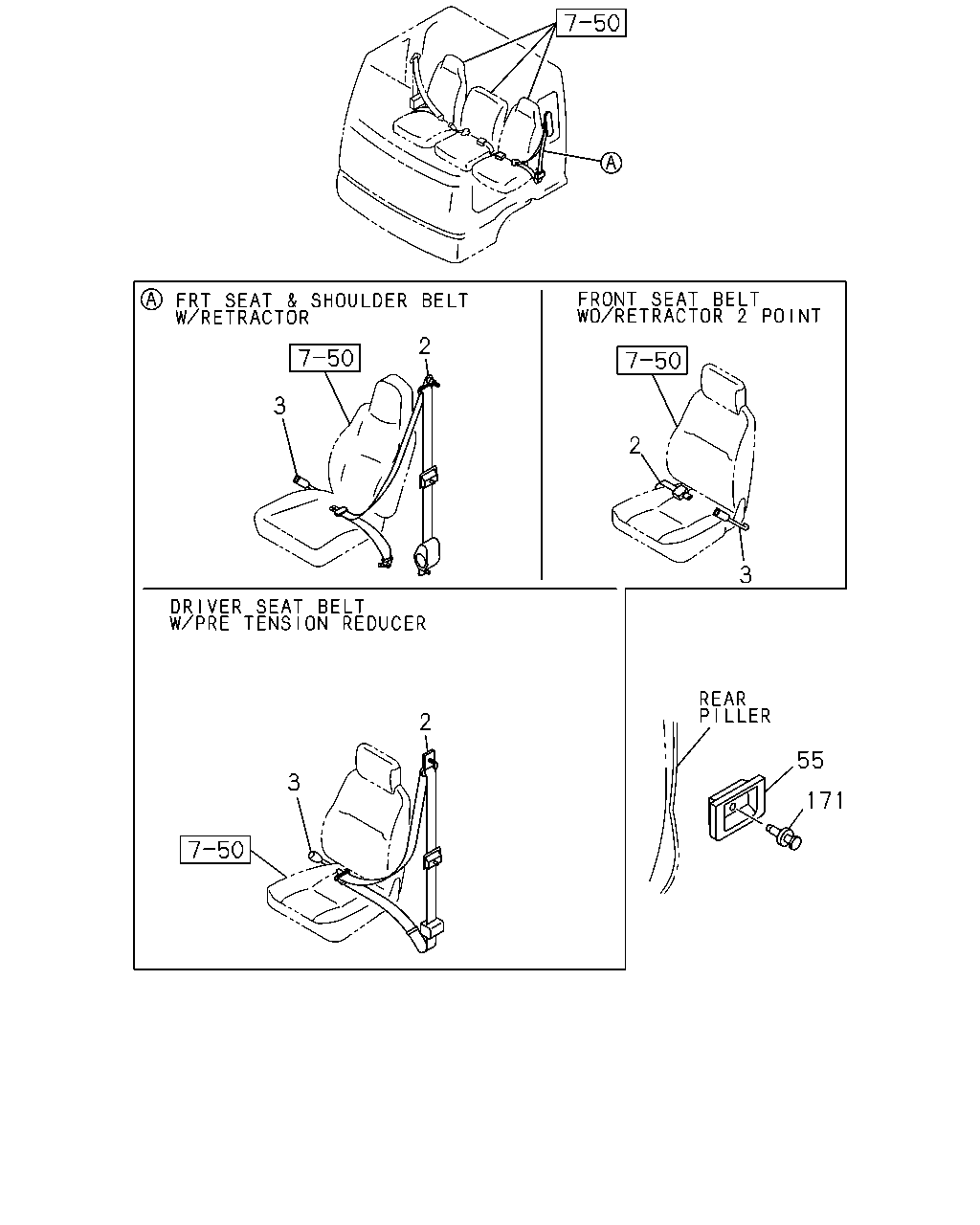

çizim 138912
2 3 2 3 2 55 3 171
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) CHINA GB VAR1<JAC> 		1-75616-089-0 01 1 0303-0401
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> 		1-75616-089-1 01 1 0402-0406
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> 		8-97382-647-3 01 1 0407-
2 BELT; SEAT,TONGUE SIDE
CHINA GB VAR1<JAC> FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75616-090-0 01 1 0303-0401
2 BELT; SEAT,TONGUE SIDE
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75616-090-0 01 1 0402-0406
2 BELT; SEAT,TONGUE SIDE
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		8-97382-648-1 01 1 0407-
2 BELT; SEAT,TONGUE SIDE
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) 		1-75617-576-0 01 1 0105-0111
2 BELT; SEAT,TONGUE SIDE
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) 		1-75617-580-0 01 1 0112-
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75618-936-3 01 1 0105-0302
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. CHINA GB VAR1<JAC> 		1-75618-936-3 01 1 0303-0401
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> 		1-75618-936-4 01 1 0402-
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75618-909-3 01 1 0105-0302
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. CHINA GB VAR1<JAC> 		1-75618-909-3 01 1 0303-0401
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> 		1-75618-909-5 01 1 0402-0806
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> 		8-98120-810-0 01 1 0807-
3 BELT; SEAT,BUCKLE SIDE
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) 		1-75617-544-0 01 1 0105-
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75618-914-0 01 1 0105-
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75617-556-0 02 1 0105-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0105-

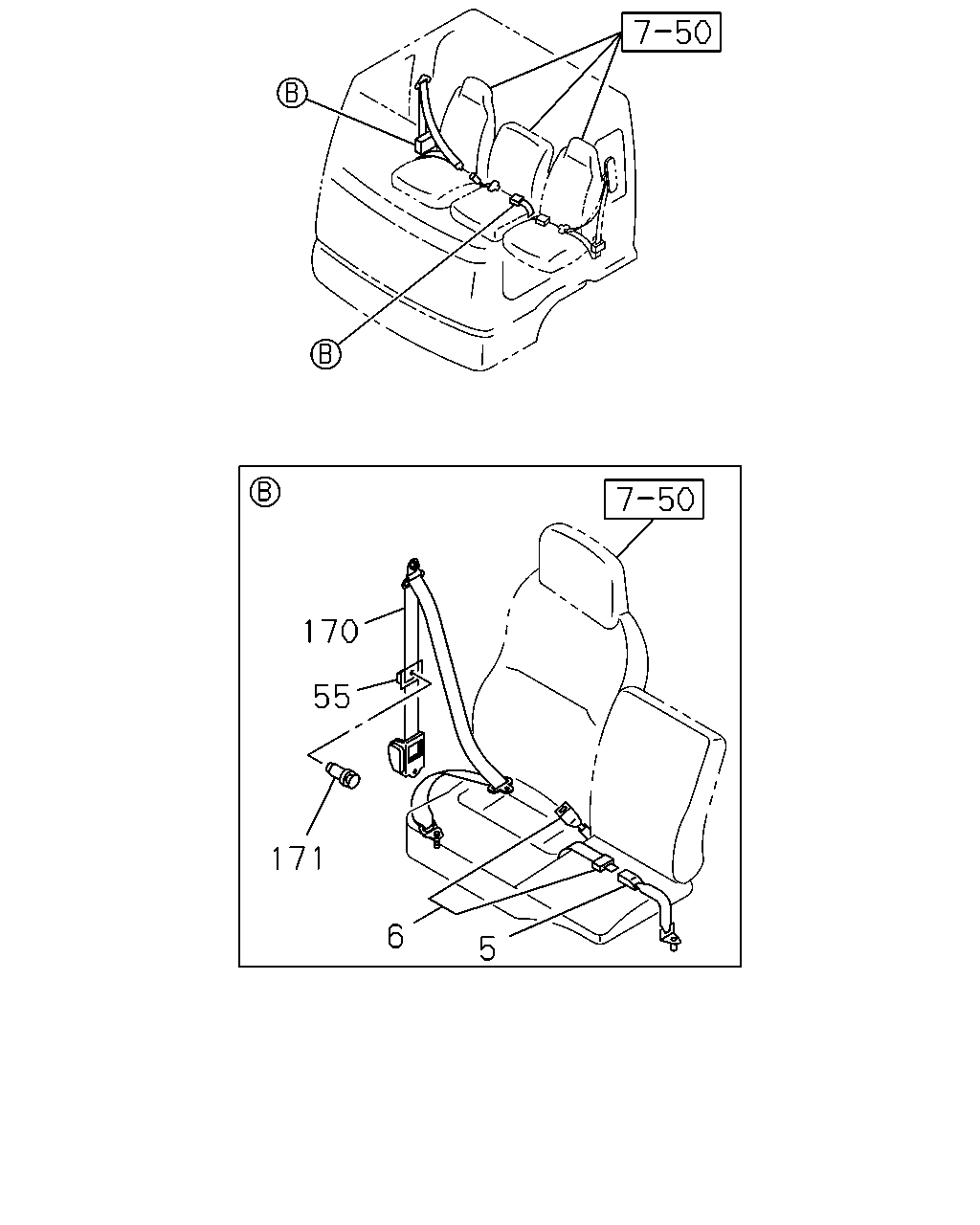

çizim 138913
170 55 171 6 5
BalonParca AdiParca NoAdetTipApplied Date
5 BELT; CENTER SEAT,BUCKLE SIDE 1-75617-553-1 01 1 0105-
6 BELT; CENTER SEAT,TONGUE SIDE
CHINA GB VAR1<JAC> 		1-75616-092-0 01 1 0303-0401
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> 		1-75616-092-0 01 1 0402-0406
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> 		8-97382-652-1 01 1 0407-
6 BELT; CENTER SEAT,TONGUE SIDE 1-75618-915-3 01 1 0105-0302
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. CHINA GB VAR1<JAC> 		1-75618-915-3 01 1 0303-0401
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> 		1-75618-915-4 01 1 0402-
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75617-556-0 02 1 0105-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) CHINA GB VAR1<JAC> 		1-75616-091-0 01 1 0303-0401
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> 		1-75616-091-1 01 1 0402-0406
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> 		8-97382-650-2 01 1 0407-
170 BELT; PASSENGER SEAT,TONGUE SIDE
CHINA GB VAR1<JAC> FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75616-090-0 01 1 0303-0401
170 BELT; PASSENGER SEAT,TONGUE SIDE
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75616-090-0 01 1 0402-0406
170 BELT; PASSENGER SEAT,TONGUE SIDE
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		8-97382-648-1 01 1 0407-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75618-936-3 01 1 0105-0302
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. CHINA GB VAR1<JAC> 		1-75618-936-3 01 1 0303-0401
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> 		1-75618-936-4 01 1 0402-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) 		1-75618-912-3 01 1 0105-0302
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) EXC. CHINA GB VAR1<JAC> 		1-75618-912-3 01 1 0303-0401
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> 		1-75618-912-5 01 1 0402-0806
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> 		8-98120-818-0 01 1 0807-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0105-

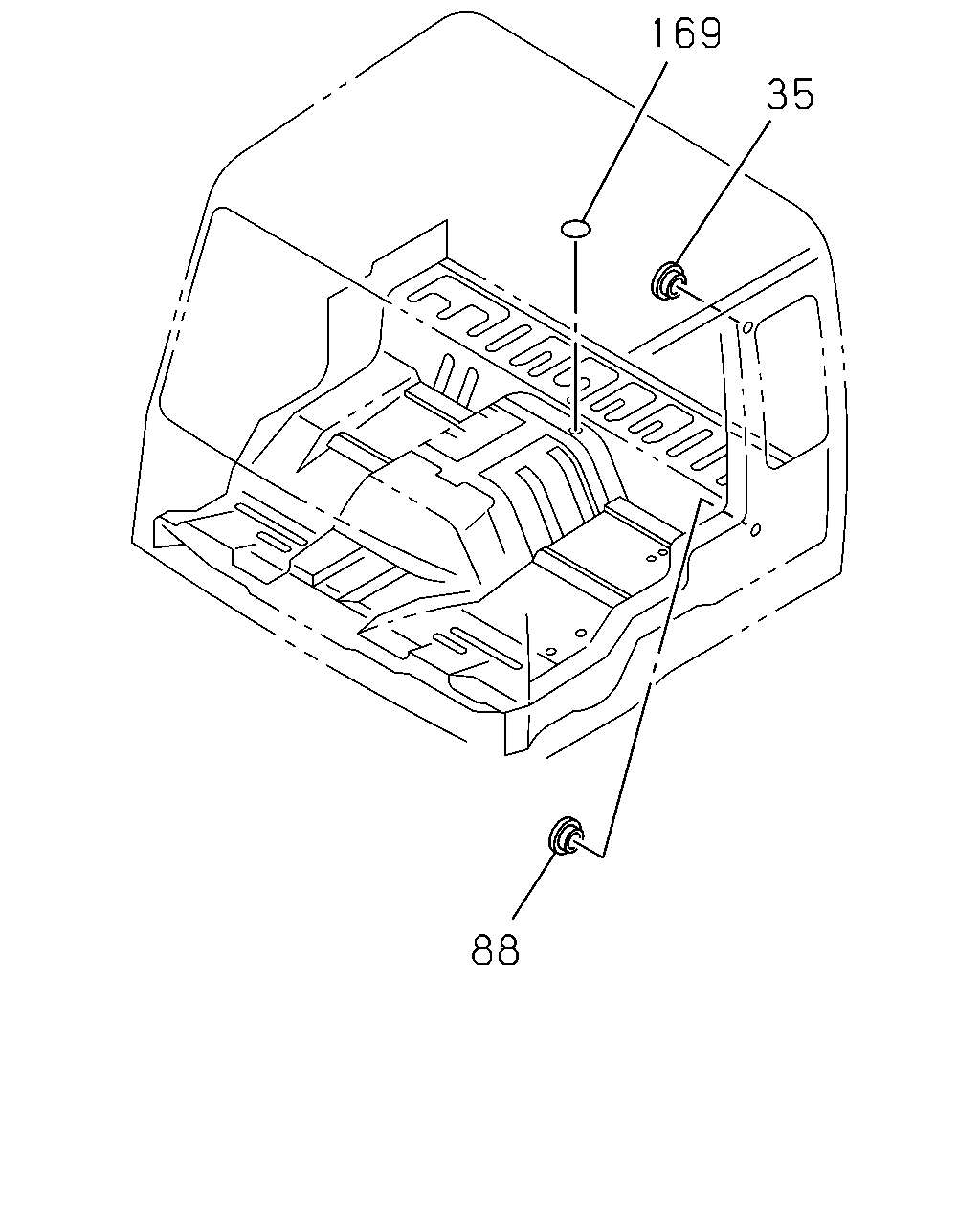

çizim 138915
169 35 88
BalonParca AdiParca NoAdetTipApplied Date
35 GROMMET; SEAT BELT ANCHOR
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=22 		9-61168-535-0 02 1 1006-
88 PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=31.6 		8-94198-177-0 02 1 0105-
169 SEAL
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=25 BLACK 		1-76798-019-0 04 1 0105-1005
169 SEAL
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=25 BLACK 		1-76798-019-0 03 1 1006-
