Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#28426) — 249 parça

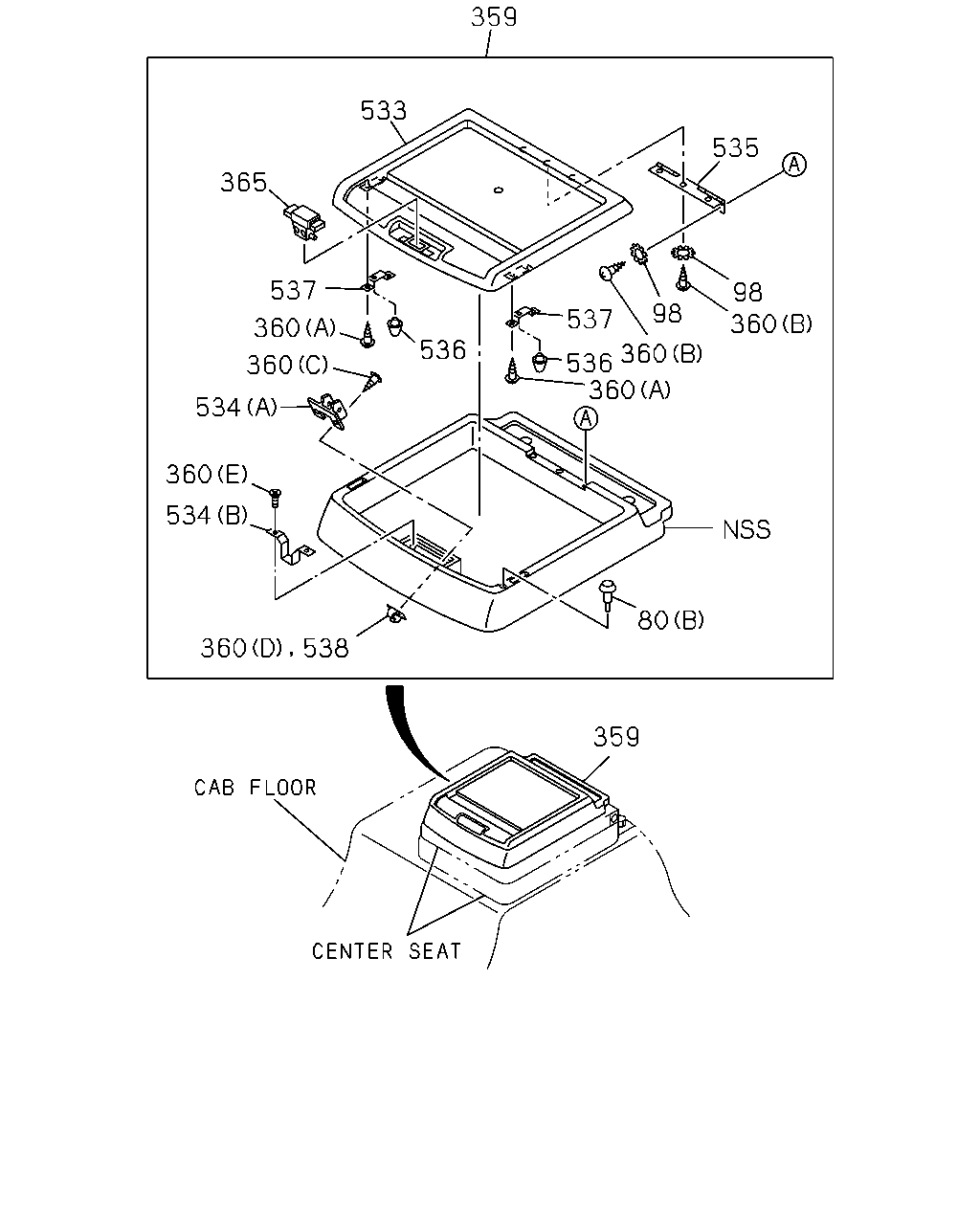

359 533 535 365 537 98 360 98 537 360 536 360 536 360 360 534 360 534 80 359 360 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	RUBBER; STOPPER (B)	1-72538-187-0	02	1	1007-
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09987-123-0	01	1	0105-
98	WASHER; HINGE ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0311-
98	WASHER; HINGE ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0105-0211
359	BOX; PARCEL	1-72538-157-2	01	1	0105-0211
359	BOX; PARCEL	1-72538-275-4	01	1	0212-1006
359	BOX; PARCEL	8-98145-114-0	01	1	1007-
360	SCREW; PARCEL (C) M5X20	9-09829-324-1	02	1	0212-0310
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0105-0612
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006
360	SCREW; PARCEL (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	0105-0612
360	SCREW; PARCEL (B) M4X16	0-70040-416-0	06	1	0701-1104
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	1105-
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0105-0211
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0212-0310
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0311-1006
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-
360	SCREW; PARCEL (D)	1-09983-165-0	02	1	0105-0310
365	LOCK ASM; SEAT	1-72538-180-0	01	1	0105-
533	LID; PARCEL BOX	1-72538-194-2	01	1	0105-0211
533	LID; PARCEL BOX	1-72538-277-1	01	1	0212-1006
533	LID; PARCEL BOX	8-98145-118-0	01	1	1007-
534	STRIKER; PARCEL BOX (A)	1-72538-181-0	01	1	0105-1006
534	STRIKER; PARCEL BOX (B)	1-72538-190-0	01	1	1007-
535	HINGE; PARCEL BOX	1-72447-391-1	01	1	0105-
536	RUBBER; CUSHION	5-09983-002-1	02	1	0105-1006
537	BRACKET; RUBBER	1-72548-057-1	02	1	0105-1006
538	GROMMET; SCREW	1-09983-165-0	02	1	0311-1006

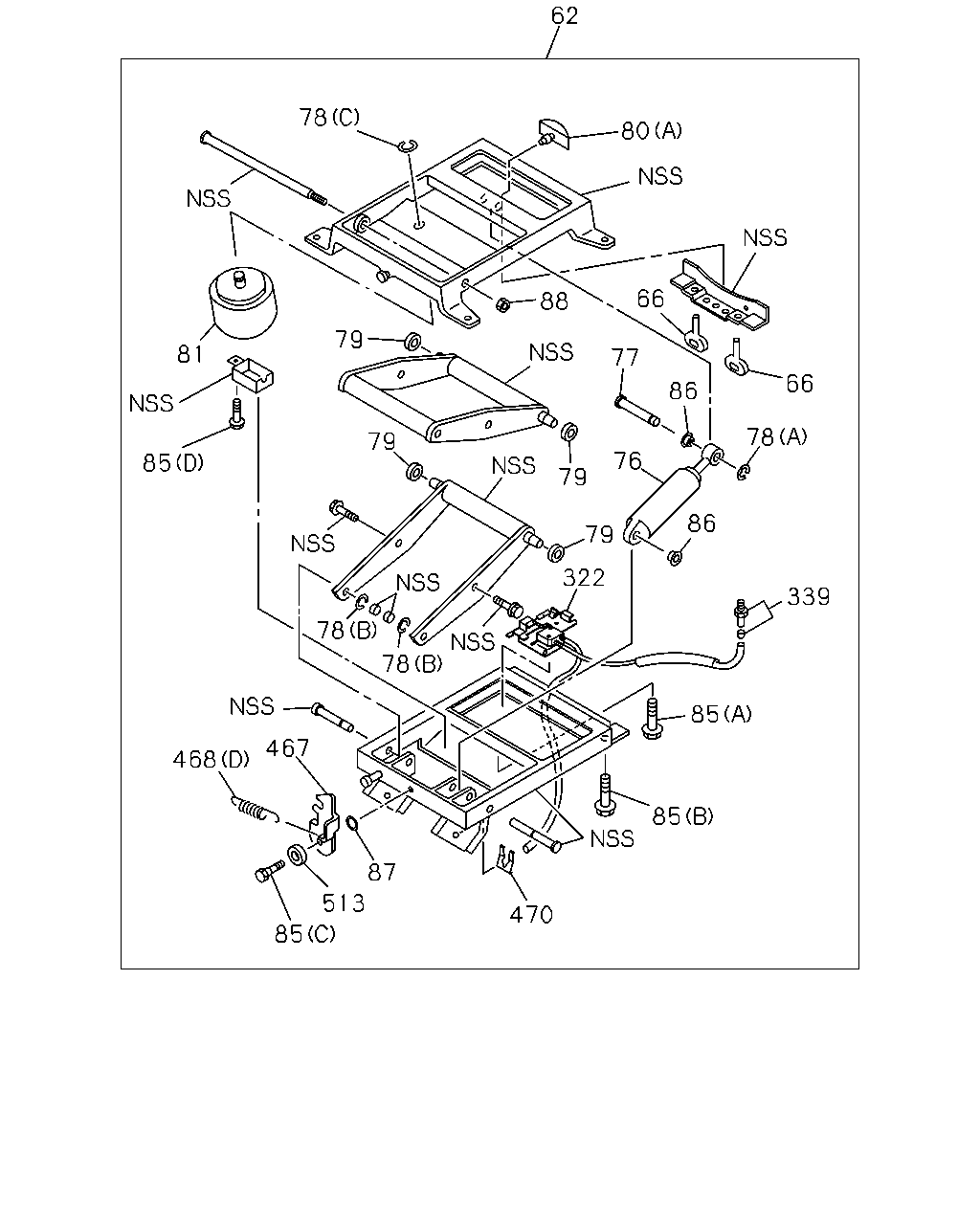

62 80 66 78 86 66 77 88 78 81 85 468 467 513 85 87 470 85 85 86 76 79 79 79 78 78 79 322 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-263-8	01	1	0105-1403
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98261-453-0	01	1	1404-
66	RUBBER; LWR STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-145-0	02	1	0105-
76	DAMPER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-230-2	01	1	0105-
77	PIN; DAMPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-138-2	01	1	0105-
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	0105-
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10	9-09185-410-0	02	1	0105-0406
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15	9-09185-415-0	01	1	0105-
79	ROLLER ASM; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-159-0	04	1	0105-1403
79	ROLLER ASM; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98261-489-0	04	1	1404-
80	RUBBER; STOPPER (B)	1-72538-187-0	02	1	1007-
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09987-123-0	01	1	0105-
81	SPRING; AIR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-151-2	01	1	0105-1312
81	SPRING; AIR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98242-816-0	01	1	1401-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09980-577-1	01	1	0105-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75538-208-1	02	1	0105-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0105-1312
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-
86	BUSHING; GUIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0105-
87	WASHER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	9-09150-508-0	01	1	0105-0710
87	WASHER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	0-91510-508-0	01	1	0711-
88	NUT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10	1-75537-273-1	01	1	0105-
322	VALVE; AIR SPRING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-187-3	01	1	0105-
339	UNION; DRIVER SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-131-3	01	1	0105-
467	LEVER; LOCK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-134-0	01	1	0105-
468	SPRING; RETURN (A)	1-75518-206-0	01	1	0105-
468	SPRING; RETURN (B)	1-75518-207-0	01	1	0105-
468	SPRING; RETURN (C)	1-75518-208-0	02	1	0105-
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0105-
470	CLIP; HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-137-0	01	1	0105-
513	SPACER; LEVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	0105-

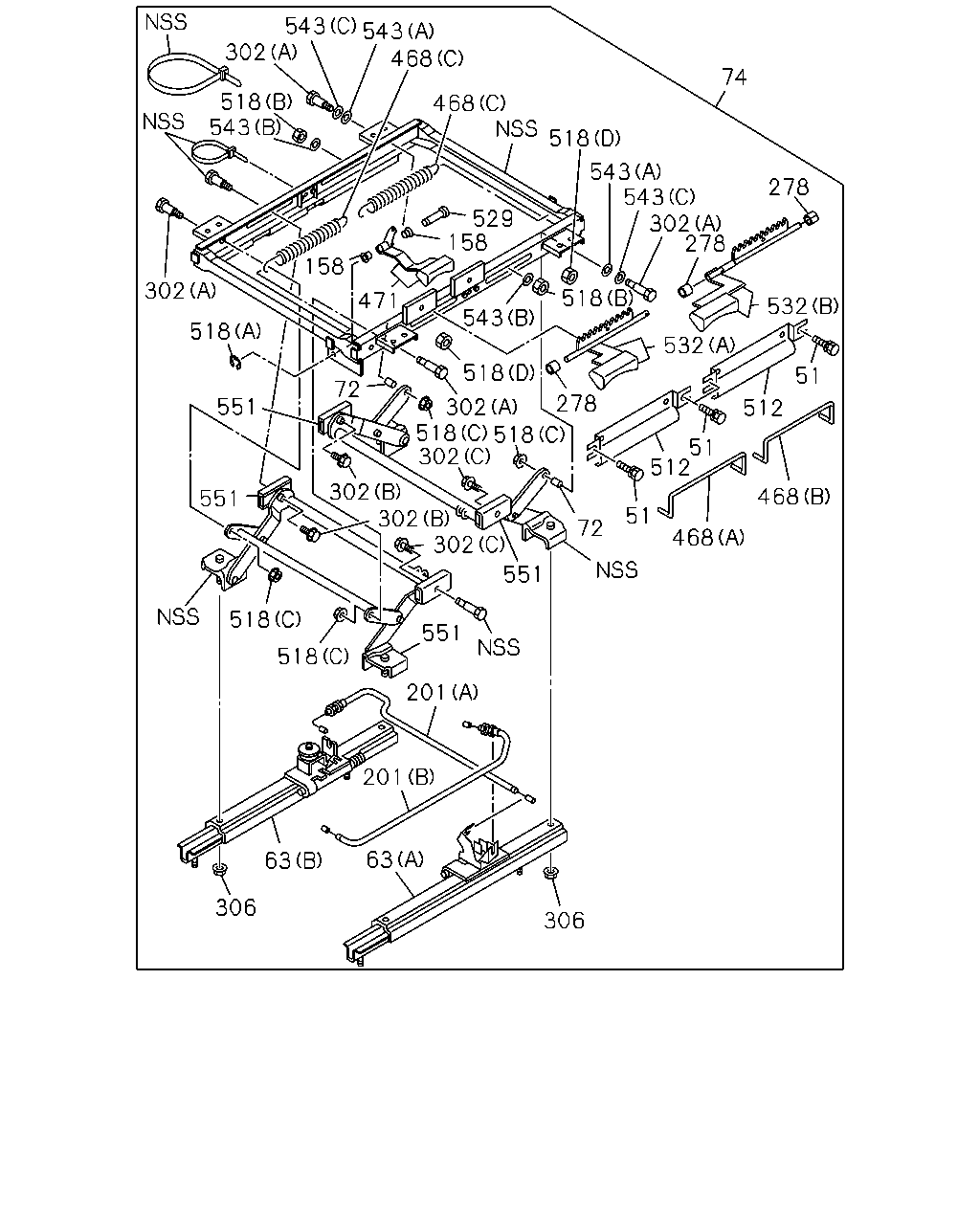

543 543 302 468 74 518 543 468 518 543 543 302 278 278 529 158 158 518 302 471 532 543 518 532 518 51 72 278 551 302 302 512 51 512 302 302 302 468 551 51 72 468 551 518 551 518 201 201 63 63 306 306 518 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER	1-75518-325-1	04	1	0105-
63	ADJUSTER; SEAT SLIDE (B)	1-75518-324-0	01	1	0105-
63	ADJUSTER; SEAT SLIDE (A)	1-75518-227-1	01	1	0105-
72	SPACER; SEAT ADJ	1-75518-334-1	02	1	0105-1502
72	SPACER; SEAT ADJ	8-98291-668-0	02	1	1503-
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-331-3	01	1	0105-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98291-646-0	01	1	1503-
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0105-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0105-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	0105-
278	COLLAR; FRT SEAT	1-75518-244-0	03	1	0105-
302	BOLT; ADJ,HEIGHT CONT (C)	1-75518-266-2	02	1	0105-
302	BOLT; ADJ,HEIGHT CONT (A)	1-75518-270-1	04	1	0105-1502
302	BOLT; ADJ,HEIGHT CONT (A)	8-98291-667-0	04	1	1503-
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-336-1	02	1	0105-
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	06	1	0105-
468	SPRING; RETURN (A)	1-75518-206-0	01	1	0105-
468	SPRING; RETURN (B)	1-75518-207-0	01	1	0105-
468	SPRING; RETURN (C)	1-75518-208-0	02	1	0105-
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0105-
471	LEVER; SEAT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	8-98107-870-0	01	1	0711-1502
471	LEVER; SEAT ADJ FABRIC SEAT W/RECLINING(SFQ)	8-98107-870-0	01	1	0711-1502
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	1503-
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	0105-0312
471	LEVER; SEAT ADJ FABRIC SEAT W/RECLINING(SFQ)	1-75518-290-0	01	1	0401-0710
471	LEVER; SEAT ADJ EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-290-0	01	1	0401-0710
471	LEVER; SEAT ADJ CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-290-0	01	1	0711-1502
512	COVER; LEVER	1-75518-245-1	02	1	0105-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	0105-
518	NUT; TILT ADJ (C)	1-75518-264-0	04	1	0105-
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	0105-
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	0105-
529	PIN; LINK	1-75518-262-0	01	1	0105-
532	LEVER ASM; TILT (A)	1-75518-221-0	01	1	0105-
532	LEVER ASM; TILT (B)	1-75518-222-1	01	1	0105-
543	WASHER; HEIGHT ADJUSTER (A) ID=8.4	9-09160-508-0	04	1	0105-0312
543	WASHER; HEIGHT ADJUSTER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) ID=8.4	9-09160-508-0	04	1	0401-0406
543	WASHER; HEIGHT ADJUSTER FABRIC SEAT W/RECLINING(SFQ) (A) ID=8.4	9-09160-508-0	04	1	0401-0406
543	WASHER; HEIGHT ADJUSTER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8.4	9-09160-508-0	08	1	0407-0411
543	WASHER; HEIGHT ADJUSTER (A) ID=8.4	9-09160-508-0	04	1	0412-
543	WASHER; HEIGHT ADJUSTER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=6.4	9-09160-506-0	04	1	0401-0411
543	WASHER; HEIGHT ADJUSTER (C)	1-75518-335-0	02	1	0105-1502
543	WASHER; HEIGHT ADJUSTER (C)	8-98291-669-0	02	1	1503-
543	WASHER; HEIGHT ADJUSTER (A)	1-75518-337-0	02	1	0105-0312
543	WASHER; HEIGHT ADJUSTER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-75518-337-0	02	1	0401-0406
543	WASHER; HEIGHT ADJUSTER FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-337-0	02	1	0401-0406
543	WASHER; HEIGHT ADJUSTER FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8.4	9-09160-508-0	04	1	0407-0411
543	WASHER; HEIGHT ADJUSTER EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) ID=8.4	9-09160-508-0	04	1	0407-0411
551	SLIDER; HEIGHT ADJ	1-75518-265-0	04	1	0105-

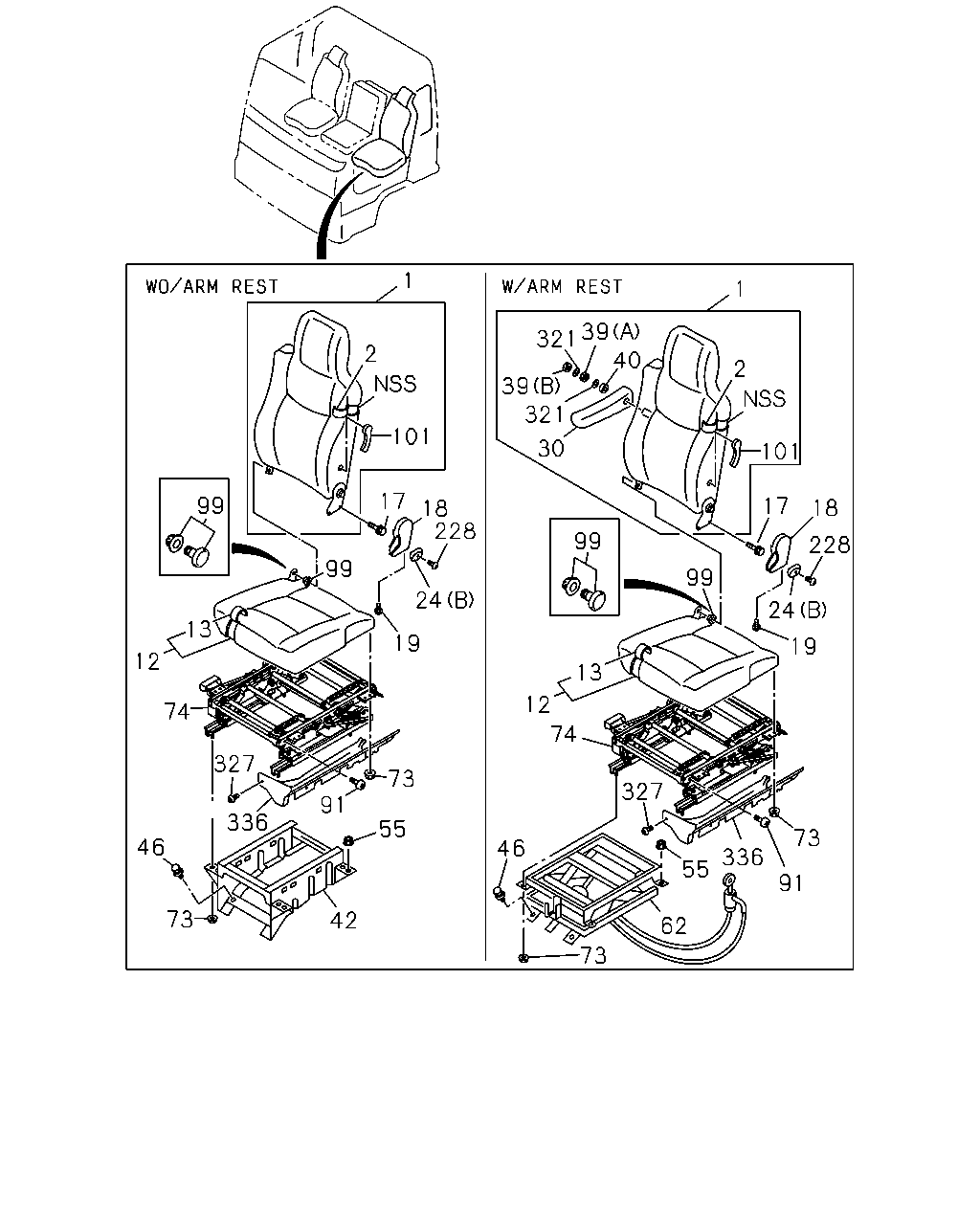

1 1 39 321 2 40 2 39 321 101 30 101 17 99 17 18 18 228 99 228 99 99 24 24 13 19 19 12 13 12 74 74 327 73 327 91 336 55 73 46 46 336 55 91 73 42 62 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-660-1	01	1	0401-
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-291-3	01	1	0105-0901
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98135-622-0	01	1	0902-
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-290-1	01	1	0105-0312
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-75207-290-3	01	1	0401-0901
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	8-98135-621-0	01	1	0902-
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-289-3	01	1	0105-0901
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98135-618-0	01	1	0902-
2	COVER; TRIM,FRT SEAT,BACK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-176-0	01	1	0401-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-117-1	01	1	0105-
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-116-0	01	1	0105-0312
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-75127-116-1	01	1	0401-
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-115-1	01	1	0105-
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ)	1-75207-288-3	01	1	0105-
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-006-3	01	1	0105-
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	1-75127-114-1	01	1	0105-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-104-1	01	1	0105-
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0105-
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	0105-
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0105-
24	KNOB; RECLINING,FRT,SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-75418-067-0	01	1	0711-1502
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ) (B)	1-75418-067-0	01	1	0711-1502
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-067-0	01	1	1503-
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	0105-0312
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ) (B) DARK GRAY	8-97859-019-0	01	1	0401-0710
24	KNOB; RECLINING,FRT,SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DARK GRAY	8-97859-019-0	01	1	0401-0710
24	KNOB; RECLINING,FRT,SEAT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DARK GRAY	8-97859-019-0	01	1	0711-1502
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0105-
30	REST ASM; ARM,FRT SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-120-1	01	1	0105-
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8	1-75147-657-0	01	1	0105-
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10	9-09110-410-0	01	1	0105-
40	SPACER; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	0105-
42	STAND; DRIVER SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75558-604-2	01	1	0105-
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0105-0703
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0704-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0105-0703
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	0704-
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-263-8	01	1	0105-1403
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98261-453-0	01	1	1404-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0105-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0105-
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-331-3	01	1	0105-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98291-646-0	01	1	1503-
91	SCREW; SEAT ADJ COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0105-
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	0105-
101	LEVER ASM; LUMBAR	5-75190-138-0	01	1	0105-0312
101	LEVER ASM; LUMBAR EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	5-75190-138-0	01	1	0401-
101	LEVER ASM; LUMBAR FABRIC SEAT W/RECLINING(SFQ)	5-75190-138-0	01	1	0401-
228	SCREW; KNOB EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M4	8-98062-662-0	01	1	0711-1502
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ) M4	8-98062-662-0	01	1	0711-1502
228	SCREW; KNOB M4	8-98062-662-0	01	1	1503-
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0105-0312
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0105-0312
228	SCREW; KNOB EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0105-0312
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0401-0710
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ) M4X6	8-97042-273-0	01	1	0401-0710
228	SCREW; KNOB EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0401-0710
228	SCREW; KNOB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0711-1502
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0711-1502
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	1503-
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22	9-09160-610-0	01	1	0105-
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22	9-09164-708-0	01	1	0105-
327	CLIP; COVER	1-09987-273-0	01	1	0105-
336	COVER; DRIVER SEAT	1-75518-313-0	01	1	0105-

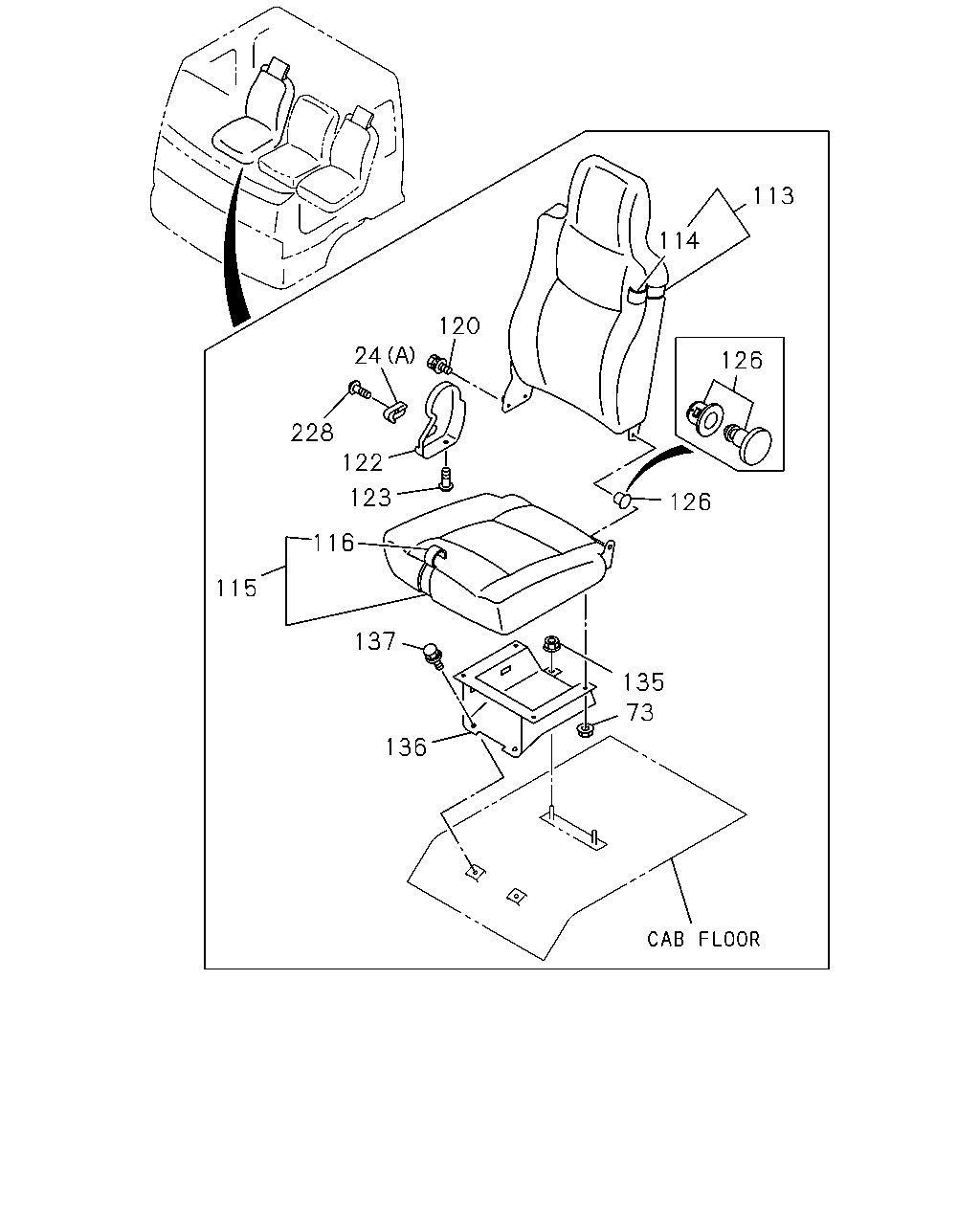

113 114 120 24 126 228 122 123 126 116 115 137 135 73 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	KNOB; RECLINING,FRT,SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-75418-067-0	01	1	0711-1502
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ) (B)	1-75418-067-0	01	1	0711-1502
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-067-0	01	1	1503-
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	0105-0312
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ) (B) DARK GRAY	8-97859-019-0	01	1	0401-0710
24	KNOB; RECLINING,FRT,SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DARK GRAY	8-97859-019-0	01	1	0401-0710
24	KNOB; RECLINING,FRT,SEAT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DARK GRAY	8-97859-019-0	01	1	0711-1502
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0105-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0105-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0105-
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-301-4	01	1	0105-
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75026-728-0	01	1	0105-0105
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75208-067-3	01	1	0106-
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ)	1-75127-125-1	01	1	0105-
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75116-702-1	01	1	0105-
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-298-1	01	1	0105-
115	CUSHION ASM; PASSENGER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75207-367-1	01	1	0105-
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	1-75127-122-1	01	1	0105-
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75127-133-1	01	1	0105-
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	02	1	0105-
122	COVER; ADJ,RECLINING DARK GRAY	8-97867-020-0	01	1	0105-
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0105-
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	0105-
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	0105-0703
135	NUT; SEAT STAND M10 FLANGE	0-91180-110-0	02	1	0704-
136	STAND; PASSENGER SEAT	1-75557-493-1	01	1	0105-0212
136	STAND; PASSENGER SEAT	1-75558-602-3	01	1	0301-1305
136	STAND; PASSENGER SEAT	8-98242-299-0	01	1	1306-
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0105-0703
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	0704-
228	SCREW; KNOB EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M4	8-98062-662-0	01	1	0711-1502
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ) M4	8-98062-662-0	01	1	0711-1502
228	SCREW; KNOB M4	8-98062-662-0	01	1	1503-
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0105-0312
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0105-0312
228	SCREW; KNOB EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0105-0312
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0401-0710
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ) M4X6	8-97042-273-0	01	1	0401-0710
228	SCREW; KNOB EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0401-0710
228	SCREW; KNOB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0711-1502
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0711-1502
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	1503-

506 360 175 176 188 16 189 359 188 403 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING	1-75418-062-1	01	1	0105-
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-258-3	01	1	0105-
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75026-856-3	01	1	0105-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING(SFQ)	1-75127-078-1	01	1	0105-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75116-710-1	01	1	0105-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING(SFQ)	1-75127-073-1	01	1	0105-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75127-127-1	01	1	0105-
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-305-4	01	1	0105-
182	CUSHION ASM; CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ)	1-75207-009-4	01	1	0105-
188	BOLT; BACK TO CUSHION M10X16 FLANGE	1-75198-053-0	04	1	0105-
189	BUSHING; HINGE,CENTER SEAT BACK	8-97854-900-0	01	1	0105-
359	BOX; PARCEL	1-72538-157-2	01	1	0105-0211
359	BOX; PARCEL	1-72538-275-4	01	1	0212-1006
359	BOX; PARCEL	8-98145-114-0	01	1	1007-
360	SCREW; PARCEL (C) M5X20	9-09829-324-1	02	1	0212-0310
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0105-0612
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006
360	SCREW; PARCEL (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	0105-0612
360	SCREW; PARCEL (B) M4X16	0-70040-416-0	06	1	0701-1104
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	1105-
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0105-0211
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0212-0310
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0311-1006
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-
360	SCREW; PARCEL (D)	1-09983-165-0	02	1	0105-0310
403	NUT; CENTER SEAT M8 FLANGE	8-94279-504-1	04	1	0105-0206
403	NUT; CENTER SEAT M8 FLANGE	8-94279-518-0	04	1	0207-0312
403	NUT; CENTER SEAT M8 FLANGE	1-75538-207-0	04	1	0401-0703
403	NUT; CENTER SEAT M8 FLANGE	0-91180-108-0	04	1	0704-
506	CAP; PARCEL BOX	1-09983-164-0	04	1	0105-0211
506	CAP; PARCEL BOX	1-09983-180-3	04	1	0212-1006
506	CAP; PARCEL BOX	1-09983-180-3	02	1	1007-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
