Sayfa 7-43 - Isuzu EPC

7-43 — SUN VISOR AND ASSIST GRIP (#28424) — 207 parça

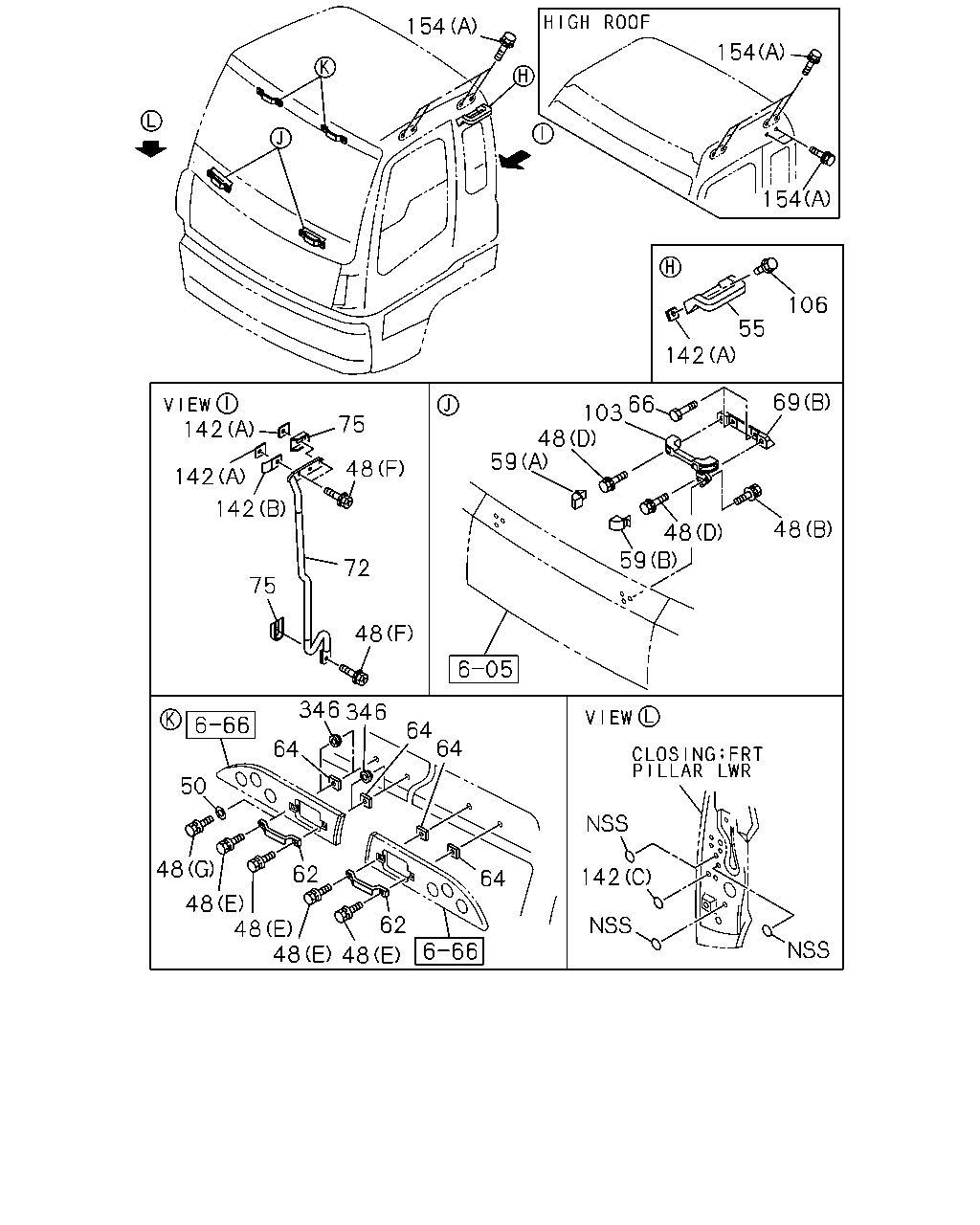

154 154 154 106 55 142 69 66 103 48 59 142 75 48 142 142 48 48 59 72 75 48 346 346 64 64 64 50 48 62 142 64 48 48 62 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (G) M6X16 W/LK&PL WASHER	8-94279-214-0	01	1	0703-
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0105-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0105-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-0904
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0105-
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0105-
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0105-0306
48	BOLT; ASSIST GRIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0105-0306
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0307-
48	BOLT; ASSIST GRIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0307-
48	BOLT; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0105-0306
48	BOLT; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0307-
50	WASHER; PL,ASSIST GRIP HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) ID=8.4 OD=22	1-09985-188-0	01	1	0703-
55	GRIP; ASSIST,CAB SIDE UPR CHINA GB VAR1<JAC> EXC. GRIP OUT SIDE<W52>	1-73618-169-0	01	1	0302-0401
55	GRIP; ASSIST,CAB SIDE UPR CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> EXC. GRIP OUT SIDE<W52>	1-73618-169-1	01	1	0402-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	0105-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0105-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0105-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0105-
62	GRIP; ASSIST,ROOF PANEL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71907-492-0	02	1	0105-0306
62	GRIP; ASSIST,ROOF PANEL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71907-492-0	02	1	0105-0306
62	GRIP; ASSIST,ROOF PANEL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71907-492-0	02	1	0307-0907
62	GRIP; ASSIST,ROOF PANEL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2)	1-71907-492-0	02	1	0307-0907
62	GRIP; ASSIST,ROOF PANEL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	8-97630-819-0	02	1	0908-
62	GRIP; ASSIST,ROOF PANEL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2)	8-97630-819-0	02	1	0908-
62	GRIP; ASSIST,ROOF PANEL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71907-492-0	01	1	0105-0306
62	GRIP; ASSIST,ROOF PANEL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2)	1-71907-492-0	01	1	0307-0907
62	GRIP; ASSIST,ROOF PANEL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2)	8-97630-819-0	01	1	0908-
64	SHEET; ASSIST GRIP HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	02	1	0105-0306
64	SHEET; ASSIST GRIP HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	02	1	0307-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0105-0105
64	SHEET; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> HIGH ROOF<S2F> 25X25	8-94272-533-0	04	1	0106-0306
64	SHEET; ASSIST GRIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	04	1	0106-0306
64	SHEET; ASSIST GRIP EXC. HIGH ROOF<S2F>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	04	1	0106-0306
64	SHEET; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> HIGH ROOF<S2F> 25X25	8-94272-533-0	04	1	0307-
64	SHEET; ASSIST GRIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	04	1	0307-
64	SHEET; ASSIST GRIP EXC. HIGH ROOF<S2F>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	04	1	0307-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0105-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0105-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0105-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0105-
69	BRACKET; ASSIST GRIP (A)	1-73618-181-1	01	1	0105-
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-543-0	01	1	0105-
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	02	1	0105-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0105-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0105-
106	SCREW; ASSIST GRIP CHINA GB VAR1<JAC> EXC. GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	02	1	0302-0401
106	SCREW; ASSIST GRIP CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> EXC. GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	02	1	0402-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0105-
142	SEAL; ASSIST GRIP (C) OD=25 BLACK	1-76798-019-0	01	1	0105-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-1	01	1	0105-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	02	1	0105-0301
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	02	1	0302-0401
142	SEAL; ASSIST GRIP CHINA GB VAR1<JAC> EXC. GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	02	1	0302-0401
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	02	1	0402-
142	SEAL; ASSIST GRIP CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> EXC. GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	02	1	0402-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0105-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0302-0401
154	BOLT; SUPPORT EXC. CHINA GB VAR1<JAC>,HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0302-0401
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0402-
154	BOLT; SUPPORT EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0402-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. CHINA GB VAR1<JAC>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0302-0401
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,GRIP OUTSIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0402-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0105-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0105-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-0301
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-0301
154	BOLT; SUPPORT CHINA GB VAR1<JAC> HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	10	1	0302-0401
154	BOLT; SUPPORT CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	10	1	0402-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0105-0301
154	BOLT; SUPPORT CHINA GB VAR1<JAC> EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	0302-0401
154	BOLT; SUPPORT CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	0402-
346	WASHER; WATER SEAL HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-09985-344-0	02	1	0105-0306
346	WASHER; WATER SEAL HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2)	1-09985-344-0	02	1	0307-0702

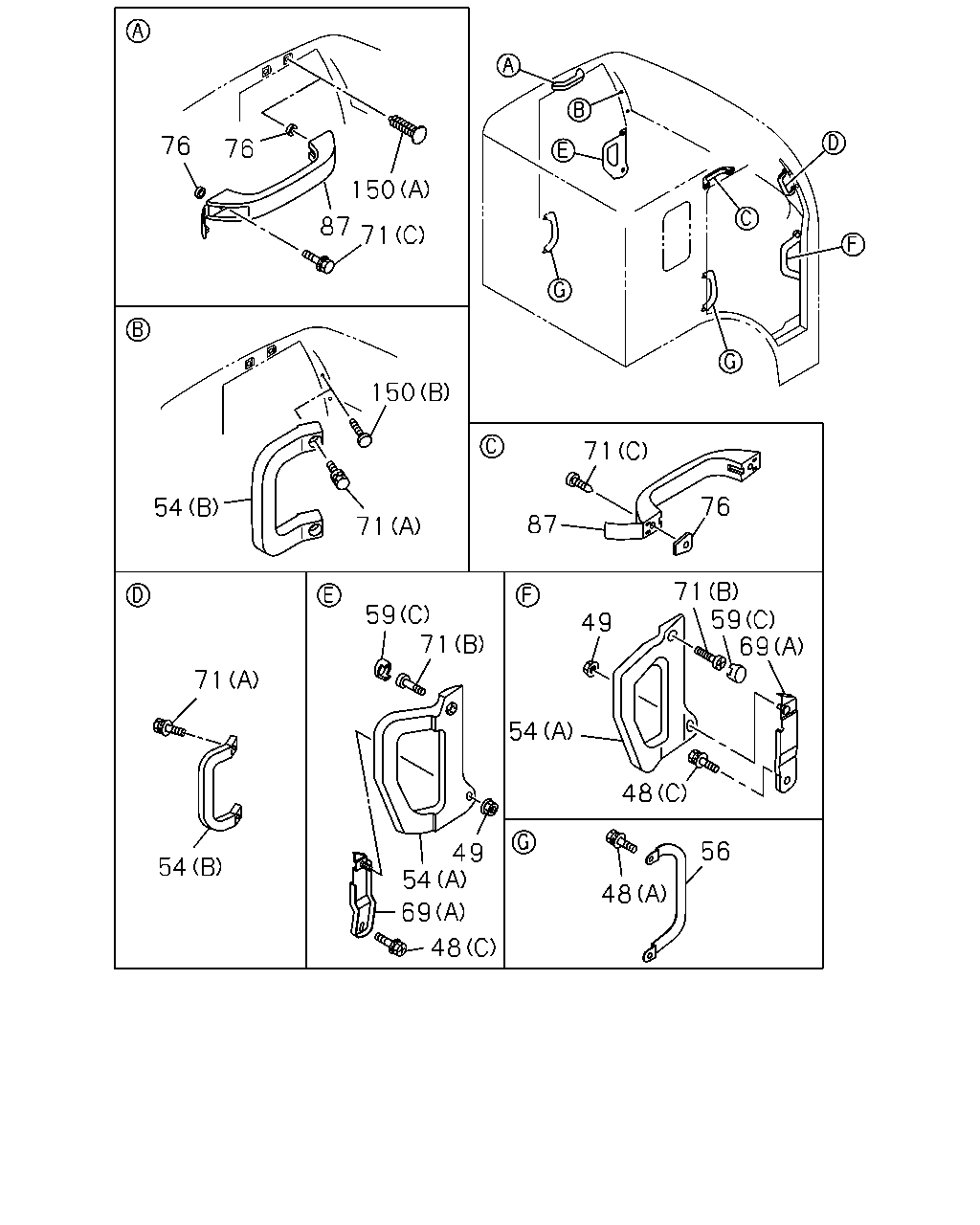

76 76 150 87 71 150 71 76 54 87 71 71 59 69 5 71 49 71 54 48 56 49 54 54 48 69 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-933-0	01	1	0105-
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-932-0	01	1	0105-
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (G) M6X16 W/LK&PL WASHER	8-94279-214-0	01	1	0703-
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0105-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0105-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-0904
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0105-
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0105-
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0105-0306
48	BOLT; ASSIST GRIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0105-0306
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0307-
48	BOLT; ASSIST GRIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0307-
48	BOLT; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0105-0306
48	BOLT; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0307-
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	02	1	0105-0602
49	NUT; ASSIST GRIP M6 FLANGE	0-91180-106-0	02	1	0603-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0105-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	0105-
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	02	1	0105-0207
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-73618-185-0	02	1	0208-0208
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	02	1	0208-
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	01	1	0105-0207
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-73618-185-0	01	1	0208-0208
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	01	1	0208-
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	0105-0402
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-0804
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0105-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0105-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0105-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0105-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0105-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0105-
69	BRACKET; ASSIST GRIP (A)	1-73618-181-1	01	1	0105-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	0105-
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	0105-0310
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	0311-
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0105-0207
71	SCREW ASSIST GRIP A POST<NBK> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0208-0208
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0208-
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER	1-09981-422-0	02	1	0105-0310
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-
71	SCREW EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0105-0207
71	SCREW EXC. ASSIST GRIP A POST<NBK>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0208-0208
71	SCREW EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0208-
76	SPACER; ASSIST GRIP CHINA GB VAR1<JAC> EXC. ASSIST GRIP A POST<NBK>,HIGH ROOF<S2F> OD=13 T=4.5	8-94230-464-1	02	1	0302-0401
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> EXC. CHINA GB VAR1<JAC>,HIGH ROOF<S2F> OD=13 T=4.5	8-94230-464-1	02	1	0302-0401
76	SPACER; ASSIST GRIP CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> EXC. ASSIST GRIP A POST<NBK>,HIGH ROOF<S2F> OD=13 T=4.5	8-94230-464-1	02	1	0402-
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,HIGH ROOF<S2F> OD=13 T=4.5	8-94230-464-1	02	1	0402-
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> EXC. HIGH ROOF<S2F> OD=13 T=4.5	8-94230-464-1	02	1	0105-0301
76	SPACER; ASSIST GRIP CHINA GB VAR1<JAC> ASSIST GRIP A POST<NBK> EXC. HIGH ROOF<S2F> OD=13 T=4.5	8-94230-464-1	04	1	0302-0401
76	SPACER; ASSIST GRIP CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> ASSIST GRIP A POST<NBK> EXC. HIGH ROOF<S2F> OD=13 T=4.5	8-94230-464-1	04	1	0402-
76	SPACER; ASSIST GRIP EXC. HIGH ROOF<S2F>	1-73618-180-0	02	1	0105-0301
76	SPACER; ASSIST GRIP EXC. CHINA GB VAR1<JAC>,HIGH ROOF<S2F>	1-73618-180-0	02	1	0302-0401
76	SPACER; ASSIST GRIP EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,HIGH ROOF<S2F>	1-73618-180-0	02	1	0402-
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	02	1	0105-
87	GRIP; ASSIST,CANT RAIL SIDE EXC. ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	01	1	0105-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0208-0208
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0105-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0105-0207
150	CLIP; ASSIST GRIP HOLE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) OD=6 L=17 DARK GRAY	1-73996-364-0	04	1	0208-0208
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0208-

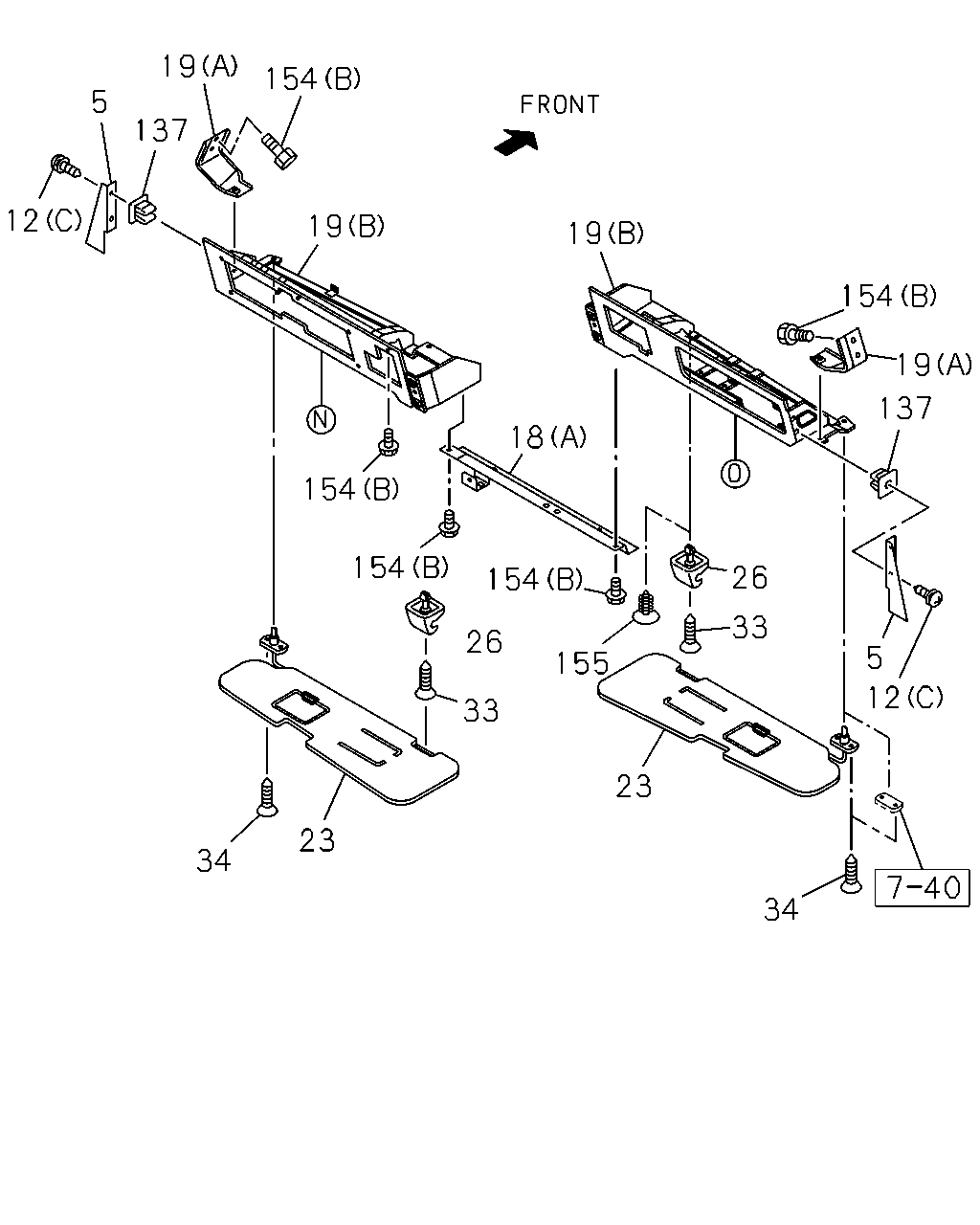

19 154 5 137 12 19 19 154 19 137 18 154 154 26 154 33 26 5 155 12 33 23 23 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-933-0	01	1	0105-
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-932-0	01	1	0105-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0105-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0105-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0105-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-937-0	01	1	0105-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-938-4	01	1	0105-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	0105-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0105-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	0105-
23	SUN VISOR	1-73138-157-1	01	1	0105-
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-156-1	01	1	0105-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0105-
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	0105-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0105-0603
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0105-0603
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0604-
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0604-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0105-0702
137	GROMMET; SCREW,HEADER SHELF HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0105-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0302-0401
154	BOLT; SUPPORT EXC. CHINA GB VAR1<JAC>,HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0302-0401
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0402-
154	BOLT; SUPPORT EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0402-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. CHINA GB VAR1<JAC>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0302-0401
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,GRIP OUTSIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0402-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0105-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0105-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-0301
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-0301
154	BOLT; SUPPORT CHINA GB VAR1<JAC> HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	10	1	0302-0401
154	BOLT; SUPPORT CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	10	1	0402-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0105-0301
154	BOLT; SUPPORT CHINA GB VAR1<JAC> EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	0302-0401
154	BOLT; SUPPORT CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	0402-
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	0105-

83 135 132 135 12 1 157 156 18 12 143 154 158 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-758-3	01	1	0105-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-72447-886-7	01	1	0105-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0105-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0105-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0105-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-937-0	01	1	0105-
83	PLUG HIGH ROOF<S2F> D6X23 LIGHT GRAY	1-73318-629-0	03	1	0105-
132	FASTENER; BOARD,HEADER SHELF HIGH ROOF<S2F> D8X13.5	1-09987-276-0	08	1	0105-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) D8X13.5	1-09987-248-1	01	1	0105-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY	1-73318-629-0	05	1	0105-
143	BEZEL	1-72447-768-2	01	1	0105-0211
143	BEZEL EXC. CHINA GB VAR1<JAC>	1-72447-768-2	01	1	0212-0401
143	BEZEL EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>	1-72447-768-2	01	1	0402-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0302-0401
154	BOLT; SUPPORT EXC. CHINA GB VAR1<JAC>,HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0302-0401
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0402-
154	BOLT; SUPPORT EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0402-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. CHINA GB VAR1<JAC>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0302-0401
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>,GRIP OUTSIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0402-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0105-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0105-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-0301
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-0301
154	BOLT; SUPPORT CHINA GB VAR1<JAC> HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	10	1	0302-0401
154	BOLT; SUPPORT CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	10	1	0402-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0105-0301
154	BOLT; SUPPORT CHINA GB VAR1<JAC> EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	0302-0401
154	BOLT; SUPPORT CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	0402-
156	PIPE; HEADER SHELF HIGH ROOF<S2F>	1-72447-864-2	01	1	0105-
157	FINISHER; PIPE HIGH ROOF<S2F>	1-72447-885-5	01	1	0105-
158	LOCK; HEADER SHELF	1-72538-180-0	01	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
