◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10879 - EXZ LHD FUEL TANK 400L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#28423) — 113 parça

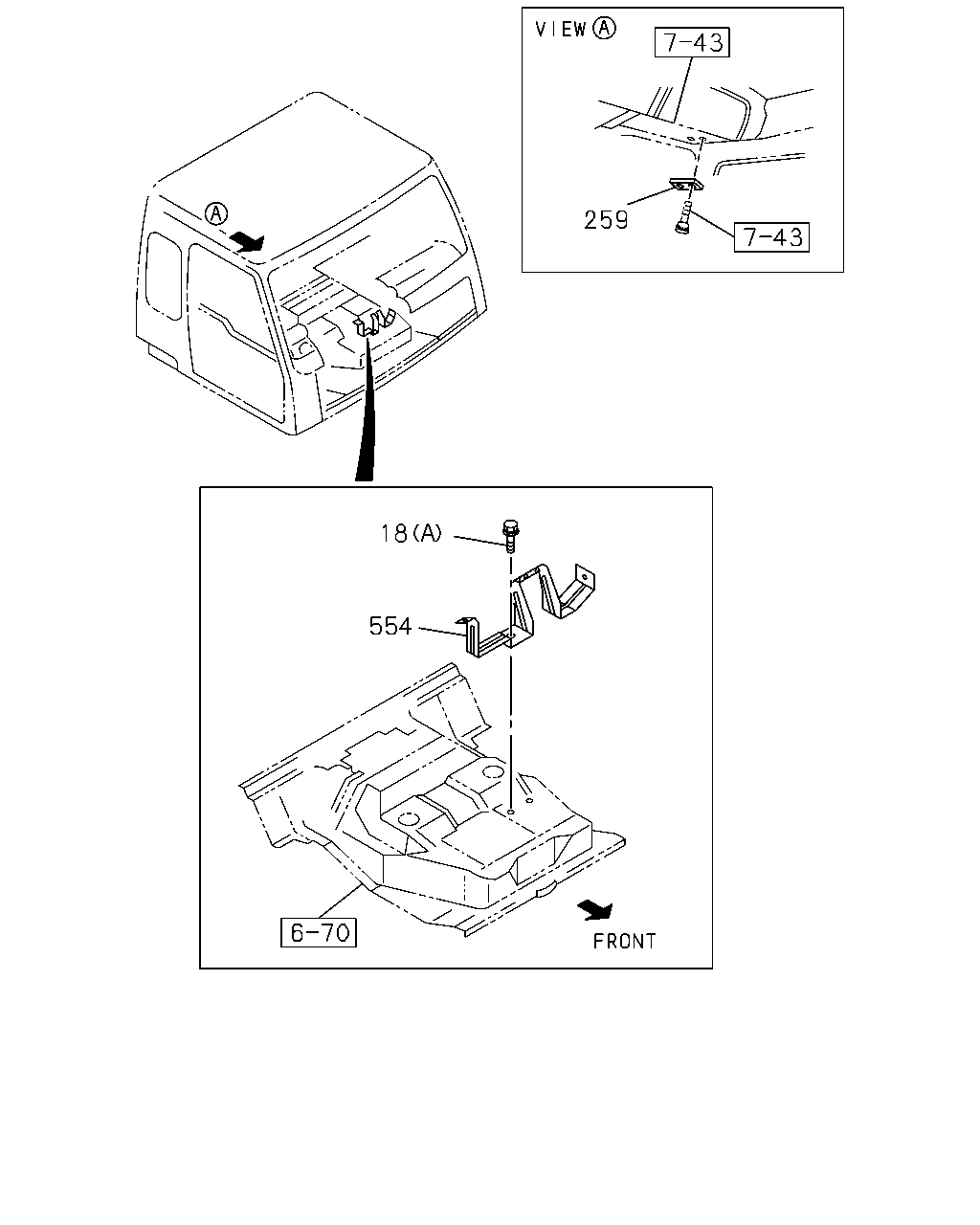

çizim 138605
259 18 554
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0105-
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0105-
554 BRACKET; CENTER BEZEL 1-65671-733-1 01 1 0105-

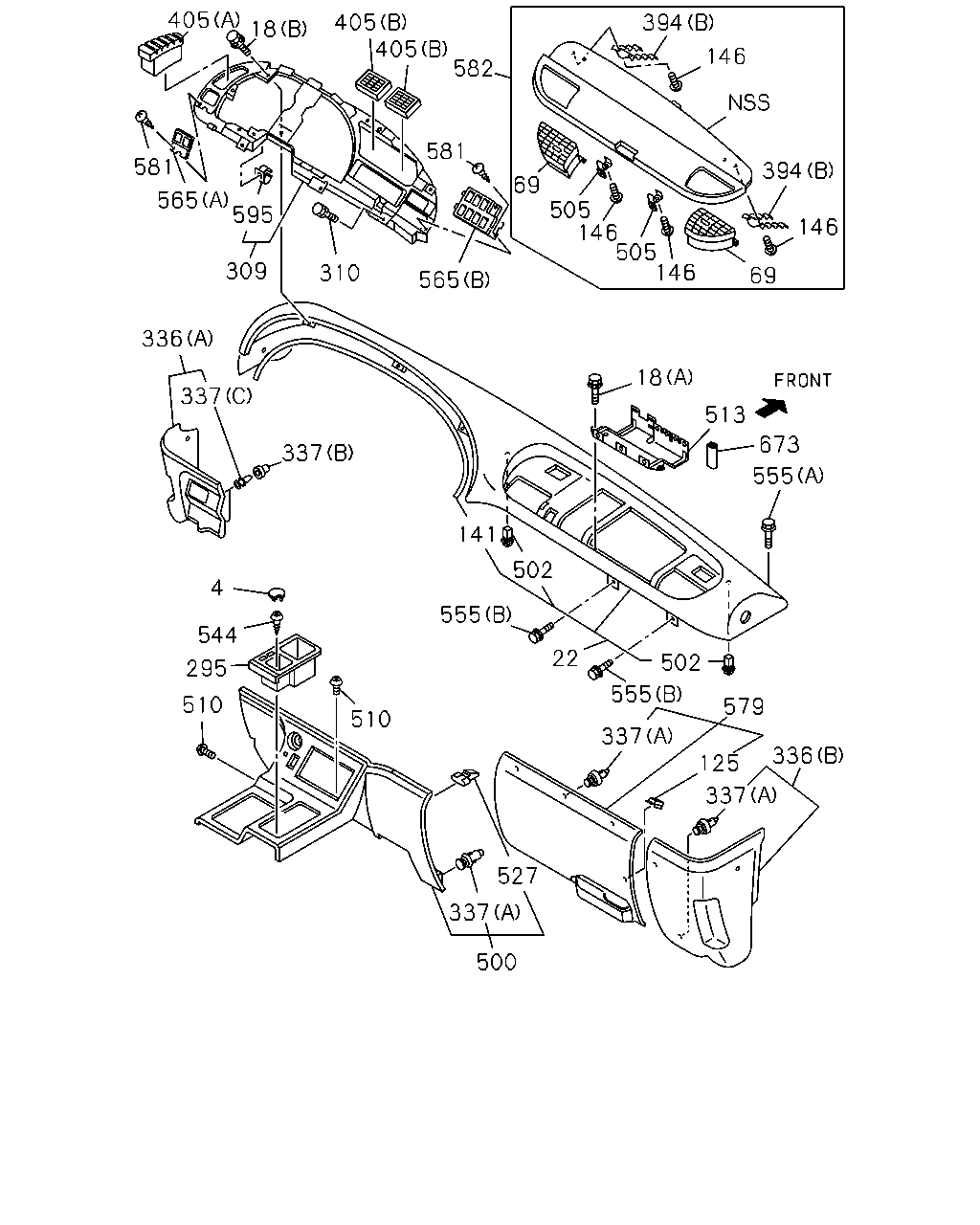

çizim 138610
405 405 405 582 394 18 146 581 581 394 69 565 595 505 146 505 146 146 309 310 69 565 336 18 337 513 673 337 555 141 502 4 555 544 22 502 295 555 510 579 510 337 336 125 337 527 337 500
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 0105-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0105-
22 PAD; INST 1-72317-351-4 01 1 0105-
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 0105-
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 0105-
125 CLIP; INST PANEL 8-97217-066-0 01 1 0105-
125 CLIP; INST PANEL 8-97217-066-0 10 1 0105-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0105-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0105-
295 TRAY; CTR CLUSTER 1-72437-593-0 01 1 0105-
309 PANEL; SW,INST 1-72418-018-3 01 1 0105-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105-
336 COVER; INST PANEL SIDE
(A) 		1-72438-194-0 01 1 0105-
336 COVER; INST PANEL SIDE
(B) 		1-72438-193-0 01 1 0105-
337 FASTENER; COVER
(A) 		1-72438-124-2 11 1 0105-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0105-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 0105-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0105-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0105-0407
394 HOLDER; PANEL
(B) 		1-72558-048-0 02 1 0408-
405 GRILLE ASM; METER VENT
(A) 		1-76368-062-0 01 1 0105-
405 GRILLE ASM; METER VENT
(B) BLACK 		8-94333-730-4 02 1 0105-
500 CLUSTER; INST CENTER 1-72437-642-1 01 1 0105-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0105-
505 LOCK; LID 1-72558-024-2 02 1 0105-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0105-
513 BRACKET; RELAY 8-97865-168-3 01 1 0105-
527 CLIP; INST CLUSTER 8-97217-066-0 05 1 0105-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0105-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0105-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-
565 BEZEL; SW PANEL
(A) 		1-72418-021-1 01 1 0105-
565 BEZEL; SW PANEL
(B) 		1-72418-020-1 01 1 0105-
579 COVER; INST PNL 1-72438-195-1 01 1 0105-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0105-0604
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
582 LID; FUSE & RELAY 1-72548-146-1 01 1 0105-
595 NUT; HOOK 1-72418-013-0 10 1 0105-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0105-

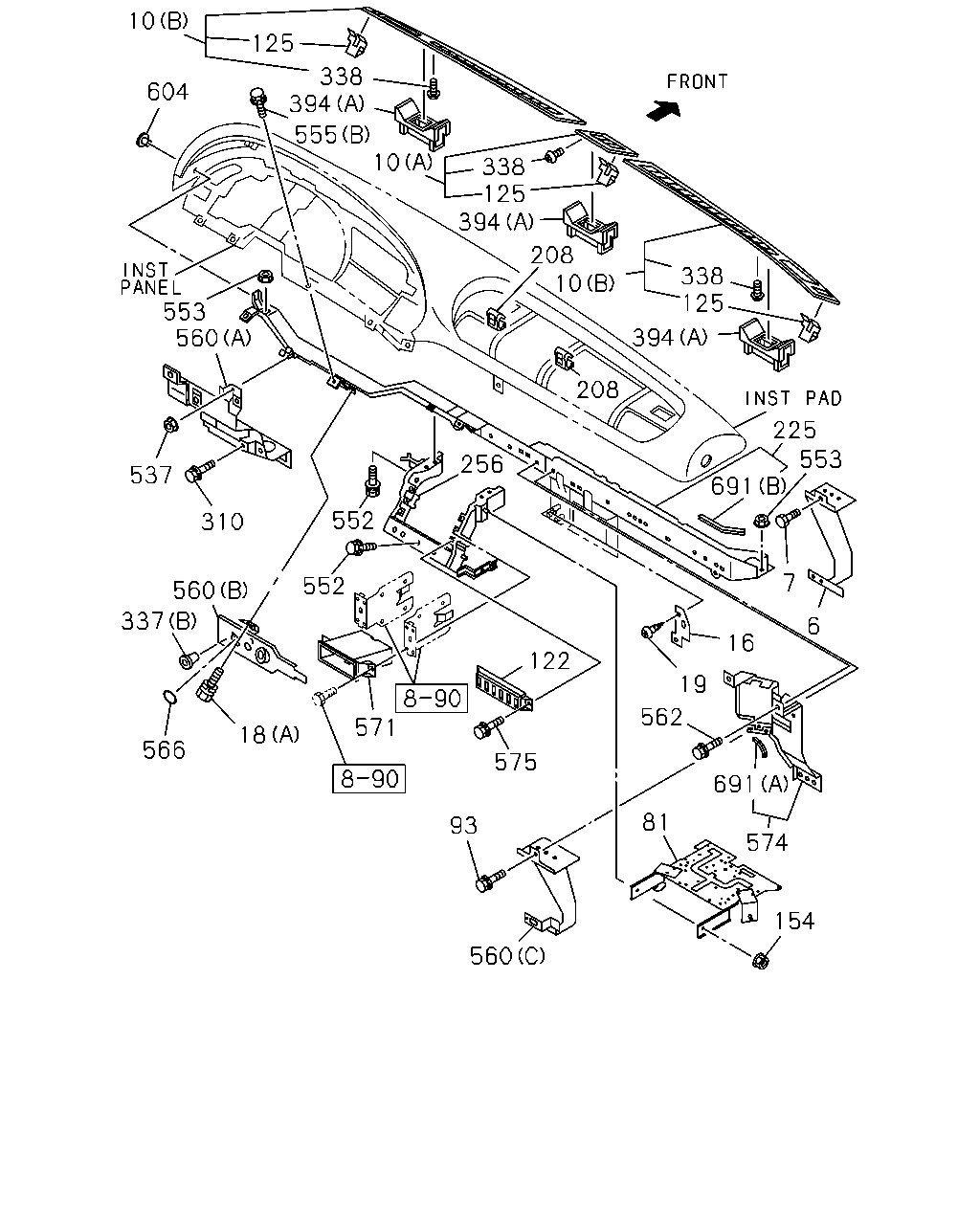

çizim 138612
154 574 691 6 16 19 562 122 575 93 560 571 18 566 337 560 310 552 552 256 560 537 553 208 691 553 225 394 125 338 10 208 394 125 338 10 555 394 338 125 604 10 81 7
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-062-2 01 1 0105-0306
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-061-2 01 1 0105-0306
7 BOLT; SUPPORT,INST PNL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105-0306
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) CENTER 		1-72437-592-1 01 1 0105-0306
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-158-1 01 1 0105-0306
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-157-1 01 1 0105-0306
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) CENTER 		1-72437-540-6 01 1 0105-0306
10 PANEL ASM; GARNISH
(A) CENTER 		1-72437-540-6 01 1 0307-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-601-6 01 1 0105-0306
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 0307-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-600-7 01 1 0105-0306
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-600-7 01 1 0307-
16 BRACKET; INST PNL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-73908-023-2 01 1 0105-0306
16 BRACKET; INST PNL 1-73908-023-2 01 1 0307-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0105-
19 SCREW; BRKT
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 02 1 0105-0306
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0307-
81 BRACKET; ELEC CONT UNIT 1-73907-648-4 01 1 0105-
93 BOLT; PANEL BRKT
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-0306
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 0105-
125 CLIP; INST PANEL 8-97217-066-0 01 1 0105-
125 CLIP; INST PANEL 8-97217-066-0 10 1 0105-
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 0105-0602
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 0603-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0105-
225 FRAME; FACIA 1-65671-727-5 01 1 0105-
256 BEZEL ASM; CENTER 1-65671-730-3 01 1 0105-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105-
337 FASTENER; COVER
(A) 		1-72438-124-2 11 1 0105-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0105-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 0105-
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 12 1 0105-0208
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94148-576-1 12 1 0209-0306
338 SCREW; COVER
M5X14 		8-94148-576-1 12 1 0307-0309
338 SCREW; COVER
M5X14 		8-94279-325-0 22 1 0310-0405
338 SCREW; COVER
M5X14 		8-94279-325-0 12 1 0406-0801
338 SCREW; COVER
M5X14 		8-94279-325-0 17 1 0802-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0105-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0105-0407
394 HOLDER; PANEL
(B) 		1-72558-048-0 02 1 0408-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0105-0602
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0105-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0105-0602
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0105-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-
560 BRACKET
(A) 		1-65681-045-6 01 1 0105-
560 BRACKET
ELECTRONIC GOV RED3(KG5) (B) 		1-65681-160-0 01 1 0105-
560 BRACKET
EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-65681-043-2 01 1 0105-
560 BRACKET
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (C) 		1-65671-749-0 01 1 0105-0306
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-
566 PLUG; HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0105-
571 BEZEL; POCKET 1-72438-151-3 01 1 0105-
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-3 01 1 0105-
574 PANEL; RELAY BOX 1-73907-407-3 01 1 0105-0703
574 PANEL; RELAY BOX 1-73907-737-2 01 1 0704-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
604 CLIP; INST PAD 1-09983-123-0 01 1 0105-
691 FINISHER; HARNESS PROTECTOR
(A) L=50 		8-94270-377-1 01 1 1006-
691 FINISHER; HARNESS PROTECTOR
(B) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 0411-
