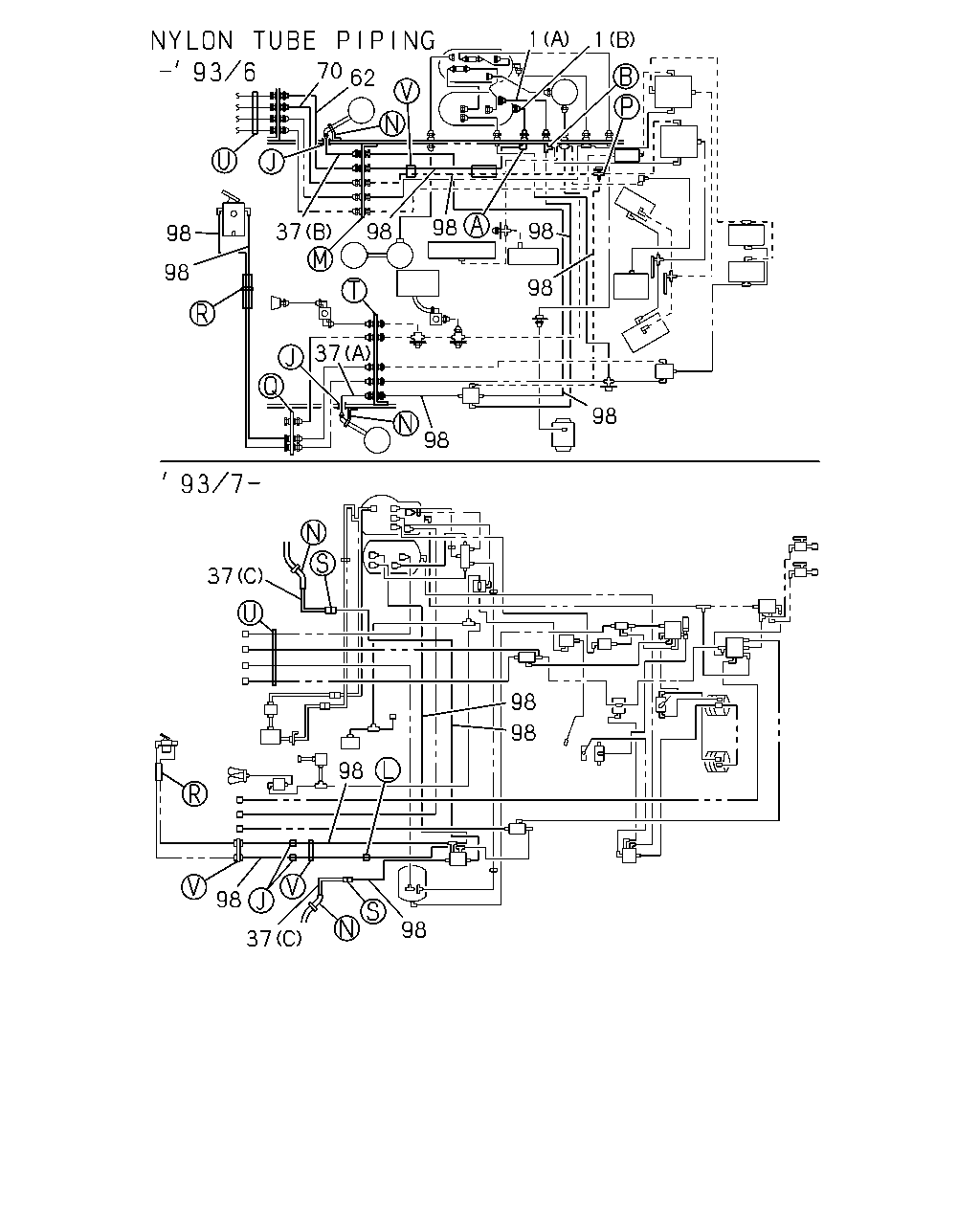

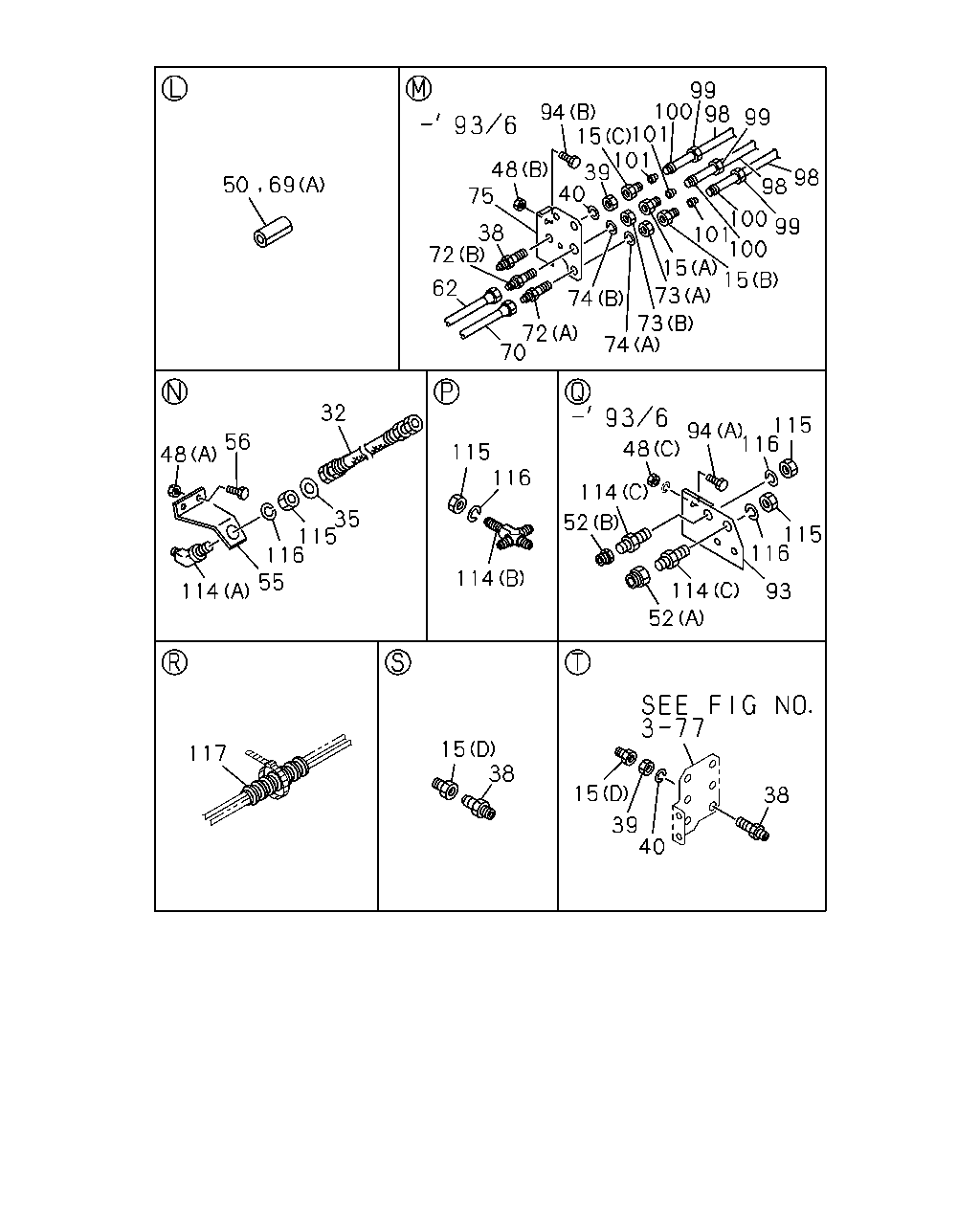

3-75 — BRAKE PIPING; AIR,FRONT (#2842) — 290 parça

38 40 39 15 38 15 117 114 55 116 115 35 114 52 93 114 116 115 115 116 94 48 114 52 116 115 32 56 48 62 72 69 50 94 48 75 38 40 39 101 15 101 100 99 98 99 98 98 99 100 101 15 100 73 73 15 74 74 72 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (C) M14 & M16 STRAIGHT	1-09660-220-0	01	1	9002-9306	●	●
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (A) M18 & M20 STRAIGHT	1-09660-221-0	02	1	9002-9306	●	●
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B) M18 & M22 STRAIGHT	1-09660-222-0	02	1	9002-9306	●	●
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (D) M16 & M18 STRAIGHT	1-09660-223-0	02	1	9002-9306	●	●
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (D)	1-09660-637-0	02	1	9307-		●
32	HOSE; FLEX,FRT L=530	0-07847-530-1	02	1	9002-	●	●
35	GASKET; FLEX HOSE NYLON TUBE AIR PIPING<Z29> ID=11 OD=18	9-09572-510-0	04	1	9002-	●	●
38	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> M16 L=70 STRAIGHT	9-09233-210-1	02	1	9002-9306	●	●
38	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> M16 L=42	9-09233-010-1	02	1	9307-		●
39	NUT; PIPE UNION NYLON TUBE AIR PIPING<Z29> M16	9-99110-416-0	02	1	9002-9306	●	●
40	WASHER; LK,PIPE UNION NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	02	1	9002-9306	●	●
48	NUT; UNION BRKT CAB UP 110MM(W60) NYLON TUBE AIR PIPING<Z29> (C) M10	9-09110-410-0	02	1	9002-9306	●	●
48	NUT; UNION BRKT NYLON TUBE AIR PIPING<Z29> (A) M8	9-09110-408-0	04	1	9002-	●	●
48	NUT; UNION BRKT NYLON TUBE AIR PIPING<Z29> (B) M12	9-99110-412-0	02	1	9002-9304	●	●
48	NUT; UNION BRKT NYLON TUBE AIR PIPING<Z29> (B) M12	9-99110-512-0	02	1	9305-9306	●	●
50	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> L=250 L=250	1-09369-907-0	01	1	9307-		●
52	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M18 & M20 STRAIGHT	1-09660-221-0	01	1	9002-9306	●	●
52	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M14 & M20 STRAIGHT	1-09660-255-0	01	1	9002-9306	●	●
52	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M20X36	1-09660-576-0	02	1	9307-		●
55	BRACKET; TUBE UNION NYLON TUBE AIR PIPING<Z29>	1-47475-106-0	02	1	9002-	●	●
56	BOLT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	04	1	9002-9204	●	●
56	BOLT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9306	●	●
56	BOLT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	04	1	9307-		●
62	PIPE; AIR,UNION TO FLEX HOSE CAB UP 110MM(W60) NYLON TUBE AIR PIPING<Z29> L=1248 SERVICED BY L=1300	1-47434-486-0	01	1	9002-9306	●	●
62	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1139 SERVICED BY L=1200	1-47437-983-0	01	1	9002-9306	●	●
62	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1121 SERVICED BY L=1200	1-49111-445-0	01	1	9307-	●	●
62	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 110MM(W60) L=1361 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●	●
62	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1435 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●	●
62	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1417 SERVICED BY L=1450	1-49111-447-0	01	1	9307-	●	●
62	PIPE; AIR,UNION TO FLEX HOSE 8PD1 STD ENG(38L) L=1091 SERVICED BY L=1100	1-49111-444-0	01	1	9307-	●	●
69	SLEEVE; RUBBER,FLEX HOSE NYLON TUBE AIR PIPING<Z29> (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	9002-	●	●
69	SLEEVE; RUBBER,FLEX HOSE NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 110MM(W60) (B) L=250	1-09369-907-0	01	1	9002-	●	●
70	PIPE; AIR,FLEX HOSE TO UNION CAB UP 110MM(W60) NYLON TUBE AIR PIPING<Z29> L=1313 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306	●	●
70	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1205 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306	●	●
70	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1187 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●	●
70	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 110MM(W60) L=1410 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306	●	●
70	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1519 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306	●	●
70	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1501 SERVICED BY L=1550	1-47426-419-0	01	1	9307-	●	●
70	PIPE; AIR,FLEX HOSE TO UNION 8PD1 STD ENG(38L) L=1157 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●	●
72	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (A) M16 L=70 STRAIGHT	9-09233-210-1	01	1	9002-9306	●	●
72	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B) M20 L=77.5	9-09233-212-1	01	1	9002-9306	●	●
72	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C) M16 L=42	9-09233-010-1	01	1	9002-	●	●
73	NUT; PIPE UNION NYLON TUBE AIR PIPING<Z29> (A) M16	9-99110-416-0	01	1	9002-9306	●	●
73	NUT; PIPE UNION NYLON TUBE AIR PIPING<Z29> (B) M20	9-99110-420-0	01	1	9002-9306	●	●
74	WASHER; LK,PIPE UNION NYLON TUBE AIR PIPING<Z29> (A) ID=16.2	9-09150-516-0	01	1	9002-9306	●	●
74	WASHER; LK,PIPE UNION NYLON TUBE AIR PIPING<Z29> (B) ID=20.2	9-09150-520-0	01	1	9002-9306	●	●
75	BRACKET; UNION NYLON TUBE AIR PIPING<Z29>	1-47476-073-0	01	1	9002-9306	●	●
93	BRACKET; UNION,TUBE CAB UP 110MM(W60) NYLON TUBE AIR PIPING<Z29>	1-47476-044-0	01	1	9002-9306	●	●
93	BRACKET; UNION,TUBE NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 110MM(W60)	1-47476-344-0	01	1	9002-9306	●	●
93	BRACKET; UNION,TUBE NYLON TUBE AIR PIPING<Z29>	1-47476-872-0	01	1	9307-		●
94	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> (B) M12X35 W/LK WASHER	9-01901-235-0	02	1	9002-9204	●	●
94	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> (B) M12X35 W/LK WASHER	0-50041-235-0	02	1	9205-9306	●	●
94	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 110MM(W60) (A) M8X30 W/LK WASHER	9-01900-830-0	03	1	9002-9204	●	●
94	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 110MM(W60) (A) M8X30 W/LK WASHER	0-50040-830-0	03	1	9205-9302	●	●
94	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 110MM(W60) (A) M8X30 FLANGE	0-28080-830-0	03	1	9303-9306	●	●
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK OD=12MM SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306	●	●
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK OD=8MM SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●	●
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=3/8" L=30000	1-09368-249-0	AR	1	9307-		●
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=1/2" L=30000	1-09368-252-0	AR	1	9307-		●
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-9306	●	●
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M18	1-09660-213-0	AR	1	9002-9306	●	●
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> UNS 17/32-24	1-09660-557-0	AR	1	9307-		●
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> UNS 11/16-20	1-09660-558-0	AR	1	9307-		●
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09666-042-0	AR	1	9002-9306	●	●
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09666-043-0	AR	1	9002-9306	●	●
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE	1-09666-060-0	AR	1	9307-		●
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 1/2" TUBE	1-09666-061-0	AR	1	9307-		●
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> ID=4.5 OD=5.8 L=18	1-09669-054-0	AR	1	9002-9306	●	●
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> ID=7.5 OD=8.8 L=18	1-09669-055-0	AR	1	9002-9306	●	●
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE	1-09669-108-0	AR	1	9307-		●
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 1/2" TUBE	1-09669-107-0	AR	1	9307-		●
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M16	1-09654-174-1	02	1	9002-	●	●
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M14 3WAY	1-09664-066-0	01	1	9002-9306	●	●
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M20 L=77.5	9-09233-212-1	02	1	9002-9306	●	●
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) UNS 17/32-24 L=57	1-09664-083-0	01	1	9307-		●
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M20 L=77.5	9-09233-212-1	01	1	9307-		●
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9002-9304	●	●
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-9306	●	●
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	04	1	9002-9306	●	●
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> UNS 17/32-24 B=17	1-09487-023-0	01	1	9307-		●
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M20	9-99110-420-0	01	1	9307-		●
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	02	1	9307-		●
116	WASHER; LK,TUBE UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9306	●	●
116	WASHER; LK,TUBE UNION NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	04	1	9002-9306	●	●
116	WASHER; LK,TUBE UNION NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	03	1	9307-		●
117	TUBE; CORRUGATE NYLON TUBE AIR PIPING<Z29>	1-71997-792-0	02	1	9002-	●	●

98 37 98 98 98 37 98 98 98 98 98 98 37 37 98 98 70 62 1 1 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,AIR TANK TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> (B) L=667 SERVICED BY L=730	1-47437-979-0	01	1	9002-9306	●	●
1	PIPE; AIR,AIR TANK TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> (A) L=715	1-47446-490-0	01	1	9002-	●	●
1	PIPE; AIR,AIR TANK TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> (B) L=667 SERVICED BY L=700	1-49111-439-0	01	1	9307-	●	●
1	PIPE; AIR,AIR TANK TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) L=708 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9306	●	●
1	PIPE; AIR,AIR TANK TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (A) L=708 SERVICED BY L=1000	1-47434-491-0	01	1	9307-	●	●
1	PIPE; AIR,AIR TANK TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) L=668 SERVICED BY L=730	1-47437-979-0	01	1	9002-9306	●	●
1	PIPE; AIR,AIR TANK TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) L=668 SERVICED BY L=700	1-49111-439-0	01	1	9307-9404		●
1	PIPE; AIR,AIR TANK TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (B) L=668 SERVICED BY L=700	1-49111-439-0	01	1	9405-	●	●
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (A) L=497 SERVICED BY L=500	1-47434-472-0	01	1	9002-9306	●	●
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (B) L=510 SERVICED BY L=550	1-47437-963-0	01	1	9002-9306	●	●
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (C) L=487 SERVICED BY L=550	1-47426-407-0	02	1	9307-		●
62	PIPE; AIR,UNION TO FLEX HOSE CAB UP 110MM(W60) NYLON TUBE AIR PIPING<Z29> L=1248 SERVICED BY L=1300	1-47434-486-0	01	1	9002-9306	●	●
62	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1139 SERVICED BY L=1200	1-47437-983-0	01	1	9002-9306	●	●
62	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1121 SERVICED BY L=1200	1-49111-445-0	01	1	9307-	●	●
62	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 110MM(W60) L=1361 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●	●
62	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1435 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●	●
62	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1417 SERVICED BY L=1450	1-49111-447-0	01	1	9307-	●	●
62	PIPE; AIR,UNION TO FLEX HOSE 8PD1 STD ENG(38L) L=1091 SERVICED BY L=1100	1-49111-444-0	01	1	9307-	●	●
70	PIPE; AIR,FLEX HOSE TO UNION CAB UP 110MM(W60) NYLON TUBE AIR PIPING<Z29> L=1313 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306	●	●
70	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1205 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306	●	●
70	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1187 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●	●
70	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 110MM(W60) L=1410 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306	●	●
70	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1519 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306	●	●
70	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1501 SERVICED BY L=1550	1-47426-419-0	01	1	9307-	●	●
70	PIPE; AIR,FLEX HOSE TO UNION 8PD1 STD ENG(38L) L=1157 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●	●
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK OD=12MM SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306	●	●
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK OD=8MM SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●	●
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=3/8" L=30000	1-09368-249-0	AR	1	9307-		●
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=1/2" L=30000	1-09368-252-0	AR	1	9307-		●

99 100 101 98 99 100 101 141 69 52 52 115 116 93 114 114 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M18 & M20 STRAIGHT	1-09660-221-0	01	1	9002-9306	●	●
52	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M14 & M20 STRAIGHT	1-09660-255-0	01	1	9002-9306	●	●
52	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M20X36	1-09660-576-0	02	1	9307-		●
69	SLEEVE; RUBBER,FLEX HOSE NYLON TUBE AIR PIPING<Z29> (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	9002-	●	●
69	SLEEVE; RUBBER,FLEX HOSE NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 110MM(W60) (B) L=250	1-09369-907-0	01	1	9002-	●	●
93	BRACKET; UNION,TUBE CAB UP 110MM(W60) NYLON TUBE AIR PIPING<Z29>	1-47476-044-0	01	1	9002-9306	●	●
93	BRACKET; UNION,TUBE NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 110MM(W60)	1-47476-344-0	01	1	9002-9306	●	●
93	BRACKET; UNION,TUBE NYLON TUBE AIR PIPING<Z29>	1-47476-872-0	01	1	9307-		●
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK OD=12MM SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306	●	●
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK OD=8MM SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●	●
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=3/8" L=30000	1-09368-249-0	AR	1	9307-		●
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=1/2" L=30000	1-09368-252-0	AR	1	9307-		●
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-9306	●	●
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M18	1-09660-213-0	AR	1	9002-9306	●	●
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> UNS 17/32-24	1-09660-557-0	AR	1	9307-		●
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> UNS 11/16-20	1-09660-558-0	AR	1	9307-		●
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09666-042-0	AR	1	9002-9306	●	●
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09666-043-0	AR	1	9002-9306	●	●
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE	1-09666-060-0	AR	1	9307-		●
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 1/2" TUBE	1-09666-061-0	AR	1	9307-		●
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> ID=4.5 OD=5.8 L=18	1-09669-054-0	AR	1	9002-9306	●	●
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> ID=7.5 OD=8.8 L=18	1-09669-055-0	AR	1	9002-9306	●	●
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE	1-09669-108-0	AR	1	9307-		●
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 1/2" TUBE	1-09669-107-0	AR	1	9307-		●
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M16	1-09654-174-1	02	1	9002-	●	●
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M14 3WAY	1-09664-066-0	01	1	9002-9306	●	●
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M20 L=77.5	9-09233-212-1	02	1	9002-9306	●	●
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) UNS 17/32-24 L=57	1-09664-083-0	01	1	9307-		●
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M20 L=77.5	9-09233-212-1	01	1	9307-		●
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9002-9304	●	●
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-9306	●	●
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	04	1	9002-9306	●	●
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> UNS 17/32-24 B=17	1-09487-023-0	01	1	9307-		●
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M20	9-99110-420-0	01	1	9307-		●
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	02	1	9307-		●
116	WASHER; LK,TUBE UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9306	●	●
116	WASHER; LK,TUBE UNION NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	04	1	9002-9306	●	●
116	WASHER; LK,TUBE UNION NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	03	1	9307-		●
141	CONNECTOR; TEST WHEEL BASE 5800MM(58W) INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>	1-47459-002-0	01	1	9405-9412		●
141	CONNECTOR; TEST INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47459-002-0	01	1	9501-		●

83 51 32 34 31 28 29 30 2 25 72 77 78 2 83 46 82 2 4 3 15 2 15 15 2 4 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	UNION; AIR PIPE (A) M20	9-09235-212-1	01	1	9002-9306	●	●
2	UNION; AIR PIPE (B) M22 L=117	9-09238-915-1	01	1	9002-9306	●	●
2	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (D) M16	1-09654-148-1	01	1	9002-	●	●
2	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C) M20 STRAIGHT	9-09233-012-1	01	1	9002-	●	●
2	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) M20	9-09235-212-1	01	1	9307-	●	●
2	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B) M22 L=117	9-09238-915-1	01	1	9307-	●	●
3	NUT; PIPE UNION (B) M22	9-09111-422-0	01	1	9002-9306	●	●
3	NUT; PIPE UNION (A) M20	9-99111-420-0	01	1	9002-9306	●	●
3	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> (B) M22	9-09111-422-0	01	1	9307-	●	●
3	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> (A) M20	9-99111-420-0	01	1	9307-	●	●
4	WASHER; LK,PIPE UNION (A) ID=20.2	9-09150-520-0	01	1	9002-9306	●	●
4	WASHER; LK,PIPE UNION (B) ID=22.5	9-09150-522-0	01	1	9002-9306	●	●
4	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=20.2	9-09150-520-0	01	1	9307-	●	●
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (C) M14 & M16 STRAIGHT	1-09660-220-0	01	1	9002-9306	●	●
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (A) M18 & M20 STRAIGHT	1-09660-221-0	02	1	9002-9306	●	●
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B) M18 & M22 STRAIGHT	1-09660-222-0	02	1	9002-9306	●	●
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (D) M16 & M18 STRAIGHT	1-09660-223-0	02	1	9002-9306	●	●
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (D)	1-09660-637-0	02	1	9307-		●
25	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M16 L=42	9-09233-010-1	01	1	9002-	●	●
28	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M16	1-09654-174-1	02	1	9002-	●	●
29	NUT; NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	02	1	9002-	●	●
30	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	02	1	9002-	●	●
31	BRACKET; NIPPLE EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-106-0	02	1	9002-	●	●
32	HOSE; FLEX,FRT L=530	0-07847-530-1	02	1	9002-	●	●
34	GASKET; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> ID=11 OD=18	9-09572-510-0	04	1	9002-	●	●
46	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9312	●	●
51	GROMMET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=28 OD=35 T=17	9-09956-256-1	02	1	9002-9306	●	●
51	GROMMET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=28 OD=35 T=17	9-09956-256-1	03	1	9307-9404		●
51	GROMMET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=28 OD=35 T=25	1-09332-011-1	01	1	9307-9404		●
51	GROMMET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=28 OD=35 T=25	1-09332-011-1	02	1	9405-		●
72	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (A) M16 L=70 STRAIGHT	9-09233-210-1	01	1	9002-9306	●	●
72	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B) M20 L=77.5	9-09233-212-1	01	1	9002-9306	●	●
72	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C) M16 L=42	9-09233-010-1	01	1	9002-	●	●
77	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9002-9304	●	●
77	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-	●	●
78	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9312	●	●
82	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M16	9-09238-310-1	01	1	9002-	●	●
83	NUT; PIPE UNION WHEEL BASE 5000MM(50W) (A) M8	9-09110-408-0	02	1	9002-9201	●
83	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> (A) M8	9-09110-408-0	02	1	9002-9201		●
83	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> (B) M12	9-99110-412-0	01	1	9002-9304	●	●
83	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> (B) M12	9-99110-512-0	01	1	9305-	●	●

24 21 43 26 1 21 81 1 5 76 70 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,AIR TANK TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> (B) L=667 SERVICED BY L=730	1-47437-979-0	01	1	9002-9306	●	●
1	PIPE; AIR,AIR TANK TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> (A) L=715	1-47446-490-0	01	1	9002-	●	●
1	PIPE; AIR,AIR TANK TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> (B) L=667 SERVICED BY L=700	1-49111-439-0	01	1	9307-	●	●
1	PIPE; AIR,AIR TANK TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) L=708 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9306	●	●
1	PIPE; AIR,AIR TANK TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (A) L=708 SERVICED BY L=1000	1-47434-491-0	01	1	9307-	●	●
1	PIPE; AIR,AIR TANK TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) L=668 SERVICED BY L=730	1-47437-979-0	01	1	9002-9306	●	●
1	PIPE; AIR,AIR TANK TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) L=668 SERVICED BY L=700	1-49111-439-0	01	1	9307-9404		●
1	PIPE; AIR,AIR TANK TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (B) L=668 SERVICED BY L=700	1-49111-439-0	01	1	9405-	●	●
5	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> L=2157 SERVICED BY L=2250	1-47437-987-0	01	1	9002-9306	●	●
5	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> L=2157 SERVICED BY L=2250	1-49111-451-0	01	1	9307-	●	●
5	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=2156 SERVICED BY L=2250	1-47437-987-0	01	1	9002-9306	●	●
5	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=2156 SERVICED BY L=2250	1-49111-451-0	01	1	9307-		●
5	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> L=1860 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306	●	●
5	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> L=1860 SERVICED BY L=2000	1-49111-450-0	01	1	9307-	●	●
5	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=1859 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306	●	●
5	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=1859 SERVICED BY L=2000	1-49111-450-0	01	1	9307-		●
5	PIPE; AIR,UNION TO UNION 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> L=2192 SERVICED BY L=2250	1-49111-451-0	01	1	9307-	●	●
21	PIPE; AIR,UNION TO RELAY VLV TAIL PIPE SINGLE HORIZONTAL<NC2> (A) L=1657	1-47495-873-0	01	1	9307-	●
21	PIPE; AIR,UNION TO RELAY VLV EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) L=1320 SERVICED BY L=1350	1-47437-995-0	01	1	9307-	●
21	PIPE; AIR,UNION TO RELAY VLV FRAME EQUIPMENT HEAVY DUTY<F03> (A) L=1320 SERVICED BY L=1350	1-47437-995-0	01	1	9307-		●
21	PIPE; AIR,UNION TO RELAY VLV FRAME EQUIPMENT HEAVY DUTY<F03> (B) L=1990 SERVICED BY L=2100	1-47437-972-0	01	1	9002-9306	●	●
21	PIPE; AIR,UNION TO RELAY VLV FRAME EQUIPMENT HEAVY DUTY<F03> (A) L=1320 SERVICED BY L=1350	1-47437-995-0	01	1	9002-9306	●	●
21	PIPE; AIR,UNION TO RELAY VLV FRAME EQUIPMENT HEAVY DUTY<F03> (B) L=1810 SERVICED BY L=1900	1-47426-421-0	01	1	9307-	●	●
21	PIPE; AIR,UNION TO RELAY VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (B) L=2007 SERVICED BY L=2100	1-47437-972-0	01	1	9002-9306	●	●
21	PIPE; AIR,UNION TO RELAY VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (B) L=2007 SERVICED BY L=2100	1-47426-422-0	01	1	9307-	●	●
21	PIPE; AIR,UNION TO RELAY VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (A) L=1334 SERVICED BY L=1350	1-47437-995-0	01	1	9002-	●	●
24	PIPE; AIR,RELAY VLV TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> L=1732 SERVICED BY L=1900	1-47437-971-0	01	1	9002-9306	●	●
24	PIPE; AIR,RELAY VLV TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> L=1730 SERVICED BY L=1900	1-47426-421-0	01	1	9307-9310	●	●
24	PIPE; AIR,RELAY VLV TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> L=1751 SERVICED BY L=1900	1-47426-421-0	01	1	9311-	●	●
24	PIPE; AIR,RELAY VLV TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=1752 SERVICED BY L=1900	1-47437-971-0	01	1	9002-9306	●	●
24	PIPE; AIR,RELAY VLV TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=1750 SERVICED BY L=1900	1-47426-421-0	01	1	9307-		●
26	PIPE; AIR,UNION TO FLEX HOSE FRAME EQUIPMENT HEAVY DUTY<F03> L=1302 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306	●	●
26	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> L=1301 SERVICED BY L=1400	1-47426-418-0	01	1	9307-	●	●
26	PIPE; AIR,UNION TO FLEX HOSE EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=1294 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306	●	●
26	PIPE; AIR,UNION TO FLEX HOSE 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> L=1297 SERVICED BY L=1400	1-47426-418-0	01	1	9307-	●	●
26	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=1295 SERVICED BY L=1300	1-47426-417-0	01	1	9307-		●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE FRAME EQUIPMENT HEAVY DUTY<F03> L=1310 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306	●	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> L=1310 SERVICED BY L=1400	1-47426-418-0	01	1	9307-	●	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=1309 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9209	●	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=1308 SERVICED BY L=1400	1-47426-418-0	01	1	9210-9306	●	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=1309 SERVICED BY L=1400	1-47426-418-0	01	1	9307-	●	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> L=1411 SERVICED BY L=1550	1-47426-419-0	01	1	9307-	●	●
62	PIPE; AIR,UNION TO FLEX HOSE CAB UP 110MM(W60) NYLON TUBE AIR PIPING<Z29> L=1248 SERVICED BY L=1300	1-47434-486-0	01	1	9002-9306	●	●
62	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1139 SERVICED BY L=1200	1-47437-983-0	01	1	9002-9306	●	●
62	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1121 SERVICED BY L=1200	1-49111-445-0	01	1	9307-	●	●
62	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 110MM(W60) L=1361 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●	●
62	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1435 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306	●	●
62	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1417 SERVICED BY L=1450	1-49111-447-0	01	1	9307-	●	●
62	PIPE; AIR,UNION TO FLEX HOSE 8PD1 STD ENG(38L) L=1091 SERVICED BY L=1100	1-49111-444-0	01	1	9307-	●	●
70	PIPE; AIR,FLEX HOSE TO UNION CAB UP 110MM(W60) NYLON TUBE AIR PIPING<Z29> L=1313 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306	●	●
70	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1205 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306	●	●
70	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1187 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●	●
70	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> EXC. CAB UP 110MM(W60) L=1410 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306	●	●
70	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1519 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306	●	●
70	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1501 SERVICED BY L=1550	1-47426-419-0	01	1	9307-	●	●
70	PIPE; AIR,FLEX HOSE TO UNION 8PD1 STD ENG(38L) L=1157 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●	●
76	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> L=1510 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9210	●	●
76	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> L=1510 SERVICED BY L=1550	1-47437-970-0	01	1	9211-9306	●
76	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> L=1510 SERVICED BY L=1550	1-47426-419-0	01	1	9307-	●	●
76	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=1510 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306	●	●
76	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=1511 SERVICED BY L=1550	1-47426-419-0	01	1	9307-		●
76	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=1205 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306	●	●
76	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=1205 SERVICED BY L=1250	1-47426-416-0	01	1	9307-		●
76	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> L=1204 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306	●	●
76	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> L=1204 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●	●
76	PIPE; AIR,UNION TO UNION 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> L=1547 SERVICED BY L=1550	1-47426-419-0	01	1	9307-	●	●
81	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1229 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306	●	●
81	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1229 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●	●

63 125 124 123 122 63 63 107 106 110 111 118 106 107 106 107 106 107 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
63	HOSE; FLEX,BRK LINE,CAB SIDE CAB UP 110MM(W60) EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> (A) SUPPLY L=960	0-07706-960-0	01	1	9002-	●	●
63	HOSE; FLEX,BRK LINE,CAB SIDE CAB UP 110MM(W60) EXC. NYLON TUBE AIR PIPING<Z29> (B) DELIVERY L=960	0-07424-960-0	01	1	9002-	●	●
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. CAB UP 110MM(W60),NYLON TUBE AIR PIPING<Z29> (B) DELIVERY L=850	0-07424-850-0	01	1	9002-9408	●	●
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. CAB UP 110MM(W60),NYLON TUBE AIR PIPING<Z29> (B) DELIVERY L=830	0-07424-830-0	01	1	9409-	●	●
63	HOSE; FLEX,BRK LINE,CAB SIDE DUAL AIR GAUGE<UG2> CAB UP 110MM(W60) EXC. NYLON TUBE AIR PIPING<Z29> (A) SUPPLY L=880	1-09363-369-2	01	1	9002-	●	●
63	HOSE; FLEX,BRK LINE,CAB SIDE DUAL AIR GAUGE<UG2> EXC. CAB UP 110MM(W60),NYLON TUBE AIR PIPING<Z29> (A) SUPPLY L=770	1-09363-329-4	01	1	9002-	●	●
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,CAB UP 110MM(W60),NYLON TUBE AIR PIPING<Z29> (A) SUPPLY L=850	0-07706-850-0	01	1	9002-9408	●	●
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,CAB UP 110MM(W60),NYLON TUBE AIR PIPING<Z29> (A) SUPPLY L=830	0-07706-830-0	01	1	9409-	●	●
65	BRACKET; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-473-2	01	1	9002-	●	●
106	NUT; FLEX HOSE DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> (A) M20	9-99111-420-0	01	1	9002-	●	●
106	NUT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> (A) M20	9-99111-420-0	02	1	9002-	●	●
106	NUT; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> (B) M16	9-99111-416-0	02	1	9002-	●	●
107	WASHER; LK,FLEX HOSE DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=20.2	9-09150-520-0	01	1	9002-	●	●
107	WASHER; LK,FLEX HOSE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> (A) ID=20.2	9-09150-520-0	02	1	9002-	●	●
107	WASHER; LK,FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=16.2	9-09150-516-0	02	1	9002-	●	●
110	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=521	1-47446-018-1	01	1	9002-9306	●	●
110	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=522	1-47495-932-0	01	1	9307-	●	●
111	PIPE; AIR,CONN TO UNION DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> L=502	1-47448-021-0	01	1	9002-9306	●	●
111	PIPE; AIR,CONN TO UNION DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> L=502	1-47495-933-0	01	1	9307-	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=446	1-47445-575-1	01	1	9002-9306	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=446	1-47495-944-0	01	1	9307-	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=446	1-47495-944-0	01	1	9307-		●
122	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29>	1-09656-359-1	01	1	9002-	●	●
123	NUT; HOSE CONNECTOR DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9002-	●	●
124	WASHER; LK,CONNECTOR DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9002-	●	●
125	GASKET; FLEX HOSE DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> ID=11 OD=18	9-09572-510-0	01	1	9002-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
