6-76 — FLOOR EQUIPMENT AND SEALING (#28412) — 25 parça

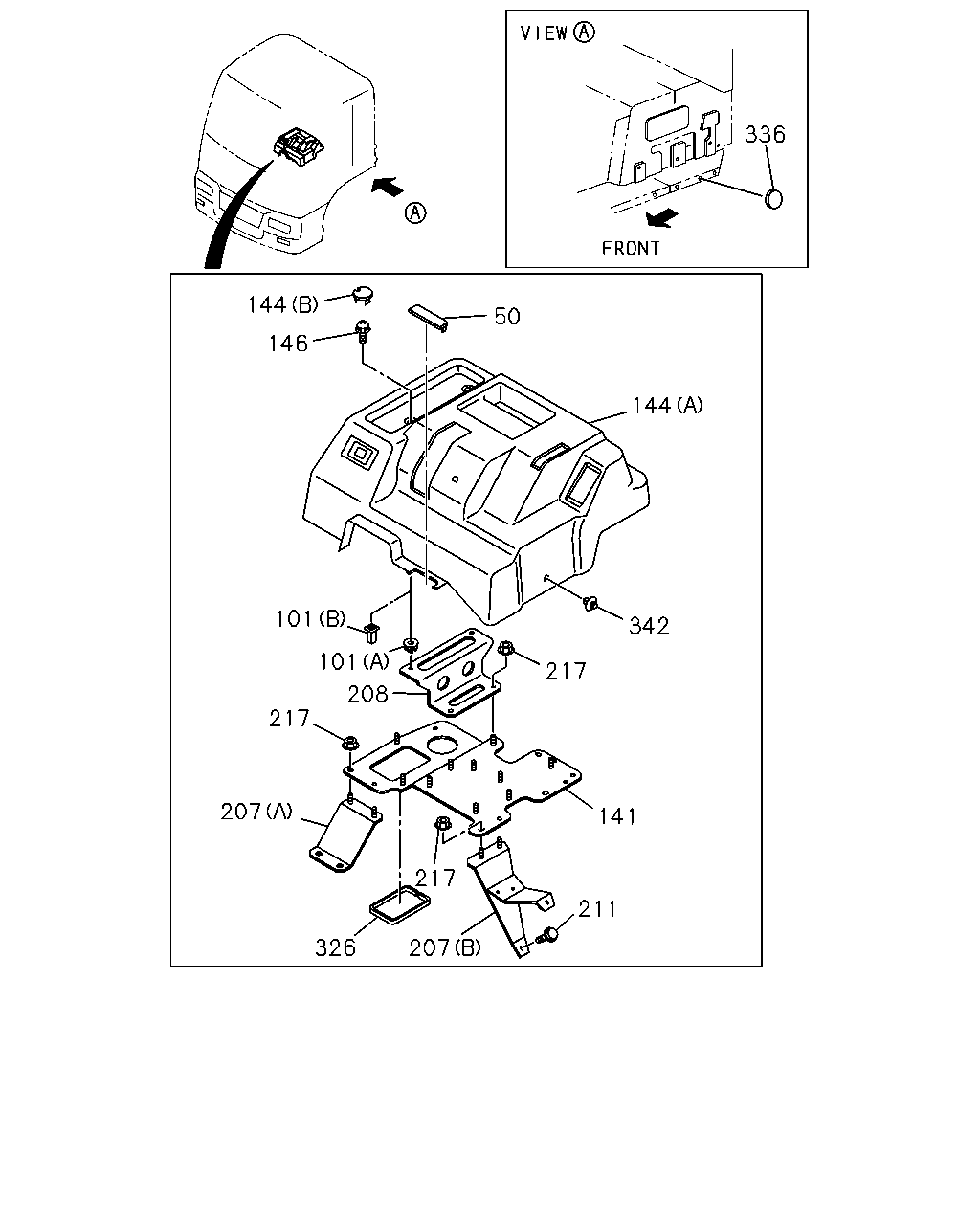

çizim 138547
336 144 50 146 144 101 342 101 208 217 217 207 141 217 211 326 207
BalonParca AdiParca NoAdetTipApplied Date
50 COVER ASM; SUPPORT,SIDE 1-72537-124-0 01 1 0105-
101 GROMMET; SCREW,FLOOR BOARD
(A) D=7X7 L=7.5 		5-09983-007-0 02 1 0105-
101 GROMMET; SCREW,FLOOR BOARD
(B) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 01 1 0105-
141 HOLDER 1-79996-438-1 01 1 0105-
144 COVER; HAND BRK VLV
(B) 		1-76337-461-0 02 1 0105-
144 COVER; HAND BRK VLV
TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-369-2 01 1 0105-
146 BOLT; COVER BRKT
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 03 1 0105-
207 BRACKET ASM; HAND BRAKE VALVE
(A) FRONT 		1-79996-129-1 01 1 0105-
207 BRACKET ASM; HAND BRAKE VALVE
(B) SIDE 		1-79996-130-1 01 1 0105-
208 BRACKET ASM; COVER & BRK VLV 1-79996-347-1 01 1 0105-
211 BOLT; COVER
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0105-
211 BOLT; COVER
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0105-0904
211 BOLT; COVER
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
211 BOLT; COVER
M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0105-
217 NUT
M8 FLANGE 		0-91150-108-0 06 1 0105-0602
217 NUT
M8 FLANGE 		0-91180-108-0 06 1 0603-
326 SEAL; COVER 1-79996-132-0 01 1 0105-
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 01 1 0405-
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 0105-
342 FASTENER
D8X13.5 		1-09987-270-0 01 1 0105-

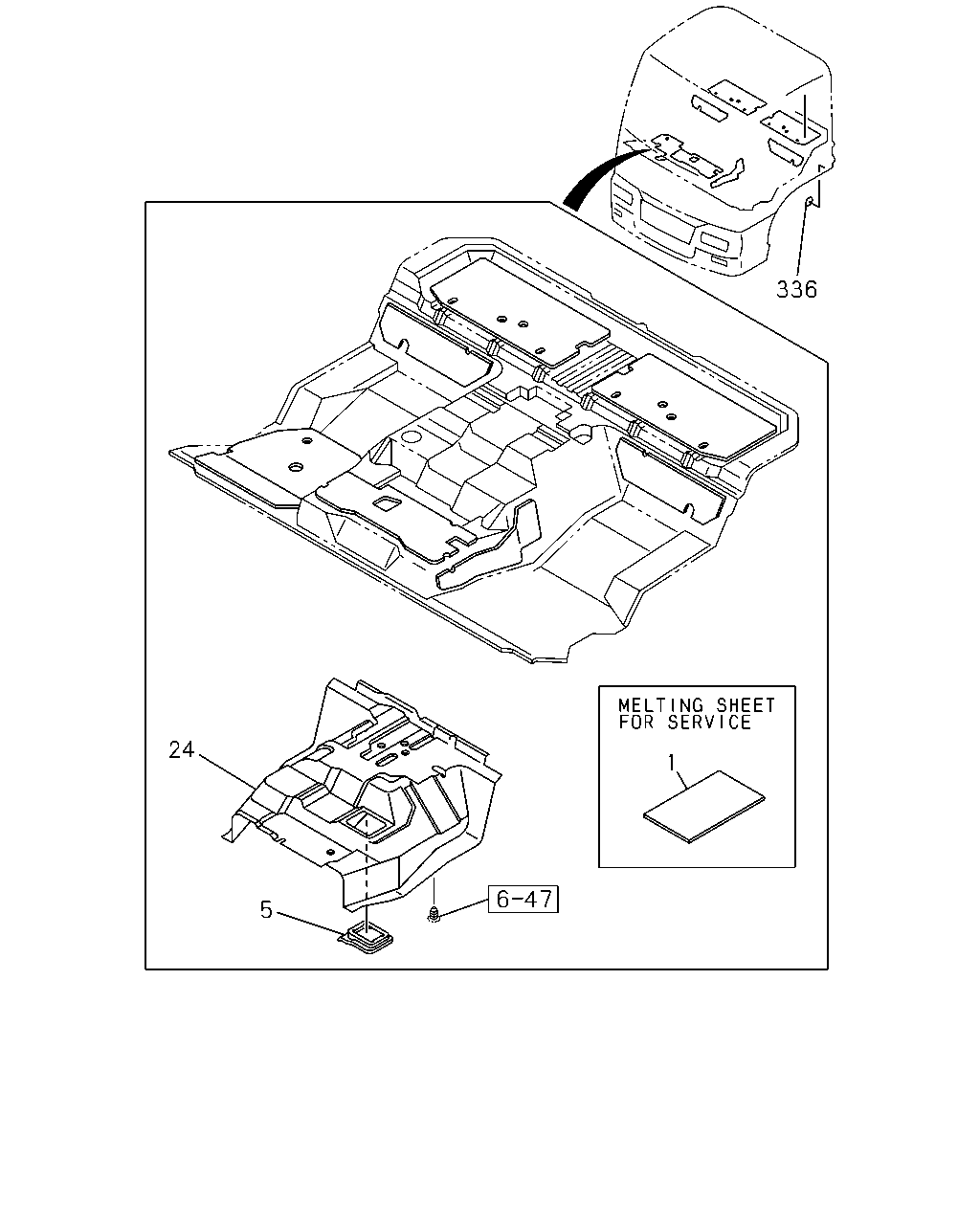

çizim 138551
336 24 1 5
BalonParca AdiParca NoAdetTipApplied Date
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 0105-
5 COVER; CHANGE LEVER 1-33619-163-0 01 1 0105-
24 INSULATOR; HEAT,FRT 1-71907-373-8 01 1 0105-
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 01 1 0405-
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 0105-
