◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10879 - EXZ LHD FUEL TANK 400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#28410) — 31 parça

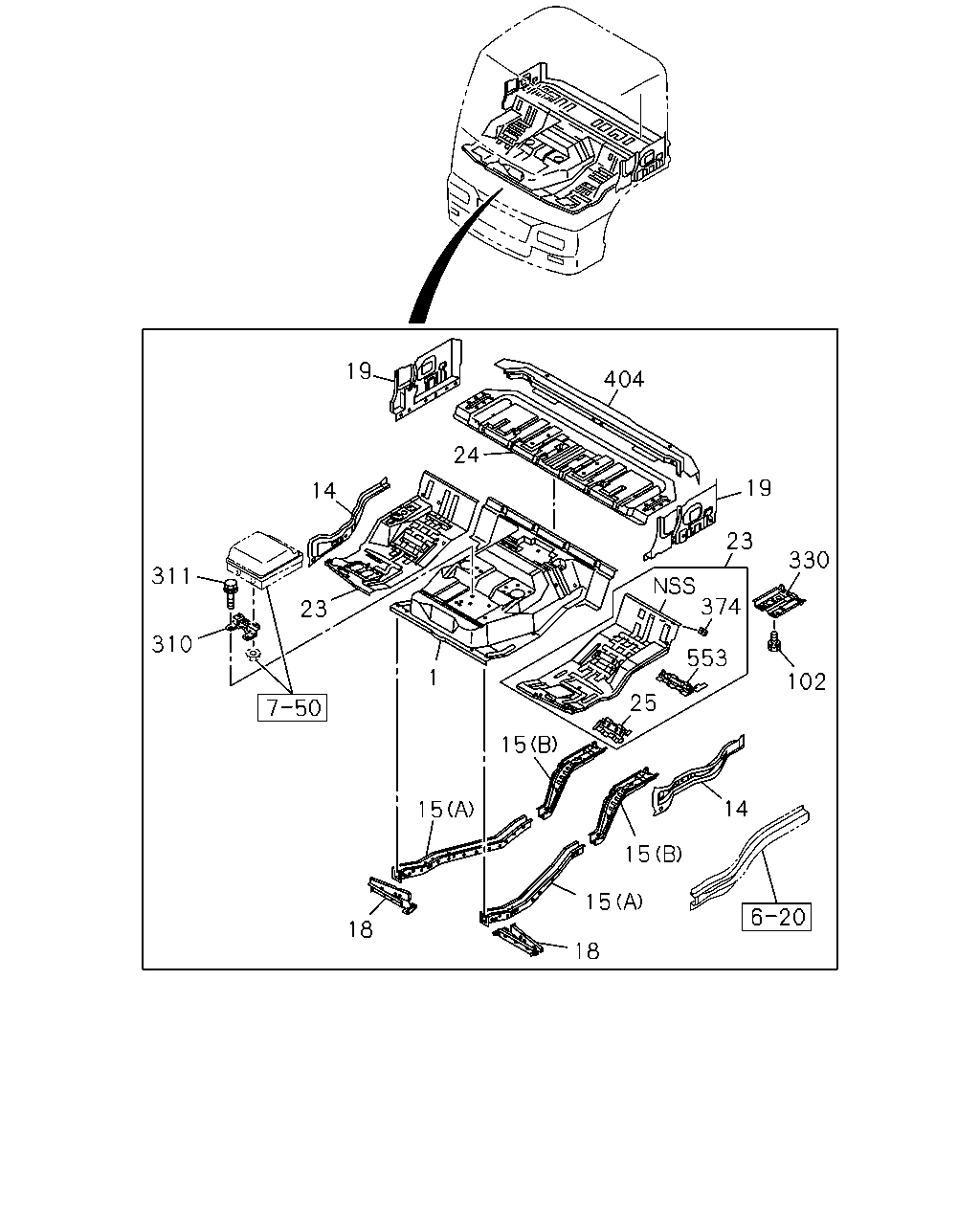

çizim 138880
19 404 24 19 14 23 330 311 374 23 310 553 1 102 25 15 15 14 15 15 18 18
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR
MJD7S M/T(Y2Y) 		1-62172-614-5 01 1 0312-
1 PANEL; FLOOR 1-62172-627-5 01 1 0105-0106
1 PANEL; FLOOR
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) 		1-62172-627-5 01 1 0107-
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0105-
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0105-
15 FRAME; UNDER
(A) 		1-62472-670-3 01 1 0105-
15 FRAME; UNDER
(B) 		1-62472-680-1 01 1 0105-
15 FRAME; UNDER
(B) 		1-62472-598-6 01 1 0105-
15 FRAME; UNDER
(A) 		1-62472-669-3 01 1 0105-
18 FRAME; FLOOR,CENTER SIDE 1-62483-105-5 01 1 0105-
18 FRAME; FLOOR,CENTER SIDE 1-62472-671-3 01 1 0105-
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 0105-
19 PANEL; FLOOR SIDE,REAR
BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-615-4 01 1 0105-0106
19 PANEL; FLOOR SIDE,REAR
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-615-4 01 1 0107-0311
19 PANEL; FLOOR SIDE,REAR
BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-615-4 01 1 0312-
19 PANEL; FLOOR SIDE,REAR
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-660-2 01 1 0105-0106
19 PANEL; FLOOR SIDE,REAR
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-660-2 01 1 0107-0311
19 PANEL; FLOOR SIDE,REAR
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-660-2 01 1 0312-
23 PANEL; FLOOR,SIDE 1-62172-805-0 01 1 0105-
23 PANEL; FLOOR,SIDE 1-62172-800-0 01 1 0105-
24 PANEL; BED PAN 1-62172-540-9 01 1 0105-
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62172-780-2 01 1 0105-
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0105-0904
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905-
310 BRACKET; SEAT STAND 1-76397-015-0 01 1 0105-
311 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0105-0904
311 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
330 REINFORCEMENT; FLOOR 1-62172-585-5 01 1 0105-
374 NUT; FLOOR
M6 		1-09984-110-0 05 1 0105-
404 RAIL ASM; MTG,RR 1-62472-596-8 01 1 0105-
553 REINFORCEMENT; SEAT STAND RR 1-62172-797-0 01 1 0105-
