Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#2841) — 449 parça

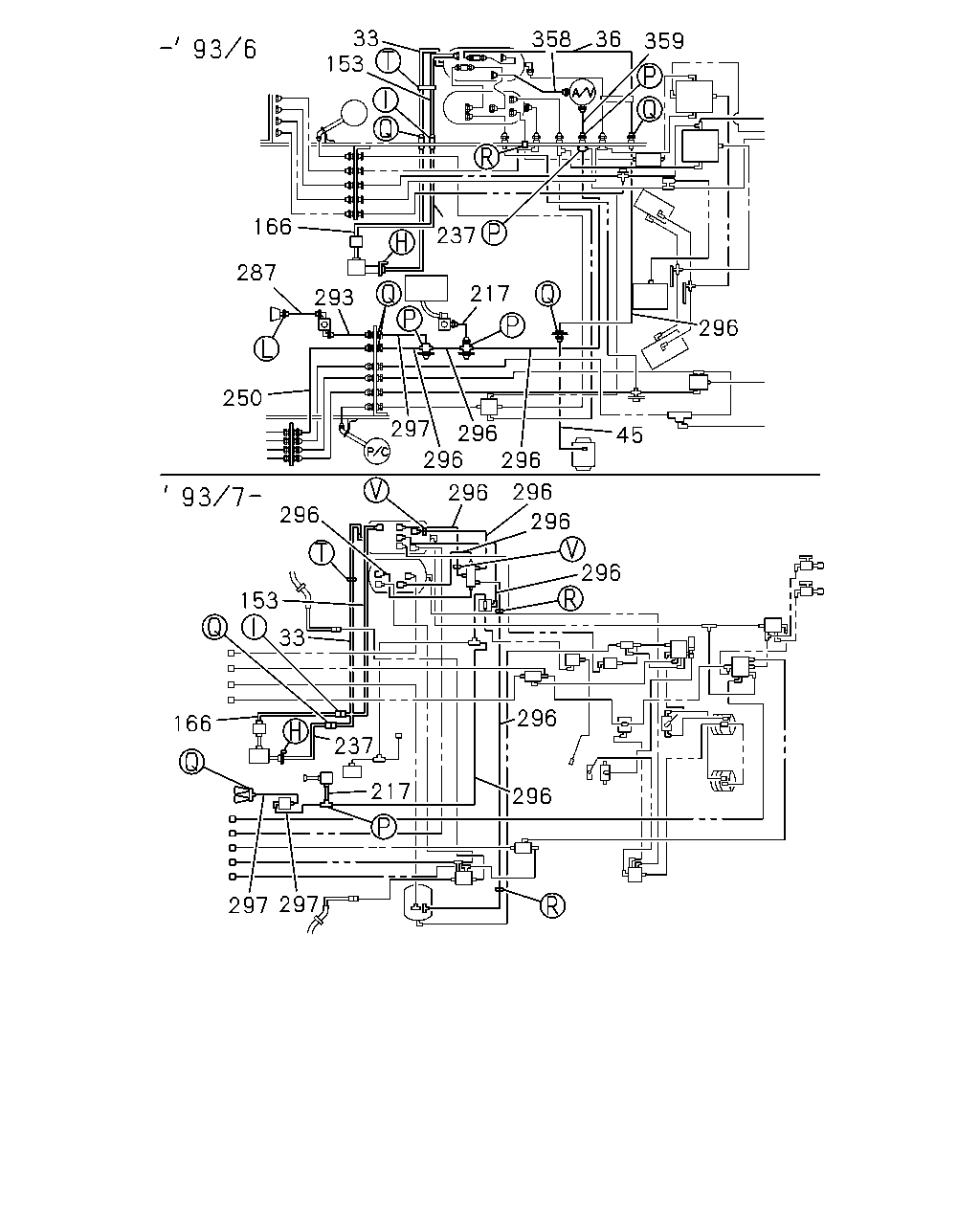

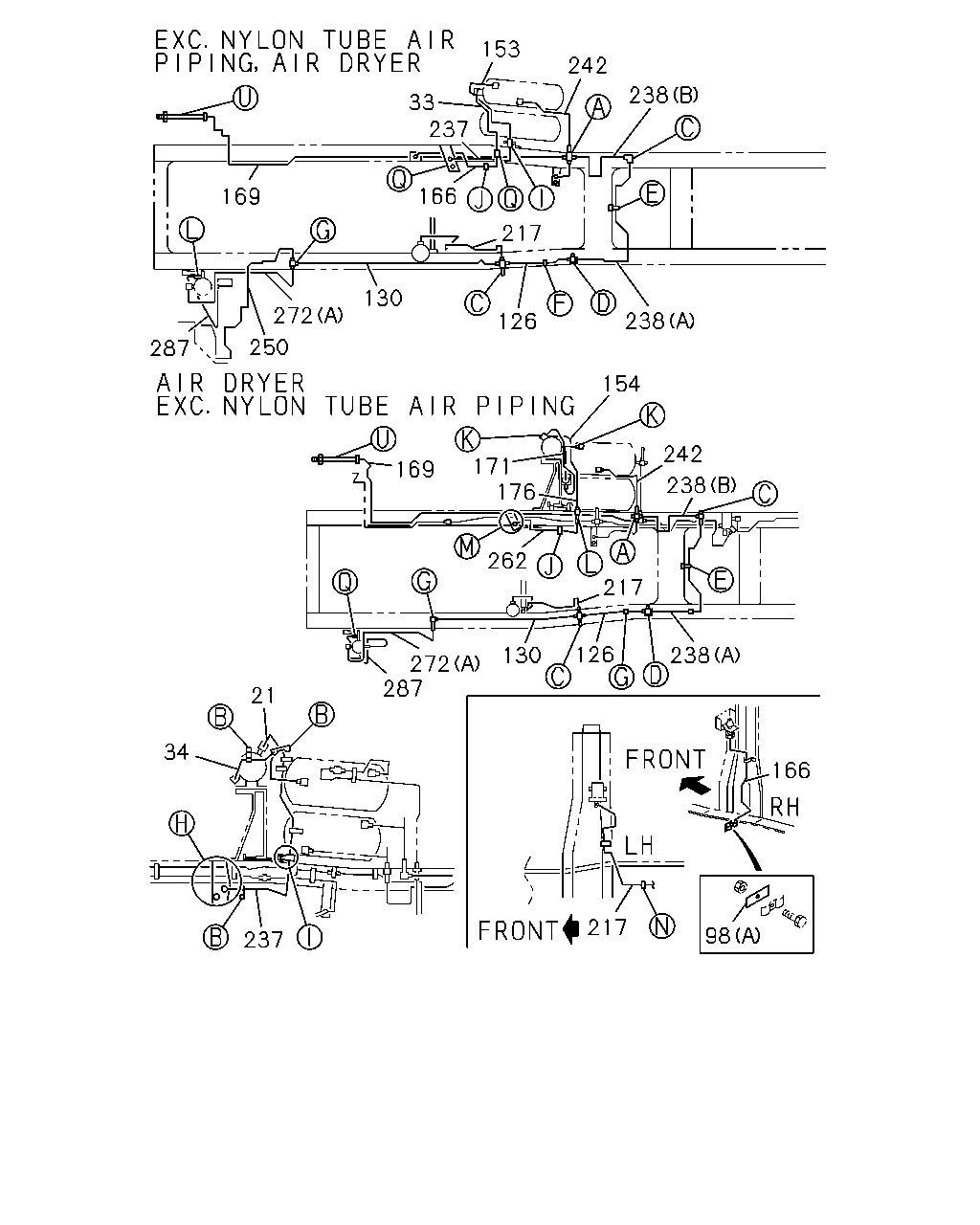

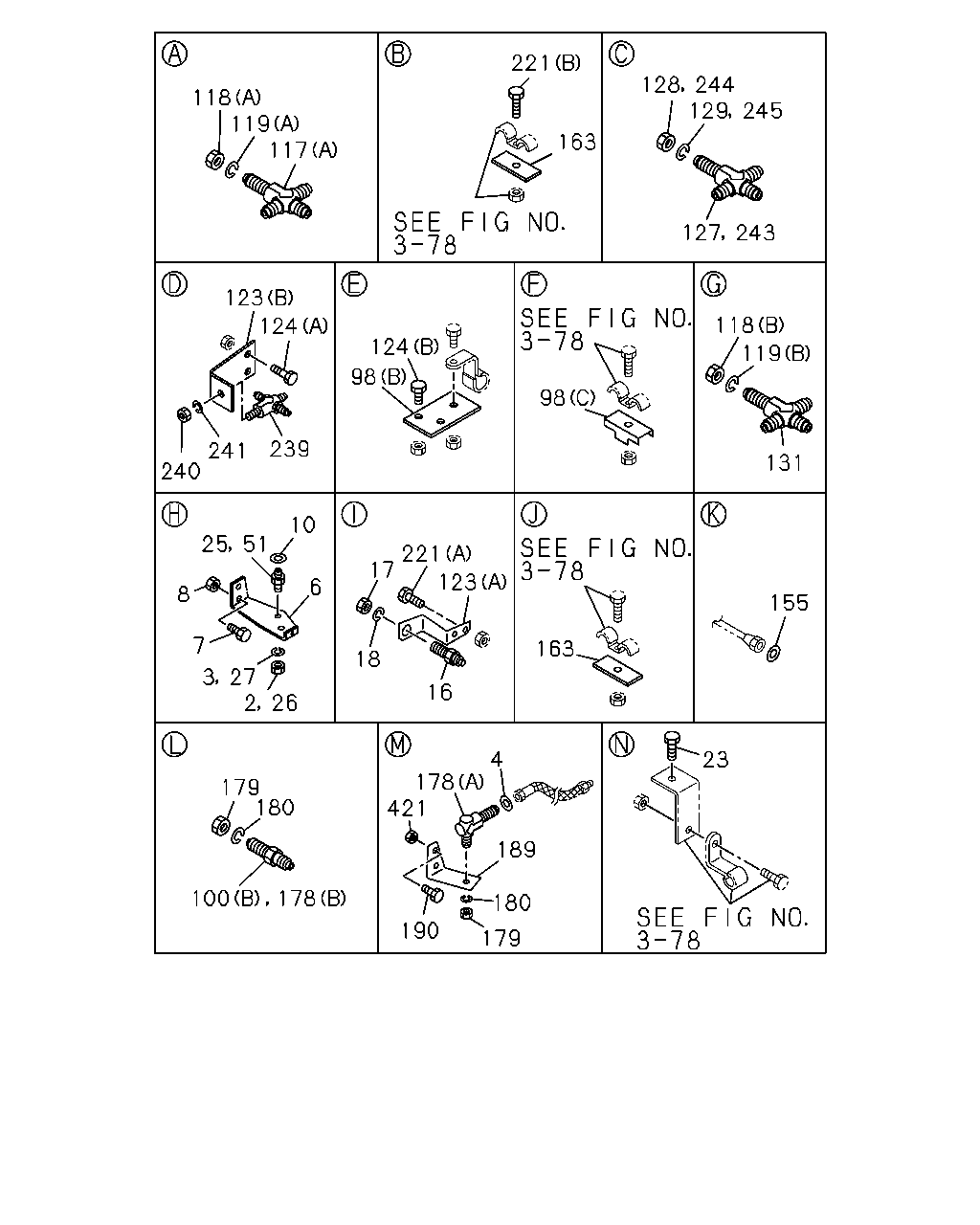

300 301 298 299 298 299 297 296 303 302 301 300 303 302 259 32 169 320 319 137 258 320 319 417 149 221 163 290 156 100 84 39 255 145 117 215 147 118 146 214 120 148 229 22 120 158 258 40 133 291 41 134 159 292

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> M18 & M20 STRAIGHT	1-09660-221-0	02	1	9002-9306	●	●
32	SLEEVE; RUBBER,AIR PIPE NYLON TUBE AIR PIPING<Z29> ID=29 L=40	1-09337-013-0	02	1	9307-		●
32	SLEEVE; RUBBER,AIR PIPE NYLON TUBE AIR PIPING<Z29> ID=27 L=150	1-09360-677-1	02	1	9307-		●
39	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> M20 & M20	9-09233-312-1	02	1	9002-9306	●	●
40	NUT; PIPE UNION NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	02	1	9002-9306	●	●
41	WASHER; LK,PIPE UNION NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	02	1	9002-9306	●	●
84	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M12 L=62.5	9-09223-206-1	01	1	9002-9306	●	●
84	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) 17/32" PT1/4	1-09660-573-0	01	1	9307-		●
100	CONNECTOR; AIR PIPE (B) M14	1-09650-031-0	01	1	9002-9103	●	●
100	CONNECTOR; AIR PIPE (B) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	9104-9306	●	●
100	CONNECTOR; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	9307-	●	●
100	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (A) M12 L=62.5	9-09223-206-0	01	1	9002-9009	●	●
100	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> (A) M12 L=62.5	9-09223-206-1	01	1	9010-9306	●	●
117	UNION; AIR PIPE AIR SUSP DRIVER SEAT W/ARM REST(SGP) (A)	1-09656-426-1	01	1	9307-	●	●
117	UNION; AIR PIPE FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-09654-086-1	01	1	9002-	●	●
117	UNION; AIR PIPE ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT W/ARM REST(SGP),NYLON TUBE AIR PIPING<Z29> (A)	9-09238-910-1	01	1	9307-	●	●
117	UNION; AIR PIPE ISUZU M/T<X9A> EXC. NYLON TUBE AIR PIPING<Z29> (A)	9-09228-910-0	01	1	9002-9103	●	●
117	UNION; AIR PIPE ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT W/ARM REST(SGP),NYLON TUBE AIR PIPING<Z29> (A)	9-09238-910-1	01	1	9104-9306	●	●
117	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B)	9-09229-210-1	01	1	9002-9306	●	●
118	NUT; UNION (A) M16	9-99111-416-0	01	1	9002-	●	●
118	NUT; UNION EXC. NYLON TUBE AIR PIPING<Z29> (B) M12	9-09840-280-0	01	1	9002-	●	●
120	CONNECTOR; AIR PIPE FULL TRACTOR TRUCK<RD6> (A) M14 & M16 STRAIGHT	1-09660-220-0	02	1	9002-9011	●	●
120	CONNECTOR; AIR PIPE FULL TRACTOR TRUCK<RD6> (A) M16 & M18 STRAIGHT	1-09660-223-0	01	1	9002-9011	●	●
120	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-218-0	01	1	9002-9306	●	●
120	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (A) M14 & M16 STRAIGHT	1-09660-220-0	03	1	9012-9306	●	●
133	NUT; UNION NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	9002-9009	●	●
133	NUT; UNION NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> M12	9-09840-280-0	01	1	9010-9306	●	●
134	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9009	●	●
134	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9010-9306	●	●
137	HOSE; FLEX,AIR PRESSURE GAGE AIR SUSP DRIVER SEAT W/ARM REST(SGP) (B)	0-07030-660-0	01	1	9307-	●	●
137	HOSE; FLEX,AIR PRESSURE GAGE CAB UP 110MM(W60) EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> (A) L=950	1-09363-372-1	01	1	9002-	●	●
137	HOSE; FLEX,AIR PRESSURE GAGE EXC. DUAL AIR GAUGE<UG2>,CAB UP 110MM(W60),NYLON TUBE AIR PIPING<Z29> (A) L=840	1-09363-368-1	01	1	9002-	●	●
145	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M12	9-09228-306-1	01	1	9002-9306	●	●
145	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> M14 3WAY	1-09664-066-0	01	1	9002-9306	●	●
146	NUT; UNION NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> M12	9-99110-412-0	01	1	9002-9304	●	●
146	NUT; UNION NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9002-9304	●	●
146	NUT; UNION NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> M12	9-99110-512-0	01	1	9305-9306	●	●
146	NUT; UNION NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-9306	●	●
147	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9002-9306	●	●
147	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9306	●	●
148	CONNECTOR; UNION NYLON TUBE AIR PIPING<Z29>	1-09660-218-0	02	1	9002-9306	●	●
149	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> M8X25 W/LK WASHER	9-01900-825-0	01	1	9012-9204	●	●
149	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9306	●	●
156	UNION; AIR PIPE EXC. AIR DRYER<PS7> M12 L=66.5	9-09223-306-1	01	1	9002-	●	●
158	NUT; UNION,AIR PIPE EXC. AIR DRYER<PS7> M12	9-09840-280-0	01	1	9002-	●	●
159	WASHER; LK,UNION,AIR PIPE EXC. AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9002-9312	●	●
163	BRACKET; AIR PIPE AIR DRYER<PS7> L=50	1-47475-299-2	06	1	9002-9005	●	●
163	BRACKET; AIR PIPE AIR DRYER<PS7> L=50	1-47475-299-2	05	1	9006-9306	●	●
163	BRACKET; AIR PIPE NYLON TUBE AIR PIPING<Z29> L=50	1-47475-299-2	01	1	9002-9306	●	●
163	BRACKET; AIR PIPE EXC. AIR DRYER<PS7> L=50	1-47475-299-2	01	1	9002-9306	●	●
163	BRACKET; AIR PIPE EXC. AIR DRYER<PS7> L=50	1-47475-299-2	01	1	9307-	●	●
163	BRACKET; AIR PIPE AIR DRYER<PS7> L=50	1-47475-299-2	02	1	9307-	●	●
169	PIPE; AIR,UNION TO FLEX HOSE AIR SUSP DRIVER SEAT W/ARM REST(SGP) L TYPE ENG<90L> L=3024	1-47499-296-0	01	1	9307-	●	●
169	PIPE; AIR,UNION TO FLEX HOSE AIR SUSP DRIVER SEAT W/ARM REST(SGP) V TYPE ENG<91L> L=3032	1-47499-297-0	01	1	9307-9308	●	●
169	PIPE; AIR,UNION TO FLEX HOSE AIR SUSP DRIVER SEAT W/ARM REST(SGP) V TYPE ENG<91L> L=3041	1-49111-232-0	01	1	9309-	●	●
214	NUT; UNION,AIR PIPE NYLON TUBE AIR PIPING<Z29> M12	9-99111-412-0	01	1	9307-		●
215	WASHER; LK,UNION,AIR PIPE NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9307-		●
221	BOLT; BRKT FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●
221	BOLT; BRKT FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9306	●	●
221	BOLT; BRKT EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9010	●	●
221	BOLT; BRKT EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X25 W/LK WASHER	9-01900-825-0	02	1	9011-9204	●	●
221	BOLT; BRKT EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306	●	●
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> (B) M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●	●
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> (B) M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302	●	●
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> (B) M8X16 FLANGE	0-28080-816-0	01	1	9303-9306	●	●
229	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) FOR 3/8" TUBE L=30	1-09650-373-0	02	1	9307-		●
229	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M14X12 L=30 M14 & PT1/4	9-48319-149-0	01	1	9307-		●
255	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M12	9-09228-306-1	01	1	9307-		●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT W/ARM REST(SGP) (C)	1-09660-626-0	01	1	9307-	●	●
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B> NYLON TUBE AIR PIPING<Z29> (A)	1-09660-240-0	01	1	9002-9306	●	●
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-218-0	02	1	9002-9009	●	●
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-218-0	01	1	9010-9306	●	●
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> (B)	1-09660-218-0	01	1	9010-9306	●	●
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-		●
259	SLEEVE; RUBBER,NYLON TUBE FULLER M/T<X9B> NYLON TUBE AIR PIPING<Z29> (A) OD=16.8 L=50	1-09369-010-0	02	1	9002-9306	●	●
259	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) ID=17 OD=21 L=40	1-09337-012-0	01	1	9002-	●	●
259	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) OD=16.8 L=50	1-09369-010-0	02	1	9307-		●
290	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> M12 L=62.5	9-09223-206-1	01	1	9002-9306	●	●
291	NUT; UNION NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	9002-9306	●	●
292	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9306	●	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK OD=12" SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306	●	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK OD=8" SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=3/8" L=30000	1-09368-248-0	AR	1	9307-		●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=3/8" L=30000	1-09368-249-0	AR	1	9307-		●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=1/2" L=30000	1-09368-251-0	AR	1	9307-		●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=1/2" L=30000	1-09368-252-0	AR	1	9307-		●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE OD=1/2" L=30000	1-09368-253-0	AR	1	9307-		●
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK OD=8" SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●	●
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> BLACK OD=8" SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9307-		●
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> YELLOW OD=3/8" L=30000	1-09368-250-0	AR	1	9307-		●
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE OD=1/2" L=30000	1-09368-254-0	AR	1	9307-		●
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-9306	●	●
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M18	1-09660-213-0	AR	1	9002-9306	●	●
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> UNS 17/32-24	1-09660-557-0	AR	1	9307-		●
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> UNS 11/16-20	1-09660-558-0	AR	1	9307-		●
299	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-	●	●
299	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	AR	1	9307-		●
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09666-042-0	AR	1	9002-9306	●	●
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 1/2" TUBE	1-09666-061-0	AR	1	9307-		●
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09666-043-0	AR	1	9002-9306	●	●
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE	1-09666-060-0	AR	1	9307-		●
301	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09666-042-0	AR	1	9002-	●	●
301	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE	1-09666-060-0	AR	1	9307-		●
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-9306	●	●
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09669-055-0	AR	1	9002-9306	●	●
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	AR	1	9307-		●
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE	1-09669-108-0	AR	1	9307-		●
303	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-	●	●
303	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	AR	1	9307-		●
319	NUT; FLEX HOSE,CAB SIDE AIR SUSP DRIVER SEAT W/ARM REST(SGP) M12	9-09840-280-0	02	1	9307-	●	●
319	NUT; FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M10 H=8	1-09400-029-0	01	1	9002-	●	●
319	NUT; FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	9002-	●	●
320	WASHER; LK,FLEX HOSE,CAB SIDE AIR SUSP DRIVER SEAT W/ARM REST(SGP) ID=12.2	9-09150-512-0	02	1	9307-	●	●
320	WASHER; LK,FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> ID=10.2	9-09150-510-0	01	1	9002-	●	●
320	WASHER; LK,FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-	●	●
417	GROMMET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=28 OD=35 T=17	9-09956-256-1	03	1	9307-9404		●
417	GROMMET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=28 OD=35 T=17	9-09956-256-1	02	1	9405-		●

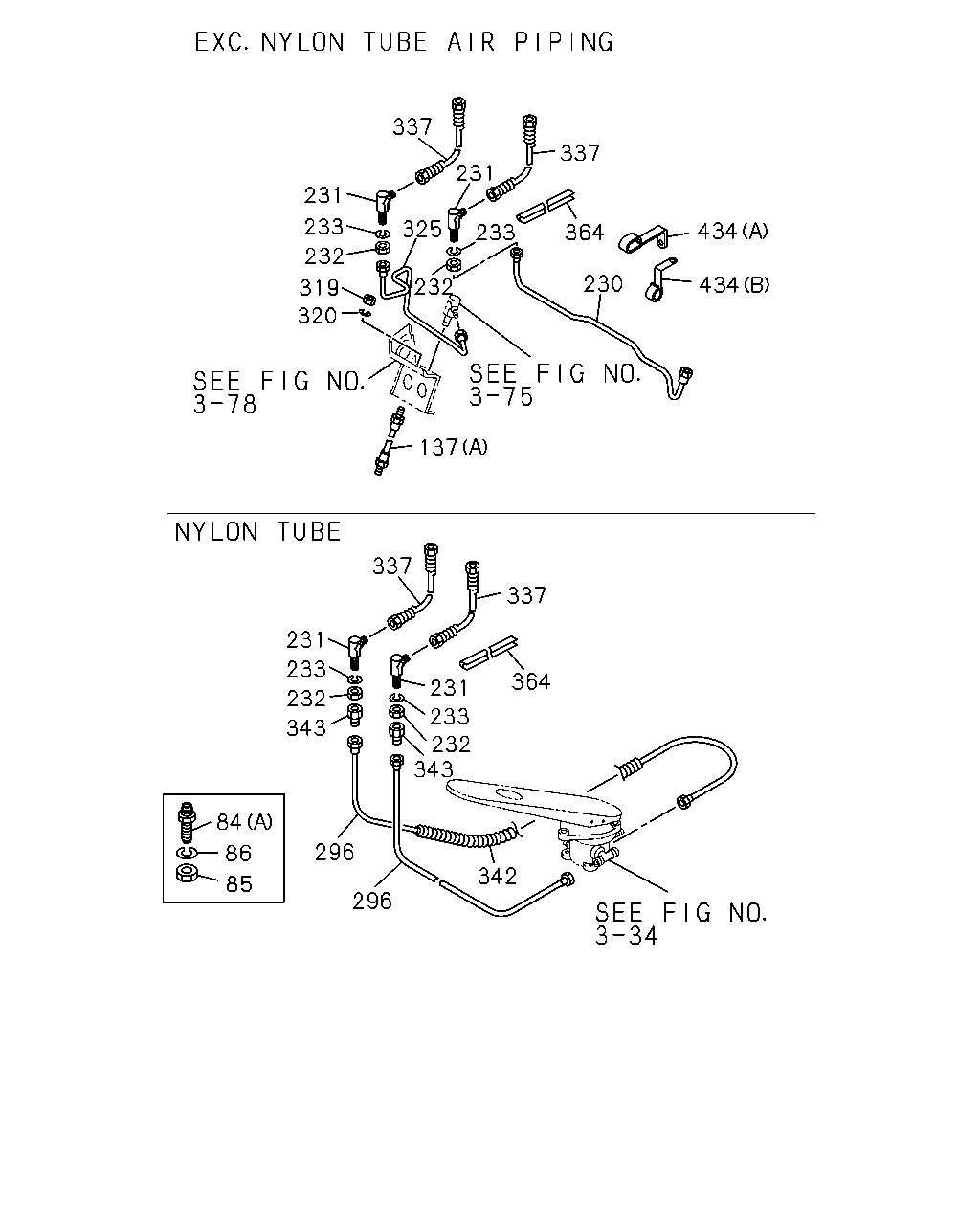

342 296 296 85 84 86 343 232 233 231 337 337 364 231 233 232 343 137 320 319 232 233 231 337 325 231 232 233 337 364 434 230 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
84	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M12 L=62.5	9-09223-206-1	01	1	9002-9306	●	●
84	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) 17/32" PT1/4	1-09660-573-0	01	1	9307-		●
85	NUT; UNION NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	9002-9306	●	●
86	WASHER; LK,TUBE UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9306	●	●
137	HOSE; FLEX,AIR PRESSURE GAGE AIR SUSP DRIVER SEAT W/ARM REST(SGP) (B)	0-07030-660-0	01	1	9307-	●	●
137	HOSE; FLEX,AIR PRESSURE GAGE CAB UP 110MM(W60) EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> (A) L=950	1-09363-372-1	01	1	9002-	●	●
137	HOSE; FLEX,AIR PRESSURE GAGE EXC. DUAL AIR GAUGE<UG2>,CAB UP 110MM(W60),NYLON TUBE AIR PIPING<Z29> (A) L=840	1-09363-368-1	01	1	9002-	●	●
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> L=667	1-47448-466-1	01	1	9002-	●	●
230	PIPE; AIR,UNION TO UNION EXC. DUAL AIR GAUGE<UG2>,CAB SUSPENSION RIGID(W71) ,NYLON TUBE AIR PIPING<Z29> L=638	1-47448-468-1	01	1	9002-	●	●
230	PIPE; AIR,UNION TO UNION CAB SUSPENSION RIGID(W71) EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=622 SERVICED BY L=695	9-47416-729-0	01	1	9002-		●
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2>	1-09654-180-3	02	1	9002-	●	●
231	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>	1-09654-180-3	01	1	9002-	●	●
232	NUT; UNION,AIR PIPE DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	02	1	9002-	●	●
232	NUT; UNION,AIR PIPE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9002-	●	●
233	WASHER; LK,UNION,AIR PIPE DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	02	1	9002-	●	●
233	WASHER; LK,UNION,AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9002-	●	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK OD=12" SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306	●	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK OD=8" SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=3/8" L=30000	1-09368-248-0	AR	1	9307-		●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=3/8" L=30000	1-09368-249-0	AR	1	9307-		●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=1/2" L=30000	1-09368-251-0	AR	1	9307-		●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=1/2" L=30000	1-09368-252-0	AR	1	9307-		●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE OD=1/2" L=30000	1-09368-253-0	AR	1	9307-		●
319	NUT; FLEX HOSE,CAB SIDE AIR SUSP DRIVER SEAT W/ARM REST(SGP) M12	9-09840-280-0	02	1	9307-	●	●
319	NUT; FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M10 H=8	1-09400-029-0	01	1	9002-	●	●
319	NUT; FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	9002-	●	●
320	WASHER; LK,FLEX HOSE,CAB SIDE AIR SUSP DRIVER SEAT W/ARM REST(SGP) ID=12.2	9-09150-512-0	02	1	9307-	●	●
320	WASHER; LK,FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> ID=10.2	9-09150-510-0	01	1	9002-	●	●
320	WASHER; LK,FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-	●	●
325	PIPE; AIR,FLEX HOSE TO UNION DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> L=530	1-47445-586-1	01	1	9002-	●	●
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2>,CAB SUSPENSION RIGID(W71) ,NYLON TUBE AIR PIPING<Z29> L=1594	1-47448-029-2	01	1	9002-	●	●
325	PIPE; AIR,FLEX HOSE TO UNION CAB SUSPENSION RIGID(W71) EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=1575	1-47484-560-1	01	1	9002-		●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	1-09363-431-1	02	1	9002-	●	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=720	1-09363-431-1	01	1	9002-	●	●
342	TUBE; CORRUGATE NYLON TUBE AIR PIPING<Z29> L=350 SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9307-		●
343	UNION; NYLON TUBE DUAL AIR GAUGE<UG2> NYLON TUBE AIR PIPING<Z29>	1-09660-217-1	02	1	9002-9306	●	●
343	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2>	1-09660-217-1	01	1	9002-9306	●	●
343	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29>	1-09660-603-0	02	1	9307-		●
364	PROTECTOR; AIR GAUGE HOSE DUAL AIR GAUGE<UG2> L=240	1-71998-400-0	01	1	9002-	●	●
434	CLIP DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9307-	●	●
434	CLIP EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> (B) ID=14	8-94157-443-0	01	1	9307-	●	●

88 229 258 88 258 87 259 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
87	BOLT; EYE,NYLON TUBE FULLER M/T<X9B> NYLON TUBE AIR PIPING<Z29>	1-09675-170-0	01	1	9002-9306	●	●
88	GASKET; NYLON TUBE FULLER M/T<X9B> NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=20.0	9-09571-414-0	01	1	9002-9306	●	●
88	GASKET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=23.0	9-09572-014-0	01	1	9307-		●
229	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) FOR 3/8" TUBE L=30	1-09650-373-0	02	1	9307-		●
229	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M14X12 L=30 M14 & PT1/4	9-48319-149-0	01	1	9307-		●
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT W/ARM REST(SGP) (C)	1-09660-626-0	01	1	9307-	●	●
258	CONNECTOR; NYLON TUBE FULLER M/T<X9B> NYLON TUBE AIR PIPING<Z29> (A)	1-09660-240-0	01	1	9002-9306	●	●
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-218-0	02	1	9002-9009	●	●
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-218-0	01	1	9010-9306	●	●
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> (B)	1-09660-218-0	01	1	9010-9306	●	●
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-		●
259	SLEEVE; RUBBER,NYLON TUBE FULLER M/T<X9B> NYLON TUBE AIR PIPING<Z29> (A) OD=16.8 L=50	1-09369-010-0	02	1	9002-9306	●	●
259	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) ID=17 OD=21 L=40	1-09337-012-0	01	1	9002-	●	●
259	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) OD=16.8 L=50	1-09369-010-0	02	1	9307-		●
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK OD=8" SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●	●
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> BLACK OD=8" SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9307-		●
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> YELLOW OD=3/8" L=30000	1-09368-250-0	AR	1	9307-		●
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE OD=1/2" L=30000	1-09368-254-0	AR	1	9307-		●

273 296 298 300 302 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
272	PIPE; AIR,MAG VLV TO UNION EXC. NYLON TUBE AIR PIPING<Z29> (A) L=1102 SERVICED BY L=1200	1-47434-388-0	01	1	9002-	●	●
272	PIPE; AIR,MAG VLV TO UNION GOVERNOR CONTROL<W69> (B) L=431 SERVICED BY L=460	9-47415-349-0	01	1	9002-9306		●
272	PIPE; AIR,MAG VLV TO UNION GOVERNOR CONTROL<W69> (B) L=431 SERVICED BY L=460	1-47426-342-0	01	1	9307-		●
273	GROMMET AIR SUSP DRIVER SEAT W/ARM REST(SGP)	1-09332-102-0	01	1	9307-	●	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK OD=12" SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306	●	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK OD=8" SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=3/8" L=30000	1-09368-248-0	AR	1	9307-		●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=3/8" L=30000	1-09368-249-0	AR	1	9307-		●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=1/2" L=30000	1-09368-251-0	AR	1	9307-		●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=1/2" L=30000	1-09368-252-0	AR	1	9307-		●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE OD=1/2" L=30000	1-09368-253-0	AR	1	9307-		●
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-9306	●	●
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M18	1-09660-213-0	AR	1	9002-9306	●	●
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> UNS 17/32-24	1-09660-557-0	AR	1	9307-		●
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> UNS 11/16-20	1-09660-558-0	AR	1	9307-		●
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09666-042-0	AR	1	9002-9306	●	●
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 1/2" TUBE	1-09666-061-0	AR	1	9307-		●
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09666-043-0	AR	1	9002-9306	●	●
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE	1-09666-060-0	AR	1	9307-		●
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-9306	●	●
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09669-055-0	AR	1	9002-9306	●	●
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	AR	1	9307-		●
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE	1-09669-108-0	AR	1	9307-		●

23 155 163 4 178 421 189 180 179 190 178 100 180 179 26 2 27 3 7 8 25 51 10 6 221 17 18 123 16 124 98 98 118 119 131 239 241 240 124 123 118 119 117 221 163 128 244 129 245 127 243

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	NUT; FLEX HOSE,AIR TANK AIR DRYER<PS7> M20	9-99111-420-0	01	1	9002-	●	●
3	WASHER; LK,FLEX HOSE,AIR TANK AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9002-	●	●
4	GASKET; FLEX HOSE AIR DRYER<PS7> ID=11 OD=18	9-09572-510-0	01	1	9002-	●	●
4	GASKET; FLEX HOSE EXC. AIR DRYER<PS7> ID=11 OD=18	9-09572-510-0	02	1	9002-	●	●
6	BRACKET; FLEX HOSE,AIR TANK L TYPE ENG<90L>	1-47475-572-0	01	1	9002-	●	●
6	BRACKET; FLEX HOSE,AIR TANK 10PD1 STD ENG(40L)	1-47476-363-1	01	1	9002-	●	●
6	BRACKET; FLEX HOSE,AIR TANK 8PD1 STD ENG(38L)	1-47475-301-4	01	1	9307-	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28080-825-0	02	1	9307-	●	●
8	NUT; BRKT,FLEX HOSE,AIR TANK M8	9-09110-408-0	02	1	9002-	●	●
10	GASKET; CHECK VLV ID=11 OD=18	9-09572-510-0	01	1	9002-	●	●
16	UNION; AIR PIPE M22	9-09233-315-1	01	1	9002-	●	●
17	NUT; UNION M22	9-09111-422-0	01	1	9002-	●	●
18	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9002-	●	●
18	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9307-9312	●	●
23	BOLT; BRKT,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8X28 W/LK WASHER	9-01900-828-0	01	1	9002-9204	●	●
23	BOLT; BRKT,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8X28 W/LK WASHER	0-50040-828-0	01	1	9205-9302	●	●
23	BOLT; BRKT,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	01	1	9303-9306	●	●
25	VALVE; CHECK EXC. AIR DRYER<PS7>	1-48410-138-1	01	1	9002-	●	●
26	NUT; CHECK VLV EXC. AIR DRYER<PS7> M20	9-99111-420-0	01	1	9002-	●	●
27	WASHER; LK,CHECK VLV EXC. AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9002-	●	●
51	UNION AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9002-	●	●
98	BRACKET; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47475-303-1	01	1	9002-	●	●
98	BRACKET; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-47475-427-1	01	1	9003-	●	●
98	BRACKET; AIR PIPE 10PD1 STD ENG(40L) EXC. AIR DRYER<PS7> (A) L=50	1-47475-299-2	01	1	9002-	●	●
100	CONNECTOR; AIR PIPE (B) M14	1-09650-031-0	01	1	9002-9103	●	●
100	CONNECTOR; AIR PIPE (B) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	9104-9306	●	●
100	CONNECTOR; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	9307-	●	●
100	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (A) M12 L=62.5	9-09223-206-0	01	1	9002-9009	●	●
100	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> (A) M12 L=62.5	9-09223-206-1	01	1	9010-9306	●	●
117	UNION; AIR PIPE AIR SUSP DRIVER SEAT W/ARM REST(SGP) (A)	1-09656-426-1	01	1	9307-	●	●
117	UNION; AIR PIPE FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-09654-086-1	01	1	9002-	●	●
117	UNION; AIR PIPE ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT W/ARM REST(SGP),NYLON TUBE AIR PIPING<Z29> (A)	9-09238-910-1	01	1	9307-	●	●
117	UNION; AIR PIPE ISUZU M/T<X9A> EXC. NYLON TUBE AIR PIPING<Z29> (A)	9-09228-910-0	01	1	9002-9103	●	●
117	UNION; AIR PIPE ISUZU M/T<X9A> EXC. AIR SUSP DRIVER SEAT W/ARM REST(SGP),NYLON TUBE AIR PIPING<Z29> (A)	9-09238-910-1	01	1	9104-9306	●	●
117	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B)	9-09229-210-1	01	1	9002-9306	●	●
118	NUT; UNION (A) M16	9-99111-416-0	01	1	9002-	●	●
118	NUT; UNION EXC. NYLON TUBE AIR PIPING<Z29> (B) M12	9-09840-280-0	01	1	9002-	●	●
119	WASHER; LK,UNION (A) ID=16.2	9-09150-516-0	01	1	9002-9312	●	●
119	WASHER; LK,UNION EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=12.2	9-09150-512-0	01	1	9002-9312	●	●
123	BRACKET; UNION (A)	1-47475-857-1	01	1	9002-	●	●
123	BRACKET; UNION EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47475-432-3	01	1	9002-9103	●	●
123	BRACKET; UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47475-432-3	01	1	9104-	●	●
123	BRACKET; UNION FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47475-432-3	01	1	9104-	●	●
124	BOLT; BRKT FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9103	●	●
124	BOLT; BRKT FRAME EQUIPMENT HEAVY DUTY<F03> TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 W/LK WASHER	9-01900-830-0	02	1	9104-9204	●	●
124	BOLT; BRKT FULLER M/T<X9B> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X30 W/LK WASHER	9-01900-830-0	02	1	9104-9204	●	●
124	BOLT; BRKT FRAME EQUIPMENT HEAVY DUTY<F03> TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9306	●	●
124	BOLT; BRKT FULLER M/T<X9B> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9306	●	●
124	BOLT; BRKT FRAME EQUIPMENT HEAVY DUTY<F03> TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE	0-28080-830-0	02	1	9307-	●	●
124	BOLT; BRKT FULLER M/T<X9B> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X30 FLANGE	0-28080-830-0	02	1	9307-	●	●
124	BOLT; BRKT EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (A) M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9103	●	●
124	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (A) M8X25 W/LK WASHER	9-01900-825-0	02	1	9104-9204	●	●
124	BOLT; BRKT FULLER M/T<X9B> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (A) M8X25 W/LK WASHER	9-01900-825-0	02	1	9104-9204	●	●
124	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (A) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306	●	●
124	BOLT; BRKT FULLER M/T<X9B> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (A) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306	●	●
124	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (A) M8X25 FLANGE	0-28080-825-0	02	1	9307-		●
124	BOLT; BRKT FULLER M/T<X9B> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (A) M8X25 FLANGE	0-28080-825-0	02	1	9307-		●
124	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> (B) M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
124	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9306	●	●
124	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> (B) M8X20 FLANGE	0-28080-820-0	02	1	9307-	●	●
127	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M12	9-09228-306-1	01	1	9002-	●	●
128	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9002-9304	●	●
128	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-	●	●
129	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9312	●	●
131	UNION; AIR PIPE DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> M12 ELBOW	9-09225-206-1	01	1	9002-	●	●
131	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M12 3WAY	9-09228-906-1	01	1	9002-	●	●
155	GASKET; AIR PIPE AIR DRYER<PS7> ID=11 OD=18	9-09572-510-0	02	1	9002-	●	●
163	BRACKET; AIR PIPE AIR DRYER<PS7> L=50	1-47475-299-2	06	1	9002-9005	●	●
163	BRACKET; AIR PIPE AIR DRYER<PS7> L=50	1-47475-299-2	05	1	9006-9306	●	●
163	BRACKET; AIR PIPE NYLON TUBE AIR PIPING<Z29> L=50	1-47475-299-2	01	1	9002-9306	●	●
163	BRACKET; AIR PIPE EXC. AIR DRYER<PS7> L=50	1-47475-299-2	01	1	9002-9306	●	●
163	BRACKET; AIR PIPE EXC. AIR DRYER<PS7> L=50	1-47475-299-2	01	1	9307-	●	●
163	BRACKET; AIR PIPE AIR DRYER<PS7> L=50	1-47475-299-2	02	1	9307-	●	●
178	UNION; AIR PIPE AIR DRYER<PS7> (A) M12	1-09654-087-1	01	1	9002-	●	●
178	UNION; AIR PIPE AIR DRYER<PS7> (B) M12 L=66.5	9-09223-306-1	01	1	9002-	●	●
179	NUT; UNION AIR DRYER<PS7> M12	9-09840-280-0	02	1	9002-	●	●
180	WASHER; LK,UNION AIR DRYER<PS7> ID=12.2	9-09150-512-0	02	1	9002-	●	●
189	BRACKET; FLEX HOSE AIR DRYER<PS7> CAB UP 110MM(W60)	1-47476-163-1	01	1	9002-	●	●
189	BRACKET; FLEX HOSE AIR DRYER<PS7> EXC. CAB UP 110MM(W60)	1-47475-874-0	01	1	9002-	●	●
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X25 FLANGE	0-28080-825-0	02	1	9303-9306	●	●
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	02	1	9307-	●	●
221	BOLT; BRKT FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●
221	BOLT; BRKT FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9306	●	●
221	BOLT; BRKT EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9010	●	●
221	BOLT; BRKT EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X25 W/LK WASHER	9-01900-825-0	02	1	9011-9204	●	●
221	BOLT; BRKT EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306	●	●
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> (B) M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●	●
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> (B) M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302	●	●
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> (B) M8X16 FLANGE	0-28080-816-0	01	1	9303-9306	●	●
239	UNION; AIR PIPE FULLER M/T<X9B> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),NYLON TUBE AIR PIPING<Z29>	1-09656-392-2	01	1	9002-	●	●
239	UNION; AIR PIPE ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12	9-09228-306-1	01	1	9002-	●	●
239	UNION; AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M12 3WAY	9-09228-906-1	01	1	9002-	●	●
240	NUT; UNION,AIR PIPE ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12	9-99110-412-0	01	1	9002-9304	●	●
240	NUT; UNION,AIR PIPE ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12	9-99110-512-0	01	1	9305-	●	●
240	NUT; UNION,AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	9002-	●	●
240	NUT; UNION,AIR PIPE FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	9002-	●	●
241	WASHER; LK,UNION,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-	●	●
241	WASHER; LK,UNION,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9307-9312	●	●
243	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29>	1-09656-283-1	01	1	9002-	●	●
244	NUT; UNION,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99111-412-0	01	1	9002-	●	●
245	WASHER; LK,UNION,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9312	●	●
421	NUT; BRKT AIR DRYER<PS7> M8	9-09110-408-0	02	1	9002-	●	●

296 296 296 296 296 45 296 296 297 296 296 217 237 297 297 166 33 153 296 250 287 166 293 217 237 153 33 358 36 359 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	PIPE; AIR,UNION TO AIR TANK EXC. AIR DRYER<PS7> L=894	1-47482-402-0	01	1	9002-	●	●
36	PIPE; AIR,AIR TANK TO UNION NYLON TUBE AIR PIPING<Z29> L=981	1-47486-148-0	01	1	9002-9009	●	●
36	PIPE; AIR,AIR TANK TO UNION NYLON TUBE AIR PIPING<Z29> L=987	1-47491-818-0	01	1	9010-9306	●	●
45	PIPE; AIR,UNION TO AIR TANK NYLON TUBE AIR PIPING<Z29> L=713 SERVICED BY L=800	1-47434-475-0	01	1	9002-9306	●	●
153	PIPE; AIR,AIR TANK TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> EXC. AIR DRYER<PS7> L=859 SERVICED BY L=900	1-47434-385-0	01	1	9002-9306	●	●
153	PIPE; AIR,AIR TANK TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> EXC. AIR DRYER<PS7> L=1005 SERVICED BY L=1100	1-47426-351-0	01	1	9307-	●	●
153	PIPE; AIR,AIR TANK TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,AIR DRYER<PS7> L=852 SERVICED BY L=900	1-47434-385-0	01	1	9002-9306	●	●
153	PIPE; AIR,AIR TANK TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,AIR DRYER<PS7> L=997 SERVICED BY L=1000	1-47426-350-0	01	1	9307-		●
166	PIPE; AIR,UNION TO GOV 8PD1 STD ENG(38L) EXC. AIR DRYER<PS7> L=1079	1-49111-060-0	01	1	9307-	●
166	PIPE; AIR,UNION TO GOV 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. AIR DRYER<PS7> L=1079	1-49111-060-0	01	1	9307-		●
166	PIPE; AIR,UNION TO GOV L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> EXC. AIR DRYER<PS7>,MIXER TRUCK<RA2> L=945	1-47485-196-0	01	1	9002-	●	●
166	PIPE; AIR,UNION TO GOV L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,AIR DRYER<PS7>,MIXER TRUCK<RA2> L=950	1-47485-195-0	01	1	9002-9306	●	●
166	PIPE; AIR,UNION TO GOV 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. AIR DRYER<PS7> L=1118	1-47482-946-0	01	1	9002-	●	●
166	PIPE; AIR,UNION TO GOV 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,AIR DRYER<PS7> L=1123	1-47482-949-0	01	1	9002-9306	●	●
166	PIPE; AIR,UNION TO GOV 6RB1 STD ENG(07L) MIXER TRUCK<RA2> EXC. AIR DRYER<PS7> L=961	1-47482-945-0	01	1	9002-	●	●
166	PIPE; AIR,UNION TO GOV L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,AIR DRYER<PS7> L=950	1-47485-195-0	01	1	9307-		●
166	PIPE; AIR,UNION TO GOV 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,AIR DRYER<PS7> L=1123	1-47482-949-0	01	1	9307-		●
166	PIPE; AIR,UNION TO GOV 8PD1 STD ENG(38L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,AIR DRYER<PS7> L=1116	1-49111-061-0	01	1	9307-		●
217	PIPE; VAC,UNION TO MAG VLV MIXER TRUCK<RA2> L TYPE ENG<90L> L=1089 SERVICED BY L=1100	1-47434-387-0	01	1	9002-9306	●
217	PIPE; VAC,UNION TO MAG VLV MIXER TRUCK<RA2> L TYPE ENG<90L> L=932 SERVICED BY L=1000	1-47426-350-0	01	1	9307-	●
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. MIXER TRUCK<RA2>,NYLON TUBE AIR PIPING<Z29> L=1176 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9306	●	●
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. MIXER TRUCK<RA2>,NYLON TUBE AIR PIPING<Z29> L=1003 SERVICED BY L=1100	1-47426-351-0	01	1	9307-	●	●
217	PIPE; VAC,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29> L=1285 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306	●	●
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> L=1185 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9112	●	●
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9201-	●	●
217	PIPE; VAC,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29> L=1124 SERVICED BY L=1200	1-47426-352-0	01	1	9307-		●
237	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. MIXER TRUCK<RA2> L=654	1-47482-400-0	01	1	9002-	●
237	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> L=654	1-47482-400-0	01	1	9002-		●
237	PIPE; AIR,FLEX HOSE TO UNION MIXER TRUCK<RA2> L TYPE ENG<90L> L=628	1-47485-191-0	01	1	9002-	●
237	PIPE; AIR,FLEX HOSE TO UNION V TYPE ENG<91L> L=644	1-47481-704-0	01	1	9002-	●	●
250	PIPE; AIR,UNION TO FLEX HOSE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=1411 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9003	●
250	PIPE; AIR,UNION TO FLEX HOSE CAB UP 110MM(W60) EXC. AUTO CAB TILT<WV2>,NYLON TUBE AIR PIPING<Z29> L=1411 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9003		●
250	PIPE; AIR,UNION TO FLEX HOSE EXC. DUAL AIR GAUGE<UG2>,CAB UP 110MM(W60),NYLON TUBE AIR PIPING<Z29> L=1411 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9003		●
250	PIPE; AIR,UNION TO FLEX HOSE CAB UP 110MM(W60) EXC. FULL TRACTOR TRUCK<RD6>,AUTO CAB TILT<WV2>, NYLON TUBE AIR PIPING<Z29> L=1401 SERVICED BY L=1500	1-47434-391-0	01	1	9004-9306	●	●
250	PIPE; AIR,UNION TO FLEX HOSE EXC. FULL TRACTOR TRUCK<RD6>,DUAL AIR GAUGE<UG2>, CAB UP 110MM(W60),NYLON TUBE AIR PIPING<Z29> L=1401 SERVICED BY L=1500	1-47434-391-0	01	1	9004-9306	●	●
250	PIPE; AIR,UNION TO FLEX HOSE AUTO CAB TILT<WV2> CAB UP 110MM(W60) EXC. FULL TRACTOR TRUCK<RD6>,DUAL AIR GAUGE<UG2>, NYLON TUBE AIR PIPING<Z29> L=2278 SERVICED BY L=2350	1-47434-397-0	01	1	9002-9306	●	●
250	PIPE; AIR,UNION TO FLEX HOSE CAB UP 110MM(W60) NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> L=1496 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9306	●	●
250	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2>,CAB UP 110MM(W60) L=1340 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306	●	●
250	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) EXC. DUAL AIR GAUGE<UG2> L=1401 SERVICED BY L=1500	1-47434-391-0	01	1	9307-9308	●	●
250	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) EXC. DUAL AIR GAUGE<UG2> L=1566 SERVICED BY L=1620	1-47426-356-0	01	1	9309-	●
250	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=1566 SERVICED BY L=1620	1-47426-356-0	01	1	9309-		●
250	PIPE; AIR,UNION TO FLEX HOSE 8PD1 STD ENG(38L) L=1443 SERVICED BY L=1620	1-47434-392-0	01	1	9307-	●	●
287	PIPE; AIR,MAG VLV L=665	1-47444-990-2	01	1	9002-9212	●	●
287	PIPE; AIR,MAG VLV L=665	1-47496-263-0	01	1	9301-9306	●	●
287	PIPE; AIR,MAG VLV EXC. NYLON TUBE AIR PIPING<Z29> L=665	1-47496-263-0	01	1	9307-	●	●
293	PIPE ASM; AIR,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29> L=1841	1-47485-595-1	01	1	9002-9306	●	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK OD=12" SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306	●	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK OD=8" SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●	●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=3/8" L=30000	1-09368-248-0	AR	1	9307-		●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=3/8" L=30000	1-09368-249-0	AR	1	9307-		●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=1/2" L=30000	1-09368-251-0	AR	1	9307-		●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=1/2" L=30000	1-09368-252-0	AR	1	9307-		●
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE OD=1/2" L=30000	1-09368-253-0	AR	1	9307-		●
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLACK OD=8" SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306	●	●
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> BLACK OD=8" SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9307-		●
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> YELLOW OD=3/8" L=30000	1-09368-250-0	AR	1	9307-		●
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE OD=1/2" L=30000	1-09368-254-0	AR	1	9307-		●
358	PIPE; AIR,AIR TANK TO AIR VLV NYLON TUBE AIR PIPING<Z29> L=780 SERVICED BY L=800	1-47434-475-0	01	1	9002-9306	●	●
359	PIPE; AIR,AIR VLV TO UNION NYLON TUBE AIR PIPING<Z29> L=538 SERVICED BY L=600	1-47434-473-0	01	1	9002-9306	●	●

237 34 21 287 217 98 166 238 126 217 262 130 272 176 171 169 238 242 154 238 126 130 272 250 287 169 166 217 242 238 153 33 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> L=827	1-47487-501-0	01	1	9002-	●	●
33	PIPE; AIR,UNION TO AIR TANK EXC. AIR DRYER<PS7> L=894	1-47482-402-0	01	1	9002-	●	●
34	PIPE; AIR AIR DRYER<PS7> L=973 SERVICED BY L=1000	1-47434-485-1	01	1	9002-9306	●	●
34	PIPE; AIR AIR DRYER<PS7> L=973 SERVICED BY L=1000	1-49111-443-0	01	1	9307-	●	●
98	BRACKET; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47475-303-1	01	1	9002-	●	●
98	BRACKET; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-47475-427-1	01	1	9003-	●	●
98	BRACKET; AIR PIPE 10PD1 STD ENG(40L) EXC. AIR DRYER<PS7> (A) L=50	1-47475-299-2	01	1	9002-	●	●
126	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> L=471	1-47488-493-0	01	1	9002-	●	●
126	PIPE; AIR,UNION TO UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> L=477 SERVICED BY L=500	9-47415-350-0	01	1	9002-	●	●
130	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1242 SERVICED BY L=1250	1-47434-389-0	01	1	9002-9306	●	●
130	PIPE; AIR,UNION TO UNION L=1244 SERVICED BY L=1250	1-47426-353-0	01	1	9307-	●
130	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1244 SERVICED BY L=1250	1-47426-353-0	01	1	9307-		●
153	PIPE; AIR,AIR TANK TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> EXC. AIR DRYER<PS7> L=859 SERVICED BY L=900	1-47434-385-0	01	1	9002-9306	●	●
153	PIPE; AIR,AIR TANK TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> EXC. AIR DRYER<PS7> L=1005 SERVICED BY L=1100	1-47426-351-0	01	1	9307-	●	●
153	PIPE; AIR,AIR TANK TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,AIR DRYER<PS7> L=852 SERVICED BY L=900	1-47434-385-0	01	1	9002-9306	●	●
153	PIPE; AIR,AIR TANK TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,AIR DRYER<PS7> L=997 SERVICED BY L=1000	1-47426-350-0	01	1	9307-		●
154	PIPE; AIR,AIR TANK TO AIR GOV AIR DRYER<PS7> L=496	1-47487-299-0	01	1	9002-	●	●
166	PIPE; AIR,UNION TO GOV 8PD1 STD ENG(38L) EXC. AIR DRYER<PS7> L=1079	1-49111-060-0	01	1	9307-	●
166	PIPE; AIR,UNION TO GOV 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. AIR DRYER<PS7> L=1079	1-49111-060-0	01	1	9307-		●
166	PIPE; AIR,UNION TO GOV L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> EXC. AIR DRYER<PS7>,MIXER TRUCK<RA2> L=945	1-47485-196-0	01	1	9002-	●	●
166	PIPE; AIR,UNION TO GOV L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,AIR DRYER<PS7>,MIXER TRUCK<RA2> L=950	1-47485-195-0	01	1	9002-9306	●	●
166	PIPE; AIR,UNION TO GOV 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. AIR DRYER<PS7> L=1118	1-47482-946-0	01	1	9002-	●	●
166	PIPE; AIR,UNION TO GOV 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,AIR DRYER<PS7> L=1123	1-47482-949-0	01	1	9002-9306	●	●
166	PIPE; AIR,UNION TO GOV 6RB1 STD ENG(07L) MIXER TRUCK<RA2> EXC. AIR DRYER<PS7> L=961	1-47482-945-0	01	1	9002-	●	●
166	PIPE; AIR,UNION TO GOV L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,AIR DRYER<PS7> L=950	1-47485-195-0	01	1	9307-		●
166	PIPE; AIR,UNION TO GOV 10PD1 STD ENG(40L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,AIR DRYER<PS7> L=1123	1-47482-949-0	01	1	9307-		●
166	PIPE; AIR,UNION TO GOV 8PD1 STD ENG(38L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,AIR DRYER<PS7> L=1116	1-49111-061-0	01	1	9307-		●
169	PIPE; AIR,UNION TO FLEX HOSE AIR SUSP DRIVER SEAT W/ARM REST(SGP) L TYPE ENG<90L> L=3024	1-47499-296-0	01	1	9307-	●	●
169	PIPE; AIR,UNION TO FLEX HOSE AIR SUSP DRIVER SEAT W/ARM REST(SGP) V TYPE ENG<91L> L=3032	1-47499-297-0	01	1	9307-9308	●	●
169	PIPE; AIR,UNION TO FLEX HOSE AIR SUSP DRIVER SEAT W/ARM REST(SGP) V TYPE ENG<91L> L=3041	1-49111-232-0	01	1	9309-	●	●
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> L=992	1-47487-300-0	01	1	9002-	●	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=1209 SERVICED BY L=1250	1-47434-389-0	01	1	9002-	●	●
176	PIPE; AIR,AIR DRYER TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> AIR DRYER<PS7> L=1216 SERVICED BY L=1250	1-47434-389-0	01	1	9002-	●	●
217	PIPE; VAC,UNION TO MAG VLV MIXER TRUCK<RA2> L TYPE ENG<90L> L=1089 SERVICED BY L=1100	1-47434-387-0	01	1	9002-9306	●
217	PIPE; VAC,UNION TO MAG VLV MIXER TRUCK<RA2> L TYPE ENG<90L> L=932 SERVICED BY L=1000	1-47426-350-0	01	1	9307-	●
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. MIXER TRUCK<RA2>,NYLON TUBE AIR PIPING<Z29> L=1176 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9306	●	●
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. MIXER TRUCK<RA2>,NYLON TUBE AIR PIPING<Z29> L=1003 SERVICED BY L=1100	1-47426-351-0	01	1	9307-	●	●
217	PIPE; VAC,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29> L=1285 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306	●	●
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> L=1185 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9112	●	●
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9201-	●	●
217	PIPE; VAC,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29> L=1124 SERVICED BY L=1200	1-47426-352-0	01	1	9307-		●
237	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. MIXER TRUCK<RA2> L=654	1-47482-400-0	01	1	9002-	●
237	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> L=654	1-47482-400-0	01	1	9002-		●
237	PIPE; AIR,FLEX HOSE TO UNION MIXER TRUCK<RA2> L TYPE ENG<90L> L=628	1-47485-191-0	01	1	9002-	●
237	PIPE; AIR,FLEX HOSE TO UNION V TYPE ENG<91L> L=644	1-47481-704-0	01	1	9002-	●	●
238	PIPE; AIR,UNION TO UNION (B) L=497 SERVICED BY L=550	1-47426-407-0	01	1	9307-	●
238	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> (B) L=497 SERVICED BY L=550	1-47426-407-0	01	1	9307-		●
238	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> FRAME EQUIPMENT HEAVY DUTY<F03> TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=1339 SERVICED BY L=1370	1-47434-390-0	01	1	9002-	●	●
238	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> FRAME EQUIPMENT HEAVY DUTY<F03> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=1898 SERVICED BY L=2000	1-47434-395-0	01	1	9002-	●	●
238	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=1919 SERVICED BY L=2000	1-47426-359-0	01	1	9002-9306	●	●
238	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> (B) L=619 SERVICED BY L=660	1-47437-964-0	01	1	9002-9007	●	●
238	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> (B) L=490 SERVICED BY L=500	1-47434-472-0	01	1	9008-9306	●	●
238	PIPE; AIR,UNION TO UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (A) L=1360 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306	●	●
238	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> FRAME EQUIPMENT HEAVY DUTY<F03> (A) L=1346 SERVICED BY L=1370	1-47434-390-0	01	1	9002-	●	●
238	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (A) L=1367 SERVICED BY L=1370	1-47434-390-0	01	1	9002-		●
238	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=1919 SERVICED BY L=2000	1-47426-359-0	01	1	9307-		●
238	PIPE; AIR,UNION TO UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> (A) L=1360 SERVICED BY L=1370	1-47434-390-0	01	1	9307-		●
242	PIPE; AIR,AIR TANK TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> L=956 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306	●	●
242	PIPE; AIR,AIR TANK TO UNION FRAME EQUIPMENT HEAVY DUTY<F03> L=956 SERVICED BY L=1000	1-47426-414-0	01	1	9307-	●	●
242	PIPE; AIR,AIR TANK TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=964 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306	●	●
242	PIPE; AIR,AIR TANK TO UNION EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NYLON TUBE AIR PIPING<Z29> L=964 SERVICED BY L=1000	1-47426-414-0	01	1	9307-		●
250	PIPE; AIR,UNION TO FLEX HOSE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=1411 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9003	●
250	PIPE; AIR,UNION TO FLEX HOSE CAB UP 110MM(W60) EXC. AUTO CAB TILT<WV2>,NYLON TUBE AIR PIPING<Z29> L=1411 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9003		●
250	PIPE; AIR,UNION TO FLEX HOSE EXC. DUAL AIR GAUGE<UG2>,CAB UP 110MM(W60),NYLON TUBE AIR PIPING<Z29> L=1411 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9003		●
250	PIPE; AIR,UNION TO FLEX HOSE CAB UP 110MM(W60) EXC. FULL TRACTOR TRUCK<RD6>,AUTO CAB TILT<WV2>, NYLON TUBE AIR PIPING<Z29> L=1401 SERVICED BY L=1500	1-47434-391-0	01	1	9004-9306	●	●
250	PIPE; AIR,UNION TO FLEX HOSE EXC. FULL TRACTOR TRUCK<RD6>,DUAL AIR GAUGE<UG2>, CAB UP 110MM(W60),NYLON TUBE AIR PIPING<Z29> L=1401 SERVICED BY L=1500	1-47434-391-0	01	1	9004-9306	●	●
250	PIPE; AIR,UNION TO FLEX HOSE AUTO CAB TILT<WV2> CAB UP 110MM(W60) EXC. FULL TRACTOR TRUCK<RD6>,DUAL AIR GAUGE<UG2>, NYLON TUBE AIR PIPING<Z29> L=2278 SERVICED BY L=2350	1-47434-397-0	01	1	9002-9306	●	●
250	PIPE; AIR,UNION TO FLEX HOSE CAB UP 110MM(W60) NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> L=1496 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9306	●	●
250	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2>,CAB UP 110MM(W60) L=1340 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306	●	●
250	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) EXC. DUAL AIR GAUGE<UG2> L=1401 SERVICED BY L=1500	1-47434-391-0	01	1	9307-9308	●	●
250	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) EXC. DUAL AIR GAUGE<UG2> L=1566 SERVICED BY L=1620	1-47426-356-0	01	1	9309-	●
250	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=1566 SERVICED BY L=1620	1-47426-356-0	01	1	9309-		●
250	PIPE; AIR,UNION TO FLEX HOSE 8PD1 STD ENG(38L) L=1443 SERVICED BY L=1620	1-47434-392-0	01	1	9307-	●	●
262	PIPE; AIR,UNION TO FLEX L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> AIR DRYER<PS7> L=945 SERVICED BY L=1000	1-47434-386-0	01	1	9002-	●
262	PIPE; AIR,UNION TO FLEX L TYPE ENG<90L> AIR DRYER<PS7> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=935 SERVICED BY L=1000	1-47434-386-0	01	1	9002-	●	●
262	PIPE; AIR,UNION TO FLEX L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> AIR DRYER<PS7> L=930 SERVICED BY L=1000	1-47413-554-0	01	1	9002-	●	●
262	PIPE; AIR,UNION TO FLEX 10PD1 STD ENG(40L) AIR DRYER<PS7> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=1100 SERVICED BY L=1100	1-47413-555-0	01	1	9002-	●	●
262	PIPE; AIR,UNION TO FLEX 10PD1 STD ENG(40L) FRAME EQUIPMENT HEAVY DUTY<F03> AIR DRYER<PS7> L=1096 SERVICED BY L=1100	1-47413-555-0	01	1	9002-	●	●
262	PIPE; AIR,UNION TO FLEX 8PD1 STD ENG(38L) FRAME EQUIPMENT HEAVY DUTY<F03> AIR DRYER<PS7> L=1075 SERVICED BY L=1200	1-47426-352-0	01	1	9307-	●	●
272	PIPE; AIR,MAG VLV TO UNION EXC. NYLON TUBE AIR PIPING<Z29> (A) L=1102 SERVICED BY L=1200	1-47434-388-0	01	1	9002-	●	●
272	PIPE; AIR,MAG VLV TO UNION GOVERNOR CONTROL<W69> (B) L=431 SERVICED BY L=460	9-47415-349-0	01	1	9002-9306		●
272	PIPE; AIR,MAG VLV TO UNION GOVERNOR CONTROL<W69> (B) L=431 SERVICED BY L=460	1-47426-342-0	01	1	9307-		●
287	PIPE; AIR,MAG VLV L=665	1-47444-990-2	01	1	9002-9212	●	●
287	PIPE; AIR,MAG VLV L=665	1-47496-263-0	01	1	9301-9306	●	●
287	PIPE; AIR,MAG VLV EXC. NYLON TUBE AIR PIPING<Z29> L=665	1-47496-263-0	01	1	9307-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
