◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10879 - EXZ LHD FUEL TANK 400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#28407) — 262 parça

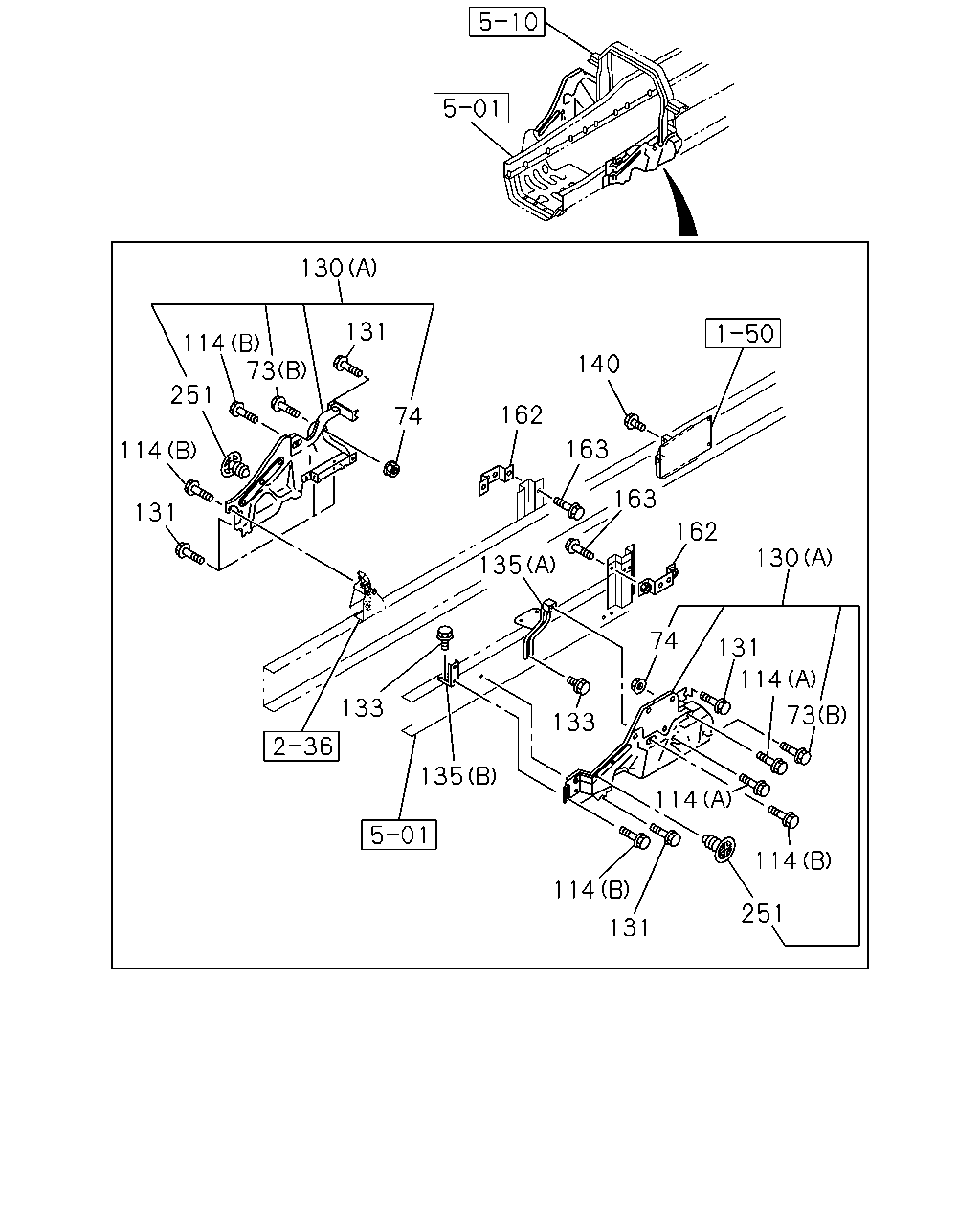

çizim 138871
130 131 114 140 251 162 74 163 114 163 131 162 135 130 74 131 114 133 73 133 135 114 114 114 251 131
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 08 1 0105-0512
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 08 1 0601-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0105-0805
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806-
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0105-0602
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 0603-
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 0105-0506
74 NUT
ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 02 1 0507-0602
74 NUT
ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91180-108-0 02 1 0603-
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 03 1 0105-0506
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENTVAR2<TAK> M8 FLANGE 		0-91150-108-0 03 1 0507-0602
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENTVAR2<TAK> M8 FLANGE 		0-91180-108-0 03 1 0603-
114 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 05 1 0105-0512
114 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 05 1 0601-
114 BOLT
(B) M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 0105-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-332-1 01 1 0308-0506
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENTVAR2<TAK> (A) 		1-53193-332-2 01 1 0507-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-333-2 01 1 0308-0506
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENTVAR2<TAK> (A) 		1-53193-333-2 01 1 0507-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) 		1-79937-943-1 01 1 0304-0306
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (D) 		1-79937-943-1 01 1 0307-0402
130 PANEL; SHUTTER NOISE
EXC. TAIWAN EQUIPMENT(WW5) (D) 		1-79937-943-2 01 1 0403-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-79947-028-0 01 1 0304-0306
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (B) 		1-79947-028-0 01 1 0307-0402
130 PANEL; SHUTTER NOISE
EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-79947-028-3 01 1 0403-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) 		1-79947-029-0 01 1 0304-0306
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (C) 		1-79947-029-0 01 1 0307-0402
130 PANEL; SHUTTER NOISE
EXC. TAIWAN EQUIPMENT(WW5) (C) 		1-79947-029-2 01 1 0403-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-2 01 1 0105-0303
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 		1-79937-960-2 01 1 0304-0306
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (B) 		1-79937-960-2 01 1 0307-0402
130 PANEL; SHUTTER NOISE
TAIWAN EQUIPMENT(WW5) (B) 		1-79937-960-5 01 1 0403-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-993-1 01 1 0105-0303
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) 		1-79937-993-1 01 1 0304-0306
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (C) 		1-79937-993-1 01 1 0307-0402
130 PANEL; SHUTTER NOISE
TAIWAN EQUIPMENT(WW5) (C) 		1-79937-993-3 01 1 0403-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-945-1 01 1 0105-0303
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (D) 		1-79937-945-1 01 1 0304-0306
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (D) 		1-79937-945-1 01 1 0307-0402
130 PANEL; SHUTTER NOISE
TAIWAN EQUIPMENT(WW5) (D) 		1-79937-945-2 01 1 0403-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-990-4 01 1 0105-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-790-5 01 1 0105-0506
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> (A) 		1-53192-790-5 01 1 0507-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-782-6 01 1 0105-0506
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> (A) 		1-53192-782-7 01 1 0507-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 0105-0307
130 PANEL; SHUTTER NOISE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 0308-0506
130 PANEL; SHUTTER NOISE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> (A) 		1-53193-329-1 01 1 0507-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 0105-0307
130 PANEL; SHUTTER NOISE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 0308-0506
130 PANEL; SHUTTER NOISE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> (A) 		1-53193-328-1 01 1 0507-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0105-0805
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-
133 BOLT; FRAME
M8X35 FLANGE 		0-28680-835-0 04 1 0105-0512
133 BOLT; FRAME
M8X35 FLANGE 		0-28650-835-0 04 1 0601-
135 BRACKET; SIDE PANEL
(B) 		1-53441-507-0 01 1 0105-
135 BRACKET; SIDE PANEL
ELECTRONIC GOV RED3(KG5) (A) 		1-53441-598-0 01 1 0105-0106
135 BRACKET; SIDE PANEL
(A) 		1-53441-598-1 01 1 0107-
135 BRACKET; SIDE PANEL
EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-53441-508-0 01 1 0105-0106
140 BOLT; SIDE PANEL
M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512
140 BOLT; SIDE PANEL
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
140 BOLT; SIDE PANEL
M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512
140 BOLT; SIDE PANEL
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
162 BRACKET 1-53441-520-0 02 1 0105-
163 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0105-0512
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0601-
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 14 1 0105-0506
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> 		8-94279-048-0 14 1 0507-

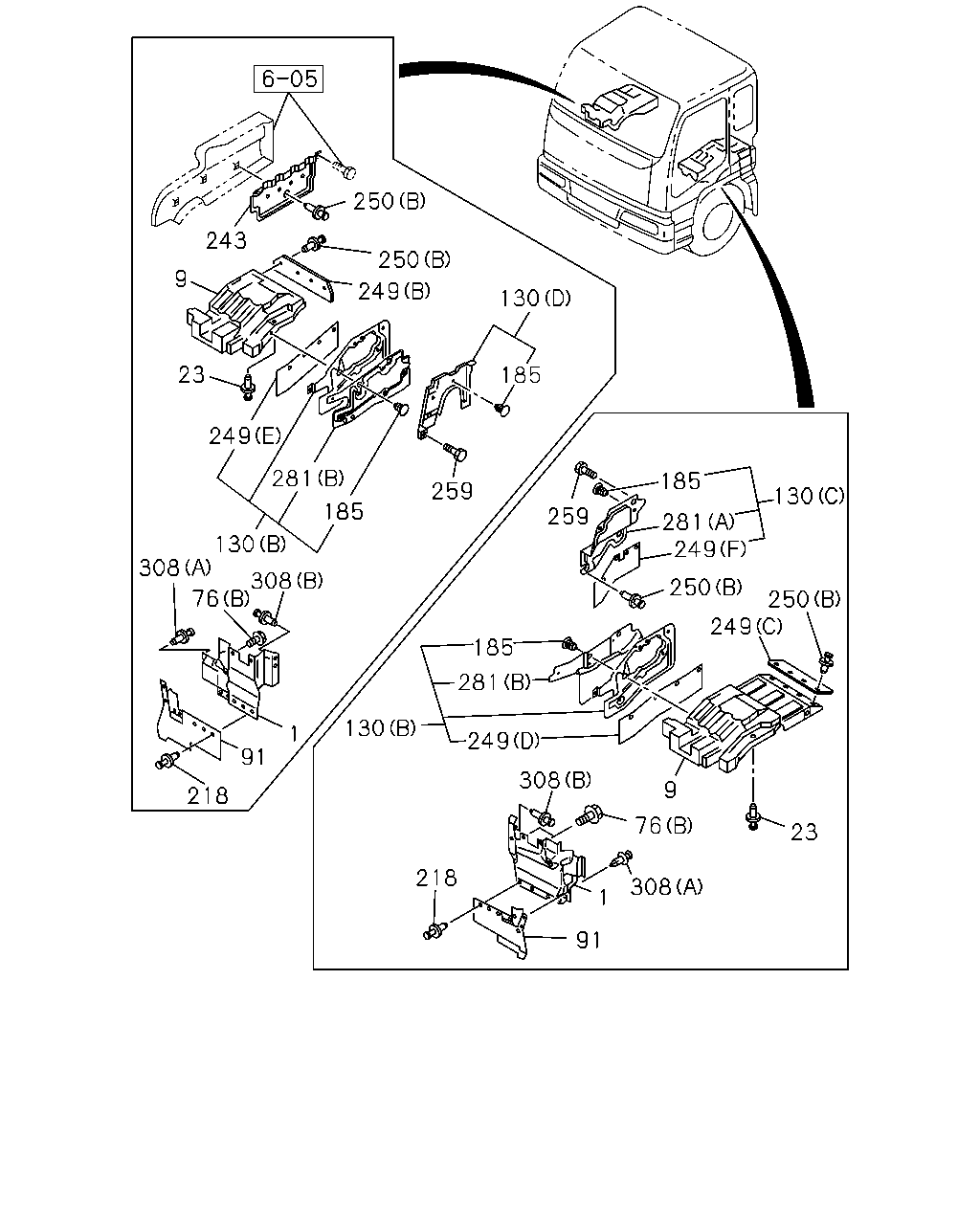

çizim 138893
250 243 250 9 249 130 23 185 249 281 185 259 130 185 259 281 249 130 308 308 76 250 250 249 185 281 130 1 249 91 308 9 218 76 23 218 308 1 91
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0105-
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0105-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0105-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0105-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0105-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0105-0805
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0105-
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0105-
91 COVER; MUD,FRT 1-79931-204-1 01 1 0105-
91 COVER; MUD,FRT 1-79931-203-1 01 1 0105-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-332-1 01 1 0308-0506
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENTVAR2<TAK> (A) 		1-53193-332-2 01 1 0507-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-333-2 01 1 0308-0506
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENTVAR2<TAK> (A) 		1-53193-333-2 01 1 0507-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) 		1-79937-943-1 01 1 0304-0306
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (D) 		1-79937-943-1 01 1 0307-0402
130 PANEL; SHUTTER NOISE
EXC. TAIWAN EQUIPMENT(WW5) (D) 		1-79937-943-2 01 1 0403-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-79947-028-0 01 1 0304-0306
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (B) 		1-79947-028-0 01 1 0307-0402
130 PANEL; SHUTTER NOISE
EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-79947-028-3 01 1 0403-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) 		1-79947-029-0 01 1 0304-0306
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (C) 		1-79947-029-0 01 1 0307-0402
130 PANEL; SHUTTER NOISE
EXC. TAIWAN EQUIPMENT(WW5) (C) 		1-79947-029-2 01 1 0403-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-2 01 1 0105-0303
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 		1-79937-960-2 01 1 0304-0306
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (B) 		1-79937-960-2 01 1 0307-0402
130 PANEL; SHUTTER NOISE
TAIWAN EQUIPMENT(WW5) (B) 		1-79937-960-5 01 1 0403-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-993-1 01 1 0105-0303
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) 		1-79937-993-1 01 1 0304-0306
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (C) 		1-79937-993-1 01 1 0307-0402
130 PANEL; SHUTTER NOISE
TAIWAN EQUIPMENT(WW5) (C) 		1-79937-993-3 01 1 0403-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-945-1 01 1 0105-0303
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (D) 		1-79937-945-1 01 1 0304-0306
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (D) 		1-79937-945-1 01 1 0307-0402
130 PANEL; SHUTTER NOISE
TAIWAN EQUIPMENT(WW5) (D) 		1-79937-945-2 01 1 0403-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-990-4 01 1 0105-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-790-5 01 1 0105-0506
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> (A) 		1-53192-790-5 01 1 0507-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-782-6 01 1 0105-0506
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> (A) 		1-53192-782-7 01 1 0507-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 0105-0307
130 PANEL; SHUTTER NOISE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 0308-0506
130 PANEL; SHUTTER NOISE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> (A) 		1-53193-329-1 01 1 0507-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 0105-0307
130 PANEL; SHUTTER NOISE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 0308-0506
130 PANEL; SHUTTER NOISE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> (A) 		1-53193-328-1 01 1 0507-
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 06 1 0401-0402
185 CLIP; HEAT INSULATOR
TAIWAN EQUIPMENT(WW5) ID=6.2 L=11.4 		8-97808-623-0 06 1 0403-
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 10 1 0304-0306
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 09 1 0307-0402
185 CLIP; HEAT INSULATOR
TAIWAN EQUIPMENT(WW5) ID=6.2 L=11.4 		8-97808-623-0 10 1 0403-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 17 1 0105-0303
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 08 1 0304-0306
185 CLIP; HEAT INSULATOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 08 1 0304-0306
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 08 1 0307-0402
185 CLIP; HEAT INSULATOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 08 1 0307-0402
185 CLIP; HEAT INSULATOR
TAIWAN EQUIPMENT(WW5) ID=6.2 L=11.4 		8-97808-623-0 09 1 0403-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0105-0303
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0105-0303
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 09 1 0304-0306
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 10 1 0307-0402
185 CLIP; HEAT INSULATOR
EXC. TAIWAN EQUIPMENT(WW5) ID=6.2 L=11.4 		8-97808-623-0 08 1 0403-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 08 1 0403-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 0203-0303
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0304-0306
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 06 1 0304-0306
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0307-0312
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 06 1 0307-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0401-
218 FASTENER; RUBBER
ID=6X6 OD=8 		1-09987-194-0 08 1 0105-0511
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0512-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0105-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0105-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0105-
249 RUBBER; SHUTTER
(F) 		1-79937-967-1 01 1 0105-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0105-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0105-
249 RUBBER; SHUTTER
(E) 		1-79937-989-1 01 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0105-0910
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0105-0910
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0911-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 0105-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0105-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0105-0904
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905-
281 INSULATOR; NOISE
(A) 		1-71907-167-0 01 1 0105-0303
281 INSULATOR; NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-71907-167-0 01 1 0304-0306
281 INSULATOR; NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (A) 		1-71907-167-0 01 1 0307-0402
281 INSULATOR; NOISE
TAIWAN EQUIPMENT(WW5) (A) 		1-71907-167-0 01 1 0403-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 0105-0303
281 INSULATOR; NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 		1-71907-171-2 01 1 0304-0306
281 INSULATOR; NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (B) 		1-71907-171-2 01 1 0307-0402
281 INSULATOR; NOISE
TAIWAN EQUIPMENT(WW5) (B) 		1-71907-171-2 01 1 0403-
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 0105-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0105-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0105-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0105-

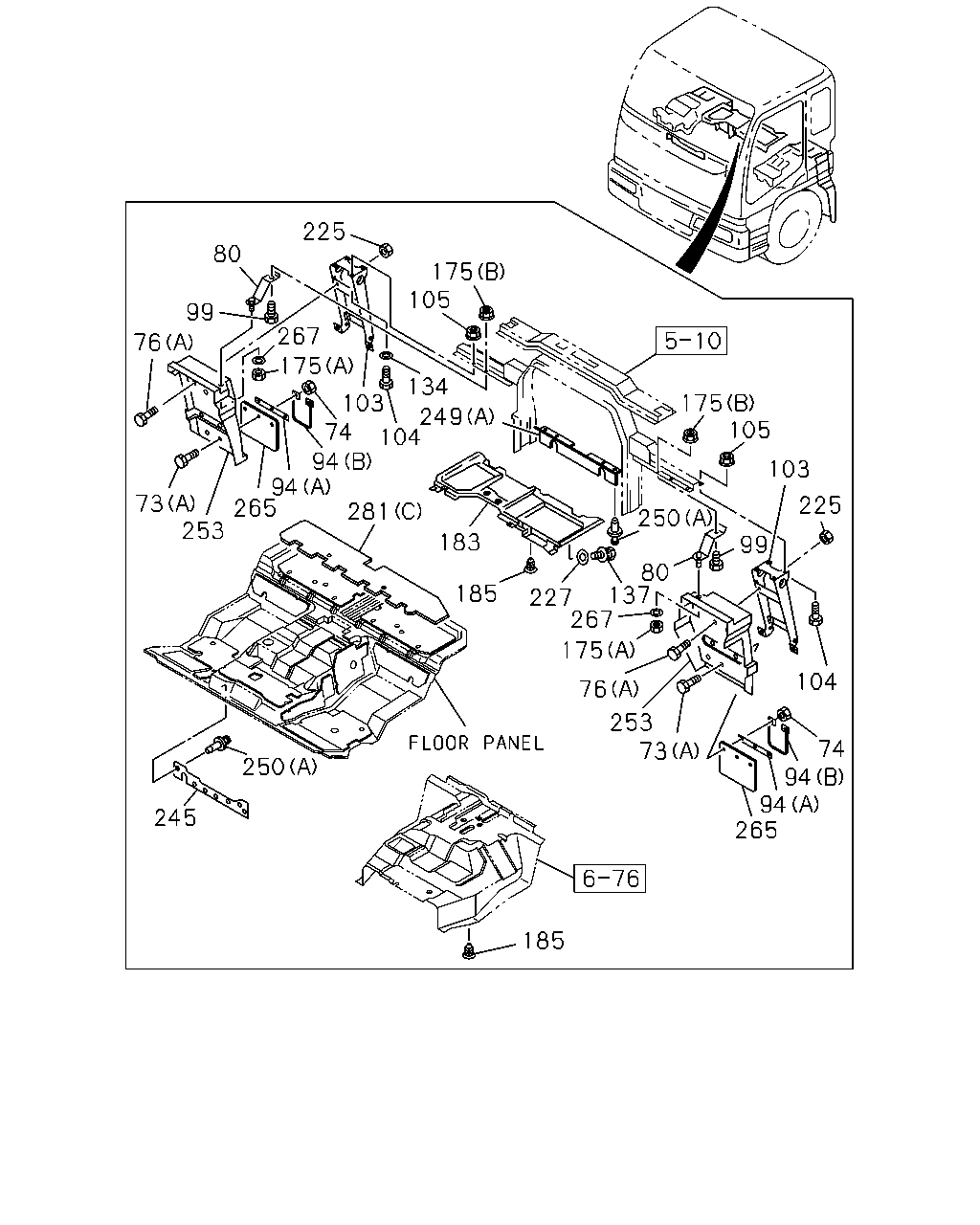

çizim 138894
225 80 175 105 99 267 76 175 134 103 74 175 105 249 104 94 94 73 265 253 103 225 281 250 183 99 80 227 137 267 185 175 104 76 253 73 74 94 94 265 250 245 185
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 08 1 0105-0512
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 08 1 0601-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0105-0805
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806-
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0105-0602
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 0603-
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 0105-0506
74 NUT
ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 02 1 0507-0602
74 NUT
ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91180-108-0 02 1 0603-
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 03 1 0105-0506
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENTVAR2<TAK> M8 FLANGE 		0-91150-108-0 03 1 0507-0602
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENTVAR2<TAK> M8 FLANGE 		0-91180-108-0 03 1 0603-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0105-0805
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0105-
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0105-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0105-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 0105-
94 RETAINER; FLAP RUBBER
EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-79931-194-0 02 1 0105-
99 BOLT; STAY TO MUD GUARD
M10X20 FLANGE 		0-28681-020-0 02 1 0105-0512
99 BOLT; STAY TO MUD GUARD
M10X20 FLANGE 		0-28651-020-0 02 1 0601-
103 BRACKET ASM; RR MUD FLAP 1-79931-347-1 01 1 0105-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-891-0 01 1 1503-
103 BRACKET ASM; RR MUD FLAP 1-79931-307-1 01 1 0105-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-889-0 01 1 1503-
104 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 07 1 0105-0512
104 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 07 1 0601-
105 NUT; BRKT
M10 FLANGE 		0-91150-210-0 07 1 0105-0602
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 0603-
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 0105-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0105-0904
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 0105-0602
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 0105-0602
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0603-
183 INSULATOR; HEAT,BED PAN 1-71907-539-4 01 1 0105-
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 06 1 0401-0402
185 CLIP; HEAT INSULATOR
TAIWAN EQUIPMENT(WW5) ID=6.2 L=11.4 		8-97808-623-0 06 1 0403-
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 10 1 0304-0306
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 09 1 0307-0402
185 CLIP; HEAT INSULATOR
TAIWAN EQUIPMENT(WW5) ID=6.2 L=11.4 		8-97808-623-0 10 1 0403-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 17 1 0105-0303
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 08 1 0304-0306
185 CLIP; HEAT INSULATOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 08 1 0304-0306
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 08 1 0307-0402
185 CLIP; HEAT INSULATOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 08 1 0307-0402
185 CLIP; HEAT INSULATOR
TAIWAN EQUIPMENT(WW5) ID=6.2 L=11.4 		8-97808-623-0 09 1 0403-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0105-0303
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0105-0303
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 09 1 0304-0306
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 10 1 0307-0402
185 CLIP; HEAT INSULATOR
EXC. TAIWAN EQUIPMENT(WW5) ID=6.2 L=11.4 		8-97808-623-0 08 1 0403-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 08 1 0403-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 0203-0303
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0304-0306
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 06 1 0304-0306
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0307-0312
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 06 1 0307-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0401-
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 0105-0602
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 0603-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0105-
245 RUBBER; SHUTTER,RAD 1-79947-023-0 01 1 0105-0301
245 RUBBER; SHUTTER,RAD 1-79937-949-1 01 1 0302-0910
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0105-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0105-
249 RUBBER; SHUTTER
(F) 		1-79937-967-1 01 1 0105-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0105-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0105-
249 RUBBER; SHUTTER
(E) 		1-79937-989-1 01 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0105-0910
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0105-0910
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0911-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 0105-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0105-
253 GUARD; MUD 1-79931-067-7 01 1 0105-0901
253 GUARD; MUD 8-98134-764-0 01 1 0902-1010
253 GUARD; MUD 8-98123-038-1 01 1 1011-
253 GUARD; MUD 1-79931-065-7 01 1 0105-0901
253 GUARD; MUD 8-98134-760-0 01 1 0902-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 0105-
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 0105-0605
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 0606-
281 INSULATOR; NOISE
(A) 		1-71907-167-0 01 1 0105-0303
281 INSULATOR; NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-71907-167-0 01 1 0304-0306
281 INSULATOR; NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (A) 		1-71907-167-0 01 1 0307-0402
281 INSULATOR; NOISE
TAIWAN EQUIPMENT(WW5) (A) 		1-71907-167-0 01 1 0403-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 0105-0303
281 INSULATOR; NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 		1-71907-171-2 01 1 0304-0306
281 INSULATOR; NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),CHINA EQUIPMENT(YT2) (B) 		1-71907-171-2 01 1 0307-0402
281 INSULATOR; NOISE
TAIWAN EQUIPMENT(WW5) (B) 		1-71907-171-2 01 1 0403-
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 0105-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
