Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11039 - EXZ RHD EURO4
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#28399) — 115 parça
◀
[326A] JUMPER CABLE (9 parça)
[326A] FIXING;CAB SIDE (21 parça)
[326A] REPAIR KIT;TRAILER CONT (1 parça)
[326A] HAND CONT VALVE (28 parça)
[326A] HAND BRK VALVE (27 parça)
[326A] FRAME SIDE (29 parça)
▶

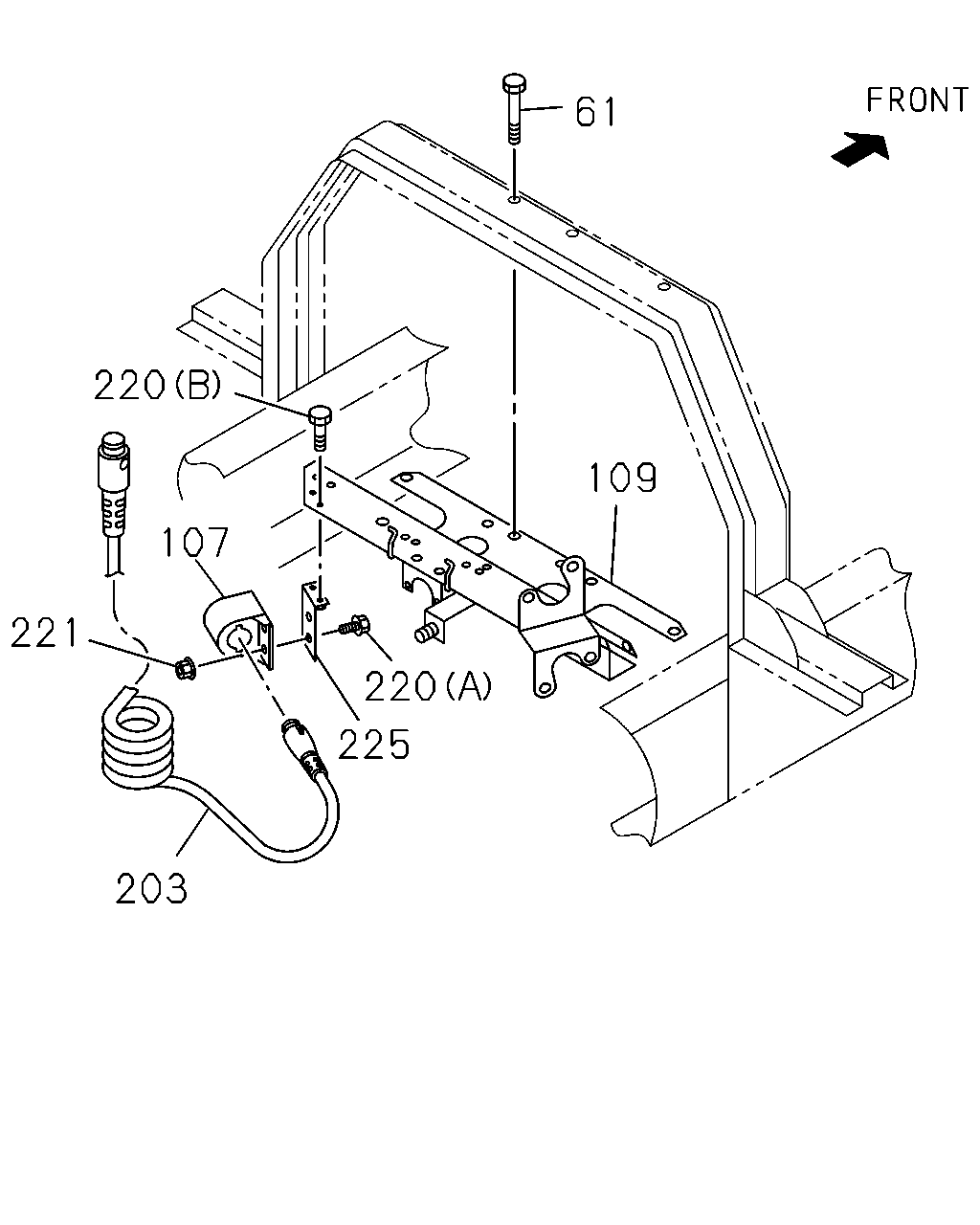

61
220
109
107
221
220
225
203
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
61
BOLT; STEP BOARD
M10X30 FLANGE
0-28651-030-0
06
1
0610-
107
HANGER; JUMPER HOSE
1-57550-022-2
01
1
0610-
109
BRACKET; HOSE HANGER
8-98049-443-0
01
1
0610-
203
CABLE; JUMPER
L=5500
1-82659-201-2
01
1
0610-1009
203
CABLE; JUMPER
L=5500
8-98107-178-0
01
1
1010-
220
BOLT; HANGER
(A) M6X16 FLANGE
0-28650-616-0
02
1
0610-
220
BOLT; HANGER
(B) M8X25 FLANGE
0-28650-825-0
02
1
0610-
221
NUT; HANGER
M6 FLANGE
0-91180-106-0
02
1
0610-
225
BRACKET; HANGER
1-82698-002-0
01
1
0610-

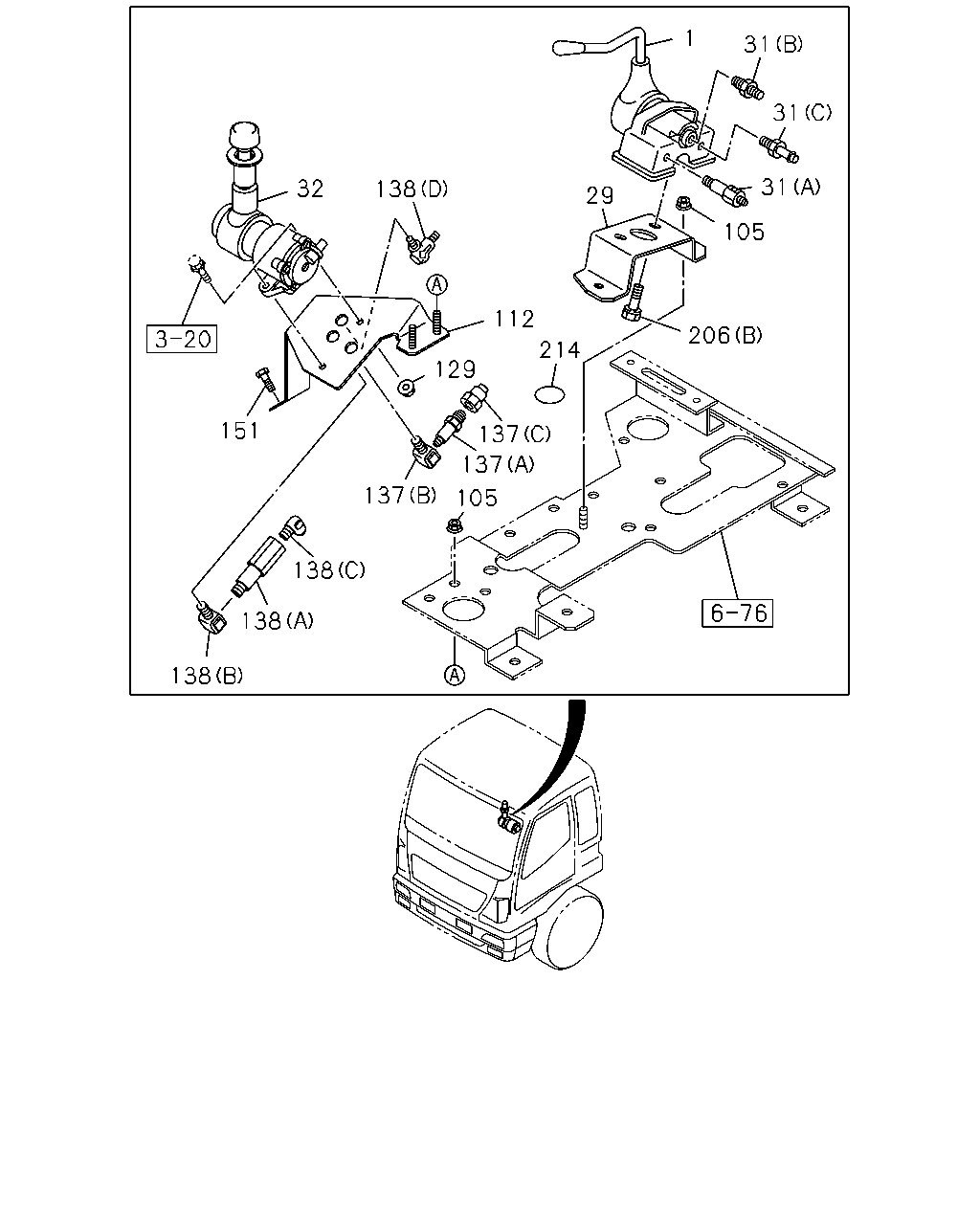

1
31
31
31
32
138
29
105
112
206
214
129
151
137
137
137
105
138
138
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; HAND BRK
1-48100-848-0
01
1
0610-
29
BRACKET; HAND BRK
1-79997-357-1
01
1
0610-
31
CONNECTOR; HAND BRK VLV
(B) M16 & PT1/4 STRAIGHT
0-92121-810-0
01
1
0610-
31
CONNECTOR; HAND BRK VLV
(A) M14
1-09656-391-2
01
1
0610-
31
CONNECTOR; HAND BRK VLV
(C) L=45
8-94338-874-0
01
1
0610-
32
VALVE; BRK,HAND CONT
1-48460-341-1
01
1
0610-
105
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0610-
105
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0610-
112
BRACKET; CONT VLV
1-79996-387-0
01
1
0610-
129
NUT; VLV
M8 FLANGE
0-91180-108-0
01
1
0610-
137
CONNECTOR; SUPPLY
(A)
1-09650-352-1
01
1
0610-
137
CONNECTOR; SUPPLY
(B) PT1/4 2WAY
1-09660-693-0
01
1
0610-
137
CONNECTOR; SUPPLY
(C) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0610-
138
CONNECTOR; DELIVERY
(A)
1-09660-335-1
01
1
0610-
138
CONNECTOR; DELIVERY
(B) PT1/4 2WAY
1-09660-693-0
01
1
0610-
138
CONNECTOR; DELIVERY
(C) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0610-
138
CONNECTOR; DELIVERY
(D) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0610-
151
BOLT; VLV BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
0610-
206
BOLT; HAND BRK VALVE
(B) M10X20 W/LK WASHER
0-50541-020-0
02
1
0610-
206
BOLT; HAND BRK VALVE
(A)
1-48469-160-0
01
1
0610-
214
SEAL; COVER,HAND BRK
OD=25 BLACK
1-76798-019-0
02
1
0610-
180
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
180
REPAIR KIT; RELAY VLV
1-85576-449-0
01
1
0610-

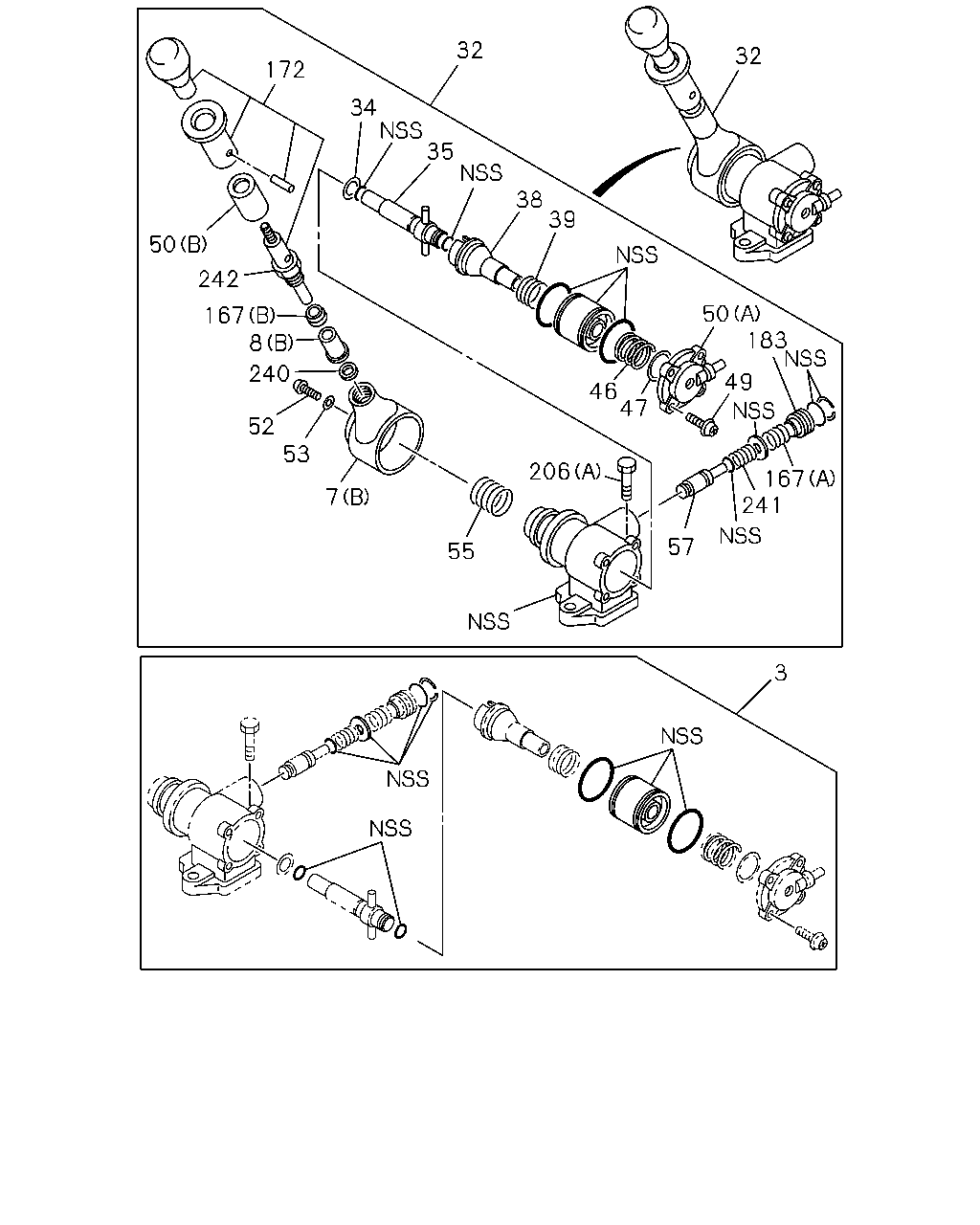

32
32
172
34
35
38
39
50
242
50
183
167
8
240
49
46
47
52
53
167
241
206
7
57
55
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; HAND BRK VLV
1-85576-376-0
01
1
0610-
7
HEAD; BRK VLV
(A)
1-48119-131-1
01
1
0610-
7
HEAD; BRK VLV
(B)
1-48469-209-0
01
1
0610-
8
STOPPER; BRK VLV
(A)
1-48119-239-0
01
1
0610-
8
STOPPER; BRK VLV
(B)
1-48469-200-0
01
1
0610-
32
VALVE; BRK,HAND CONT
1-48460-341-1
01
1
0610-
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
0610-
35
HOLDER; CAM
1-48469-207-0
01
1
0610-
38
SEAT; EXH VLV
1-48469-211-0
01
1
0610-
39
SPRING; RETURN,CAM RING
1-48469-150-0
01
1
0610-
46
SPRING; MAIN,PISTON
1-48469-173-0
01
1
0610-
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
0610-
49
SCREW; COVER
1-48469-169-0
04
1
0610-
50
COVER; HAND BRK VLV
(A)
1-48469-153-0
01
1
0610-
50
COVER; HAND BRK VLV
(B)
1-48469-196-0
01
1
0610-
52
SCREW; HANDLE
1-48469-062-0
01
1
0610-
53
WASHER; HANDLE
1-48469-061-0
01
1
0610-
55
SPRING; RETURN,HANDLE
1-48469-155-0
01
1
0610-
57
PLUNGER; HAND BRK VLV
1-48469-180-0
01
1
0610-
167
SPRING; VALVE
(A)
1-48469-177-0
01
1
0610-
167
SPRING; VALVE
(B)
1-48469-184-0
01
1
0610-
172
KNOB; VALVE
1-48469-210-0
01
1
0610-
183
RETAINER; VALVE
1-48469-185-0
01
1
0610-
206
BOLT; HAND BRK VALVE
(B) M10X20 W/LK WASHER
0-50541-020-0
02
1
0610-
206
BOLT; HAND BRK VALVE
(A)
1-48469-160-0
01
1
0610-
240
RING; STOPPER
1-48469-208-0
01
1
0610-
241
SPRING; RETURN
1-48469-182-0
01
1
0610-
242
NUT; LK
1-48469-179-0
01
1
0610-

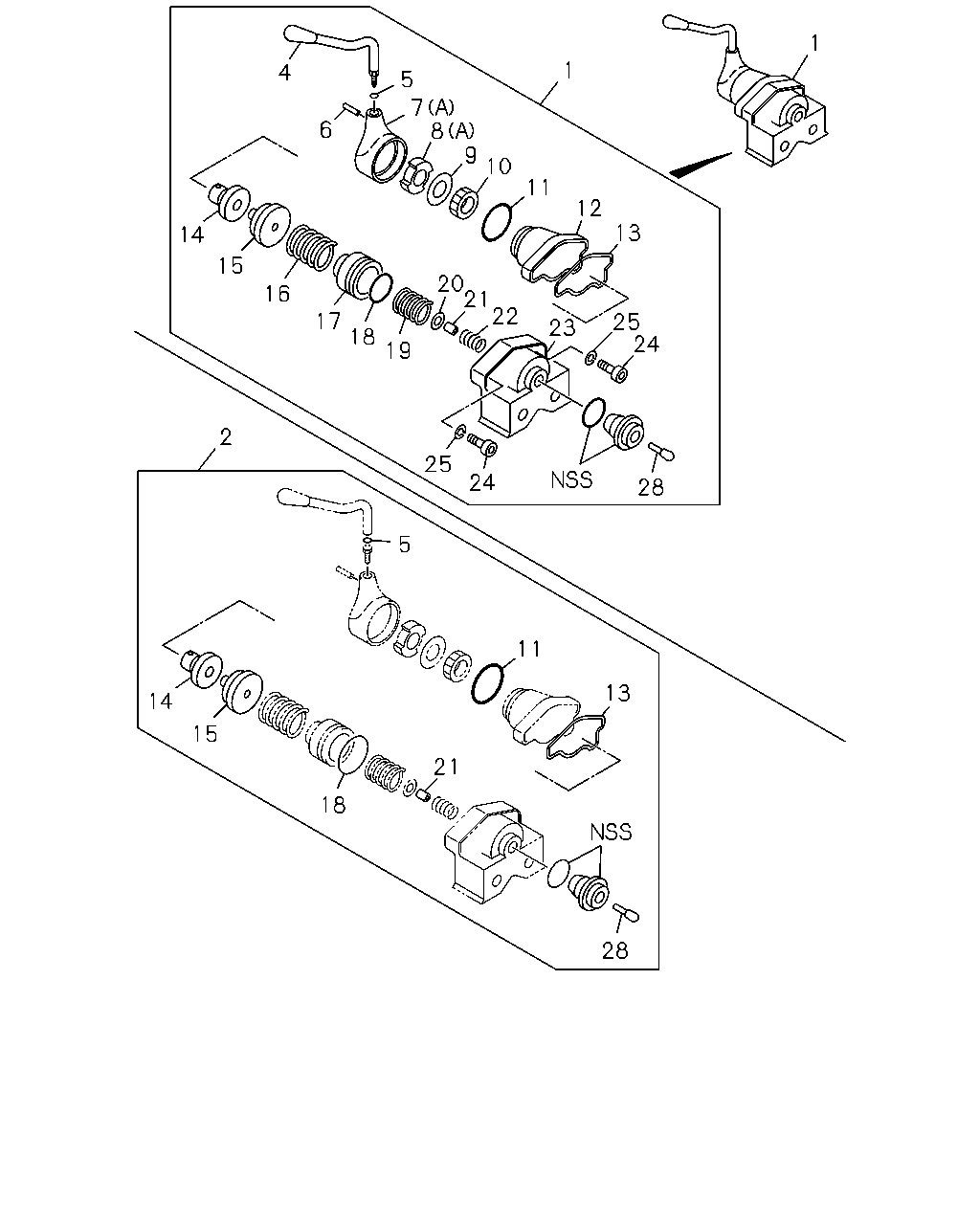

1
1
4
5
7
8
6
9
10
11
12
13
14
15
20
21
22
16
23
17
25
24
18
19
2
25
24
28
5
11
13
14
15
21
18
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; HAND BRK
1-48100-848-0
01
1
0610-
2
REPAIR KIT; HAND BRK VLV
1-85576-181-0
01
1
0610-
4
HANDLE ASM; BRK VLV
1-48119-517-0
01
1
0610-
5
GASKET; HANDLE
1-48119-128-0
01
1
0610-
6
PIN; SPR
1-48119-143-0
01
1
0610-
7
HEAD; BRK VLV
(A)
1-48119-131-1
01
1
0610-
7
HEAD; BRK VLV
(B)
1-48469-209-0
01
1
0610-
8
STOPPER; BRK VLV
(A)
1-48119-239-0
01
1
0610-
8
STOPPER; BRK VLV
(B)
1-48469-200-0
01
1
0610-
9
WASHER; LK,ADJ
1-48119-123-0
01
1
0610-
10
RING; ADJ
1-48119-122-0
01
1
0610-
11
GASKET; HD TO COVER
1-48119-130-0
01
1
0610-
12
COVER; BRK VLV
1-48129-097-1
01
1
0610-
13
GASKET; BODY TO COVER
1-48119-120-0
01
1
0610-
14
FOLLOWER; CAM
1-48129-135-0
01
1
0610-
15
CAM; FOLLOWER
1-48129-134-0
01
1
0610-
16
SPRING; GRUDUATING
1-48129-101-0
01
1
0610-
17
PISTON; SPR
1-48129-095-0
01
1
0610-
18
GASKET; BODY
1-48129-096-0
01
1
0610-
19
SPRING; PISTON
1-48129-094-0
01
1
0610-
20
GUIDE; VLV
1-48129-090-0
01
1
0610-
21
VALVE; IN & EXH
1-48121-017-0
01
1
0610-
22
SPRING; VLV
1-48123-024-0
01
1
0610-
23
BODY; BRK VLV
1-48111-060-1
01
1
0610-
24
BOLT; EXH VLV
1-48129-092-0
02
1
0610-
25
WASHER; LK,EXH VLV
1-48129-093-0
02
1
0610-
28
STEM ASM; BRK VLV
1-48129-089-0
01
1
0610-

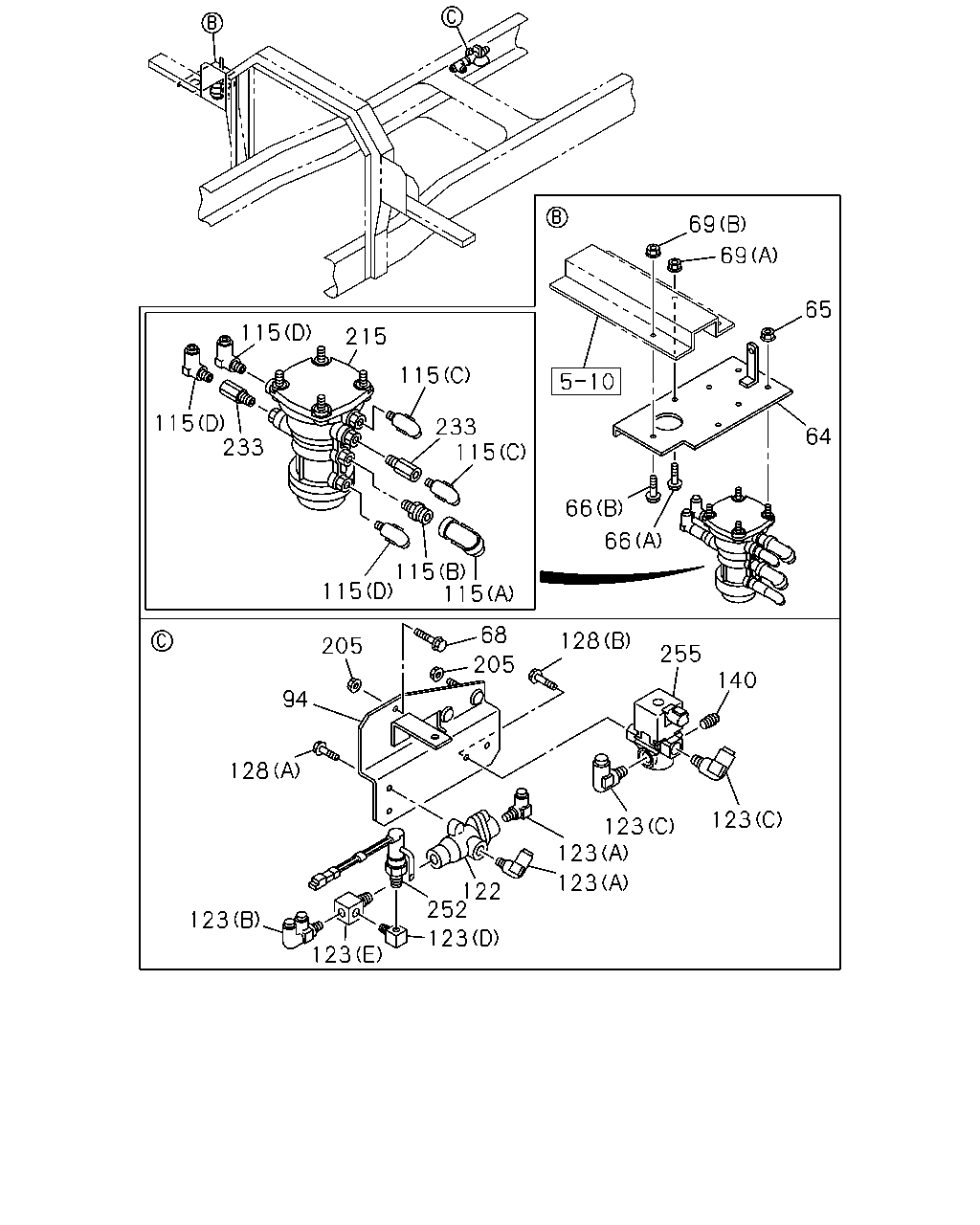

69
69
65
115
215
115
115
233
233
115
64
66
66
115
115
115
68
128
205
255
205
140
94
128
12
123
123
123
122
252
123
123
123
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
COVER; BRK VLV
1-48129-097-1
01
1
0610-
64
BRACKET; RELAY VLV
8-98036-587-0
01
1
0610-
65
NUT; RELAY VLV
M8 FLANGE
0-91180-108-0
04
1
0610-
66
BOLT; VLV BRKT
(A) M8X25 FLANGE
0-28650-825-0
01
1
0610-
66
BOLT; VLV BRKT
(B) M10X25 FLANGE
0-28651-025-0
02
1
0610-
68
BOLT; DOUBLE CHECK VLV
M8X30 FLANGE
0-28650-830-0
01
1
0610-
69
NUT; VLV BRKT
(A) M8 FLANGE
0-91180-108-0
01
1
0610-
69
NUT; VLV BRKT
(B) M10 FLANGE
0-91180-210-0
02
1
0610-
94
BRACKET; CHECK VLV
8-98036-330-0
01
1
0610-
115
CONNECTOR; DUAL RELAY VLV
(A) DIN8 ELBOW
1-09660-924-1
01
1
0610-1006
115
CONNECTOR; DUAL RELAY VLV
(A)
8-97633-756-0
01
1
1007-
115
CONNECTOR; DUAL RELAY VLV
(B)
1-09660-948-0
01
1
0610-1006
115
CONNECTOR; DUAL RELAY VLV
(B)
8-97633-771-0
01
1
1007-
115
CONNECTOR; DUAL RELAY VLV
(C) DIN8 & R3/8 ELBOW
1-09660-957-0
02
1
0610-
115
CONNECTOR; DUAL RELAY VLV
(D) DIN12 & R3/8 ELBOW
1-09660-959-0
03
1
0610-
122
VALVE ASM; DOUBLE CHECK
1-48410-531-1
01
1
0610-
123
CONNECTOR; DBL CHECK VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) DIN6 & R1/4 ELBOW
1-09661-067-0
02
1
0610-
123
CONNECTOR; DBL CHECK VLV
(D) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
0610-
123
CONNECTOR; DBL CHECK VLV
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
02
1
0610-
123
CONNECTOR; DBL CHECK VLV
(B) DIN8X2 & PT3/8 DOUBLE ELBOW
1-09661-025-0
01
1
0610-
123
CONNECTOR; DBL CHECK VLV
(E) PT3/8 3WAY
1-09661-300-0
01
1
0610-
128
BOLT; VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X20 FLANGE
0-28650-820-0
02
1
0610-
128
BOLT; VLV
(A) M8X14 FLANGE
0-28080-814-0
02
1
0610-
140
PLUG
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4
9-99204-513-0
01
1
0610-
205
NUT; DOUBLE CHECK VLV
M8 FLANGE
0-91180-108-0
03
1
0610-
215
VALVE; TRAILER CONT
1-48240-045-1
01
1
0610-
233
ADAPTER; VLV
PT3/8
1-48319-058-0
02
1
0610-
252
SWITCH; PRESSURE
8-97383-820-1
01
1
0610-
255
VALVE; MAG
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)
1-82563-871-2
01
1
0610-
