2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#28391) — 54 parça

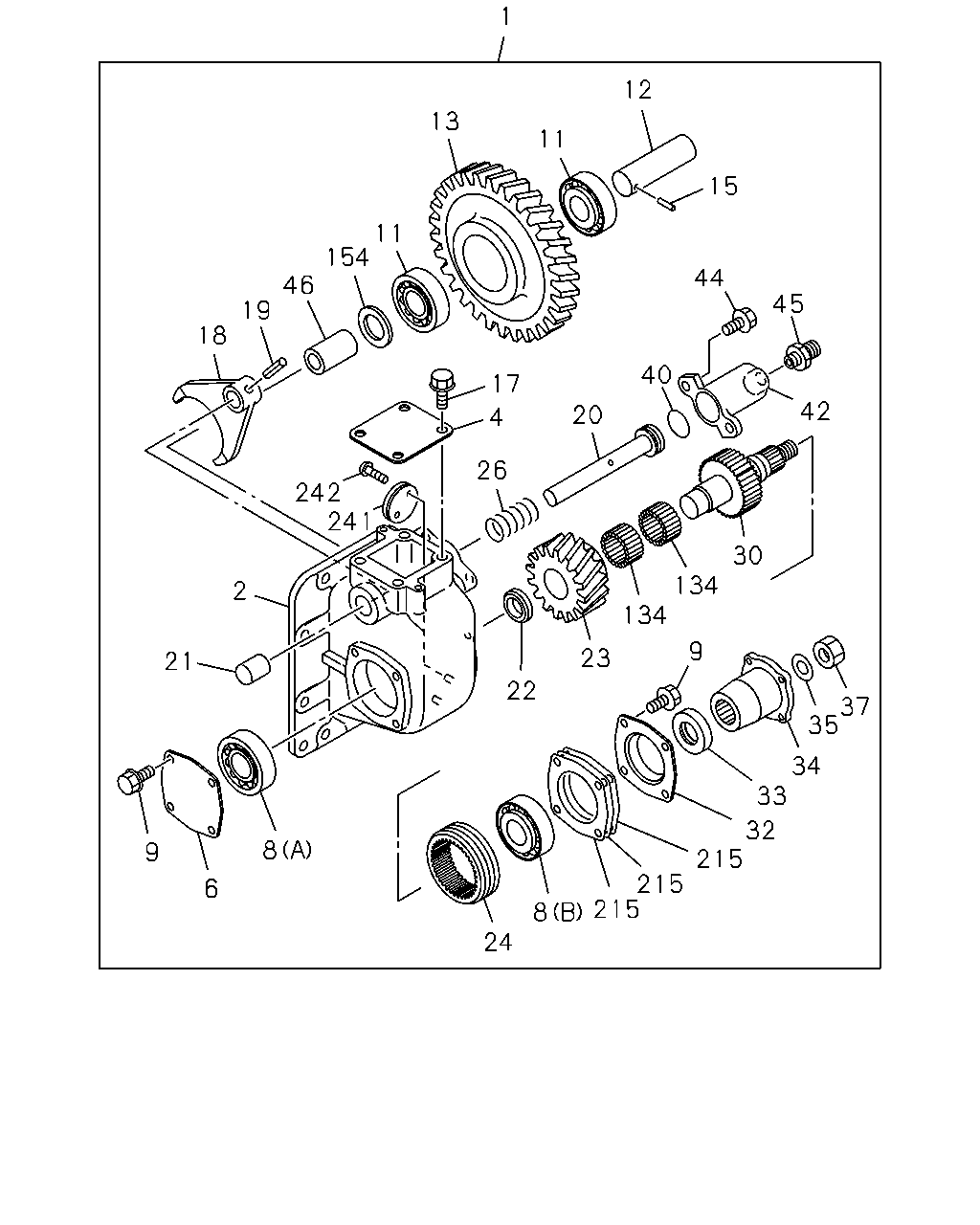

çizim 140508
1 12 13 11 15 11 154 44 46 45 19 18 40 17 42 20 4 26 242 241 30 134 134 2 9 23 21 22 37 35 34 33 32 215 8 9 215 8 215 6 24
BalonParca AdiParca NoAdetTipApplied Date
1 POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-38000-352-1 01 1 0610-
2 CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-38111-112-0 01 1 0610-
4 COVER; UPR,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		9-38121-002-0 01 1 0610-
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-38151-024-0 01 1 0610-
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) 		1-09810-263-0 01 1 0610-
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) 		5-09820-012-0 01 1 0610-
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M10X25 FLANGE 		0-28781-025-0 08 1 0610-
11 BEARING; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-09810-264-0 02 1 0610-
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-38211-039-0 01 1 0610-
13 GEAR; IDLE,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) Z=34 		1-38241-131-0 01 1 0610-
15 PIN; SPR,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		9-09878-614-0 01 1 0610-
17 BOLT; UPR COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M10X20 FLANGE 		0-28181-020-0 04 1 0610-
18 ARM; GEAR SHIFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-38361-041-0 01 1 0610-
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		9-09878-614-0 01 1 0610-
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-38371-048-1 01 1 0610-
21 COVER; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		9-33545-001-0 01 1 0610-
22 COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-38226-082-0 01 1 0610-
23 GEAR; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) Z=18 		1-38241-129-0 01 1 0610-
24 SLEEVE; DOG CLU,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-38225-014-0 01 1 0610-
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-38121-008-0 01 1 0610-
30 SHAFT; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-38211-034-0 01 1 0610-
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-38161-029-0 01 1 0610-
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		8-98028-791-0 01 1 0610-
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-38512-015-0 01 1 0610-
35 WASHER; PL,FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-09503-013-0 01 1 0610-
37 NUT; FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M24 		5-09409-021-0 01 1 0610-
40 GASKET; AIR SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		9-09561-324-0 01 1 0610-
42 CYLINDER; AIR,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-38377-007-0 01 1 0610-
44 BOLT; COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M10X25 FLANGE 		0-28181-025-0 02 1 0610-
44 BOLT; COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M10X25 FLANGE 		0-28781-025-0 02 1 0610-
45 NIPPLE; AIR CYL,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0610-
46 COLLAR; DIST,IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-38216-060-0 01 1 0610-
134 BEARING; NEEDLE,OUTPUT SHAFT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-09811-429-0 02 1 0610-
154 SHIM; IDLE GEAR
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.55 		1-38216-047-0 01 1 0610-
154 SHIM; IDLE GEAR
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.60 		1-38216-048-0 01 1 0610-
154 SHIM; IDLE GEAR
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.65 		1-38216-049-0 01 1 0610-
154 SHIM; IDLE GEAR
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.70 		1-38216-050-0 01 1 0610-
154 SHIM; IDLE GEAR
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.75 		1-38216-051-0 01 1 0610-
154 SHIM; IDLE GEAR
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.80 		1-38216-052-0 01 1 0610-
154 SHIM; IDLE GEAR
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.85 		1-38216-053-0 01 1 0610-
154 SHIM; IDLE GEAR
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.90 		1-38216-054-0 01 1 0610-
154 SHIM; IDLE GEAR
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.95 		1-38216-055-0 01 1 0610-
154 SHIM; IDLE GEAR
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=4.00 		1-38216-056-0 01 1 0610-
154 SHIM; IDLE GEAR
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=4.05 		1-38216-057-0 01 1 0610-
154 SHIM; IDLE GEAR
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=4.10 		1-38216-058-0 01 1 0610-
154 SHIM; IDLE GEAR
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=4.15 		1-38216-059-0 01 1 0610-
215 SHIM; BEARING,PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.10 		5-33156-010-0 04 1 0610-
215 SHIM; BEARING,PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.15 		5-33156-011-0 04 1 0610-
215 SHIM; BEARING,PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.20 		5-33156-012-0 04 1 0610-
215 SHIM; BEARING,PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.40 		5-33156-013-0 04 1 0610-
215 SHIM; BEARING,PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.65 		5-33156-014-0 04 1 0610-
215 SHIM; BEARING,PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.80 		5-33156-015-0 04 1 0610-
241 BRACKET; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-32579-019-0 01 1 0610-
242 SCREW; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-09129-017-0 02 1 0610-
