Sayfa 3-55 - Isuzu EPC

3-55 — BRAKE PIPING; OIL,REAR (#2839) — 73 parça

27 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	PIPE; AIR,3 WAY TO MAXI EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=731 SERVICED BY L=800	1-47434-475-0	01	1	9002-9306	●	●
27	PIPE; AIR,3 WAY TO MAXI EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=881 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306	●	●
27	PIPE; AIR,3 WAY TO MAXI EXC. NYLON TUBE AIR PIPING<Z29> (B) L=657 SERVICED BY L=660	1-47437-964-0	01	1	9002-9212	●	●
27	PIPE; AIR,3 WAY TO MAXI EXC. NYLON TUBE AIR PIPING<Z29> (B) L=658 SERVICED BY L=660	1-47426-409-0	01	1	9301-9306	●	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (A) L=731 SERVICED BY L=800	1-47434-475-0	01	1	9002-9212	●	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (A) L=731 SERVICED BY L=800	1-47426-412-0	01	1	9301-9306	●	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (B) L=745 SERVICED BY L=800	1-47434-475-0	01	1	9002-9306	●	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (B) L=945 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306	●	●

43 42 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	HOSE; FLEX,DIFF LOCK EXC. NYLON TUBE AIR PIPING<Z29> L=630	0-07151-630-0	01	1	9002-9306	●	●
42	HOSE; FLEX,DIFF LOCK EXC. NYLON TUBE AIR PIPING<Z29> L=560	0-07151-560-0	01	1	9307-	●	●
43	GASKET; FLEX TUBE EXC. NYLON TUBE AIR PIPING<Z29> ID=11 OD=18	9-09572-510-0	02	1	9002-	●	●

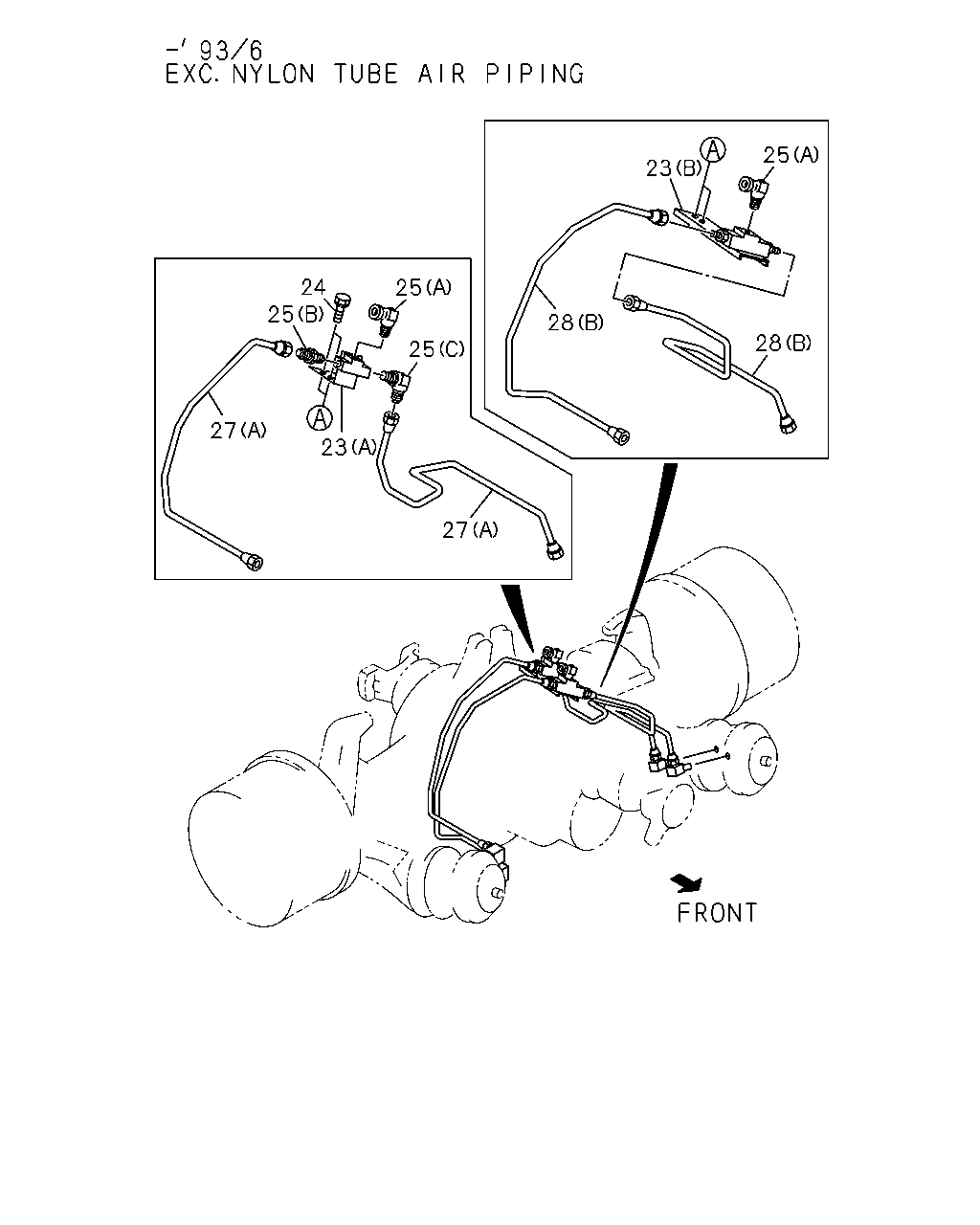

28 25 23 28 25 25 24 25 27 23 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	NIPPLE; W/BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-47475-536-0	01	1	9002-9306	●	●
23	NIPPLE; W/BRKT EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47475-543-0	01	1	9002-9306	●	●
23	NIPPLE; W/BRKT (C)	1-47470-373-1	01	1	9307-	●	●
23	NIPPLE; W/BRKT EXC. NYLON TUBE AIR PIPING<Z29> (D)	1-47475-536-0	01	1	9307-	●	●
24	BOLT; UNION EXC. NYLON TUBE AIR PIPING<Z29> M8X18 W/LK WASHER	9-01910-818-0	02	1	9002-9005	●	●
24	BOLT; UNION EXC. NYLON TUBE AIR PIPING<Z29> M8X18 W/LK WASHER	0-50040-818-0	02	1	9006-9306	●	●
25	CONNECTOR (E)	1-09660-574-0	01	1	9307-	●	●
25	CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9002-9306	●	●
25	CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	9002-9302	●	●
25	CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-9306	●	●
25	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (A) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	9002-9306	●	●
25	CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	9002-9306	●	●
25	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (A) M27 & PT3/8 ELBOW	1-09660-136-1	02	1	9307-	●	●
25	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (F)	1-09660-569-0	01	1	9307-	●	●
25	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (G)	1-09660-570-0	01	1	9307-	●	●
25	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (D)	1-09660-572-0	01	1	9307-	●	●
25	CONNECTOR NYLON TUBE AIR PIPING<Z29> (D)	1-09660-572-0	02	1	9307-		●
27	PIPE; AIR,3 WAY TO MAXI EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=731 SERVICED BY L=800	1-47434-475-0	01	1	9002-9306	●	●
27	PIPE; AIR,3 WAY TO MAXI EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=881 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306	●	●
27	PIPE; AIR,3 WAY TO MAXI EXC. NYLON TUBE AIR PIPING<Z29> (B) L=657 SERVICED BY L=660	1-47437-964-0	01	1	9002-9212	●	●
27	PIPE; AIR,3 WAY TO MAXI EXC. NYLON TUBE AIR PIPING<Z29> (B) L=658 SERVICED BY L=660	1-47426-409-0	01	1	9301-9306	●	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (A) L=731 SERVICED BY L=800	1-47434-475-0	01	1	9002-9212	●	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (A) L=731 SERVICED BY L=800	1-47426-412-0	01	1	9301-9306	●	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (B) L=745 SERVICED BY L=800	1-47434-475-0	01	1	9002-9306	●	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (B) L=945 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306	●	●

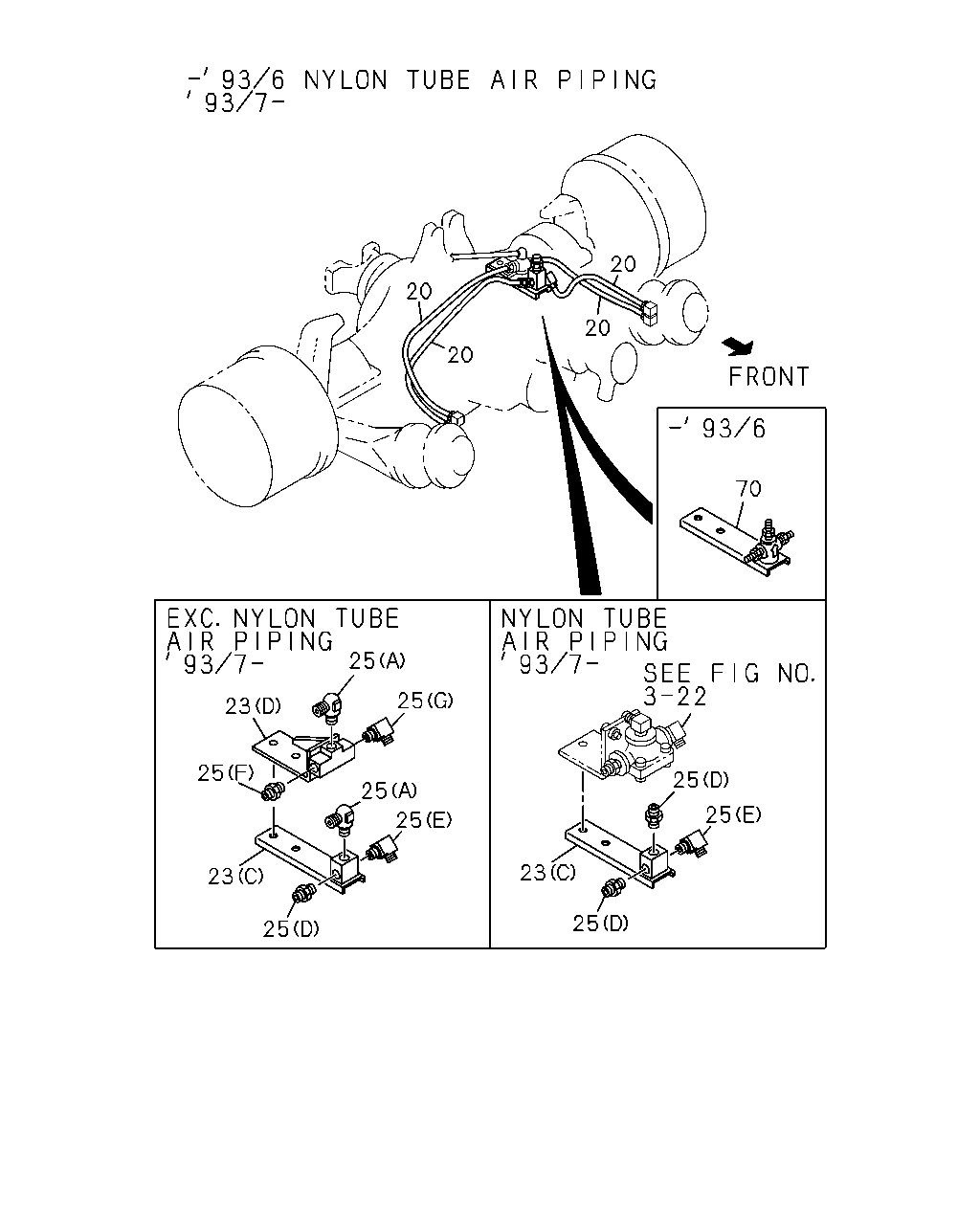

25 23 25 25 70 20 20 20 20 25 25 23 25 25 25 23 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	TUBE ASM; NYLON,FWD AXLE NYLON TUBE AIR PIPING<Z29>	1-47440-012-1	01	1	9002-9306	●	●
20	TUBE ASM; NYLON,FWD AXLE NYLON TUBE AIR PIPING<Z29>	1-47440-011-1	01	1	9002-9306	●	●
23	NIPPLE; W/BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-47475-536-0	01	1	9002-9306	●	●
23	NIPPLE; W/BRKT EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47475-543-0	01	1	9002-9306	●	●
23	NIPPLE; W/BRKT (C)	1-47470-373-1	01	1	9307-	●	●
23	NIPPLE; W/BRKT EXC. NYLON TUBE AIR PIPING<Z29> (D)	1-47475-536-0	01	1	9307-	●	●
25	CONNECTOR (E)	1-09660-574-0	01	1	9307-	●	●
25	CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9002-9306	●	●
25	CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	9002-9302	●	●
25	CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-9306	●	●
25	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (A) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	9002-9306	●	●
25	CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	9002-9306	●	●
25	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (A) M27 & PT3/8 ELBOW	1-09660-136-1	02	1	9307-	●	●
25	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (F)	1-09660-569-0	01	1	9307-	●	●
25	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (G)	1-09660-570-0	01	1	9307-	●	●
25	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (D)	1-09660-572-0	01	1	9307-	●	●
25	CONNECTOR NYLON TUBE AIR PIPING<Z29> (D)	1-09660-572-0	02	1	9307-		●
70	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29>	1-47470-227-0	01	1	9002-9306	●	●

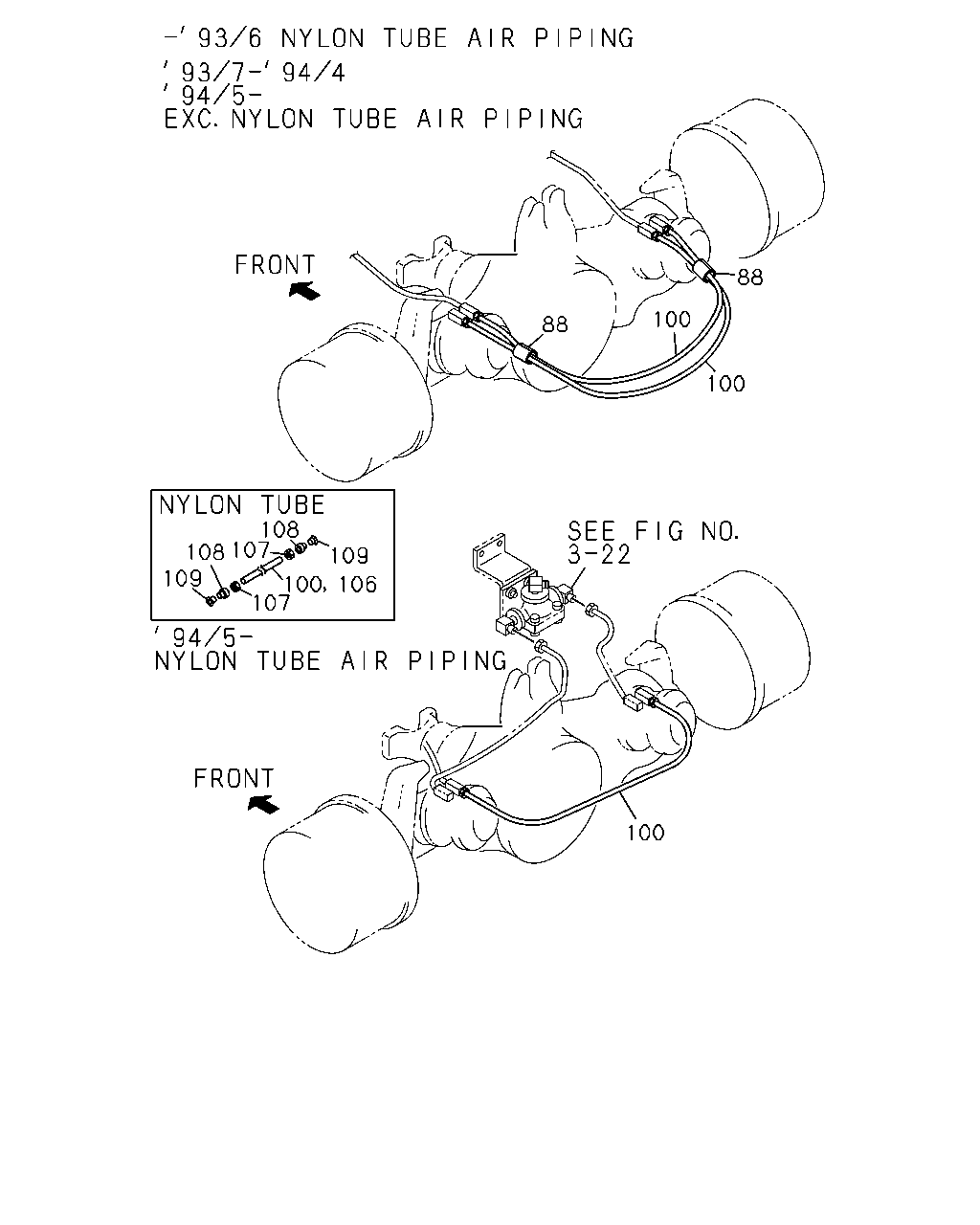

100 107 100 106 109 108 107 108 109 88 100 88 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
88	SLEEVE; RUBBER,BRK PIPE NYLON TUBE AIR PIPING<Z29> ID=17 OD=21 L=40	1-09337-012-0	02	1	9002-9306	●	●
100	TUBE ASM; NYLON,RWD AXLE NYLON TUBE AIR PIPING<Z29>	1-47440-013-1	01	1	9002-9306	●	●
100	TUBE ASM; NYLON,RWD AXLE NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-251-0	01	1	9405-		●
106	TUBE; NYLON SERVICED BY L=30000 OD=3/8"	1-09368-247-0	01	1	9307-9404	●	●
106	TUBE; NYLON EXC. NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	01	1	9405-	●	●
106	TUBE; NYLON SERVICED BY L=30000 OD=1/2"	1-09368-251-0	01	1	9307-9404	●	●
106	TUBE; NYLON EXC. NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-251-0	01	1	9405-	●	●
107	NUT; SLEEVE OD=3/8"	1-09660-557-0	02	1	9307-9404	●	●
107	NUT; SLEEVE EXC. NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	02	1	9405-	●	●
107	NUT; SLEEVE OD=1/2"	1-09660-558-0	02	1	9307-9404	●	●
107	NUT; SLEEVE EXC. NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09660-558-0	02	1	9405-	●	●
108	SLEEVE; TUBE ID=9.75 OD=12.17 L=9.91	1-09666-060-0	02	1	9307-9404	●	●
108	SLEEVE; TUBE EXC. NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	02	1	9405-	●	●
108	SLEEVE; TUBE ID=12.93 OD=15.85 L=10.92	1-09666-061-0	02	1	9307-9404	●	●
108	SLEEVE; TUBE EXC. NYLON TUBE AIR PIPING<Z29> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	02	1	9405-	●	●
109	RING; INSERT OD=1/2"	1-09669-107-0	02	1	9307-9404	●	●
109	RING; INSERT EXC. NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	02	1	9405-	●	●
109	RING; INSERT OD=3/8"	1-09669-108-0	02	1	9307-9404	●	●
109	RING; INSERT EXC. NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	02	1	9405-	●	●
