Sayfa 2-26 - Isuzu EPC

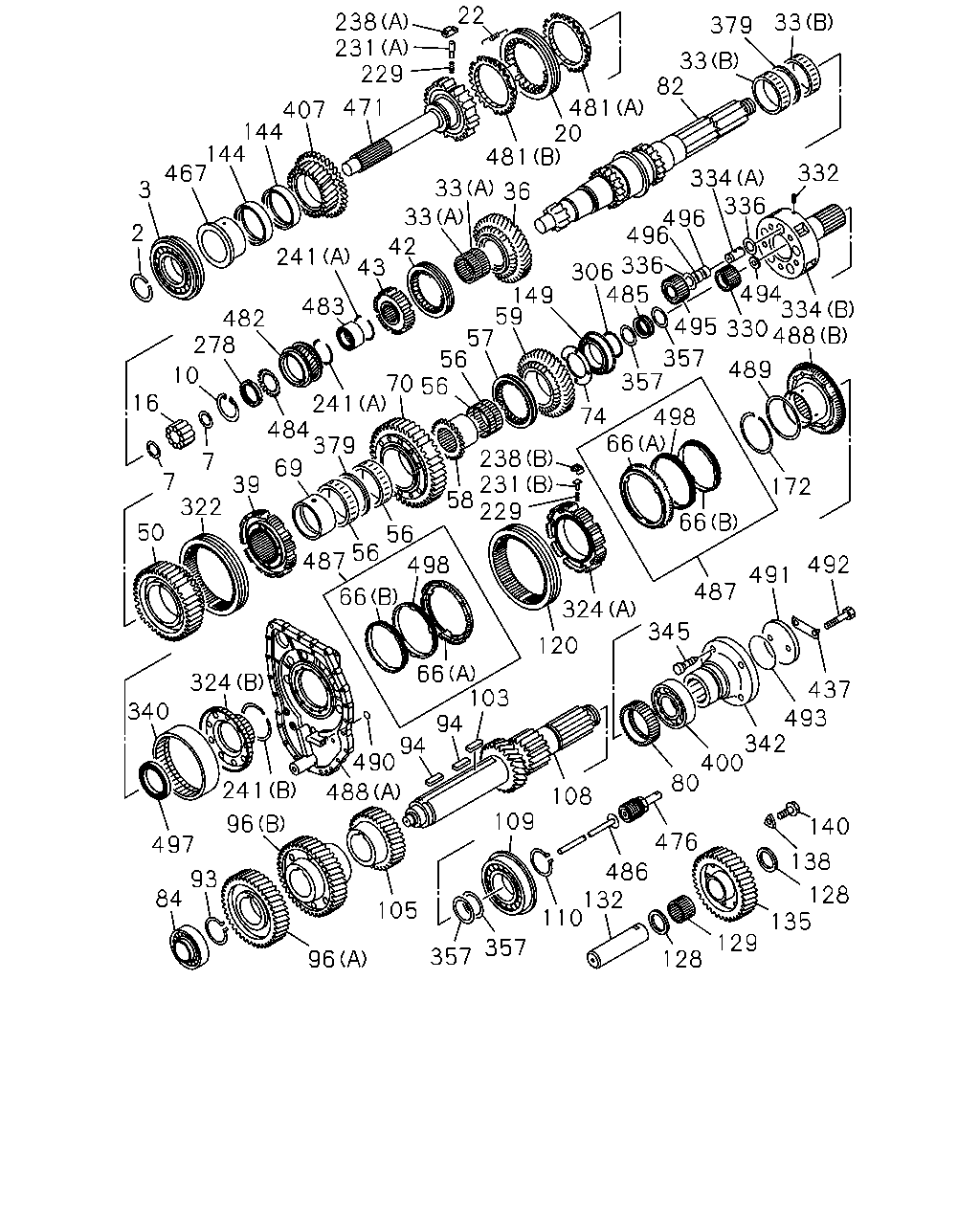

2-26 — MANUAL TRANSMISSION GEAR (#28385) — 268 parça

22 238 231 229 33 379 33 82 471 481 20 481 407 144 144 467 332 334 336 494 334 495 330 488 33 33 36 3 496 496 2 42 43 241 336 306 485 149 59 57 56 70 56 483 482 278 357 357 489 10 16 241 484 379 74 498 66 238 231 58 229 7 69 7 322 39 172 66 50 56 56 487 492 498 491 487 66 324 345 120 66 103 94 324 437 493 342 400 80 94 490 488 340 241 108 109 96 140 476 497 138 486 132 110 93 84 128 135 105 129 357 357 128 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0610-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0610-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0610-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0610-
3	BEARING; TOP GEAR SHAFT NSK	1-09810-278-0	01	1	0610-
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	0610-
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	0610-
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-260-0	16	1	0610-
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-261-0	16	1	0610-
20	SLEEVE	1-33262-216-1	01	1	0610-
22	SPRING; BLOCK,INSERT	1-09583-363-0	03	1	0610-
33	BEARING; NEEDLE,3RD GEAR (A) NSK	1-09811-378-0	02	1	0610-1308
33	BEARING; NEEDLE,3RD GEAR (A) NTN	1-09811-379-0	02	1	0610-
33	BEARING; NEEDLE,3RD GEAR (B) NSK	1-09811-422-0	02	1	0610-1311
33	BEARING; NEEDLE,3RD GEAR (B) NTN	1-09811-423-0	02	1	0610-
36	GEAR; 3RD,MAINSHAFT Z=41	1-33253-680-1	01	1	0610-
39	HUB; CLU,LOW & 2ND	1-33261-279-1	01	1	0610-
42	SLEEVE	1-33262-222-0	01	1	0610-
43	HUB; CLU,3RD & 4TH,MAIN	1-33261-278-1	01	1	0610-
50	GEAR; 2ND,MAINSHAFT Z=43	1-33251-393-1	01	1	0610-
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-422-0	04	1	0610-1311
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-423-0	04	1	0610-
57	SLEEVE; REV	1-33262-209-1	01	1	0610-
58	HUB; CLU,REV	1-33261-286-1	01	1	0610-
59	GEAR; REV MAINSHAFT Z=44	1-33257-081-2	01	1	0610-
66	RING; BLOCK,SYN (A)	1-33265-588-0	02	1	0610-1312
66	RING; BLOCK,SYN (A)	8-98239-909-1	02	1	1401-
66	RING; BLOCK,SYN (B)	1-33265-590-0	02	1	0610-1307
66	RING; BLOCK,SYN (B)	8-98239-294-0	02	1	1308-1312
66	RING; BLOCK,SYN (B)	8-98239-911-1	02	1	1401-
69	COLLAR; 1ST GEAR MAIN	1-33234-099-0	01	1	0610-
70	GEAR; 1ST,MAINSHAFT Z=49	1-33255-071-1	01	1	0610-
74	WASHER; THRUST,REV GEAR	1-33239-308-0	01	1	0610-
80	GEAR; SPD DRIVE Z=11	1-33371-069-0	01	1	0610-
82	SHAFT; MAIN,TRANS Z=37-40-28-19	1-33231-327-2	01	1	0610-
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0610-
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0610-
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0610-
94	KEY; FEATHER,COUNTER SHAFT L=70	1-09735-046-0	02	1	0610-
96	GEAR; COUNTER DRIVE (A) Z=35	1-33331-258-2	01	1	0610-
96	GEAR; COUNTER DRIVE (B) Z=38	1-33338-374-3	01	1	0610-
103	KEY; COUNTER GEAR L=75.3	1-09735-042-0	01	1	0610-
105	GEAR; 3RD,COUNTER Z=36	1-33338-373-1	01	1	0610-
108	SHAFT; COUNTER Z=26-21	1-33311-325-1	01	1	0610-
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-186-0	01	1	0610-
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-207-0	01	1	0610-
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0610-
120	SLEEVE	1-33262-229-0	01	1	0610-
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0610-
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0610-
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0610-
132	SHAFT; REV	1-33351-035-1	01	1	0610-
135	GEAR; REV IDLER Z=30	1-33361-081-1	01	1	0610-
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0610-
140	BOLT; LK PIECE M10X25	1-09049-006-1	01	1	0610-
144	BEARING; NEEDLE,INPUT GEAR NSK	1-09811-422-0	02	1	0610-1311
144	BEARING; NEEDLE,INPUT GEAR NTN	1-09811-423-0	02	1	0610-
149	BEARING; NEEDLE,MAINSHAFT,RR NSK	1-09810-256-0	01	1	0610-
149	BEARING; NEEDLE,MAINSHAFT,RR NTN	1-09810-257-0	01	1	0610-
172	RING; SNAP,CLU HUB OD=121.2	1-09587-031-0	01	1	0610-
229	SPRING; PLUNGER D=3.8	1-09580-395-0	06	1	1404-
229	SPRING; PLUNGER D=6.2	1-09580-091-1	15	1	0610-1403
229	SPRING; PLUNGER D=6.2	1-09580-091-1	09	1	1404-
231	PLUNGER (A)	1-33263-033-0	06	1	0610-1403
231	PLUNGER (A)	8-98273-831-0	06	1	1404-
231	PLUNGER (B)	1-33263-038-1	09	1	0610-
238	INSERT (A)	1-33263-036-0	06	1	0610-
238	INSERT (B)	1-33263-039-0	09	1	0610-
241	RING; SNAP (A)	1-09587-023-0	02	1	0610-
241	RING; SNAP (B)	1-09587-104-0	01	1	0610-
278	NUT; BRG	1-09449-080-0	01	1	0610-
306	RING; SNAP,MAINSHAFT	1-09588-149-0	01	1	0610-
322	SLEEVE; SYN,LOW & 2ND	1-33262-222-0	01	1	0610-
324	HUB; CLU (A)	1-34231-015-0	01	1	0610-
324	HUB; CLU (B)	1-34371-017-0	01	1	0610-1307
324	HUB; CLU (B)	8-98239-089-0	01	1	1308-
330	GEAR; SUN Z=24	1-34311-010-0	01	1	0610-
332	PIN; LOCK,SHAFT	1-09748-025-0	05	1	0610-
334	SHAFT; PLANETARY GEAR (A)	1-34353-010-1	05	1	0610-
334	SHAFT; PLANETARY GEAR (B)	1-34372-034-0	01	1	0610-1307
334	SHAFT; PLANETARY GEAR (B)	8-98238-294-0	01	1	1308-
336	WASHER; THRUST,PLANETARY GEAR	1-09503-230-0	10	1	0610-
340	GEAR; RING Z=86 OKUBO GEAR	1-34371-014-0	01	1	0610-
340	GEAR; RING Z=86 NIPPON GEAR	1-34371-018-0	01	1	0610-
340	GEAR; RING Z=86 ISUZU	1-34371-019-0	01	1	0610-
342	FLANGE; OUTPUT	1-37243-370-0	01	1	0610-
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0610-
357	RING	1-31349-044-0	04	1	0610-
379	PIECE; DIST,MAINSHAFT	1-33363-034-0	02	1	0610-
400	BEARING; OUTPUT SHAFT RR NSK W/SNAP RING	1-09810-254-0	01	1	0610-0910
400	BEARING; OUTPUT SHAFT RR NSK W/SNAP RING	8-98153-252-0	01	1	0911-
400	BEARING; OUTPUT SHAFT RR NTN W/SNAP RING	1-09810-255-0	01	1	0610-0910
407	GEAR; PRIMARY MAIN Z=33	1-33253-717-0	01	1	0610-
437	PLATE; LOCK	1-34252-032-0	01	1	0610-
467	COLLAR; SHAFT	1-33234-091-1	01	1	0610-
471	SHAFT; INPUT	1-33215-020-0	01	1	0610-1102
471	SHAFT; INPUT	8-98174-781-0	01	1	1103-
476	ADAPTER; PUMP DRIVE	1-33339-091-1	01	1	0610-
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	0610-1407
481	RING; BLOCK (A) HIGH	8-98239-518-1	01	1	1408-1410
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	1411-
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	0610-1407
481	RING; BLOCK (B) LOW	8-98239-519-1	01	1	1408-1410
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	1411-
482	GEAR; PRIMARY Z=29	1-33253-720-0	01	1	0610-
483	BEARING; TAPER NTN	1-09810-281-0	01	1	0610-1007
483	BEARING; TAPER NTN	8-98174-410-0	01	1	1008-1504
483	BEARING; TAPER NTN	8-98316-126-0	01	1	1505-
484	PLATE; SETTING	1-33313-023-0	01	1	0610-
485	PIECE; GUIDE	1-33363-040-1	01	1	0610-
486	NOZZLE; CONT SHAFT	1-33219-254-1	01	1	0610-
487	SYNCHRONIZER; RANGE CHANGE	1-33265-616-0	02	1	0610-1307
487	SYNCHRONIZER; RANGE CHANGE	8-98239-293-0	02	1	1308-1312
487	SYNCHRONIZER; RANGE CHANGE	8-98239-908-1	02	1	1401-
488	CLUTCH; DOG,RANGE (A)	1-34252-037-1	01	1	0610-0703
488	CLUTCH; DOG,RANGE (A)	8-98060-771-1	01	1	0704-1307
488	CLUTCH; DOG,RANGE (A)	8-98239-163-0	01	1	1308-
488	CLUTCH; DOG,RANGE (B)	1-34254-006-1	01	1	0610-1211
488	CLUTCH; DOG,RANGE (B)	8-98218-291-0	01	1	1212-1307
488	CLUTCH; DOG,RANGE (B)	8-98238-509-0	01	1	1308-
489	WASHER; THRUST	1-09503-308-0	01	1	0610-
490	GASKET; SEAL,CASE ID=10	1-09623-369-0	01	1	0610-
491	PLATE; OUTPUT SHAFT	1-34252-026-0	01	1	0610-
492	BOLT; PLATE	1-09000-740-0	02	1	0610-
493	GASKET; OUTPUT SHAFT	9-09561-385-0	01	1	0610-
494	PLATE; OUTPUT SHAFT	1-34379-020-0	01	1	0610-1307
495	PINION; PLANETARY Z=30	1-34361-023-0	05	1	0610-
496	BEARING; PLANETARY NSK	1-09811-424-0	10	1	0610-
496	BEARING; PLANETARY NTN	1-09811-425-0	10	1	0610-
497	BEARING; RING GEAR NSK	1-09810-276-0	01	1	0610-1307
497	BEARING; RING GEAR NTN	1-09810-277-0	01	1	0610-1307
497	BEARING; RING GEAR NTN	8-98239-433-0	01	1	1308-
498	CONE; SYN	1-33265-617-0	02	1	0610-1312
498	CONE; SYN	8-98239-910-0	02	1	1401-
