3-46 — AIR DRYER (#2838) — 58 parça

9 9 1 8 10 18 19 11 20 16 11 12 12 12 16 15 14 17 16 11 16 16 15 14 13 16 16 17 12 12 17 11 12 12

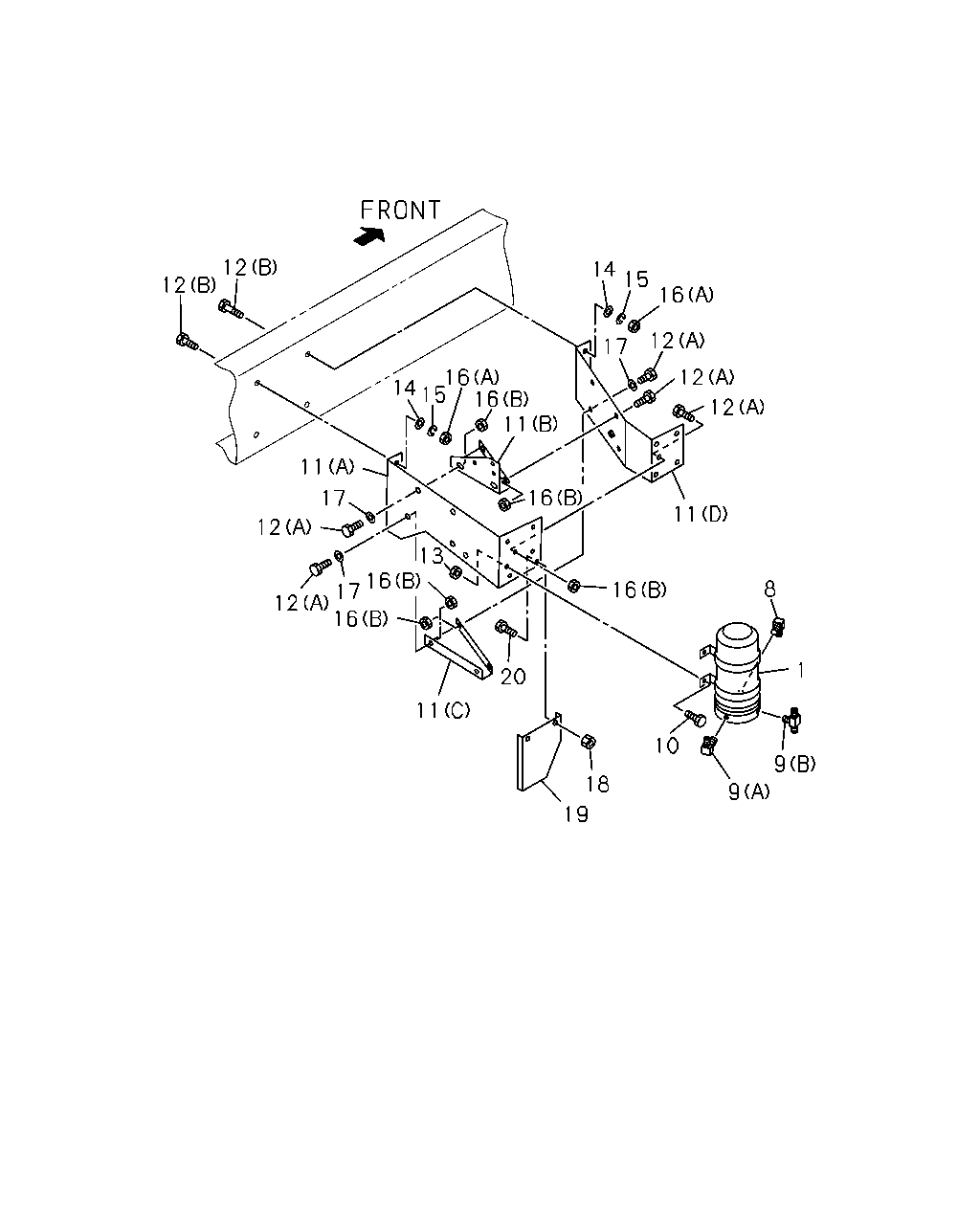

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR AIR DRYER<PS7>	1-48190-054-1	01	1	9002-9306	●	●
1	DRYER; AIR AIR DRYER<PS7>	1-48190-160-2	01	1	9307-	●	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M20 & PT1/2 ELBOW	1-09650-178-1	01	1	9002-9302	●	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9303-	●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	9002-	●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (A) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9002-9302	●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (A) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-	●	●
10	BOLT; AIR DRYER AIR DRYER<PS7> M10X30 W/LK&PL WASHER	9-01961-030-0	04	1	9002-9204	●	●
10	BOLT; AIR DRYER AIR DRYER<PS7> M10X30 W/LK&PL WASHER	0-50141-030-0	04	1	9205-	●	●
11	BRACKET; AIR DRYER AIR DRYER<PS7> (D)	1-53497-338-1	01	1	9002-9301	●	●
11	BRACKET; AIR DRYER AIR DRYER<PS7> (D)	1-53497-349-1	01	1	9302-	●	●
11	BRACKET; AIR DRYER AIR DRYER<PS7> (B)	1-53497-340-1	01	1	9002-	●	●
11	BRACKET; AIR DRYER AIR DRYER<PS7> (C)	1-53497-341-1	01	1	9002-	●	●
11	BRACKET; AIR DRYER AIR DRYER<PS7> SILENCER SINGLE VERTICAL<N28> (A)	1-53497-339-3	01	1	9002-	●	●
11	BRACKET; AIR DRYER AIR DRYER<PS7> TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-53497-364-0	01	1	9002-	●	●
12	BOLT; BRKT AIR DRYER<PS7> (B) M10X25 W/LK WASHER	9-01901-025-0	05	1	9002-9204	●	●
12	BOLT; BRKT AIR DRYER<PS7> (B) M10X25 W/LK WASHER	0-50041-025-0	05	1	9205-	●	●
12	BOLT; BRKT AIR DRYER<PS7> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M14X40	9-92051-440-0	02	1	9002-9003	●	●
12	BOLT; BRKT AIR DRYER<PS7> (A) M14X40	9-92051-440-0	04	1	9004-9005	●	●
12	BOLT; BRKT AIR DRYER<PS7> (A) M14X40	0-20801-440-0	04	1	9006-	●	●
12	BOLT; BRKT AIR DRYER<PS7> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M14X35	9-92051-435-0	02	1	9002-9003	●	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10	9-09110-510-0	04	1	9002-	●	●
14	WASHER; PL,AIR DRYER AIR DRYER<PS7> ID=15 OD=26	9-09164-514-0	02	1	9002-9003	●	●
14	WASHER; PL,AIR DRYER AIR DRYER<PS7> ID=15 OD=26	9-09164-514-0	04	1	9004-	●	●
15	WASHER; LK,BRKT AIR DRYER<PS7> ID=14.2	9-09150-514-0	02	1	9002-9003	●	●
15	WASHER; LK,BRKT AIR DRYER<PS7> ID=14.2	9-09150-514-0	04	1	9004-	●	●
16	NUT; BRKT AIR DRYER<PS7> (B) M10	9-09110-410-0	05	1	9002-	●	●
16	NUT; BRKT AIR DRYER<PS7> (A) M14	9-99110-514-0	02	1	9002-	●	●
17	WASHER; PL,STAY,LWR AIR DRYER<PS7> ID=10.5 OD=18	9-09160-510-0	04	1	9002-	●	●
18	NUT; PROTECTOR V TYPE ENG<91L> AIR DRYER<PS7> M8	9-09110-408-0	02	1	9002-	●	●
19	PROTECTOR; HEAT,AIR DRYER V TYPE ENG<91L> AIR DRYER<PS7>	1-48195-039-0	01	1	9002-	●	●
20	BOLT; PROTECTOR V TYPE ENG<91L> AIR DRYER<PS7> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●
20	BOLT; PROTECTOR V TYPE ENG<91L> AIR DRYER<PS7> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-	●	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

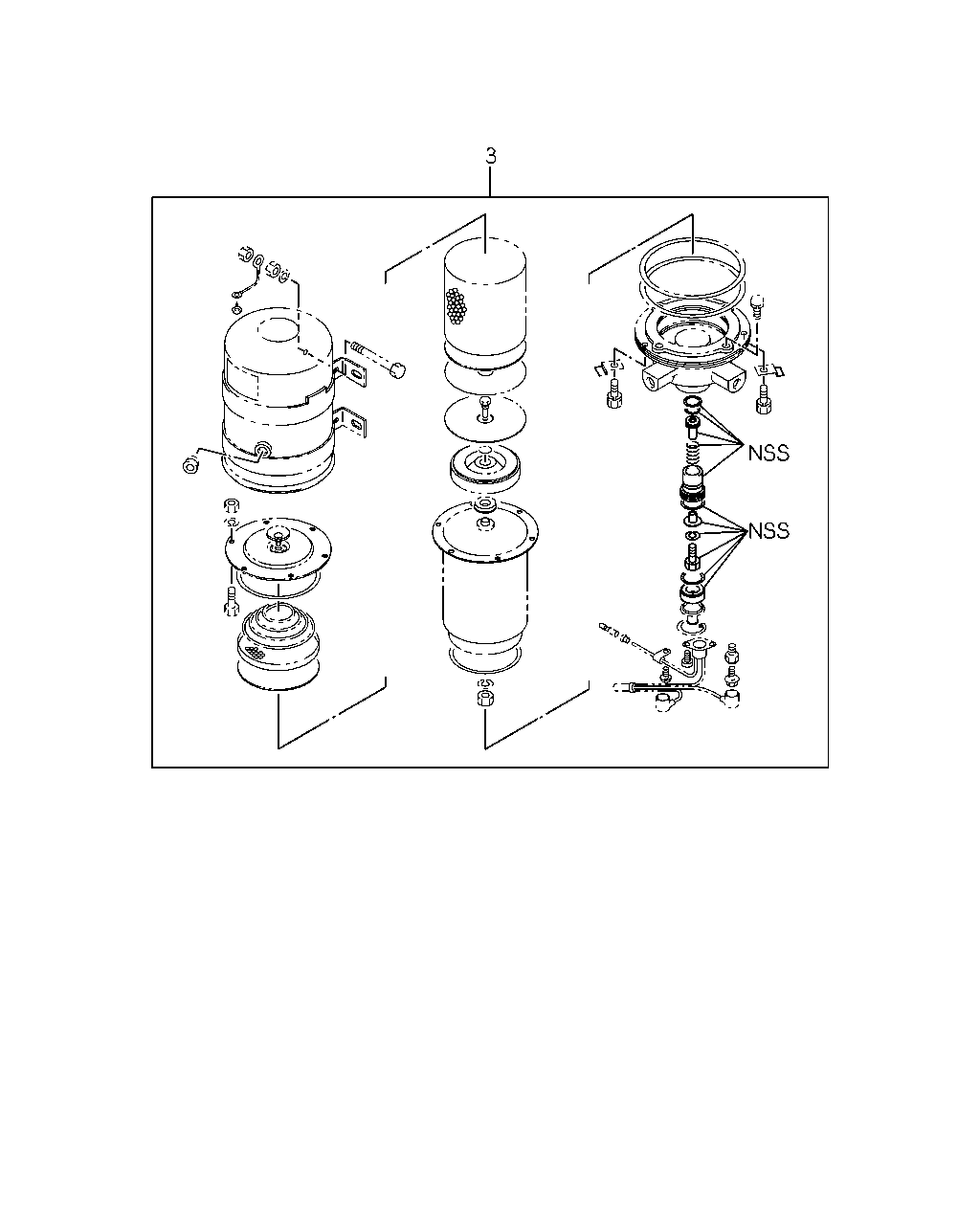

	3	PISTON KIT; AIR DRYER AIR DRYER<PS7>	1-85576-057-1	01	1	9002-	●	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

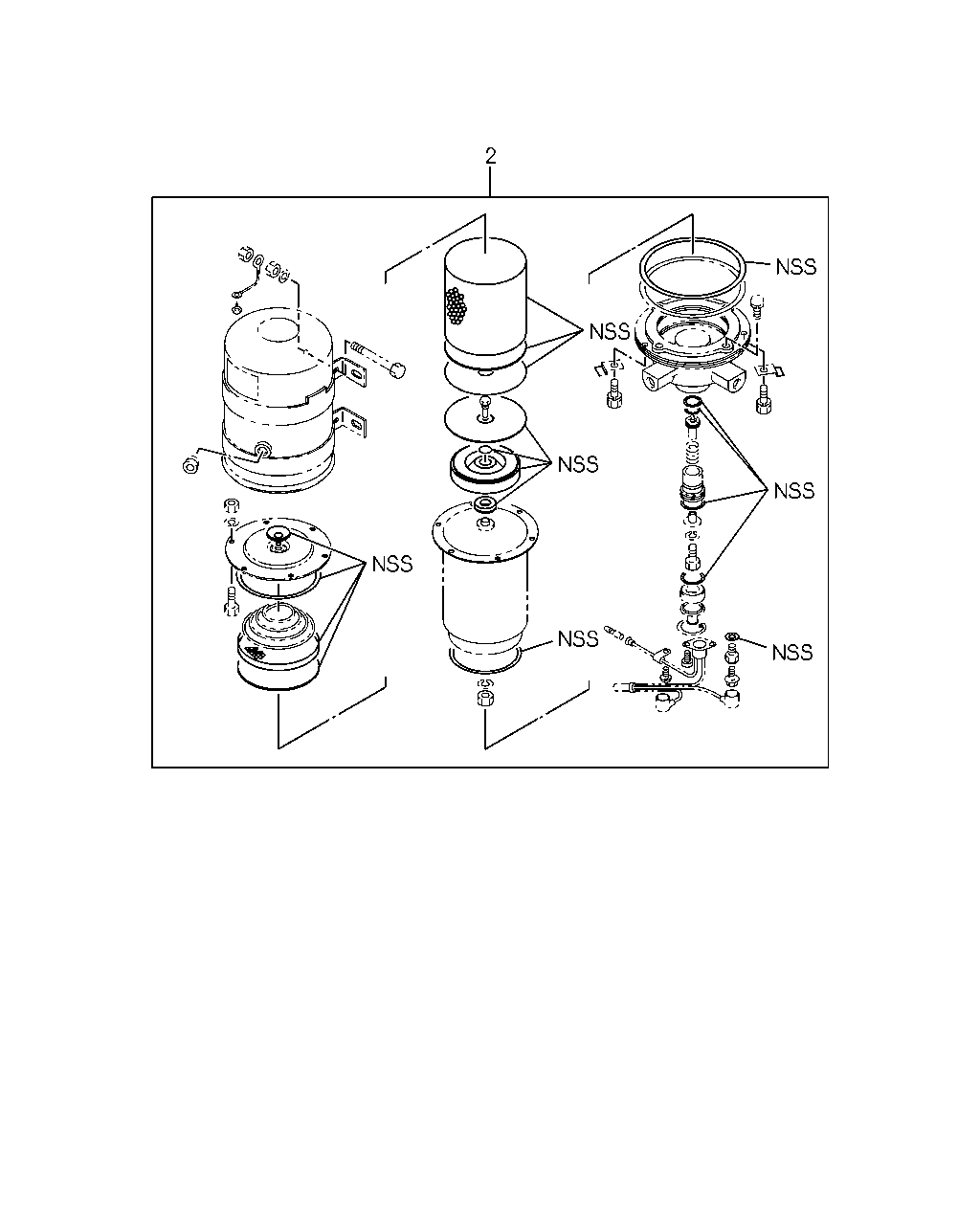

	2	REPAIR KIT; AIR DRYER AIR DRYER<PS7>	1-85576-055-1	01	1	9002-	●	●

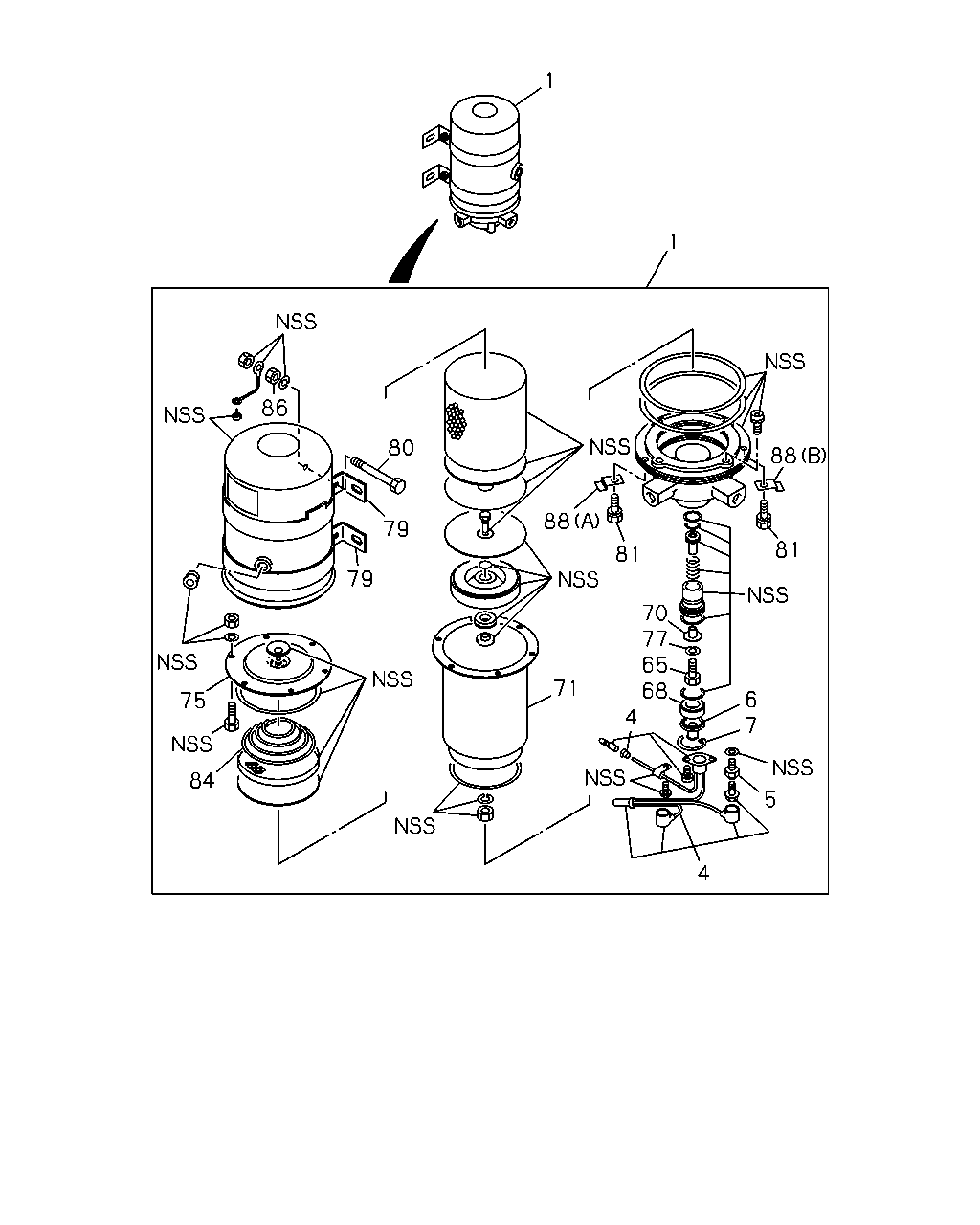

4 5 7 6 4 77 65 68 70 71 81 88 81 88 1 1 80 79 79 86 75 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR AIR DRYER<PS7>	1-48190-054-1	01	1	9002-9306	●	●
1	DRYER; AIR AIR DRYER<PS7>	1-48190-160-2	01	1	9307-	●	●
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7>	1-85576-066-0	01	1	9002-9306	●	●
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7>	1-85576-160-0	01	1	9307-9307	●	●
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7>	1-85576-129-0	01	1	9308-	●	●
5	HEATER ASM; AIR DRYER AIR DRYER<PS7>	1-48199-085-0	02	1	9002-	●	●
6	COVER; EXH,AIR DRYER AIR DRYER<PS7>	1-48199-101-0	01	1	9002-	●	●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7>	1-48199-154-0	01	1	9002-	●	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-102-0	01	1	9308-	●	●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-216-0	01	1	9308-	●	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	9308-	●	●
71	CASE; INNER,AIR DRYER AIR DRYER<PS7>	1-48199-156-1	01	1	9308-	●	●
75	COVER; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-167-0	01	1	9308-	●	●
77	WASHER; LK,VALVE AIR DRYER<PS7>	1-48199-103-0	01	1	9308-	●	●
79	BRACKET; AIR DRYER AIR DRYER<PS7>	1-48199-189-0	02	1	9308-	●	●
79	BRACKET; AIR DRYER AIR DRYER<PS7> SILENCER SINGLE VERTICAL<N28>	1-53497-352-1	01	1	9307-	●	●
79	BRACKET; AIR DRYER AIR DRYER<PS7> TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-53497-363-2	01	1	9307-	●	●
80	BOLT; BRKT AIR DRYER<PS7>	1-48199-190-0	02	1	9308-	●	●
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-177-0	02	1	9308-	●	●
84	SPRING; AIR DRYER AIR DRYER<PS7>	1-48199-166-0	01	1	9308-	●	●
86	NUT; BRKT AIR DRYER<PS7>	1-48199-320-0	02	1	9308-	●	●
88	PLATE; STOPPER AIR DRYER<PS7> (A)	1-48199-178-0	01	1	9308-	●	●
88	PLATE; STOPPER AIR DRYER<PS7> (B)	1-48199-179-0	01	1	9308-	●	●
