1-50 — EXHAUST PIPE AND SILENCER (#28374) — 45 parça

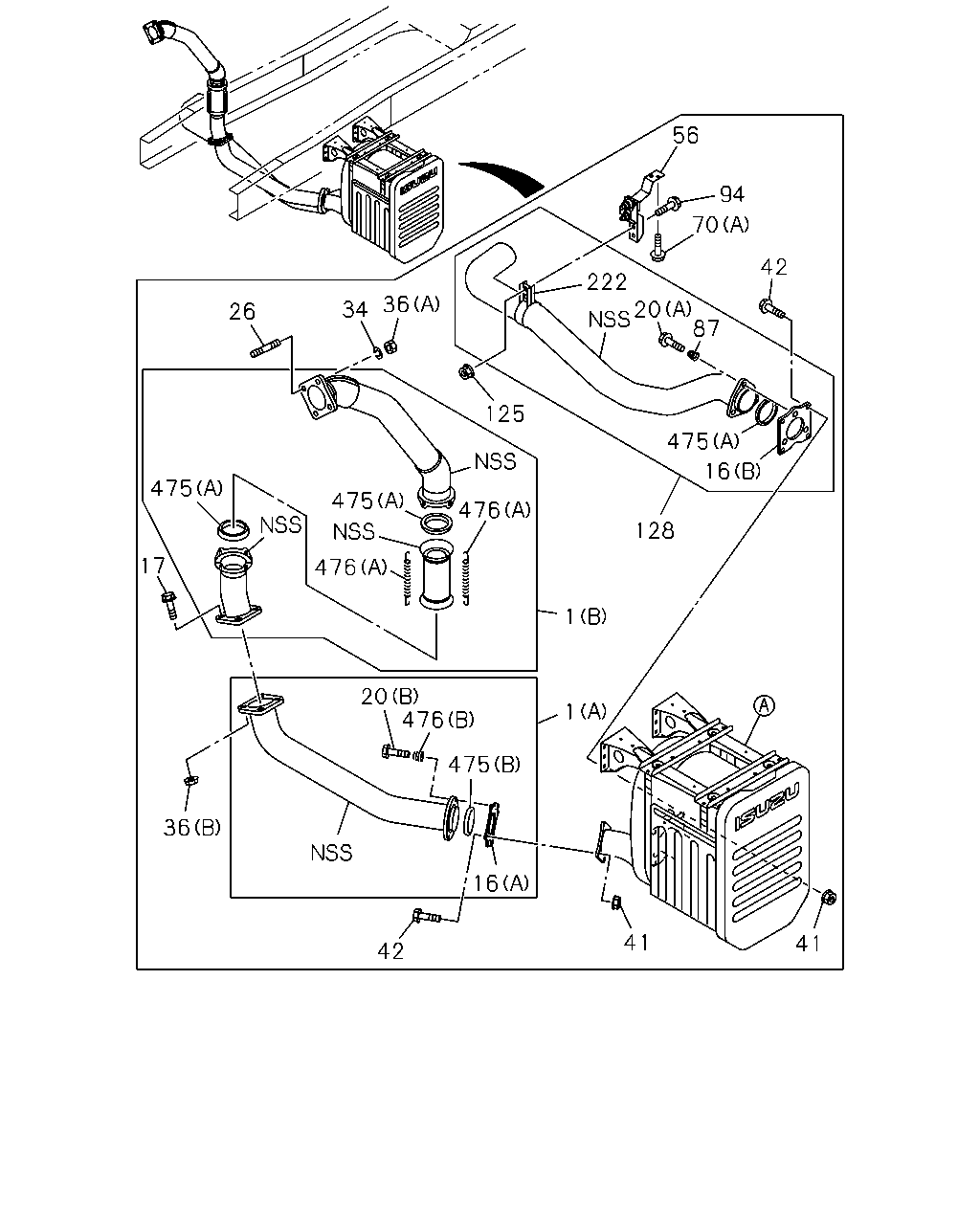

56 94 70 42 222 20 36 34 87 26 125 475 16 475 475 476 128 17 476 1 20 476 1 36 16 41 41 42 475

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH CATALYSIS CONTROL<6MZ> (A)	1-22123-573-1	01	1	0610-
1	PIPE; EXH CATALYSIS CONTROL<6MZ> (B)	1-22124-034-0	01	1	0610-
16	FLANGE; EXH PIPE CATALYSIS CONTROL<6MZ> (B)	1-22115-229-0	01	1	0610-
16	FLANGE; EXH PIPE CATALYSIS CONTROL<6MZ> (A)	1-22115-217-0	01	1	0610-
17	BOLT; EXH PIPE CATALYSIS CONTROL<6MZ> M12X25 FLANGE	1-09000-604-0	04	1	0610-
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> (A) M10X51.4	1-09009-167-0	03	1	0610-0701
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> (A) M10X51.4	8-94436-943-0	03	1	0702-
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> (B) M10X51.4	8-94436-943-0	02	1	0610-
26	STUD; EXH MANIF CATALYSIS CONTROL<6MZ> M12X140 L=160	1-09302-163-0	04	1	0610-
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	0610-
36	NUT; EXH PIPE CATALYSIS CONTROL<6MZ> (B) M12	0-91110-512-0	04	1	0610-
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	0610-
41	NUT; EXH PIPE TO EXH SILENCER CATALYSIS CONTROL<6MZ> M12	0-91110-512-0	08	1	0610-
42	BOLT; EXH PIPE TO EXH SILENCER CATALYSIS CONTROL<6MZ> M12X25 FLANGE	1-09000-604-0	08	1	0610-
56	BRACKET; CLAMP,EXH PIPE CATALYSIS CONTROL<6MZ>	1-22151-976-2	01	1	0610-
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (B) M10X50 FLANGE	0-28051-050-0	04	1	0610-
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (C) M10X20 FLANGE	0-28651-020-0	04	1	0610-
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (A) M10X30 FLANGE	0-28651-030-0	02	1	0610-
87	SPRING; PRE SILENCER CATALYSIS CONTROL<6MZ>	8-94141-851-0	03	1	0610-
94	BOLT; CLAMP CATALYSIS CONTROL<6MZ> M8X40 FLANGE	0-28650-840-0	02	1	0610-
125	NUT; CLAMP CATALYSIS CONTROL<6MZ> M8 FLANGE	0-91180-108-0	02	1	0610-
128	PIPE; EXH,RR CATALYSIS CONTROL<6MZ>	1-22126-399-1	01	1	0610-
222	CLAMP; EXH PIPE CATALYSIS CONTROL<6MZ>	1-22133-276-0	01	1	0610-
475	BEARING; SEAL,VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (B) OD=112	1-22119-294-1	01	1	0610-
475	BEARING; SEAL,VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (A) OD=122	1-22119-297-1	01	1	0610-
476	SPRING; VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (B)	8-94141-851-0	02	1	0610-
476	SPRING; VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (A)	1-09583-248-0	04	1	0610-

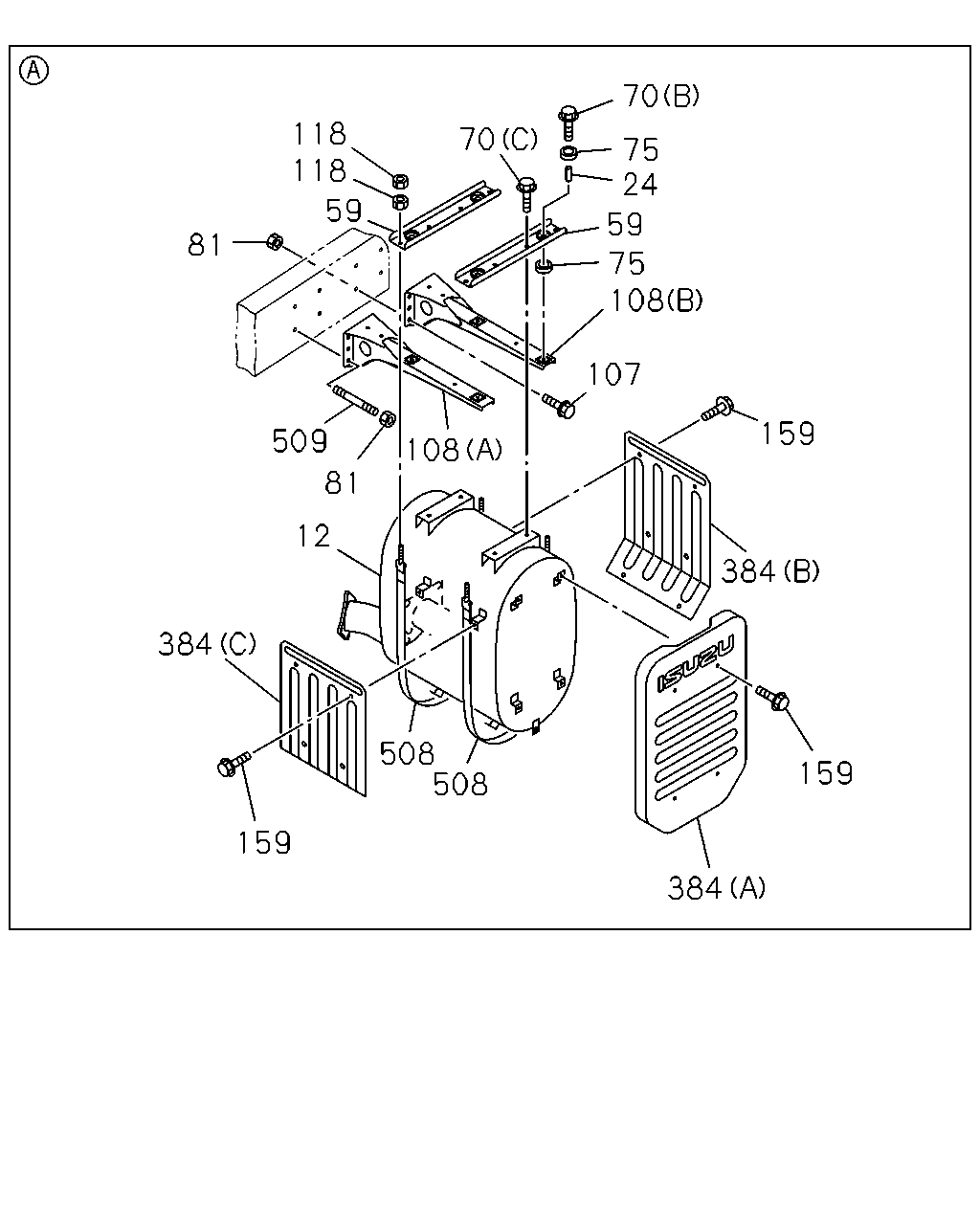

70 118 118 70 75 24 59 59 81 75 108 107 108 159 509 81 12 384 384 508 508 159 159 384

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH CATALYSIS CONTROL<6MZ>	8-97611-402-0	01	1	0610-
24	COLLAR; DIST,CLAMP CATALYSIS CONTROL<6MZ> L=22	9-22159-024-0	04	1	0610-
59	BRACKET; EXH SILENCER,FRT CATALYSIS CONTROL<6MZ>	1-22151-710-1	02	1	0610-
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (B) M10X50 FLANGE	0-28051-050-0	04	1	0610-
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (C) M10X20 FLANGE	0-28651-020-0	04	1	0610-
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (A) M10X30 FLANGE	0-28651-030-0	02	1	0610-
75	RUBBER; SUPPORT,BRKT CATALYSIS CONTROL<6MZ> OD=40	1-22159-094-0	08	1	0610-
81	NUT; BRKT CATALYSIS CONTROL<6MZ> M12 FLANGE	0-91180-212-0	08	1	0610-
107	BOLT; BRKT CATALYSIS CONTROL<6MZ> M12X35 FLANGE	0-28651-235-0	04	1	0610-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR CATALYSIS CONTROL<6MZ> (A)	1-22131-774-3	01	1	0610-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR CATALYSIS CONTROL<6MZ> (B)	1-22131-775-3	01	1	0610-
118	NUT; SILENCER MTG BRKT CATALYSIS CONTROL<6MZ> M10	0-91110-510-0	08	1	0610-
159	BOLT; HEAT PROTECTOR CATALYSIS CONTROL<6MZ> M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	0610-
384	PROTECTOR; HEAT SILENCER MTG CATALYSIS CONTROL<6MZ> (B)	1-22119-341-3	01	1	0610-
384	PROTECTOR; HEAT SILENCER MTG CATALYSIS CONTROL<6MZ> (A)	1-22119-378-4	01	1	0610-
384	PROTECTOR; HEAT SILENCER MTG CATALYSIS CONTROL<6MZ> (C)	1-22119-527-0	01	1	0610-
508	BAND; EXHAUST SILENCER CATALYSIS CONTROL<6MZ>	1-22159-382-0	02	1	0610-
509	STUD; BRKT CATALYSIS CONTROL<6MZ> M12X40 L=56	1-09300-123-0	04	1	0610-
