1-40 — FUEL TANK (#28371) — 30 parça

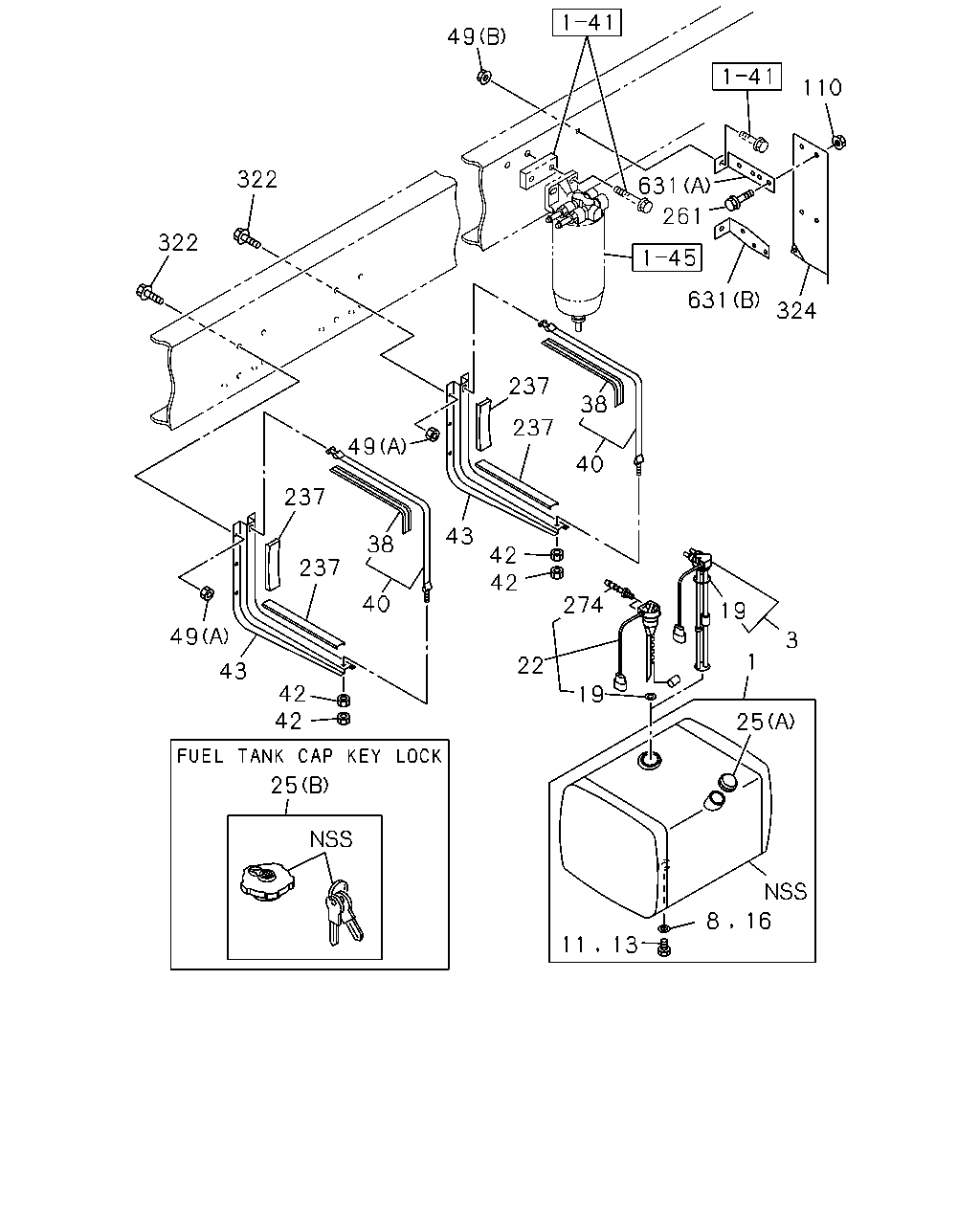

çizim 140849
49 631 631 110 324 237 40 237 43 274 42 22 19 19 3 25 1 16 8 13 11 25 42 43 49 237 237 49 322 322 261 38 40 42 38 42
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; FUEL
1050X680X625 400L 		1-87411-173-1 01 1 0610-0810
1 TANK; FUEL
1050X680X625 400L 		1-87411-699-1 01 1 0811-1109
1 TANK; FUEL
1050X680X625 400L 		1-87411-788-3 01 1 1110-
3 UNIT; FUEL TANK,SUB 8-98217-749-0 01 1 1211-
8 GASKET; DRAIN PLUG,FUEL TANK
ID=18.2 T=1.6 		8-98030-453-0 01 1 1211-
11 PLUG; DRAIN,FUEL TANK
M18X12 		0-92002-418-0 01 1 1211-
13 PLUG; SCREW,SUB TANK JOINT
M18X12 		0-92002-418-0 01 1 0610-1210
16 GASKET; PLUG
ID=18.2 T=1.6 		8-98030-453-0 01 1 0610-1210
19 GASKET; FUEL TANK UNIT
ID=58 		1-83149-005-0 01 1 0610-1210
19 GASKET; FUEL TANK UNIT
ID=54.5 		8-98299-580-0 01 1 1211-
22 UNIT; FUEL TANK 1-83141-132-0 01 1 0610-1210
25 CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05> (B) 		8-98108-595-0 01 1 0806-
25 CAP; FILLER,FUEL TANK
(A) 		1-22440-063-1 01 1 0610-0810
25 CAP; FILLER,FUEL TANK
(A) 		8-98115-780-0 01 1 0811-1109
25 CAP; FILLER,FUEL TANK
(A) 		8-98182-306-0 01 1 1110-
38 INSULATION; SUPPORT BELT
L=1156 		1-22553-039-1 02 1 0610-
40 BELT; SUPPORT,FUEL TANK
L=1210 		1-22550-261-0 02 1 0610-1110
40 BELT; SUPPORT,FUEL TANK
L=1210 		8-98202-448-0 02 1 1111-
42 NUT; SUPPORT BELT
M10 		0-91110-510-0 04 1 0610-
43 BRACKET; FUEL TANK 1-53461-525-1 02 1 0610-
49 NUT; BRKT
(A) M12 		0-91110-512-0 12 1 0610-
49 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0610-
110 NUT; PROTECTOR
M8 FLANGE 		0-91180-108-0 04 1 0610-
237 GASKET; BRKT TO FUEL TANK 1-22553-037-1 04 1 0610-
261 BOLT; PROTECTOR
M8X20 FLANGE 		0-28650-820-0 04 1 0610-
274 CONNECTOR; ELBOW,FUEL TANK PIPE 1-83149-006-0 02 1 0610-1210
322 BOLT; BRKT FIX
M12X40 FLANGE 		0-28051-240-0 12 1 0610-
324 PROTECTOR; FUEL SEDIMENTER 1-47471-216-0 01 1 0610-
631 BRACKET; PROTECTOR
(A) 		1-82698-358-0 01 1 0610-
631 BRACKET; PROTECTOR
(B) 		1-82698-625-0 01 1 0610-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
