Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11039 - EXZ RHD EURO4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-30 - AIR CLEANER
▶
1-30 — AIR CLEANER
(#28368) — 17 parça
◀

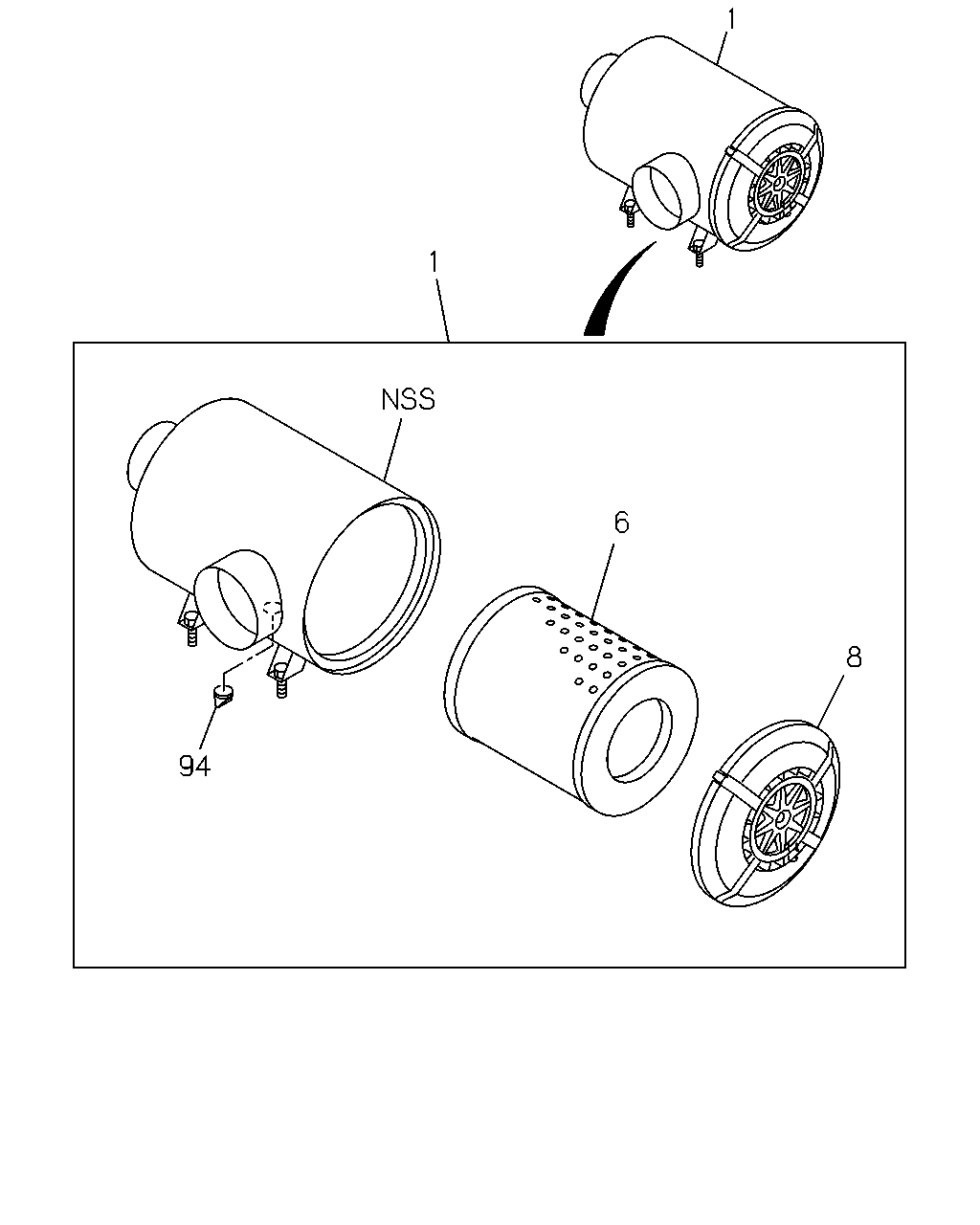

[130A] COMPONENT (4 parça)

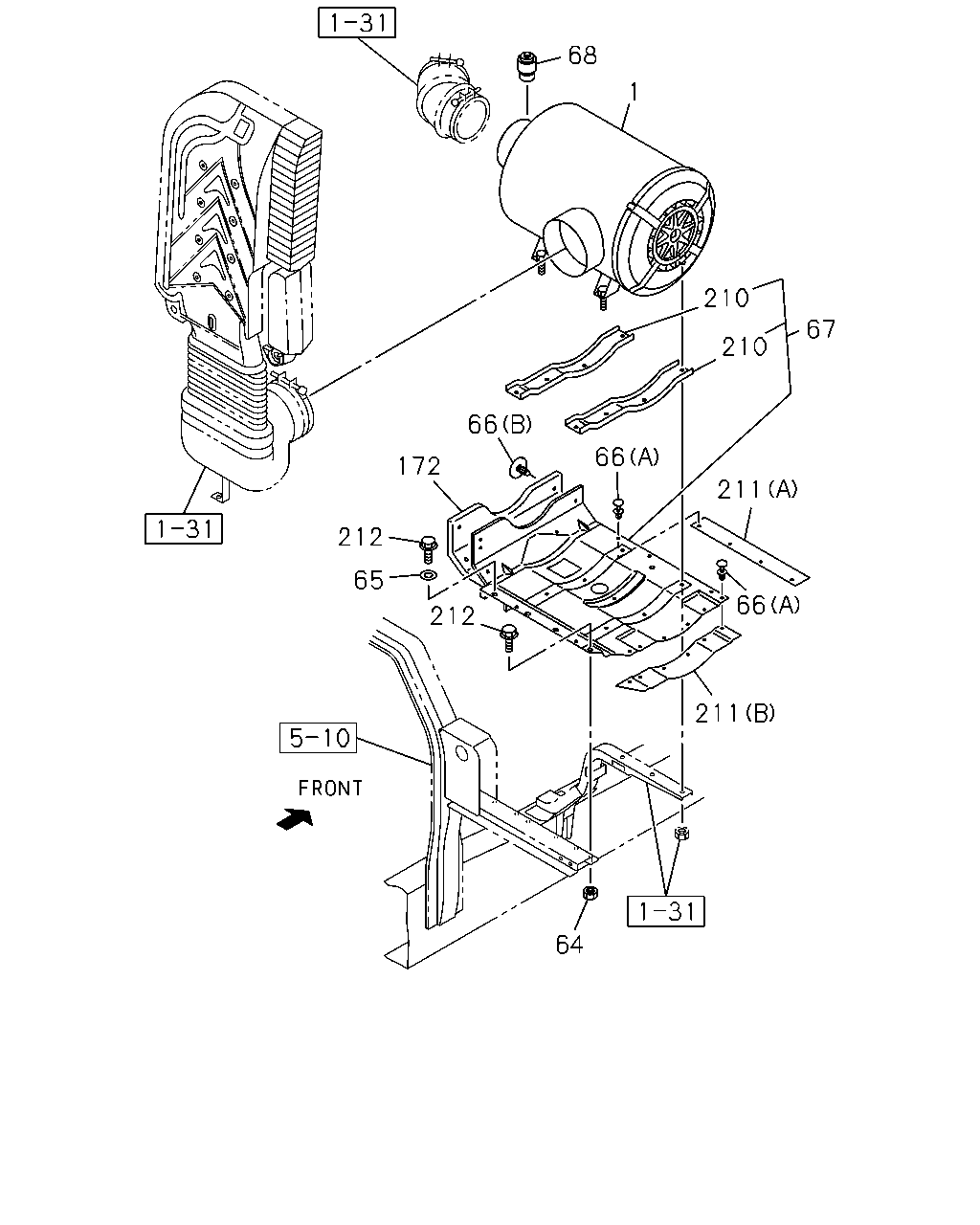

[130A] FIXING (13 parça)
▶
1
1
6
8
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLEANER ASM; AIR
1-14210-837-0
01
1
0610-
6
FILTER; ACL
1-14215-213-0
01
1
0610-
8
COVER ASM; ACL
1-14212-132-0
01
1
0610-
94
VALVE; VACUATOR
1-14219-192-0
01
1
0610-
68
1
210
67
210
66
66
172
211
212
65
212
66
211
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLEANER ASM; AIR
1-14210-837-0
01
1
0610-
64
NUT; BAND BRKT
M10 FLANGE
0-91180-210-0
04
1
0610-
65
WASHER; PL
ID=10.5 OD=26
9-09160-710-0
04
1
0610-1204
65
WASHER; PL
ID=10.5
0-91610-710-0
04
1
1205-
66
CLIP; ACL
(A)
5-09987-033-0
10
1
0610-
66
CLIP; ACL
(B)
8-94279-048-0
06
1
0610-
67
COVER; ACL
1-53419-416-0
01
1
0610-
68
INDICATOR; SERVICE
1-14219-212-0
01
1
0610-
172
INSULATOR; NOISE
1-53449-105-0
01
1
0610-
210
BRACKET; ACL MTG
1-53419-283-0
02
1
0610-
211
RUBBER; SEAL
(A)
1-79931-007-0
01
1
0610-
211
RUBBER; SEAL
(B)
1-79931-008-2
01
1
0610-
212
BOLT; MUD COVER
M10X25 FLANGE
0-28651-025-0
04
1
0610-
