0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#28361) — 101 parça

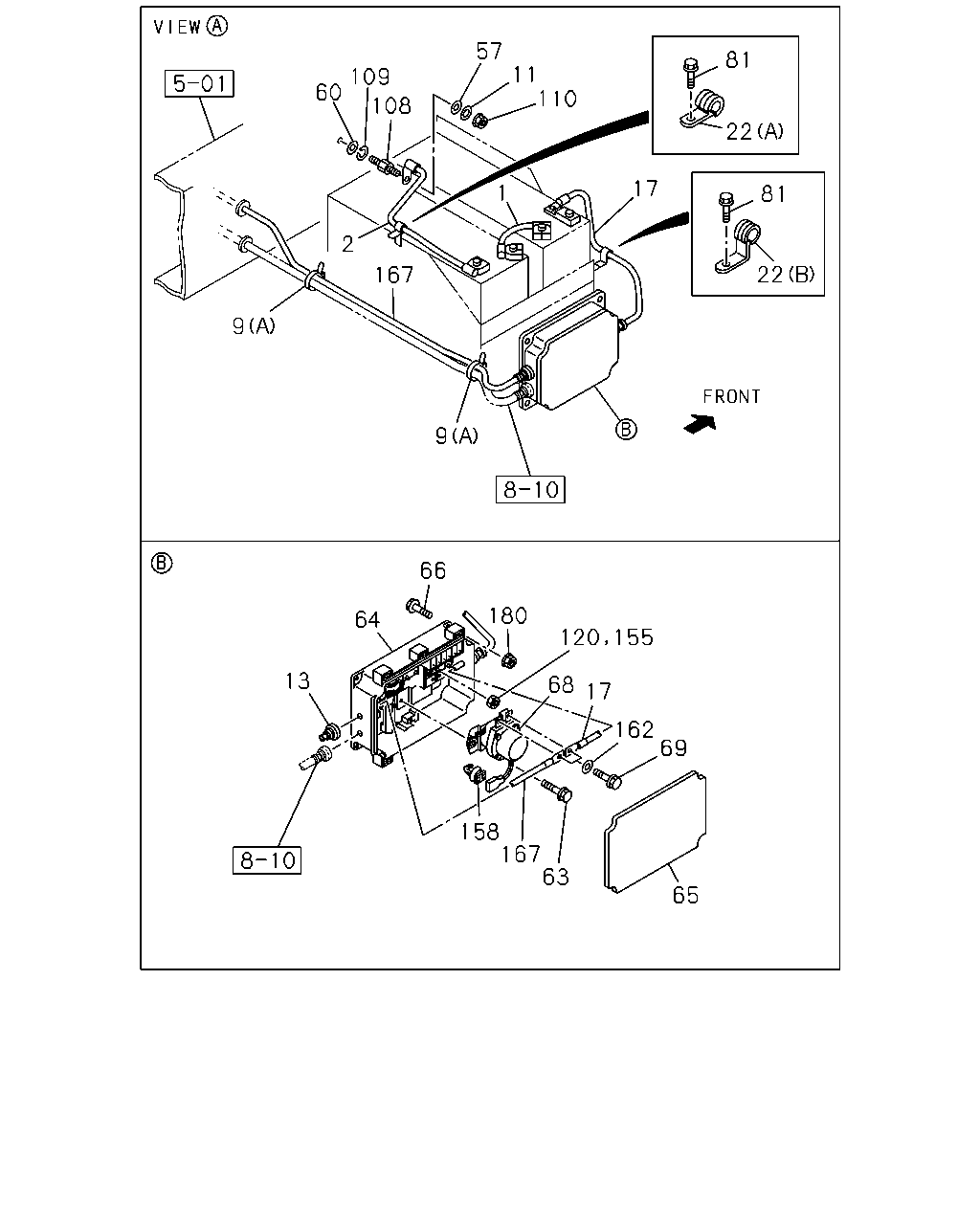

çizim 140826
57 81 11 110 109 60 108 22 17 1 81 2 22 167 9 9 66 180 64 13 68 17 162 69 158 167 63 65 120 155
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
BATTERY CABLE W/TERMINAL CAP<ECQ> BATTERY 115F51 N120<SJ3> L=265 		1-82650-390-1 01 1 0610-
1 CABLE; BATTERY
BATTERY CABLE W/TERMINAL CAP<ECQ> BATTERY 145G51 N150<SJ8> L=450 		1-82650-391-1 01 1 0610-
1 CABLE; BATTERY
BATTERY 115F51 N120<SJ3> EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=265 		1-82650-388-1 01 1 0610-
1 CABLE; BATTERY
BATTERY 145G51 N150<SJ8> EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=450 		1-82650-389-1 01 1 0610-
2 CABLE; BATTERY
BATTERY CABLE W/TERMINAL CAP<ECQ> L=720 		1-82650-386-1 01 1 0610-
2 CABLE; BATTERY
EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=720 		1-82650-384-1 01 1 0610-
9 CLIP; BATTERY CABLE
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0610-
9 CLIP; BATTERY CABLE
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 0610-
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 		1-09701-067-0 03 1 0610-
9 CLIP; BATTERY CABLE
(E) ID=18 L=28 H=30 		1-09701-110-0 02 1 0610-
9 CLIP; BATTERY CABLE
(A) L=350 		1-09707-183-0 05 1 0610-
9 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-94176-807-1 02 1 0610-0610
9 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-94176-807-1 02 1 0610-0610
9 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-94176-807-1 02 1 0610-0610
9 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-94176-807-1 02 1 0611-
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 0610-
13 GROMMET; BATTERY CABLE
ID=26 		1-09333-140-0 01 1 0610-
17 CABLE; BATTERY (+) TO RELAY
BATTERY CABLE W/TERMINAL CAP<ECQ> L=640 		1-82652-762-3 01 1 0610-
17 CABLE; BATTERY (+) TO RELAY
EXC. BATTERY CABLE W/TERMINAL CAP<ECQ> L=640 		1-82652-760-3 01 1 0610-
22 CLIP; BATTERY CABLE
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0610-
22 CLIP; BATTERY CABLE
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0610-
22 CLIP; BATTERY CABLE
(A) ID=25 L=50 		1-09701-019-0 01 1 0610-
22 CLIP; BATTERY CABLE
(C) ID=11 & 13 H=26 L=48 		1-09701-270-0 02 1 0610-
57 WASHER; PL,BATTERY CABLE
ID=6.4 		9-09164-506-0 01 1 0610-
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 0610-
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0610-
64 BOX; BATTERY RELAY 1-82510-650-0 01 1 0610-
65 COVER; BATTERY RELAY 1-82510-654-1 01 1 0610-
66 BOLT; COVER,BATTERY RELAY
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0610-
68 RELAY; BATTERY 1-82550-313-0 01 1 0610-
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 0610-
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28650-825-0 06 1 0610-
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 0610-
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 0610-
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 0610-
120 NUT; RELAY BATTERY
M8 FLANGE 		0-91180-108-0 01 1 0612-
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 0610-
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 02 1 0610-
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 0610-
167 CABLE; BATTERY RELAY TO STARTER
L=5430 		1-82652-909-8 01 1 0610-0610
167 CABLE; BATTERY RELAY TO STARTER
L=5430 		8-97618-795-1 01 1 0611-
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 02 1 0610-
çizim 140828
64 208 208 208
BalonParca AdiParca NoAdetTipApplied Date
64 BOX; BATTERY RELAY 1-82510-650-0 01 1 0610-
208 FUSE
(C) 80A 		1-82516-031-0 01 1 0610-
208 FUSE
(B) 100A 		1-82516-032-0 01 1 0610-
208 FUSE
(A) 40A GREEN 		8-94468-662-0 06 1 0610-
çizim 140829
9 9 18 22 22 99 99 9 9 22 9 158 22 9
BalonParca AdiParca NoAdetTipApplied Date
9 CLIP; BATTERY CABLE
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0610-
9 CLIP; BATTERY CABLE
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 0610-
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 		1-09701-067-0 03 1 0610-
9 CLIP; BATTERY CABLE
(E) ID=18 L=28 H=30 		1-09701-110-0 02 1 0610-
9 CLIP; BATTERY CABLE
(A) L=350 		1-09707-183-0 05 1 0610-
9 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-94176-807-1 02 1 0610-0610
9 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-94176-807-1 02 1 0610-0610
9 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-94176-807-1 02 1 0610-0610
9 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-94176-807-1 02 1 0611-
18 CLIP; BATTERY CABLE
ID=21 L=24 		8-94176-807-1 01 1 0610-
22 CLIP; BATTERY CABLE
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0610-
22 CLIP; BATTERY CABLE
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0610-
22 CLIP; BATTERY CABLE
(A) ID=25 L=50 		1-09701-019-0 01 1 0610-
22 CLIP; BATTERY CABLE
(C) ID=11 & 13 H=26 L=48 		1-09701-270-0 02 1 0610-
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 02 1 0610-
99 CLIP; BATTERY CABLE
(B) ID=18 L=25 H=50 		1-09701-096-0 02 1 0610-
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 02 1 0610-

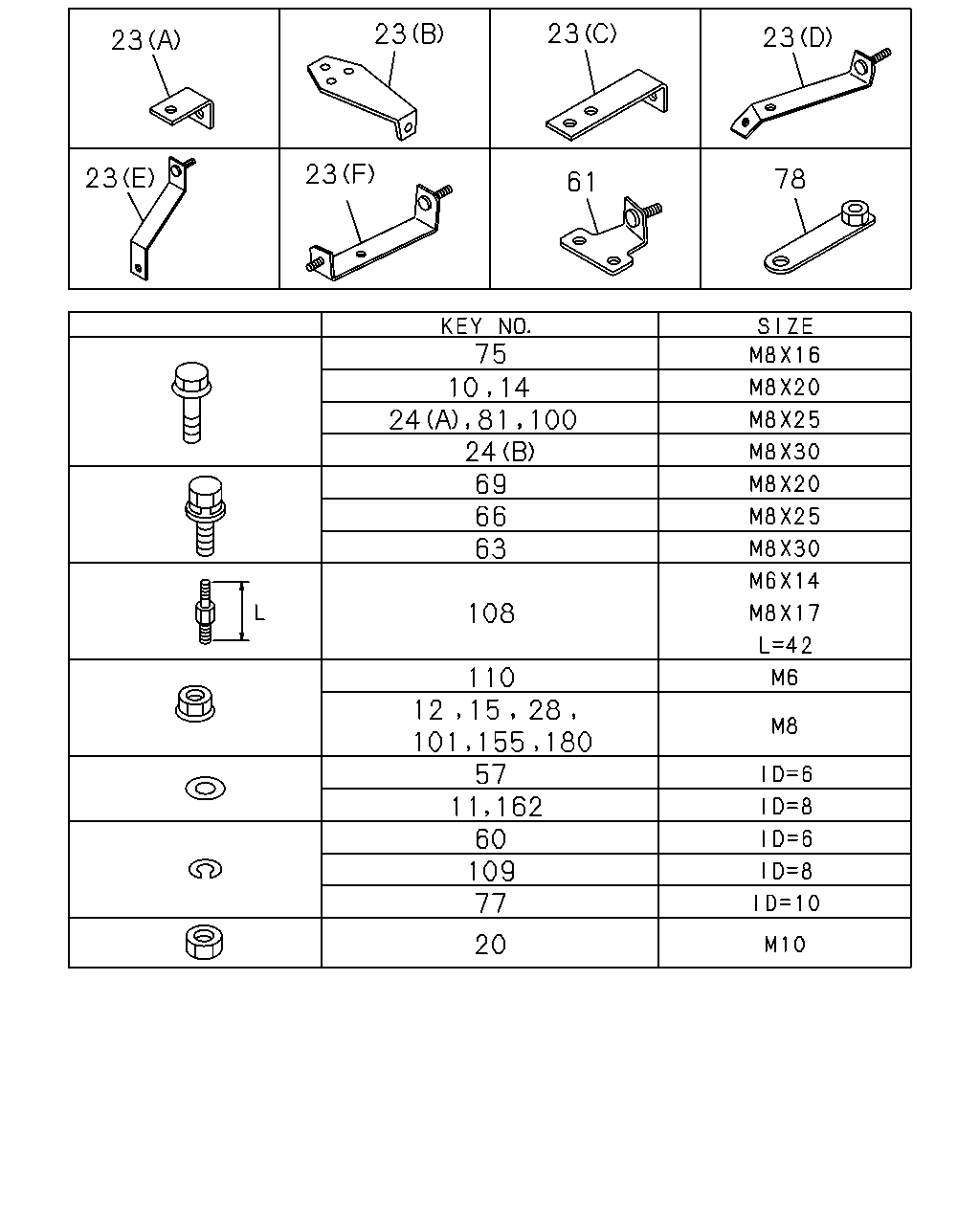

çizim 140830
23 23 23 23 23 23 78 61 75 10 81 100 24 69 66 63 24 108 110 12 101 155 57 11 162 60 109 77 20 14 15 28 180
BalonParca AdiParca NoAdetTipApplied Date
10 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28650-820-0 05 1 0610-
10 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28650-820-0 06 1 0610-
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 0610-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 07 1 0610-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0610-
14 BOLT; BRKT CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0610-
15 NUT; BRKT CLIP
M8 FLANGE 		0-91180-108-0 03 1 0610-
20 NUT; STARTER CABLE
M10 		8-98011-328-0 01 1 0610-
23 BRACKET; CABLE CLIP TO FRAME
(A) L=40 		1-47478-410-0 01 1 0610-
23 BRACKET; CABLE CLIP TO FRAME
(B) 		1-47479-779-0 01 1 0610-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82698-557-0 01 1 0610-
23 BRACKET; CABLE CLIP TO FRAME
(D) 		1-82698-574-0 01 1 0610-
23 BRACKET; CABLE CLIP TO FRAME
(E) 		1-82698-575-1 01 1 0610-
23 BRACKET; CABLE CLIP TO FRAME
(F) 		1-82698-589-0 01 1 0610-
24 BOLT; BRKT TO FRAME
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0610-
24 BOLT; BRKT TO FRAME
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0610-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 04 1 0610-
57 WASHER; PL,BATTERY CABLE
ID=6.4 		9-09164-506-0 01 1 0610-
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 0610-
61 BRACKET; BATTERY CABLE 1-82698-587-0 01 1 0610-
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0610-
66 BOLT; COVER,BATTERY RELAY
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0610-
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 0610-
75 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0610-
77 WASHER; LK,STARTER CABLE
ID=10.2 		0-91510-610-0 01 1 0610-
78 BRACKET; CLIP BATTERY 1-47476-396-1 01 1 0610-
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28650-825-0 06 1 0610-
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 04 1 0610-
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 04 1 0610-
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 0610-
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 0610-
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 0610-
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 0610-
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 0610-
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 02 1 0610-

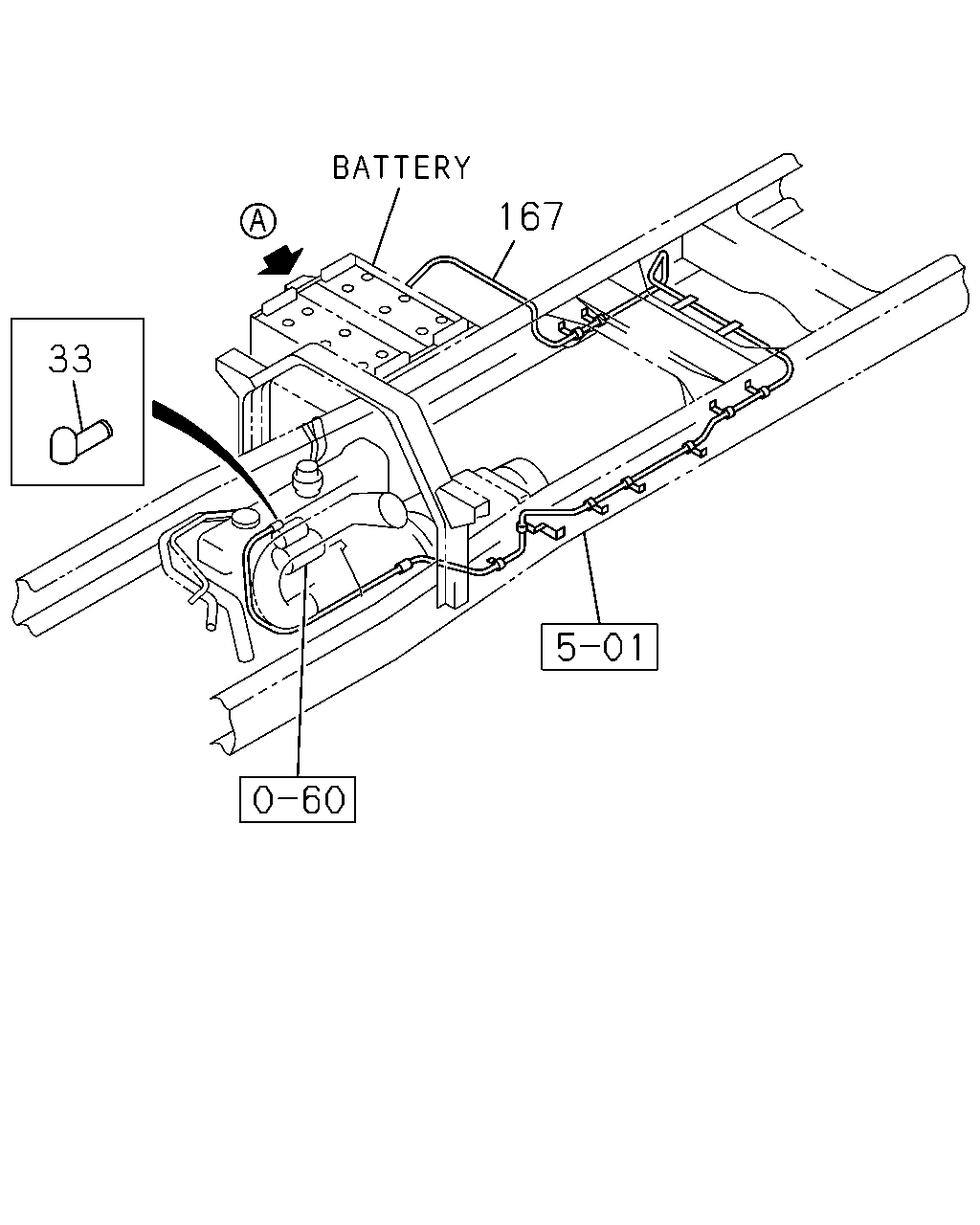

çizim 140831
167 33
BalonParca AdiParca NoAdetTipApplied Date
33 CAP; INSULATOR 8-97181-965-0 01 1 0610-
167 CABLE; BATTERY RELAY TO STARTER
L=5430 		1-82652-909-8 01 1 0610-0610
167 CABLE; BATTERY RELAY TO STARTER
L=5430 		8-97618-795-1 01 1 0611-
