3-41 — REAR BRAKE POWER CHAMBER (#2836) — 79 parça

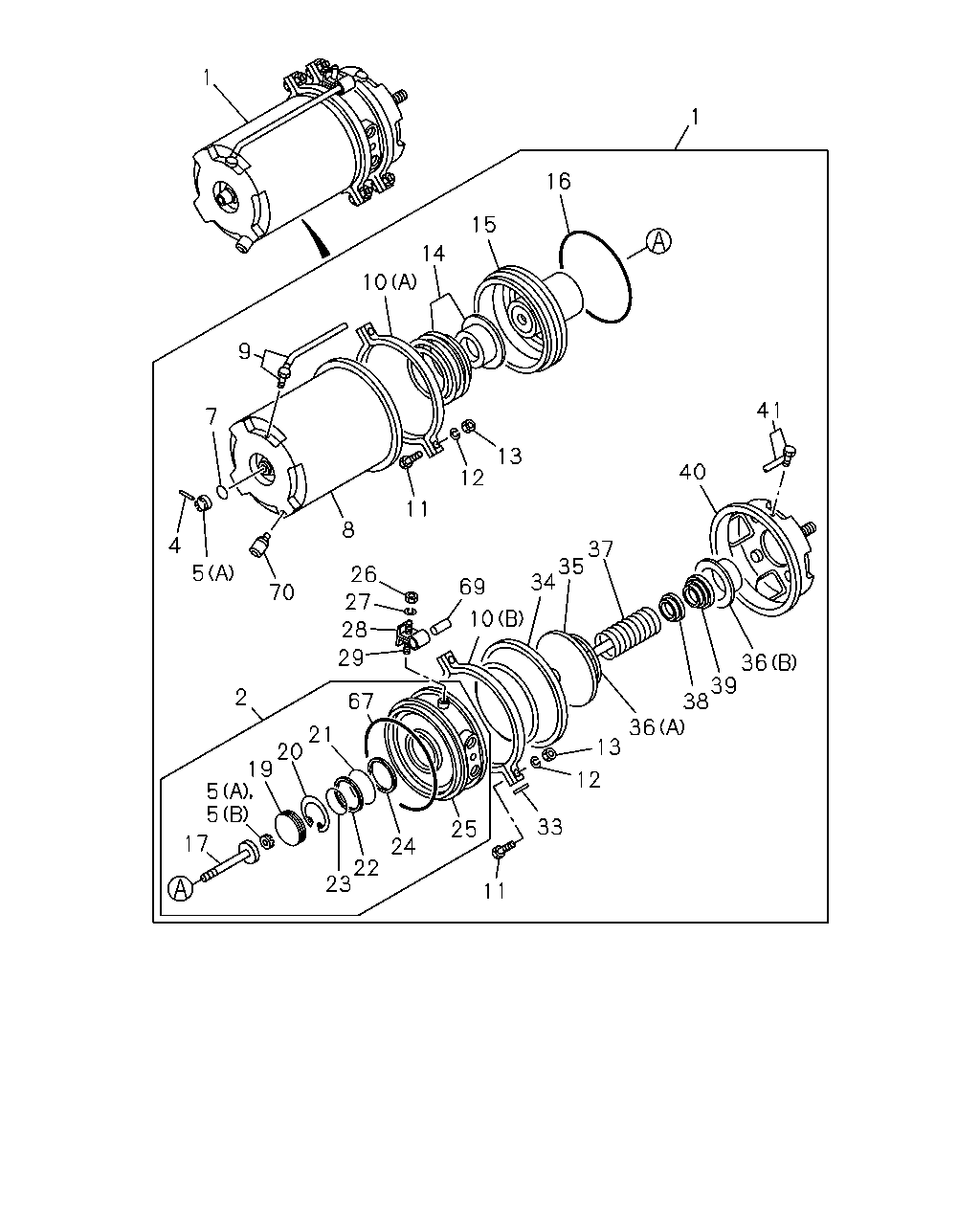

41 40 36 39 38 36 13 12 33 11 25 24 22 23 17 2 5 5 19 20 21 67 29 26 27 28 10 69 34 35 37 13 12 11 8 70 5 4 7 9 10 14 15 16 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING FORWARD	1-48250-177-1	01	1	9002-	●	●
1	CHAMBER ASM; SPRING REARWARD	1-48250-249-1	01	1	9002-	●	●
1	CHAMBER ASM; SPRING FORWARD	1-48250-176-1	01	1	9002-	●	●
1	CHAMBER ASM; SPRING REARWARD	1-48250-248-1	01	1	9002-	●	●
2	CHAMBER; EMERGENCY FORWARD	1-48252-021-0	01	1	9002-	●	●
2	CHAMBER; EMERGENCY REARWARD	1-48252-040-0	01	1	9002-	●	●
2	CHAMBER; EMERGENCY FORWARD	1-48252-020-0	01	1	9002-	●	●
2	CHAMBER; EMERGENCY REARWARD	1-48252-039-0	01	1	9002-	●	●
4	PIN; STRAIGHT,SPR CHAMBER	1-48259-056-0	04	1	9002-	●	●
5	NUT; SHELL (A)	1-48259-054-0	04	1	9002-	●	●
5	NUT; SHELL (B)	1-48259-074-0	02	1	9501-	●	●
7	GASKET	1-48259-055-0	04	1	9002-	●	●
8	SHELL; CYL,SPR CHAMBER REARWARD	1-48251-043-0	02	1	9501-	●	●
8	SHELL; CYL,SPR CHAMBER FORWARD	1-48259-070-0	01	1	9501-	●	●
8	SHELL; CYL,SPR CHAMBER FORWARD	1-48259-069-0	01	1	9501-	●	●
9	PIPE ASM; SHELL	1-48259-076-0	04	1	9002-	●	●
10	RING; CLAMP,SPR CHAMBER (B)	1-48259-016-0	04	1	9002-	●	●
10	RING; CLAMP,SPR CHAMBER (A)	1-48259-031-0	04	1	9002-	●	●
11	BOLT; CLAMP RING	1-48259-035-0	16	1	9002-	●	●
12	WASHER; LK,CLAMP RING FORWARD	1-48259-046-0	08	1	9002-	●	●
12	WASHER; LK,CLAMP RING REARWARD	9-09150-510-0	08	1	9002-	●	●
13	NUT; CLAMP RING M10	9-09110-510-0	16	1	9002-9412	●	●
13	NUT; CLAMP RING M10	9-09110-510-0	04	1	9307-	●	●
13	NUT; CLAMP RING EXC. NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	04	1	9002-9002	●	●
13	NUT; CLAMP RING M10	9-09110-510-0	04	1	9003-9306	●	●
13	NUT; CLAMP RING M10	9-09110-510-0	08	1	9002-	●	●
14	SPRING & SEAT SET FORWARD-RH,REARWARD-RH	1-48259-037-0	02	1	9002-	●	●
14	SPRING & SEAT SET FORWARD-LH,REARWARD-LH	8-83315-080-0	04	1	9002-	●	●
15	PISTON	1-48262-005-0	04	1	9002-	●	●
16	GASKET	1-48259-048-0	04	1	9002-	●	●
17	BOLT ASM; EMERGENCY	1-48259-073-0	04	1	9002-	●	●
19	COVER; PISTON	1-48269-011-0	04	1	9002-	●	●
20	RING; RET	1-48259-060-0	04	1	9002-	●	●
21	GASKET; SPR CHAMBER	1-48259-049-0	04	1	9002-	●	●
22	RING; BACKUP,SPR CHAMBER	1-48259-019-0	04	1	9002-	●	●
23	GASKET; SPR CHAMBER	1-48259-047-0	04	1	9002-	●	●
24	BEARING; SPR CHAMBER	1-48259-020-0	04	1	9002-	●	●
25	PLATE; PRESSURE,SPR CHAMBER FORWARD	1-48259-088-0	01	1	9002-	●	●
25	PLATE; PRESSURE,SPR CHAMBER REARWARD	1-48259-140-0	01	1	9002-	●	●
25	PLATE; PRESSURE,SPR CHAMBER FORWARD	1-48259-087-0	01	1	9002-	●	●
25	PLATE; PRESSURE,SPR CHAMBER REARWARD	1-48259-138-0	01	1	9002-	●	●
26	NUT; PRESSURE PLATE	1-48259-058-0	08	1	9002-	●	●
27	WASHER; PRESSURE PLATE FORWARD	1-48259-057-0	02	1	9002-	●	●
27	WASHER; PRESSURE PLATE REARWARD ID=8.2	9-09150-508-0	02	1	9002-	●	●
28	BRACKET; PRESSURE PLATE,HOSE	1-48259-059-0	04	1	9002-	●	●
29	STUD; PRESSURE PLATE	1-48259-050-0	04	1	9002-	●	●
33	RETAINER; DIAPH REARWARD	1-48250-044-0	02	1	9002-	●	●
33	RETAINER; DIAPH FORWARD	1-48259-044-0	04	1	9002-	●	●
34	DIAPHRAGM FORWARD	1-48252-011-0	02	1	9002-	●	●
34	DIAPHRAGM REARWARD	1-48258-011-0	02	1	9002-	●	●
35	PLATE; ROD END,SPR CHAMBER FORWARD	1-48253-011-0	02	1	9002-	●	●
35	PLATE; ROD END,SPR CHAMBER REARWARD	1-48253-035-0	01	1	9002-	●	●
35	PLATE; ROD END,SPR CHAMBER REARWARD	1-48253-029-0	01	1	9002-	●	●
36	RETAINER; SPR CHAMBER (A)	1-48259-033-0	04	1	9002-	●	●
36	RETAINER; SPR CHAMBER (B)	1-48259-043-0	04	1	9002-	●	●
37	SPRING; LWR,SPR CHAMBER	1-48255-003-0	04	1	9002-	●	●
38	COVER; ROD & PLATE	1-48259-066-0	04	1	9002-	●	●
39	COVER; ROD & PLATE	1-48259-065-0	04	1	9002-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD	1-48259-082-1	01	1	9002-	●	●
40	COVER ASM; LWR,SPR CHAMBER REARWARD	1-48259-139-0	01	1	9002-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD	1-48259-081-1	01	1	9002-	●	●
40	COVER ASM; LWR,SPR CHAMBER REARWARD	1-48259-137-0	01	1	9002-	●	●
41	PIPE ASM; LWR COVER	1-48259-080-0	04	1	9002-	●	●
67	GASKET; SPR CHAMBER	1-48259-053-0	04	1	9002-	●	●
69	HOSE; PRESSURE PLATE	1-48259-051-0	04	1	9002-	●	●
70	COVER; EXH,SPR CHAMBER REAWRAD	1-48259-052-0	01	1	9002-	●	●
70	COVER; EXH,SPR CHAMBER FORWARD	1-48259-052-0	02	1	9002-	●	●

31 31 32 32 32 31 31 31 31

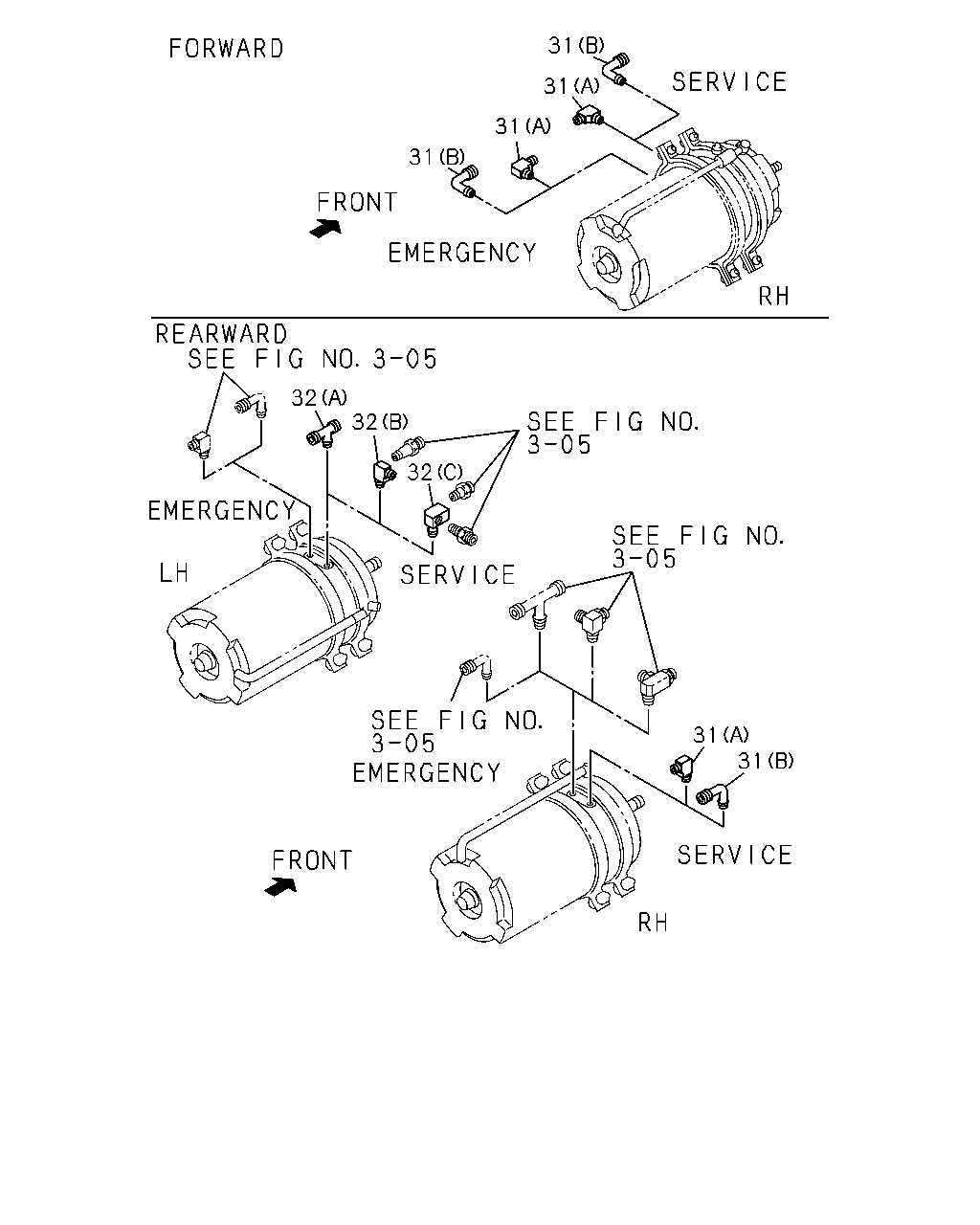

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	CONNECTOR (A) FORWARD SERVICE	1-09660-570-0	01	1	9307-	●	●
31	CONNECTOR (A) FORWARD EMERGENCY	1-09660-574-0	01	1	9307-	●	●
31	CONNECTOR NYLON TUBE AIR PIPING<Z29> (B) FORWARD EMERGENCY	1-09660-234-0	01	1	9002-9306	●	●
31	CONNECTOR NYLON TUBE AIR PIPING<Z29> (B) FORWARD SERVICE	1-09660-235-0	01	1	9002-9306	●	●
31	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (A) FORWARD	1-47815-006-0	02	1	9002-9306	●	●
31	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (A) REARWARD SERVICE	1-47815-006-1	01	1	9002-9306	●	●
31	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (A) REARWARD SERVICE	1-09660-574-0	01	1	9307-	●	●
31	CONNECTOR NYLON TUBE AIR PIPING<Z29> (A) REARWARD SERVICE	1-09660-687-0	01	1	9307-		●
32	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (A) REARWARD SERVICE	1-09660-247-0	01	1	9002-9306	●	●
32	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (B) REARWARD SERVICE	1-09656-420-1	01	1	9002-9306	●	●
32	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (C) REARWARD SERVICE	1-09660-697-1	01	1	9307-	●	●
32	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (A) REARWARD SERVICE	1-09660-318-0	01	1	9307-		●
