Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#2833) — 257 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

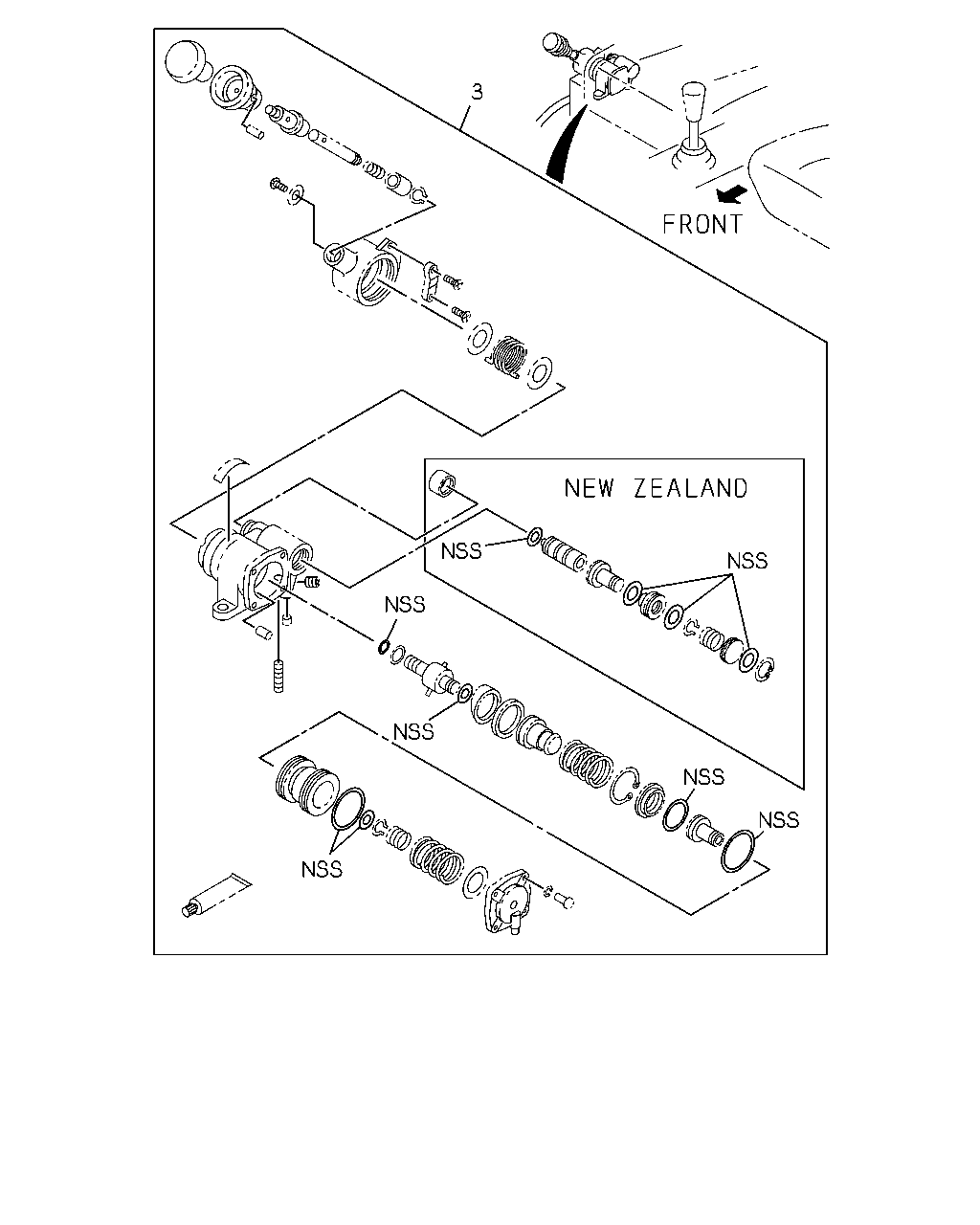

	3	REPAIR KIT; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-096-0	01	1	9002-	●	●
	3	REPAIR KIT; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-083-0	01	1	9307-		●

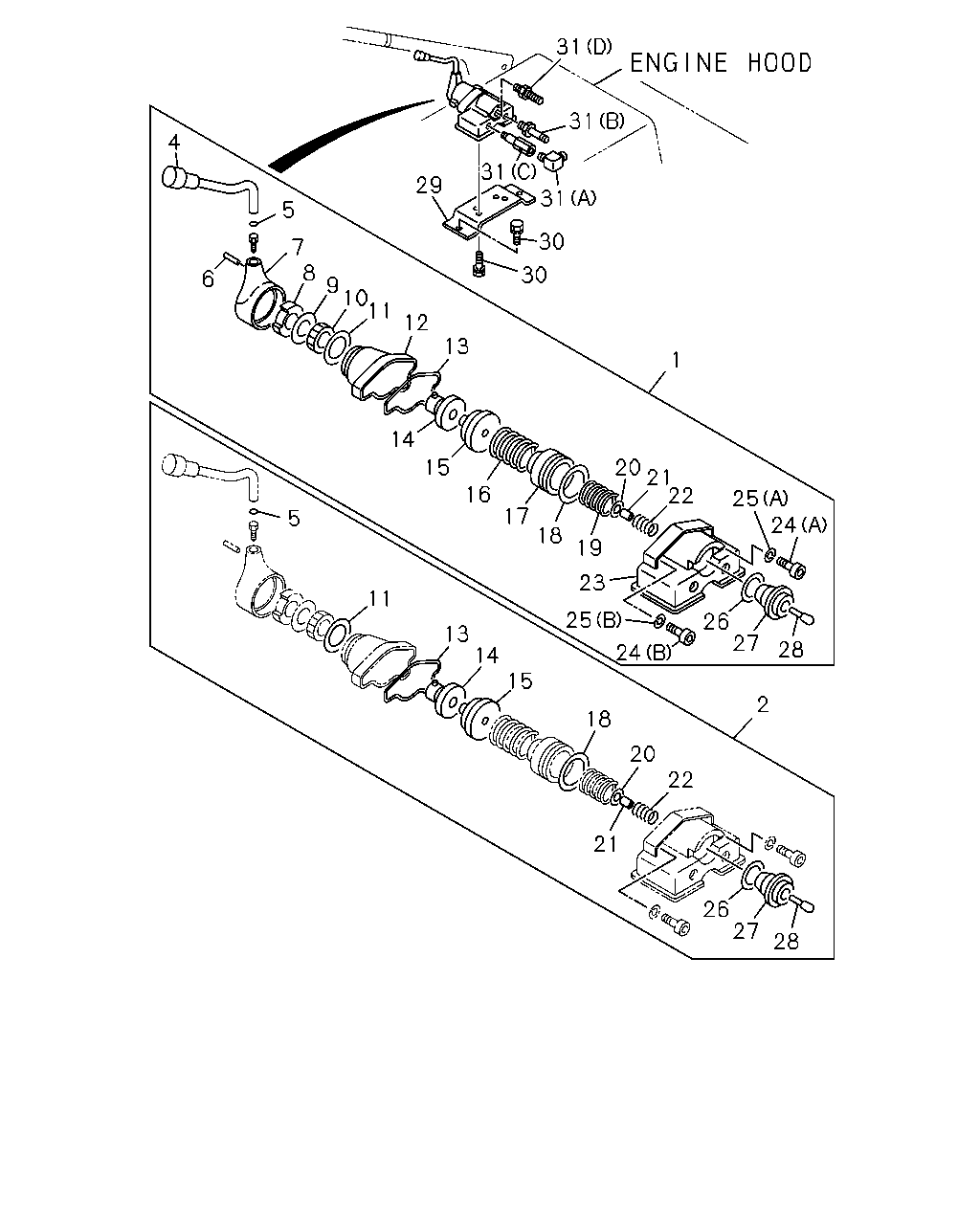

28 27 2 26 21 22 20 18 24 25 26 27 28 23 19 18 17 16 15 14 15 14 13 11 5 24 25 22 21 20 1 13 12 11 10 9 8 7 5 6 4 29 31 30 30 31 31 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
1	VALVE ASM; HAND BRK NEW ZEALAND EQUIPMENT(PK5)	1-48100-651-0	01	1	9002-9306	●
1	VALVE ASM; HAND BRK NEW ZEALAND EQUIPMENT(PK5)	1-48460-282-0	01	1	9307-	●
2	REPAIR KIT; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-87830-499-0	01	1	9002-9306	●
2	REPAIR KIT; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-85576-157-0	01	1	9307-	●
4	HANDLE ASM; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48119-144-0	01	1	9002-	●
5	GASKET; HANDLE NEW ZEALAND EQUIPMENT(PK5)	1-48119-128-0	01	1	9002-	●
6	PIN; SPR NEW ZEALAND EQUIPMENT(PK5)	1-48119-143-0	01	1	9002-	●
7	HEAD; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48119-131-0	01	1	9002-	●
8	STOPPER; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48119-239-0	01	1	9002-9306	●
8	STOPPER; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48119-327-0	01	1	9307-	●
9	WASHER; LK,ADJ NEW ZEALAND EQUIPMENT(PK5)	1-48119-123-0	01	1	9002-	●
10	RING; ADJ NEW ZEALAND EQUIPMENT(PK5)	1-48119-122-0	01	1	9002-	●
11	GASKET; HD TO COVER NEW ZEALAND EQUIPMENT(PK5)	1-48119-130-0	01	1	9002-9306	●
11	GASKET; HD TO COVER NEW ZEALAND EQUIPMENT(PK5)	1-48119-328-0	01	1	9307-	●
12	COVER; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48129-097-0	01	1	9002-	●
13	GASKET; BODY TO COVER NEW ZEALAND EQUIPMENT(PK5)	1-48119-120-0	01	1	9002-	●
14	FOLLOWER; CAM NEW ZEALAND EQUIPMENT(PK5)	1-48129-135-0	01	1	9002-	●
15	CAM; FOLLOWER NEW ZEALAND EQUIPMENT(PK5)	1-48129-134-0	01	1	9002-	●
16	SPRING; GRUDUATING NEW ZEALAND EQUIPMENT(PK5)	1-48129-101-0	01	1	9002-	●
17	PISTON; SPR NEW ZEALAND EQUIPMENT(PK5)	1-48129-095-0	01	1	9002-	●
18	GASKET; BODY NEW ZEALAND EQUIPMENT(PK5)	1-48129-096-0	01	1	9002-	●
19	SPRING; PISTON NEW ZEALAND EQUIPMENT(PK5)	1-48129-094-0	01	1	9002-	●
20	GUIDE; VLV NEW ZEALAND EQUIPMENT(PK5)	1-48129-090-0	01	1	9002-	●
21	VALVE; IN & EXH NEW ZEALAND EQUIPMENT(PK5)	1-48121-017-0	01	1	9002-	●
22	SPRING; VLV NEW ZEALAND EQUIPMENT(PK5)	1-48123-024-0	01	1	9002-	●
23	BODY; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48111-030-0	01	1	9002-	●
24	BOLT; EXH VLV NEW ZEALAND EQUIPMENT(PK5) (B)	1-48129-092-0	02	1	9002-	●
24	BOLT; EXH VLV NEW ZEALAND EQUIPMENT(PK5) (A)	1-48129-121-0	02	1	9002-	●
25	WASHER; LK,EXH VLV NEW ZEALAND EQUIPMENT(PK5) (A)	1-48119-134-0	02	1	9002-	●
25	WASHER; LK,EXH VLV NEW ZEALAND EQUIPMENT(PK5) (B)	1-48129-093-0	02	1	9002-	●
26	GASKET; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48129-091-0	01	1	9002-	●
27	SEAT; INL VLV NEW ZEALAND EQUIPMENT(PK5)	1-48122-007-0	01	1	9002-	●
28	STEM ASM; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48129-089-0	01	1	9002-	●
29	BRACKET; HAND BRK NEW ZEALAND EQUIPMENT(PK5)	1-47475-257-0	01	1	9002-	●
30	BOLT; BRKT,HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5) M10X20 W/LK WASHER	9-01901-020-0	02	1	9002-9204	●
30	BOLT; BRKT,HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5) M10X20 W/LK WASHER	0-50041-020-0	02	1	9205-	●
30	BOLT; BRKT,HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5) M8X20 W/LK WASHER	9-01910-820-0	02	1	9002-9005	●
30	BOLT; BRKT,HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5) M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-9302	●
30	BOLT; BRKT,HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28080-820-0	02	1	9303-	●
31	CONNECTOR; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5) (B)	1-09660-226-0	01	1	9002-9306	●
31	CONNECTOR; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5) (A) M14 & PT1/4 ELBOW	1-09660-233-0	01	1	9002-9306	●
31	CONNECTOR; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5) (C)	1-09660-335-1	01	1	9002-	●
31	CONNECTOR; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5) (D) L=45	8-94338-874-0	01	1	9002-	●
31	CONNECTOR; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5) (B)	1-09660-635-0	01	1	9307-	●
31	CONNECTOR; HAND BRK VLV NYLON TUBE AIR PIPING<Z29> (A) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-	●

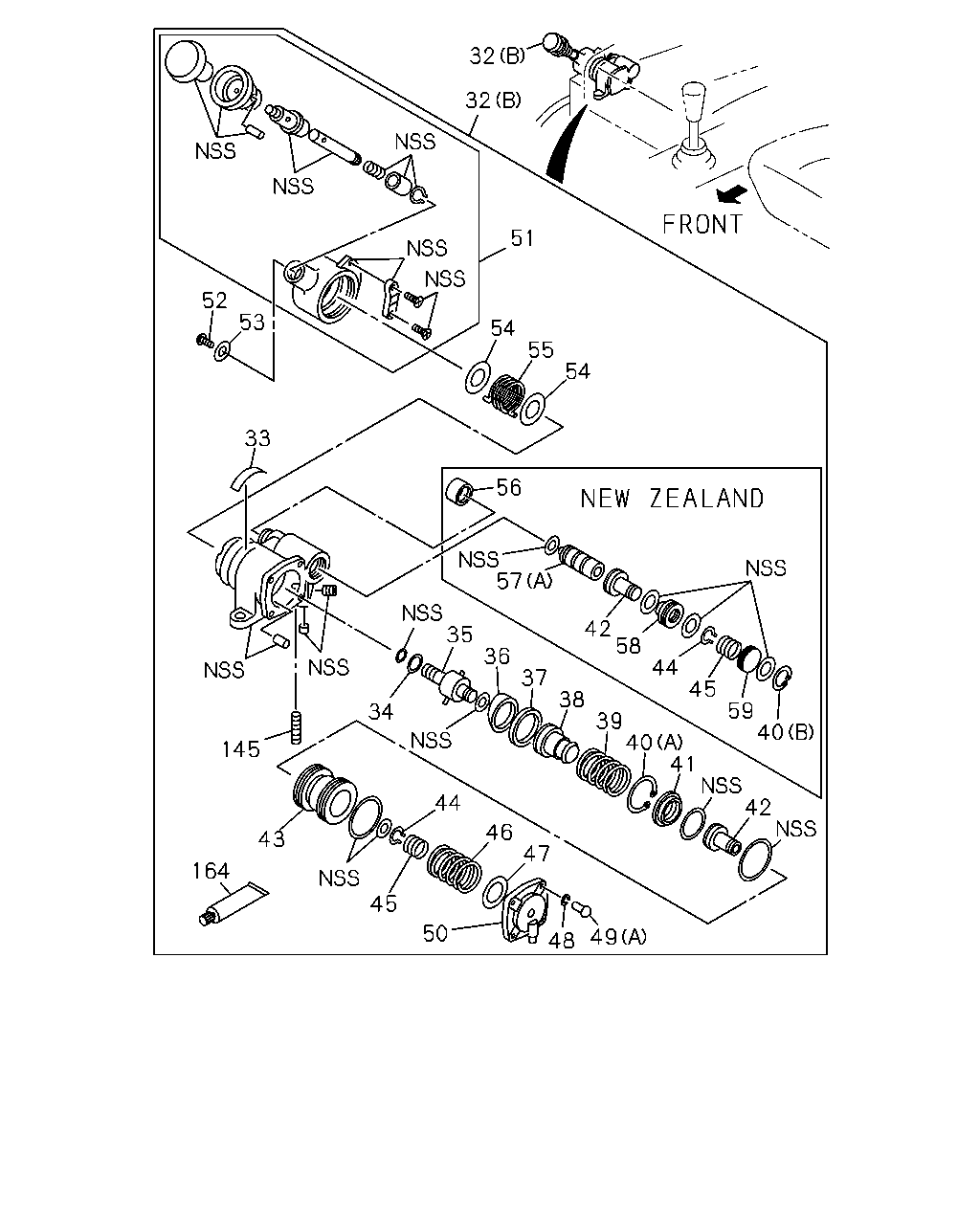

42 40 41 40 45 59 44 58 42 57 56 39 38 37 36 35 34 44 46 47 49 48 50 45 43 164 145 33 53 52 51 54 55 54 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1) (B)	1-48460-168-0	01	1	9002-9011	●	●
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1) (B)	1-48460-275-1	01	1	9012-	●	●
32	VALVE; BRK,HAND CONT NEW ZEALAND EQUIPMENT(PK5) (A)	1-48460-207-0	01	1	9002-9306	●	●
32	VALVE; BRK,HAND CONT EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48460-198-0	01	1	9002-	●	●
32	VALVE; BRK,HAND CONT NEW ZEALAND EQUIPMENT(PK5) (B)	1-48460-292-0	01	1	9307-		●
33	PLATE; CAUTION HONG KONG EQUIPMENT(PQ1)	1-48469-093-0	01	1	9002-	●	●
33	PLATE; CAUTION NEW ZEALAND EQUIPMENT(PK5)	1-48469-121-0	01	1	9307-		●
34	SHIM; CAM HOLDER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-055-0	AR	1	9002-	●	●
35	HOLDER; CAM HONG KONG EQUIPMENT(PQ1)	1-48469-085-0	01	1	9002-9011	●	●
35	HOLDER; CAM NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-054-0	01	1	9012-	●	●
36	RING; CAM NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-056-0	01	1	9002-	●	●
37	GUIDE; CAM RING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-058-0	01	1	9002-	●	●
38	SEAT; EXH VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-057-0	01	1	9002-	●	●
39	SPRING; RETURN,CAM RING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-063-0	01	1	9002-	●	●
40	RING; SNAP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-48469-067-0	01	1	9002-	●	●
40	RING; SNAP NEW ZEALAND EQUIPMENT(PK5) (B)	1-48469-079-0	01	1	9307-		●
41	SEAT; FEED VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-066-0	01	1	9307-	●	●
42	VALVE; FEED HONG KONG EQUIPMENT(PQ1)	1-48469-065-0	01	1	9307-	●	●
42	VALVE; FEED NEW ZEALAND EQUIPMENT(PK5)	1-48469-065-0	02	1	9002-		●
43	PISTON; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-064-0	01	1	9002-	●	●
44	RING; SNAP,FEED VLV HONG KONG EQUIPMENT(PQ1)	1-48469-068-0	01	1	9307-	●	●
44	RING; SNAP,FEED VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-068-0	02	1	9002-		●
45	SPRING; FEED VLV HONG KONG EQUIPMENT(PQ1)	1-48469-070-0	01	1	9002-	●	●
45	SPRING; FEED VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-070-0	02	1	9307-		●
46	SPRING; MAIN,PISTON HONG KONG EQUIPMENT(PQ1)	1-48469-089-0	01	1	9002-	●	●
46	SPRING; MAIN,PISTON NEW ZEALAND EQUIPMENT(PK5)	1-48469-119-0	01	1	9307-		●
47	SHIM; MAIN SPRING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-072-0	AR	1	9002-	●	●
48	WASHER; COVER HONG KONG EQUIPMENT(PQ1)	1-48469-091-0	04	1	9002-9011	●	●
48	WASHER; COVER HONG KONG EQUIPMENT(PQ1) ID=6.1	9-09150-506-0	04	1	9012-	●	●
49	SCREW; COVER HONG KONG EQUIPMENT(PQ1) (A)	1-48469-092-0	04	1	9002-	●	●
49	SCREW; COVER EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-52139-005-0	01	1	9002-9306	●	●
49	SCREW; COVER EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B)	1-52139-005-0	01	1	9307-	●	●
49	SCREW; COVER NEW ZEALAND EQUIPMENT(PK5) (A)	1-48469-120-0	04	1	9307-		●
50	COVER; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-090-0	01	1	9002-	●	●
50	COVER; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-073-0	01	1	9307-		●
51	HANDLE ASM; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-088-0	01	1	9002-9011	●	●
51	HANDLE ASM; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-117-0	01	1	9012-	●	●
51	HANDLE ASM; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-060-0	01	1	9307-		●
52	SCREW; HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-062-0	01	1	9002-	●	●
53	WASHER; HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-061-0	01	1	9002-	●	●
54	SEAT; SPRING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-082-0	02	1	9002-	●	●
55	SPRING; RETURN,HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-059-0	01	1	9002-	●	●
56	BOOT; PLUNGER NEW ZEALAND EQUIPMENT(PK5)	1-48469-080-0	01	1	9307-		●
57	PLUNGER; HAND BRK VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48469-097-0	01	1	9002-9306	●	●
57	PLUNGER; HAND BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48469-097-0	01	1	9307-	●	●
57	PLUNGER; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5) (A)	1-48469-076-0	01	1	9307-		●
58	HOLDER; FEED VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-077-0	01	1	9307-		●
59	HOLDER; SPRING NEW ZEALAND EQUIPMENT(PK5)	1-48469-078-0	01	1	9307-		●
145	STUD; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-069-0	01	1	9307-		●
164	GREASE; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-084-0	01	1	9002-9011	●	●
164	GREASE; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-084-0	01	1	9307-	●	●

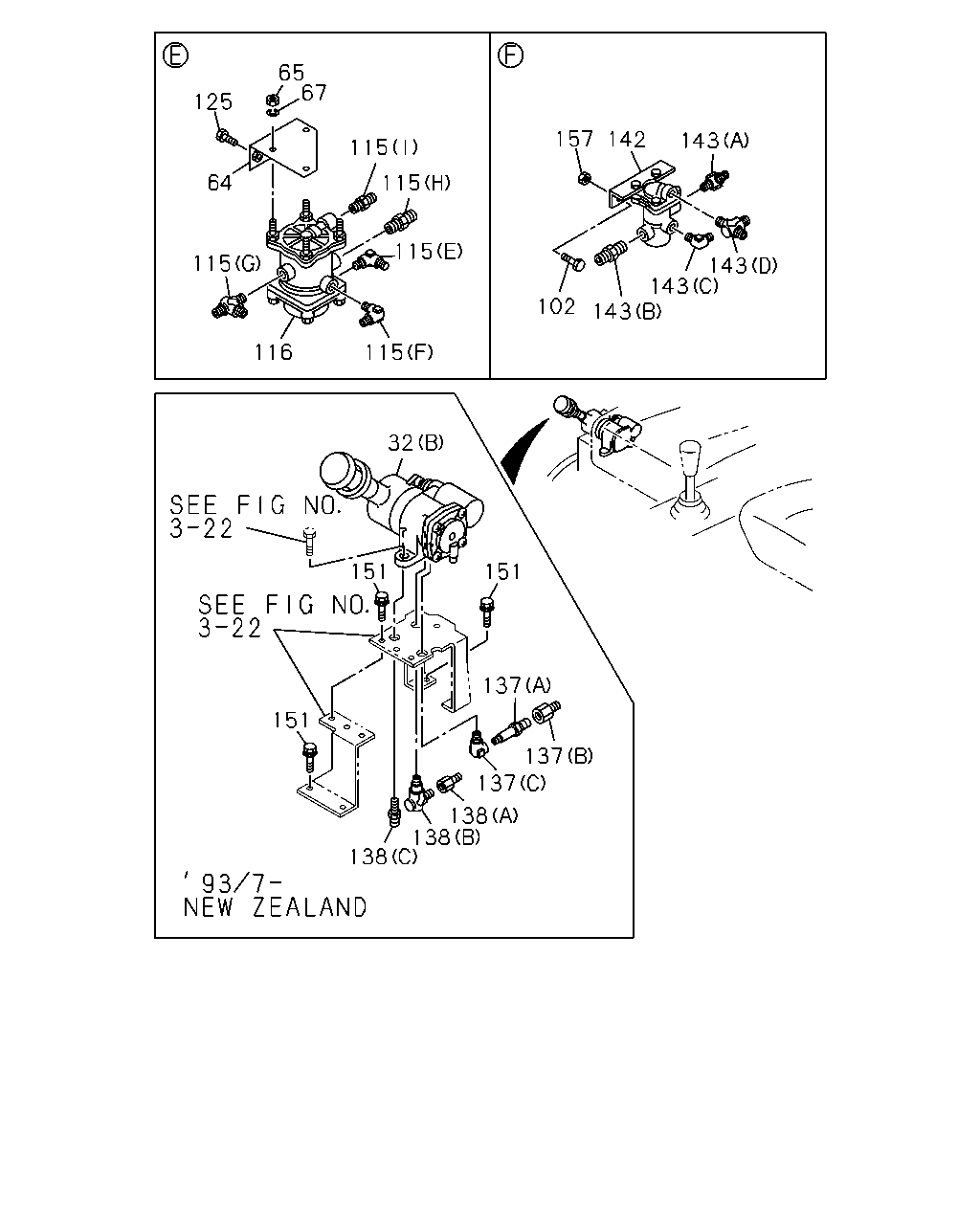

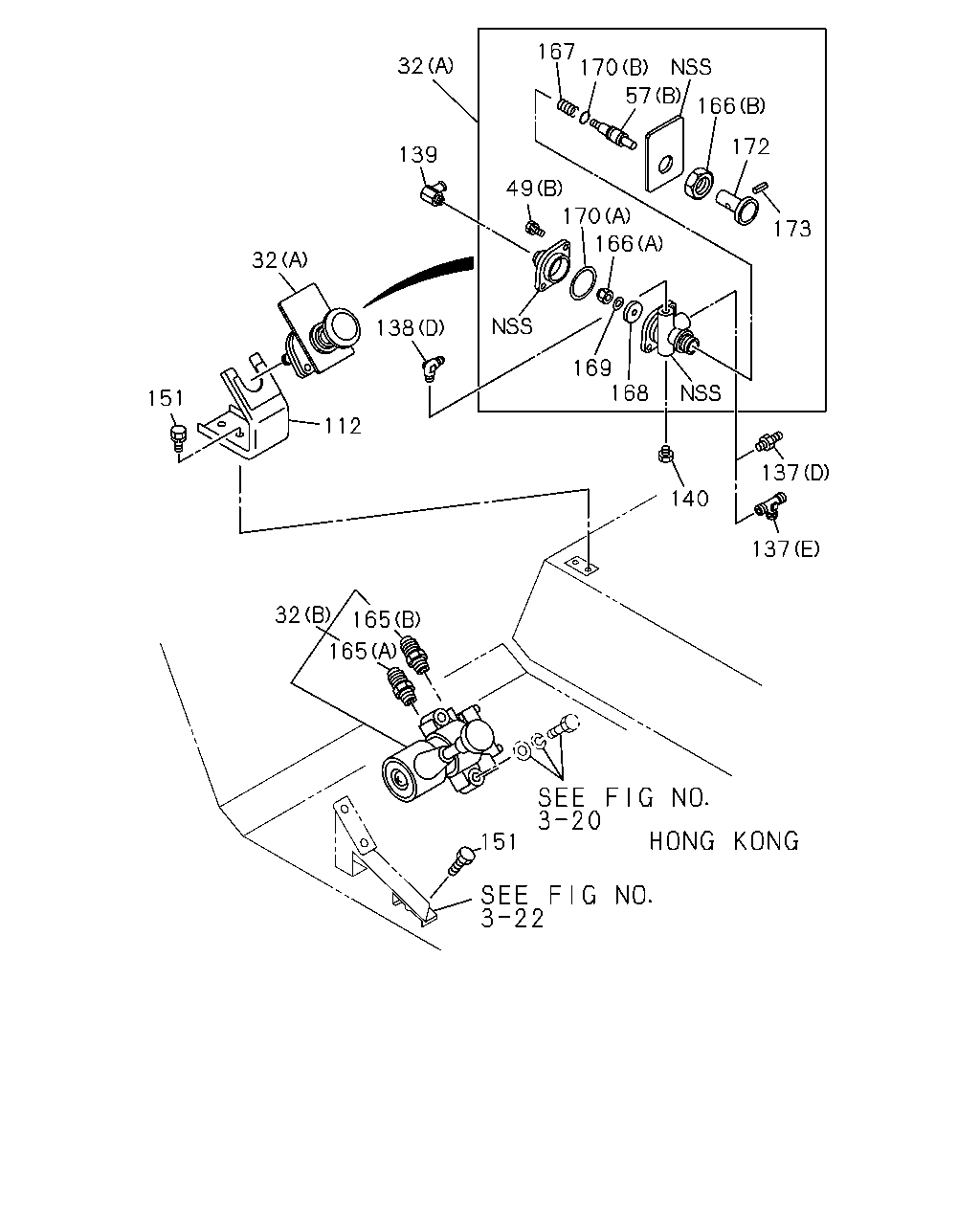

151 165 165 32 112 138 151 32 139 32 167 170 49 166 57 170 172 173 166 169 140 168 137 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1) (B)	1-48460-168-0	01	1	9002-9011	●	●
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1) (B)	1-48460-275-1	01	1	9012-	●	●
32	VALVE; BRK,HAND CONT NEW ZEALAND EQUIPMENT(PK5) (A)	1-48460-207-0	01	1	9002-9306	●	●
32	VALVE; BRK,HAND CONT EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48460-198-0	01	1	9002-	●	●
32	VALVE; BRK,HAND CONT NEW ZEALAND EQUIPMENT(PK5) (B)	1-48460-292-0	01	1	9307-		●
49	SCREW; COVER HONG KONG EQUIPMENT(PQ1) (A)	1-48469-092-0	04	1	9002-	●	●
49	SCREW; COVER EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-52139-005-0	01	1	9002-9306	●	●
49	SCREW; COVER EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B)	1-52139-005-0	01	1	9307-	●	●
49	SCREW; COVER NEW ZEALAND EQUIPMENT(PK5) (A)	1-48469-120-0	04	1	9307-		●
57	PLUNGER; HAND BRK VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48469-097-0	01	1	9002-9306	●	●
57	PLUNGER; HAND BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48469-097-0	01	1	9307-	●	●
57	PLUNGER; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5) (A)	1-48469-076-0	01	1	9307-		●
112	BRACKET; CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-47475-260-2	01	1	9002-	●	●
137	CONNECTOR; SUPPLY EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (D) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9002-	●	●
137	CONNECTOR; SUPPLY NEW ZEALAND EQUIPMENT(PK5) (E)	1-09660-334-0	01	1	9002-9306		●
137	CONNECTOR; SUPPLY NEW ZEALAND EQUIPMENT(PK5) (A)	1-09650-400-0	01	1	9307-		●
137	CONNECTOR; SUPPLY NEW ZEALAND EQUIPMENT(PK5) (B) M20X36	1-09660-576-0	01	1	9307-		●
137	CONNECTOR; SUPPLY NEW ZEALAND EQUIPMENT(PK5) (C) PT1/4 2WAY	1-09660-693-0	01	1	9307-		●
138	CONNECTOR; DELIVERY EXC. PARKING BRAKE VALVE LEVER TYPE<W48>,NYLON TUBE AIR PIPING<Z29> (D) M14 & PT1/4 ELBOW	1-09650-034-1	01	1	9002-9302	●	●
138	CONNECTOR; DELIVERY EXC. PARKING BRAKE VALVE LEVER TYPE<W48>,NYLON TUBE AIR PIPING<Z29> (D) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9303-	●	●
138	CONNECTOR; DELIVERY NEW ZEALAND EQUIPMENT(PK5) (D) M14 & PT1/4 ELBOW	1-09660-233-0	01	1	9002-9306		●
138	CONNECTOR; DELIVERY NEW ZEALAND EQUIPMENT(PK5) (A)	1-09650-373-0	01	1	9307-		●
138	CONNECTOR; DELIVERY NEW ZEALAND EQUIPMENT(PK5) (B)	1-09650-401-0	01	1	9307-		●
138	CONNECTOR; DELIVERY NEW ZEALAND EQUIPMENT(PK5) (C) 17/32" PT1/4	1-09660-573-0	01	1	9307-		●
139	CONNECTOR; EXH EXC. PARKING BRAKE VALVE LEVER TYPE<W48> PT1/4 ELBOW	8-94232-303-2	01	1	9002-	●	●
140	PLUG EXC. PARKING BRAKE VALVE LEVER TYPE<W48> PT1/4	9-99204-513-0	01	1	9002-	●	●
151	BOLT; VLV BRKT HONG KONG EQUIPMENT(PQ1) M8X20	1-09980-529-0	02	1	9309-	●	●
151	BOLT; VLV BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M6X20	9-01910-620-0	02	1	9002-9005	●	●
151	BOLT; VLV BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M6X20 W/LK WASHER	0-50040-620-0	02	1	9006-9302	●	●
151	BOLT; VLV BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M6X20 FLANGE	0-28080-620-0	02	1	9303-	●	●
151	BOLT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5) M6X14 W/LK&PL WASHER	1-09980-549-0	06	1	9401-9401		●
151	BOLT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5) M6X16 W/LK&PL WASHER	0-50140-616-0	06	1	9402-		●
165	CONNECTOR; HAND BRK VLV HONG KONG EQUIPMENT(PQ1) (A)	1-09650-341-1	01	1	9002-	●	●
165	CONNECTOR; HAND BRK VLV HONG KONG EQUIPMENT(PQ1) (B)	1-09650-342-1	01	1	9002-	●	●
166	NUT; PLUNGER EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48129-069-0	01	1	9002-	●	●
166	NUT; PLUNGER EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48469-101-0	01	1	9002-	●	●
167	SPRING; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-098-0	01	1	9002-	●	●
168	VALVE; INL EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-099-0	01	1	9002-	●	●
169	WASHER; PL,VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> ID=6.4	9-09164-506-0	01	1	9002-	●	●
170	GASKET; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48469-100-0	01	1	9002-	●	●
170	GASKET; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	9-19519-094-0	01	1	9002-	●	●
172	KNOB; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-102-0	01	1	9002-	●	●
173	PIN; SPR,KNOB EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48>	8-94124-044-0	01	1	9002-	●	●

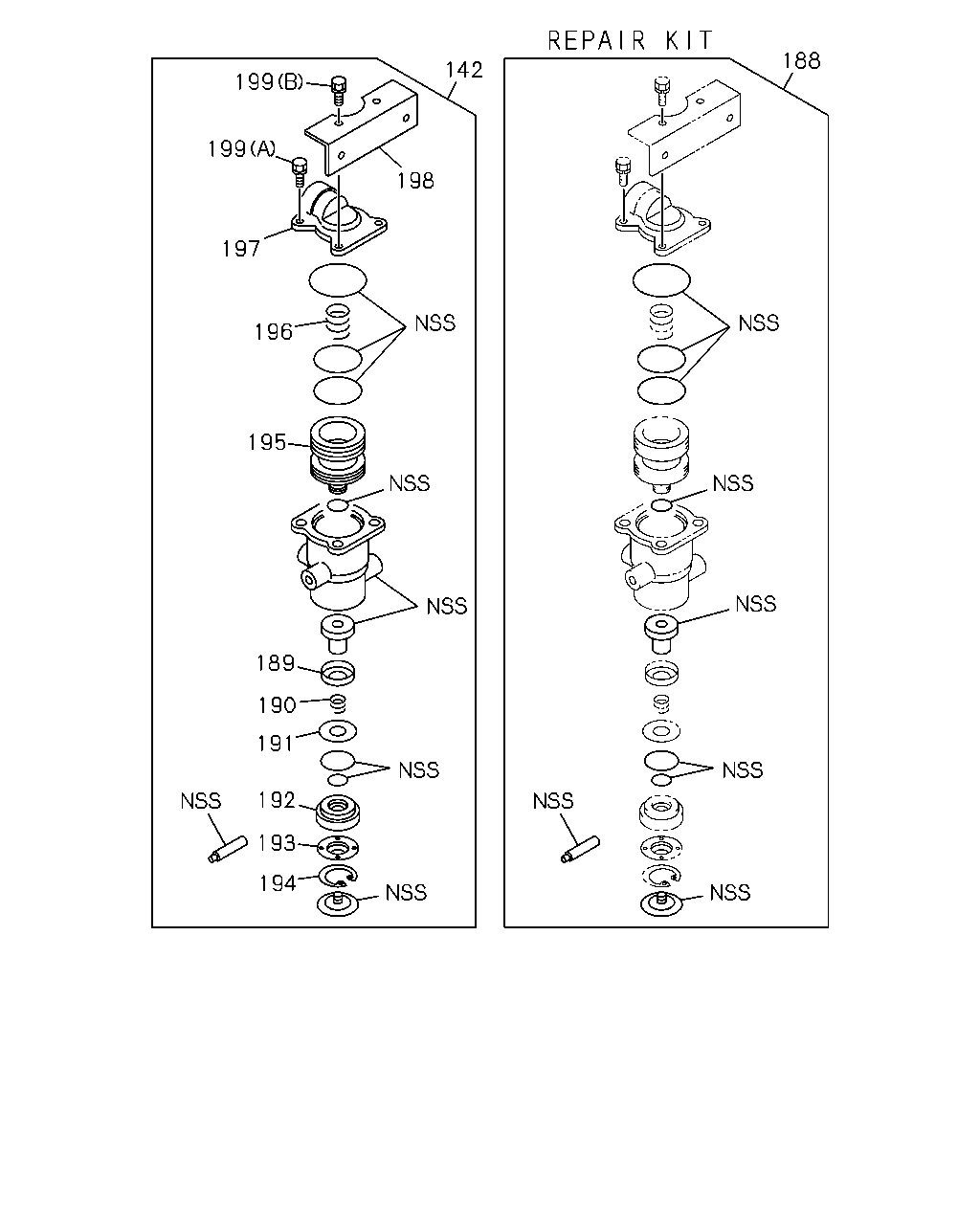

188 142 198 199 199 197 196 195 189 190 191 192 193 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
142	VALVE; SUPPLY DUMP NYLON TUBE AIR PIPING<Z29>	1-48210-367-0	01	1	9307-	●
188	REPAIR KIT; DUMP VLV NYLON TUBE AIR PIPING<Z29>	1-85576-117-0	01	1	9307-	●
189	RETAINER; VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-099-0	01	1	9307-	●
190	SPRING; VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-100-0	01	1	9307-	●
191	PLATE; VALVE HOLDER NYLON TUBE AIR PIPING<Z29>	1-48219-101-0	01	1	9307-	●
192	HOLDER; VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-102-0	01	1	9307-	●
193	PLATE; DUST SEAL NYLON TUBE AIR PIPING<Z29>	1-48219-098-0	01	1	9307-	●
194	RING; SNAP,VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-097-0	01	1	9307-	●
195	PISTON; DUMP VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-103-0	01	1	9307-	●
196	SPRING; MAIN,VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-079-1	01	1	9307-	●
197	COVER; DUMP VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-104-0	01	1	9307-	●
198	BRACKET; DUMP VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-105-0	01	1	9307-	●
199	BOLT; COVER NYLON TUBE AIR PIPING<Z29> (A) M8X22	9-01900-822-0	02	1	9307-	●
199	BOLT; COVER NYLON TUBE AIR PIPING<Z29> (B) M8X25 W/LK WASHER	9-01900-825-0	02	1	9307-	●

87 87 68 205 87 122 128 130 131 87 86 129 87 87 87 68 122 87 87 115 115 115 125 115 65 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	NUT; RELAY VLV NEW ZEALAND EQUIPMENT(PK5) M10	9-09110-510-0	02	1	9002-9306		●
65	NUT; RELAY VLV NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	9307-		●
68	BOLT; DOUBLE CHECK VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
68	BOLT; DOUBLE CHECK VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●
68	BOLT; DOUBLE CHECK VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X20 FLANGE	0-28080-820-0	02	1	9303-9306	●	●
68	BOLT; DOUBLE CHECK VLV FRAME EQUIPMENT HEAVY DUTY<F03> M8X22	9-01900-822-0	02	1	9002-9204		●
68	BOLT; DOUBLE CHECK VLV FRAME EQUIPMENT HEAVY DUTY<F03> M8X22 W/LK WASHER	0-50040-822-0	02	1	9205-9302		●
68	BOLT; DOUBLE CHECK VLV FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE	0-28080-825-0	02	1	9303-		●
68	BOLT; DOUBLE CHECK VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28080-820-0	02	1	9307-		●
68	BOLT; DOUBLE CHECK VLV NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28080-820-0	01	1	9307-9404		●
68	BOLT; DOUBLE CHECK VLV NEW ZEALAND EQUIPMENT(PK5) M8X30 FLANGE	0-28080-830-0	01	1	9405-		●
86	VALVE; SYN NEW ZEALAND EQUIPMENT(PK5)	1-48460-173-0	01	1	9006-9306		●
87	CONNECTOR; DBL CHECK VLV NYLON TUBE AIR PIPING<Z29> (A) M14 & PT3/8 STRAIGHT	1-09660-227-0	01	1	9002-9306		●
87	CONNECTOR; DBL CHECK VLV NYLON TUBE AIR PIPING<Z29> (B) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	9002-9306		●
87	CONNECTOR; DBL CHECK VLV NYLON TUBE AIR PIPING<Z29> (C)	1-09660-226-0	01	1	9006-9306		●
87	CONNECTOR; DBL CHECK VLV NYLON TUBE AIR PIPING<Z29> (D)	1-09660-238-0	02	1	9006-9306		●
87	CONNECTOR; DBL CHECK VLV NYLON TUBE AIR PIPING<Z29> (E)	1-09660-535-0	02	1	9307-		●
87	CONNECTOR; DBL CHECK VLV NYLON TUBE AIR PIPING<Z29> (F)	1-09660-555-0	01	1	9307-		●
114	VALVE; RELAY NYLON TUBE AIR PIPING<Z29>	1-48210-157-1	01	1	9002-9306		●
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (A) M14 & PT3/8 STRAIGHT	1-09660-227-0	01	1	9002-9306		●
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (B)	1-09660-230-0	01	1	9002-9306		●
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (C) M14 & PT3/8 ELBOW	1-09660-234-0	01	1	9002-9306		●
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (D) M18 & PT1/2 ELBOW	1-09660-236-0	01	1	9002-9306		●
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (F) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-		●
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (G)	1-09660-552-0	01	1	9307-		●
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (H)	1-09660-572-0	01	1	9307-		●
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (I) 17/32" PT1/4	1-09660-573-0	01	1	9307-		●
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (E)	1-09660-574-0	01	1	9307-		●
122	VALVE ASM; DOUBLE CHECK NYLON TUBE AIR PIPING<Z29>	1-48410-050-0	01	1	9002-9306		●
122	VALVE ASM; DOUBLE CHECK NYLON TUBE AIR PIPING<Z29>	1-48410-251-0	01	1	9307-		●
125	BOLT; RELAY VLV NYLON TUBE AIR PIPING<Z29> M10X35 W/LK WASHER	9-01911-035-0	02	1	9002-9002		●
125	BOLT; RELAY VLV NYLON TUBE AIR PIPING<Z29> M10X35 W/LK WASHER	0-50041-035-0	02	1	9003-		●
128	BOLT; VLV NYLON TUBE AIR PIPING<Z29>	0-10805-665-0	02	1	9006-9008		●
128	BOLT; VLV NYLON TUBE AIR PIPING<Z29> M6X60	0-10805-660-0	02	1	9009-9404		●
129	NUT; VLV NEW ZEALAND EQUIPMENT(PK5) M8	9-09110-408-0	02	1	9401-		●
129	NUT; VLV NYLON TUBE AIR PIPING<Z29> M6	9-09110-406-0	02	1	9006-9404		●
130	WASHER; LK,VLV NYLON TUBE AIR PIPING<Z29> ID=6.1	9-09150-606-0	02	1	9006-9404		●
131	WASHER; PL,VALVE NYLON TUBE AIR PIPING<Z29> ID=6.4 OD=18	9-09160-706-0	02	1	9006-		●
205	NUT; DOUBLE CHECK VLV NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9307-		●

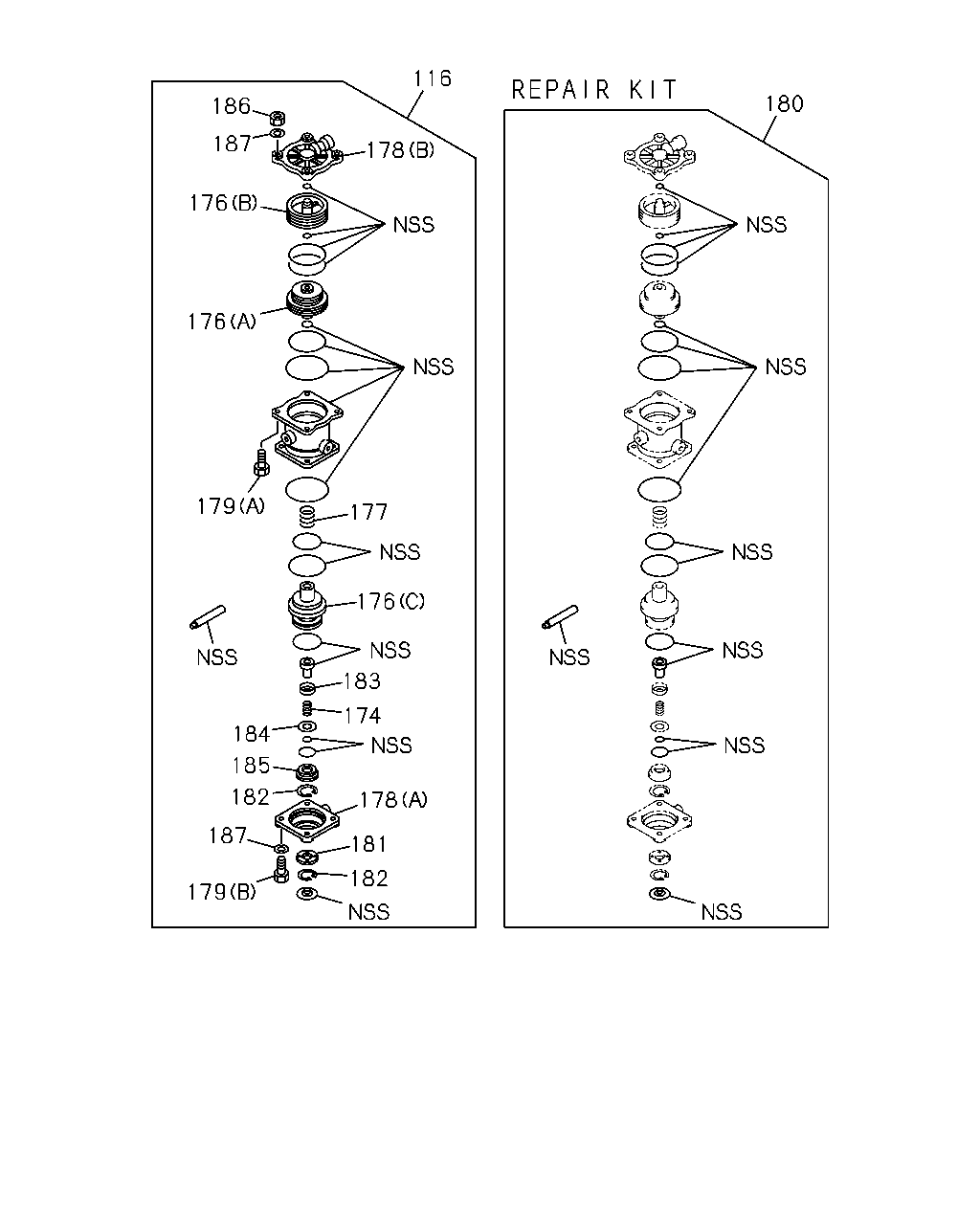

180 116 178 177 176 183 174 178 181 182 179 187 182 185 184 179 176 176 187 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
116	VALVE; DUAL RELAY NYLON TUBE AIR PIPING<Z29>	1-48210-347-0	01	1	9307-	●
174	SPRING; INL VLV NYLON TUBE AIR PIPING<Z29>	1-48219-094-0	01	1	9307-	●
176	PISTON; RELAY VLV NYLON TUBE AIR PIPING<Z29> (A) M14	1-48219-088-0	01	1	9307-	●
176	PISTON; RELAY VLV NYLON TUBE AIR PIPING<Z29> (B)	1-48219-089-0	01	1	9307-	●
176	PISTON; RELAY VLV NYLON TUBE AIR PIPING<Z29> (C)	1-48219-092-0	01	1	9307-	●
177	SPRING; RELAY VLV NYLON TUBE AIR PIPING<Z29>	1-48219-091-0	01	1	9307-	●
178	COVER; RELAY VLV NYLON TUBE AIR PIPING<Z29> (A)	1-48211-011-0	01	1	9307-	●
178	COVER; RELAY VLV NYLON TUBE AIR PIPING<Z29> (B)	1-48219-090-0	01	1	9307-	●
179	BOLT; COVER,RELAY VLV NYLON TUBE AIR PIPING<Z29> (A) M8X50	9-01045-850-0	04	1	9307-	●
179	BOLT; COVER,RELAY VLV NYLON TUBE AIR PIPING<Z29> (B) M8X25 W/LK WASHER	9-01900-825-0	04	1	9307-	●
180	REPAIR KIT; RELAY VLV NYLON TUBE AIR PIPING<Z29>	1-85576-116-0	01	1	9307-	●
181	PLATE; DUST SEAL NYLON TUBE AIR PIPING<Z29>	1-48219-098-0	01	1	9307-	●
182	RING; SNAP,RELAY VLV NYLON TUBE AIR PIPING<Z29>	1-48219-097-0	02	1	9307-	●
183	RETAINER; VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-093-0	01	1	9307-	●
184	PLATE; VALVE HOLDER NYLON TUBE AIR PIPING<Z29>	1-48219-095-0	01	1	9307-	●
185	HOLDER; VALVE NYLON TUBE AIR PIPING<Z29>	1-48219-096-0	01	1	9307-	●
186	NUT; COVER NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9307-	●
187	WASHER; COVER NYLON TUBE AIR PIPING<Z29> ID=8.2	9-09150-508-0	08	1	9307-	●

138 138 137 138 137 137 151 151 151 32 115 116 115 64 125 65 67 115 115 115 157 142 143 143 143 143 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1) (B)	1-48460-168-0	01	1	9002-9011	●	●
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1) (B)	1-48460-275-1	01	1	9012-	●	●
32	VALVE; BRK,HAND CONT NEW ZEALAND EQUIPMENT(PK5) (A)	1-48460-207-0	01	1	9002-9306	●	●
32	VALVE; BRK,HAND CONT EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48460-198-0	01	1	9002-	●	●
32	VALVE; BRK,HAND CONT NEW ZEALAND EQUIPMENT(PK5) (B)	1-48460-292-0	01	1	9307-		●
64	BRACKET; RELAY VLV NYLON TUBE AIR PIPING<Z29>	1-48495-126-0	01	1	9307-		●
65	NUT; RELAY VLV NEW ZEALAND EQUIPMENT(PK5) M10	9-09110-510-0	02	1	9002-9306		●
65	NUT; RELAY VLV NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	9307-		●
67	WASHER; LK,RELAY VLV NYLON TUBE AIR PIPING<Z29> ID=8.2	9-09150-508-0	03	1	9307-		●
102	BOLT; SUPPLY DUMP VLV NYLON TUBE AIR PIPING<Z29> M10X22 W/LK WASHER	0-50041-022-0	02	1	9307-		●
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (A) M14 & PT3/8 STRAIGHT	1-09660-227-0	01	1	9002-9306		●
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (B)	1-09660-230-0	01	1	9002-9306		●
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (C) M14 & PT3/8 ELBOW	1-09660-234-0	01	1	9002-9306		●
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (D) M18 & PT1/2 ELBOW	1-09660-236-0	01	1	9002-9306		●
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (F) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-		●
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (G)	1-09660-552-0	01	1	9307-		●
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (H)	1-09660-572-0	01	1	9307-		●
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (I) 17/32" PT1/4	1-09660-573-0	01	1	9307-		●
115	CONNECTOR; DUAL RELAY VLV NYLON TUBE AIR PIPING<Z29> (E)	1-09660-574-0	01	1	9307-		●
116	VALVE; DUAL RELAY NYLON TUBE AIR PIPING<Z29>	1-48210-347-0	01	1	9307-		●
125	BOLT; RELAY VLV NYLON TUBE AIR PIPING<Z29> M10X35 W/LK WASHER	9-01911-035-0	02	1	9002-9002		●
125	BOLT; RELAY VLV NYLON TUBE AIR PIPING<Z29> M10X35 W/LK WASHER	0-50041-035-0	02	1	9003-		●
137	CONNECTOR; SUPPLY EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (D) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9002-	●	●
137	CONNECTOR; SUPPLY NEW ZEALAND EQUIPMENT(PK5) (E)	1-09660-334-0	01	1	9002-9306		●
137	CONNECTOR; SUPPLY NEW ZEALAND EQUIPMENT(PK5) (A)	1-09650-400-0	01	1	9307-		●
137	CONNECTOR; SUPPLY NEW ZEALAND EQUIPMENT(PK5) (B) M20X36	1-09660-576-0	01	1	9307-		●
137	CONNECTOR; SUPPLY NEW ZEALAND EQUIPMENT(PK5) (C) PT1/4 2WAY	1-09660-693-0	01	1	9307-		●
138	CONNECTOR; DELIVERY EXC. PARKING BRAKE VALVE LEVER TYPE<W48>,NYLON TUBE AIR PIPING<Z29> (D) M14 & PT1/4 ELBOW	1-09650-034-1	01	1	9002-9302	●	●
138	CONNECTOR; DELIVERY EXC. PARKING BRAKE VALVE LEVER TYPE<W48>,NYLON TUBE AIR PIPING<Z29> (D) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9303-	●	●
138	CONNECTOR; DELIVERY NEW ZEALAND EQUIPMENT(PK5) (D) M14 & PT1/4 ELBOW	1-09660-233-0	01	1	9002-9306		●
138	CONNECTOR; DELIVERY NEW ZEALAND EQUIPMENT(PK5) (A)	1-09650-373-0	01	1	9307-		●
138	CONNECTOR; DELIVERY NEW ZEALAND EQUIPMENT(PK5) (B)	1-09650-401-0	01	1	9307-		●
138	CONNECTOR; DELIVERY NEW ZEALAND EQUIPMENT(PK5) (C) 17/32" PT1/4	1-09660-573-0	01	1	9307-		●
142	VALVE; SUPPLY DUMP NYLON TUBE AIR PIPING<Z29>	1-48210-367-0	01	1	9307-		●
143	CONNECTOR; CONT NYLON TUBE AIR PIPING<Z29> (A) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-		●
143	CONNECTOR; CONT NYLON TUBE AIR PIPING<Z29> (B)	1-09660-572-0	01	1	9307-		●
143	CONNECTOR; CONT NYLON TUBE AIR PIPING<Z29> (C)	1-09660-574-0	01	1	9307-		●
143	CONNECTOR; CONT NYLON TUBE AIR PIPING<Z29> (D)	1-09664-182-0	01	1	9307-		●
151	BOLT; VLV BRKT HONG KONG EQUIPMENT(PQ1) M8X20	1-09980-529-0	02	1	9309-	●	●
151	BOLT; VLV BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M6X20	9-01910-620-0	02	1	9002-9005	●	●
151	BOLT; VLV BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M6X20 W/LK WASHER	0-50040-620-0	02	1	9006-9302	●	●
151	BOLT; VLV BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M6X20 FLANGE	0-28080-620-0	02	1	9303-	●	●
151	BOLT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5) M6X14 W/LK&PL WASHER	1-09980-549-0	06	1	9401-9401		●
151	BOLT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5) M6X16 W/LK&PL WASHER	0-50140-616-0	06	1	9402-		●
157	NUT; SUPPLY DUMP VALVE NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	02	1	9307-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
