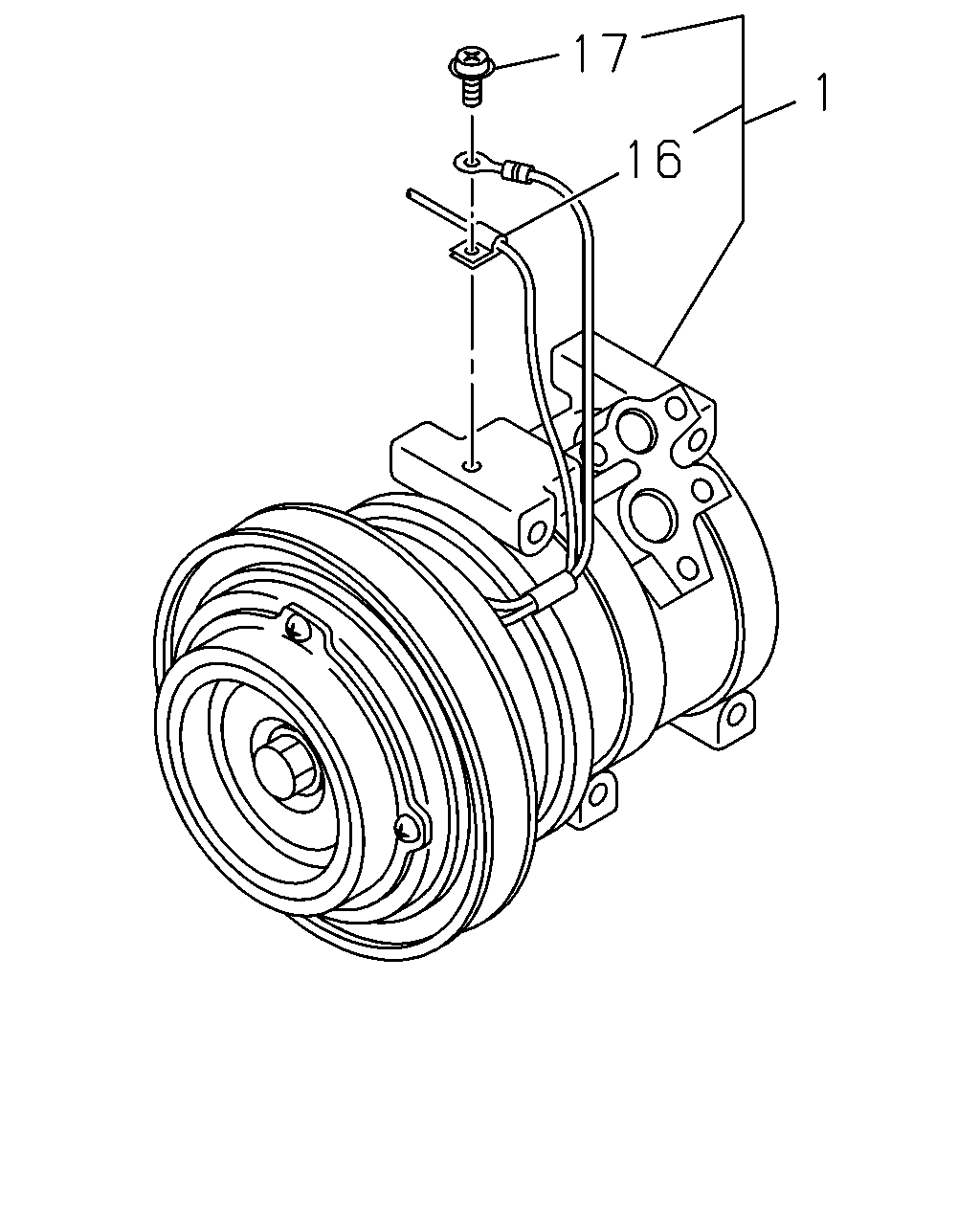

8-71 — COMPRESSOR; AIR CONDITIONING (#28325) — 6 parça

17 1 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83532-329-0	01	1	0610-0907
1	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-329-0	01	1	0908-
16	CLIP; WIRE,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-893-0	01	1	0610-0907
16	CLIP; WIRE,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-893-0	01	1	0908-
17	SCREW; WIRE CLIP MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60),AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	5-81129-130-0	01	1	0610-0907
17	SCREW; WIRE CLIP MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	5-81129-130-0	01	1	0908-
