Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#28319) — 368 parça

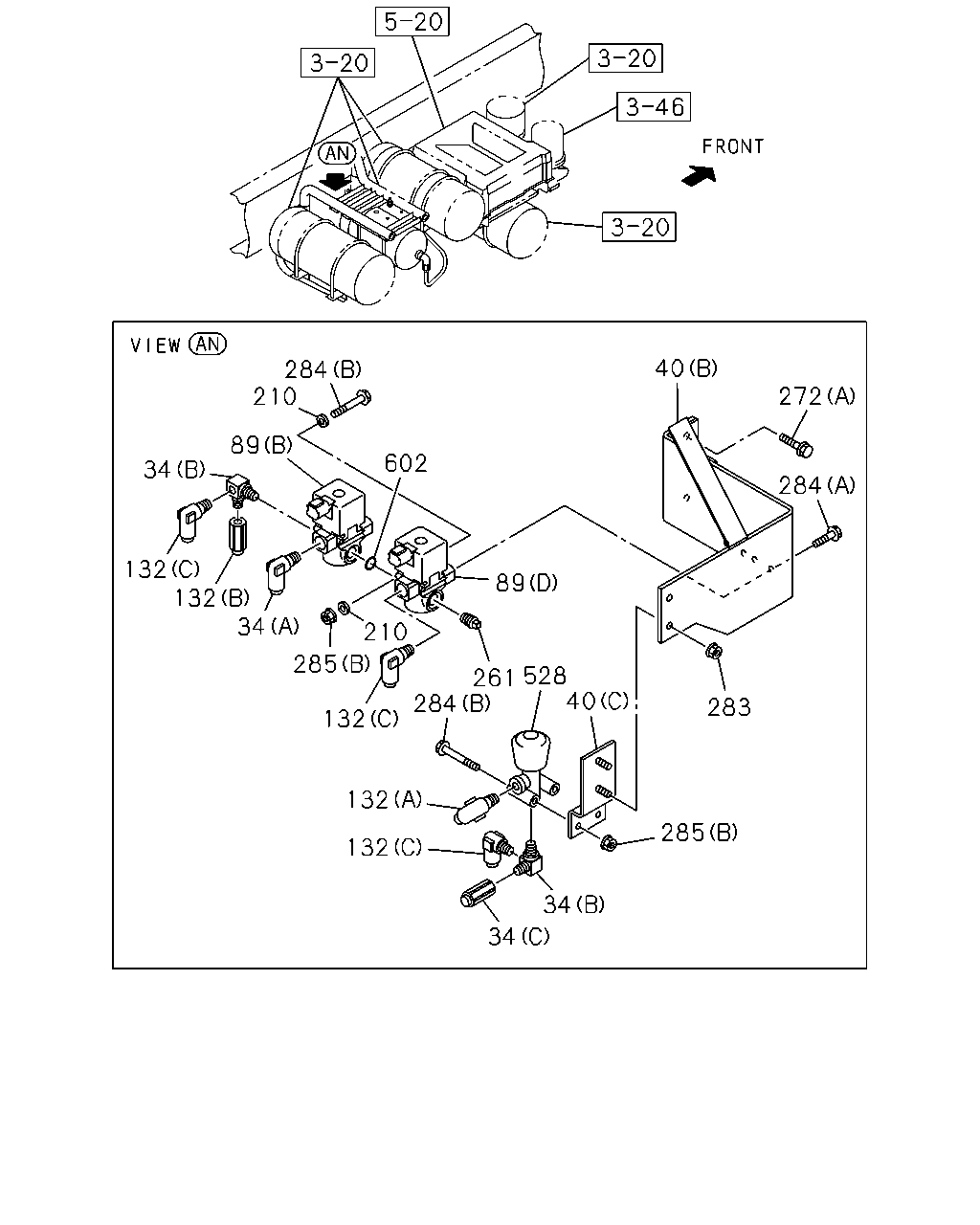

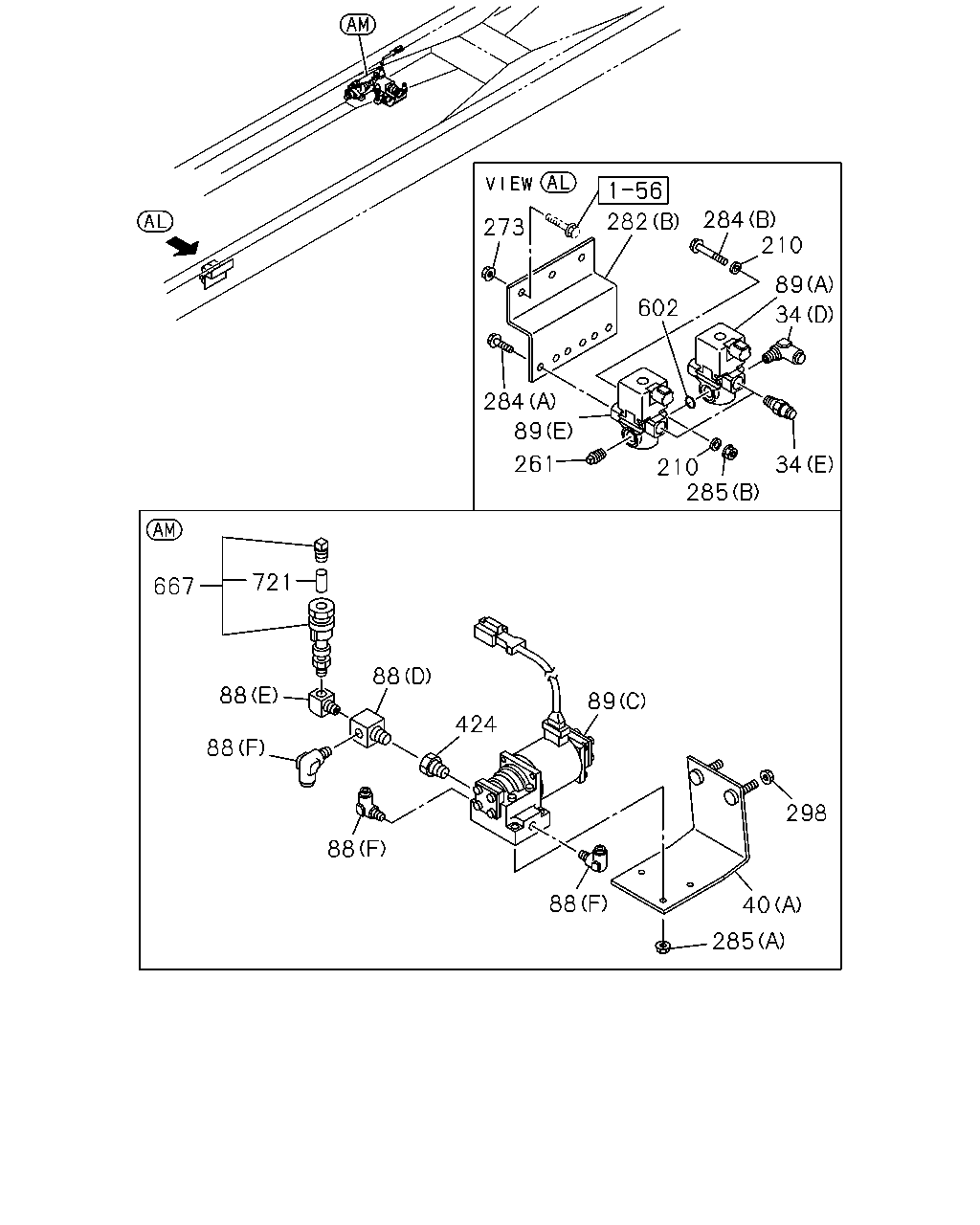

284 210 282 273 89 602 34 284 89 261 34 210 285 721 667 88 88 89 424 88 298 88 88 40 285

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT (B) PT1/4 & M12 ELBOW	1-09656-665-0	02	1	0610-
34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0610-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0610-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0610-0610
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0610-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0610-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	02	1	0610-0610
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	03	1	0610-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0610-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	02	1	0610-
40	BRACKET; MAG VLV (E)	1-53457-199-0	01	1	0610-0611
40	BRACKET; MAG VLV (E)	8-98069-778-0	01	1	0612-
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	0610-
40	BRACKET; MAG VLV (C)	8-97609-190-0	01	1	0610-
40	BRACKET; MAG VLV (B)	8-97614-699-0	01	1	0610-
40	BRACKET; MAG VLV (A)	8-98036-296-0	01	1	0610-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0610-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0610-
88	CONNECTOR; MAG VLV (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0610-
88	CONNECTOR; MAG VLV (F) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	0610-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0610-
88	CONNECTOR; MAG VLV (D) PT3/8 3WAY	1-09661-300-0	01	1	0610-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0610-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (E)	1-82563-872-1	01	1	0610-
89	VALVE; MAG,DIFF LOCK (D)	1-82564-212-1	01	1	0610-
89	VALVE; MAG,DIFF LOCK (C)	1-82564-279-1	01	1	0610-
89	VALVE; MAG,DIFF LOCK (B)	1-82564-354-1	01	1	0610-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-871-2	01	1	0610-0610
89	VALVE; MAG,DIFF LOCK TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-871-2	02	1	0610-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A)	1-82563-871-2	01	1	0610-
210	WASHER; PL,BRKT	1-82569-266-0	06	1	0610-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2>	1-82569-266-0	02	1	0610-0610
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0610-0610
210	WASHER; PL,BRKT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2>	1-82569-266-0	04	1	0610-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0610-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-82569-266-0	02	1	0610-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0610-0610
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	0610-0610
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0610-0610
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0610-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0610-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	0610-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	0610-
273	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91180-108-0	02	1	0610-
282	BRACKET; MAG VLV (A)	1-82569-298-0	01	1	0610-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (B)	1-47479-364-1	01	1	0610-0610
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-47479-364-1	01	1	0610-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (B)	1-47479-364-1	01	1	0610-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0610-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0610-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> (B) M6X50 FLANGE	0-28050-650-0	01	1	0610-0610
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (B) M6X50 FLANGE	0-28050-650-0	02	1	0610-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0610
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0610
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE	0-28650-820-0	03	1	0610-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M6X50 FLANGE	0-28050-650-0	01	1	0610-
285	NUT; MAG VLV (A) M5	0-91110-505-0	03	1	0610-
285	NUT; MAG VLV (B) M6 FLANGE	0-91180-106-0	03	1	0610-
285	NUT; MAG VLV (B) M6 FLANGE	0-91180-106-0	03	1	0610-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> (B) M6 FLANGE	0-91180-106-0	01	1	0610-0610
285	NUT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (B) M6 FLANGE	0-91180-106-0	02	1	0610-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M6 FLANGE	0-91180-106-0	01	1	0610-
298	NUT; MAG VLV M8 FLANGE	0-91180-108-0	04	1	0610-
424	ADAPTER PT3/8	1-09664-210-0	01	1	0610-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	0610-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> ID=16.8	9-09565-117-0	01	1	0610-0610
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0610-0610
602	GASKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> ID=16.8	9-09565-117-0	02	1	0610-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0610-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) ID=16.8	9-09565-117-0	01	1	0610-
667	LUBRICATION	1-33779-011-0	01	1	0610-0705
667	LUBRICATION	8-98063-001-0	01	1	0706-
721	ELEMENT; LUBRICATION	1-33779-028-0	01	1	0610-

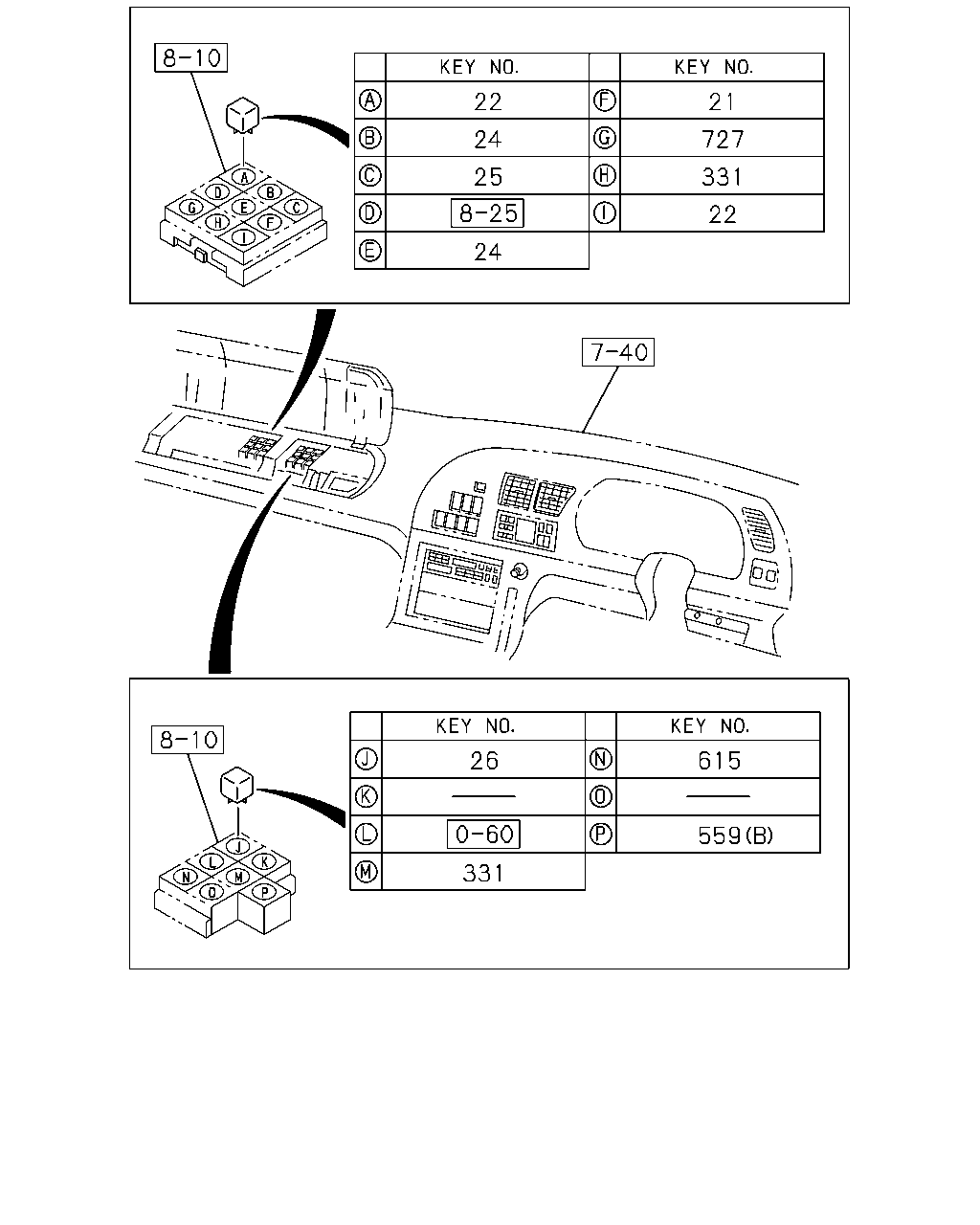

22 21 24 727 25 331 22 24 26 615 559 331

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	RELAY; TRAILER TAIL 24V 12.5A PANASONIC	8-97262-933-0	01	1	0610-
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	0610-
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0610-
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0610-
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0610-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0908-1312
331	RELAY; A/C ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1401-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0610-
559	RELAY; MAG VLV (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0610-
559	RELAY; MAG VLV (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0610-
615	RELAY; TRAILER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0610-
727	RELAY; START CUT 24V 10A PANASONIC	8-97173-035-1	01	1	0610-1306
727	RELAY; START CUT 24V 10A PANASONIC	8-98167-173-0	01	1	1307-

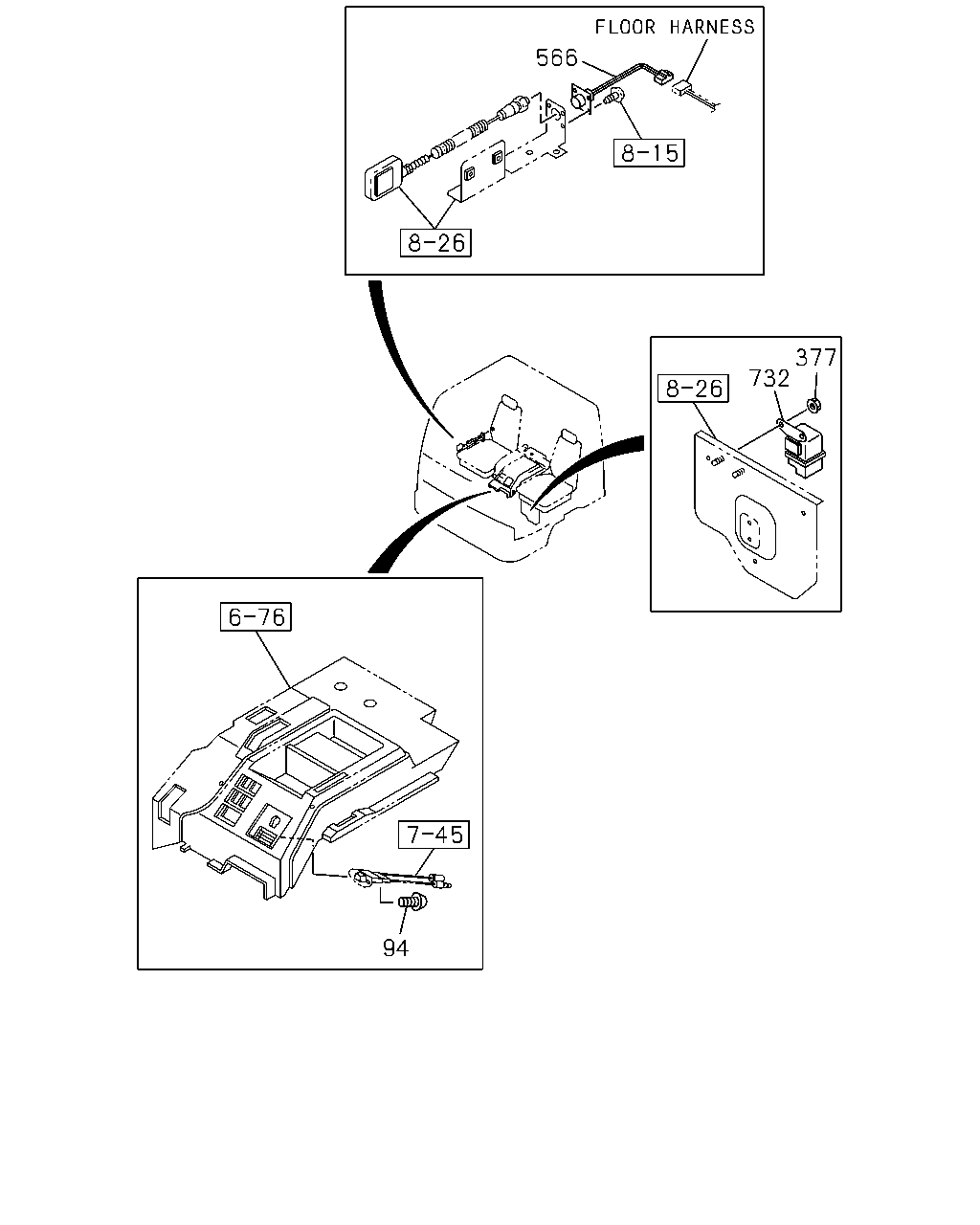

566 377 732 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0610-
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0610-
377	NUT; RELAY M6 FLANGE	0-91180-106-0	02	1	0610-
566	HARNESS; REMOTE CONT	1-82626-888-1	01	1	0610-
732	RELAY; EDS	1-82550-337-1	01	1	0610-

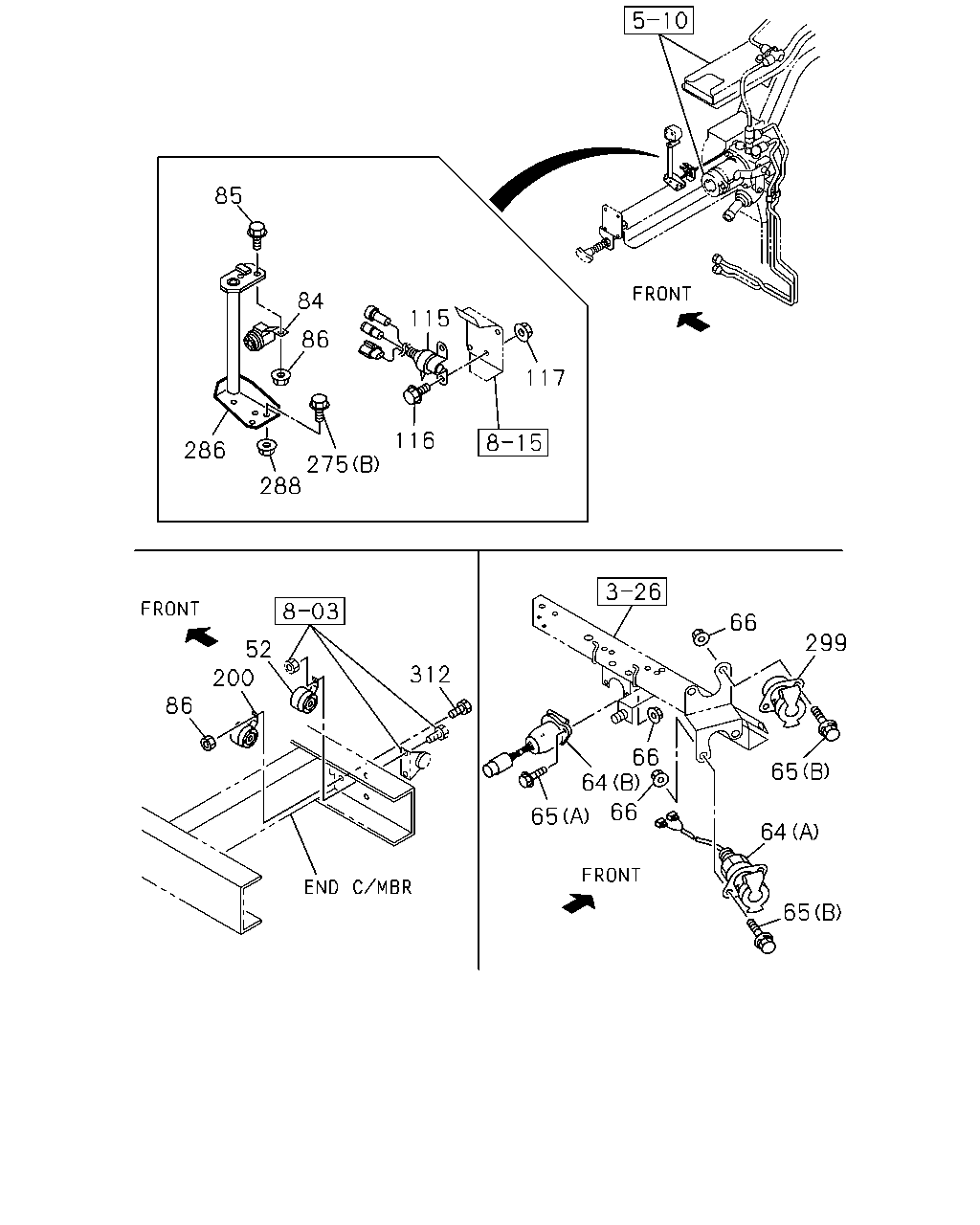

85 84 115 86 117 116 286 275 288 66 299 52 200 312 86 66 64 65 66 65 64 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BUZZER; BACK TAIL & STOP LAMPS<TR1> REVERSING WARNING BUZZER<YM9> METRO DENSO	1-83460-083-0	01	1	0610-0612
52	BUZZER; BACK TAIL & STOP LAMPS<TR1> REVERSING WARNING BUZZER<YM9> METRO DENSO	8-98069-861-0	01	1	0701-
64	SOCKET; TRAILER (B) 7P	1-82523-014-0	01	1	0610-
64	SOCKET; TRAILER (A) L=860	1-82699-449-2	01	1	0610-1008
64	SOCKET; TRAILER (A) L=860	8-98172-008-0	01	1	1009-
65	BOLT; SOCKET FIX (C) M6X16 FLANGE	0-28050-616-0	02	1	0612-
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	04	1	0610-
65	BOLT; SOCKET FIX (A) M8X30 FLANGE	0-28650-830-0	02	1	0610-
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	05	1	0610-
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-097-0	01	1	0610-0612
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0701-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0610-
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0610-
86	NUT; BUZZER M10 FLANGE	0-91180-210-0	01	1	0610-
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	0610-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0610-
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0610-
200	BUZZER; WARNING,AIR SUSP	1-83460-104-0	01	1	0610-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	0610-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0610-
286	BRACKET	1-82699-199-0	01	1	0610-
288	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	0610-
299	SOCKET; PARKING	1-82699-396-2	01	1	0610-
312	BOLT; BUZZER M10X35 FLANGE	0-28651-035-0	01	1	0610-
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0610-

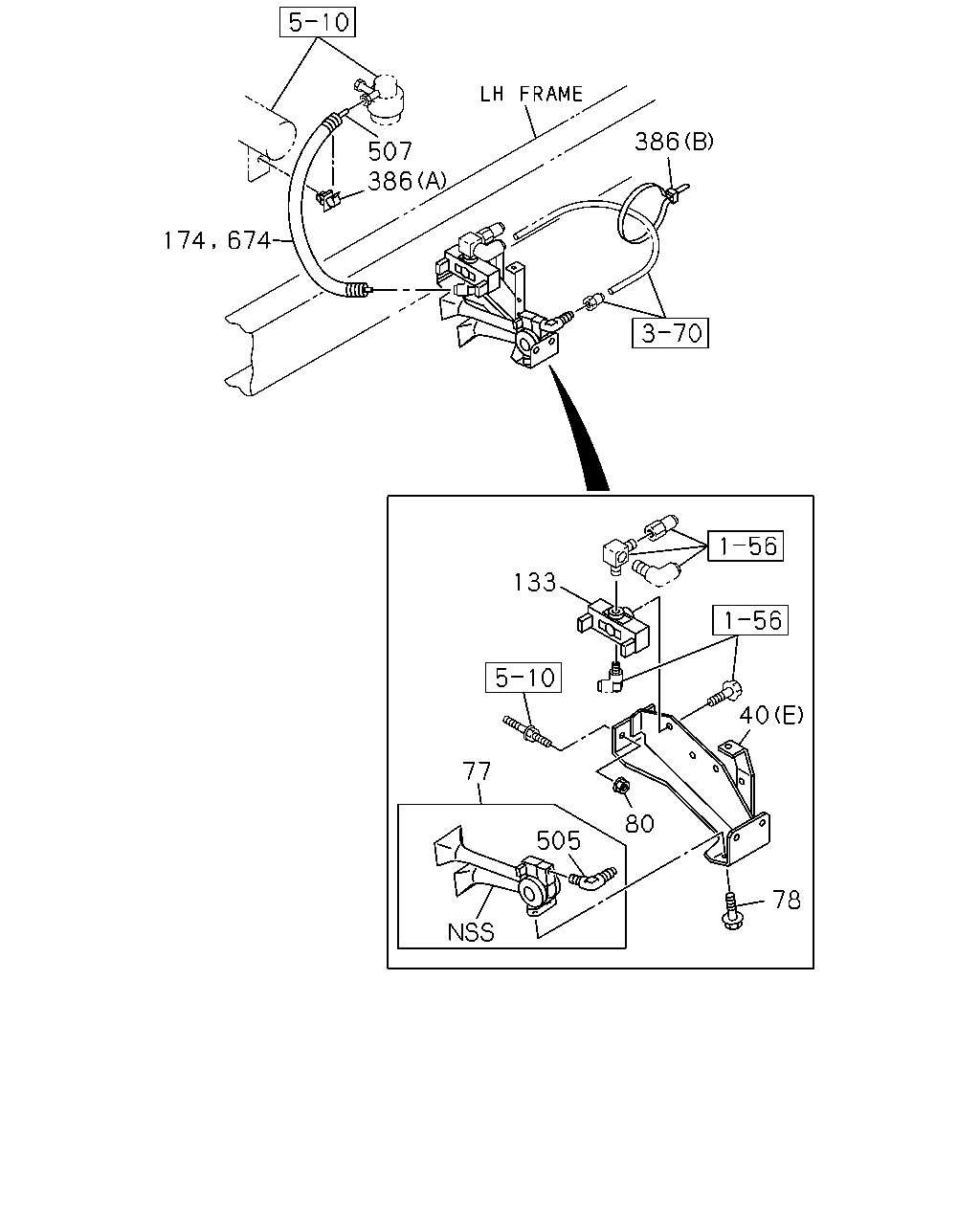

386 507 386 174 674 133 40 77 80 505 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV (E)	1-53457-199-0	01	1	0610-0611
40	BRACKET; MAG VLV (E)	8-98069-778-0	01	1	0612-
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	0610-
40	BRACKET; MAG VLV (C)	8-97609-190-0	01	1	0610-
40	BRACKET; MAG VLV (B)	8-97614-699-0	01	1	0610-
40	BRACKET; MAG VLV (A)	8-98036-296-0	01	1	0610-
77	HORN ASM	1-83430-041-2	01	1	0610-
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0610-
80	NUT; MAG VLV M12 FLANGE	0-91180-212-0	02	1	0610-
133	VALVE; MAG,AIR HORN	1-53458-378-2	01	1	0610-
174	COVER L=800	1-83129-031-1	01	1	0610-0806
174	COVER L=800 L=600 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0807-
386	CLIP; HARNESS (B) L=350	1-09707-183-0	02	1	0807-
386	CLIP; HARNESS (A) ID=9.5	5-09709-020-0	01	1	0610-
505	JOINT; AIR HORN	1-83439-006-0	01	1	0610-
507	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0610-0806
507	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0807-
674	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0807-

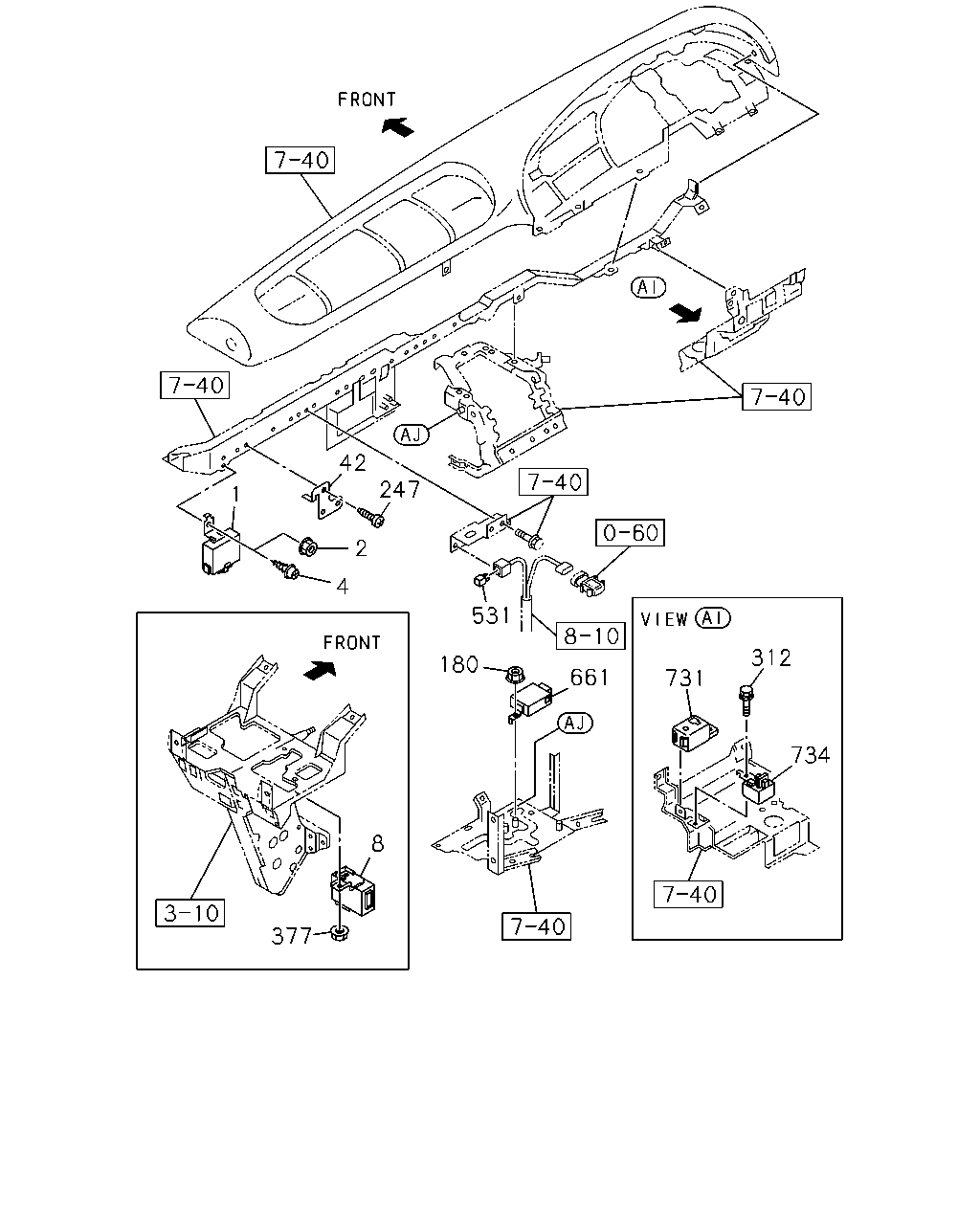

42 247 1 2 4 531 312 180 661 731 734 8 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-97613-970-1	01	1	0906-
1	UNIT; FLASHER	1-83470-062-1	01	1	0610-0905
1	UNIT; FLASHER EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-83470-062-1	01	1	0906-
4	SCREW; FLASHER UNIT M5X14	8-94279-325-0	01	1	0610-0705
8	RELAY; WIPER	1-83316-002-4	01	1	0610-
42	BRACKET; RELAY	1-82698-128-2	01	1	0610-
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0610-0705
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	02	1	0706-
247	SCREW; BRKT M5X14	8-94279-325-0	01	1	0610-
312	BOLT; BUZZER M10X35 FLANGE	0-28651-035-0	01	1	0610-
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0610-
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0610-
377	NUT; RELAY M6 FLANGE	0-91180-106-0	02	1	0610-
531	RELAY; MAIN 24V	1-82550-308-1	01	1	0610-1005
531	RELAY; MAIN 24V	8-98167-175-0	01	1	1006-
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	0610-
731	ALARM; INFORMATION	1-83460-051-1	01	1	0610-
734	ALARM; MULTI	1-83460-106-0	01	1	0610-

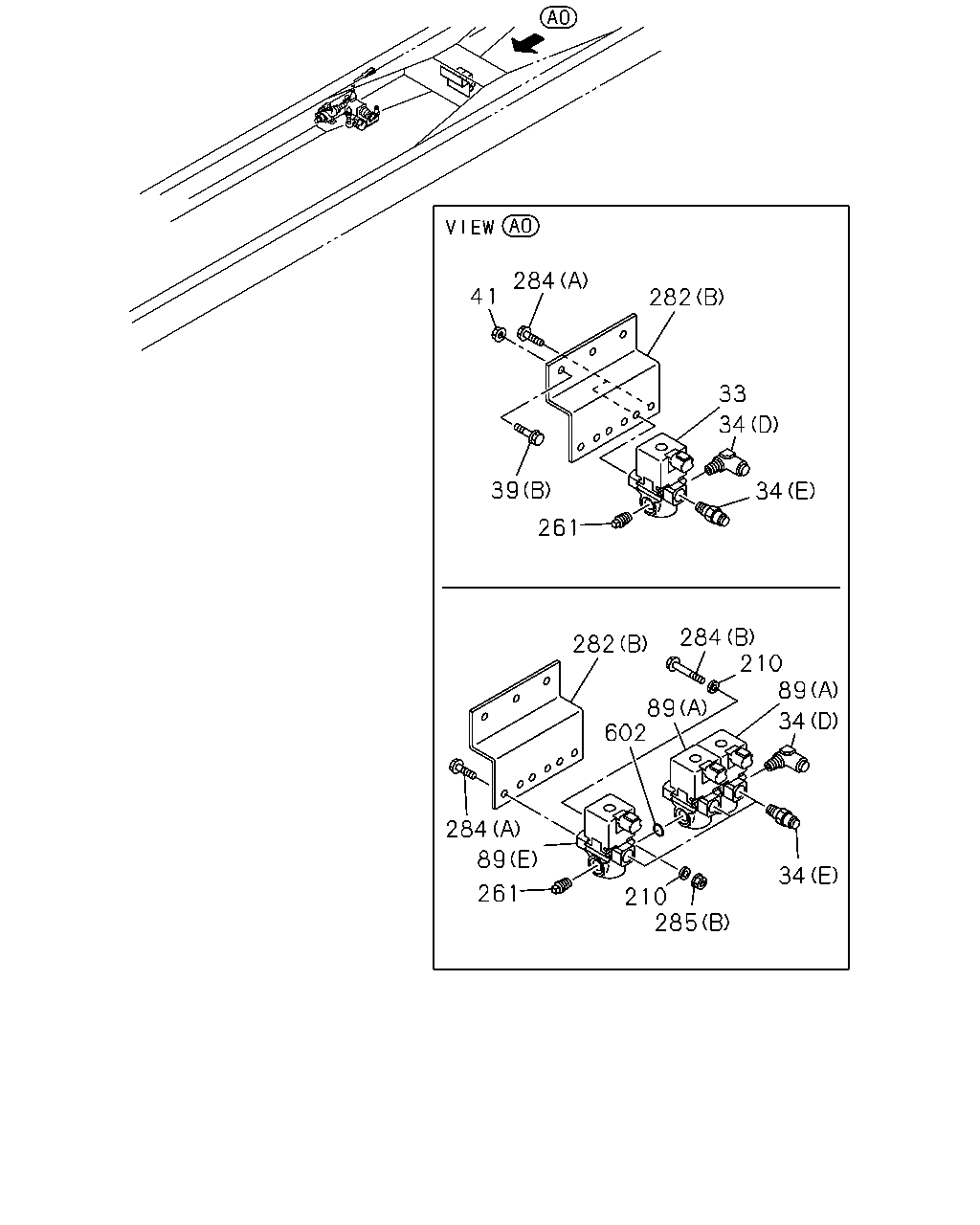

284 41 282 33 34 39 34 261 284 210 89 282 89 602 34 284 89 34 261 210 285

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2>	1-82563-871-2	01	1	0610-
34	CONNECTOR; MAG VLV,INL PORT (B) PT1/4 & M12 ELBOW	1-09656-665-0	02	1	0610-
34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0610-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0610-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0610-0610
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0610-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0610-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	02	1	0610-0610
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	03	1	0610-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0610-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	02	1	0610-
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	04	1	0610-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (B) M8X30 FLANGE	0-28650-830-0	02	1	0610-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91180-108-0	02	1	0610-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (E)	1-82563-872-1	01	1	0610-
89	VALVE; MAG,DIFF LOCK (D)	1-82564-212-1	01	1	0610-
89	VALVE; MAG,DIFF LOCK (C)	1-82564-279-1	01	1	0610-
89	VALVE; MAG,DIFF LOCK (B)	1-82564-354-1	01	1	0610-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-871-2	01	1	0610-0610
89	VALVE; MAG,DIFF LOCK TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-871-2	02	1	0610-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A)	1-82563-871-2	01	1	0610-
210	WASHER; PL,BRKT	1-82569-266-0	06	1	0610-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2>	1-82569-266-0	02	1	0610-0610
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0610-0610
210	WASHER; PL,BRKT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2>	1-82569-266-0	04	1	0610-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0610-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-82569-266-0	02	1	0610-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0610-0610
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	0610-0610
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0610-0610
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0610-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0610-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	0610-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	0610-
282	BRACKET; MAG VLV (A)	1-82569-298-0	01	1	0610-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (B)	1-47479-364-1	01	1	0610-0610
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-47479-364-1	01	1	0610-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (B)	1-47479-364-1	01	1	0610-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0610-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0610-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> (B) M6X50 FLANGE	0-28050-650-0	01	1	0610-0610
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (B) M6X50 FLANGE	0-28050-650-0	02	1	0610-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0610
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0610
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE	0-28650-820-0	03	1	0610-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M6X50 FLANGE	0-28050-650-0	01	1	0610-
285	NUT; MAG VLV (A) M5	0-91110-505-0	03	1	0610-
285	NUT; MAG VLV (B) M6 FLANGE	0-91180-106-0	03	1	0610-
285	NUT; MAG VLV (B) M6 FLANGE	0-91180-106-0	03	1	0610-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> (B) M6 FLANGE	0-91180-106-0	01	1	0610-0610
285	NUT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (B) M6 FLANGE	0-91180-106-0	02	1	0610-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M6 FLANGE	0-91180-106-0	01	1	0610-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	0610-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> ID=16.8	9-09565-117-0	01	1	0610-0610
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0610-0610
602	GASKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> ID=16.8	9-09565-117-0	02	1	0610-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0610-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) ID=16.8	9-09565-117-0	01	1	0610-

40 284 210 272 89 602 34 284 132 132 34 89 210 285 528 40 261 284 283 132 132 285 132 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT (B) PT1/4 & M12 ELBOW	1-09656-665-0	02	1	0610-
34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0610-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0610-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0610-0610
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0610-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0610-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	02	1	0610-0610
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	03	1	0610-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0610-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	02	1	0610-
40	BRACKET; MAG VLV (E)	1-53457-199-0	01	1	0610-0611
40	BRACKET; MAG VLV (E)	8-98069-778-0	01	1	0612-
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	0610-
40	BRACKET; MAG VLV (C)	8-97609-190-0	01	1	0610-
40	BRACKET; MAG VLV (B)	8-97614-699-0	01	1	0610-
40	BRACKET; MAG VLV (A)	8-98036-296-0	01	1	0610-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (E)	1-82563-872-1	01	1	0610-
89	VALVE; MAG,DIFF LOCK (D)	1-82564-212-1	01	1	0610-
89	VALVE; MAG,DIFF LOCK (C)	1-82564-279-1	01	1	0610-
89	VALVE; MAG,DIFF LOCK (B)	1-82564-354-1	01	1	0610-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-871-2	01	1	0610-0610
89	VALVE; MAG,DIFF LOCK TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-871-2	02	1	0610-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A)	1-82563-871-2	01	1	0610-
132	CONNECTOR; OUTLET,MAG VLV (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0610-
132	CONNECTOR; OUTLET,MAG VLV (C) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0610-
132	CONNECTOR; OUTLET,MAG VLV (A) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0610-
210	WASHER; PL,BRKT	1-82569-266-0	06	1	0610-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2>	1-82569-266-0	02	1	0610-0610
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0610-0610
210	WASHER; PL,BRKT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2>	1-82569-266-0	04	1	0610-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0610-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-82569-266-0	02	1	0610-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0610-0610
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	0610-0610
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0610-0610
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0610-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0610-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	0610-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	0610-
272	BOLT; MAG VLV (A) M8X30 FLANGE	0-28650-830-0	02	1	0610-
272	BOLT; MAG VLV (B) M10X20 FLANGE	0-28651-020-0	02	1	0610-1208
272	BOLT; MAG VLV (B) M10X25 FLANGE	0-28651-025-0	02	1	1209-
283	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	0610-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0610-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0610-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> (B) M6X50 FLANGE	0-28050-650-0	01	1	0610-0610
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (B) M6X50 FLANGE	0-28050-650-0	02	1	0610-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0610
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0610
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE	0-28650-820-0	03	1	0610-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M6X50 FLANGE	0-28050-650-0	01	1	0610-
285	NUT; MAG VLV (A) M5	0-91110-505-0	03	1	0610-
285	NUT; MAG VLV (B) M6 FLANGE	0-91180-106-0	03	1	0610-
285	NUT; MAG VLV (B) M6 FLANGE	0-91180-106-0	03	1	0610-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> (B) M6 FLANGE	0-91180-106-0	01	1	0610-0610
285	NUT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (B) M6 FLANGE	0-91180-106-0	02	1	0610-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M6 FLANGE	0-91180-106-0	01	1	0610-
528	VALVE; PRESSURE REDUCING	1-48410-738-0	01	1	0610-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	0610-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> ID=16.8	9-09565-117-0	01	1	0610-0610
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0610-0610
602	GASKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> ID=16.8	9-09565-117-0	02	1	0610-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0610-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) ID=16.8	9-09565-117-0	01	1	0610-

97 96 39 604 604 604 261 282 284 210 602 96 88 280 210 285 604 635 65 88 275 40 88 450 272 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	04	1	0610-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (B) M8X30 FLANGE	0-28650-830-0	02	1	0610-
40	BRACKET; MAG VLV (E)	1-53457-199-0	01	1	0610-0611
40	BRACKET; MAG VLV (E)	8-98069-778-0	01	1	0612-
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	0610-
40	BRACKET; MAG VLV (C)	8-97609-190-0	01	1	0610-
40	BRACKET; MAG VLV (B)	8-97614-699-0	01	1	0610-
40	BRACKET; MAG VLV (A)	8-98036-296-0	01	1	0610-
65	BOLT; SOCKET FIX (C) M6X16 FLANGE	0-28050-616-0	02	1	0612-
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	04	1	0610-
65	BOLT; SOCKET FIX (A) M8X30 FLANGE	0-28650-830-0	02	1	0610-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0610-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0610-
88	CONNECTOR; MAG VLV (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0610-
88	CONNECTOR; MAG VLV (F) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	0610-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0610-
88	CONNECTOR; MAG VLV (D) PT3/8 3WAY	1-09661-300-0	01	1	0610-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0610-
96	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	03	1	0610-
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	03	1	0610-
210	WASHER; PL,BRKT	1-82569-266-0	06	1	0610-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2>	1-82569-266-0	02	1	0610-0610
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0610-0610
210	WASHER; PL,BRKT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2>	1-82569-266-0	04	1	0610-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0610-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-82569-266-0	02	1	0610-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0610-0610
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	0610-0610
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0610-0610
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0610-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0610-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	0610-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	0610-
272	BOLT; MAG VLV (A) M8X30 FLANGE	0-28650-830-0	02	1	0610-
272	BOLT; MAG VLV (B) M10X20 FLANGE	0-28651-020-0	02	1	0610-1208
272	BOLT; MAG VLV (B) M10X25 FLANGE	0-28651-025-0	02	1	1209-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	0610-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0610-
280	CONNECTOR; IN,MAG VLV M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0610-
282	BRACKET; MAG VLV (A)	1-82569-298-0	01	1	0610-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (B)	1-47479-364-1	01	1	0610-0610
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-47479-364-1	01	1	0610-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (B)	1-47479-364-1	01	1	0610-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0610-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0610-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> (B) M6X50 FLANGE	0-28050-650-0	01	1	0610-0610
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (B) M6X50 FLANGE	0-28050-650-0	02	1	0610-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0610
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0610
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE	0-28650-820-0	03	1	0610-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M6X50 FLANGE	0-28050-650-0	01	1	0610-
285	NUT; MAG VLV (A) M5	0-91110-505-0	03	1	0610-
285	NUT; MAG VLV (B) M6 FLANGE	0-91180-106-0	03	1	0610-
285	NUT; MAG VLV (B) M6 FLANGE	0-91180-106-0	03	1	0610-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> (B) M6 FLANGE	0-91180-106-0	01	1	0610-0610
285	NUT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (B) M6 FLANGE	0-91180-106-0	02	1	0610-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M6 FLANGE	0-91180-106-0	01	1	0610-
450	VALVE; MAG	1-53458-378-2	01	1	0610-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	0610-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> ID=16.8	9-09565-117-0	01	1	0610-0610
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0610-0610
602	GASKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> ID=16.8	9-09565-117-0	02	1	0610-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0610-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) ID=16.8	9-09565-117-0	01	1	0610-
604	VALVE; MAG,ENG CONT	1-82563-871-2	04	1	0610-
635	SENSOR; PICK UP,INPUT SHAFT	1-81510-736-1	01	1	0610-

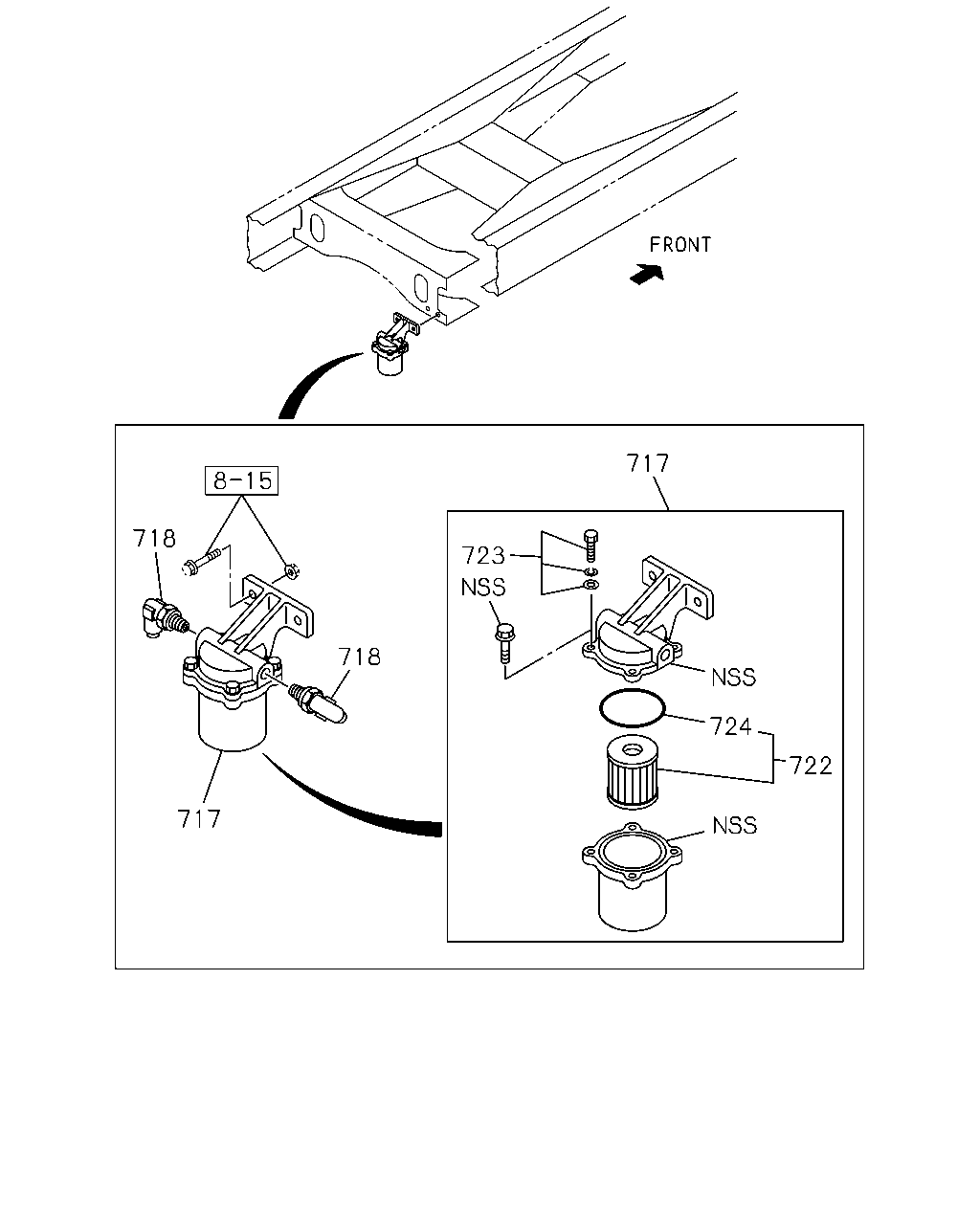

717 718 723 718 724 722 717

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
717	FILTER; MAG VLV	1-33779-032-0	01	1	0610-0708
717	FILTER; MAG VLV	8-98092-703-0	01	1	0709-
718	CONNECTOR; FILTER DIN8 & M16 ELBOW	1-09661-531-0	02	1	0610-
722	ELEMENT; AIR FILTER	1-33779-040-0	01	1	0610-
723	BOLT; AIR FILTER	1-33779-025-0	04	1	0610-0708
724	GASKET; AIR FILTER	5-09623-075-0	01	1	0610-

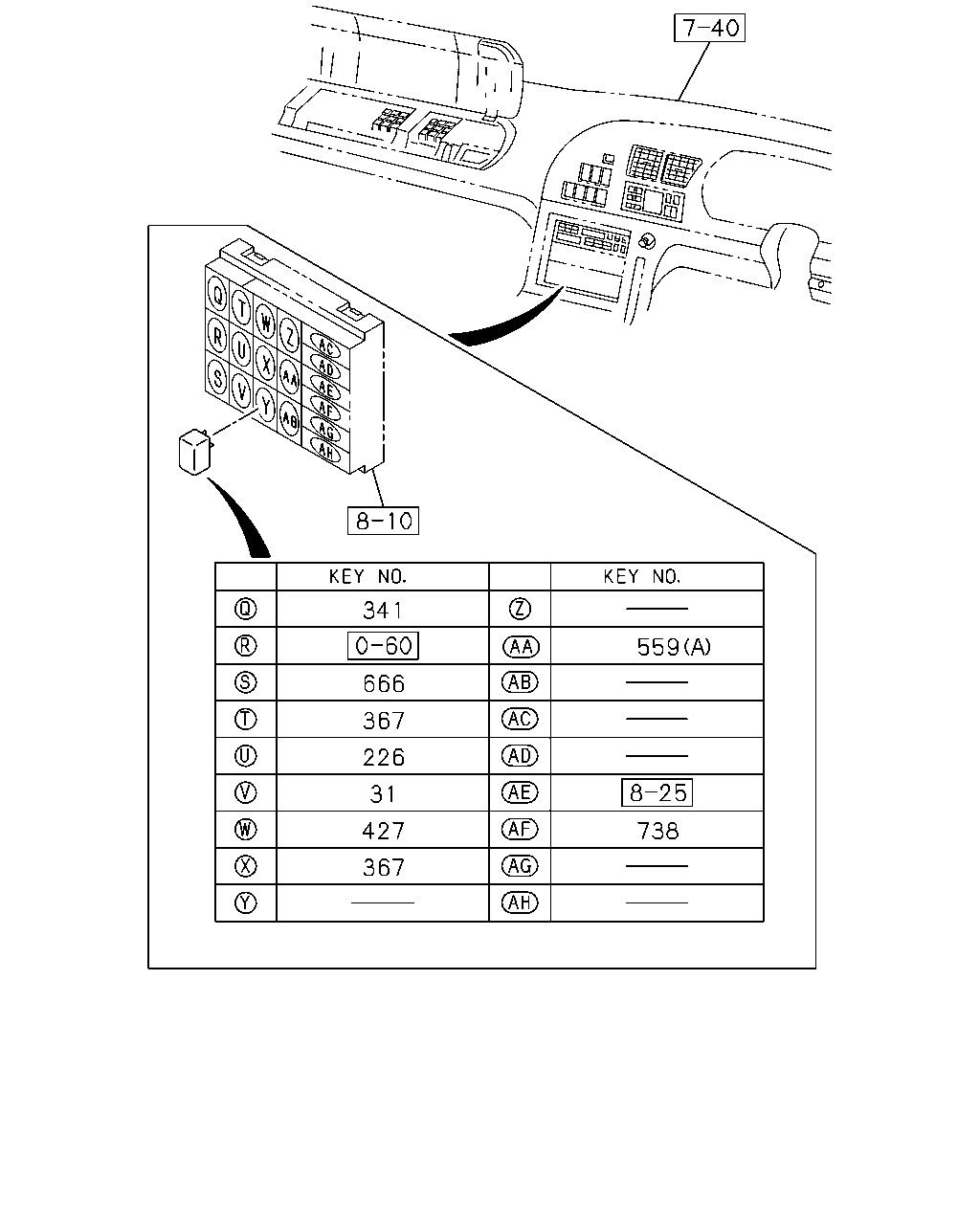

341 559 666 367 226 31 427 738 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	RELAY; PTO CONT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 24V 10A PANASONIC	8-97173-035-1	01	1	0610-
226	RELAY; EXH BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0610-
341	RELAY 24V 10A PANASONIC	8-97173-035-1	01	1	0610-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0610-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0610-
427	RELAY; RETARDER BRAKE SYSTEM RETARDER<RE2> 24V 10A PANASONIC	8-97173-035-1	02	1	0610-
559	RELAY; MAG VLV (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0610-
559	RELAY; MAG VLV (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0610-
666	RELAY; STARTER 24V 10A PANASONIC	8-97173-035-1	01	1	0610-
738	RELAY; EXH & RETARDER CUT 24V 10A PANASONIC	8-97173-035-1	01	1	0610-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
