◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 11038 - EXD RHD EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#28313) — 696 parça

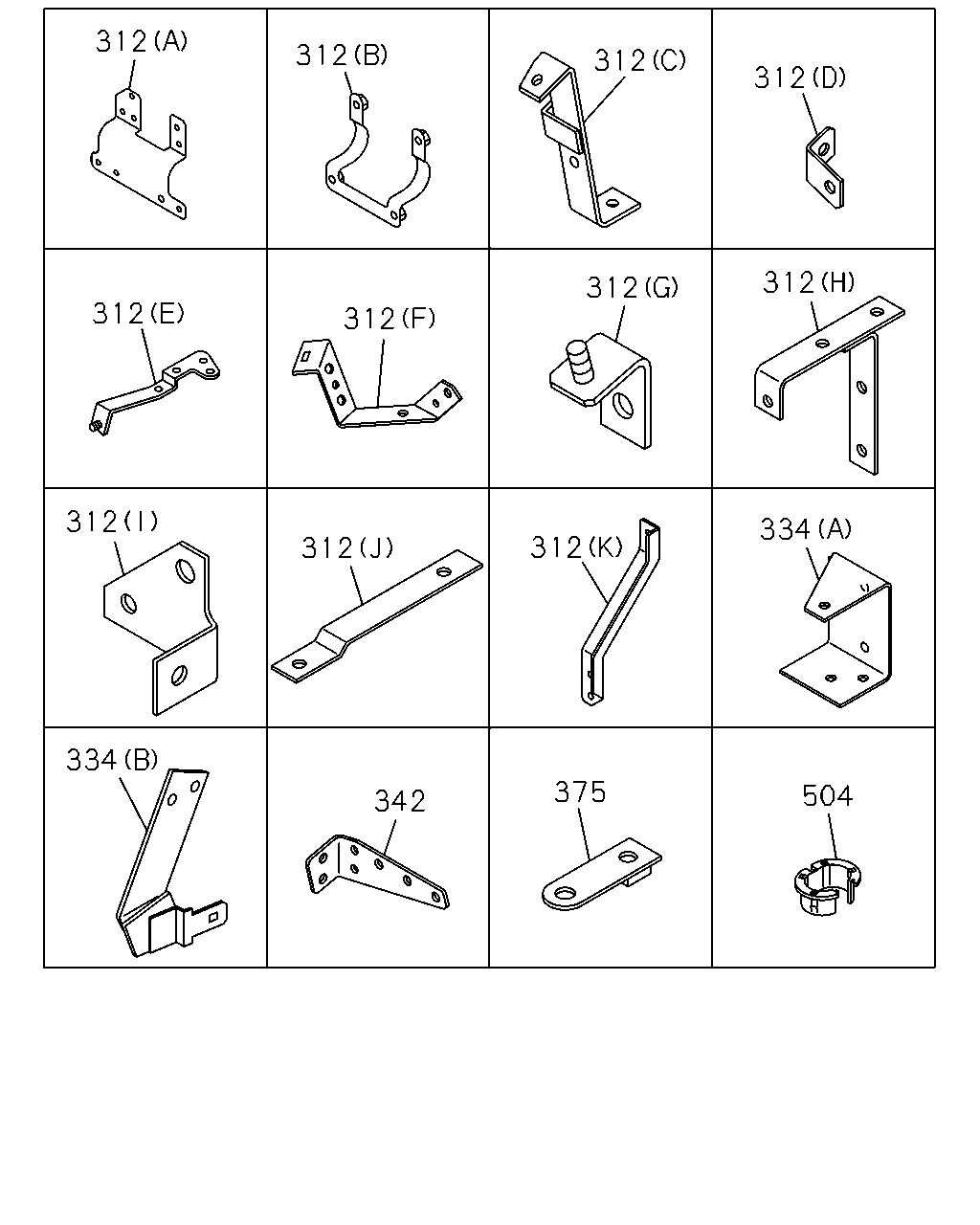

çizim 140140
312 312 312 312 312 312 312 312 312 334 312 312 334 375 504 342
BalonParca AdiParca NoAdetTipApplied Date
312 BRACKET; CLIP HARNESS
FACE LIFT<6NL> (J) 		8-98035-927-1 01 1 0806-
312 BRACKET; CLIP HARNESS
FACE LIFT<6NL> (K) 		8-98052-591-0 01 1 0806-
312 BRACKET; CLIP HARNESS
(H) 		1-82698-479-0 01 1 0610-0610
312 BRACKET; CLIP HARNESS
(A) 		1-82698-474-1 01 1 0610-0805
312 BRACKET; CLIP HARNESS
EXC. FACE LIFT<6NL> (A) 		1-82698-474-1 01 1 0806-
312 BRACKET; CLIP HARNESS
(B) 		1-82698-476-0 01 1 0610-0805
312 BRACKET; CLIP HARNESS
EXC. FACE LIFT<6NL> (B) 		1-82698-476-0 01 1 0806-
312 BRACKET; CLIP HARNESS
(C) L=195.5 		1-82698-502-0 01 1 0610-
312 BRACKET; CLIP HARNESS
(F) 		1-82698-556-0 01 1 0610-
312 BRACKET; CLIP HARNESS
(I) 		1-82698-570-0 01 1 0610-
312 BRACKET; CLIP HARNESS
(G) 		1-82698-586-0 01 1 0610-
312 BRACKET; CLIP HARNESS
(D) 		1-82699-199-0 01 1 0610-
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-82698-443-0 01 1 0610-
334 BRACKET
(A) 		1-53457-153-2 01 1 0610-
334 BRACKET
(B) 		1-82698-650-0 01 1 0610-
342 BRACKET; HARNESS CAB MTG 1-82699-625-0 01 1 0610-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0610-
504 PROTECTOR; HARNESS
MIR O/S RR VIEW HEATED<DNN> 		1-82698-391-0 02 1 0806-
çizim 140430
127 119 524 219 294 340 515 552 219 294 423 340
BalonParca AdiParca NoAdetTipApplied Date
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 0610-
127 SCREW; FACIA HARNESS CLIP
M3X10 		9-93490-310-0 04 1 0703-
219 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 0610-0610
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0610-
219 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0610-
219 NUT
(A) M8 FLANGE 		0-91180-108-0 07 1 0610-0806
219 NUT
(A) M8 FLANGE 		0-91180-108-0 09 1 0807-
219 NUT
(A) M8 FLANGE 		0-91180-108-0 10 1 0610-0806
219 NUT
(A) M8 FLANGE 		0-91180-108-0 11 1 0807-
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0610-
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0610-
294 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0610-
294 NUT
(B) M8 FLANGE 		0-91180-108-0 08 1 0610-
294 NUT
(A) M10 FLANGE 		0-91180-210-0 01 1 0610-
340 NUT; HARNESS CAB TO FRAME
EXC. FACE LIFT<6NL> (A) M8 FLANGE 		0-91180-108-0 01 1 0806-
340 NUT; HARNESS CAB TO FRAME
(A) M8 FLANGE 		0-91180-108-0 01 1 0610-0805
340 NUT; HARNESS CAB TO FRAME
FACE LIFT<6NL> (A) M8 FLANGE 		0-91180-108-0 05 1 0806-0811
340 NUT; HARNESS CAB TO FRAME
FACE LIFT<6NL> (B) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 05 1 0812-
340 NUT; HARNESS CAB TO FRAME
(A) M8 FLANGE 		0-91180-108-0 02 1 0610-0610
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 0610-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 04 1 0610-
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0610-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0610-
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 0610-

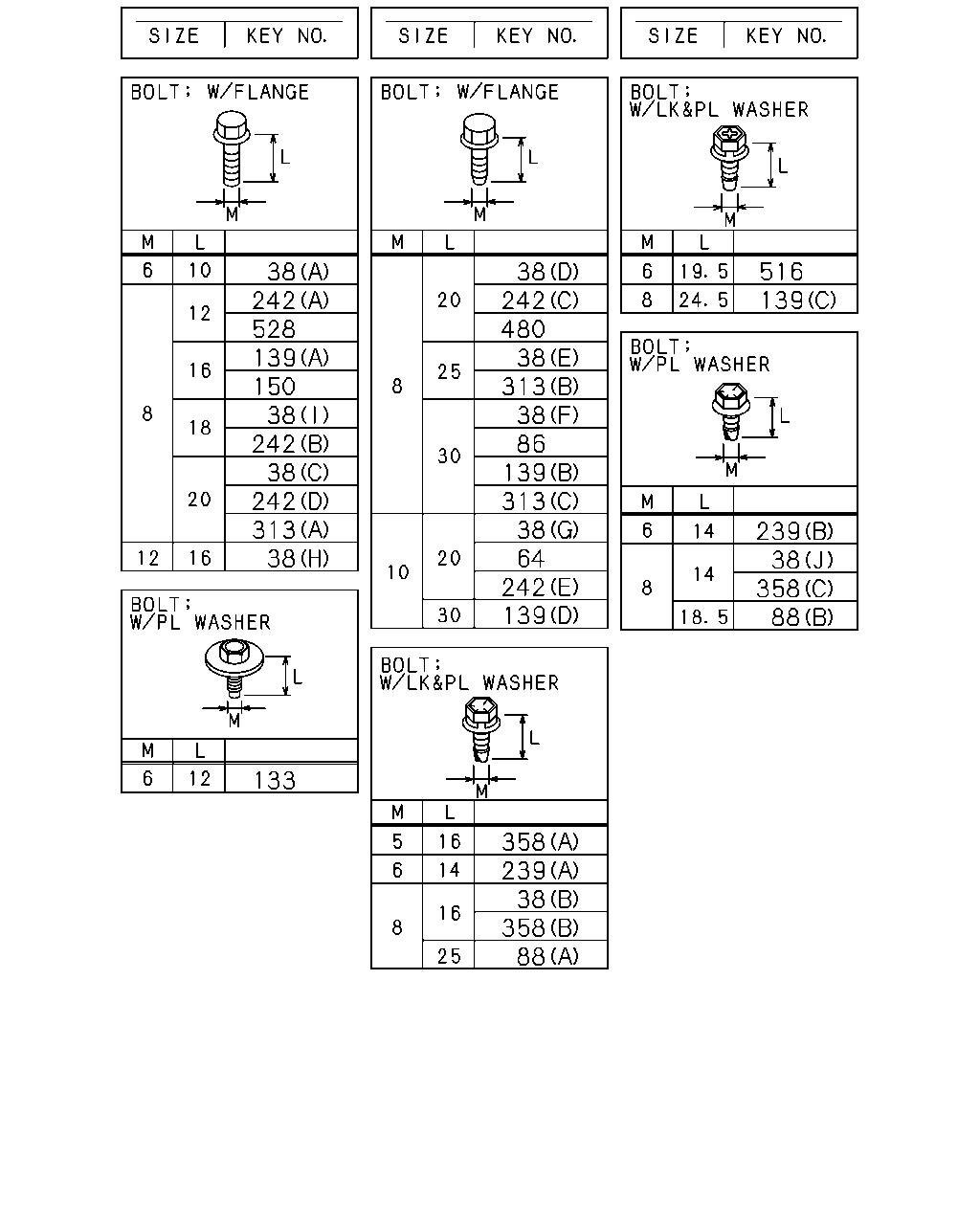

çizim 140431
516 139 38 242 528 139 150 38 242 38 242 313 38 38 242 480 38 313 38 86 139 313 38 64 242 139 239 38 358 88 133 358 239 38 358 88
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 06 1 1002-
38 BOLT; CLIP,HARNESS
(A) M6X10 FLANGE 		0-28050-610-0 01 1 0610-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 01 1 0610-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 05 1 0610-0806
38 BOLT; CLIP,HARNESS
(I) M8X18 FLANGE 		0-28080-818-0 04 1 0807-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 06 1 0610-0806
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 05 1 0807-1001
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 05 1 0807-1001
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 05 1 1002-
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 01 1 0610-
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 02 1 0610-
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 03 1 0610-
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28650-830-0 01 1 0610-
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28650-830-0 02 1 0610-
38 BOLT; CLIP,HARNESS
(G) M10X20 FLANGE 		0-28751-020-0 01 1 0610-
38 BOLT; CLIP,HARNESS
(H) M12X16 FLANGE 		1-09044-079-0 01 1 0610-1105
38 BOLT; CLIP,HARNESS
(H) M12X16 FLANGE 		0-28051-216-0 01 1 1106-
38 BOLT; CLIP,HARNESS
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0610-1201
38 BOLT; CLIP,HARNESS
(J) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 0610-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 0610-
64 SCREW; CLIP
M10X20 FLANGE 		0-28751-020-0 02 1 0610-
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0610-
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0610-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0610-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0610-
139 BOLT; BRKT
(D) M10X30 FLANGE 		0-28151-030-0 01 1 1112-
139 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0610-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0610-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0610-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 05 1 0610-
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0610-0904
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
150 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 13 1 0610-
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0610-1007
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
242 BOLT; BRKT,HARNESS
FACE LIFT<6NL> (D) M8X20 FLANGE 		0-28050-820-0 04 1 0806-
242 BOLT; BRKT,HARNESS
FACE LIFT<6NL> (E) M10X20 FLANGE 		0-28651-020-0 02 1 0806-
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0610-
242 BOLT; BRKT,HARNESS
(B) M8X18 FLANGE 		0-28080-818-0 01 1 0610-0805
242 BOLT; BRKT,HARNESS
EXC. FACE LIFT<6NL> (B) M8X18 FLANGE 		0-28080-818-0 01 1 0806-
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0610-
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 03 1 0610-
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 0610-
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0610-
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 09 1 0610-
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0610-
358 BOLT; EARTH
(A) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0610-
358 BOLT; EARTH
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0610-1201
358 BOLT; EARTH
(C) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-
480 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0610-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0610-
528 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 01 1 0610-
çizim 140437
16 51 81 104 171 194 206 212 305 369 16 48 102 111 142 171 194 212 380 470 16 14 194 14 16 33 48 171 194 212 470 16 33 51 142 194 208 16
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 0610-
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER<RE2> (B) L=350 		1-09707-183-0 01 1 0610-
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 0610-
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 02 1 0610-
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 03 1 0610-
16 CLIP; HARNESS
(AR) ID=9 L=20 		0-95234-835-0 02 1 1106-
16 CLIP; HARNESS
FACE LIFT<6NL> (AQ) ID=24 L=24 		1-09701-001-1 01 1 0806-1002
16 CLIP; HARNESS
(C) ID=19 L=20 		0-95235-836-0 01 1 0702-
16 CLIP; HARNESS
(AO) L=251 		8-97619-917-0 03 1 0611-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (S) OD=9 H=6 		1-09709-178-0 01 1 0611-
16 CLIP; HARNESS
(AP) L=175 		1-09707-176-1 01 1 0611-
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 05 1 0611-
16 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 05 1 0610-1105
16 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 03 1 1106-
16 CLIP; HARNESS
(C) ID=16 L=20 		0-95235-536-0 02 1 0610-
16 CLIP; HARNESS
(D) ID=19 L=20 		0-95235-836-0 03 1 0610-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 12 1 0610-0610
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 09 1 0611-0701
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 10 1 0702-0704
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 09 1 0705-1205
16 CLIP; HARNESS
(X) L=250 		8-98216-430-0 09 1 1206-
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 0610-
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-94225-185-0 05 1 0610-0801
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 05 1 0802-
16 CLIP; HARNESS
(K) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0610-
16 CLIP; HARNESS
(K) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0610-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (AL) ID=35 H=45 L=33 		8-97615-568-0 03 1 0610-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (G) ID=11 L=41 		1-09700-403-0 01 1 0610-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (P) L=180 		1-09707-162-1 01 1 0610-
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 01 1 0610-
16 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 0610-
16 CLIP; HARNESS
(C) ID=16 L=20 		0-95235-535-0 02 1 0610-
16 CLIP; HARNESS
(E) ID=22 L=32 		1-09700-126-1 01 1 0610-0805
16 CLIP; HARNESS
EXC. FACE LIFT<6NL> (E) ID=22 L=32 		1-09700-126-1 01 1 0806-1002
16 CLIP; HARNESS
(E) ID=22 L=32 		1-09700-126-1 01 1 1003-
16 CLIP; HARNESS
(F) ID=28 L=58 		1-09700-400-0 04 1 0610-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 0610-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 07 1 0610-0610
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 04 1 0611-0702
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 14 1 0703-0806
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 16 1 0807-
16 CLIP; HARNESS
(AH) ID=11 L=61 		1-09700-484-0 02 1 0610-
16 CLIP; HARNESS
(AI) ID=20 L=70 		1-09700-485-0 01 1 0610-0610
16 CLIP; HARNESS
(H) ID=20 L=50 		1-09700-679-1 01 1 0610-
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 02 1 0610-
16 CLIP; HARNESS
(J) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0610-1409
16 CLIP; HARNESS
(AS) ID=22 L=52 		9-09917-431-0 01 1 1410-
16 CLIP; HARNESS
(AJ) ID=18 L=28 		1-09701-067-0 01 1 0610-1409
16 CLIP; HARNESS
(L) ID=28 L=32 		1-09701-107-1 02 1 0610-0805
16 CLIP; HARNESS
EXC. FACE LIFT<6NL> (L) ID=28 L=32 		1-09701-107-1 02 1 0806-1002
16 CLIP; HARNESS
(N) ID=4.8 		1-09701-218-0 01 1 0610-1409
16 CLIP; HARNESS
(O) ID=28+34 L=44 		1-09701-311-0 01 1 0610-
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 04 1 0610-
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 10 1 0610-0610
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 02 1 0611-
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 01 1 0610-
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 02 1 0610-1409
16 CLIP; HARNESS
(AS) ID=22 L=52 		9-09917-431-0 03 1 1410-
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 06 1 0610-
16 CLIP; HARNESS
(R) W/SPONGE RUBBER 		1-09709-150-0 01 1 0610-
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 05 1 0610-1409
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 02 1 1410-
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 07 1 0610-
16 CLIP; HARNESS
(T) OD=9 H=13.5 		1-09709-180-0 01 1 0610-
16 CLIP; HARNESS
(V) ID=5-12 L=18 		1-09709-287-0 01 1 0610-
16 CLIP; HARNESS
(U) ID=5-12 L=22 		1-09709-288-0 01 1 0610-
16 CLIP; HARNESS
(AK) ID=13-18 L=18 		1-09709-291-0 02 1 0610-
16 CLIP; HARNESS
(AL) ID=13-18 L=22 		1-09709-292-0 02 1 0610-
16 CLIP; HARNESS
(AM) ID=18-24 L=18 		1-09709-294-0 04 1 0610-0610
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 0610-0702
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0703-0904
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 0905-1409
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 03 1 1410-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 0610-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 03 1 0610-
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 06 1 0610-0610
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 01 1 0611-
16 CLIP; HARNESS
(AN) L=36 		8-94224-891-1 01 1 0610-0701
16 CLIP; HARNESS
(AN) L=36 		8-94224-891-1 01 1 0702-
16 CLIP; HARNESS
(AN) L=36 		8-94224-891-1 01 1 0702-
16 CLIP; HARNESS
(AB) ID=14-20 		8-97061-603-0 03 1 0610-
16 CLIP; HARNESS
(AC) OD=9 H=6 		8-97368-793-0 01 1 0610-
16 CLIP; HARNESS
(AC) OD=9 H=6 		8-97368-793-0 03 1 0610-
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 02 1 0610-
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 05 1 0610-0610
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 10 1 0611-0702
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 03 1 0703-0904
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0905-
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0905-
16 CLIP; HARNESS
(AE) ID=20 L=50 		9-09917-430-0 10 1 0610-1409
16 CLIP; HARNESS
(AE) ID=20 L=50 		9-09917-430-0 02 1 1410-
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 0610-0701
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 0610-0701
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 0702-
16 CLIP; HARNESS
(M) ID=15 L=28 		1-09701-216-0 01 1 0610-
16 CLIP; HARNESS
(M) ID=15 L=28 		1-09701-216-0 01 1 0610-
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0610-0702
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0610-0702
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 01 1 0610-1409
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 01 1 0610-1409
16 CLIP; HARNESS
EXC. BRAKE SYSTEM RETARDER<RE2> (AG) ID=28 H=45 L=30 		1-09700-707-0 03 1 0610-
16 CLIP; HARNESS
(V) ID=10 H=25 L=20 		1-09700-519-0 01 1 0610-
33 CLIP; HARNESS,VLV
(A) L=180 		1-09707-162-1 01 1 0610-
33 CLIP; HARNESS,VLV
(B) L=350 		1-09707-183-0 01 1 0610-
33 CLIP; HARNESS,VLV
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0610-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 05 1 0612-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 05 1 0612-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0610-0610
48 CLIP; FRAME HARNESS
(D) ID=39 H=28 L=32 		1-09701-263-0 01 1 0610-0706
48 CLIP; FRAME HARNESS
(J) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0707-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0610-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 12 1 0610-0610
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=18 		1-09709-287-0 01 1 0610-0610
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 02 1 0610-0610
48 CLIP; FRAME HARNESS
(G) ID=18-24 L=18 		1-09709-294-0 03 1 0610-0610
48 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 06 1 0610-0610
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0610-0610
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 		9-09917-430-0 02 1 0610-0610
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 0610-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0610-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=7-10 		8-94472-578-0 02 1 0610-
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0610-
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 06 1 0610-
102 CLIP; BAND
L=250 		5-09707-030-1 01 1 0610-
104 CLIP; HEADLAMP HARNESS
(A) ID=18-24 L=14.5 		1-09709-298-0 02 1 0610-
104 CLIP; HEADLAMP HARNESS
(B) L=140 		5-09707-031-1 10 1 0610-
104 CLIP; HEADLAMP HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 02 1 0610-0710
111 CLIP; STOP LAMP SW HARNESS
L=250 		5-09707-030-1 01 1 0610-
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 01 1 0610-1207
142 CLIP; HARNESS,ENG
(A) L=180 		8-98216-427-0 01 1 1208-
142 CLIP; HARNESS,ENG
(B) L=250 		5-09707-030-1 01 1 0610-1205
142 CLIP; HARNESS,ENG
(B) L=250 		8-98216-430-0 01 1 1206-
171 CLIP; STARTER HARNESS
FACE LIFT<6NL> (C) L=350 		1-09707-183-0 02 1 0806-
171 CLIP; STARTER HARNESS
EXC. FACE LIFT<6NL> (A) L=250 		5-09707-030-1 05 1 0806-
171 CLIP; STARTER HARNESS
(A) L=250 		5-09707-030-1 05 1 0610-0805
171 CLIP; STARTER HARNESS
FACE LIFT<6NL> (A) L=250 		5-09707-030-1 04 1 0806-
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-1 08 1 0610-0805
171 CLIP; STARTER HARNESS
EXC. FACE LIFT<6NL> (B) L=140 		5-09707-031-1 08 1 0806-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 0610-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 01 1 0610-1001
194 CLIP; BAND
(B) L=180 		1-09707-162-1 03 1 0610-
194 CLIP; BAND
(C) L=350 		1-09707-183-0 03 1 0610-1202
194 CLIP; BAND
(C) L=350 		1-09707-183-0 04 1 1203-
194 CLIP; BAND
(D) L=250 		5-09707-030-1 05 1 0610-0610
194 CLIP; BAND
(E) L=140 		5-09707-031-1 01 1 0610-0610
194 CLIP; BAND
(D) L=250 		5-09707-030-1 07 1 0610-0610
194 CLIP; BAND
(D) L=250 		5-09707-030-1 06 1 0610-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0610-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> L=180 		1-09707-162-1 01 1 0610-
212 CLIP; HORN HARNESS
(A) ID=19 L=28 		0-95235-856-0 01 1 0610-
212 CLIP; HORN HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0610-
212 CLIP; HORN HARNESS
(C) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0610-
212 CLIP; HORN HARNESS
(E) L=350 		1-09707-183-0 02 1 0610-
212 CLIP; HORN HARNESS
(F) ID=13-18 L=14.5 		1-09709-290-0 01 1 0610-
212 CLIP; HORN HARNESS
(D) L=250 		5-09707-030-1 02 1 0610-
212 CLIP; HORN HARNESS
(G) L=140 		5-09707-031-1 01 1 0610-0904
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 03 1 0610-
369 CLIP; BAND EDS HARNESS
L=140 		5-09707-031-1 01 1 1410-
380 CLIP; EARTH HARNESS
L=250 		5-09707-030-1 01 1 0610-
470 CLIP; HARNESS,LICENSE LAMP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (D) L=250 		5-09707-030-1 02 1 0907-1111
470 CLIP; HARNESS,LICENSE LAMP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (D) L=250 		5-09707-030-1 04 1 1112-
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 0610-0906
470 CLIP; HARNESS,LICENSE LAMP
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) ID=11 L=41 		1-09700-403-0 01 1 0907-
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 		1-09707-183-0 01 1 0610-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0610-0906
470 CLIP; HARNESS,LICENSE LAMP
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) OD=9 H=6 		1-09709-178-0 01 1 0907-
çizim 140441
224 1 1 1 1 530 530 178 178 178 178 178 178 178
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(D) ID=17 OD=21 L=40 		1-09337-012-0 01 1 0610-
1 SLEEVE; RUBBER
(B) ID=18 OD=22 L=25 		8-94412-773-0 01 1 0610-
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=38.1 L=50 		5-09360-835-0 01 1 0610-
1 SLEEVE; RUBBER
(A) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0610-0610
178 GROMMET; HARNESS
INSPECTION LAMP<T95> (D) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0610-
178 GROMMET; HARNESS
(B) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0610-
178 GROMMET; HARNESS
(B) ID=32 OD=40 T=23 		1-09332-112-0 02 1 0610-0810
178 GROMMET; HARNESS
(F) ID=32 OD=40 T=18 		1-09891-003-0 02 1 0610-0810
178 GROMMET; HARNESS
(F) ID=32 OD=40 T=18 		1-09891-003-0 02 1 0811-
178 GROMMET; HARNESS
(F) ID=32 OD=40 T=18 		1-09891-003-0 02 1 0811-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0610-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 04 1 0610-
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0610-
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0610-
178 GROMMET; HARNESS
(E) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0610-0610
178 GROMMET; HARNESS
(G) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0610-
224 SLEEVE; RUBBER,HARNESS
ID=6 L=30 		5-09360-352-0 01 1 0610-0904
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-1 16 1 0610-
530 SEAL; HARNESS
(B) 100X40 		1-72498-022-1 01 1 0610-

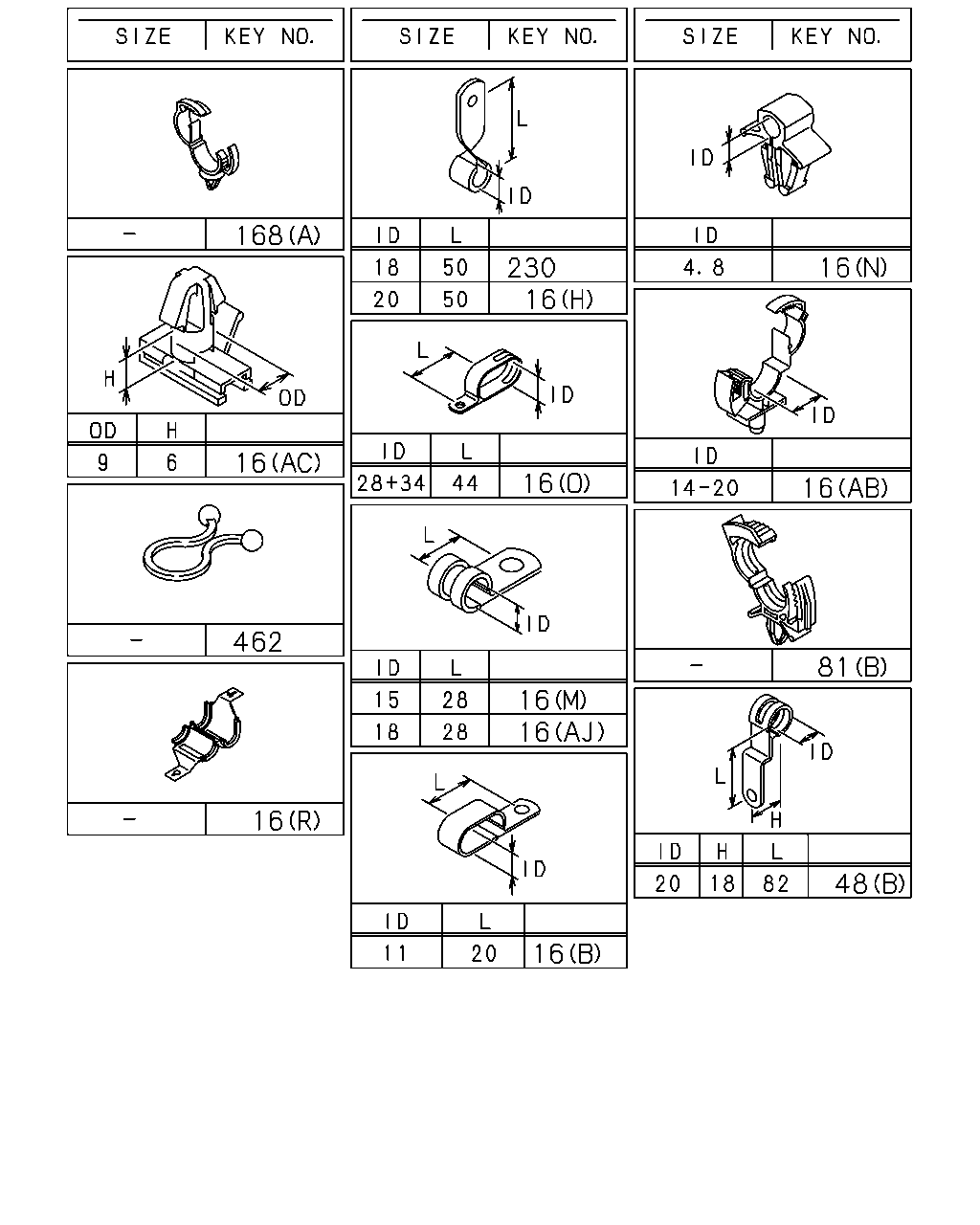

çizim 140443
168 230 16 16 16 16 16 462 81 16 16 16 48 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AR) ID=9 L=20 		0-95234-835-0 02 1 1106-
16 CLIP; HARNESS
FACE LIFT<6NL> (AQ) ID=24 L=24 		1-09701-001-1 01 1 0806-1002
16 CLIP; HARNESS
(C) ID=19 L=20 		0-95235-836-0 01 1 0702-
16 CLIP; HARNESS
(AO) L=251 		8-97619-917-0 03 1 0611-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (S) OD=9 H=6 		1-09709-178-0 01 1 0611-
16 CLIP; HARNESS
(AP) L=175 		1-09707-176-1 01 1 0611-
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 05 1 0611-
16 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 05 1 0610-1105
16 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 03 1 1106-
16 CLIP; HARNESS
(C) ID=16 L=20 		0-95235-536-0 02 1 0610-
16 CLIP; HARNESS
(D) ID=19 L=20 		0-95235-836-0 03 1 0610-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 12 1 0610-0610
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 09 1 0611-0701
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 10 1 0702-0704
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 09 1 0705-1205
16 CLIP; HARNESS
(X) L=250 		8-98216-430-0 09 1 1206-
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 0610-
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-94225-185-0 05 1 0610-0801
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 05 1 0802-
16 CLIP; HARNESS
(K) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0610-
16 CLIP; HARNESS
(K) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0610-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (AL) ID=35 H=45 L=33 		8-97615-568-0 03 1 0610-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (G) ID=11 L=41 		1-09700-403-0 01 1 0610-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (P) L=180 		1-09707-162-1 01 1 0610-
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 01 1 0610-
16 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 0610-
16 CLIP; HARNESS
(C) ID=16 L=20 		0-95235-535-0 02 1 0610-
16 CLIP; HARNESS
(E) ID=22 L=32 		1-09700-126-1 01 1 0610-0805
16 CLIP; HARNESS
EXC. FACE LIFT<6NL> (E) ID=22 L=32 		1-09700-126-1 01 1 0806-1002
16 CLIP; HARNESS
(E) ID=22 L=32 		1-09700-126-1 01 1 1003-
16 CLIP; HARNESS
(F) ID=28 L=58 		1-09700-400-0 04 1 0610-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 0610-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 07 1 0610-0610
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 04 1 0611-0702
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 14 1 0703-0806
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 16 1 0807-
16 CLIP; HARNESS
(AH) ID=11 L=61 		1-09700-484-0 02 1 0610-
16 CLIP; HARNESS
(AI) ID=20 L=70 		1-09700-485-0 01 1 0610-0610
16 CLIP; HARNESS
(H) ID=20 L=50 		1-09700-679-1 01 1 0610-
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 02 1 0610-
16 CLIP; HARNESS
(J) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0610-1409
16 CLIP; HARNESS
(AS) ID=22 L=52 		9-09917-431-0 01 1 1410-
16 CLIP; HARNESS
(AJ) ID=18 L=28 		1-09701-067-0 01 1 0610-1409
16 CLIP; HARNESS
(L) ID=28 L=32 		1-09701-107-1 02 1 0610-0805
16 CLIP; HARNESS
EXC. FACE LIFT<6NL> (L) ID=28 L=32 		1-09701-107-1 02 1 0806-1002
16 CLIP; HARNESS
(N) ID=4.8 		1-09701-218-0 01 1 0610-1409
16 CLIP; HARNESS
(O) ID=28+34 L=44 		1-09701-311-0 01 1 0610-
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 04 1 0610-
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 10 1 0610-0610
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 02 1 0611-
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 01 1 0610-
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 02 1 0610-1409
16 CLIP; HARNESS
(AS) ID=22 L=52 		9-09917-431-0 03 1 1410-
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 06 1 0610-
16 CLIP; HARNESS
(R) W/SPONGE RUBBER 		1-09709-150-0 01 1 0610-
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 05 1 0610-1409
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 02 1 1410-
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 07 1 0610-
16 CLIP; HARNESS
(T) OD=9 H=13.5 		1-09709-180-0 01 1 0610-
16 CLIP; HARNESS
(V) ID=5-12 L=18 		1-09709-287-0 01 1 0610-
16 CLIP; HARNESS
(U) ID=5-12 L=22 		1-09709-288-0 01 1 0610-
16 CLIP; HARNESS
(AK) ID=13-18 L=18 		1-09709-291-0 02 1 0610-
16 CLIP; HARNESS
(AL) ID=13-18 L=22 		1-09709-292-0 02 1 0610-
16 CLIP; HARNESS
(AM) ID=18-24 L=18 		1-09709-294-0 04 1 0610-0610
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 0610-0702
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0703-0904
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 0905-1409
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 03 1 1410-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 0610-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 03 1 0610-
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 06 1 0610-0610
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 01 1 0611-
16 CLIP; HARNESS
(AN) L=36 		8-94224-891-1 01 1 0610-0701
16 CLIP; HARNESS
(AN) L=36 		8-94224-891-1 01 1 0702-
16 CLIP; HARNESS
(AN) L=36 		8-94224-891-1 01 1 0702-
16 CLIP; HARNESS
(AB) ID=14-20 		8-97061-603-0 03 1 0610-
16 CLIP; HARNESS
(AC) OD=9 H=6 		8-97368-793-0 01 1 0610-
16 CLIP; HARNESS
(AC) OD=9 H=6 		8-97368-793-0 03 1 0610-
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 02 1 0610-
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 05 1 0610-0610
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 10 1 0611-0702
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 03 1 0703-0904
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0905-
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0905-
16 CLIP; HARNESS
(AE) ID=20 L=50 		9-09917-430-0 10 1 0610-1409
16 CLIP; HARNESS
(AE) ID=20 L=50 		9-09917-430-0 02 1 1410-
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 0610-0701
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 0610-0701
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 0702-
16 CLIP; HARNESS
(M) ID=15 L=28 		1-09701-216-0 01 1 0610-
16 CLIP; HARNESS
(M) ID=15 L=28 		1-09701-216-0 01 1 0610-
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0610-0702
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0610-0702
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 01 1 0610-1409
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 01 1 0610-1409
16 CLIP; HARNESS
EXC. BRAKE SYSTEM RETARDER<RE2> (AG) ID=28 H=45 L=30 		1-09700-707-0 03 1 0610-
16 CLIP; HARNESS
(V) ID=10 H=25 L=20 		1-09700-519-0 01 1 0610-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 05 1 0612-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 05 1 0612-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0610-0610
48 CLIP; FRAME HARNESS
(D) ID=39 H=28 L=32 		1-09701-263-0 01 1 0610-0706
48 CLIP; FRAME HARNESS
(J) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0707-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0610-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 12 1 0610-0610
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=18 		1-09709-287-0 01 1 0610-0610
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 02 1 0610-0610
48 CLIP; FRAME HARNESS
(G) ID=18-24 L=18 		1-09709-294-0 03 1 0610-0610
48 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 06 1 0610-0610
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0610-0610
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 		9-09917-430-0 02 1 0610-0610
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=7-10 		8-94472-578-0 02 1 0610-
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0610-
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 06 1 0610-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 06 1 0610-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0610-
230 CLIP; C/MBR HARNESS
ID=18 L=50 		1-09700-302-1 01 1 0610-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		1-09709-068-0 02 1 0610-

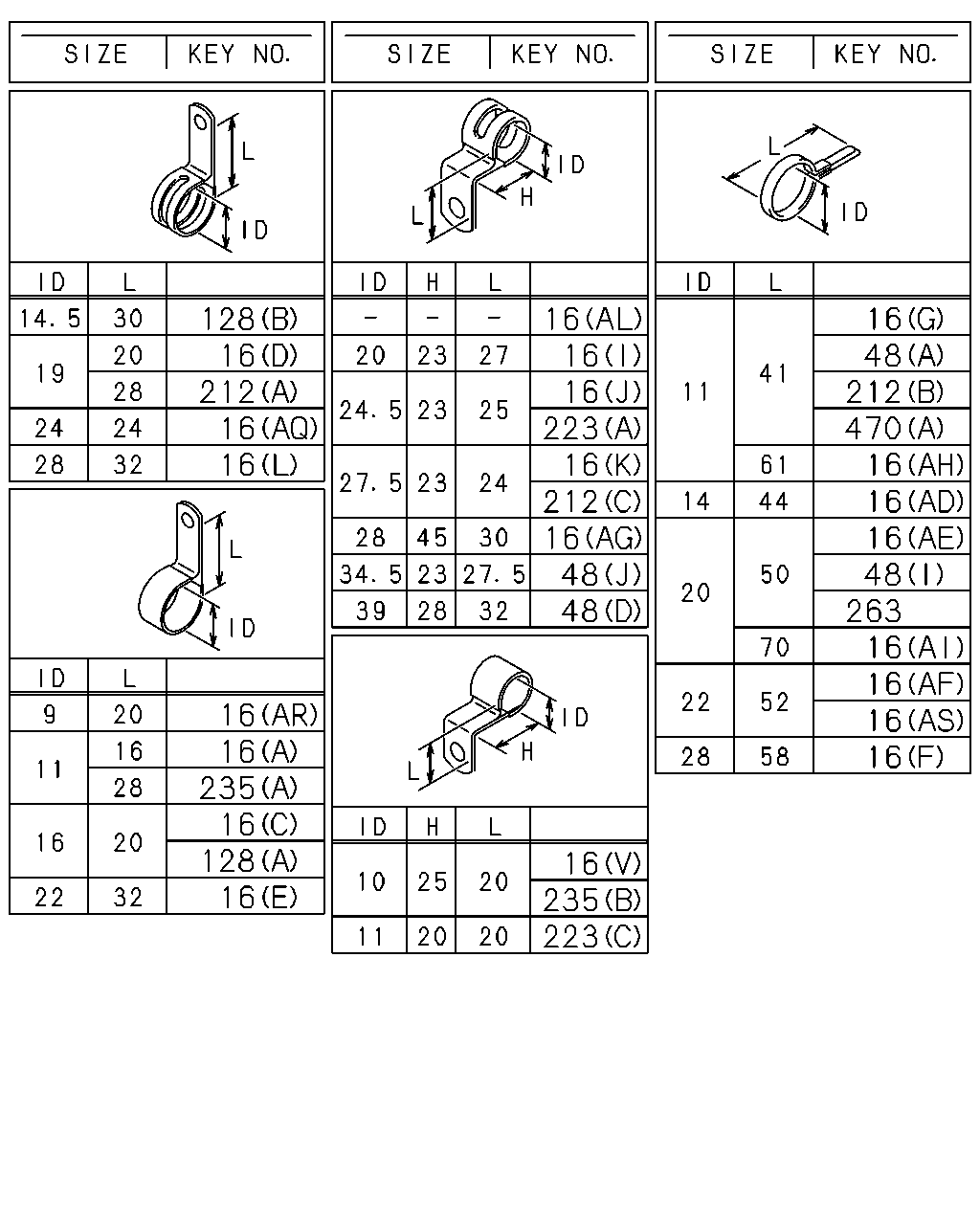

çizim 140446
128 16 212 16 16 16 16 235 16 128 16 16 16 16 223 16 212 16 48 48 16 235 223 16 48 212 470 16 16 16 48 263 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AR) ID=9 L=20 		0-95234-835-0 02 1 1106-
16 CLIP; HARNESS
FACE LIFT<6NL> (AQ) ID=24 L=24 		1-09701-001-1 01 1 0806-1002
16 CLIP; HARNESS
(C) ID=19 L=20 		0-95235-836-0 01 1 0702-
16 CLIP; HARNESS
(AO) L=251 		8-97619-917-0 03 1 0611-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (S) OD=9 H=6 		1-09709-178-0 01 1 0611-
16 CLIP; HARNESS
(AP) L=175 		1-09707-176-1 01 1 0611-
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 05 1 0611-
16 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 05 1 0610-1105
16 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 03 1 1106-
16 CLIP; HARNESS
(C) ID=16 L=20 		0-95235-536-0 02 1 0610-
16 CLIP; HARNESS
(D) ID=19 L=20 		0-95235-836-0 03 1 0610-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 12 1 0610-0610
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 09 1 0611-0701
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 10 1 0702-0704
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 09 1 0705-1205
16 CLIP; HARNESS
(X) L=250 		8-98216-430-0 09 1 1206-
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 0610-
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-94225-185-0 05 1 0610-0801
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 05 1 0802-
16 CLIP; HARNESS
(K) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0610-
16 CLIP; HARNESS
(K) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0610-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (AL) ID=35 H=45 L=33 		8-97615-568-0 03 1 0610-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (G) ID=11 L=41 		1-09700-403-0 01 1 0610-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (P) L=180 		1-09707-162-1 01 1 0610-
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 01 1 0610-
16 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 0610-
16 CLIP; HARNESS
(C) ID=16 L=20 		0-95235-535-0 02 1 0610-
16 CLIP; HARNESS
(E) ID=22 L=32 		1-09700-126-1 01 1 0610-0805
16 CLIP; HARNESS
EXC. FACE LIFT<6NL> (E) ID=22 L=32 		1-09700-126-1 01 1 0806-1002
16 CLIP; HARNESS
(E) ID=22 L=32 		1-09700-126-1 01 1 1003-
16 CLIP; HARNESS
(F) ID=28 L=58 		1-09700-400-0 04 1 0610-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 0610-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 07 1 0610-0610
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 04 1 0611-0702
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 14 1 0703-0806
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 16 1 0807-
16 CLIP; HARNESS
(AH) ID=11 L=61 		1-09700-484-0 02 1 0610-
16 CLIP; HARNESS
(AI) ID=20 L=70 		1-09700-485-0 01 1 0610-0610
16 CLIP; HARNESS
(H) ID=20 L=50 		1-09700-679-1 01 1 0610-
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 02 1 0610-
16 CLIP; HARNESS
(J) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0610-1409
16 CLIP; HARNESS
(AS) ID=22 L=52 		9-09917-431-0 01 1 1410-
16 CLIP; HARNESS
(AJ) ID=18 L=28 		1-09701-067-0 01 1 0610-1409
16 CLIP; HARNESS
(L) ID=28 L=32 		1-09701-107-1 02 1 0610-0805
16 CLIP; HARNESS
EXC. FACE LIFT<6NL> (L) ID=28 L=32 		1-09701-107-1 02 1 0806-1002
16 CLIP; HARNESS
(N) ID=4.8 		1-09701-218-0 01 1 0610-1409
16 CLIP; HARNESS
(O) ID=28+34 L=44 		1-09701-311-0 01 1 0610-
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 04 1 0610-
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 10 1 0610-0610
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 02 1 0611-
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 01 1 0610-
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 02 1 0610-1409
16 CLIP; HARNESS
(AS) ID=22 L=52 		9-09917-431-0 03 1 1410-
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 06 1 0610-
16 CLIP; HARNESS
(R) W/SPONGE RUBBER 		1-09709-150-0 01 1 0610-
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 05 1 0610-1409
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 02 1 1410-
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 07 1 0610-
16 CLIP; HARNESS
(T) OD=9 H=13.5 		1-09709-180-0 01 1 0610-
16 CLIP; HARNESS
(V) ID=5-12 L=18 		1-09709-287-0 01 1 0610-
16 CLIP; HARNESS
(U) ID=5-12 L=22 		1-09709-288-0 01 1 0610-
16 CLIP; HARNESS
(AK) ID=13-18 L=18 		1-09709-291-0 02 1 0610-
16 CLIP; HARNESS
(AL) ID=13-18 L=22 		1-09709-292-0 02 1 0610-
16 CLIP; HARNESS
(AM) ID=18-24 L=18 		1-09709-294-0 04 1 0610-0610
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 0610-0702
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0703-0904
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 0905-1409
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 03 1 1410-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 0610-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 03 1 0610-
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 06 1 0610-0610
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 01 1 0611-
16 CLIP; HARNESS
(AN) L=36 		8-94224-891-1 01 1 0610-0701
16 CLIP; HARNESS
(AN) L=36 		8-94224-891-1 01 1 0702-
16 CLIP; HARNESS
(AN) L=36 		8-94224-891-1 01 1 0702-
16 CLIP; HARNESS
(AB) ID=14-20 		8-97061-603-0 03 1 0610-
16 CLIP; HARNESS
(AC) OD=9 H=6 		8-97368-793-0 01 1 0610-
16 CLIP; HARNESS
(AC) OD=9 H=6 		8-97368-793-0 03 1 0610-
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 02 1 0610-
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 05 1 0610-0610
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 10 1 0611-0702
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 03 1 0703-0904
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0905-
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0905-
16 CLIP; HARNESS
(AE) ID=20 L=50 		9-09917-430-0 10 1 0610-1409
16 CLIP; HARNESS
(AE) ID=20 L=50 		9-09917-430-0 02 1 1410-
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 0610-0701
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 0610-0701
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 0702-
16 CLIP; HARNESS
(M) ID=15 L=28 		1-09701-216-0 01 1 0610-
16 CLIP; HARNESS
(M) ID=15 L=28 		1-09701-216-0 01 1 0610-
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0610-0702
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0610-0702
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 01 1 0610-1409
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 01 1 0610-1409
16 CLIP; HARNESS
EXC. BRAKE SYSTEM RETARDER<RE2> (AG) ID=28 H=45 L=30 		1-09700-707-0 03 1 0610-
16 CLIP; HARNESS
(V) ID=10 H=25 L=20 		1-09700-519-0 01 1 0610-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 05 1 0612-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 05 1 0612-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0610-0610
48 CLIP; FRAME HARNESS
(D) ID=39 H=28 L=32 		1-09701-263-0 01 1 0610-0706
48 CLIP; FRAME HARNESS
(J) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0707-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0610-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 12 1 0610-0610
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=18 		1-09709-287-0 01 1 0610-0610
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 02 1 0610-0610
48 CLIP; FRAME HARNESS
(G) ID=18-24 L=18 		1-09709-294-0 03 1 0610-0610
48 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 06 1 0610-0610
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0610-0610
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 		9-09917-430-0 02 1 0610-0610
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0610-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0610-
212 CLIP; HORN HARNESS
(A) ID=19 L=28 		0-95235-856-0 01 1 0610-
212 CLIP; HORN HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0610-
212 CLIP; HORN HARNESS
(C) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0610-
212 CLIP; HORN HARNESS
(E) L=350 		1-09707-183-0 02 1 0610-
212 CLIP; HORN HARNESS
(F) ID=13-18 L=14.5 		1-09709-290-0 01 1 0610-
212 CLIP; HORN HARNESS
(D) L=250 		5-09707-030-1 02 1 0610-
212 CLIP; HORN HARNESS
(G) L=140 		5-09707-031-1 01 1 0610-0904
223 CLIP; AIR TANK HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0610-
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 03 1 0610-
223 CLIP; AIR TANK HARNESS
(C) ID=11 H=20 L=20 		5-09700-351-0 04 1 0610-0707
223 CLIP; AIR TANK HARNESS
(C) ID=11 H=20 L=20 		8-98033-780-0 04 1 0708-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=10 H=25 L=20 		1-09700-519-0 01 1 0610-0610
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=11 L=28 		9-09917-544-0 01 1 0610-0610
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 02 1 0610-
470 CLIP; HARNESS,LICENSE LAMP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (D) L=250 		5-09707-030-1 02 1 0907-1111
470 CLIP; HARNESS,LICENSE LAMP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (D) L=250 		5-09707-030-1 04 1 1112-
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 0610-0906
470 CLIP; HARNESS,LICENSE LAMP
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) ID=11 L=41 		1-09700-403-0 01 1 0907-
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 		1-09707-183-0 01 1 0610-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0610-0906
470 CLIP; HARNESS,LICENSE LAMP
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) OD=9 H=6 		1-09709-178-0 01 1 0907-

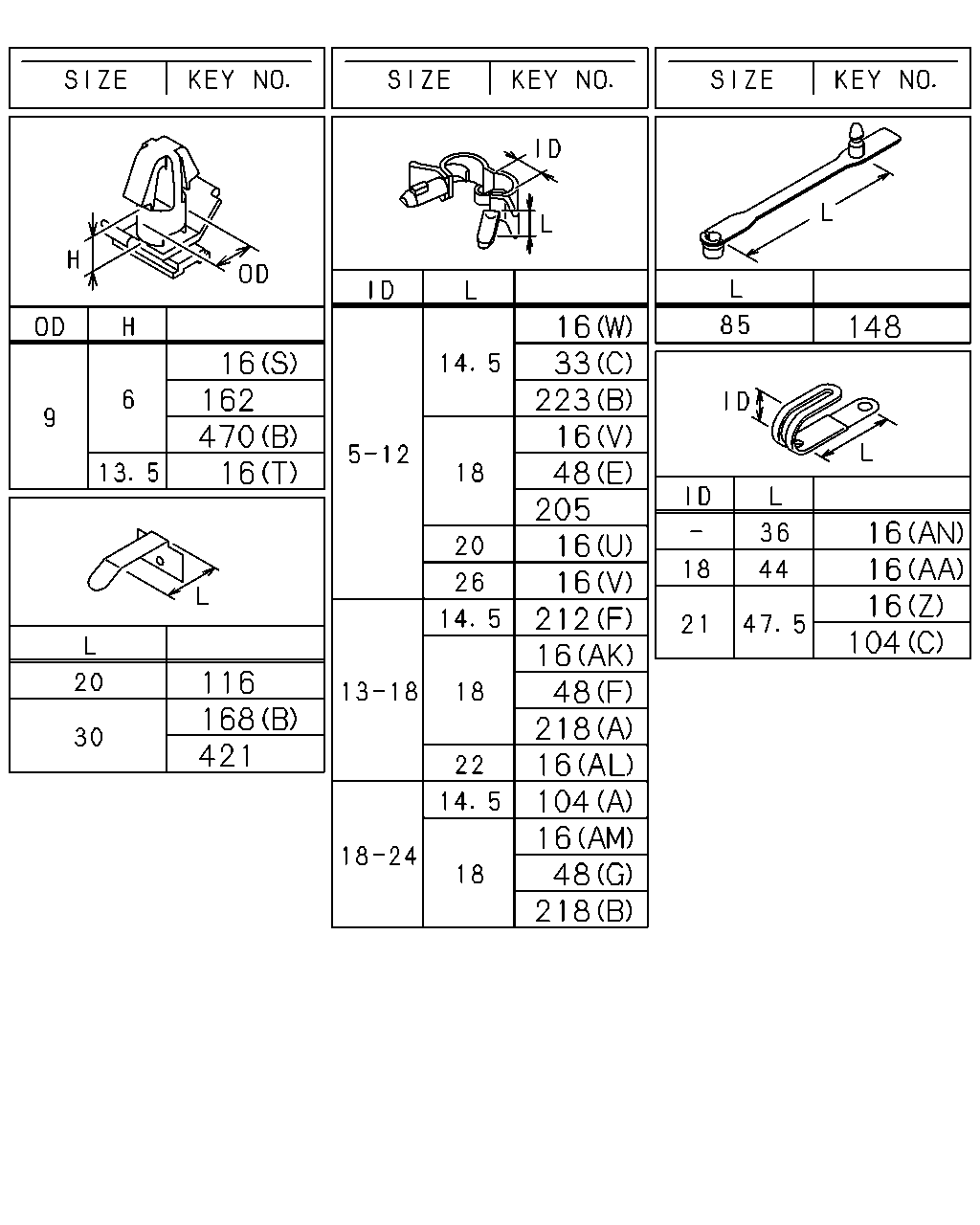

çizim 140455
16 33 223 16 48 205 16 16 212 16 48 218 16 104 16 48 218 148 16 162 470 16 16 16 16 104 116 168 421
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AR) ID=9 L=20 		0-95234-835-0 02 1 1106-
16 CLIP; HARNESS
FACE LIFT<6NL> (AQ) ID=24 L=24 		1-09701-001-1 01 1 0806-1002
16 CLIP; HARNESS
(C) ID=19 L=20 		0-95235-836-0 01 1 0702-
16 CLIP; HARNESS
(AO) L=251 		8-97619-917-0 03 1 0611-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (S) OD=9 H=6 		1-09709-178-0 01 1 0611-
16 CLIP; HARNESS
(AP) L=175 		1-09707-176-1 01 1 0611-
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 05 1 0611-
16 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 05 1 0610-1105
16 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 03 1 1106-
16 CLIP; HARNESS
(C) ID=16 L=20 		0-95235-536-0 02 1 0610-
16 CLIP; HARNESS
(D) ID=19 L=20 		0-95235-836-0 03 1 0610-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 12 1 0610-0610
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 09 1 0611-0701
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 10 1 0702-0704
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 09 1 0705-1205
16 CLIP; HARNESS
(X) L=250 		8-98216-430-0 09 1 1206-
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 0610-
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-94225-185-0 05 1 0610-0801
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 05 1 0802-
16 CLIP; HARNESS
(K) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0610-
16 CLIP; HARNESS
(K) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0610-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (AL) ID=35 H=45 L=33 		8-97615-568-0 03 1 0610-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (G) ID=11 L=41 		1-09700-403-0 01 1 0610-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (P) L=180 		1-09707-162-1 01 1 0610-
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 01 1 0610-
16 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 0610-
16 CLIP; HARNESS
(C) ID=16 L=20 		0-95235-535-0 02 1 0610-
16 CLIP; HARNESS
(E) ID=22 L=32 		1-09700-126-1 01 1 0610-0805
16 CLIP; HARNESS
EXC. FACE LIFT<6NL> (E) ID=22 L=32 		1-09700-126-1 01 1 0806-1002
16 CLIP; HARNESS
(E) ID=22 L=32 		1-09700-126-1 01 1 1003-
16 CLIP; HARNESS
(F) ID=28 L=58 		1-09700-400-0 04 1 0610-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 0610-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 07 1 0610-0610
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 04 1 0611-0702
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 14 1 0703-0806
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 16 1 0807-
16 CLIP; HARNESS
(AH) ID=11 L=61 		1-09700-484-0 02 1 0610-
16 CLIP; HARNESS
(AI) ID=20 L=70 		1-09700-485-0 01 1 0610-0610
16 CLIP; HARNESS
(H) ID=20 L=50 		1-09700-679-1 01 1 0610-
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 02 1 0610-
16 CLIP; HARNESS
(J) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0610-1409
16 CLIP; HARNESS
(AS) ID=22 L=52 		9-09917-431-0 01 1 1410-
16 CLIP; HARNESS
(AJ) ID=18 L=28 		1-09701-067-0 01 1 0610-1409
16 CLIP; HARNESS
(L) ID=28 L=32 		1-09701-107-1 02 1 0610-0805
16 CLIP; HARNESS
EXC. FACE LIFT<6NL> (L) ID=28 L=32 		1-09701-107-1 02 1 0806-1002
16 CLIP; HARNESS
(N) ID=4.8 		1-09701-218-0 01 1 0610-1409
16 CLIP; HARNESS
(O) ID=28+34 L=44 		1-09701-311-0 01 1 0610-
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 04 1 0610-
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 10 1 0610-0610
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 02 1 0611-
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 01 1 0610-
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 02 1 0610-1409
16 CLIP; HARNESS
(AS) ID=22 L=52 		9-09917-431-0 03 1 1410-
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 06 1 0610-
16 CLIP; HARNESS
(R) W/SPONGE RUBBER 		1-09709-150-0 01 1 0610-
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 05 1 0610-1409
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 02 1 1410-
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 07 1 0610-
16 CLIP; HARNESS
(T) OD=9 H=13.5 		1-09709-180-0 01 1 0610-
16 CLIP; HARNESS
(V) ID=5-12 L=18 		1-09709-287-0 01 1 0610-
16 CLIP; HARNESS
(U) ID=5-12 L=22 		1-09709-288-0 01 1 0610-
16 CLIP; HARNESS
(AK) ID=13-18 L=18 		1-09709-291-0 02 1 0610-
16 CLIP; HARNESS
(AL) ID=13-18 L=22 		1-09709-292-0 02 1 0610-
16 CLIP; HARNESS
(AM) ID=18-24 L=18 		1-09709-294-0 04 1 0610-0610
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 0610-0702
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0703-0904
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 0905-1409
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 03 1 1410-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 0610-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 03 1 0610-
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 06 1 0610-0610
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 01 1 0611-
16 CLIP; HARNESS
(AN) L=36 		8-94224-891-1 01 1 0610-0701
16 CLIP; HARNESS
(AN) L=36 		8-94224-891-1 01 1 0702-
16 CLIP; HARNESS
(AN) L=36 		8-94224-891-1 01 1 0702-
16 CLIP; HARNESS
(AB) ID=14-20 		8-97061-603-0 03 1 0610-
16 CLIP; HARNESS
(AC) OD=9 H=6 		8-97368-793-0 01 1 0610-
16 CLIP; HARNESS
(AC) OD=9 H=6 		8-97368-793-0 03 1 0610-
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 02 1 0610-
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 05 1 0610-0610
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 10 1 0611-0702
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 03 1 0703-0904
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0905-
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0905-
16 CLIP; HARNESS
(AE) ID=20 L=50 		9-09917-430-0 10 1 0610-1409
16 CLIP; HARNESS
(AE) ID=20 L=50 		9-09917-430-0 02 1 1410-
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 0610-0701
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 0610-0701
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 0702-
16 CLIP; HARNESS
(M) ID=15 L=28 		1-09701-216-0 01 1 0610-
16 CLIP; HARNESS
(M) ID=15 L=28 		1-09701-216-0 01 1 0610-
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0610-0702
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0610-0702
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 01 1 0610-1409
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 01 1 0610-1409
16 CLIP; HARNESS
EXC. BRAKE SYSTEM RETARDER<RE2> (AG) ID=28 H=45 L=30 		1-09700-707-0 03 1 0610-
16 CLIP; HARNESS
(V) ID=10 H=25 L=20 		1-09700-519-0 01 1 0610-
33 CLIP; HARNESS,VLV
(A) L=180 		1-09707-162-1 01 1 0610-
33 CLIP; HARNESS,VLV
(B) L=350 		1-09707-183-0 01 1 0610-
33 CLIP; HARNESS,VLV
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0610-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 05 1 0612-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 05 1 0612-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0610-0610
48 CLIP; FRAME HARNESS
(D) ID=39 H=28 L=32 		1-09701-263-0 01 1 0610-0706
48 CLIP; FRAME HARNESS
(J) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0707-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0610-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 12 1 0610-0610
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=18 		1-09709-287-0 01 1 0610-0610
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 02 1 0610-0610
48 CLIP; FRAME HARNESS
(G) ID=18-24 L=18 		1-09709-294-0 03 1 0610-0610
48 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 06 1 0610-0610
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0610-0610
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 		9-09917-430-0 02 1 0610-0610
104 CLIP; HEADLAMP HARNESS
(A) ID=18-24 L=14.5 		1-09709-298-0 02 1 0610-
104 CLIP; HEADLAMP HARNESS
(B) L=140 		5-09707-031-1 10 1 0610-
104 CLIP; HEADLAMP HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 02 1 0610-0710
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 0610-1409
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 07 1 1410-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 03 1 0610-
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0610-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 06 1 0610-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0610-
205 CLIP; BACK LAMP HARNESS
ID=5-12 L=18 		1-09709-287-0 01 1 0610-
212 CLIP; HORN HARNESS
(A) ID=19 L=28 		0-95235-856-0 01 1 0610-
212 CLIP; HORN HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0610-
212 CLIP; HORN HARNESS
(C) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0610-
212 CLIP; HORN HARNESS
(E) L=350 		1-09707-183-0 02 1 0610-
212 CLIP; HORN HARNESS
(F) ID=13-18 L=14.5 		1-09709-290-0 01 1 0610-
212 CLIP; HORN HARNESS
(D) L=250 		5-09707-030-1 02 1 0610-
212 CLIP; HORN HARNESS
(G) L=140 		5-09707-031-1 01 1 0610-0904
218 CLIP; BAND,RR COMB
(A) ID=13-18 L=18 		1-09709-291-0 02 1 0610-0610
218 CLIP; BAND,RR COMB
(B) ID=18-24 L=18 		1-09709-294-0 04 1 0610-0610
223 CLIP; AIR TANK HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0610-
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 03 1 0610-
223 CLIP; AIR TANK HARNESS
(C) ID=11 H=20 L=20 		5-09700-351-0 04 1 0610-0707
223 CLIP; AIR TANK HARNESS
(C) ID=11 H=20 L=20 		8-98033-780-0 04 1 0708-
421 CLIP; FLOOR HARNESS
L=30 SET=10 PIECE 		1-09987-265-0 05 1 0610-
470 CLIP; HARNESS,LICENSE LAMP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (D) L=250 		5-09707-030-1 02 1 0907-1111
470 CLIP; HARNESS,LICENSE LAMP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (D) L=250 		5-09707-030-1 04 1 1112-
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 0610-0906
470 CLIP; HARNESS,LICENSE LAMP
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) ID=11 L=41 		1-09700-403-0 01 1 0907-
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 		1-09707-183-0 01 1 0610-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0610-0906
470 CLIP; HARNESS,LICENSE LAMP
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) OD=9 H=6 		1-09709-178-0 01 1 0907-
çizim 140460
53 53 53 53 53 53 53 53 211 53 53 53 53 59 69 59
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(L) 		8-98194-068-0 01 1 1112-
53 BRACKET; HARNESS
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		8-98124-778-0 01 1 0908-
53 BRACKET; HARNESS
FACE LIFT<6NL> (I) 		8-98032-696-0 01 1 0806-
53 BRACKET; HARNESS
FACE LIFT<6NL> (J) 		8-98050-989-0 01 1 0806-
53 BRACKET; HARNESS
FACE LIFT<6NL> (K) 		8-98052-592-0 01 1 0806-
53 BRACKET; HARNESS
(D) 		8-97610-339-1 01 1 0610-
53 BRACKET; HARNESS
(E) 		8-97610-340-1 01 1 0610-
53 BRACKET; HARNESS
(H) L=160 H=30 		1-47479-759-0 01 1 0610-
53 BRACKET; HARNESS
(B) 		1-82698-382-0 01 1 0610-0907
53 BRACKET; HARNESS
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		1-82698-382-0 01 1 0908-
53 BRACKET; HARNESS
(C) 		1-82698-495-2 01 1 0610-
53 BRACKET; HARNESS
(F) L=95 		1-82699-085-0 01 1 0610-
53 BRACKET; HARNESS
(G) 		8-97610-991-0 01 1 0610-0805
53 BRACKET; HARNESS
EXC. FACE LIFT<6NL> (G) 		8-97610-991-0 01 1 0806-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 05 1 0610-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 05 1 0610-
59 BRACKET; FRAME HARNESS
FACE LIFT<6NL> (B) 		8-98061-135-1 01 1 0810-
59 BRACKET; FRAME HARNESS
FACE LIFT<6NL> (B) 		8-98061-135-1 01 1 0806-0807
59 BRACKET; FRAME HARNESS
(A) 		1-82698-531-0 01 1 0610-
69 BRACKET; CLIP 1-82698-358-0 01 1 0610-
211 BRACKET; AXLE HARNESS
L=95 		1-82699-085-0 02 1 0610-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
