3-70 — BRAKE PIPING; AIR,AIR MASTER (#28311) — 111 parça

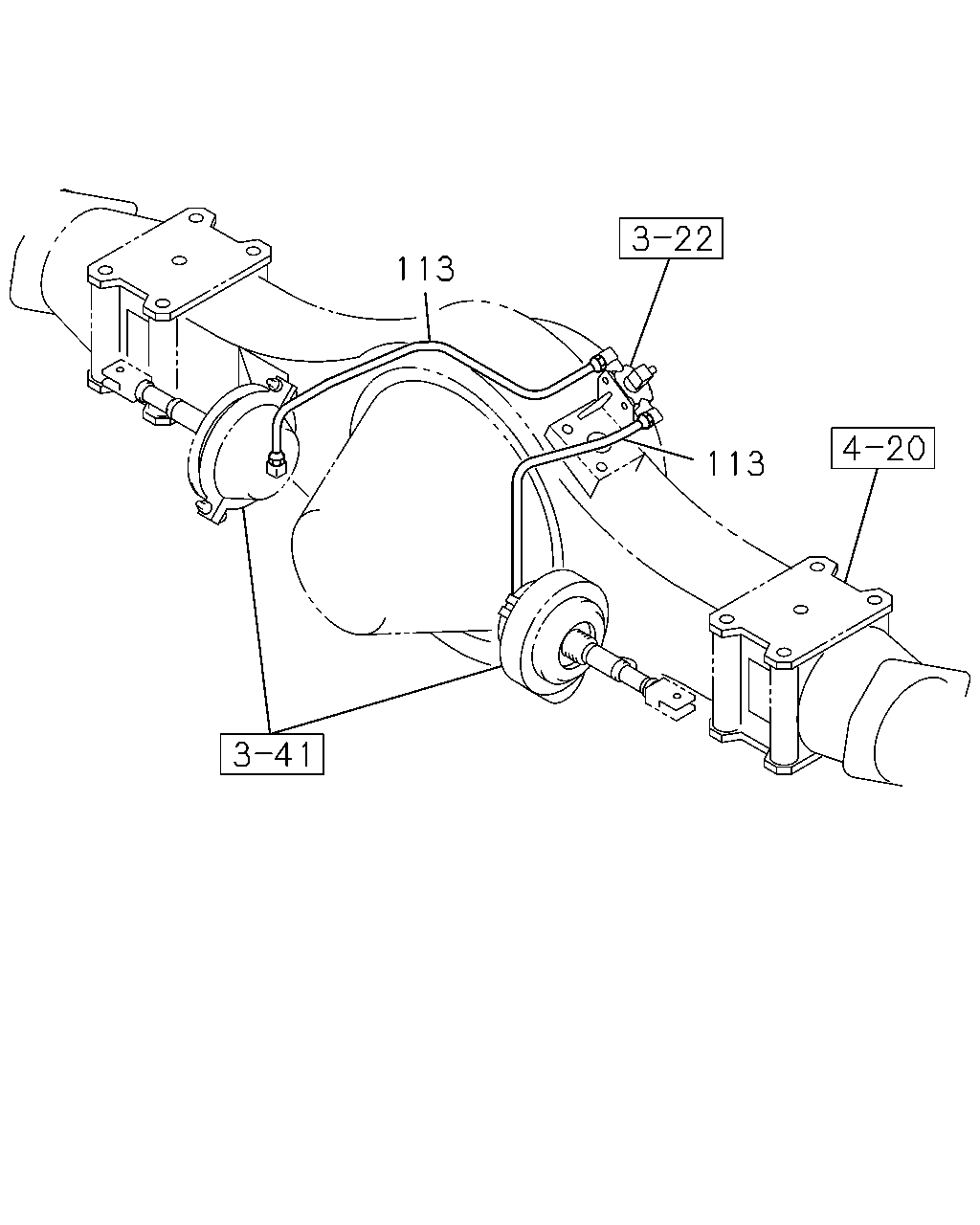

113 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=324	1-49112-659-0	01	1	0609-0711
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=409 SERVICED BY L=600	1-47426-379-0	01	1	0712-
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49112-660-0	01	1	0609-

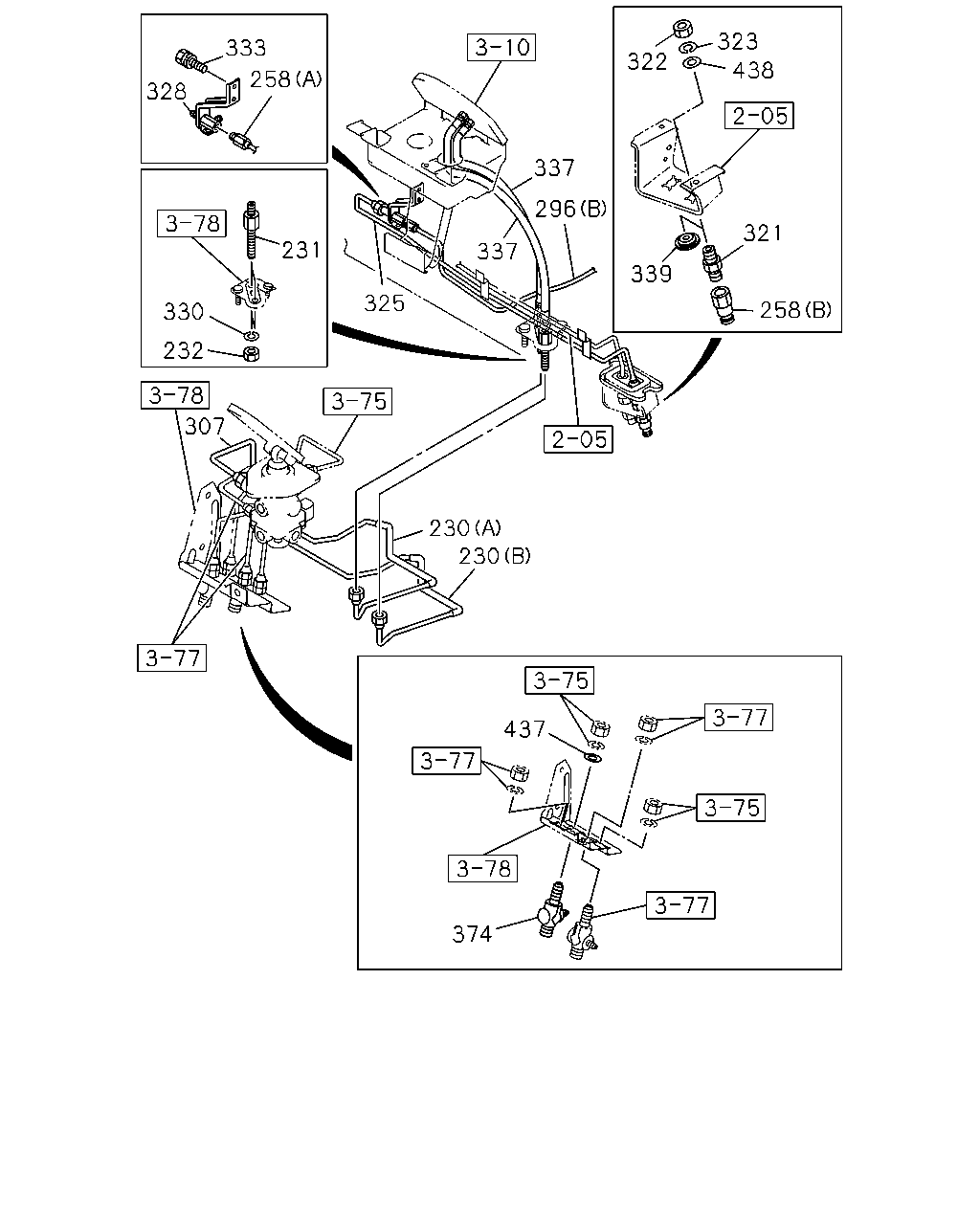

323 333 322 438 258 328 337 296 321 231 337 339 325 258 330 232 307 230 230 437 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> (B)	1-49122-778-0	01	1	0609-
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> (A)	1-49122-777-0	01	1	0701-
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> (A)	1-49122-777-0	01	1	0609-0612
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> M10 STRAIGHT	1-09654-361-0	02	1	0609-
232	NUT; UNION,AIR PIPE DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	02	1	0609-
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (A) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0609-
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0609-
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0609-
258	CONNECTOR; NYLON TUBE (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0609-
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6	1-09366-256-1	01	1	0609-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0609-
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=421	1-49121-486-0	01	1	0609-
321	JOINT; FLEX HOSE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	0609-
321	JOINT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	0609-
322	NUT; JOINT,FLEX HOSE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0609-
322	NUT; JOINT,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0609-
323	WASHER; LK,JOINT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2	0-91510-510-0	01	1	0609-
323	WASHER; LK,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.2	0-91510-510-0	01	1	0609-
325	PIPE; AIR,FLEX HOSE TO UNION AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-47492-452-2	01	1	0609-
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2>	1-47492-452-2	01	1	0609-
328	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-47470-392-0	01	1	0609-
328	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>	1-47470-362-2	01	1	0609-
330	WASHER; LK,UNION,AIR PIPE DUAL AIR GAUGE<UG2> ID=10.2	0-91510-510-0	02	1	0609-
333	BOLT; PIPE UNION AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0609-
333	BOLT; PIPE UNION EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0609-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	02	1	0609-0609
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-57210-720-0	02	1	0609-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=810	0-57210-810-0	01	1	0609-
339	GROMMET; AIR PIPE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> OD=28	8-94279-720-0	01	1	0609-
374	CONNECTOR DUAL AIR GAUGE<UG2>	1-09656-754-0	01	1	0609-
374	CONNECTOR EXC. DUAL AIR GAUGE<UG2> M16 STRAIGHT	1-09654-380-0	01	1	0609-
437	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	01	1	0609-
438	WASHER; PL,JOINT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0609-
438	WASHER; PL,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0609-

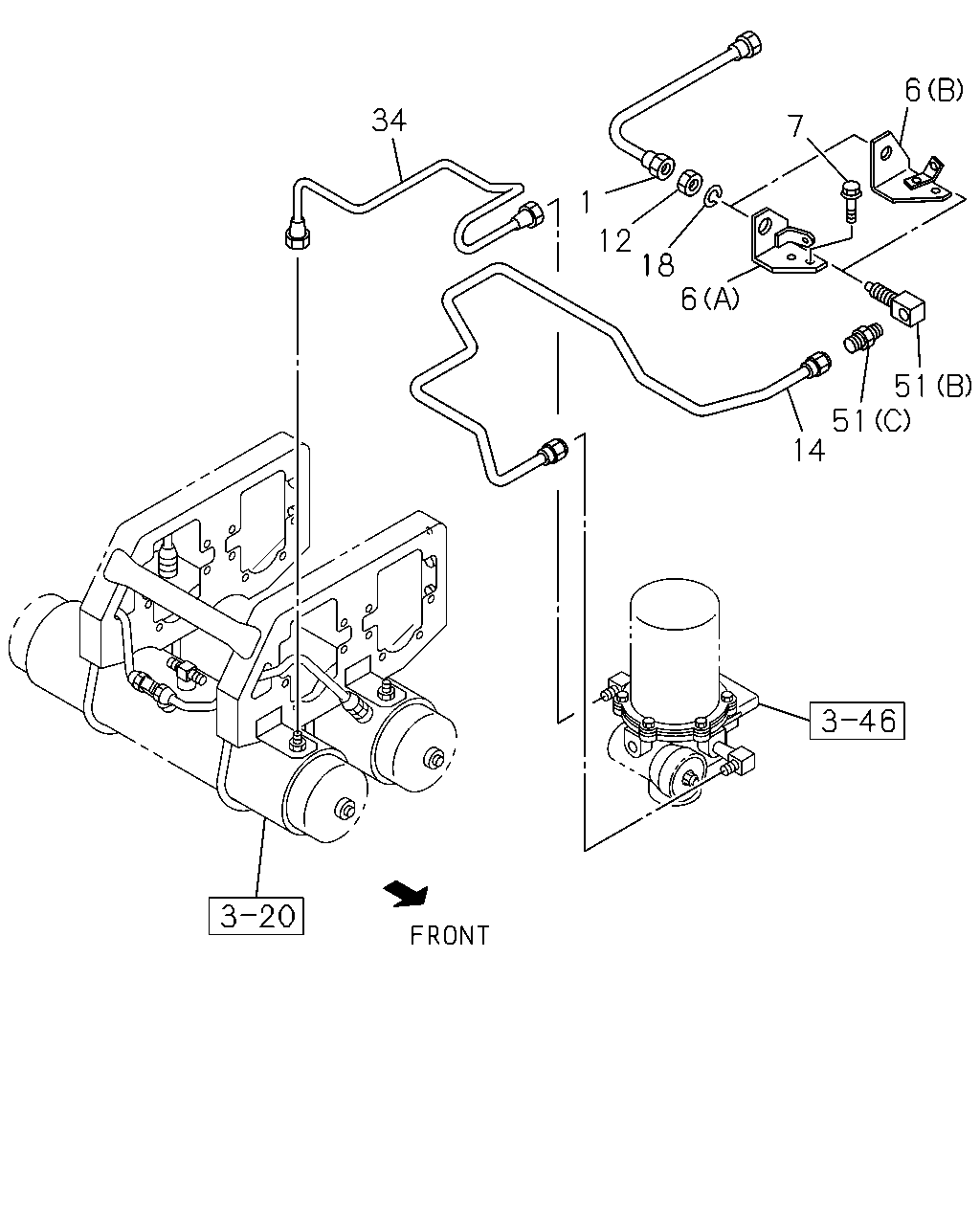

6 34 7 1 12 18 6 51 51 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK	1-09363-958-0	01	1	0609-
6	BRACKET; FLEX HOSE,AIR TANK (A)	1-47471-463-0	01	1	0609-0703
6	BRACKET; FLEX HOSE,AIR TANK (B)	1-47471-472-0	01	1	0704-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0609-
12	NUT; UNION M22	0-91111-522-0	01	1	0609-
14	PIPE; AIR,FLEX HOSE TO AIR TANK L=1640	1-49124-951-0	01	1	0609-
18	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0609-
34	PIPE; AIR L=974	1-49124-952-0	01	1	0609-
51	UNION (B)	1-09654-433-0	01	1	0609-
51	UNION (C)	1-09661-810-0	01	1	0609-
51	UNION (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0609-

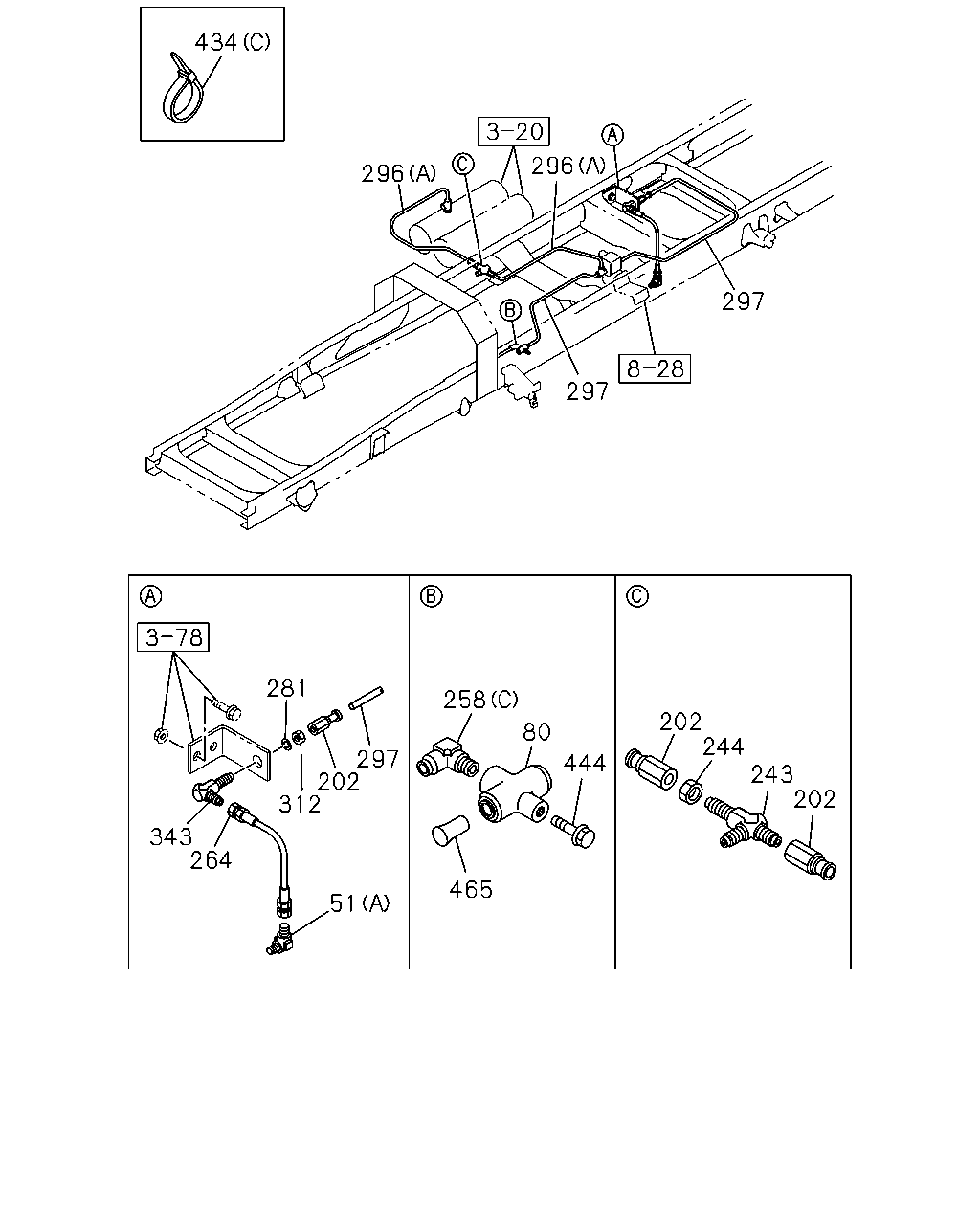

434 296 296 297 297 281 258 202 244 243 202 80 297 202 312 444 343 264 465 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	UNION (B)	1-09654-433-0	01	1	0609-
51	UNION (C)	1-09661-810-0	01	1	0609-
51	UNION (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0609-
80	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0609-
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0609-
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	02	1	0609-
243	UNION; AIR PIPE M12 3WAY	0-92138-906-0	01	1	0609-
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0609-
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (A) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0609-
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0609-
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0609-
258	CONNECTOR; NYLON TUBE (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0609-
264	HOSE; FLEX L=300	1-09363-611-0	01	1	0609-0609
264	HOSE; FLEX L=300	1-09363-611-0	01	1	0610-
281	WASHER; LK UNION ID=12.2	0-91510-512-0	01	1	0609-
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6	1-09366-256-1	01	1	0609-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0609-
297	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0609-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0609-
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0609-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0609-
312	NUT; UNION M12	9-09840-280-0	01	1	0609-
343	UNION; NYLON TUBE M12 ELBOW	0-92125-206-0	01	1	0609-
434	CLIP WHEEL BASE 4800MM(48W) (C) L=250	1-09707-126-0	04	1	0609-
434	CLIP WHEEL BASE 5500MM(55W) (C) L=250	1-09707-126-0	03	1	0609-
434	CLIP WHEEL BASE 5500MM(55W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=250	1-09707-126-0	05	1	0609-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (A) ID=17	1-09987-105-1	01	1	0609-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (B)	8-94297-486-0	02	1	0609-
444	BOLT; UNION M8X20 FLANGE	0-28050-820-0	01	1	0609-
465	PLUG DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> OD=8	1-09661-616-0	01	1	0609-

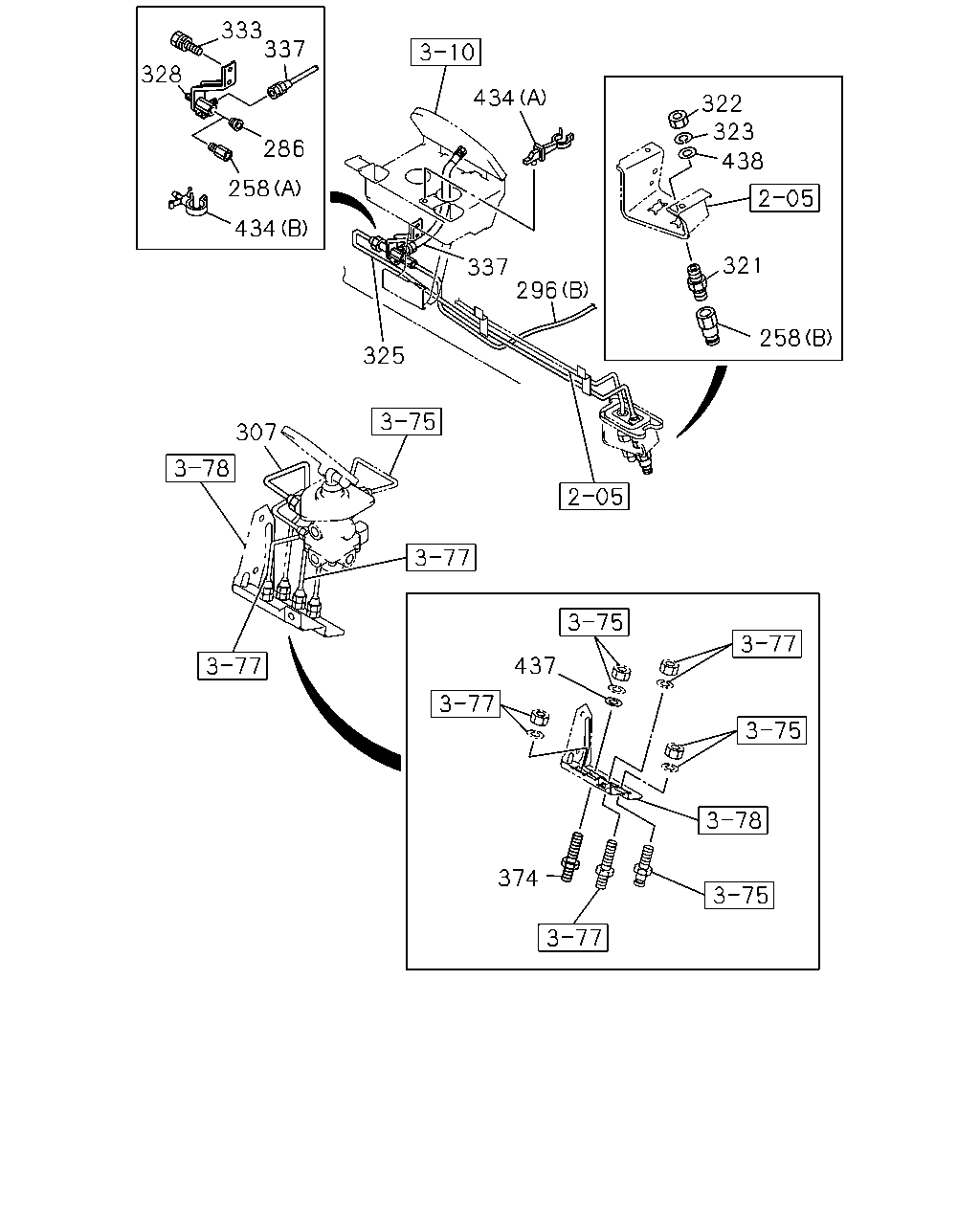

333 337 328 434 322 323 286 438 258 434 321 337 296 258 325 307 437 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (A) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0609-
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0609-
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0609-
258	CONNECTOR; NYLON TUBE (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0609-
286	PLUG; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2>	9-09204-510-0	01	1	0609-
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (B) L=1200 OD=6	1-09366-256-1	01	1	0609-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0609-
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=421	1-49121-486-0	01	1	0609-
321	JOINT; FLEX HOSE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	0609-
321	JOINT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	0609-
322	NUT; JOINT,FLEX HOSE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0609-
322	NUT; JOINT,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0609-
323	WASHER; LK,JOINT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2	0-91510-510-0	01	1	0609-
323	WASHER; LK,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.2	0-91510-510-0	01	1	0609-
325	PIPE; AIR,FLEX HOSE TO UNION AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-47492-452-2	01	1	0609-
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2>	1-47492-452-2	01	1	0609-
328	UNION; AIR PIPE AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2>	1-47470-392-0	01	1	0609-
328	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>	1-47470-362-2	01	1	0609-
333	BOLT; PIPE UNION AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0609-
333	BOLT; PIPE UNION EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0609-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	02	1	0609-0609
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-57210-720-0	02	1	0609-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=810	0-57210-810-0	01	1	0609-
374	CONNECTOR DUAL AIR GAUGE<UG2>	1-09656-754-0	01	1	0609-
374	CONNECTOR EXC. DUAL AIR GAUGE<UG2> M16 STRAIGHT	1-09654-380-0	01	1	0609-
434	CLIP WHEEL BASE 4800MM(48W) (C) L=250	1-09707-126-0	04	1	0609-
434	CLIP WHEEL BASE 5500MM(55W) (C) L=250	1-09707-126-0	03	1	0609-
434	CLIP WHEEL BASE 5500MM(55W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=250	1-09707-126-0	05	1	0609-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (A) ID=17	1-09987-105-1	01	1	0609-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (B)	8-94297-486-0	02	1	0609-
437	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	01	1	0609-
438	WASHER; PL,JOINT AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0609-
438	WASHER; PL,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0609-
