Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#2831) — 216 parça

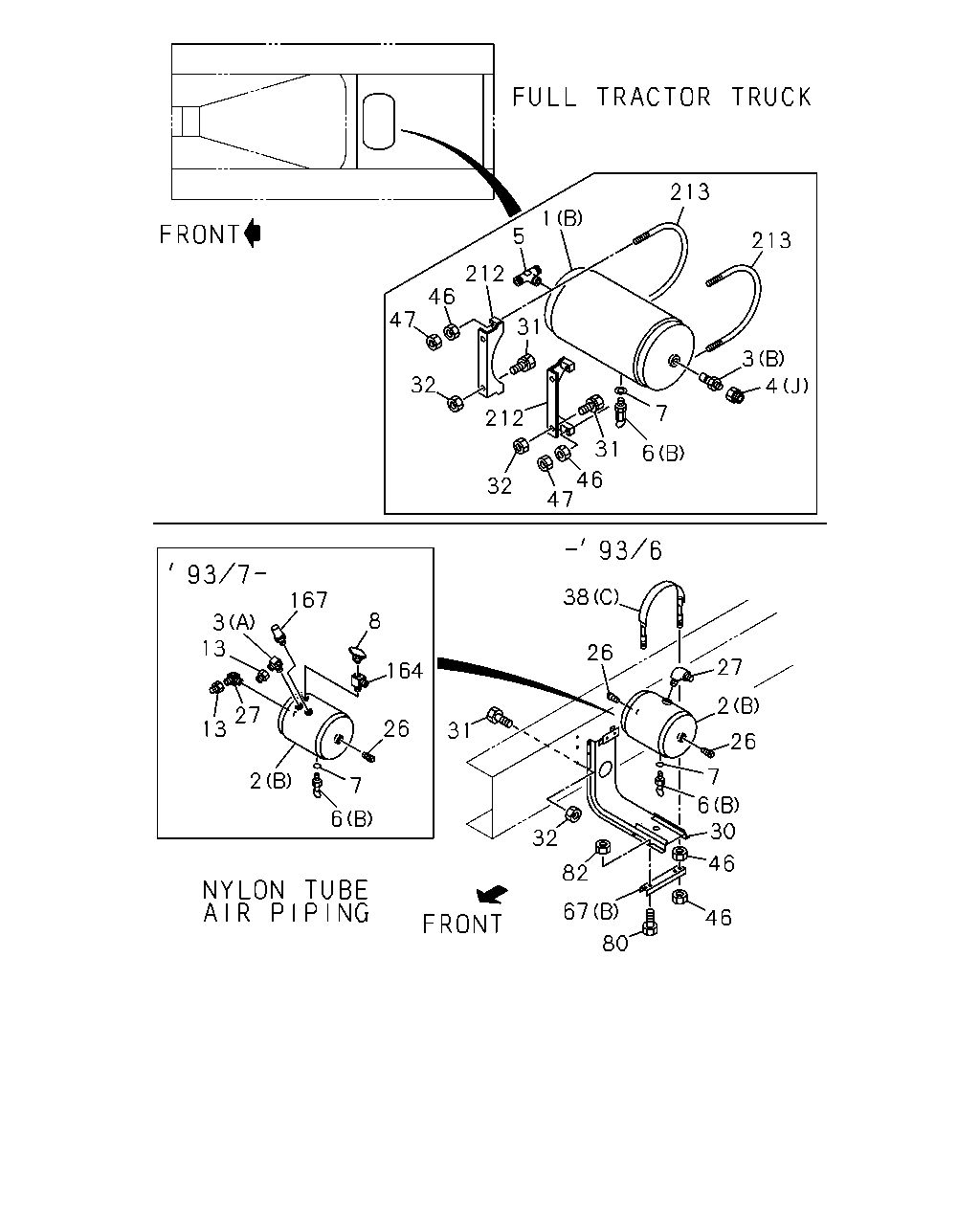

46 46 6 26 7 30 2 26 27 38 31 32 82 67 80 6 2 7 164 26 8 167 3 13 13 27 32 212 47 31 46 6 7 4 3 213 213 1 5 212 46 47 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR AIR DRYER<PS7> (A)	1-48330-674-1	01	1	9002-9407	●	●
1	TANK ASM; AIR AIR DRYER<PS7> (A)	1-48370-211-0	01	1	9408-	●	●
1	TANK ASM; AIR EXC. AIR DRYER<PS7> (A)	1-48330-479-0	01	1	9002-9306	●	●
1	TANK ASM; AIR EXC. AIR DRYER<PS7>,NYLON TUBE AIR PIPING<Z29> (A)	1-48330-479-0	01	1	9307-	●	●
1	TANK ASM; AIR NYLON TUBE AIR PIPING<Z29> (B)	1-48330-710-1	01	1	9002-9306	●	●
1	TANK ASM; AIR NYLON TUBE AIR PIPING<Z29> (A)	1-48330-610-1	01	1	9307-		●
2	TANK; AIR (A)	1-48330-228-0	01	1	9307-	●
2	TANK; AIR EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48330-228-0	01	1	9307-		●
2	TANK; AIR (A)	1-48330-228-0	01	1	9002-9306	●	●
2	TANK; AIR NYLON TUBE AIR PIPING<Z29> (B)	1-48330-789-0	01	1	9002-9306	●	●
2	TANK; AIR NYLON TUBE AIR PIPING<Z29> (B)	1-48310-714-2	01	1	9307-		●
2	TANK; AIR NYLON TUBE AIR PIPING<Z29> (A)	1-48370-144-0	01	1	9307-		●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (A)	1-48410-133-2	03	1	9002-	●	●
3	VALVE; CHECK,AIR TANK NYLON TUBE AIR PIPING<Z29> (B)	1-48410-182-2	01	1	9002-9306	●	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (A)	1-48410-133-2	04	1	9002-	●	●
3	VALVE; CHECK,AIR TANK NYLON TUBE AIR PIPING<Z29> (A)	1-48410-133-2	01	1	9307-		●
4	CONNECTOR; FLARE (M) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9307-	●
4	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (M) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9307-		●
4	CONNECTOR; FLARE (C) M22 & PT1/2 ELBOW	1-09650-444-0	03	1	9307-	●
4	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (C) M22 & PT1/2 ELBOW	1-09650-444-0	03	1	9307-		●
4	CONNECTOR; FLARE (B) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9307-	●
4	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (B) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9307-		●
4	CONNECTOR; FLARE (L) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-9302	●	●
4	CONNECTOR; FLARE (L) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-	●	●
4	CONNECTOR; FLARE (B) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9002-9306	●	●
4	CONNECTOR; FLARE (M) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9002-9302	●	●
4	CONNECTOR; FLARE (M) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-9306	●	●
4	CONNECTOR; FLARE (C) M22 & PT1/2 ELBOW	9-09234-315-1	03	1	9002-9302	●	●
4	CONNECTOR; FLARE (C) M22 & PT1/2 ELBOW	1-09650-444-0	03	1	9303-9306	●	●
4	CONNECTOR; FLARE EXC. AIR DRYER<PS7> (H) M22	1-09650-277-0	01	1	9002-	●	●
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> (D) M20 & PT1/2 ELBOW	1-09650-178-1	01	1	9002-9302	●	●
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> (D) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9303-9306	●	●
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> (J) M18 & M20 STRAIGHT	1-09660-221-0	01	1	9002-9306	●	●
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> EXC. AIR DRYER<PS7> (F)	1-09656-530-1	01	1	9002-9306	●	●
4	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (D) M20 & PT1/2 ELBOW	1-09650-178-1	02	1	9002-9302	●	●
4	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (D) M20 & PT1/2 ELBOW	1-09650-443-0	02	1	9303-	●	●
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> (E)	1-09660-287-0	01	1	9307-		●
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> (G)	1-09660-290-0	03	1	9307-		●
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> (K)	1-09660-291-0	01	1	9307-		●
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> (A)	1-09660-687-0	03	1	9307-		●
5	UNION; AIR TANK FULL TRACTOR TRUCK<RD6>	1-09660-236-0	01	1	9002-9005	●	●
5	UNION; AIR TANK FULL TRACTOR TRUCK<RD6>	1-09660-249-0	01	1	9006-9306	●	●
5	UNION; AIR TANK NYLON TUBE AIR PIPING<Z29> PT3/8 ELBOW	1-09660-696-0	01	1	9307-9308		●
5	UNION; AIR TANK NYLON TUBE AIR PIPING<Z29> PT3/8 ELBOW	1-09660-696-0	02	1	9309-		●
6	COCK; DRAIN,AIR TANK (B) W/COVER	1-48312-004-1	04	1	9002-9407	●	●
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (B) W/COVER	1-48312-004-1	03	1	9408-9509	●	●
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (B)	1-48312-015-0	03	1	9510-	●	●
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (B) W/COVER	1-48312-004-1	04	1	9408-9509	●	●
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (B)	1-48312-015-0	04	1	9510-	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (A)	9-09904-177-0	01	1	9002-	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B) W/COVER	1-48312-004-1	01	1	9002-9509	●	●
6	COCK; DRAIN,AIR TANK NYLON TUBE AIR PIPING<Z29> (B) W/COVER	1-48312-004-1	01	1	9002-9509	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B)	1-48312-015-0	01	1	9510-	●	●
6	COCK; DRAIN,AIR TANK NYLON TUBE AIR PIPING<Z29> (B)	1-48312-015-0	01	1	9510-	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9002-9512	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9603-	●	●
7	GASKET; DRAIN COCK NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=23.0	9-09572-014-0	01	1	9002-9512	●	●
7	GASKET; DRAIN COCK NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-	●	●
8	CONNECTOR; AIR TANK NYLON TUBE AIR PIPING<Z29>	1-47459-002-0	04	1	9307-		●
13	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M20X36	1-09660-576-0	05	1	9307-		●
26	PLUG; SUB AIR TANK NYLON TUBE AIR PIPING<Z29> PT1/4	9-99204-513-0	02	1	9002-9102	●	●
26	PLUG; SUB AIR TANK NYLON TUBE AIR PIPING<Z29> PT1/2	9-09204-521-0	01	1	9103-9306	●	●
26	PLUG; SUB AIR TANK NYLON TUBE AIR PIPING<Z29> PT1/4	9-99204-513-0	01	1	9103-	●	●
27	UNION; ELBOW,AIR TANK NYLON TUBE AIR PIPING<Z29>	9-09234-312-0	01	1	9002-9102	●	●
27	UNION; ELBOW,AIR TANK NYLON TUBE AIR PIPING<Z29>	1-09650-261-1	01	1	9103-9306	●	●
27	UNION; ELBOW,AIR TANK NYLON TUBE AIR PIPING<Z29> M20 & PT1/4 ELBOW	1-09650-435-0	01	1	9307-		●
30	BRACKET; AIR TANK,SUB NYLON TUBE AIR PIPING<Z29>	1-48317-390-8	01	1	9002-	●	●
31	BOLT; BRKT TO FRAME NYLON TUBE AIR PIPING<Z29> M10X25	9-01911-025-0	04	1	9002-9002	●	●
31	BOLT; BRKT TO FRAME NYLON TUBE AIR PIPING<Z29> M10X25 W/LK WASHER	0-50041-025-0	04	1	9003-9306	●	●
31	BOLT; BRKT TO FRAME NYLON TUBE AIR PIPING<Z29> M12X35	9-01911-235-0	06	1	9002-9005	●	●
31	BOLT; BRKT TO FRAME NYLON TUBE AIR PIPING<Z29> M12X35 W/LK WASHER	0-50041-235-0	06	1	9006-	●	●
32	NUT; BRKT TO FRAME NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9002-9306	●	●
32	NUT; BRKT TO FRAME NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	06	1	9002-9304	●	●
32	NUT; BRKT TO FRAME NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	06	1	9305-	●	●
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	9002-	●	●
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	9002-	●	●
38	BAND; AIR TANK NYLON TUBE AIR PIPING<Z29> (C)	1-48317-187-1	02	1	9002-	●	●
46	NUT; U-BOLT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9002-9306	●	●
46	NUT; U-BOLT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	08	1	9002-	●	●
47	NUT; LK,U BOLT,AIR TANK NYLON TUBE AIR PIPING<Z29> M8	9-09111-408-0	04	1	9002-9306	●	●
67	STAY; SUB TANK (A)	1-48317-271-0	01	1	9002-	●	●
67	STAY; SUB TANK NYLON TUBE AIR PIPING<Z29> (B)	1-48317-391-0	02	1	9002-	●	●
80	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M10X25	9-01911-025-0	04	1	9002-9002	●	●
80	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M10X25 W/LK WASHER	0-50041-025-0	04	1	9003-	●	●
82	NUT; STAY,AIR MASTER BRKT NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	04	1	9002-	●	●
164	CONNECTOR; SUB AIR TANK NYLON TUBE AIR PIPING<Z29>	1-09660-687-0	01	1	9307-		●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB NYLON TUBE AIR PIPING<Z29>	1-48340-040-0	01	1	9307-9411		●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB NYLON TUBE AIR PIPING<Z29> 530KPA	1-48340-054-0	01	1	9412-		●
212	BRACKET; AIR TANK TRAILER NYLON TUBE AIR PIPING<Z29>	1-48317-360-0	02	1	9002-9306	●	●
213	BOLT; U AIR TANK NYLON TUBE AIR PIPING<Z29> L=185	1-48317-002-0	02	1	9002-9306	●	●

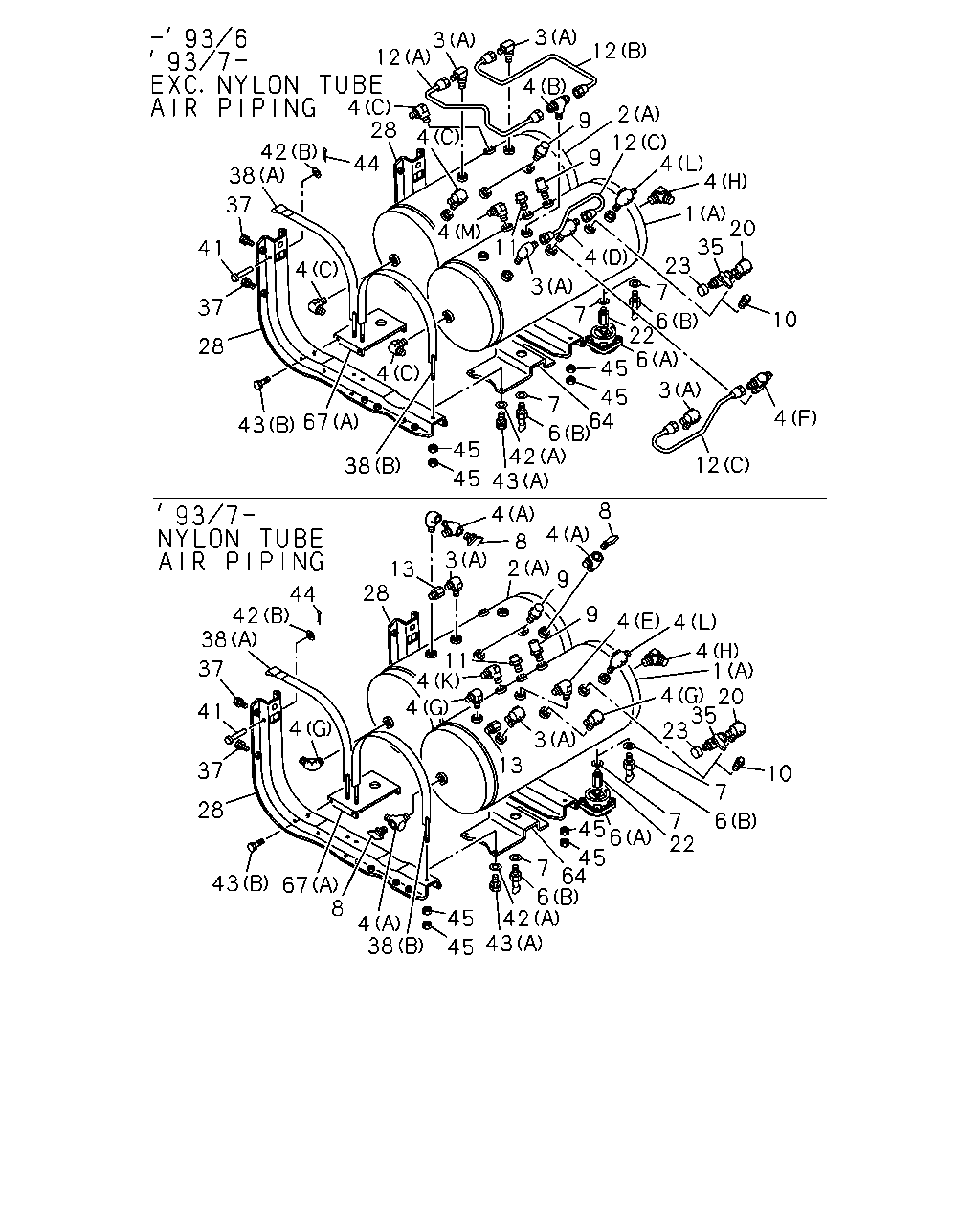

43 45 45 42 38 4 8 67 43 28 41 37 37 4 13 3 7 6 64 45 45 6 22 6 7 23 7 10 20 35 4 4 4 9 1 4 9 8 4 8 2 4 3 13 28 11 4 4 44 42 38 38 4 4 43 67 28 37 41 37 38 42 44 28 4 12 3 3 12 4 4 4 9 11 4 3 2 9 12 4 4 1 20 10 35 23 7 7 6 22 45 6 7 45 3 4 12 64 6 42 43 45 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR AIR DRYER<PS7> (A)	1-48330-674-1	01	1	9002-9407	●	●
1	TANK ASM; AIR AIR DRYER<PS7> (A)	1-48370-211-0	01	1	9408-	●	●
1	TANK ASM; AIR EXC. AIR DRYER<PS7> (A)	1-48330-479-0	01	1	9002-9306	●	●
1	TANK ASM; AIR EXC. AIR DRYER<PS7>,NYLON TUBE AIR PIPING<Z29> (A)	1-48330-479-0	01	1	9307-	●	●
1	TANK ASM; AIR NYLON TUBE AIR PIPING<Z29> (B)	1-48330-710-1	01	1	9002-9306	●	●
1	TANK ASM; AIR NYLON TUBE AIR PIPING<Z29> (A)	1-48330-610-1	01	1	9307-		●
2	TANK; AIR (A)	1-48330-228-0	01	1	9307-	●
2	TANK; AIR EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-48330-228-0	01	1	9307-		●
2	TANK; AIR (A)	1-48330-228-0	01	1	9002-9306	●	●
2	TANK; AIR NYLON TUBE AIR PIPING<Z29> (B)	1-48330-789-0	01	1	9002-9306	●	●
2	TANK; AIR NYLON TUBE AIR PIPING<Z29> (B)	1-48310-714-2	01	1	9307-		●
2	TANK; AIR NYLON TUBE AIR PIPING<Z29> (A)	1-48370-144-0	01	1	9307-		●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (A)	1-48410-133-2	03	1	9002-	●	●
3	VALVE; CHECK,AIR TANK NYLON TUBE AIR PIPING<Z29> (B)	1-48410-182-2	01	1	9002-9306	●	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (A)	1-48410-133-2	04	1	9002-	●	●
3	VALVE; CHECK,AIR TANK NYLON TUBE AIR PIPING<Z29> (A)	1-48410-133-2	01	1	9307-		●
4	CONNECTOR; FLARE (M) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9307-	●
4	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (M) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9307-		●
4	CONNECTOR; FLARE (C) M22 & PT1/2 ELBOW	1-09650-444-0	03	1	9307-	●
4	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (C) M22 & PT1/2 ELBOW	1-09650-444-0	03	1	9307-		●
4	CONNECTOR; FLARE (B) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9307-	●
4	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (B) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9307-		●
4	CONNECTOR; FLARE (L) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-9302	●	●
4	CONNECTOR; FLARE (L) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-	●	●
4	CONNECTOR; FLARE (B) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9002-9306	●	●
4	CONNECTOR; FLARE (M) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9002-9302	●	●
4	CONNECTOR; FLARE (M) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-9306	●	●
4	CONNECTOR; FLARE (C) M22 & PT1/2 ELBOW	9-09234-315-1	03	1	9002-9302	●	●
4	CONNECTOR; FLARE (C) M22 & PT1/2 ELBOW	1-09650-444-0	03	1	9303-9306	●	●
4	CONNECTOR; FLARE EXC. AIR DRYER<PS7> (H) M22	1-09650-277-0	01	1	9002-	●	●
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> (D) M20 & PT1/2 ELBOW	1-09650-178-1	01	1	9002-9302	●	●
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> (D) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9303-9306	●	●
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> (J) M18 & M20 STRAIGHT	1-09660-221-0	01	1	9002-9306	●	●
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> EXC. AIR DRYER<PS7> (F)	1-09656-530-1	01	1	9002-9306	●	●
4	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (D) M20 & PT1/2 ELBOW	1-09650-178-1	02	1	9002-9302	●	●
4	CONNECTOR; FLARE EXC. NYLON TUBE AIR PIPING<Z29> (D) M20 & PT1/2 ELBOW	1-09650-443-0	02	1	9303-	●	●
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> (E)	1-09660-287-0	01	1	9307-		●
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> (G)	1-09660-290-0	03	1	9307-		●
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> (K)	1-09660-291-0	01	1	9307-		●
4	CONNECTOR; FLARE NYLON TUBE AIR PIPING<Z29> (A)	1-09660-687-0	03	1	9307-		●
6	COCK; DRAIN,AIR TANK (B) W/COVER	1-48312-004-1	04	1	9002-9407	●	●
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (B) W/COVER	1-48312-004-1	03	1	9408-9509	●	●
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (B)	1-48312-015-0	03	1	9510-	●	●
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (B) W/COVER	1-48312-004-1	04	1	9408-9509	●	●
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (B)	1-48312-015-0	04	1	9510-	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (A)	9-09904-177-0	01	1	9002-	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B) W/COVER	1-48312-004-1	01	1	9002-9509	●	●
6	COCK; DRAIN,AIR TANK NYLON TUBE AIR PIPING<Z29> (B) W/COVER	1-48312-004-1	01	1	9002-9509	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B)	1-48312-015-0	01	1	9510-	●	●
6	COCK; DRAIN,AIR TANK NYLON TUBE AIR PIPING<Z29> (B)	1-48312-015-0	01	1	9510-	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9002-9512	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9603-	●	●
7	GASKET; DRAIN COCK NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=23.0	9-09572-014-0	01	1	9002-9512	●	●
7	GASKET; DRAIN COCK NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-	●	●
8	CONNECTOR; AIR TANK NYLON TUBE AIR PIPING<Z29>	1-47459-002-0	04	1	9307-		●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	1-48340-040-0	03	1	9002-9411	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-0	03	1	9412-	●	●
10	PLUG; AIR TANK EXC. AIR DRYER<PS7>,TIRE INFLATOR DEVICE<W47>, NYLON TUBE AIR PIPING<Z29> PT 1/4 SQUARE HEAD	9-99204-513-0	01	1	9002-	●	●
10	PLUG; AIR TANK NYLON TUBE AIR PIPING<Z29> PT 1/4 HEADLESS	9-09205-513-0	01	1	9002-9008	●	●
10	PLUG; AIR TANK NYLON TUBE AIR PIPING<Z29> PT 3/8 HEADLESS	9-99205-517-0	01	1	9009-	●	●
10	PLUG; AIR TANK NYLON TUBE AIR PIPING<Z29> M14X9	9-99202-314-0	01	1	9408-	●	●
10	PLUG; AIR TANK NYLON TUBE AIR PIPING<Z29> PT 3/8 SQUARE HEAD	9-09204-517-0	01	1	9307-		●
10	PLUG; AIR TANK NYLON TUBE AIR PIPING<Z29> PT 1/2 SQUARE HEAD	9-09204-521-0	02	1	9307-		●
10	PLUG; AIR TANK NYLON TUBE AIR PIPING<Z29> PT 1/4 SQUARE HEAD	9-99204-513-0	02	1	9307-		●
11	VALVE; SAFETY,AIR TANK EXC. NYLON TUBE AIR PIPING<Z29>	1-48320-003-0	01	1	9002-9306	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9307-	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47496-038-0	01	1	9307-	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47496-038-0	01	1	9307-		●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47496-039-0	01	1	9307-	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-47496-039-0	01	1	9307-		●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (C)	1-47496-040-0	01	1	9307-	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-47496-040-0	01	1	9307-		●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47485-581-0	01	1	9002-9306	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47485-582-0	01	1	9002-9306	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (C)	1-47485-583-0	01	1	9002-9306	●	●
13	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M20X36	1-09660-576-0	05	1	9307-		●
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47>	9-09903-738-0	01	1	9002-9306	●	●
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4	1-09660-501-0	01	1	9307-	●	●
22	ADAPTER; AUTO DRAIN VLV AUTO DRAIN<J78>	1-48319-031-0	01	1	9002-	●	●
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	9002-	●	●
28	BRACKET; AIR TANK	1-48317-240-4	02	1	9002-	●	●
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-036-0	01	1	9002-	●	●
37	BOLT; AIR TANK M12X45	1-09030-052-1	08	1	9002-9601	●	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	9602-	●	●
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	9002-	●	●
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	9002-	●	●
38	BAND; AIR TANK NYLON TUBE AIR PIPING<Z29> (C)	1-48317-187-1	02	1	9002-	●	●
41	PIN; BAND FIX	9-08221-060-0	02	1	9002-9407	●	●
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	9408-	●	●
42	WASHER; PL (A) ID=8.4 OD=22	9-09160-708-0	04	1	9002-	●	●
42	WASHER; PL (B) ID=10.5	9-09164-510-0	02	1	9002-	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X25 W/LK WASHER	9-01900-825-0	04	1	9002-9204	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M6X20 W/LK&PL WASHER	9-01960-620-0	04	1	9002-9204	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	9205-	●	●
44	PIN; SPLIT OD=2.8 L=18	9-08113-018-0	02	1	9002-	●	●
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	12	1	9002-	●	●
64	STAY; AIR TANK,MAIN	1-48317-220-1	01	1	9002-	●	●
67	STAY; SUB TANK (A)	1-48317-271-0	01	1	9002-	●	●
67	STAY; SUB TANK NYLON TUBE AIR PIPING<Z29> (B)	1-48317-391-0	02	1	9002-	●	●

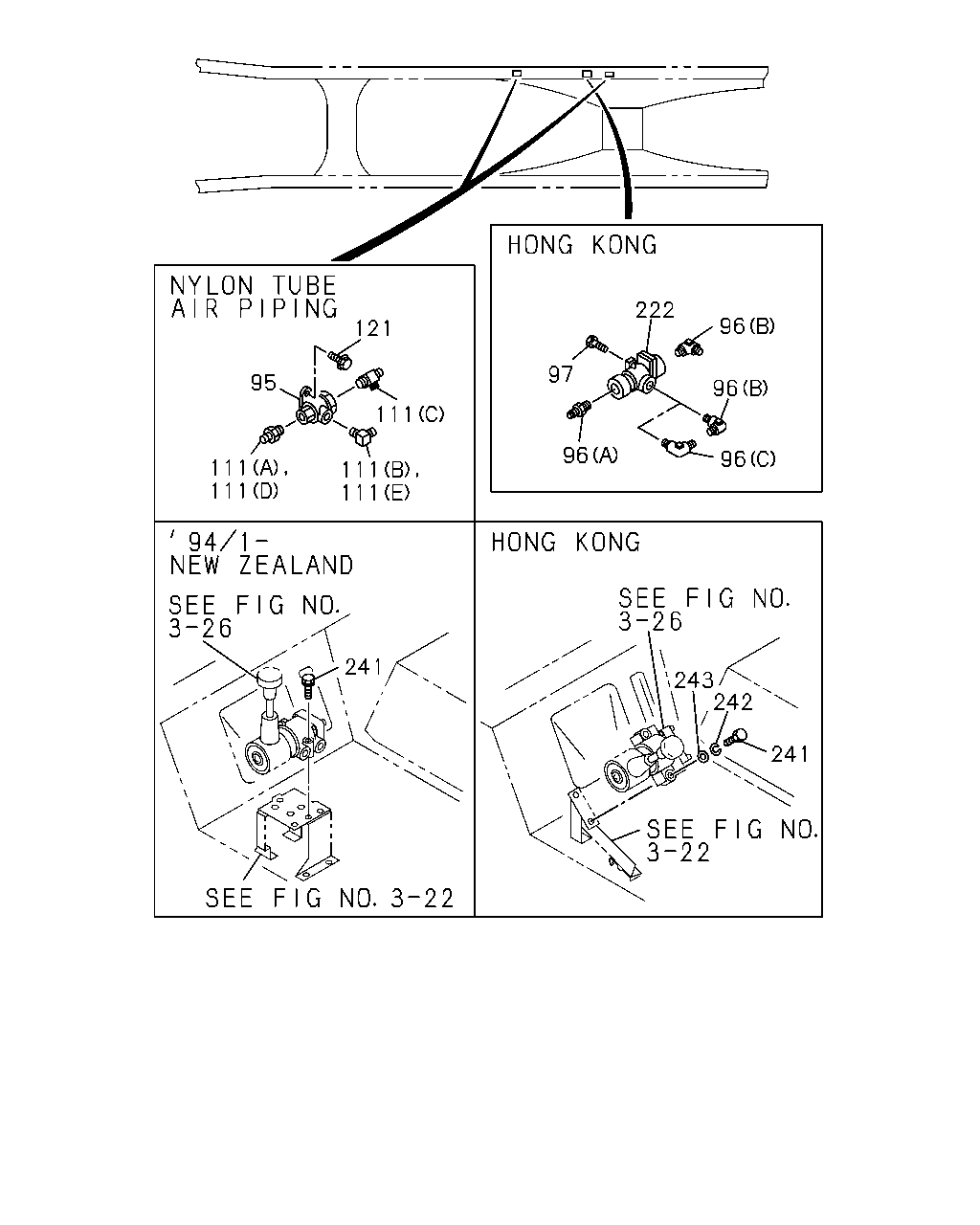

241 243 242 241 111 111 111 111 95 121 111 222 97 96 96 96 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
95	VALVE; DOUBLE CHECK NYLON TUBE AIR PIPING<Z29>	1-48410-251-0	02	1	9307-		●
96	CONNECTOR; DOUBLE CHECK VLV HONG KONG EQUIPMENT(PQ1) (A) M14 & PT3/8 STRAIGHT	1-09650-085-1	02	1	9002-	●	●
96	CONNECTOR; DOUBLE CHECK VLV HONG KONG EQUIPMENT(PQ1) (B) M14	1-09650-092-1	03	1	9002-9302	●	●
96	CONNECTOR; DOUBLE CHECK VLV HONG KONG EQUIPMENT(PQ1) (B) M14 & PT3/8 ELBOW	1-09650-437-0	03	1	9303-	●	●
96	CONNECTOR; DOUBLE CHECK VLV HONG KONG EQUIPMENT(PQ1) (C) M14	1-09656-399-1	01	1	9002-9302	●	●
96	CONNECTOR; DOUBLE CHECK VLV HONG KONG EQUIPMENT(PQ1) (C)	1-09656-670-0	01	1	9303-	●	●
97	BOLT; BRKT,DBL CHECK VLV HONG KONG EQUIPMENT(PQ1) M8X28 W/LK WASHER	9-01900-828-0	04	1	9002-9204	●
97	BOLT; BRKT,DBL CHECK VLV HONG KONG EQUIPMENT(PQ1) M8X28 W/LK WASHER	0-50040-828-0	04	1	9205-9302	●
97	BOLT; BRKT,DBL CHECK VLV HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28080-830-0	04	1	9303-	●
97	BOLT; BRKT,DBL CHECK VLV HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	9-01900-820-0	04	1	9002-9204		●
97	BOLT; BRKT,DBL CHECK VLV HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9302		●
97	BOLT; BRKT,DBL CHECK VLV HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28080-820-0	04	1	9303-		●
111	CONNECTOR; CHECK VLV NYLON TUBE AIR PIPING<Z29> (D) STRAIGHT 11/16-20 UNS	1-09660-531-0	01	1	9307-		●
111	CONNECTOR; CHECK VLV NYLON TUBE AIR PIPING<Z29> (E) ELBOW 17/32-24 UNS	1-09660-534-0	01	1	9307-		●
111	CONNECTOR; CHECK VLV NYLON TUBE AIR PIPING<Z29> (B) ELBOW 11/16-20 UNS	1-09660-535-0	01	1	9307-		●
111	CONNECTOR; CHECK VLV NYLON TUBE AIR PIPING<Z29> (A) STRAIGHT 17/32-24 UNS	1-09660-555-0	01	1	9307-		●
111	CONNECTOR; CHECK VLV NYLON TUBE AIR PIPING<Z29> (C) 3WAY	1-09660-563-0	02	1	9307-		●
121	BOLT; DOUBLE CHECK VLV NYLON TUBE AIR PIPING<Z29> M8X35 FLANGE	0-28080-835-0	02	1	9307-		●
222	VALVE; DOUBLE CHECK HONG KONG EQUIPMENT(PQ1)	1-48410-050-0	02	1	9002-		●
241	BOLT; SET,CONT VLV HONG KONG EQUIPMENT(PQ1) M8X65	9-01055-865-0	02	1	9002-9005	●	●
241	BOLT; SET,CONT VLV HONG KONG EQUIPMENT(PQ1) M8X65	0-10805-865-0	02	1	9006-	●	●
241	BOLT; SET,CONT VLV NEW ZEALAND EQUIPMENT(PK5) M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	9401-		●
242	WASHER; LK,CONT VLV HONG KONG EQUIPMENT(PQ1) ID=8.2	9-09150-508-0	02	1	9002-	●	●
243	WASHER; PL,CONT VLV HONG KONG EQUIPMENT(PQ1) ID=8.4	9-09160-508-0	02	1	9002-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
