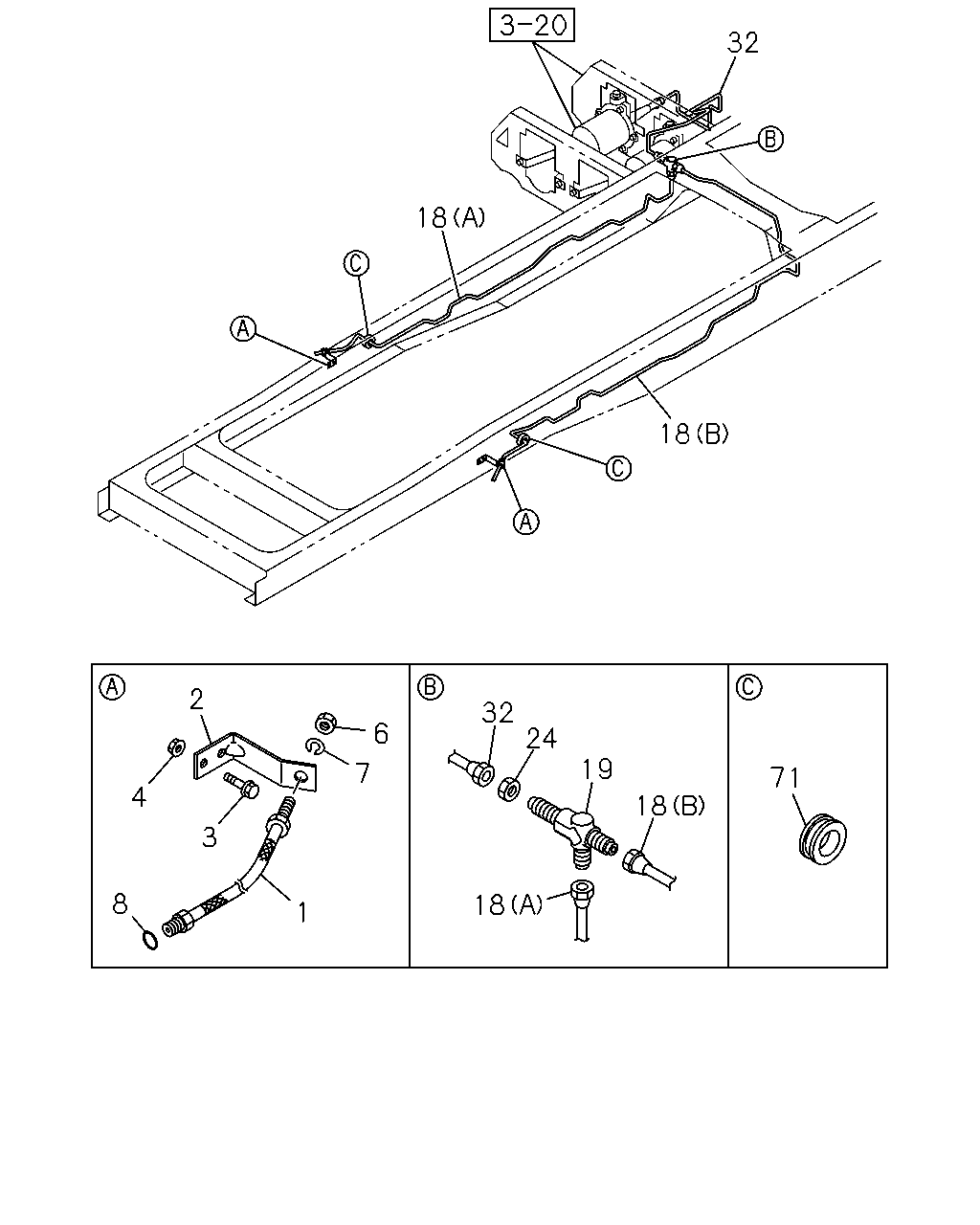

3-52 — BRAKE PIPING; OIL,FRONT
(#28308) — 15 parça
32
18
18
2
32
24
6
19
7
71
4
18
3
8
18
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,FRT BRK
L=550
0-05312-550-0
02
1
0609-
2
BRACKET; FLEX HOSE,FRT BRK
1-47476-295-1
02
1
0609-
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE
0-28650-825-0
04
1
0609-
4
NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE
0-91180-108-0
04
1
0609-
6
NUT; FLEX HOSE,FRT BRK
M12
9-09840-280-0
02
1
0609-
7
WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2
0-91510-512-0
02
1
0609-
8
GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17
9-09920-472-0
02
1
0609-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
FRAME EQUIPMENT HEAVY DUTY(F03) (A) L=1952 SERVICED BY L=2000
1-47426-359-0
01
1
0611-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1929 SERVICED BY L=2000
1-47426-359-0
01
1
0609-0610
18
PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (A) L=1929 SERVICED BY L=2000
1-47426-359-0
01
1
0611-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=2694 SERVICED BY L=2900
1-47426-364-0
01
1
0609-
19
UNION; OIL PIPE
M12 3WAY
0-92138-906-0
01
1
0609-
24
NUT; UNION,OIL PIPE
M12
9-09840-280-0
01
1
0609-
32
PIPE; OIL,AIR MASTER TO UNION
L=1160 SERVICED BY L=1200
1-47426-352-0
01
1
0609-
71
GROMMET; OIL PIPE
ID=24 OD=30 T=17
9-09956-092-1
02
1
0609-
