Isuzu WW
▶
TRUCKS
▶
FSR
▶
11028 - FSR(RHD) EURO4
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#28307) — 73 parça
◀
[346A] -'12/11 REPAIR KIT AND PISTON KIT (7 parça)
[346A] FIXING (8 parça)
[346A] -'12/11 COMPONENT (24 parça)
[346A] '12/12- COMPONENT (24 parça)
[346A] '12/12- REPAIR KIT AND PISTON KIT (10 parça)
▶
2
3
68
65
70
70

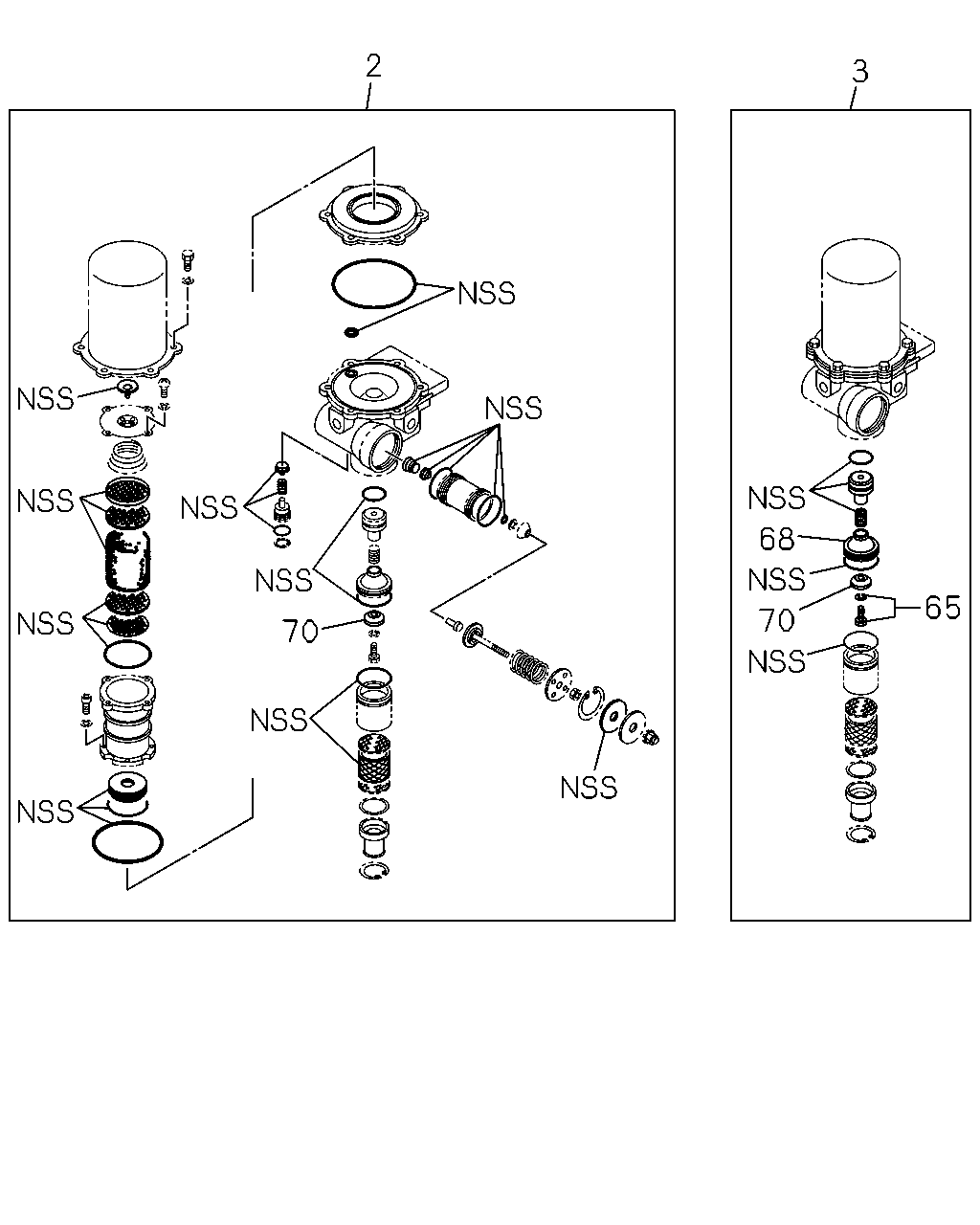

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
1-85576-382-0
01
1
0609-1211
2
REPAIR KIT; AIR DRYER
8-98226-324-0
01
1
1212-
3
PISTON KIT; AIR DRYER
1-85576-383-0
01
1
0609-1211
3
PISTON KIT; AIR DRYER
8-98226-322-0
01
1
1212-
65
BOLT; PURGE VLV
1-48199-517-0
01
1
0609-
68
BODY; VALVE
1-48199-515-0
01
1
0609-
70
VALVE; AIR DRYER
1-48199-504-0
01
1
0609-
16
10
1
8
11
12
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-358-1
01
1
0609-1211
1
DRYER; AIR
8-98226-208-0
01
1
1212-
8
CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW
1-09650-443-0
01
1
0609-
9
CONNECTOR; PIPE,AIR DRYER
1-09661-033-0
01
1
0609-
10
BOLT; AIR DRYER
M10X25 FLANGE
0-28051-025-0
03
1
0609-
11
BRACKET; AIR DRYER
1-48195-122-0
01
1
0609-
12
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
04
1
0609-
16
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
0609-
1
1
81
4
5
76
75
84
109
84
7
114
113
68
112
70
65
78
93
7
111
110
7
6
7

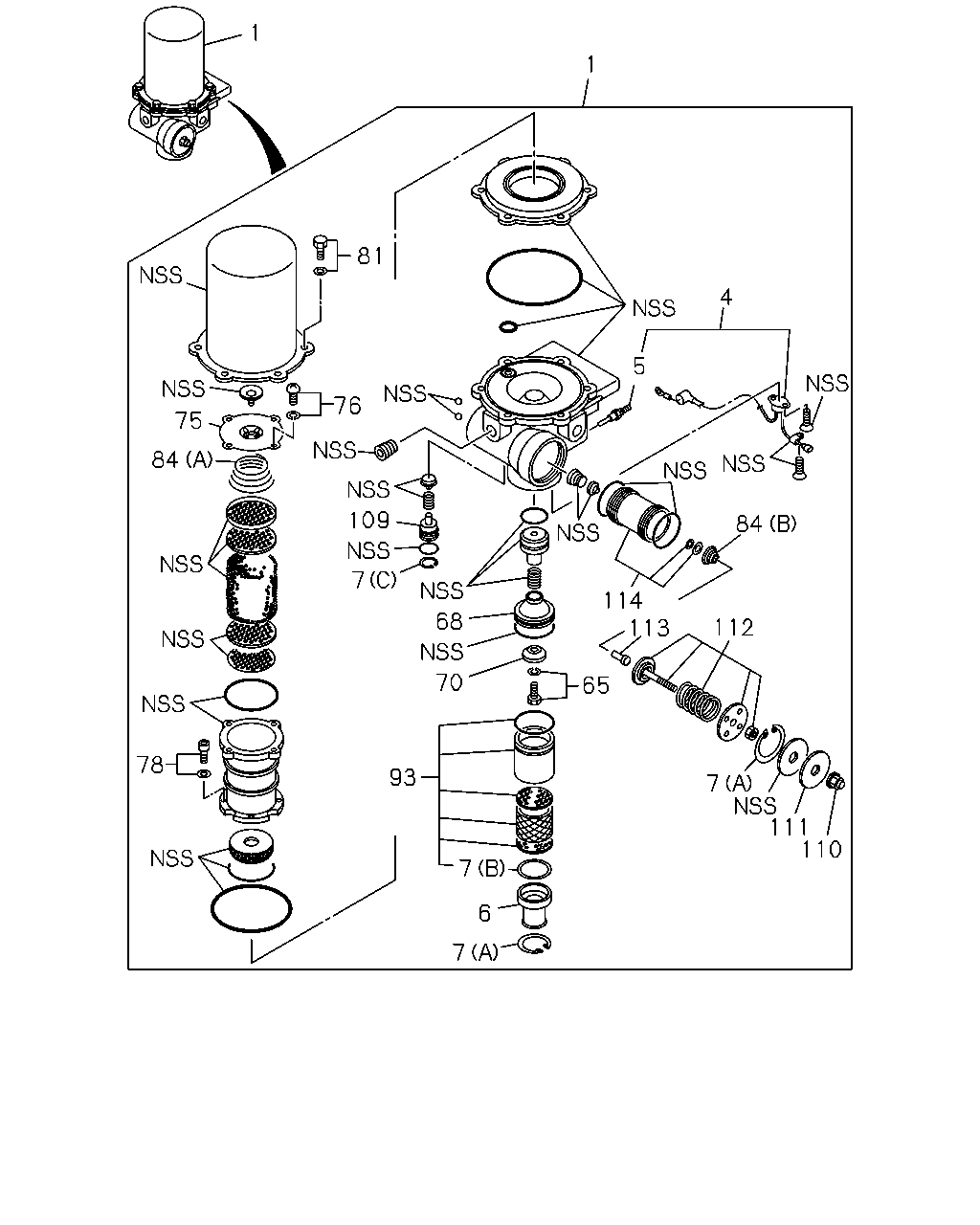

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-358-1
01
1
0609-1211
1
DRYER; AIR
8-98226-208-0
01
1
1212-
4
THERMOSTAT KIT; AIR DRYER
1-85576-443-0
01
1
0609-
5
HEATER ASM; AIR DRYER
1-48199-530-0
01
1
0609-
6
COVER; EXH,AIR DRYER
1-48199-519-0
01
1
0609-1211
7
RING; SNAP,AIR DRYER
(B)
1-48199-154-0
01
1
0609-1211
7
RING; SNAP,AIR DRYER
(A)
1-48199-520-0
02
1
0609-
7
RING; SNAP,AIR DRYER
(C)
1-48199-529-0
01
1
0609-
65
BOLT; PURGE VLV
1-48199-517-0
01
1
0609-
68
BODY; VALVE
1-48199-515-0
01
1
0609-
70
VALVE; AIR DRYER
1-48199-504-0
01
1
0609-
75
COVER; CASE,AIR DRYER
1-48199-427-0
01
1
0609-
76
BOLT; COVER,AIR DRYER
1-48199-412-0
04
1
0609-
78
BOLT; OIL FILTER,AIR DRYER
1-48199-417-0
04
1
0609-
81
BOLT; CASE,AIR DRYER
1-48199-436-0
06
1
0609-
84
SPRING; AIR DRYER
(B)
1-48199-523-0
01
1
0609-
84
SPRING; AIR DRYER
(A)
1-48199-425-0
01
1
0609-
93
SILENCER; AIR DRYER
1-48199-518-0
01
1
0609-1211
109
STOPPER; CHECK VALVE
1-48199-539-0
01
1
0609-
110
NUT; CAP
1-48199-527-0
01
1
0609-
111
PLATE; GOVERNOR
1-48199-526-0
01
1
0609-
112
SCREW & SPRING ASM; AIR DRYER
1-48199-524-0
01
1
0609-
113
STEM; EXHAUST
1-48199-522-0
01
1
0609-
114
PISTON ASM; GOVERNOR
1-48199-521-0
01
1
0609-
1
5
84
112
111
110
7
114
113
70
65
7
7
104
104
104
68
7
109
76
81
1
75
84
78
93

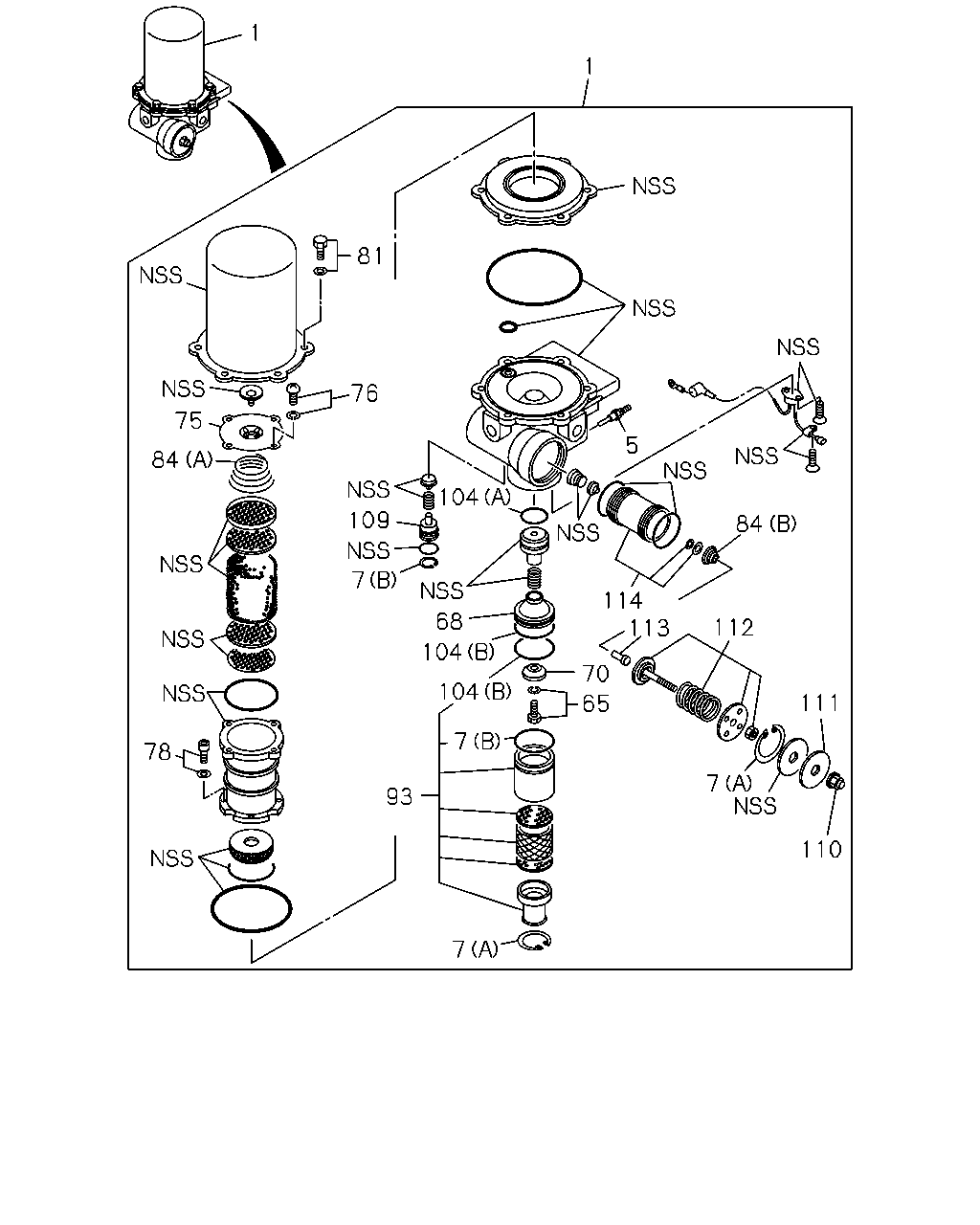

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-358-1
01
1
0609-1211
1
DRYER; AIR
8-98226-208-0
01
1
1212-
5
HEATER ASM; AIR DRYER
1-48199-530-0
01
1
0609-
7
RING; SNAP,AIR DRYER
(B)
1-48199-154-0
01
1
0609-1211
7
RING; SNAP,AIR DRYER
(A)
1-48199-520-0
02
1
0609-
7
RING; SNAP,AIR DRYER
(C)
1-48199-529-0
01
1
0609-
65
BOLT; PURGE VLV
1-48199-517-0
01
1
0609-
68
BODY; VALVE
1-48199-515-0
01
1
0609-
70
VALVE; AIR DRYER
1-48199-504-0
01
1
0609-
75
COVER; CASE,AIR DRYER
1-48199-427-0
01
1
0609-
76
BOLT; COVER,AIR DRYER
1-48199-412-0
04
1
0609-
78
BOLT; OIL FILTER,AIR DRYER
1-48199-417-0
04
1
0609-
81
BOLT; CASE,AIR DRYER
1-48199-436-0
06
1
0609-
84
SPRING; AIR DRYER
(B)
1-48199-523-0
01
1
0609-
84
SPRING; AIR DRYER
(A)
1-48199-425-0
01
1
0609-
93
SILENCER; AIR DRYER
1-48199-518-0
01
1
0609-1211
104
GASKET
(B)
1-48199-496-0
02
1
1212-
104
GASKET
(A)
8-98226-321-0
01
1
1212-
109
STOPPER; CHECK VALVE
1-48199-539-0
01
1
0609-
110
NUT; CAP
1-48199-527-0
01
1
0609-
111
PLATE; GOVERNOR
1-48199-526-0
01
1
0609-
112
SCREW & SPRING ASM; AIR DRYER
1-48199-524-0
01
1
0609-
113
STEM; EXHAUST
1-48199-522-0
01
1
0609-
114
PISTON ASM; GOVERNOR
1-48199-521-0
01
1
0609-
4
3
104
68
104
104
70
65
2
104
104
104
70

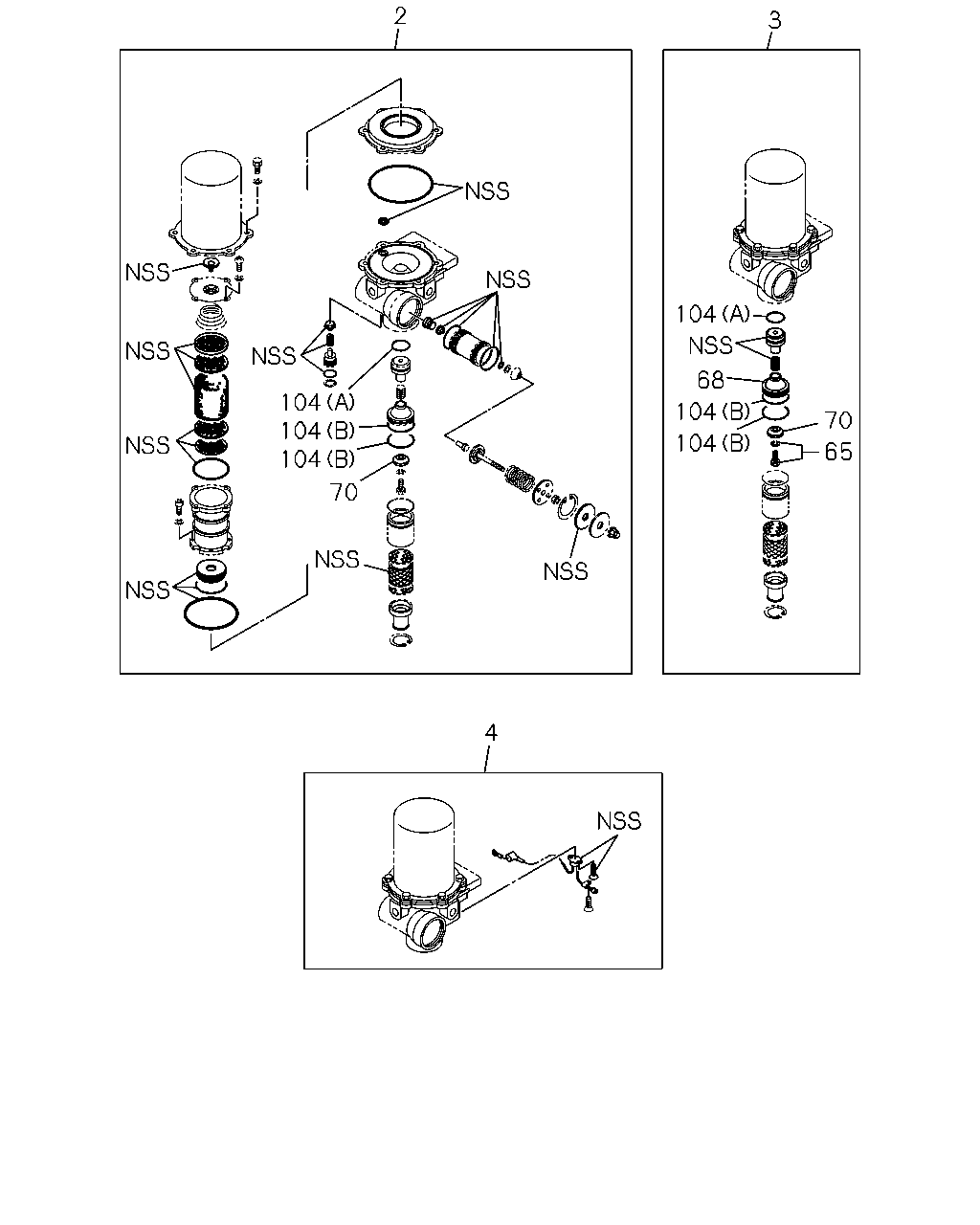

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
1-85576-382-0
01
1
0609-1211
2
REPAIR KIT; AIR DRYER
8-98226-324-0
01
1
1212-
3
PISTON KIT; AIR DRYER
1-85576-383-0
01
1
0609-1211
3
PISTON KIT; AIR DRYER
8-98226-322-0
01
1
1212-
4
THERMOSTAT KIT; AIR DRYER
1-85576-443-0
01
1
0609-
65
BOLT; PURGE VLV
1-48199-517-0
01
1
0609-
68
BODY; VALVE
1-48199-515-0
01
1
0609-
70
VALVE; AIR DRYER
1-48199-504-0
01
1
0609-
104
GASKET
(B)
1-48199-496-0
02
1
1212-
104
GASKET
(A)
8-98226-321-0
01
1
1212-
