Isuzu WW
▶
TRUCKS
▶
FSR
▶
11028 - FSR(RHD) EURO4
▶
3 - Brakes, Brake System
▶
3-22 - AIR CONTROL PARTS
▶

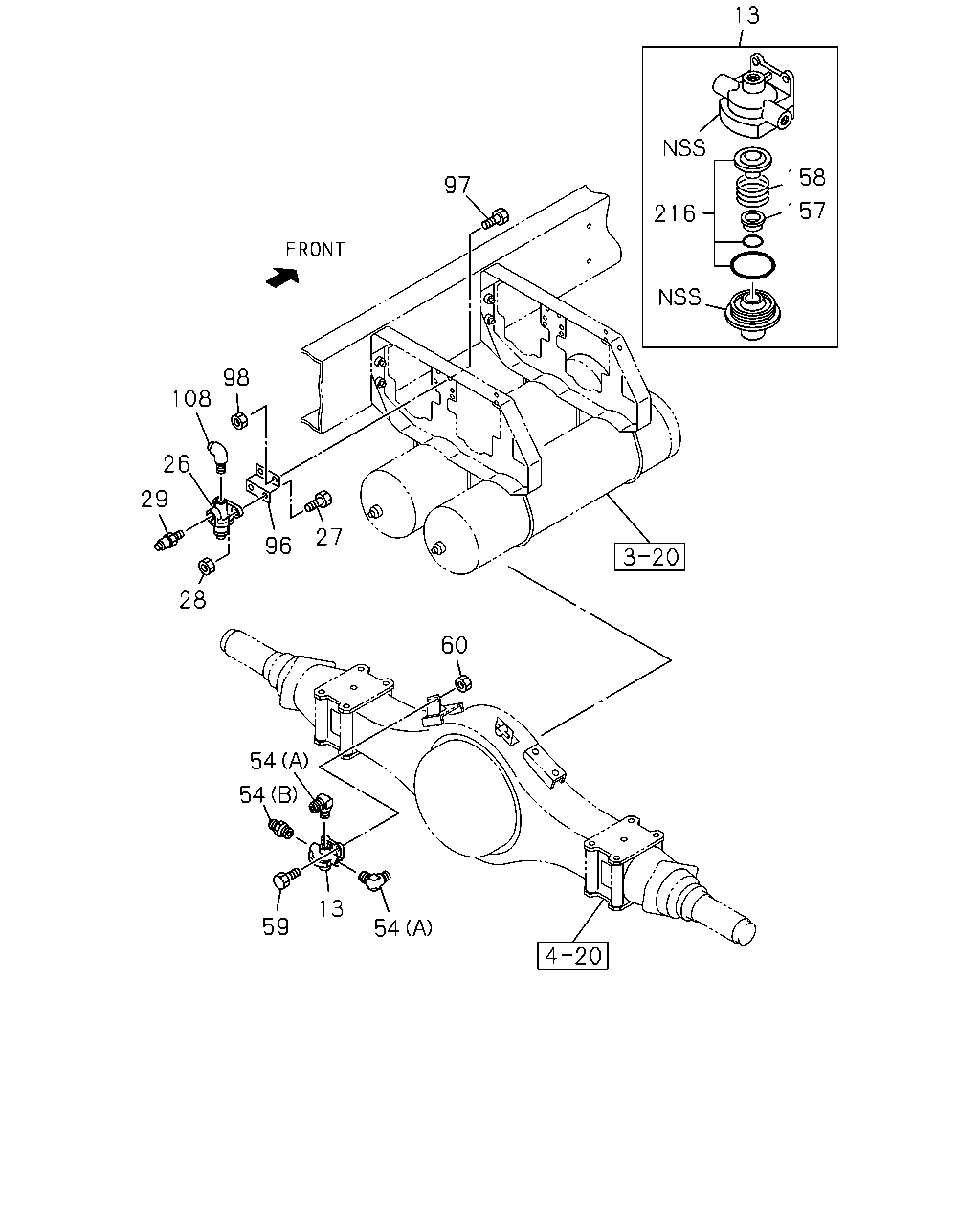

3-22 — AIR CONTROL PARTS
(#28302) — 17 parça
13
158
97
157
216
98
108
26
29
27
96
28
60
54
54
13
59
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48410-659-0
01
1
0609-
26
VALVE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48110-006-1
01
1
0609-
27
BOLT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE
0-28650-830-0
02
1
0609-
28
NUT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE
0-91180-108-0
02
1
0609-
29
CONNECTOR; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & R1/4 STRAIGHT
1-09660-967-0
01
1
0609-
54
CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT3/8 ELBOW
1-09650-437-0
02
1
0609-
54
CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 & PT3/8 ELBOW
1-09660-684-0
01
1
0609-
59
BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER
0-50040-820-0
02
1
0609-0906
59
BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER
0-50540-820-0
02
1
0907-
60
NUT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8
0-91110-508-0
02
1
0609-
96
BRACKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48495-224-0
01
1
0609-
97
BOLT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE
0-28650-825-0
02
1
0609-
98
NUT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE
0-91180-108-0
02
1
0609-
108
CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & R1/4 ELBOW
1-09660-958-0
01
1
0609-
157
RETAINER; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48419-020-0
01
1
0609-
158
SPRING; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
9-48419-003-0
01
1
0609-
216
REPAIR KIT; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-85576-235-0
01
1
0609-
