3-11 — PARKING BRAKE CONTROL (#28300) — 34 parça

97 61 324 218 46 45 46 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
45	BOLT; CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0609-
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20	0-95235-535-0	03	1	0609-
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4518	1-79996-657-2	01	1	0609-
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09983-078-0	01	1	0609-
218	NUT; BRKT,PARKING BRK CABLE M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0609-
324	BRACKET HONG KONG EQUIPMENT(PQ1)	1-79996-594-0	01	1	0609-
324	BRACKET EXC. HONG KONG EQUIPMENT(PQ1)	1-79998-750-3	01	1	0609-

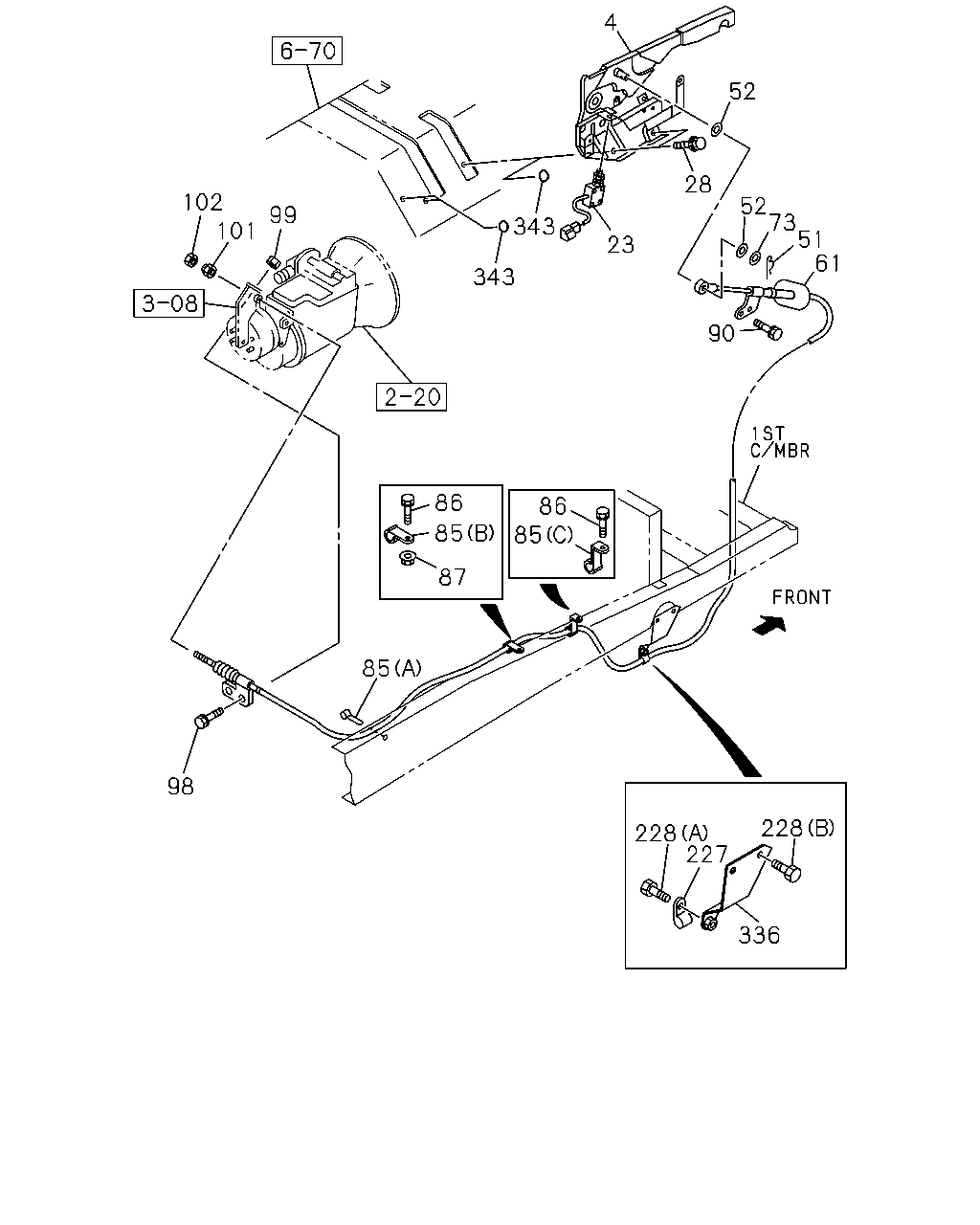

4 52 28 102 101 52 73 51 61 99 343 23 343 90 86 86 85 85 87 85 98 228 228 227 336

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-548-0	01	1	0609-
23	SWITCH; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82440-100-0	01	1	0609-
28	BOLT; HAND BRK LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0609-0904
28	BOLT; HAND BRK LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-
51	PIN; JOINT,RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09987-243-1	01	1	0609-
52	WASHER; CURVED RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=19	8-94206-429-1	02	1	0609-
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4518	1-79996-657-2	01	1	0609-
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17 OD=30	0-91610-516-0	01	1	0609-
85	CLIP; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=19 L=40	0-95235-876-0	01	1	0609-0703
85	CLIP; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=24 L=40	1-09701-139-0	01	1	0704-1101
85	CLIP; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14.5 L=40	1-09701-014-0	01	1	1102-
85	CLIP; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65	1-09700-466-0	02	1	0609-
85	CLIP; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=16 H=30 L=30	1-09701-080-0	01	1	0609-
86	BOLT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0609-
87	NUT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0609-
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0609-0904
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
98	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	0609-
99	NUT; CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	0609-
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46259-007-0	01	1	0609-
102	NUT; LK,CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0609-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=13 L=20	0-95235-235-0	01	1	0609-
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE	0-28050-816-0	01	1	0609-
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0609-
336	BRACKET; RADIATOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-36183-259-0	01	1	0609-
343	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	05	1	0609-
343	SEAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	02	1	0609-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
