Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#28297) — 169 parça

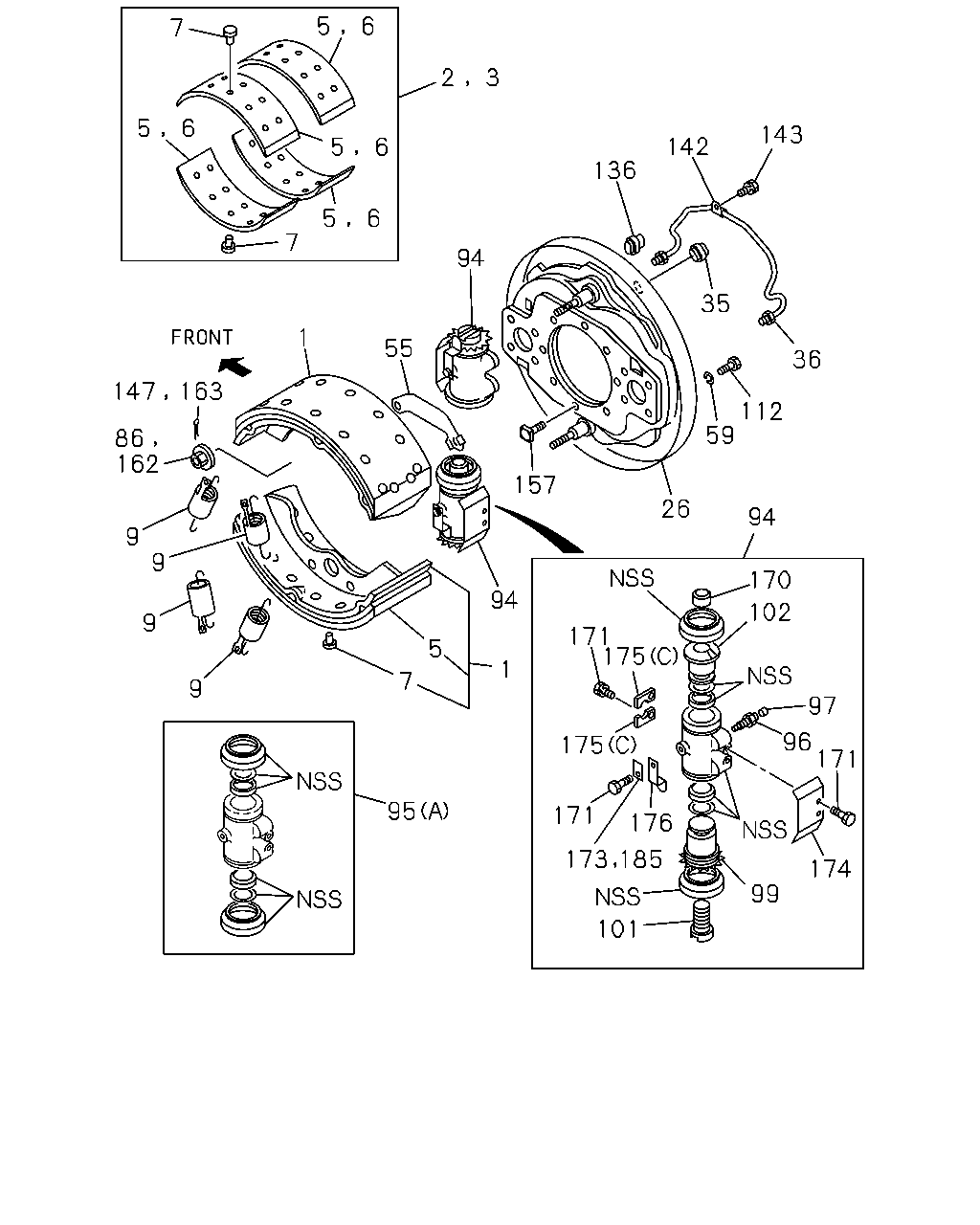

5 6 7 2 3 5 6 143 142 5 6 136 5 6 7 94 35 1 55 36 147 163 112 59 86 162 157 26 94 9 9 170 94 102 9 171 175 5 1 7 9 97 96 171 175 95 171 176 174 99 101 173 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR	1-47120-629-0	04	1	0609-
2	LINING SET; RR BRK,STANDARD	1-88310-525-0	01	1	0609-
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-130-0	01	1	0609-
3	LINING SET; RR BRK,OVER SIZE	1-88310-526-0	01	1	0609-
5	LINING; RR BRK SHOE,STANDARD	1-47125-807-0	04	1	0609-
6	LINING; RR BRK SHOE,OVER SIZE	1-47125-808-0	04	1	0609-
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	80	1	0609-
9	SPRING; RETURN,BRK SHOE	1-09583-167-0	08	1	0609-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-446-0	01	1	0609-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-447-0	01	1	0609-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-442-0	01	1	0609-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-443-0	01	1	0609-
35	GROMMET; CHECK HOLE	1-09333-066-1	04	1	0609-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47415-138-0	01	1	0609-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47415-139-0	01	1	0609-
36	PIPE; OIL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47416-356-0	02	1	0609-
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-032-0	04	1	0609-
55	PLATE; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-068-0	04	1	0609-
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-614-0	12	1	0609-
59	WASHER; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-614-0	16	1	0609-
86	NUT; FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-009-0	02	1	0609-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-568-2	01	1	0609-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-569-2	01	1	0609-
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-556-1	01	1	0609-
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-558-1	01	1	0609-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-557-1	01	1	0609-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-559-1	01	1	0609-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-87830-553-0	02	1	0609-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-87830-570-0	02	1	0609-
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-87830-553-0	04	1	0609-
96	SCREW; BLEEDER,RR BRK L=44	1-47615-007-0	02	1	0609-
97	CAP; BLEEDER,RR WHEEL CYL OD=9.5	9-47619-005-0	02	1	0609-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-201-0	01	1	0609-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-202-0	01	1	0609-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-207-0	01	1	0609-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-208-0	01	1	0609-
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-201-0	02	1	0609-
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-202-0	02	1	0609-
101	SCREW; ADJ,RR WHEEL CYL	1-47622-028-0	02	1	0609-
101	SCREW; ADJ,RR WHEEL CYL	1-47622-029-0	02	1	0609-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-203-0	02	1	0609-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-206-0	02	1	0609-
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-203-0	04	1	0609-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-92361-435-0	12	1	0609-
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-92361-435-0	16	1	0609-
136	GROMMET	1-09333-065-2	04	1	0609-
142	CLAMP; OIL PIPE	1-09700-454-0	02	1	0609-
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	0609-
147	PIN; HOLDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	0-81122-020-0	04	1	0609-
147	PIN; HOLDER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	0-81122-020-0	02	1	0609-
157	BOLT; RR BRK SET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	0-20951-450-0	04	1	0609-
157	BOLT; RR BRK SET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X56	1-09060-004-0	12	1	0609-
162	NUT; SHOE HOLD DOWN EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-009-0	02	1	0609-
163	PIN; SPLIT,SHOE HOLD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	0-81122-020-0	02	1	0609-
170	PIECE; ANCHOR,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-019-0	02	1	0609-
170	PIECE; ANCHOR,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-019-0	04	1	0609-
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50040-818-0	04	1	0609-0906
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50540-818-0	04	1	0907-
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X10	9-01900-610-0	20	1	0609-
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X8	0-20800-608-0	04	1	0609-
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50040-818-0	08	1	0609-0906
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50540-818-0	08	1	0907-
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X10	9-01900-610-0	12	1	0609-
173	PLATE; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-009-0	02	1	0609-
174	COVER; CYL,RR WHEEL CYL	1-47619-016-0	04	1	0609-
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47118-084-0	04	1	0609-
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-022-0	02	1	0609-
175	HANGER; RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-47118-084-0	08	1	0609-
176	STOPPER; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-008-0	02	1	0609-
176	STOPPER; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-008-0	04	1	0609-
185	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-009-0	04	1	0609-
185	PLATE; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-009-0	02	1	0609-

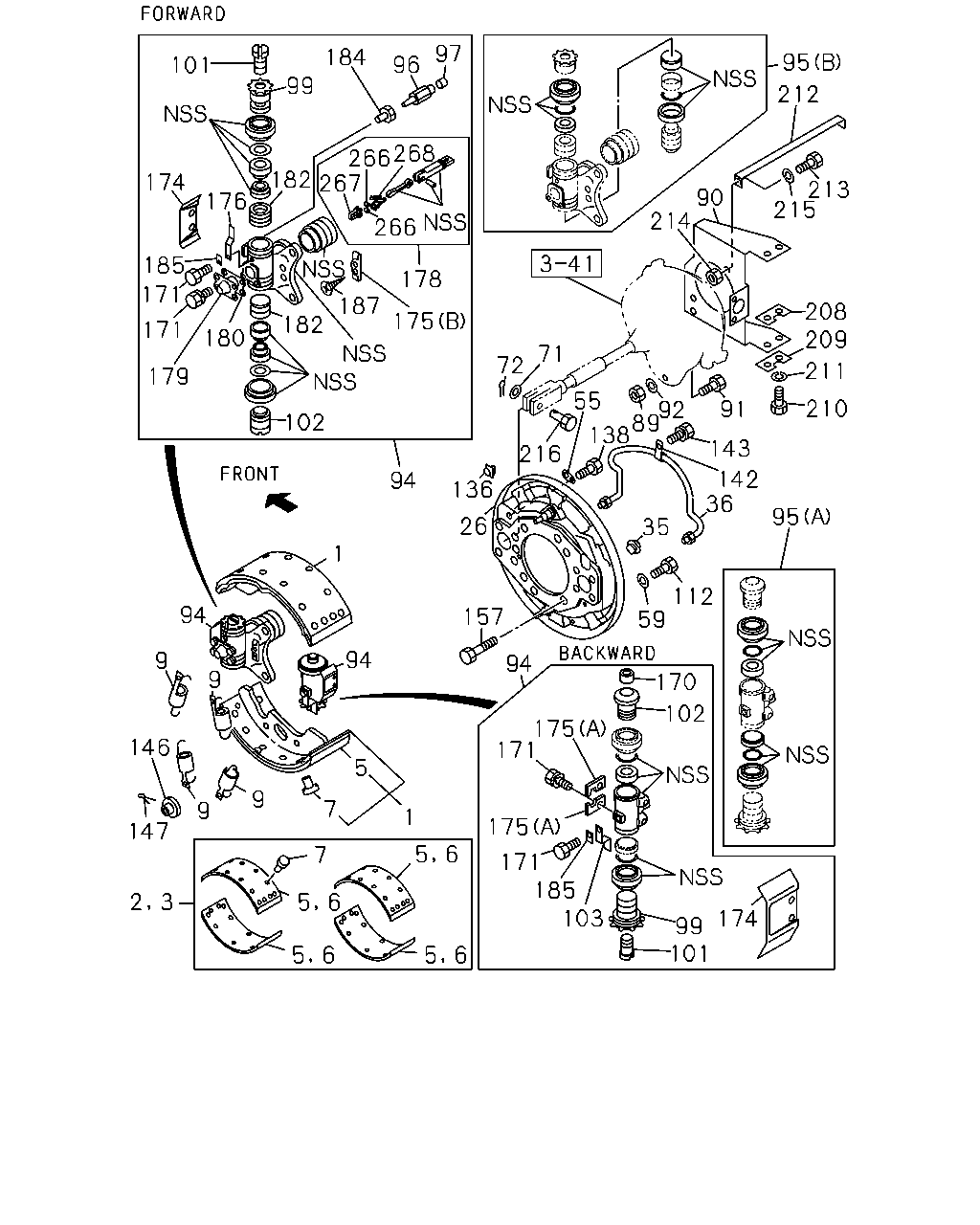

97 184 95 96 101 99 212 268 266 182 267 176 174 213 215 90 214 266 185 178 171 187 208 209 175 182 171 180 71 72 211 179 55 210 91 92 89 138 102 143 216 142 36 94 136 26 95 35 1 112 94 157 59 94 9 94 9 170 102 175 171 146 5 9 7 9 1 175 147 5 6 7 171 185 103 5 6 174 99 101 5 6 5 6 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR	1-47120-629-0	04	1	0609-
2	LINING SET; RR BRK,STANDARD	1-88310-525-0	01	1	0609-
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-130-0	01	1	0609-
3	LINING SET; RR BRK,OVER SIZE	1-88310-526-0	01	1	0609-
5	LINING; RR BRK SHOE,STANDARD	1-47125-807-0	04	1	0609-
6	LINING; RR BRK SHOE,OVER SIZE	1-47125-808-0	04	1	0609-
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	80	1	0609-
9	SPRING; RETURN,BRK SHOE	1-09583-167-0	08	1	0609-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-446-0	01	1	0609-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-447-0	01	1	0609-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-442-0	01	1	0609-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-443-0	01	1	0609-
35	GROMMET; CHECK HOLE	1-09333-066-1	04	1	0609-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47415-138-0	01	1	0609-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47415-139-0	01	1	0609-
36	PIPE; OIL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47416-356-0	02	1	0609-
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-032-0	04	1	0609-
55	PLATE; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-068-0	04	1	0609-
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-614-0	12	1	0609-
59	WASHER; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-614-0	16	1	0609-
71	WASHER; PL,JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.5	0-91610-510-0	02	1	0609-
72	PIN; SPLIT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=2.8 L=18	0-81123-018-0	02	1	0609-
89	NUT; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	0-91110-512-0	04	1	0609-
90	BRACKET; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48258-121-4	01	1	0609-
90	BRACKET; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48258-157-0	01	1	0609-
91	BOLT; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X30	0-20801-230-0	04	1	0609-
92	WASHER; LK,CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	04	1	0609-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-568-2	01	1	0609-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-569-2	01	1	0609-
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-556-1	01	1	0609-
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-558-1	01	1	0609-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-557-1	01	1	0609-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47600-559-1	01	1	0609-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-87830-553-0	02	1	0609-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-87830-570-0	02	1	0609-
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-87830-553-0	04	1	0609-
96	SCREW; BLEEDER,RR BRK L=44	1-47615-007-0	02	1	0609-
97	CAP; BLEEDER,RR WHEEL CYL OD=9.5	9-47619-005-0	02	1	0609-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-201-0	01	1	0609-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-202-0	01	1	0609-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-207-0	01	1	0609-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-208-0	01	1	0609-
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-201-0	02	1	0609-
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-202-0	02	1	0609-
101	SCREW; ADJ,RR WHEEL CYL	1-47622-028-0	02	1	0609-
101	SCREW; ADJ,RR WHEEL CYL	1-47622-029-0	02	1	0609-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-203-0	02	1	0609-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-206-0	02	1	0609-
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-203-0	04	1	0609-
103	SPRING; LK,RR WHEEL CYL,ADJ REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-057-0	02	1	0609-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-92361-435-0	12	1	0609-
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-92361-435-0	16	1	0609-
136	GROMMET	1-09333-065-2	04	1	0609-
138	SCREW; LOCK PLATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M5X10 W/LK WASHER	0-36220-510-0	04	1	0609-
142	CLAMP; OIL PIPE	1-09700-454-0	02	1	0609-
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	0609-
146	NUT; HOLDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-009-0	04	1	0609-
147	PIN; HOLDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	0-81122-020-0	04	1	0609-
147	PIN; HOLDER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	0-81122-020-0	02	1	0609-
157	BOLT; RR BRK SET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	0-20951-450-0	04	1	0609-
157	BOLT; RR BRK SET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X56	1-09060-004-0	12	1	0609-
170	PIECE; ANCHOR,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-019-0	02	1	0609-
170	PIECE; ANCHOR,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-019-0	04	1	0609-
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50040-818-0	04	1	0609-0906
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50540-818-0	04	1	0907-
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X10	9-01900-610-0	20	1	0609-
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X8	0-20800-608-0	04	1	0609-
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50040-818-0	08	1	0609-0906
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50540-818-0	08	1	0907-
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X10	9-01900-610-0	12	1	0609-
174	COVER; CYL,RR WHEEL CYL	1-47619-016-0	04	1	0609-
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47118-084-0	04	1	0609-
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-022-0	02	1	0609-
175	HANGER; RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-47118-084-0	08	1	0609-
176	STOPPER; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-008-0	02	1	0609-
176	STOPPER; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-008-0	04	1	0609-
178	WEDGE; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47640-002-0	02	1	0609-
179	COVER; WEDGE,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-009-0	02	1	0609-
180	GASKET; COVER,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-017-0	02	1	0609-
182	TAPPET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-069-0	04	1	0609-
184	CONNECTOR; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09660-112-1	04	1	0609-
185	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-009-0	04	1	0609-
185	PLATE; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-009-0	02	1	0609-
187	SCREW; HANGER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-03065-616-0	04	1	0609-
208	WASHER; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=106	1-42129-028-3	04	1	0609-
209	SHIM; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=106	1-42129-027-4	12	1	0609-
210	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X25	0-20801-225-0	08	1	0609-
210	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X38	0-20801-238-0	08	1	0609-
211	WASHER; LK,BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	16	1	0609-
212	STAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48258-156-0	01	1	0609-
213	BOLT; STAY FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X25	0-20801-225-0	02	1	0609-
214	NUT; STAY FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	0-91111-512-0	02	1	0609-
215	WASHER; LK,STAY FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	02	1	0609-
216	PIN; STAY FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-08234-038-0	02	1	0609-
266	ROLLER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47643-004-0	04	1	0609-
267	CAGE; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-007-0	02	1	0609-
268	RETAINER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-016-0	02	1	0609-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
