Isuzu WW
▶
TRUCKS
▶
FSR
▶
11028 - FSR(RHD) EURO4
▶
3 - Brakes, Brake System
▶
3-01 - FRONT WHEEL BRAKE
▶

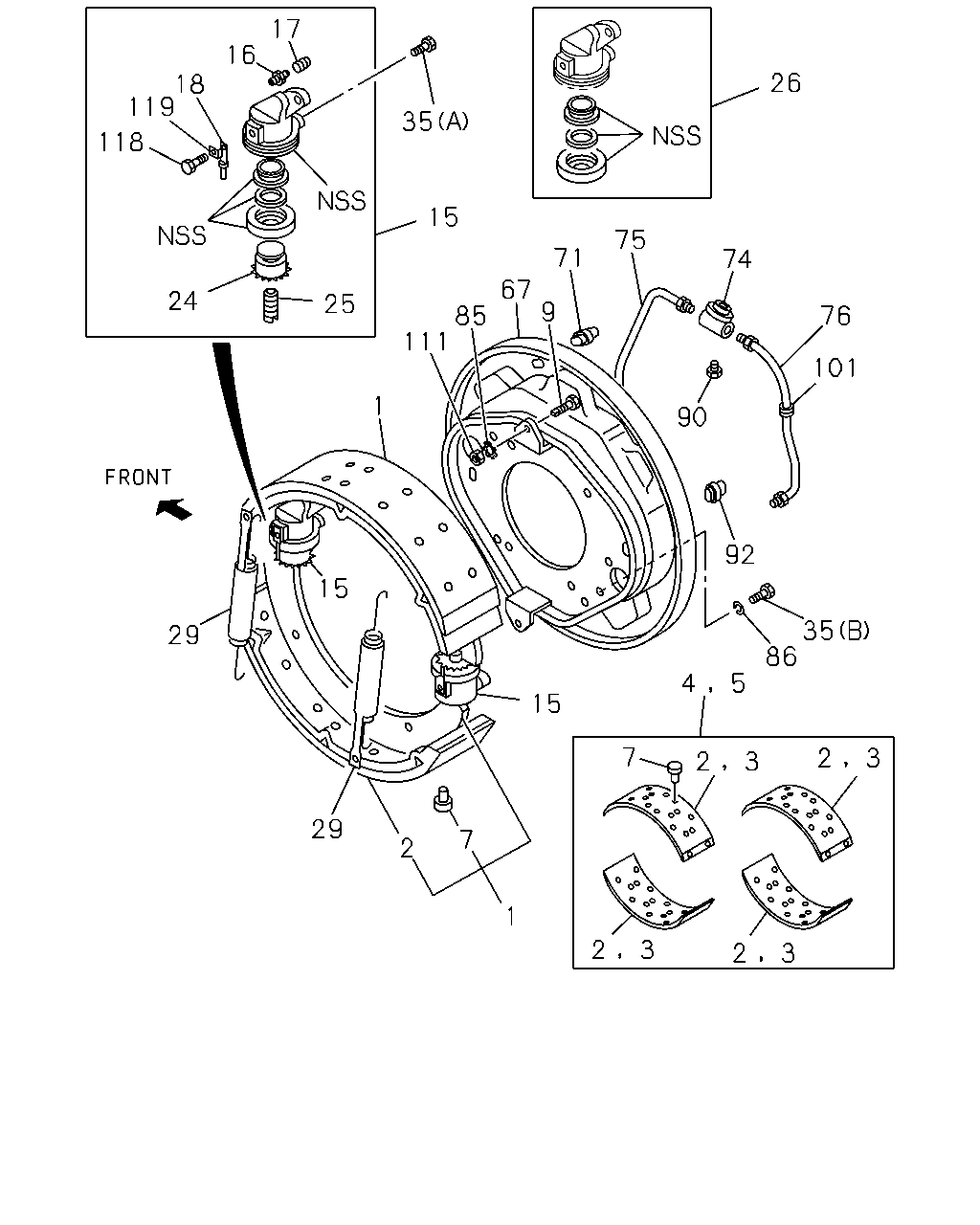

3-01 — FRONT WHEEL BRAKE
(#28296) — 39 parça
17
16
26
18
119
35
118
15
75
71
74
67
9
24
25
85
111
76
101
1
90
92
15
35
86
29
5
4
15
7
2
3
2
3
29
7
2
1
2
3
2
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,FRT
1-47120-628-0
04
1
0609-
2
LINING; FRT BRK SHOE,STANDARD
1-47125-805-0
04
1
0609-
3
LINING; FRT BRK SHOE,OVER SIZE
1-47125-806-0
04
1
0609-
4
LINING SET; FRT BRK,STANDARD
1-88310-505-0
01
1
0609-
4
LINING SET; FRT BRK,STANDARD
BEST VALUE PARTS
1-87610-127-0
01
1
0609-
5
LINING SET; FRT BRK,OVER SIZE
1-88310-506-0
01
1
0609-
7
RIVET; LINING,FRT BRK
D6X11.5
1-09732-019-0
64
1
0609-
9
PIN; SHOE HOLDER
1-47162-036-0
04
1
0609-
15
CYLINDER; WHEEL,FRT BRK
1-47600-554-1
02
1
0609-
15
CYLINDER; WHEEL,FRT BRK
1-47600-555-1
02
1
0609-
16
SCREW; BLEEDER,FRT BRK
L=44
1-47615-007-0
04
1
0609-
17
CAP; BLEEDER,FRT WHEEL CYL
OD=9.5
9-47619-005-0
04
1
0609-
18
STOPPER; ADJ SCREW
1-47169-008-0
04
1
0609-
24
PISTON; FRT WHEEL CYL
1-47624-199-0
02
1
0609-
24
PISTON; FRT WHEEL CYL
1-47624-200-0
02
1
0609-
25
SCREW; ADJ,FRT WHEEL CYL
1-47622-014-0
02
1
0609-
25
SCREW; ADJ,FRT WHEEL CYL
1-47622-015-0
02
1
0609-
26
CUP SET; FRT WHEEL CYL
1-87830-577-0
04
1
0609-
29
SPRING; RETURN,FRT BRK SHOE
1-09583-126-1
04
1
0609-
35
BOLT; FRT WHEEL CYL
(B) M16X30
0-23801-630-0
04
1
0609-
35
BOLT; FRT WHEEL CYL
(A) M10X22 W/LK WASHER
0-50051-022-0
08
1
0609-0906
35
BOLT; FRT WHEEL CYL
(A) M10X22 W/LK WASHER
0-50551-022-0
08
1
0907-
67
PLATE; BACK,FRT BRK
1-47150-347-1
01
1
0609-
67
PLATE; BACK,FRT BRK
1-47150-348-1
01
1
0609-
71
GROMMET; CHECK HOLE
1-09333-058-1
04
1
0609-
74
CONNECTOR; FRT BRK
1-47630-003-2
02
1
0609-
75
PIPE; OIL,FWD,FRT BRK
1-47413-791-0
01
1
0609-
75
PIPE; OIL,FWD,FRT BRK
1-47413-792-0
01
1
0609-
76
PIPE; OIL,BACKWARD,FRT BRK
1-47413-789-0
01
1
0609-
76
PIPE; OIL,BACKWARD,FRT BRK
1-47413-790-0
01
1
0609-
85
PLATE; LK,CONNECTOR
1-09533-006-0
04
1
0609-
86
WASHER; LK,FRT WHEEL CYL
ID=16.2
0-91510-616-0
04
1
0609-
90
BOLT; CONNECTOR
M8X18 W/LK WASHER
0-50040-818-0
02
1
0609-0906
90
BOLT; CONNECTOR
M8X18 W/LK WASHER
0-50540-818-0
02
1
0907-
92
GROMMET; ADJ HOLE
1-09333-010-0
04
1
0609-
101
PROTECTOR; OIL PIPE,FRT BRK
ID=5 OD=18 T=8
1-09332-063-0
02
1
0609-
111
NUT; FLANGE,SHOE HOLD
M16
0-91111-516-0
04
1
0609-
118
BOLT; STOPPER
M6X8
0-20800-608-0
04
1
0609-
119
PLATE; LK,STOPPER
1-47169-009-0
04
1
0609-
