◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11028 - FSR(RHD) EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-39 - POWER ASSISTOR ▶
2-39 — POWER ASSISTOR (#28293) — 32 parça

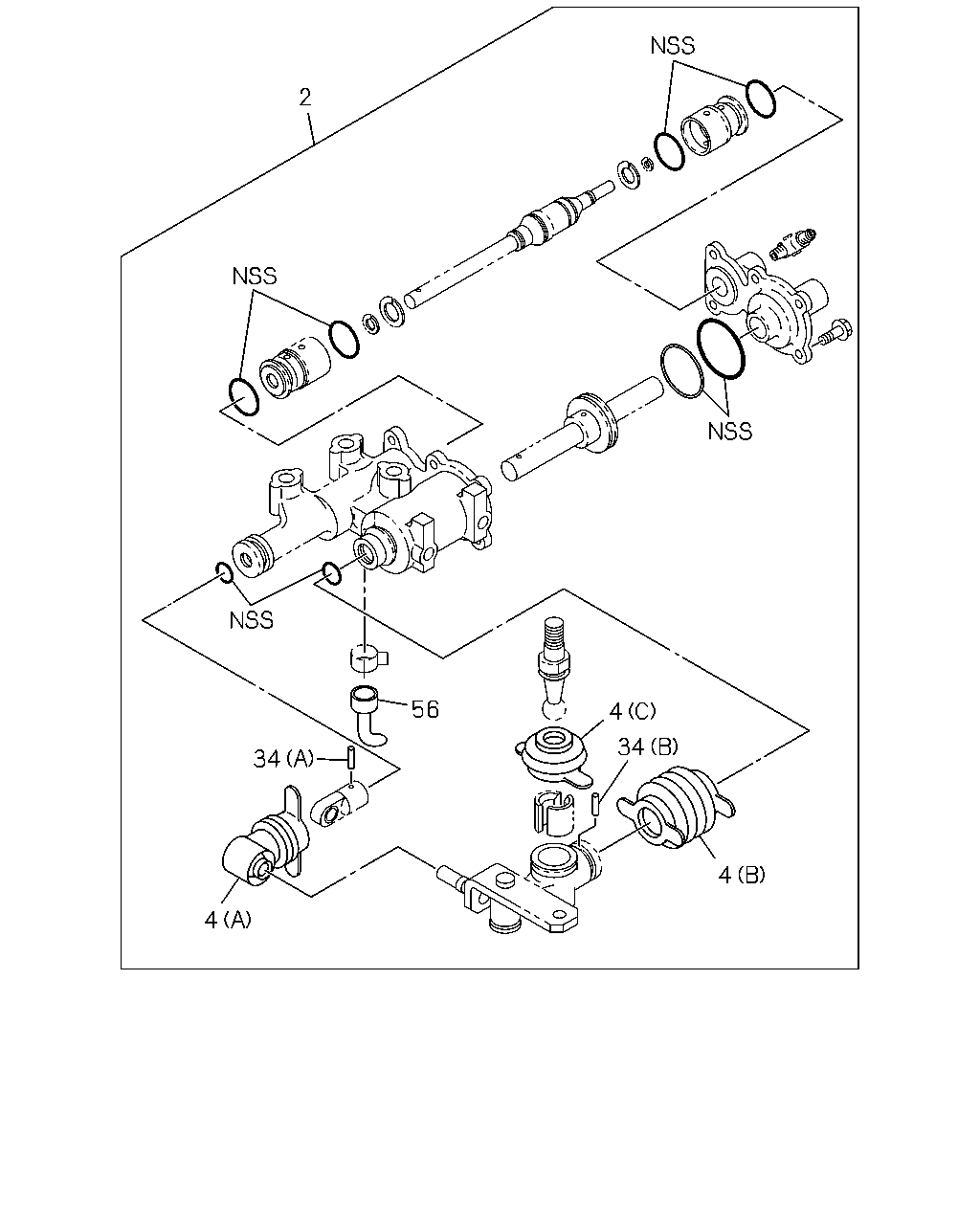

çizim 86709
2 56 4 34 34 4 4
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33738-028-0 01 1 0609-
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-843-0 01 1 0609-
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-844-0 01 1 0609-
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33739-847-0 01 1 0609-
34 PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-885-0 01 1 0609-
34 PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-974-0 01 1 0609-
56 HOSE; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-848-0 01 1 0609-

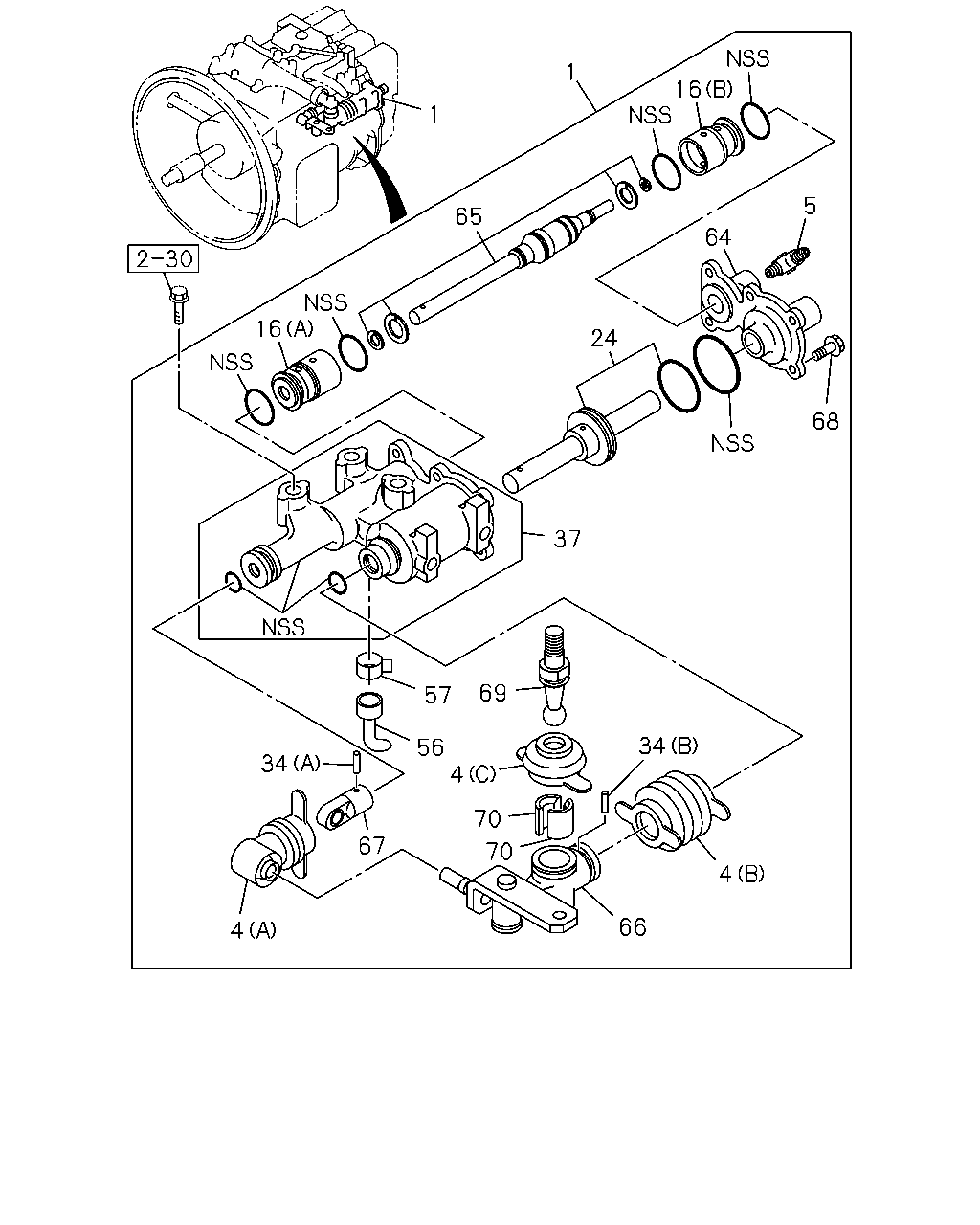

çizim 87399
1 16 1 5 65 64 16 24 68 37 69 57 34 56 4 34 70 67 70 4 66 4
BalonParca AdiParca NoAdetTipApplied Date
1 ASSISTOR ASM; POWER,SHIFT
ASSISTOR SHIFT CONTROL<WX8> 		1-33730-233-3 01 1 0609-0705
1 ASSISTOR ASM; POWER,SHIFT
ASSISTOR SHIFT CONTROL<WX8> 		8-98022-843-0 01 1 0706-
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-843-0 01 1 0609-
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-844-0 01 1 0609-
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33739-847-0 01 1 0609-
5 CONNECTOR; CYL
ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8 		9-09224-306-2 01 1 0609-0705
5 CONNECTOR; CYL
ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8 		0-92124-306-0 01 1 0706-
16 SEAT; VALVE
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-838-1 01 1 0609-0705
16 SEAT; VALVE
ASSISTOR SHIFT CONTROL<WX8> (A) 		8-97388-032-0 01 1 0706-
16 SEAT; VALVE
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-839-1 01 1 0609-0705
16 SEAT; VALVE
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-97388-033-0 01 1 0706-
24 PISTON
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-836-1 01 1 0609-
34 PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-885-0 01 1 0609-
34 PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-974-0 01 1 0609-
37 HOUSING; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-969-0 01 1 0609-
56 HOSE; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-848-0 01 1 0609-
57 CLAMP; HOSE
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-849-0 01 1 0609-
64 COVER; HOUSING
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-970-0 01 1 0609-
65 VALVE; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-971-0 01 1 0609-0705
65 VALVE; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		8-97388-029-0 01 1 0706-
66 JOINT ASM; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-972-0 01 1 0609-
67 JOINT; BALL,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-973-0 01 1 0609-
68 BOLT; COVER
ASSISTOR SHIFT CONTROL<WX8> M6X12 FLANGE 		1-33739-842-0 06 1 0609-
69 STUD; BALL,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-846-0 01 1 0609-
70 SEAT; BALL STUD
ASSISTOR SHIFT CONTROL<WX8> 		1-33659-118-0 02 1 0609-
