2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#28291) — 20 parça

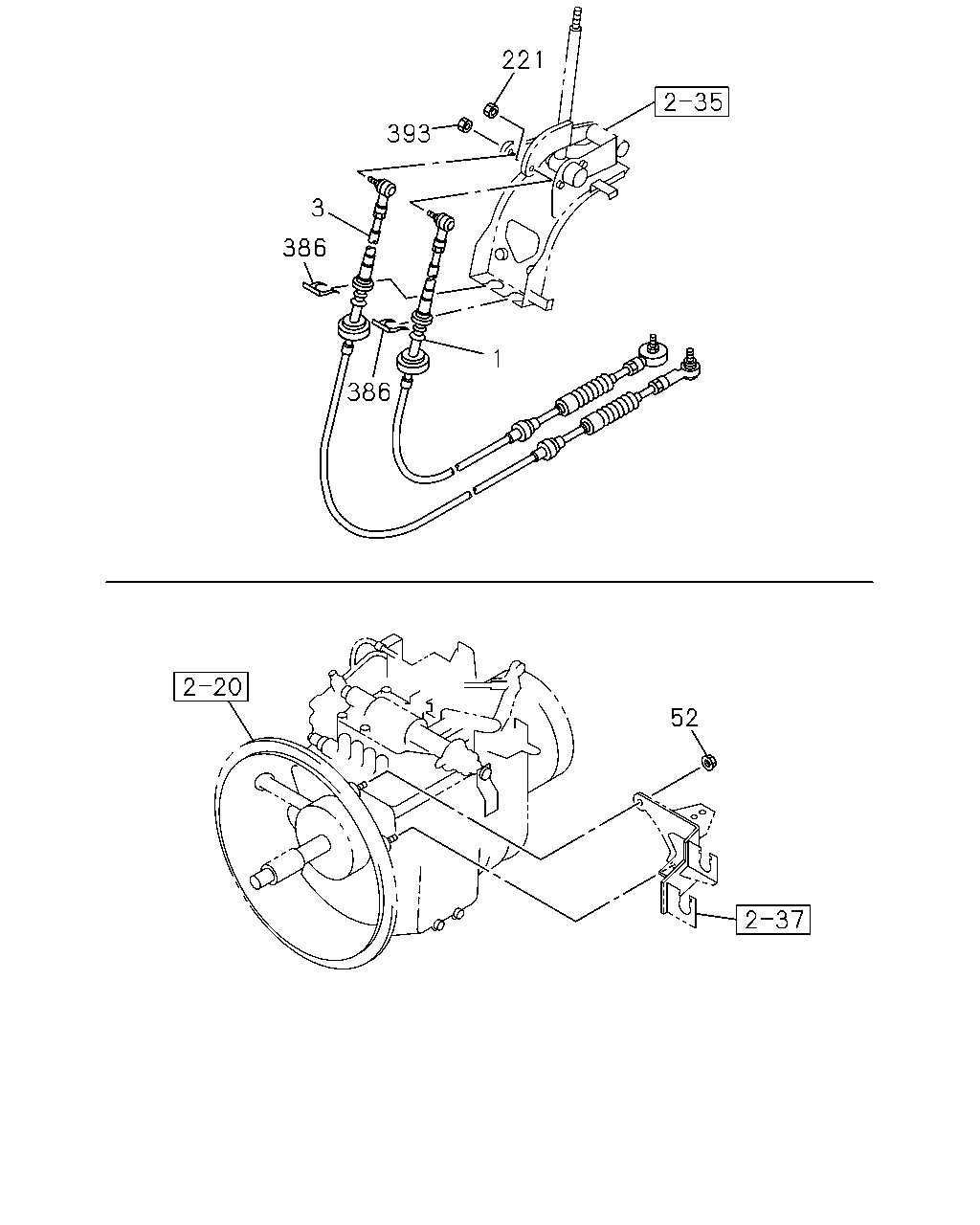

çizim 25701
221 393 3 386 1 386 52
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3585 		8-98053-704-0 01 1 0609-
1 CABLE; SHIFT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3618 		8-98024-445-0 01 1 0609-
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> L=3700 		8-98053-706-0 01 1 0609-
3 CABLE; SELECT,TRANS CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> L=3720 		8-98024-446-0 01 1 0609-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0609-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0609-1011
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0609-
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 0609-1011
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-062-1 01 1 1012-

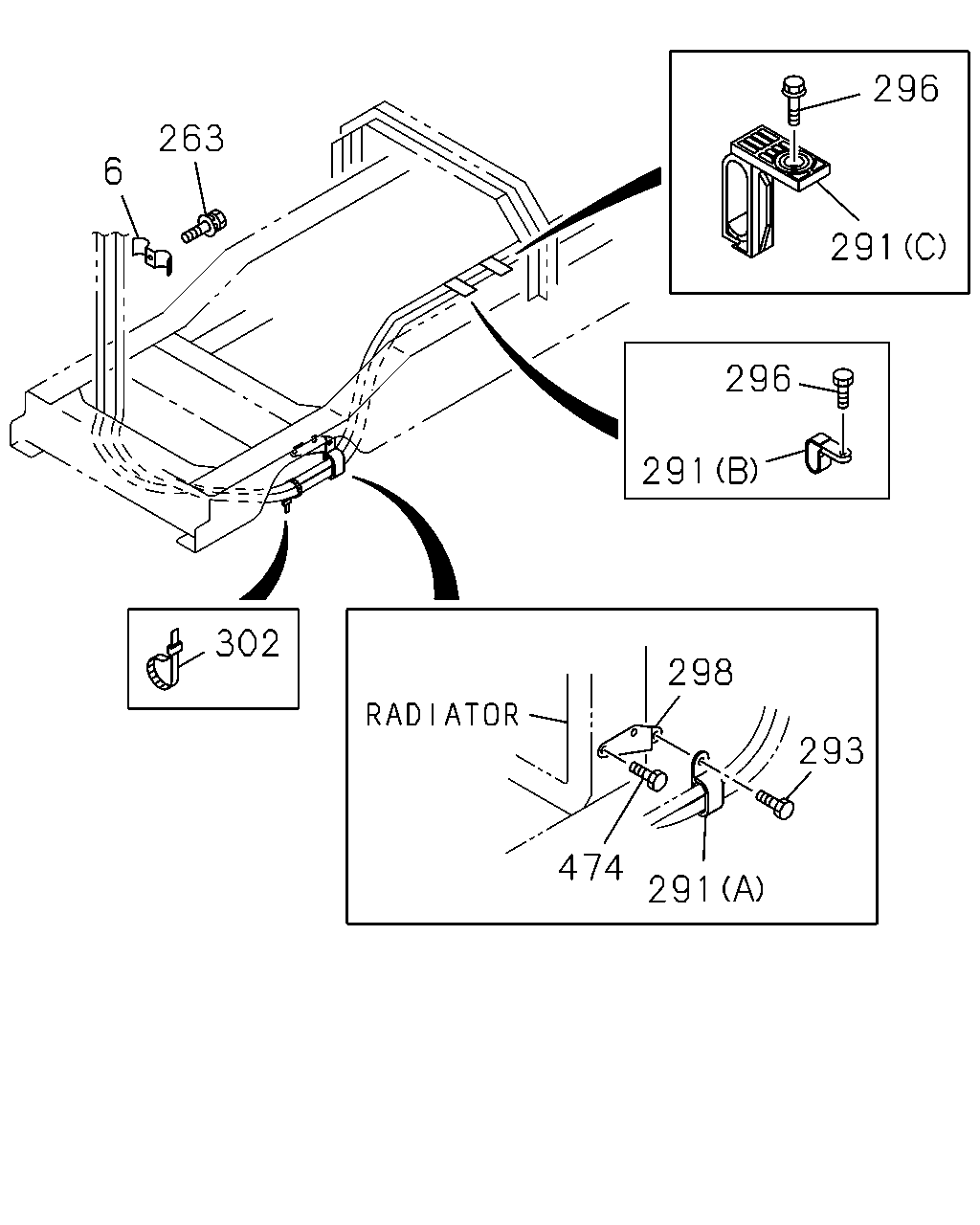

çizim 88045
296 263 6 291 296 291 302 298 293 474 291
BalonParca AdiParca NoAdetTipApplied Date
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0609-
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0609-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 01 1 0609-
291 CLIP; SHIFT TO SELECT,FRAME
(C) 		1-09701-307-2 01 1 0609-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 		1-09701-312-0 02 1 0609-
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28050-816-0 01 1 0609-
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28050-820-0 03 1 0609-
298 BRACKET 1-36183-252-2 01 1 0609-
302 CLIP; BAND
L=300 		1-09707-001-1 01 1 0609-
474 BOLT; BRKT
M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0609-
