◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11028 - FSR(RHD) EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#28290) — 27 parça

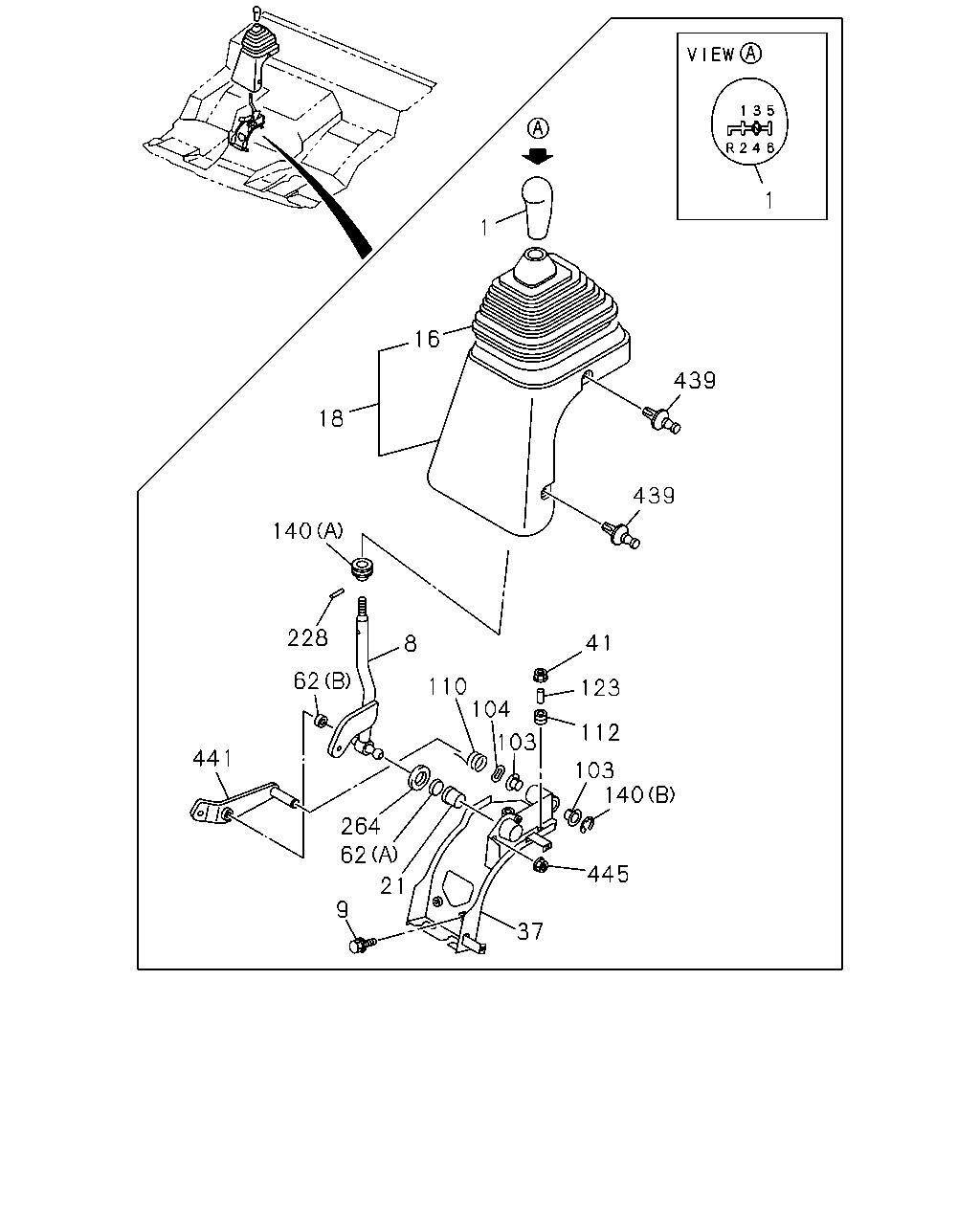

çizim 86679
1 1 16 439 18 439 140 228 41 8 62 110 104 123 112 103 441 103 140 264 62 445 21 9 37
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER 1-33611-070-1 01 1 0609-
8 LEVER; CHANGE
ASSISTOR SHIFT CONTROL<WX8> 		1-33619-605-0 01 1 0609-
8 LEVER; CHANGE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-553-0 01 1 0609-
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0609-
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 0609-
18 BOOT; CHANGE LEVER 1-79996-394-3 01 1 0609-
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 0609-
37 BRACKET; CHANGE LEVER SUPPORT
ASSISTOR SHIFT CONTROL<WX8> 		1-33619-539-0 01 1 0609-
37 BRACKET; CHANGE LEVER SUPPORT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-444-2 01 1 0609-
41 NUT; CHANGE LEVER
M8 FLANGE 		8-97046-127-0 02 1 0609-0805
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0806-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0609-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0609-
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0609-
104 WASHER; WAVED 1-09550-009-0 01 1 0609-
110 SPRING; RETURN,CHANGE LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33619-586-0 01 1 0609-
110 SPRING; RETURN,CHANGE LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-435-0 01 1 0609-
112 RUBBER; CUSHION 1-33619-442-0 04 1 0609-
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 0609-
140 RING; SNAP
(B) ID=10 		0-91805-510-0 01 1 0609-
140 RING; SNAP
(A) 		1-33619-504-0 01 1 0609-
228 PIN; SPR,CHANGE LEVER 1-33619-505-0 01 1 0609-
264 PLATE; COVER 1-33619-430-0 01 1 0609-
439 FASTENER; COVER
D8X13.5 		1-09987-270-0 04 1 0609-
441 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33619-551-1 01 1 0609-
441 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-437-2 01 1 0609-
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 0609-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
