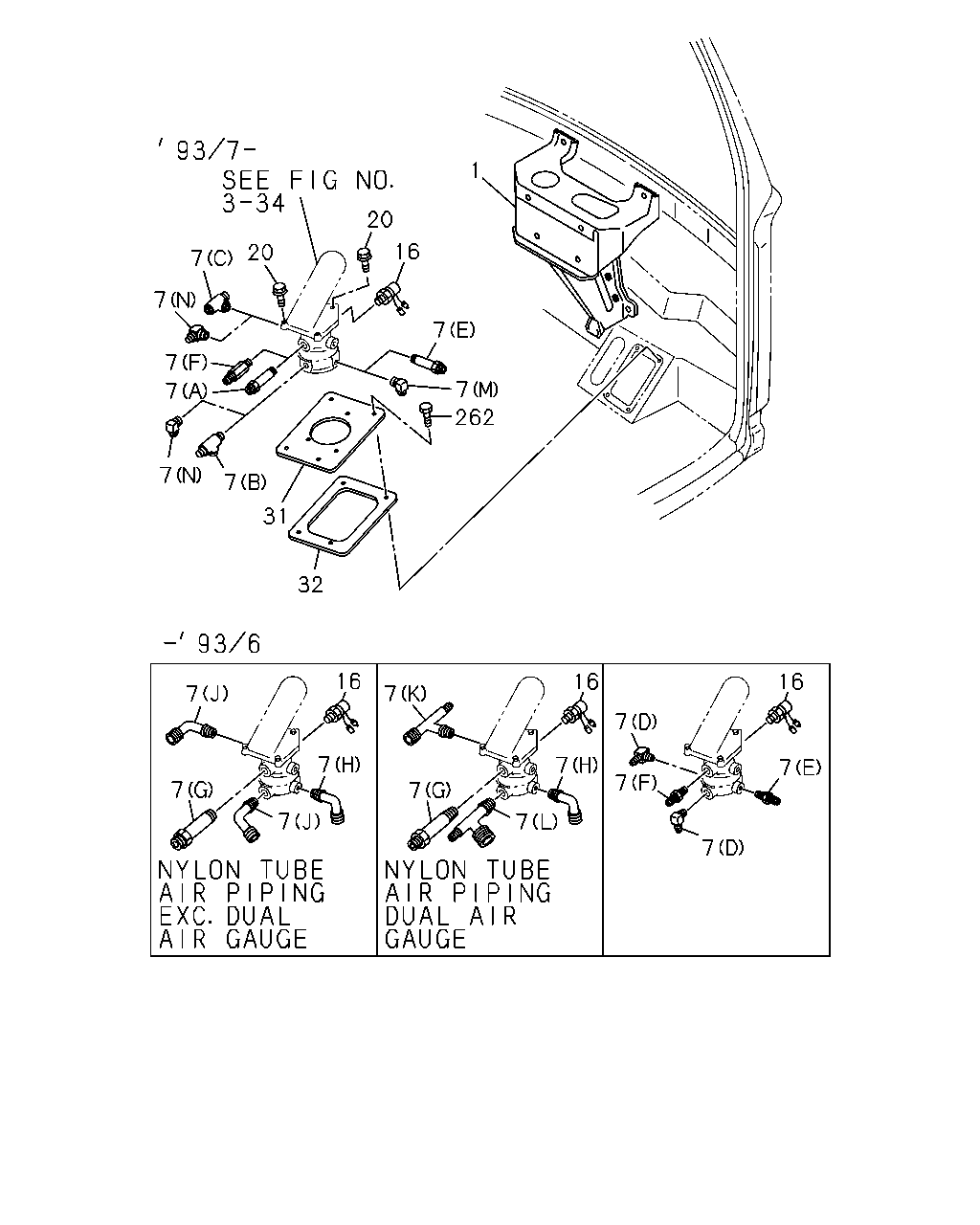

3-10 — BRAKE PEDAL AND CONTROL
(#2829) — 24 parça
Tümü
A - CXZ5MC
B - CXZ5MF
16
7
7
7
7
16
7
7
7
7
16
7
7
7
7
32
31
7
7
7
7
7
7
20
20
7
16
1
7
262
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRACKET ASM; PEDAL
1-73998-392-5
01
1
9002-9205
●
●
1
BRACKET ASM; PEDAL
1-73907-196-2
01
1
9206-
●
●
7
CONNECTOR; BRK VALVE
DUAL AIR GAUGE<UG2> NYLON TUBE AIR PIPING<Z29> (K)
1-09660-253-0
01
1
9002-9306
●
●
7
CONNECTOR; BRK VALVE
DUAL AIR GAUGE<UG2> NYLON TUBE AIR PIPING<Z29> (L)
1-09660-254-0
01
1
9002-9306
●
●
7
CONNECTOR; BRK VALVE
NYLON TUBE AIR PIPING<Z29> (G)
1-09660-224-0
01
1
9002-9306
●
●
7
CONNECTOR; BRK VALVE
NYLON TUBE AIR PIPING<Z29> (H) M14 & PT3/8 ELBOW
1-09660-234-0
01
1
9002-9306
●
●
7
CONNECTOR; BRK VALVE
NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> (J) M18 & PT3/8 ELBOW
1-09660-235-0
02
1
9002-9306
●
●
7
CONNECTOR; BRK VALVE
EXC. NYLON TUBE AIR PIPING<Z29> (F) M16
1-09650-188-1
01
1
9002-
●
●
7
CONNECTOR; BRK VALVE
EXC. NYLON TUBE AIR PIPING<Z29> (E) M20
9-09231-812-1
01
1
9002-
●
●
7
CONNECTOR; BRK VALVE
EXC. NYLON TUBE AIR PIPING<Z29> (D) M20 & PT3/8 ELBOW
9-09234-312-1
01
1
9002-9302
●
●
7
CONNECTOR; BRK VALVE
EXC. NYLON TUBE AIR PIPING<Z29> (N) M20 & PT3/8 ELBOW
1-09650-439-0
02
1
9303-
●
●
7
CONNECTOR; BRK VALVE
NYLON TUBE AIR PIPING<Z29> (C)
1-09660-320-0
01
1
9307-
●
7
CONNECTOR; BRK VALVE
NYLON TUBE AIR PIPING<Z29> (M)
1-09660-570-0
01
1
9307-
●
7
CONNECTOR; BRK VALVE
NYLON TUBE AIR PIPING<Z29> (A)
1-09660-602-0
01
1
9307-
●
7
CONNECTOR; BRK VALVE
NYLON TUBE AIR PIPING<Z29> (B)
1-09660-605-0
01
1
9307-
●
16
SWITCH; STOP LAMP
OPERATE PRESSURE 0.3
1-82410-080-1
02
1
9002-
●
●
20
BOLT; BRKT
M10X25
9-01911-025-0
01
1
9002-9002
●
●
20
BOLT; BRKT
M10X25 W/LK WASHER
0-50041-025-0
01
1
9003-
●
●
20
BOLT; BRKT
M10X35 W/LK WASHER
9-01911-035-0
02
1
9002-9002
●
●
20
BOLT; BRKT
M10X35 W/LK WASHER
0-50041-035-0
02
1
9003-
●
●
31
PLATE; MTG,BRKT VLV
1-73997-620-4
01
1
9002-
●
●
32
SHEET; BRK VALVE BRKT
1-73997-622-4
01
1
9002-
●
●
262
BOLT; PLATE
M6X16 W/LK&PL WASHER
1-09980-527-0
04
1
9002-9008
●
●
262
BOLT; PLATE
M6X16 W/LK&PL WASHER
1-09980-586-0
04
1
9009-
●
●
