2-30 — GEAR SHIFTER AND QUADRANT BOX (#28289) — 168 parça

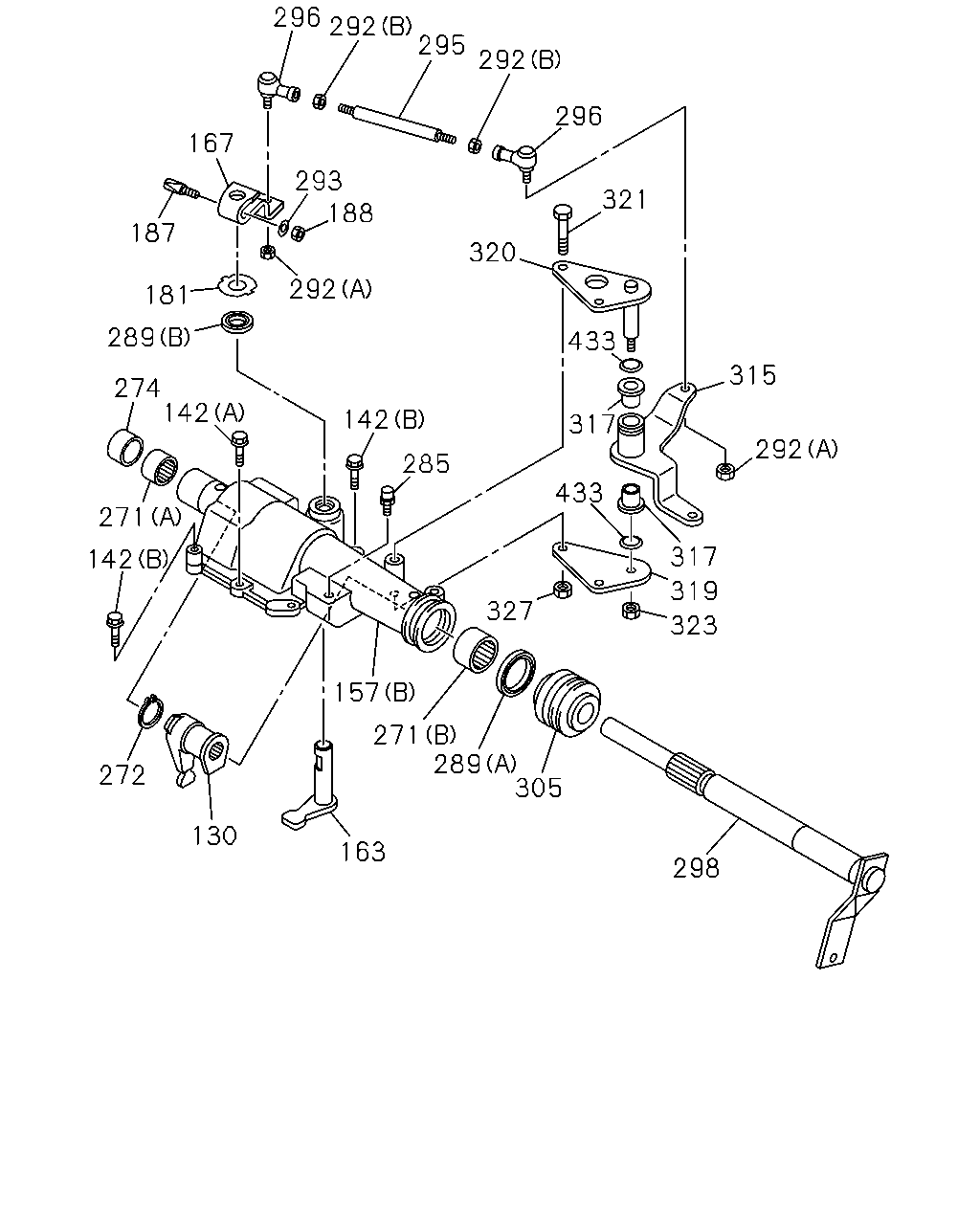

296 292 295 292 296 167 293 188 321 187 320 292 181 289 433 315 274 142 142 317 292 285 433 271 317 142 319 327 323 157 271 289 305 272 130 163 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-165-0	01	1	0609-
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-111-1	01	1	0609-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE	0-28151-060-0	04	1	0609-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M10X60 FLANGE	0-28151-060-0	03	1	0609-
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0609-0805
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0609-0805
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0609-
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	0609-
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0609-
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0609-
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-153-0	01	1	0609-
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	0609-
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	0609-
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	0609-
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	0609-
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0609-
187	BOLT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X42	1-33659-045-0	01	1	0609-
188	NUT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-062-1	01	1	0609-
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) ID=20 OD=23	1-33549-016-0	01	1	0609-
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=28 OD=32	1-33549-104-0	01	1	0609-
272	RING; SNAP,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09588-175-0	01	1	0609-
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	9-33545-017-1	01	1	0609-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0609-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (C)	1-09625-599-0	01	1	0609-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (D)	1-09625-600-0	01	1	0609-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (B) OD=30	1-09625-386-0	01	1	0609-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41	1-09625-647-0	01	1	0609-
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0609-0705
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8	0-91111-508-0	02	1	0706-
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-062-1	02	1	0609-
293	WASHER; PL,TAPER BOLT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22	0-91610-708-0	01	1	0609-
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	9-08400-808-0	01	1	0609-0705
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98023-095-0	01	1	0706-
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	0609-
296	ROD END L=45.5	1-09760-118-1	02	1	0609-0705
296	ROD END EXC. ASSISTOR SHIFT CONTROL<WX8> L=45.5	1-09760-118-1	02	1	0706-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-163-0	01	1	0609-
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-187-0	01	1	0609-
305	BOOT; LEVER SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33529-028-0	01	1	0609-
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-702-0	01	1	0609-
317	BUSHING; LEVER	1-09330-119-0	02	1	0609-
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-515-0	01	1	0609-
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-474-0	01	1	0609-
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10856-080-0	02	1	0609-
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-110-0	01	1	0609-
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-210-0	02	1	0609-
433	GASKET; BUSHING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0609-

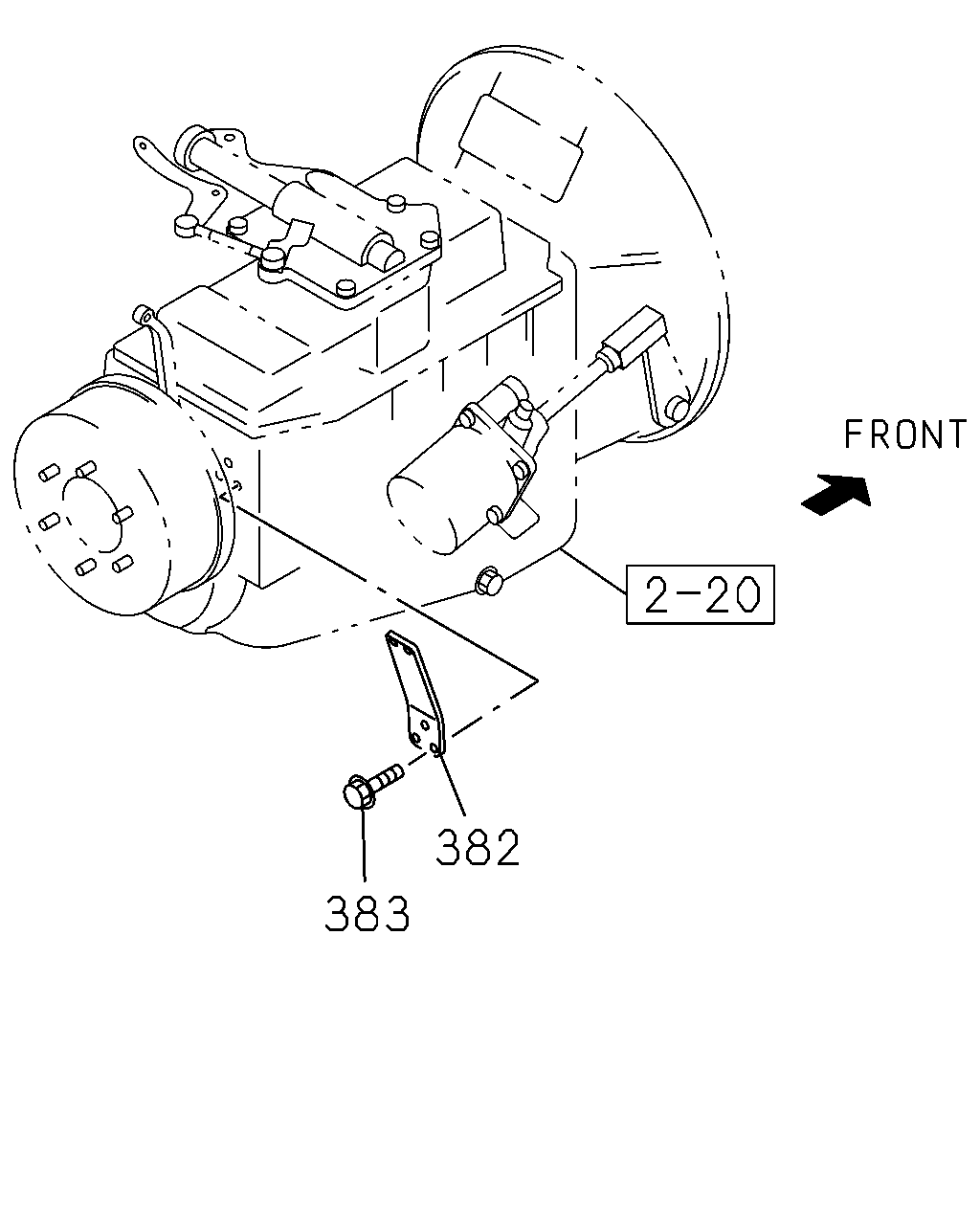

382 383

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	382	BRACKET; PARKING BRK CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46147-223-0	01	1	0609-
	383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X22 FLANGE	0-28181-022-0	03	1	0609-

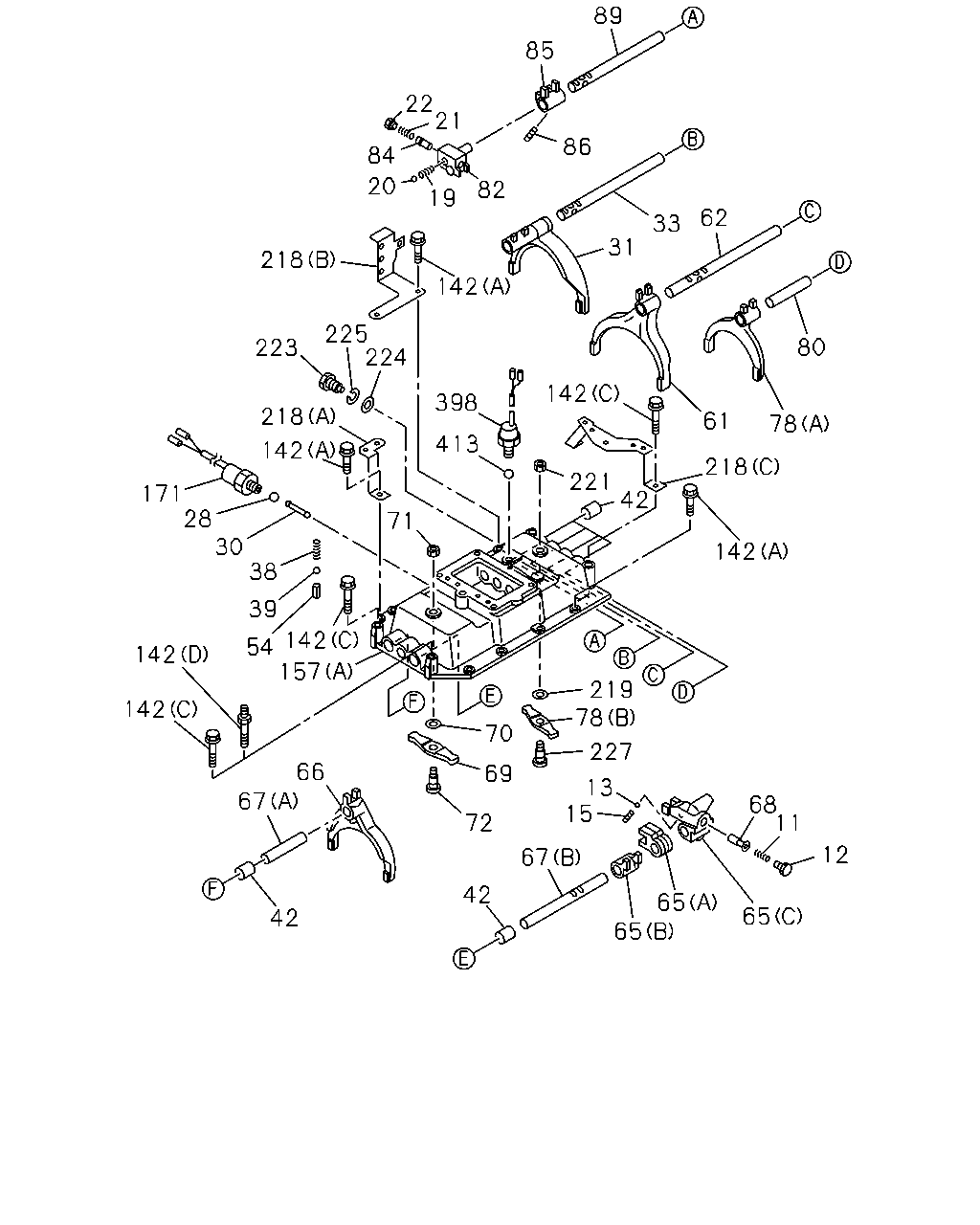

89 85 22 21 84 86 19 20 82 62 33 31 218 142 225 224 80 223 142 398 218 61 78 413 142 218 221 42 171 28 30 38 71 142 39 142 54 157 142 219 78 142 70 227 66 69 13 15 67 68 11 72 12 67 42 65 65 65 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0609-
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0609-
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0609-
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0609-
19	SPRING; COIL COMP	1-09580-441-0	01	1	0609-
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0609-
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0609-
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0609-
28	BALL; INTER LK	9-00097-501-0	04	1	0609-
30	PIN; INTER LK	9-33534-003-0	03	1	0609-
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0609-
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0609-1202
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-
38	SPRING; DETENT ASSISTOR SHIFT CONTROL<WX8>	1-09580-379-0	04	1	0609-
38	SPRING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09580-419-0	04	1	0609-
39	BALL; DETENT	1-09843-012-0	04	1	0609-
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0609-
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0609-
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0609-
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0609-1202
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	0609-
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0609-
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0609-
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0609-
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	0609-1202
67	ROD; SHIFT,5TH & 6TH (A) L=122	8-98207-587-0	01	1	1203-
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0609-1202
67	ROD; SHIFT,5TH & 6TH (B) L=278	8-98207-589-0	01	1	1203-
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0609-
69	LEVER; SHIFT,5TH & 6TH	1-33511-082-0	01	1	0609-
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	0609-
71	NUT; SHIFT LEVER M12 FLANGE	0-91180-212-0	01	1	0609-
72	SPINDLE; 5TH & 6TH	1-33519-012-0	01	1	0609-
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0609-
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0609-
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0609-1202
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1203-
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0609-
84	SLEEVE; REV	1-33516-025-0	01	1	0609-
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0609-
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0609-
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0609-1202
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE	0-28151-060-0	04	1	0609-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M10X60 FLANGE	0-28151-060-0	03	1	0609-
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0609-0805
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0609-0805
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0609-
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	0609-
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0609-
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0609-
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0609-0702
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0609-
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	0609-
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0609-
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0609-
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0609-
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0609-
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0609-
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0609-
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0609-
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0609-1209
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-
413	BALL; BACK SW	9-00097-013-0	01	1	0609-

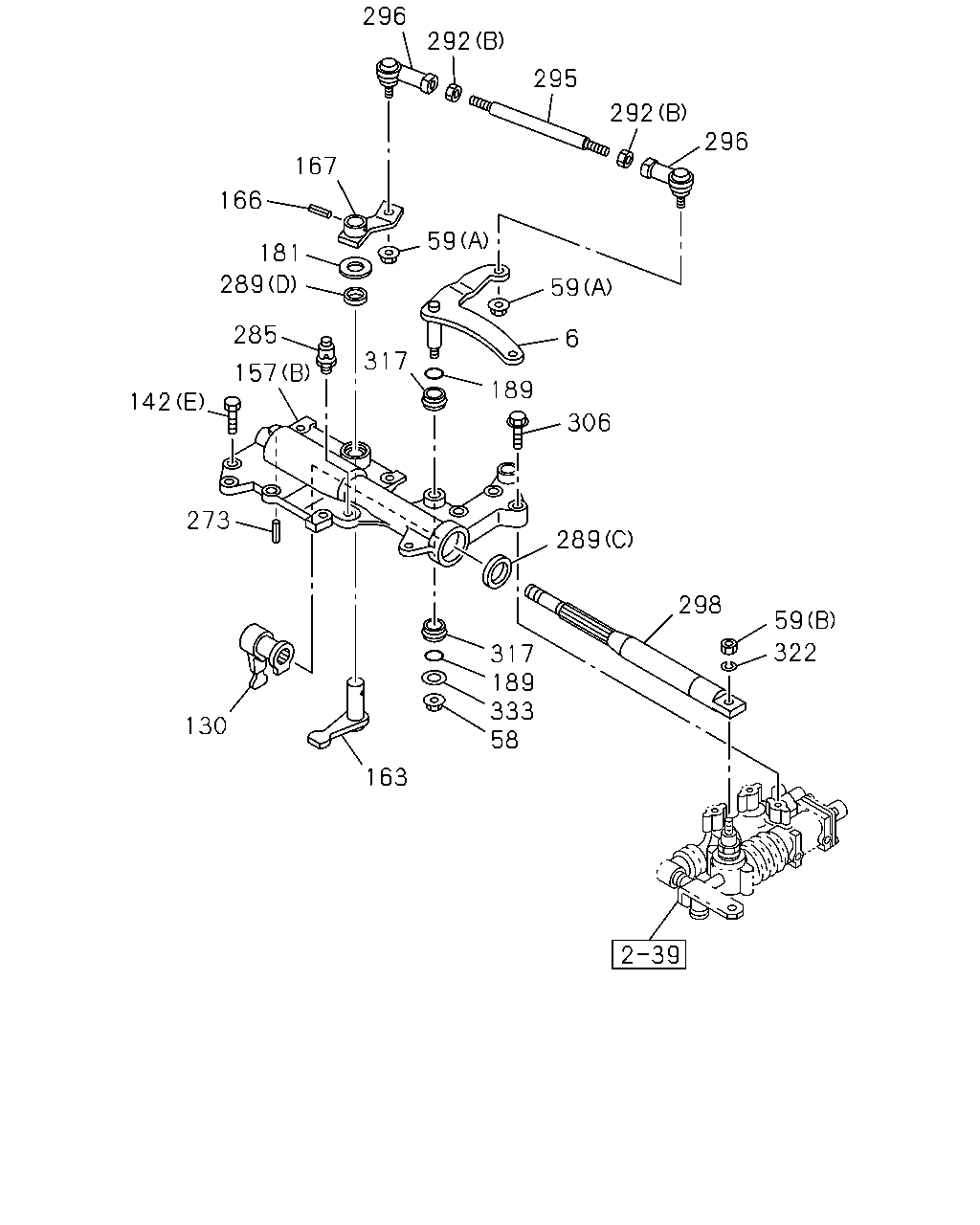

296 292 295 292 296 167 166 59 181 289 59 285 6 317 157 189 142 306 273 289 298 59 322 317 189 333 58 130 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33651-686-2	01	1	0609-
58	NUT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	0609-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (B) M12	0-91110-512-0	01	1	0609-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	0-91180-108-0	02	1	0609-
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-165-0	01	1	0609-
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-111-1	01	1	0609-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (E) M10X60 FLANGE	0-28151-060-0	04	1	0609-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M10X60 FLANGE	0-28151-060-0	03	1	0609-
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0609-0805
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0609-0805
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0609-
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	0609-
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0609-
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0609-
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-153-0	01	1	0609-
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	0609-
166	PIN; SPR,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8> L=25 OD=5	1-09748-032-0	01	1	0609-
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	0609-
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	0609-
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	0609-
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0609-
189	GASKET; SELECT LEVER,CONT BOX ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0609-
273	PIN; SPR,STOPPER ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4	1-09748-031-0	01	1	0609-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0609-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (C)	1-09625-599-0	01	1	0609-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (D)	1-09625-600-0	01	1	0609-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (B) OD=30	1-09625-386-0	01	1	0609-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41	1-09625-647-0	01	1	0609-
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0609-0705
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8	0-91111-508-0	02	1	0706-
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-062-1	02	1	0609-
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	9-08400-808-0	01	1	0609-0705
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98023-095-0	01	1	0706-
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	0609-
296	ROD END L=45.5	1-09760-118-1	02	1	0609-0705
296	ROD END EXC. ASSISTOR SHIFT CONTROL<WX8> L=45.5	1-09760-118-1	02	1	0706-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-163-0	01	1	0609-
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-187-0	01	1	0609-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0609-
317	BUSHING; LEVER	1-09330-119-0	02	1	0609-
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0609-0705
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0706-
333	WASHER; PL,LEVER ASSISTOR SHIFT CONTROL<WX8> ID=10.5 OD=26	9-09160-710-0	01	1	0609-0705
333	WASHER; PL,LEVER ASSISTOR SHIFT CONTROL<WX8> ID=10.5	0-91610-710-0	01	1	0706-
