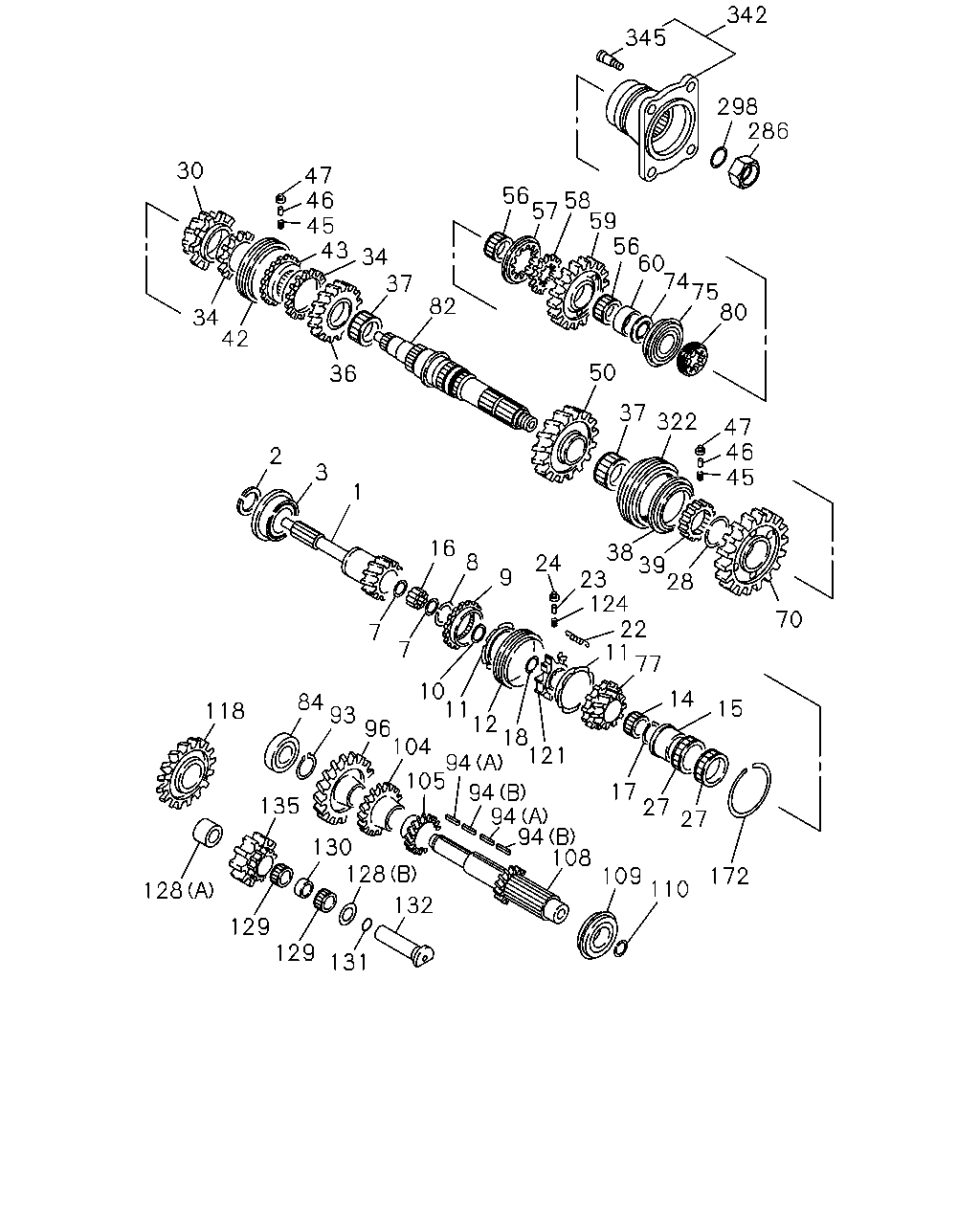

2-26 — MANUAL TRANSMISSION GEAR (#28288) — 81 parça

342 345 298 286 30 47 46 45 43 56 58 57 59 56 60 74 75 80 34 37 82 34 42 50 36 37 322 47 46 45 2 3 1 16 38 39 23 28 124 22 11 77 8 24 9 70 7 7 10 11 12 18 121 14 84 93 96 104 15 118 94 105 17 27 94 94 94 108 135 27 130 128 109 172 110 128 132 129 129 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-785-0	01	1	0609-
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0609-
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0609-
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0609-
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0609-
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0609-
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0609-
8	CLIP; DOG CLU	1-33219-020-0	01	1	0609-
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0609-
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0609-
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0609-
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0609-
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	0609-
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0609-
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	0609-
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	0609-
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0609-
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0609-
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0609-
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0609-
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0609-
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0609-
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	0609-1107
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0609-
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0609-
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	0609-
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	0609-
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0609-
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0609-
42	SLEEVE Z=54	1-33262-154-0	01	1	0609-
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0609-
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0609-
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0609-
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0609-
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0609-
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	0609-
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0609-
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0609-
59	GEAR; REV MAINSHAFT Z=45	1-33257-061-1	01	1	0609-
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0609-
70	GEAR; 1ST,MAINSHAFT Z=51	1-33255-056-1	01	1	0609-
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0609-
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0609-
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0609-
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	0609-
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0609-
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0609-
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0609-
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0609-
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	0609-
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	0609-
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	0609-
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0609-1107
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	0609-1311
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-
108	SHAFT; COUNTER Z=19-14	1-33311-280-1	01	1	0609-
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	0609-
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0609-
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0609-
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	0609-
121	HUB; CLU,6TH	1-33261-270-0	01	1	0609-
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	0609-
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0609-
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0609-
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	0609-
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0609-
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0609-
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0609-
132	SHAFT; REV	1-33351-017-0	01	1	0609-
135	GEAR; REV IDLER Z=29-24	1-33361-064-0	01	1	0609-
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	0609-
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	1-09449-063-0	01	1	0609-0805
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	8-98014-140-0	01	1	0806-
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	0609-
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0609-
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-307-1	01	1	0609-
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	1-09046-003-0	04	1	0609-0707
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X43 KNURL	8-98014-003-0	04	1	0708-
