3-05 — REAR WHEEL BRAKE (#2828) — 363 parça

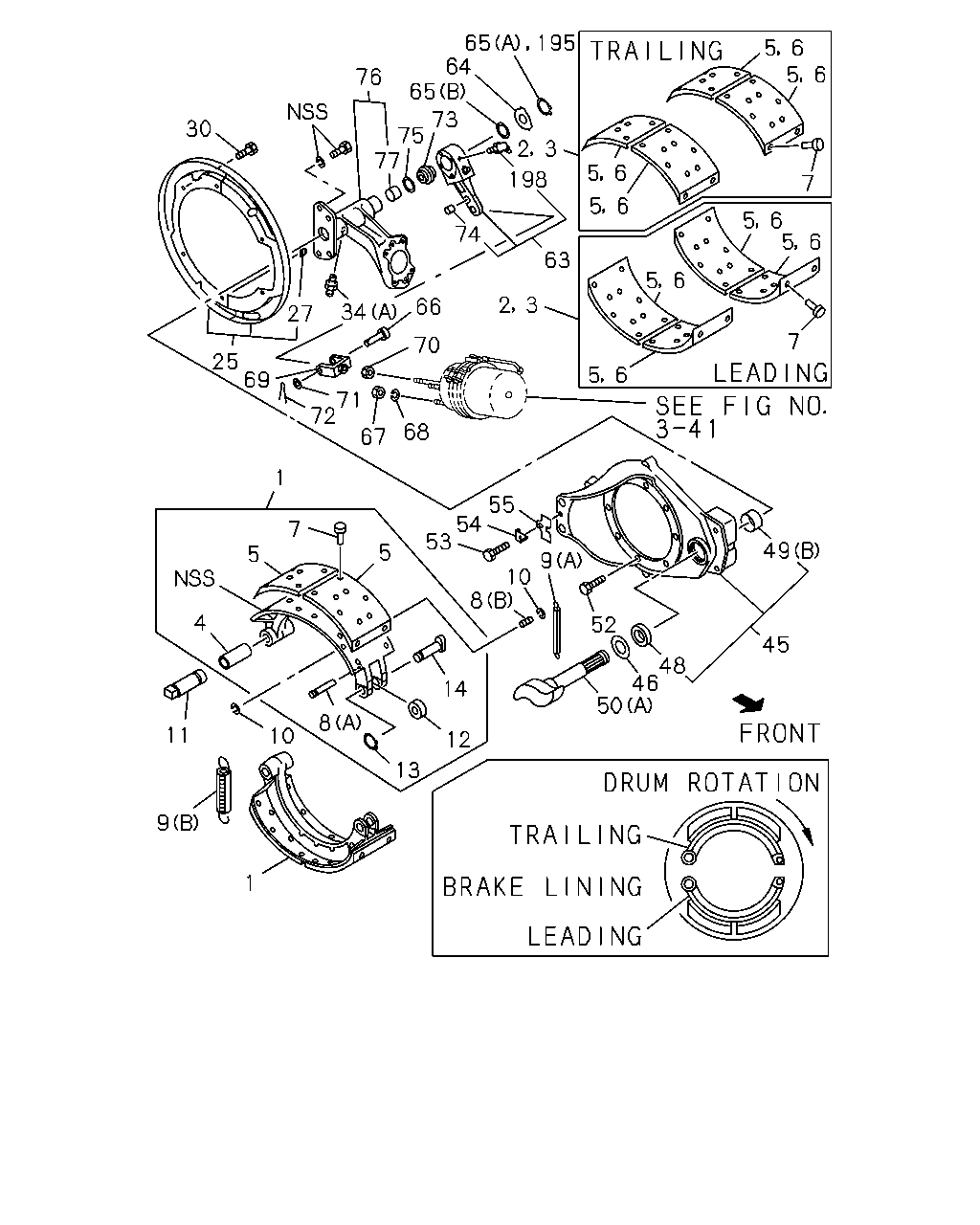

25 27 30 49 34 45 48 55 52 46 54 53 9 5 4 11 1 9 10 8 13 12 14 5 7 1 8 10 50 73 75 88 87 86 50 80 80 83 82 79 79 84 65 65 64 195 72 71 70 198 85 81 34 32 78 93 74 91 92 66 69 90 93 68 67 91 92 63 3 2 3 2 6 5 6 5 7 6 5 6 5 5 6 5 6 7 7 6 5 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR LEADING	1-47110-969-0	02	1	9002-9412	●	●
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-969-0	02	1	9501-	●	●
1	SHOE; BRK,RR TRAILING	1-47110-970-0	02	1	9002-9412	●	●
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-970-0	02	1	9501-	●	●
1	SHOE; BRK,RR LEADING	1-47110-967-0	02	1	9002-9412	●	●
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-967-0	02	1	9501-	●	●
1	SHOE; BRK,RR TRAILING	1-47110-968-0	02	1	9002-9412	●	●
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-968-0	02	1	9501-	●	●
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-117-0	02	1	9501-	●	●
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-118-0	02	1	9501-	●	●
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-115-0	02	1	9501-	●	●
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-116-0	02	1	9501-	●	●
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-929-0	02	1	9002-9412	●	●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-937-0	02	1	9002-9412	●	●
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-059-0	02	1	9501-	●	●
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-061-0	02	1	9501-	●	●
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-925-0	02	1	9501-	●	●
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-933-0	02	1	9501-	●	●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-930-0	02	1	9002-9412	●	●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-938-0	02	1	9002-9412	●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-060-0	02	1	9501-	●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-062-0	02	1	9501-	●	●
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-926-0	02	1	9501-	●	●
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-934-0	02	1	9501-	●	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	08	1	9002-	●	●
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47115-773-0	08	1	9002-9412	●	●
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-773-0	08	1	9501-	●	●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47115-817-0	08	1	9002-9412	●	●
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-817-0	08	1	9501-	●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-075-0	08	1	9501-	●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-081-0	08	1	9501-	●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-413-0	08	1	9501-	●	●
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47115-774-0	08	1	9002-9412	●	●
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-774-0	08	1	9501-	●	●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47115-818-0	08	1	9002-9412	●	●
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-818-0	08	1	9501-	●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-076-0	08	1	9501-	●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-082-0	08	1	9501-	●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-414-0	08	1	9501-	●	●
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	9002-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	08	1	9002-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	08	1	9002-	●	●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	04	1	9002-	●	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	04	1	9002-	●	●
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	16	1	9002-	●	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	08	1	9002-	●	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	08	1	9002-	●	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	08	1	9002-	●	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	9002-	●	●
25	COVER SET; RR BRK DRUM	1-47151-462-0	04	1	9002-9306	●	●
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	9307-	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-095-0	08	1	9002-9501	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	08	1	9502-	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	9-01901-016-0	24	1	9002-9204	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	24	1	9205-	●	●
32	WASHER; LK ID=10.2	9-09150-510-0	04	1	9002-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	04	1	9002-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING F0RWARD	1-47137-120-2	02	1	9002-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING REARWARD	1-47137-128-1	02	1	9002-	●	●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	04	1	9002-	●	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	04	1	9002-	●	●
49	BUSHING; CM/SHF,RR BRK (B) F0RWARD	1-47146-003-1	02	1	9002-	●	●
49	BUSHING; CM/SHF,RR BRK (A) REARWARD	1-47146-009-0	02	1	9002-	●	●
50	CAMSHAFT; BRK,RR BRK (A) F0RWARD	1-47141-053-0	01	1	9002-	●	●
50	CAMSHAFT; BRK,RR BRK (B) REARWARD	1-47141-065-1	01	1	9002-	●	●
50	CAMSHAFT; BRK,RR BRK (A) REARWARD	1-47141-066-0	01	1	9002-	●	●
50	CAMSHAFT; BRK,RR BRK (A) F0RWARD	1-47141-054-0	01	1	9002-	●	●
50	CAMSHAFT; BRK,RR BRK (A) REARWARD	1-47141-063-0	01	1	9002-	●	●
52	BOLT; ANCHOR BRKT M14X43	1-09040-045-0	01	1	9002-	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	03	1	9002-9412	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9501-	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	01	1	9501-	●	●
53	BOLT; LOCK PLATE M10X16	9-02041-016-0	04	1	9002-9204	●	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	04	1	9205-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-007-0	04	1	9002-9109	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	04	1	9110-	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	04	1	9002-	●	●
63	ADJUSTER ASM; SLACK,RR BRK F0RWARD	1-48270-045-0	01	1	9002-	●	●
63	ADJUSTER ASM; SLACK,RR BRK REARWARD	1-48270-050-1	01	1	9002-	●	●
63	ADJUSTER ASM; SLACK,RR BRK F0RWARD	1-48270-046-0	01	1	9002-	●	●
63	ADJUSTER ASM; SLACK,RR BRK REARWARD	1-48270-051-0	01	1	9002-	●	●
64	PLATE; STOPPER,CM/SHF F0RWARD	1-47149-022-0	02	1	9002-	●	●
64	PLATE; STOPPER,CM/SHF REARWARD	1-47149-040-0	02	1	9002-	●	●
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	04	1	9002-	●	●
65	SPACER; SLACK ADJ,BRK (C) REARWARD	1-47143-007-0	02	1	9002-	●	●
65	SPACER; SLACK ADJ,BRK (A) FORWARD	9-09180-038-0	01	1	9002-	●	●
66	PIN; JAW JOINT	1-09744-088-0	04	1	9002-	●	●
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	16	1	9002-	●	●
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	16	1	9002-	●	●
69	JOINT; JAW	1-09768-060-0	04	1	9002-	●	●
70	NUT; LK,JAW JOINT M16	9-99111-416-0	04	1	9002-	●	●
71	WASHER; PL,JAW JOINT ID=17	9-09160-516-0	04	1	9002-9401	●	●
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	04	1	9402-	●	●
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	04	1	9002-	●	●
73	COLLAR; FELT RING,CM/SHF F0RWARD	1-47143-003-0	02	1	9002-	●	●
73	COLLAR; FELT RING,CM/SHF REARWARD	1-47143-006-0	02	1	9002-	●	●
74	BUSHING; SLACK ADJ	1-09330-041-0	04	1	9002-	●	●
75	RING; FELT,CM/SHF	1-09620-009-0	04	1	9002-	●	●
78	BUSHING; BRKT	1-47146-008-0	02	1	9002-	●	●
79	BRACKET; CM/SHF	9-47145-013-0	04	1	9002-	●	●
80	GASKET; BUSHING ID=39.7	9-09561-340-0	04	1	9002-	●	●
81	NUT M10	9-09110-410-0	04	1	9002-	●	●
82	NUT M16	9-99110-516-0	04	1	9002-	●	●
83	WASHER; PL ID=16.2	9-09851-672-2	08	1	9002-	●	●
84	BOLT; BRKT TO CASE M16X40	9-92061-640-0	04	1	9002-	●	●
85	BOLT; CM/SHF BRKT M10X20	9-02041-020-0	04	1	9002-9204	●	●
85	BOLT; CM/SHF BRKT M10X20	0-20801-020-0	04	1	9205-	●	●
86	NUT; FLANGE REARWARD LH	1-09440-020-0	01	1	9002-	●	●
87	FLANGE; SHAFT	1-47149-041-0	01	1	9501-	●	●
88	CLIP; BRKT	1-09589-014-0	02	1	9002-9403	●	●
88	CLIP; BRKT	1-09589-018-0	02	1	9404-	●	●
90	BRACKET; CHAMBER	1-42129-046-3	01	1	9002-	●	●
90	BRACKET; CHAMBER	1-42129-045-3	01	1	9002-	●	●
91	BOLT; CHAMBER M16X35	9-92351-635-0	08	1	9002-9005	●	●
91	BOLT; CHAMBER M16X35	0-23801-635-0	08	1	9006-	●	●
92	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	9002-	●	●
93	WASHER; PL,CHAMBER ID=17 OD=32	9-09160-616-0	08	1	9002-	●	●
195	RING; SNAP,CM/SHF	9-09180-038-0	03	1	9002-9412	●	●
195	RING; SNAP,CM/SHF	9-09180-038-0	02	1	9501-	●	●
195	RING; SNAP,CM/SHF	9-09180-038-0	01	1	9501-	●	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	04	1	9002-	●	●

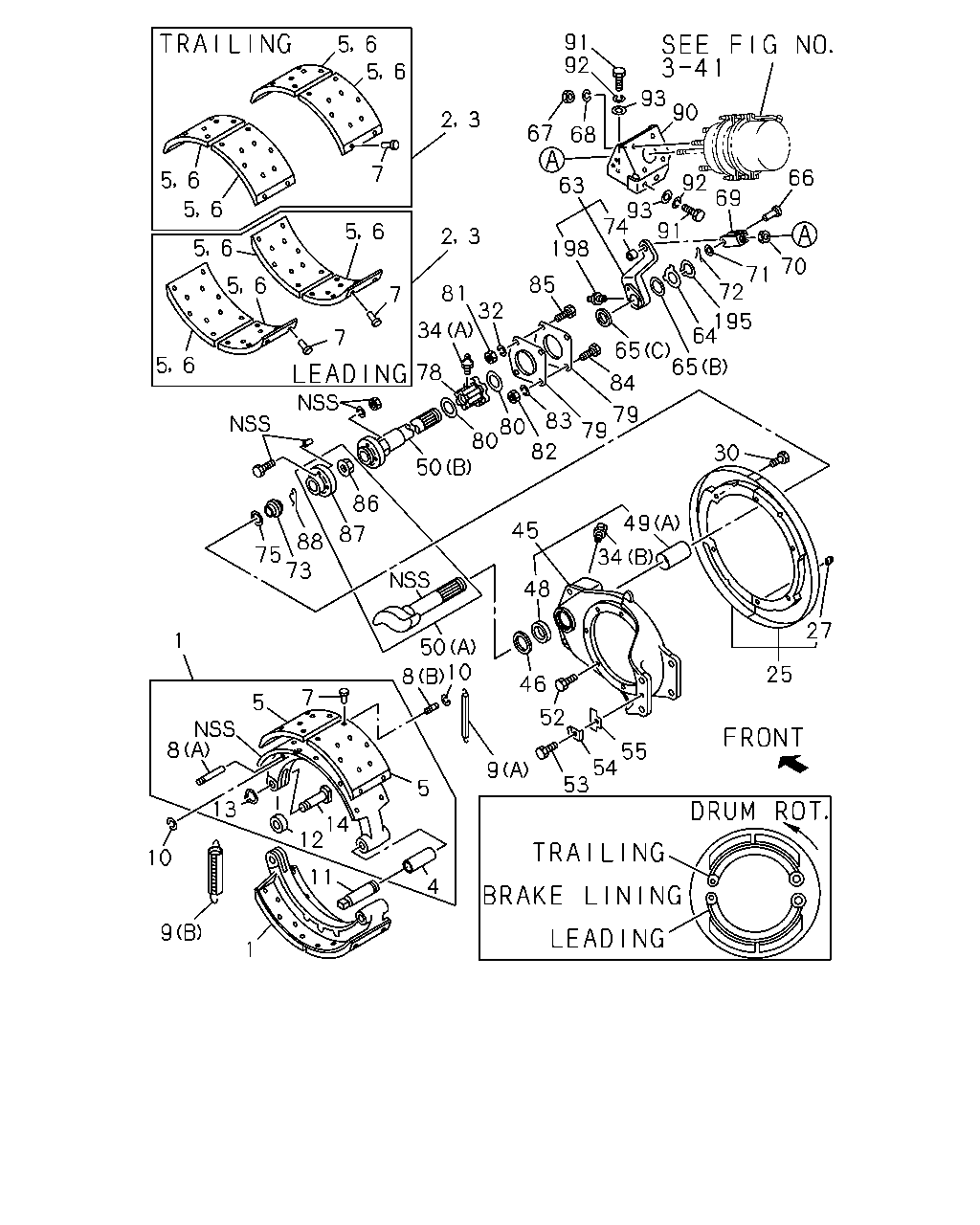

45 49 48 46 52 50 9 10 8 55 54 53 5 6 5 6 7 6 5 6 5 7 6 5 6 5 6 5 5 6 63 3 2 74 198 3 2 195 65 64 65 76 30 73 75 77 27 34 66 70 68 67 71 72 25 69 1 5 7 5 4 14 12 13 8 10 1 9 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR LEADING	1-47110-969-0	02	1	9002-9412	●	●
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-969-0	02	1	9501-	●	●
1	SHOE; BRK,RR TRAILING	1-47110-970-0	02	1	9002-9412	●	●
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-970-0	02	1	9501-	●	●
1	SHOE; BRK,RR LEADING	1-47110-967-0	02	1	9002-9412	●	●
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-967-0	02	1	9501-	●	●
1	SHOE; BRK,RR TRAILING	1-47110-968-0	02	1	9002-9412	●	●
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-968-0	02	1	9501-	●	●
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-117-0	02	1	9501-	●	●
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-118-0	02	1	9501-	●	●
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-115-0	02	1	9501-	●	●
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-116-0	02	1	9501-	●	●
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-929-0	02	1	9002-9412	●	●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-937-0	02	1	9002-9412	●	●
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-059-0	02	1	9501-	●	●
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-061-0	02	1	9501-	●	●
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-925-0	02	1	9501-	●	●
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-933-0	02	1	9501-	●	●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-930-0	02	1	9002-9412	●	●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-938-0	02	1	9002-9412	●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-060-0	02	1	9501-	●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-062-0	02	1	9501-	●	●
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-926-0	02	1	9501-	●	●
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-934-0	02	1	9501-	●	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	08	1	9002-	●	●
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47115-773-0	08	1	9002-9412	●	●
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-773-0	08	1	9501-	●	●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47115-817-0	08	1	9002-9412	●	●
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-817-0	08	1	9501-	●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-075-0	08	1	9501-	●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-081-0	08	1	9501-	●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-413-0	08	1	9501-	●	●
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47115-774-0	08	1	9002-9412	●	●
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-774-0	08	1	9501-	●	●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47115-818-0	08	1	9002-9412	●	●
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-818-0	08	1	9501-	●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-076-0	08	1	9501-	●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-082-0	08	1	9501-	●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-414-0	08	1	9501-	●	●
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	9002-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	08	1	9002-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	08	1	9002-	●	●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	04	1	9002-	●	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	04	1	9002-	●	●
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	16	1	9002-	●	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	08	1	9002-	●	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	08	1	9002-	●	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	08	1	9002-	●	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	9002-	●	●
25	COVER SET; RR BRK DRUM	1-47151-462-0	04	1	9002-9306	●	●
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	9307-	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-095-0	08	1	9002-9501	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	08	1	9502-	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	9-01901-016-0	24	1	9002-9204	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	24	1	9205-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	04	1	9002-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING F0RWARD	1-47137-120-2	02	1	9002-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING REARWARD	1-47137-128-1	02	1	9002-	●	●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	04	1	9002-	●	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	04	1	9002-	●	●
49	BUSHING; CM/SHF,RR BRK (B) F0RWARD	1-47146-003-1	02	1	9002-	●	●
49	BUSHING; CM/SHF,RR BRK (A) REARWARD	1-47146-009-0	02	1	9002-	●	●
50	CAMSHAFT; BRK,RR BRK (A) F0RWARD	1-47141-053-0	01	1	9002-	●	●
50	CAMSHAFT; BRK,RR BRK (B) REARWARD	1-47141-065-1	01	1	9002-	●	●
50	CAMSHAFT; BRK,RR BRK (A) REARWARD	1-47141-066-0	01	1	9002-	●	●
50	CAMSHAFT; BRK,RR BRK (A) F0RWARD	1-47141-054-0	01	1	9002-	●	●
50	CAMSHAFT; BRK,RR BRK (A) REARWARD	1-47141-063-0	01	1	9002-	●	●
52	BOLT; ANCHOR BRKT M14X43	1-09040-045-0	01	1	9002-	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	03	1	9002-9412	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9501-	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	01	1	9501-	●	●
53	BOLT; LOCK PLATE M10X16	9-02041-016-0	04	1	9002-9204	●	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	04	1	9205-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-007-0	04	1	9002-9109	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	04	1	9110-	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	04	1	9002-	●	●
63	ADJUSTER ASM; SLACK,RR BRK F0RWARD	1-48270-045-0	01	1	9002-	●	●
63	ADJUSTER ASM; SLACK,RR BRK REARWARD	1-48270-050-1	01	1	9002-	●	●
63	ADJUSTER ASM; SLACK,RR BRK F0RWARD	1-48270-046-0	01	1	9002-	●	●
63	ADJUSTER ASM; SLACK,RR BRK REARWARD	1-48270-051-0	01	1	9002-	●	●
64	PLATE; STOPPER,CM/SHF F0RWARD	1-47149-022-0	02	1	9002-	●	●
64	PLATE; STOPPER,CM/SHF REARWARD	1-47149-040-0	02	1	9002-	●	●
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	04	1	9002-	●	●
65	SPACER; SLACK ADJ,BRK (C) REARWARD	1-47143-007-0	02	1	9002-	●	●
65	SPACER; SLACK ADJ,BRK (A) FORWARD	9-09180-038-0	01	1	9002-	●	●
66	PIN; JAW JOINT	1-09744-088-0	04	1	9002-	●	●
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	16	1	9002-	●	●
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	16	1	9002-	●	●
69	JOINT; JAW	1-09768-060-0	04	1	9002-	●	●
70	NUT; LK,JAW JOINT M16	9-99111-416-0	04	1	9002-	●	●
71	WASHER; PL,JAW JOINT ID=17	9-09160-516-0	04	1	9002-9401	●	●
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	04	1	9402-	●	●
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	04	1	9002-	●	●
73	COLLAR; FELT RING,CM/SHF F0RWARD	1-47143-003-0	02	1	9002-	●	●
73	COLLAR; FELT RING,CM/SHF REARWARD	1-47143-006-0	02	1	9002-	●	●
74	BUSHING; SLACK ADJ	1-09330-041-0	04	1	9002-	●	●
75	RING; FELT,CM/SHF	1-09620-009-0	04	1	9002-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING F0RWARD	1-48258-083-0	01	1	9002-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING F0RWARD	1-48258-084-0	01	1	9002-	●	●
77	BUSHING	1-47146-003-1	02	1	9002-	●	●
195	RING; SNAP,CM/SHF	9-09180-038-0	03	1	9002-9412	●	●
195	RING; SNAP,CM/SHF	9-09180-038-0	02	1	9501-	●	●
195	RING; SNAP,CM/SHF	9-09180-038-0	01	1	9501-	●	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	04	1	9002-	●	●

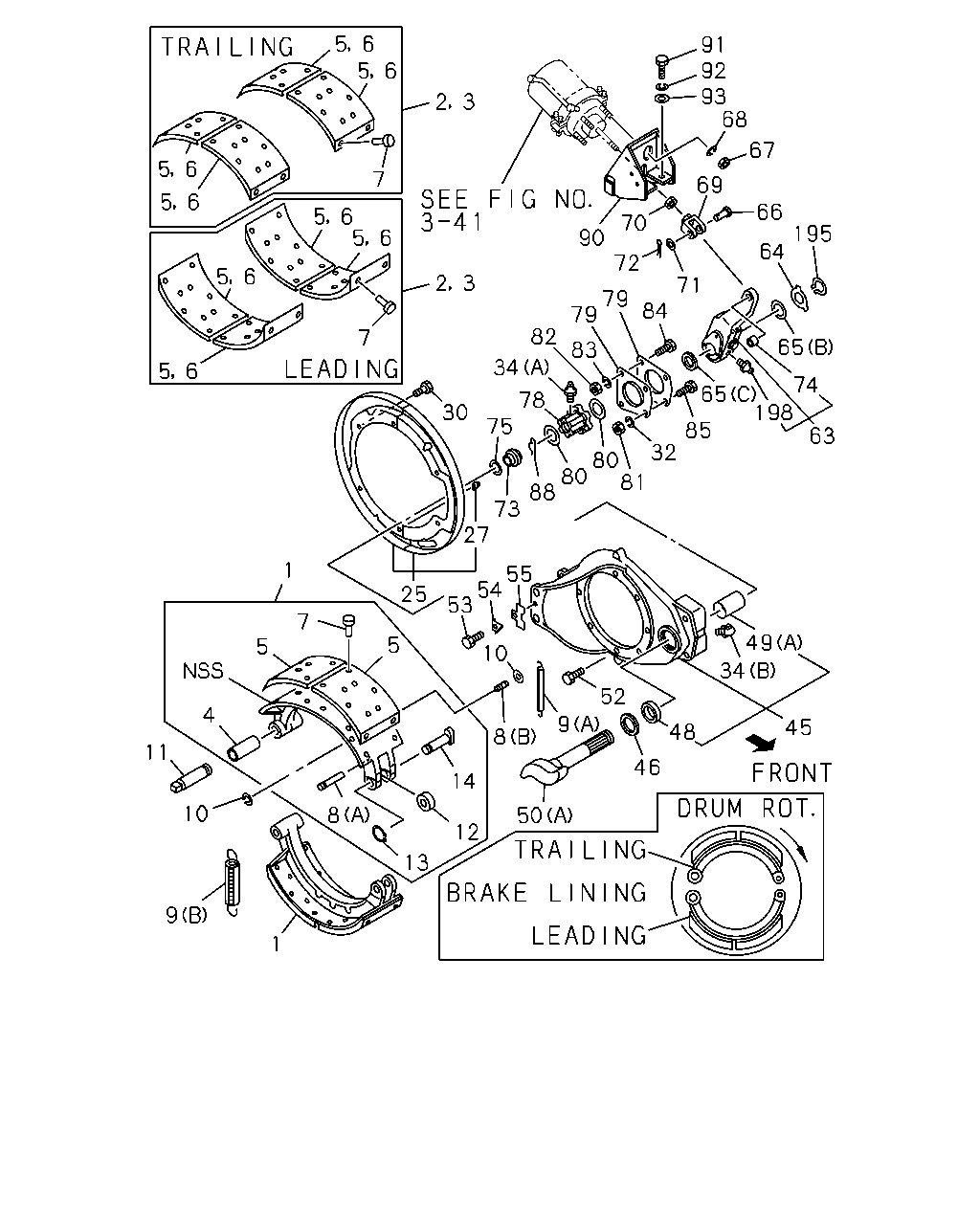

45 49 34 48 46 50 52 9 8 10 55 54 53 25 27 73 88 80 80 81 32 85 65 74 63 198 65 64 195 66 67 68 93 92 91 69 70 90 84 79 72 71 79 82 83 34 75 78 30 3 2 7 6 5 6 5 7 3 2 6 5 6 5 6 5 5 6 5 6 6 5 1 5 5 7 14 12 13 8 4 11 10 9 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR LEADING	1-47110-969-0	02	1	9002-9412	●	●
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-969-0	02	1	9501-	●	●
1	SHOE; BRK,RR TRAILING	1-47110-970-0	02	1	9002-9412	●	●
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-970-0	02	1	9501-	●	●
1	SHOE; BRK,RR LEADING	1-47110-967-0	02	1	9002-9412	●	●
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-967-0	02	1	9501-	●	●
1	SHOE; BRK,RR TRAILING	1-47110-968-0	02	1	9002-9412	●	●
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-968-0	02	1	9501-	●	●
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-117-0	02	1	9501-	●	●
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-118-0	02	1	9501-	●	●
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-115-0	02	1	9501-	●	●
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-116-0	02	1	9501-	●	●
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-929-0	02	1	9002-9412	●	●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-937-0	02	1	9002-9412	●	●
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-059-0	02	1	9501-	●	●
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-061-0	02	1	9501-	●	●
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-925-0	02	1	9501-	●	●
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-933-0	02	1	9501-	●	●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-930-0	02	1	9002-9412	●	●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-938-0	02	1	9002-9412	●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-060-0	02	1	9501-	●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-062-0	02	1	9501-	●	●
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-926-0	02	1	9501-	●	●
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-934-0	02	1	9501-	●	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	08	1	9002-	●	●
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47115-773-0	08	1	9002-9412	●	●
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-773-0	08	1	9501-	●	●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47115-817-0	08	1	9002-9412	●	●
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-817-0	08	1	9501-	●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-075-0	08	1	9501-	●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-081-0	08	1	9501-	●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-413-0	08	1	9501-	●	●
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47115-774-0	08	1	9002-9412	●	●
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-774-0	08	1	9501-	●	●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47115-818-0	08	1	9002-9412	●	●
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-818-0	08	1	9501-	●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-076-0	08	1	9501-	●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-082-0	08	1	9501-	●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-414-0	08	1	9501-	●	●
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	9002-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	08	1	9002-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	08	1	9002-	●	●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	04	1	9002-	●	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	04	1	9002-	●	●
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	16	1	9002-	●	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	08	1	9002-	●	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	08	1	9002-	●	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	08	1	9002-	●	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	9002-	●	●
25	COVER SET; RR BRK DRUM	1-47151-462-0	04	1	9002-9306	●	●
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	9307-	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-095-0	08	1	9002-9501	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	08	1	9502-	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	9-01901-016-0	24	1	9002-9204	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	24	1	9205-	●	●
32	WASHER; LK ID=10.2	9-09150-510-0	04	1	9002-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	04	1	9002-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING F0RWARD	1-47137-120-2	02	1	9002-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING REARWARD	1-47137-128-1	02	1	9002-	●	●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	04	1	9002-	●	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	04	1	9002-	●	●
49	BUSHING; CM/SHF,RR BRK (B) F0RWARD	1-47146-003-1	02	1	9002-	●	●
49	BUSHING; CM/SHF,RR BRK (A) REARWARD	1-47146-009-0	02	1	9002-	●	●
50	CAMSHAFT; BRK,RR BRK (A) F0RWARD	1-47141-053-0	01	1	9002-	●	●
50	CAMSHAFT; BRK,RR BRK (B) REARWARD	1-47141-065-1	01	1	9002-	●	●
50	CAMSHAFT; BRK,RR BRK (A) REARWARD	1-47141-066-0	01	1	9002-	●	●
50	CAMSHAFT; BRK,RR BRK (A) F0RWARD	1-47141-054-0	01	1	9002-	●	●
50	CAMSHAFT; BRK,RR BRK (A) REARWARD	1-47141-063-0	01	1	9002-	●	●
52	BOLT; ANCHOR BRKT M14X43	1-09040-045-0	01	1	9002-	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	03	1	9002-9412	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9501-	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	01	1	9501-	●	●
53	BOLT; LOCK PLATE M10X16	9-02041-016-0	04	1	9002-9204	●	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	04	1	9205-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-007-0	04	1	9002-9109	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	04	1	9110-	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	04	1	9002-	●	●
63	ADJUSTER ASM; SLACK,RR BRK F0RWARD	1-48270-045-0	01	1	9002-	●	●
63	ADJUSTER ASM; SLACK,RR BRK REARWARD	1-48270-050-1	01	1	9002-	●	●
63	ADJUSTER ASM; SLACK,RR BRK F0RWARD	1-48270-046-0	01	1	9002-	●	●
63	ADJUSTER ASM; SLACK,RR BRK REARWARD	1-48270-051-0	01	1	9002-	●	●
64	PLATE; STOPPER,CM/SHF F0RWARD	1-47149-022-0	02	1	9002-	●	●
64	PLATE; STOPPER,CM/SHF REARWARD	1-47149-040-0	02	1	9002-	●	●
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	04	1	9002-	●	●
65	SPACER; SLACK ADJ,BRK (C) REARWARD	1-47143-007-0	02	1	9002-	●	●
65	SPACER; SLACK ADJ,BRK (A) FORWARD	9-09180-038-0	01	1	9002-	●	●
66	PIN; JAW JOINT	1-09744-088-0	04	1	9002-	●	●
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	16	1	9002-	●	●
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	16	1	9002-	●	●
69	JOINT; JAW	1-09768-060-0	04	1	9002-	●	●
70	NUT; LK,JAW JOINT M16	9-99111-416-0	04	1	9002-	●	●
71	WASHER; PL,JAW JOINT ID=17	9-09160-516-0	04	1	9002-9401	●	●
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	04	1	9402-	●	●
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	04	1	9002-	●	●
73	COLLAR; FELT RING,CM/SHF F0RWARD	1-47143-003-0	02	1	9002-	●	●
73	COLLAR; FELT RING,CM/SHF REARWARD	1-47143-006-0	02	1	9002-	●	●
74	BUSHING; SLACK ADJ	1-09330-041-0	04	1	9002-	●	●
75	RING; FELT,CM/SHF	1-09620-009-0	04	1	9002-	●	●
78	BUSHING; BRKT	1-47146-008-0	02	1	9002-	●	●
79	BRACKET; CM/SHF	9-47145-013-0	04	1	9002-	●	●
80	GASKET; BUSHING ID=39.7	9-09561-340-0	04	1	9002-	●	●
81	NUT M10	9-09110-410-0	04	1	9002-	●	●
82	NUT M16	9-99110-516-0	04	1	9002-	●	●
83	WASHER; PL ID=16.2	9-09851-672-2	08	1	9002-	●	●
84	BOLT; BRKT TO CASE M16X40	9-92061-640-0	04	1	9002-	●	●
85	BOLT; CM/SHF BRKT M10X20	9-02041-020-0	04	1	9002-9204	●	●
85	BOLT; CM/SHF BRKT M10X20	0-20801-020-0	04	1	9205-	●	●
88	CLIP; BRKT	1-09589-014-0	02	1	9002-9403	●	●
88	CLIP; BRKT	1-09589-018-0	02	1	9404-	●	●
90	BRACKET; CHAMBER	1-42129-046-3	01	1	9002-	●	●
90	BRACKET; CHAMBER	1-42129-045-3	01	1	9002-	●	●
91	BOLT; CHAMBER M16X35	9-92351-635-0	08	1	9002-9005	●	●
91	BOLT; CHAMBER M16X35	0-23801-635-0	08	1	9006-	●	●
92	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	9002-	●	●
93	WASHER; PL,CHAMBER ID=17 OD=32	9-09160-616-0	08	1	9002-	●	●
195	RING; SNAP,CM/SHF	9-09180-038-0	03	1	9002-9412	●	●
195	RING; SNAP,CM/SHF	9-09180-038-0	02	1	9501-	●	●
195	RING; SNAP,CM/SHF	9-09180-038-0	01	1	9501-	●	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	04	1	9002-	●	●

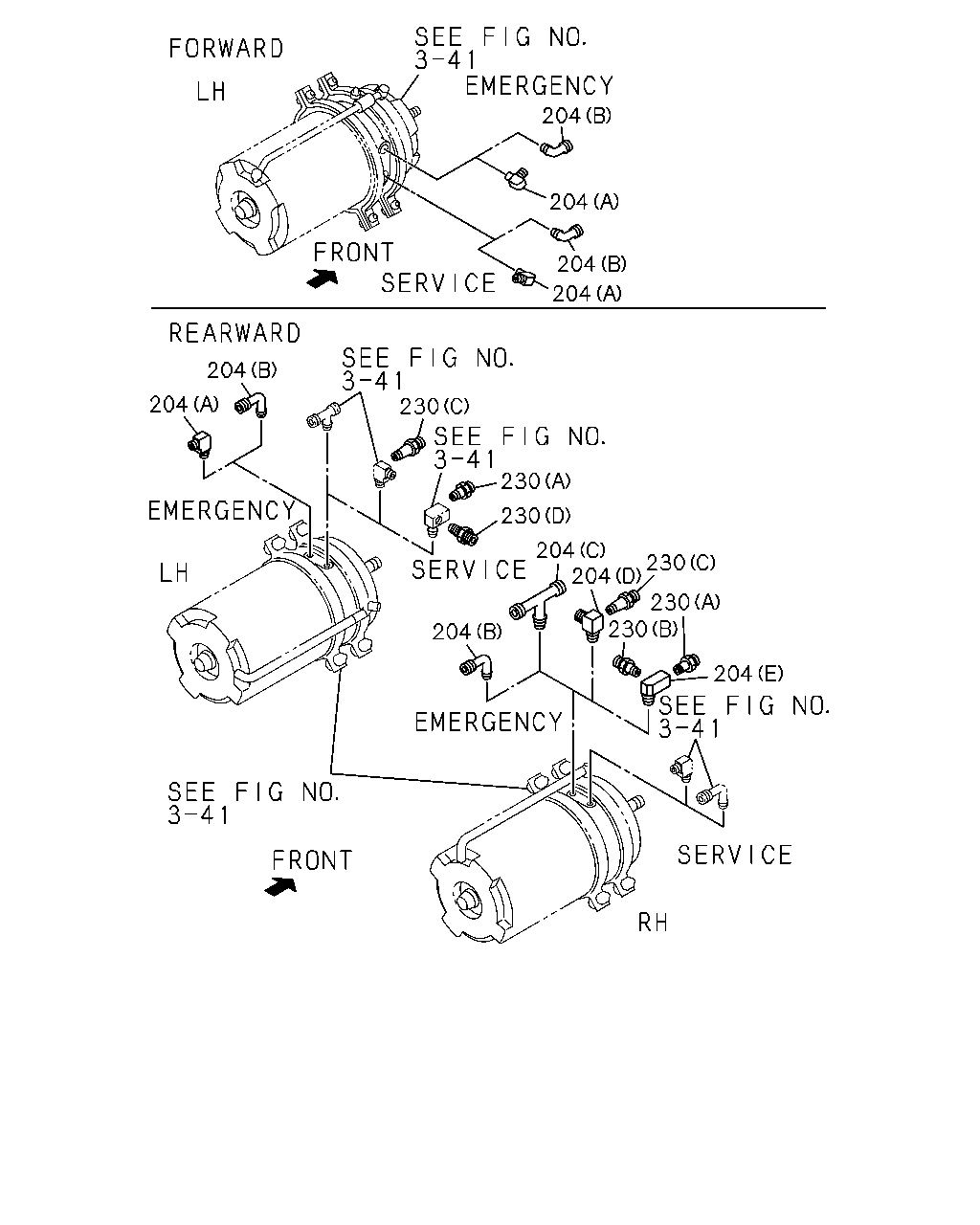

204 230 230 230 204 204 230 230 230 204 204 204 204 204 204 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
204	CONNECTOR; SPR CHAMBER (B) FORWARD SERVICE	1-09660-570-0	01	1	9307-	●	●
204	CONNECTOR; SPR CHAMBER (B) FORWARD EMERGENCY	1-09660-574-0	01	1	9307-	●	●
204	CONNECTOR; SPR CHAMBER (B) REARWARD EMERGENCY	1-09660-570-0	01	1	9307-9412	●	●
204	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (B) REARWARD EMERGENCY	1-09660-570-0	01	1	9307-9412		●
204	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (B) REARWARD EMERGENCY	1-09660-570-0	02	1	9501-		●
204	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (B) FORWARD EMERGENCY M14 & PT3/8 ELBOW	1-09660-234-0	01	1	9002-9306	●	●
204	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (B) FORWARD SERVICE M18 & PT3/8 ELBOW	1-09660-235-0	01	1	9002-9306	●	●
204	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (C) REARWARD EMERGENCY	1-09660-248-0	01	1	9002-9306	●	●
204	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (A) REARWARD EMERGENCY	1-47815-006-0	01	1	9002-9306	●	●
204	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (A) FORWARD	1-47815-006-1	02	1	9002-9306	●	●
204	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (D) REARWARD EMERGENCY M16 PT3/8X2 3WAY	1-09656-418-1	01	1	9002-9306	●	●
204	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (E) REARWARD EMERGENCY	1-09660-697-1	01	1	9307-	●	●
230	NIPPLE; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-09660-178-0	02	1	9002-9306	●	●
230	NIPPLE; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9307-	●	●
230	NIPPLE; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (D)	1-09660-572-0	01	1	9307-	●	●
230	NIPPLE; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-09660-569-0	01	1	9307-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
