◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11028 - FSR(RHD) EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#28277) — 221 parça

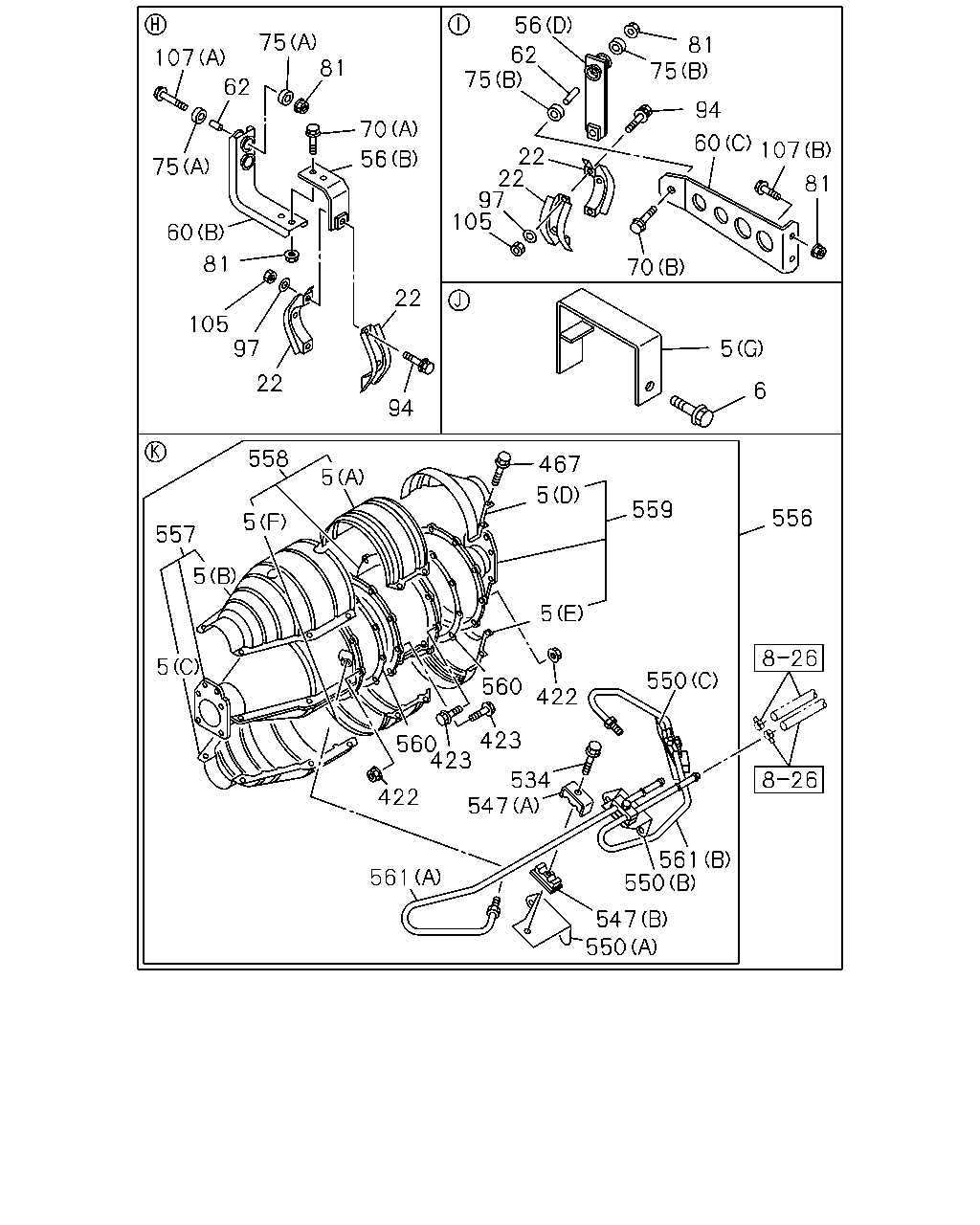

çizim 24604
56 75 81 81 75 62 75 107 62 94 70 60 107 22 22 97 105 56 75 81 60 81 70 22 105 97 5 22 6 94 558 467 5 5 559 556 5 557 5 5 5 550 560 422 560 423 423 534 547 422 561 550 561 547 550
BalonParca AdiParca NoAdetTipApplied Date
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 0609-
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0609-
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0609-
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0609-
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0609-
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0609-
5 PROTECTOR; HEAT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) 		1-33659-250-0 01 1 0609-
6 BOLT; HEAT PROTECTOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 01 1 0609-
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0609-0609
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0609-0609
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0609-
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0609-
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0609-
56 BRACKET; CLAMP,EXH PIPE
(E) L=94 		1-22131-575-0 01 1 0609-
56 BRACKET; CLAMP,EXH PIPE
(D) L=174 		1-22131-517-1 01 1 0609-
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22139-283-0 01 1 0609-1301
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98234-332-0 01 1 1302-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-278-0 01 1 0609-
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22139-279-0 01 1 0609-
60 BRACKET; FRAME TO BRKT
(D) 		8-98059-536-0 01 1 0609-
60 BRACKET; FRAME TO BRKT
(C) 		1-22134-279-0 01 1 0609-
60 BRACKET; FRAME TO BRKT
(B) 		1-22152-053-0 01 1 0609-1301
60 BRACKET; FRAME TO BRKT
(B) 		8-98234-331-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-065-0 02 1 0609-
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 0609-
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 02 1 0609-1301
62 TUBE; DIST,BRKT
L=25 		1-14234-083-0 02 1 1302-
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 04 1 0609-
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 01 1 0609-
70 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0609-
70 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0609-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 02 1 0609-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 04 1 0609-
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-193-0 02 1 0609-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 08 1 0609-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0609-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0609-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0609-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0609-
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1302-
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0609-0609
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0609-0609
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0609-0805
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0609-0805
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0609-0805
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806-1301
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806-1301
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806-1301
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 1302-
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 1302-
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0609-0609
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0609-0609
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0609-1301
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0609-1301
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0609-1301
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 1302-
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 1302-
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1302-
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0609-0609
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0609-0609
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0609-1301
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0609-1301
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0609-1301
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 1302-
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 1302-
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0609-
107 BOLT; BRKT
(A) M10X60 FLANGE 		0-28051-060-0 02 1 0609-
422 NUT; PIPE
M8 FLANGE 		0-91180-208-0 20 1 0609-0702
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 0703-
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 0609-
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0609-
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0609-
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 0609-
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 0609-
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 0609-
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 0609-
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 0609-
556 DPD ASM 8-97613-331-6 01 1 0609-1010
556 DPD ASM 8-97622-883-3 01 1 1011-
557 CATALYST ASM 8-97608-055-7 01 1 0609-
558 FILTER ASM 8-97608-057-3 01 1 0609-
559 COVER; RR 8-97611-078-0 01 1 0609-1010
559 COVER; RR 8-97622-887-0 01 1 1011-
560 GASKET; DPD 8-97611-080-0 02 1 0609-
561 PIPE; DPD
(A) 		8-97611-081-0 01 1 0609-1010
561 PIPE; DPD
(A) 		8-97622-888-0 01 1 1011-
561 PIPE; DPD
(B) 		8-97611-082-0 01 1 0609-1010
561 PIPE; DPD
(B) 		8-97622-889-0 01 1 1011-

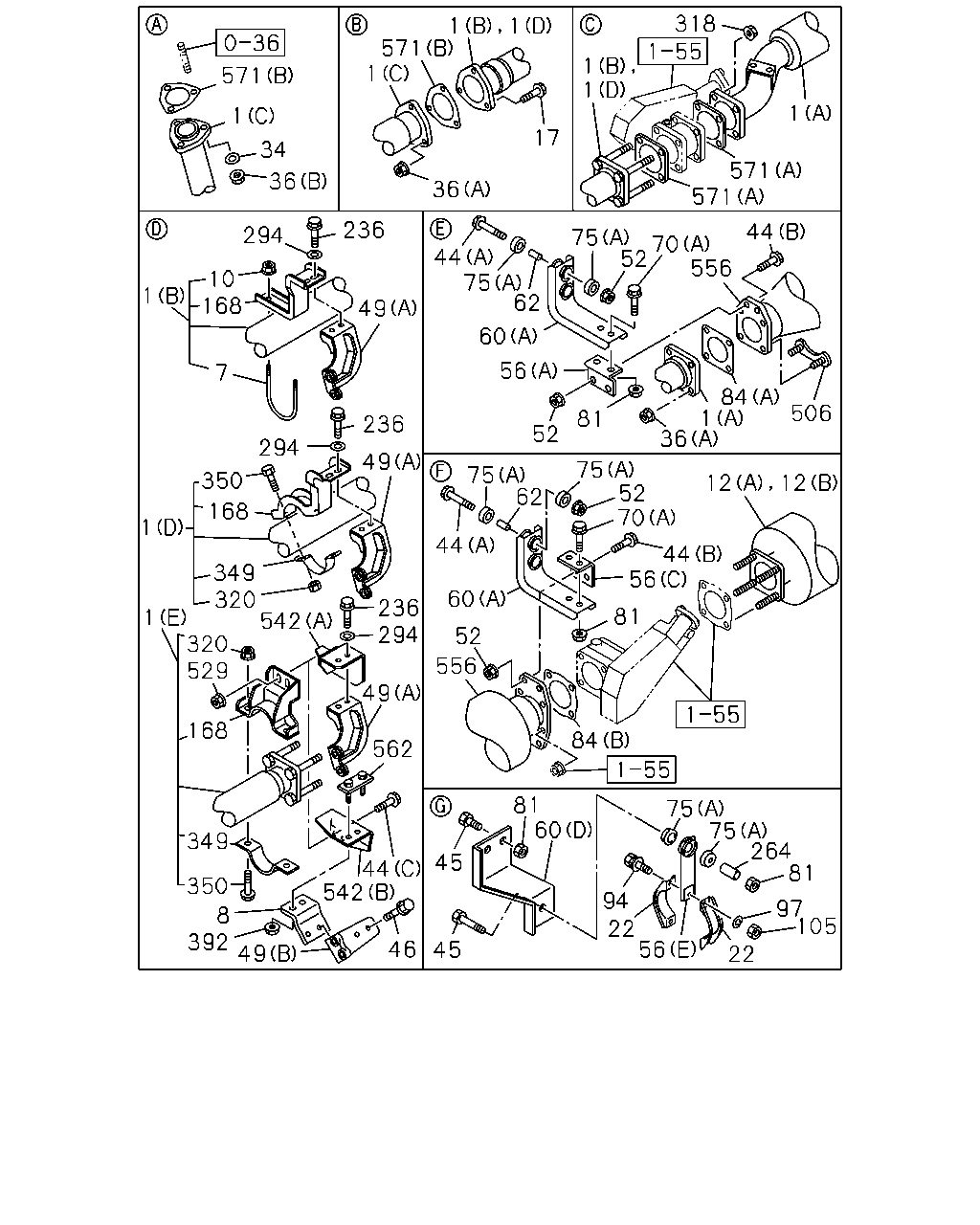

çizim 26365
392 49 8 350 349 168 529 320 1 320 349 1 168 350 7 1 168 10 294 236 36 34 1 571 49 236 49 236 542 294 49 562 44 542 46 45 45 60 81 556 52 60 44 75 62 75 52 70 44 56 81 84 94 22 56 22 105 97 81 264 75 75 12 12 52 81 56 60 62 75 44 75 52 70 556 44 506 84 1 36 571 571 1 318 1 1 17 1 1 571 1 36 294
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(C) 		8-98050-133-2 01 1 0609-1304
1 PIPE; EXH
(C) 		8-98234-509-1 01 1 1305-
1 PIPE; EXH
(B) 		8-98050-135-0 01 1 0609-0609
1 PIPE; EXH
(D) 		8-98058-339-0 01 1 0609-0609
1 PIPE; EXH
(D) 		8-98063-856-0 01 1 0610-0712
1 PIPE; EXH
(E) 		8-98079-292-0 01 1 0801-1304
1 PIPE; EXH
(E) 		8-98234-512-0 01 1 1305-
1 PIPE; EXH
(A) 		8-98050-529-0 01 1 0609-0609
1 PIPE; EXH
(A) 		8-98058-343-0 01 1 0609-
7 U-BOLT; EXH PIPE,FRT 1-22113-009-0 01 1 0609-0609
8 BRACKET; EXH PIPE 8-98233-345-0 01 1 1305-1310
8 BRACKET; EXH PIPE 8-98259-873-0 01 1 1311-
10 NUT; U BOLT
M8 FLANGE 		0-91180-108-0 02 1 0609-0609
12 SILENCER ASM; EXH
(A) 		8-98041-925-1 01 1 0609-1301
12 SILENCER ASM; EXH
(B) 		8-98234-507-0 01 1 1302-
17 BOLT; EXH PIPE
M12X40 FLANGE 		0-28051-240-0 03 1 0609-
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0609-0609
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0609-0609
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0609-
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0609-
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0609-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0609-
36 NUT; EXH PIPE
(A) M12 FLANGE 		0-91180-212-0 07 1 0609-
36 NUT; EXH PIPE
(B) M12 		1-09400-010-0 03 1 0609-
44 BOLT; BRKT
(C) M10X30 FLANGE 		0-28051-030-0 02 1 1305-
44 BOLT; BRKT
(A) M10X60 FLANGE 		0-28051-060-0 04 1 0609-
44 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 04 1 0609-0610
44 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0611-
45 BOLT; BRKT
M10X50 		0-10856-050-0 01 1 0609-
45 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0609-
46 BOLT; BRKT,EXH PIPE
M10X25 FLANGE 		0-28051-025-0 02 1 1305-
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-98049-830-0 01 1 0609-0609
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-98058-347-0 01 1 0609-0712
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-98079-288-0 01 1 0801-1304
49 BRACKET; EXH PIPE TO TRANS
(B) 		8-98113-008-0 01 1 1305-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0609-0609
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 11 1 0609-
56 BRACKET; CLAMP,EXH PIPE
(E) L=94 		1-22131-575-0 01 1 0609-
56 BRACKET; CLAMP,EXH PIPE
(D) L=174 		1-22131-517-1 01 1 0609-
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22139-283-0 01 1 0609-1301
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98234-332-0 01 1 1302-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-278-0 01 1 0609-
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22139-279-0 01 1 0609-
60 BRACKET; FRAME TO BRKT
(D) 		8-98059-536-0 01 1 0609-
60 BRACKET; FRAME TO BRKT
(C) 		1-22134-279-0 01 1 0609-
60 BRACKET; FRAME TO BRKT
(B) 		1-22152-053-0 01 1 0609-1301
60 BRACKET; FRAME TO BRKT
(B) 		8-98234-331-0 01 1 1302-
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-065-0 02 1 0609-
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 0609-
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 02 1 0609-1301
62 TUBE; DIST,BRKT
L=25 		1-14234-083-0 02 1 1302-
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 04 1 0609-
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 01 1 0609-
70 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0609-
70 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0609-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 02 1 0609-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 04 1 0609-
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-193-0 02 1 0609-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 08 1 0609-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0609-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0609-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0609-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0609-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0609-
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0609-
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1302-
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0609-0609
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0609-0609
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0609-0805
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0609-0805
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0609-0805
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806-1301
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806-1301
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806-1301
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 1302-
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 1302-
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0609-0609
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0609-0609
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0609-1301
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0609-1301
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0609-1301
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 1302-
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 1302-
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1302-
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0609-0609
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0609-0609
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0609-1301
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0609-1301
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0609-1301
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 1302-
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 1302-
168 BRACKET; EXH PIPE,FRT 8-98049-833-0 01 1 0609-0609
168 BRACKET; EXH PIPE,FRT 8-98058-349-0 01 1 0609-0609
168 BRACKET; EXH PIPE,FRT 8-98063-858-0 01 1 0610-0712
168 BRACKET; EXH PIPE,FRT 8-98079-294-0 01 1 0801-
236 BOLT; PIPE CLAMP TO BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0609-0712
236 BOLT; PIPE CLAMP TO BRKT
M10X35 FLANGE 		0-28051-035-0 02 1 0801-1304
264 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 01 1 0609-
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 02 1 0609-0712
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 0801-
318 NUT; EXH PIPE,FRT
M10 		0-91110-510-0 04 1 0609-0712
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 0801-
320 NUT; CLAMP,EXH PIPE
M10 FLANGE 		0-91180-210-0 02 1 0609-
349 CLAMP; EXH PIPE 8-98058-351-0 01 1 0609-1304
349 CLAMP; EXH PIPE 8-98115-162-0 01 1 1305-
350 BOLT; CLAMP,EXH PIPE
M10X30 FLANGE 		0-28651-030-0 02 1 0609-
392 NUT; CLAMP BRKT
M10 FLANGE 		0-91180-210-0 02 1 1305-
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 0609-
529 NUT; BRKT,EXH PIPE
M10 FLANGE 		0-91180-210-0 02 1 0801-
542 BRACKET
(A) 		8-98079-290-0 01 1 0801-1304
542 BRACKET
(B) 		8-98234-524-0 01 1 1305-
556 DPD ASM 8-97613-331-6 01 1 0609-1010
556 DPD ASM 8-97622-883-3 01 1 1011-
562 PLATE; STUD,BOLT 8-98233-625-0 01 1 1305-1311
562 PLATE; STUD,BOLT 8-98259-983-0 01 1 1312-
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 0609-
571 GASKET
(B) 		8-98043-481-0 02 1 0609-

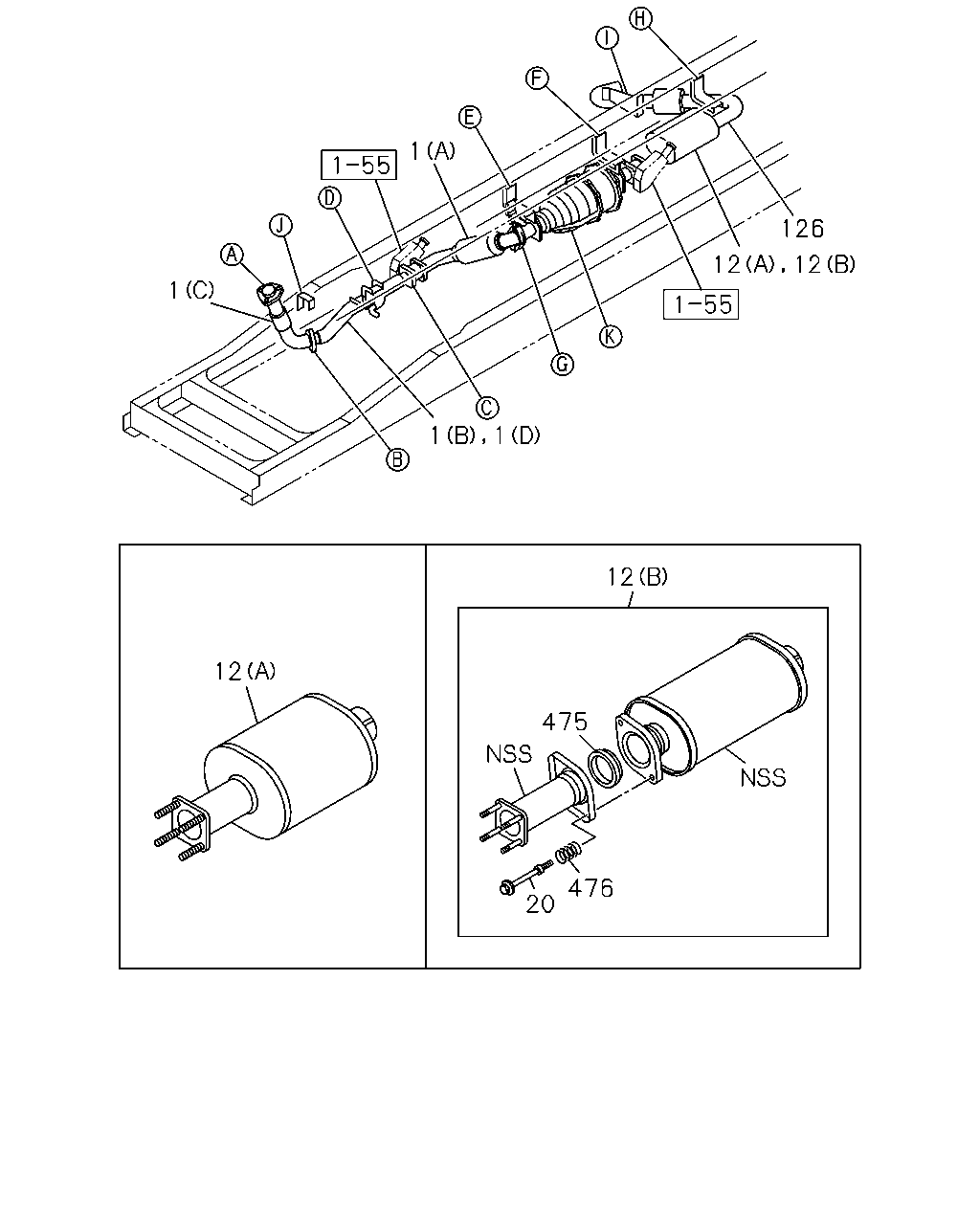

çizim 84369
20 12 476 475 12 1 1 12 12 126 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(C) 		8-98050-133-2 01 1 0609-1304
1 PIPE; EXH
(C) 		8-98234-509-1 01 1 1305-
1 PIPE; EXH
(B) 		8-98050-135-0 01 1 0609-0609
1 PIPE; EXH
(D) 		8-98058-339-0 01 1 0609-0609
1 PIPE; EXH
(D) 		8-98063-856-0 01 1 0610-0712
1 PIPE; EXH
(E) 		8-98079-292-0 01 1 0801-1304
1 PIPE; EXH
(E) 		8-98234-512-0 01 1 1305-
1 PIPE; EXH
(A) 		8-98050-529-0 01 1 0609-0609
1 PIPE; EXH
(A) 		8-98058-343-0 01 1 0609-
12 SILENCER ASM; EXH
(A) 		8-98041-925-1 01 1 0609-1301
12 SILENCER ASM; EXH
(B) 		8-98234-507-0 01 1 1302-
20 BOLT; FLANGE,EXH PIPE 8-98233-481-0 02 1 1302-
126 PIPE; EXH,RR 8-98043-365-2 01 1 0609-1301
126 PIPE; EXH,RR 8-98233-516-0 01 1 1302-
475 BEARING; SEAL,VIBNON,EXH PIPE 8-98233-479-0 01 1 1302-
476 SPRING; VIBNON,EXH PIPE 8-98233-482-0 02 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
