1-30 — AIR CLEANER (#28271) — 19 parça

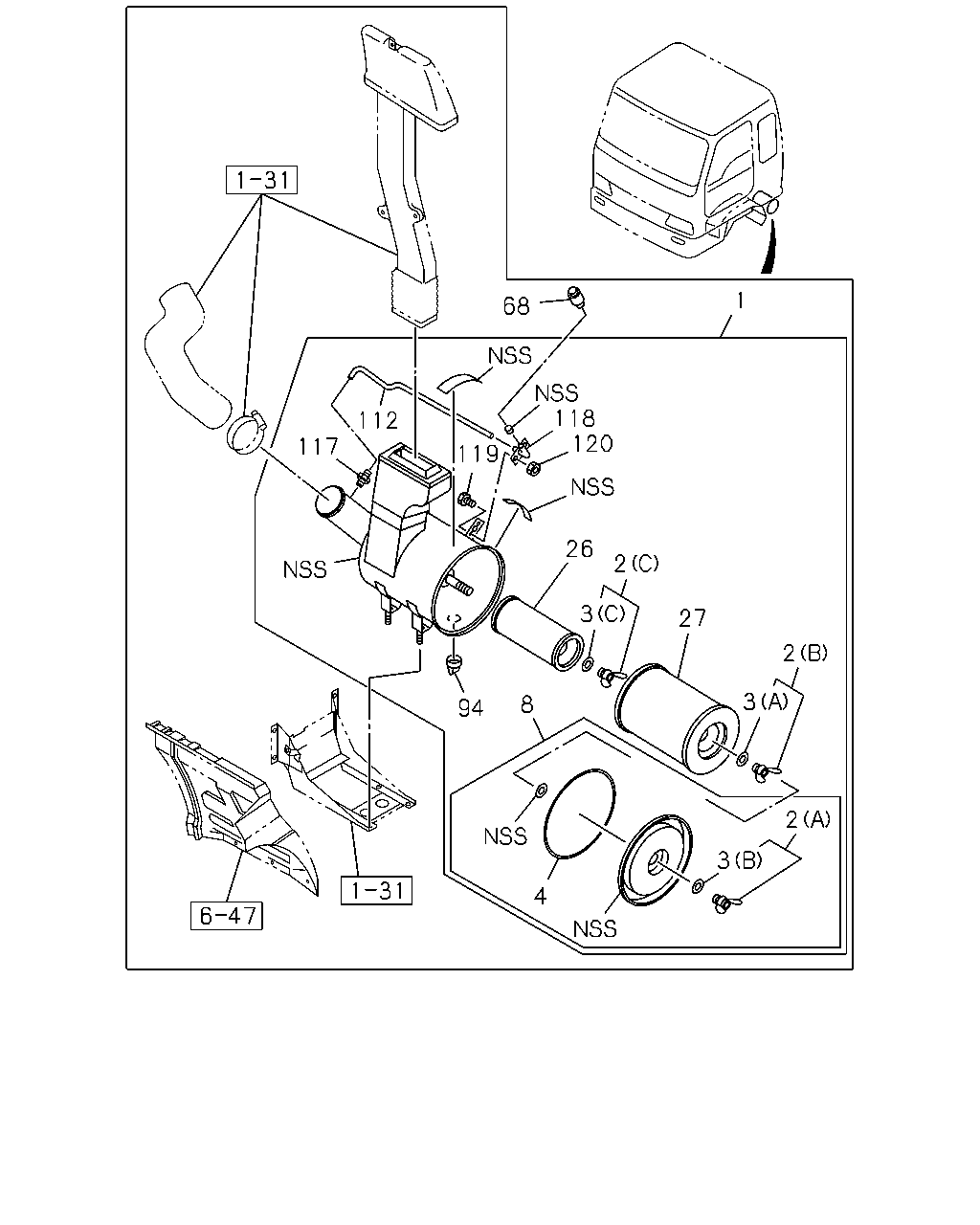

çizim 87272
1 68 118 120 112 117 119 26 2 3 27 2 3 8 94 2 3 4
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR 1-14210-835-2 01 1 0609-
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0609-
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0609-
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0609-
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0609-
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0609-
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0609-
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 0609-
8 COVER ASM; ACL 1-14212-053-0 01 1 0609-
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0609-
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-058-0 01 1 0609-
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0609-
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0609-
94 VALVE; VACUATOR 1-14219-279-0 01 1 0609-
112 HOSE; INDICATOR 1-14219-269-0 01 1 0609-
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0609-
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0609-
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0609-
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0609-
