3-01 — FRONT WHEEL BRAKE (#2827) — 77 parça

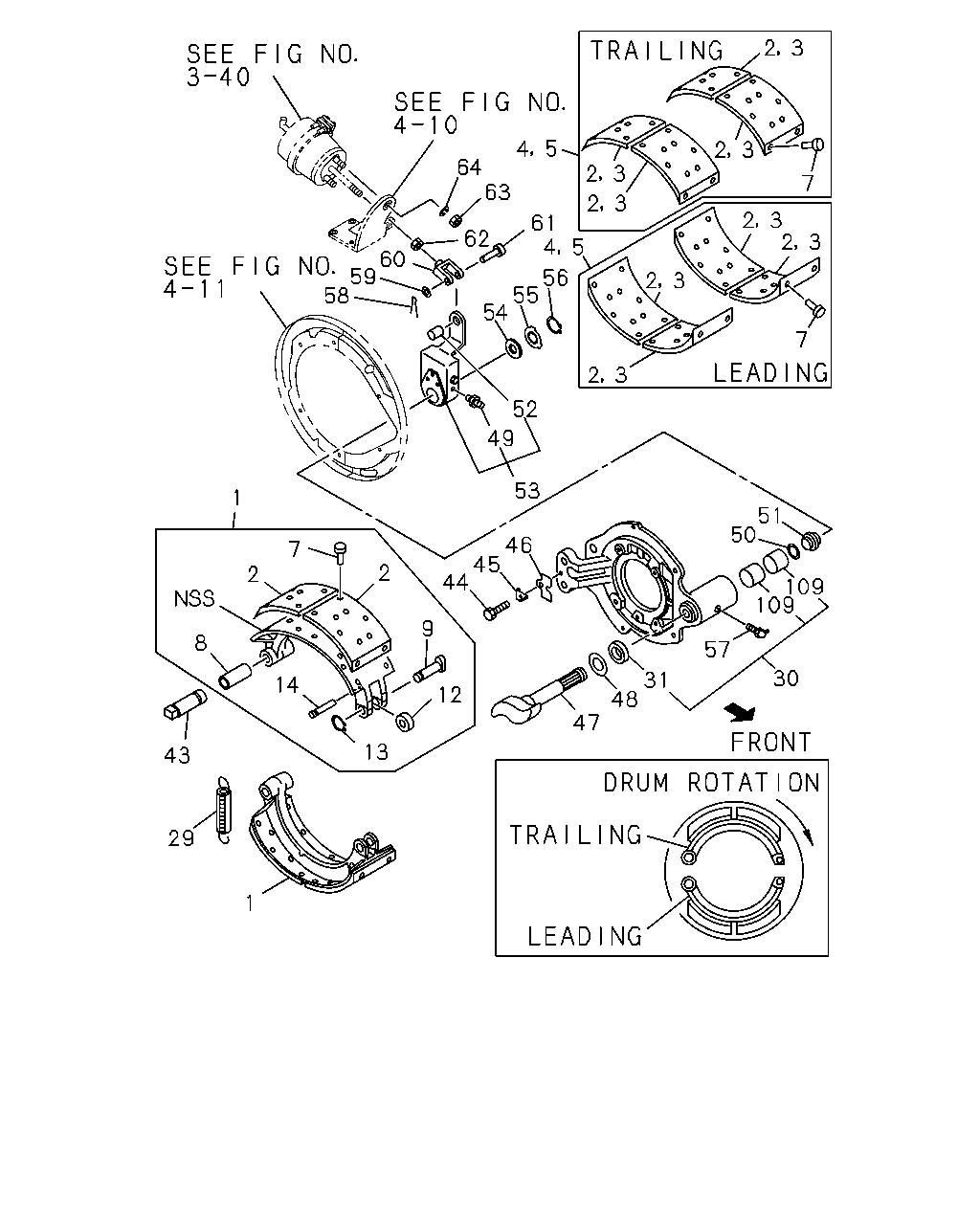

çizim 27194
30 109 51 109 50 57 31 48 47 13 9 12 44 45 46 53 49 52 2 3 2 3 7 3 2 3 2 7 3 2 3 2 2 3 2 3 4 5 64 62 63 4 5 61 56 55 54 60 59 58 1 2 7 2 8 14 43 29 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT
LEADING 		1-47110-965-0 01 1 9002-9412 ● ●
1 SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47110-965-0 01 1 9501- ● ●
1 SHOE; BRK,FRT
TRAILING 		1-47110-966-0 01 1 9002-9412 ● ●
1 SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47110-966-0 01 1 9501- ● ●
1 SHOE; BRK,FRT
LEADING 		1-47110-963-0 01 1 9002-9412 ● ●
1 SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47110-963-0 01 1 9501- ● ●
1 SHOE; BRK,FRT
TRAILING 		1-47110-964-0 01 1 9002-9412 ● ●
1 SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47110-964-0 01 1 9501- ● ●
1 SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47120-113-0 01 1 9501- ● ●
1 SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47120-114-0 01 1 9501- ● ●
1 SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47120-111-0 01 1 9501- ● ●
1 SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47120-112-0 01 1 9501- ● ●
2 LINING; FRT BRK SHOE,STANDARD
LEADING 		1-47115-771-0 04 1 9002-9412 ● ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47115-771-0 04 1 9501- ● ●
2 LINING; FRT BRK SHOE,STANDARD
TRAILING 		1-47115-814-0 04 1 9002-9412 ● ●
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47115-814-0 04 1 9501- ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47115-955-0 04 1 9501- ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47115-961-0 04 1 9501- ● ●
2 LINING; FRT BRK SHOE,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/WEAR INDICATOR HOLE 		1-47125-411-0 04 1 9501- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
LEADING 		1-47115-772-0 04 1 9002-9412 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47115-772-0 04 1 9501- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
TRAILING 		1-47115-815-0 04 1 9002-9412 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47115-815-0 04 1 9501- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-47115-956-0 04 1 9501- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-47115-962-0 04 1 9501- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/WEAR INDICATOR HOLE 		1-47125-412-0 04 1 9501- ● ●
4 LINING SET; FRT BRK,STANDARD
LEADING 		1-88302-923-0 01 1 9307-9412 ● ●
4 LINING SET; FRT BRK,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88302-923-0 01 1 9501- ● ●
4 LINING SET; FRT BRK,STANDARD
TRAILING 		1-88302-931-0 01 1 9307-9412 ● ●
4 LINING SET; FRT BRK,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88302-931-0 01 1 9501- ● ●
4 LINING SET; FRT BRK,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88310-051-0 01 1 9501- ● ●
4 LINING SET; FRT BRK,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-88310-053-0 01 1 9501- ● ●
5 LINING SET; FRT BRK,OVER SIZE
LEADING 		1-88302-924-0 01 1 9307-9412 ● ●
5 LINING SET; FRT BRK,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88302-924-0 01 1 9501- ● ●
5 LINING SET; FRT BRK,OVER SIZE
TRAILING 		1-88302-932-0 01 1 9307-9412 ● ●
5 LINING SET; FRT BRK,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88302-932-0 01 1 9501- ● ●
5 LINING SET; FRT BRK,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING 		1-88310-052-0 01 1 9501- ● ●
5 LINING SET; FRT BRK,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING 		1-88310-054-0 01 1 9501- ● ●
7 RIVET; LINING,FRT BRK
L=18.5 		1-09732-034-0 80 1 9002- ● ●
8 BUSHING; BRK SHOE 1-47112-011-0 04 1 9002- ● ●
9 PIN; SHOE HOLDER 1-09744-060-0 04 1 9002- ● ●
12 ROLLER; CAM,BRK SHOE 1-47113-007-0 04 1 9002- ● ●
13 CLIP; ROLLER PIN,BRK SHOE 9-47119-022-0 04 1 9002- ● ●
14 PIN; SHOE RETURN SPR
L=73.5 		1-47119-017-1 04 1 9002- ● ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-185-2 02 1 9002- ● ●
30 BRACKET; ANCHOR,FRT 1-47137-119-3 01 1 9002- ● ●
30 BRACKET; ANCHOR,FRT 1-47137-118-3 01 1 9002- ● ●
31 SEAL; OIL,CM/SHF 1-09625-228-0 02 1 9002- ● ●
43 PIN; ANCHOR
L=106.5 		1-47131-038-0 04 1 9002- ● ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		9-02041-016-0 02 1 9002-9204 ● ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20801-016-0 02 1 9205- ● ●
45 WASHER; LK 1-47133-007-0 02 1 9002-9109 ● ●
45 WASHER; LK 1-47133-011-0 02 1 9110- ● ●
46 PLATE; LOCK 1-47133-005-0 02 1 9002- ● ●
47 CAMSHAFT; FRT BRK 1-47141-052-0 01 1 9002- ● ●
47 CAMSHAFT; FRT BRK 1-47141-051-0 01 1 9002- ● ●
48 RING; SPACER,CM/SHF 1-47143-005-0 02 1 9002- ● ●
49 NIPPLE; GREASE,SLACK ADJ
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9002- ● ●
49 NIPPLE; GREASE,SLACK ADJ
PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9002- ● ●
50 RING; FELT,CM/SHF 1-09620-009-0 02 1 9002- ● ●
51 COLLAR; RING,CM/SHF 1-47143-003-0 02 1 9002- ● ●
52 BUSHING; SLACK ADJ 1-09330-041-0 02 1 9002- ● ●
53 ADJUSTER ASM; SLACK 1-48270-044-0 01 1 9002- ● ●
53 ADJUSTER ASM; SLACK 1-48270-043-0 01 1 9002- ● ●
54 SPACER; CM/SHF 1-47143-004-0 02 1 9002- ● ●
55 PLATE; STOPPER,CM/SHF 1-47149-021-0 02 1 9002- ● ●
56 CLIP; ANCHOR PIN 9-09180-038-0 02 1 9002- ● ●
57 NIPPLE; GREASE,ANCHOR BRKT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9002- ● ●
58 PIN; SPLIT,JAW JOINT
OD=3.7 L=28 		9-08114-028-0 02 1 9002- ● ●
59 WASHER; PL,JAW JOINT
ID=17 		9-09160-516-0 02 1 9002-9401 ● ●
59 WASHER; PL,JAW JOINT
ID=17 OD=32 		9-09160-616-0 02 1 9402- ● ●
60 JOINT; JAW,POWER CHAMBER 1-09768-060-0 02 1 9002- ● ●
61 PIN; JAW JOINT,POWER CHAMBER 1-09744-088-0 02 1 9002- ● ●
62 NUT; LK,JAW JOINT
M16 		9-99111-416-0 02 1 9002- ● ●
63 NUT; POWER CHAMBER
M16 		9-99110-416-0 04 1 9002- ● ●
64 WASHER; LK,POWER CHAMBER
ID=16.2 		9-09150-516-0 04 1 9002- ● ●
109 BUSHING; CM/SHF,FRT BRK 1-47146-003-1 04 1 9002- ● ●
